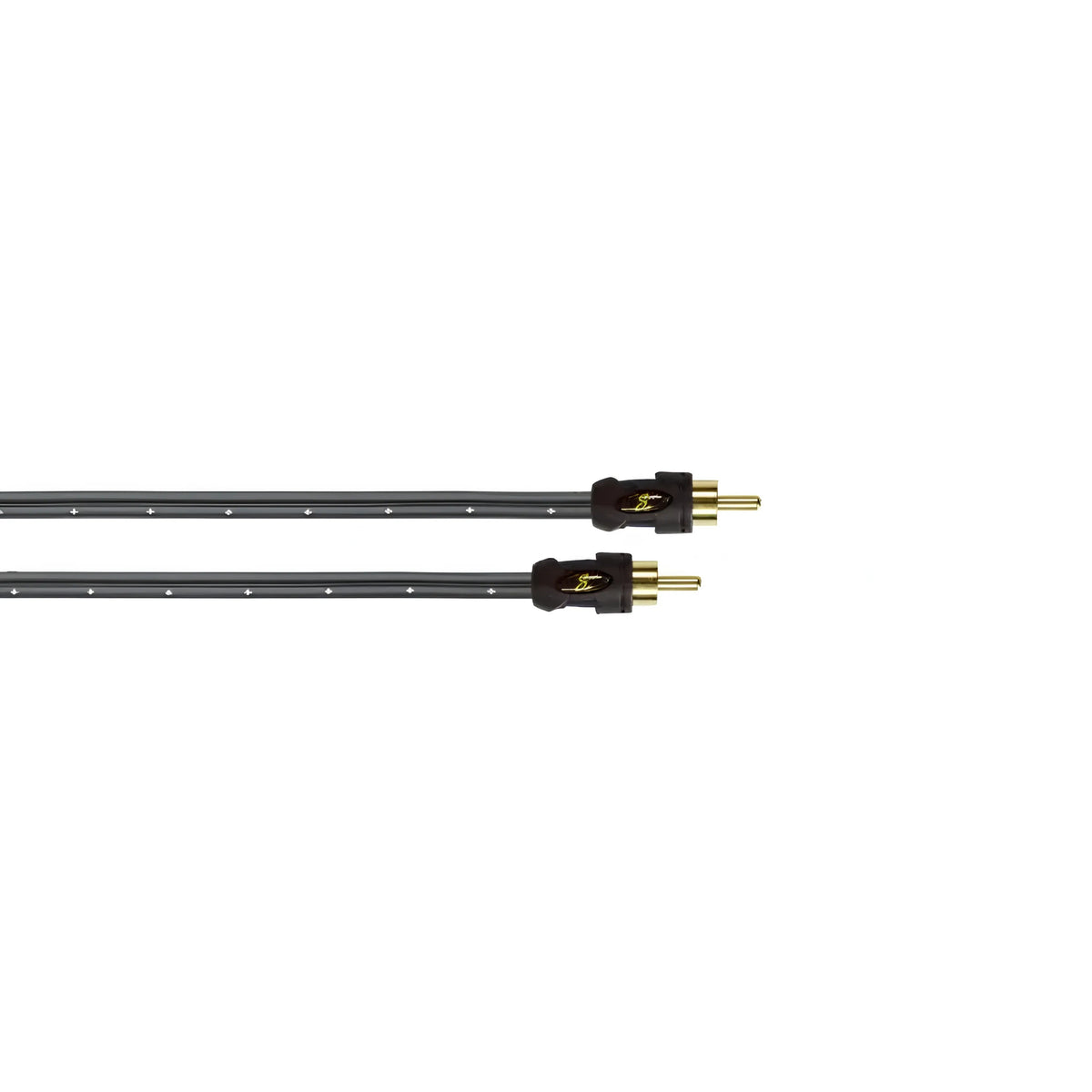

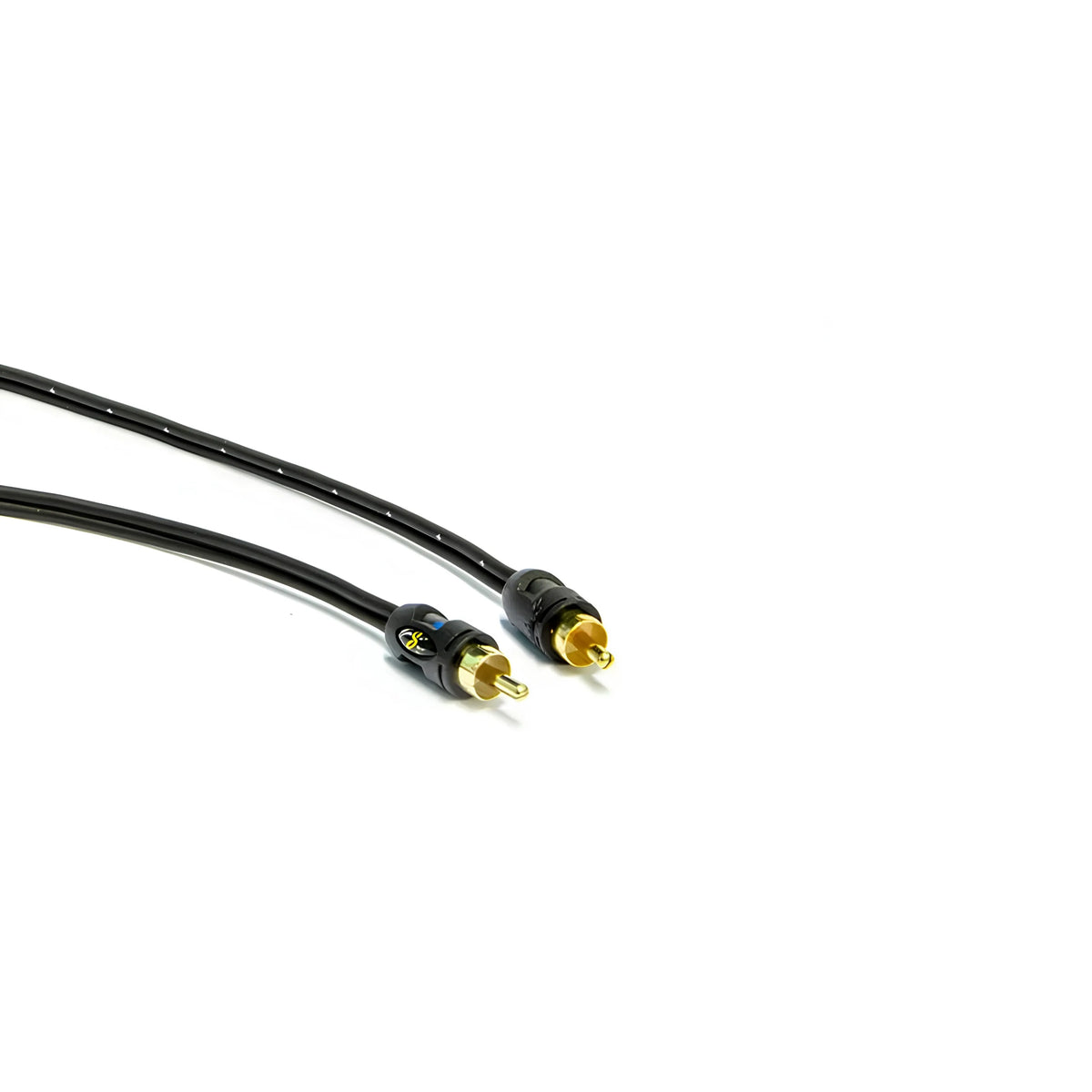

Stinger X12LINE X1 Series 2-Channel RCA to Speaker Wire Adapter

X1 Series 2-Channel Speaker Wire to RCA Adapter Connects OEM Head Unit Speaker Outputs to Amplifier RCA Inputs. Eliminates Line Output Converter on Compatible Amplifiers.

Product Overview

The Stinger X12LINE is a 2-channel RCA-to-speaker-wire adapter from the X1 Series designed for use with amplifiers that feature a balanced or differential-balanced input design. These amplifiers accept high-level speaker-level signals directly through their RCA input connections, removing the requirement for a standalone line output converter in compatible factory system integration scenarios.

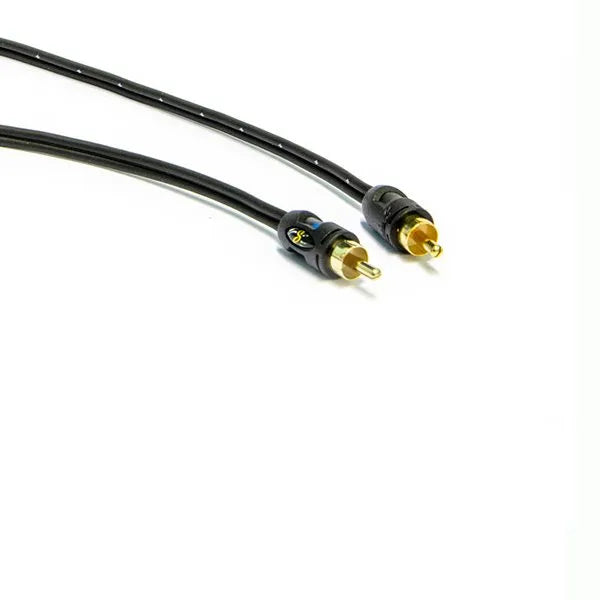

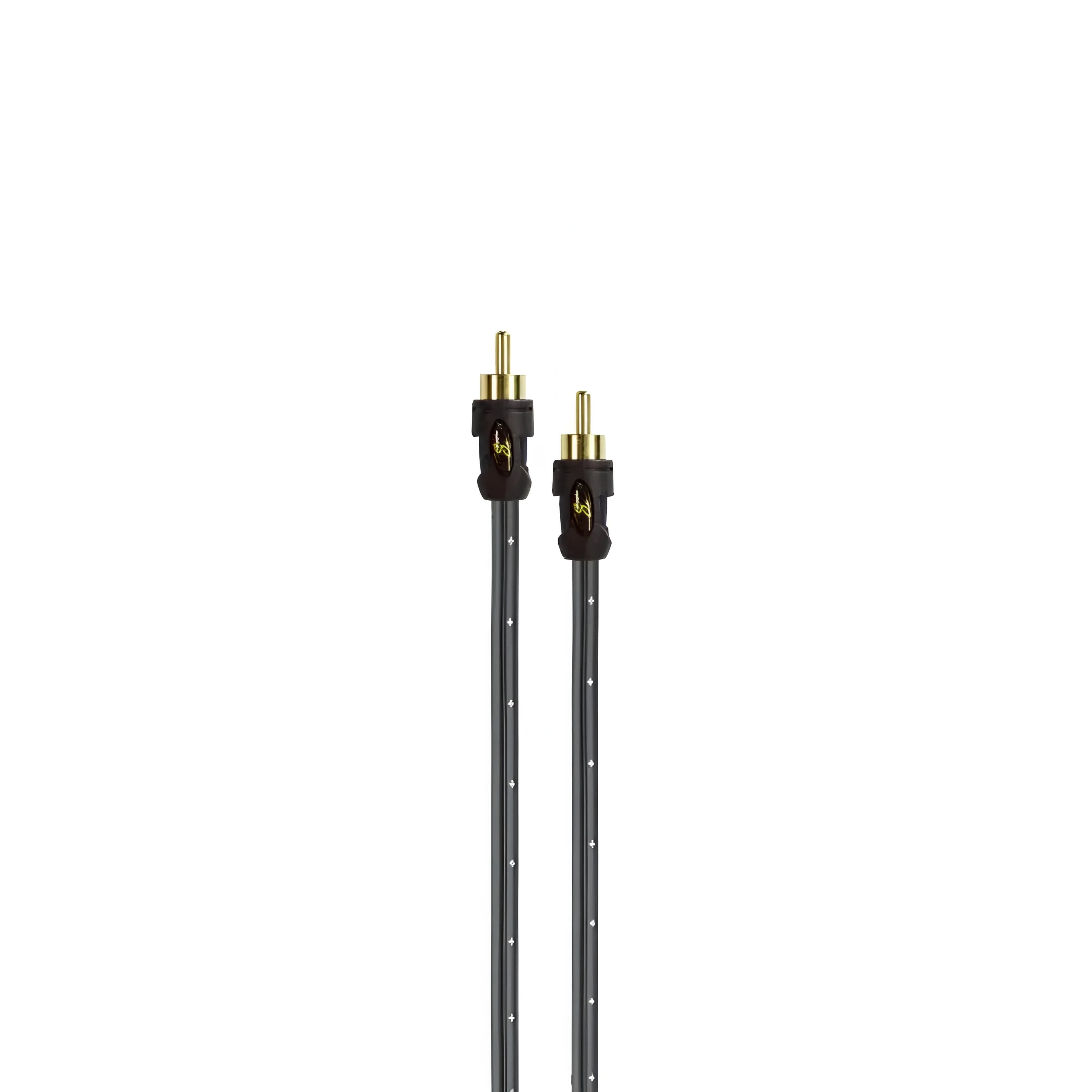

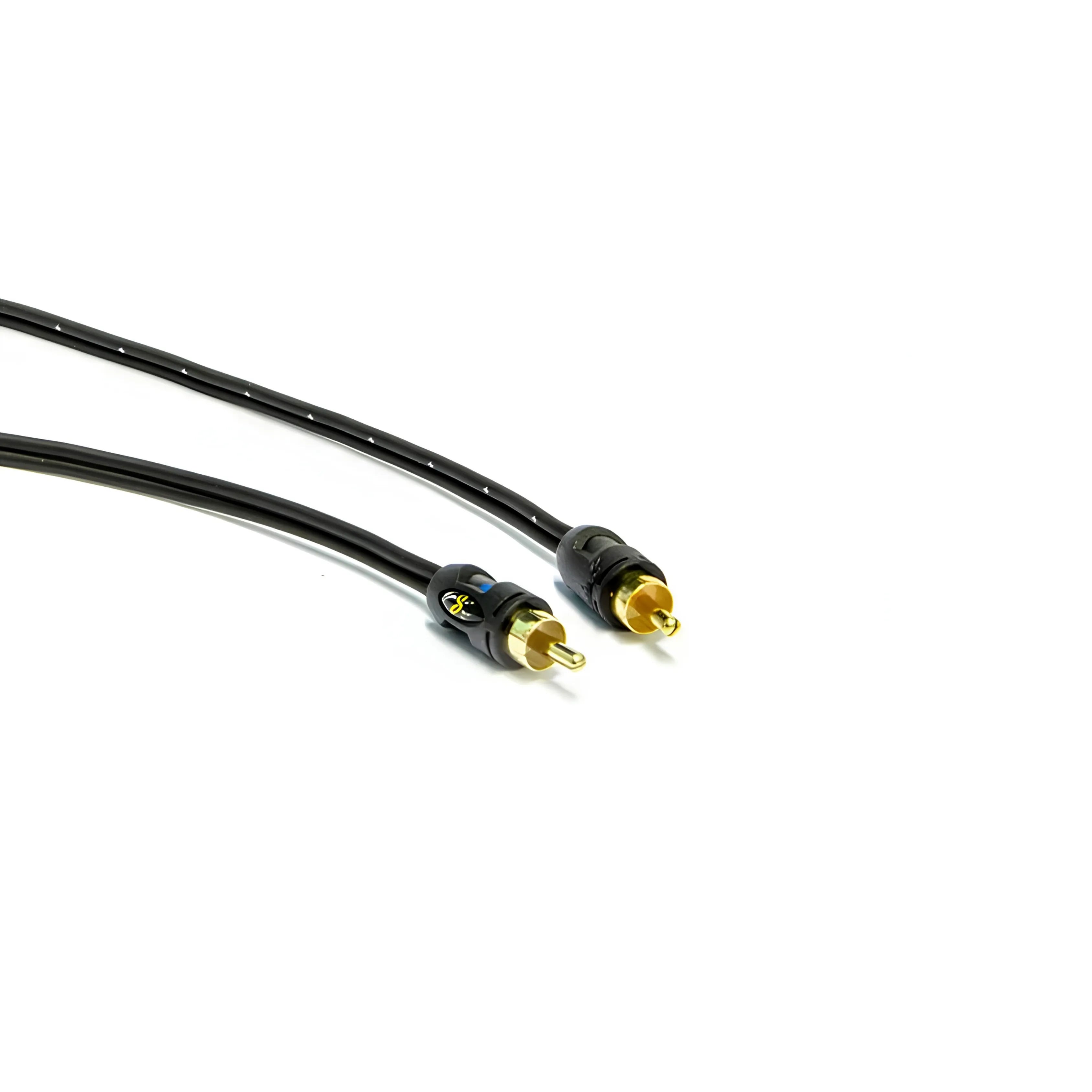

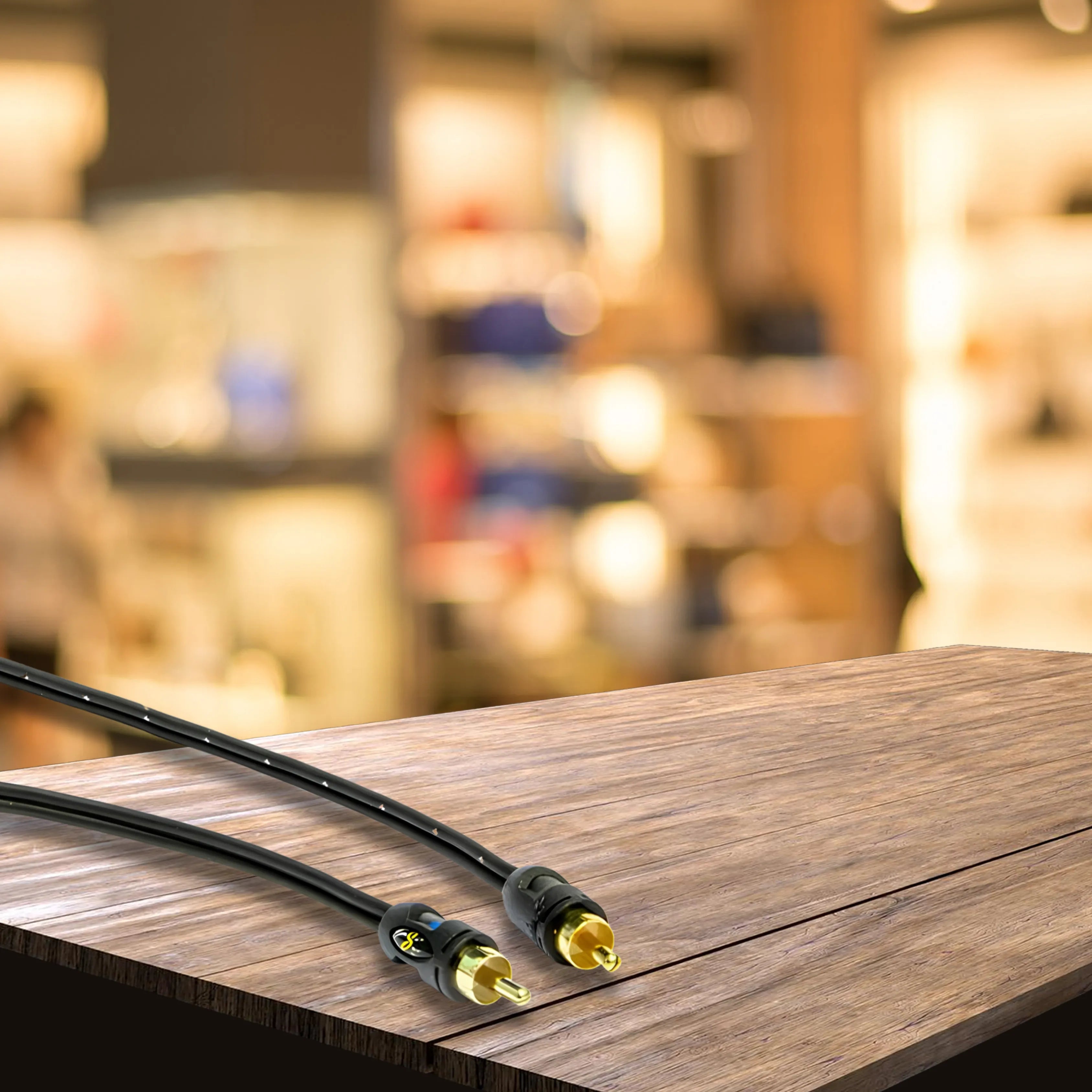

The X12LINE provides bare speaker wire leads at the source end for connection to the factory head unit's speaker output wiring, and 2-channel male RCA plugs at the amplifier end for direct connection to the amplifier's RCA inputs. Finished in black.

Key Specifications

• SKU: X12LINE
• Series: X1 Series
• Configuration: Male RCA plugs to bare speaker wire leads
• Channels: 2
• Colour: Black
• Compatible amplifiers: Balanced or differential-balanced RCA input design only
• Wire length: Not specified — confirm with Stinger
• Warranty: Not specified — confirm with Stinger

Features & Benefits

• Eliminates Line Output Converter on Compatible Amplifiers Amplifiers with balanced or differential-balanced input designs accept high-level speaker signals through their RCA inputs without damage. The X12LINE provides the physical connection needed to bridge the factory head unit's speaker outputs directly to these amplifier inputs — reducing component count, wiring complexity, and installation cost compared to a dedicated LOC module.
• RCA Male to Bare Speaker Wire Configuration The amplifier end terminates in 2-channel male RCA plugs for direct connection to the amplifier's RCA inputs. The source end terminates in bare speaker wire leads that splice into the factory head unit's existing speaker output wiring — no additional connectors or adapters required.
• 2-Channel — Front, Rear, or Subwoofer Routing The 2-channel output covers stereo front or rear speaker pair integration. In compatible configurations, the two channels can also route a summed mono subwoofer signal from the factory head unit's speaker outputs to a monoblock amplifier's RCA input — where the amplifier's internal summing combines the channels as required.
• Compact, Simplified Installation A single adapter replaces a standalone LOC module and its associated wiring in compatible installations — reducing the number of components behind the dash and simplifying the integration of an aftermarket amplifier with a factory head unit.

Technical Specs

Compatible With / Goes Well With

Suitable for:

• Amplifiers with balanced or differential-balanced input designs that explicitly support high-level input via RCA connections
• OEM factory head unit integration without a standalone line output converter
• Stereo front or rear speaker pair signal routing
• Mono subwoofer signal routing from factory speaker outputs to a compatible monoblock amplifier

Compatible amplifier ranges (confirm high-level RCA input capability before purchasing):

• Rockford Fosgate amplifiers with confirmed high-level RCA input support
• AudioControl amplifiers with confirmed high-level RCA input support
• Other brands that list high-level RCA input capability in their specifications

Amplifier compatibility is the critical check: The X12LINE will only work correctly with amplifiers that explicitly list high-level or speaker-level input as a supported function through the RCA connections. If the amplifier's specifications do not confirm this, a dedicated line output converter such as the Rockford Fosgate RF-HLC or RF-HLC4 is required instead.

Frequently Asked Questions

Can the X12LINE be used with any amplifier?

No — the X12LINE is designed specifically for amplifiers with balanced or differential-balanced input designs that explicitly support high-level speaker-level signals through their RCA connections. Using this adapter with a standard amplifier that does not support high-level RCA input can damage the amplifier's input stage.

What is a balanced or differential-balanced amplifier input, and why does it matter?

A balanced or differential-balanced input processes the positive and negative signals independently, using the difference between them to reconstruct the audio signal and cancel common-mode noise. This architecture allows the input to accept the higher voltage levels from speaker outputs without damage, while simultaneously rejecting noise introduced by the high-level source connection.

Does the X12LINE replace a line output converter entirely?

In compatible installations — yes. When the amplifier supports high-level input through its RCA connections, the X12LINE provides the adapter needed to connect the factory speaker wire directly to the amplifier RCA inputs. If the amplifier does not support high-level RCA input, a dedicated line output converter is still required.

How do I connect the speaker wire end of the X12LINE to the factory wiring?

The bare speaker wire leads splice into the factory head unit's speaker output wiring — positive wire to each channel's positive speaker output, negative wire to each channel's negative. Refer to the vehicle's wiring diagram or the head unit's installation manual to identify the correct speaker output wires.

Is the X12LINE suitable for subwoofer signal routing from a factory head unit?

Yes, in compatible configurations. The 2-channel output can route a summed mono subwoofer signal from the factory head unit's speaker outputs to a monoblock amplifier's RCA input, provided the amplifier supports high-level RCA input. The amplifier's internal summing or mono input configuration combines the two channels as required.
