Stinger TCTOY3KIT Trailer Camera Kit 3 To Suit Toyota

Reverse Any Trailer, Caravan or Float With Ease Wireless Camera Kit for Newer Toyotas With 24-Pin Connector

Product Overview

The Stinger TCTOY3KIT is a wireless trailer camera kit designed for select Toyota vehicles fitted with a 24-pin Toyota camera connector at the back of the factory radio. It allows effortless reversing when towing a caravan, horse float, or trailer of any size without running video cabling through or along the rig.

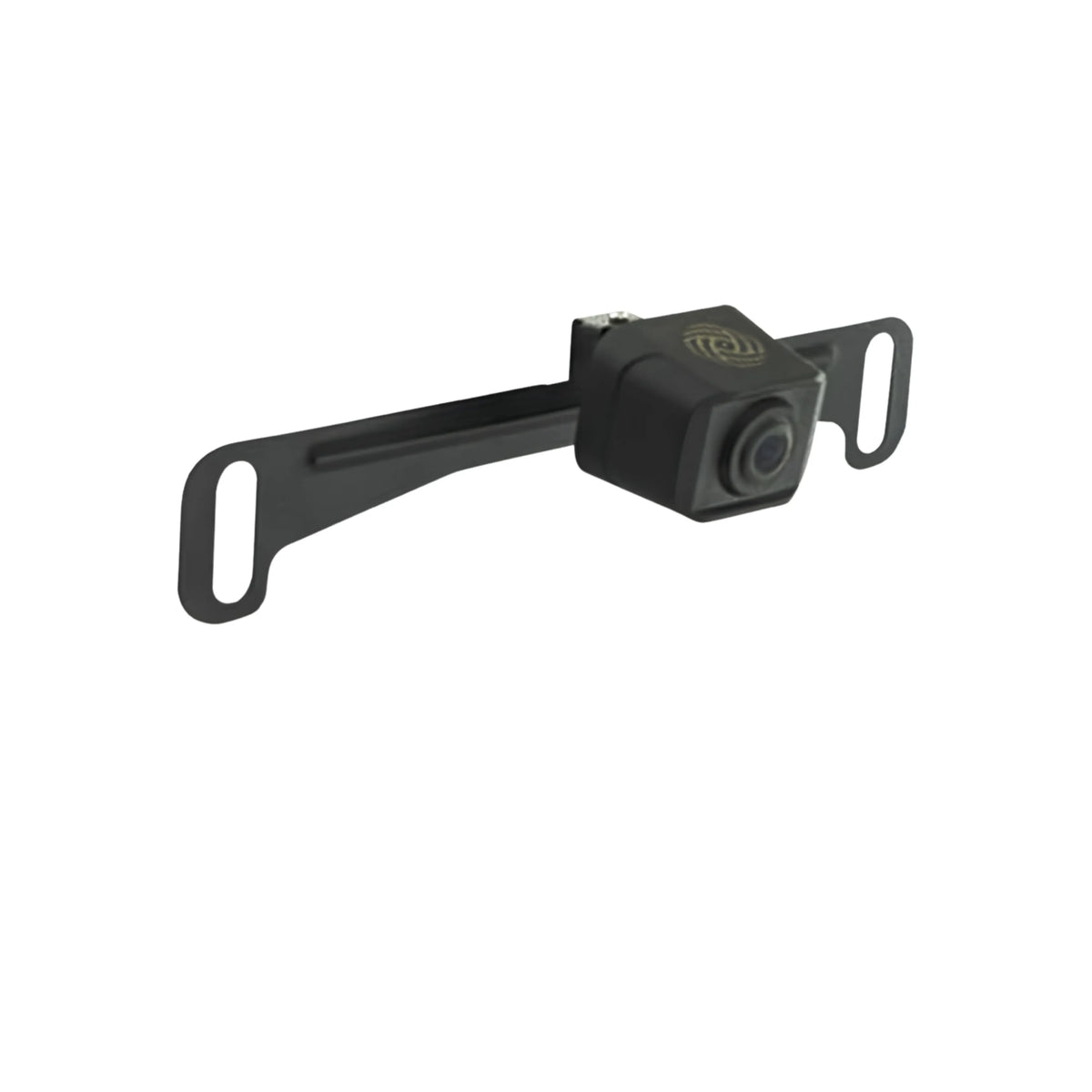

The Echomaster PCAM-WLP wireless camera transmits video up to 45 metres (without obstacles) to a receiver installed behind the dashboard, powered directly from the trailer's reverse lights. When the trailer is connected and reverse is engaged, the trailer camera automatically overrides the factory OEM reverse camera. When the trailer is disconnected, the factory camera resumes normal operation. Where no factory camera is fitted, an aftermarket reverse camera can be integrated using this kit.

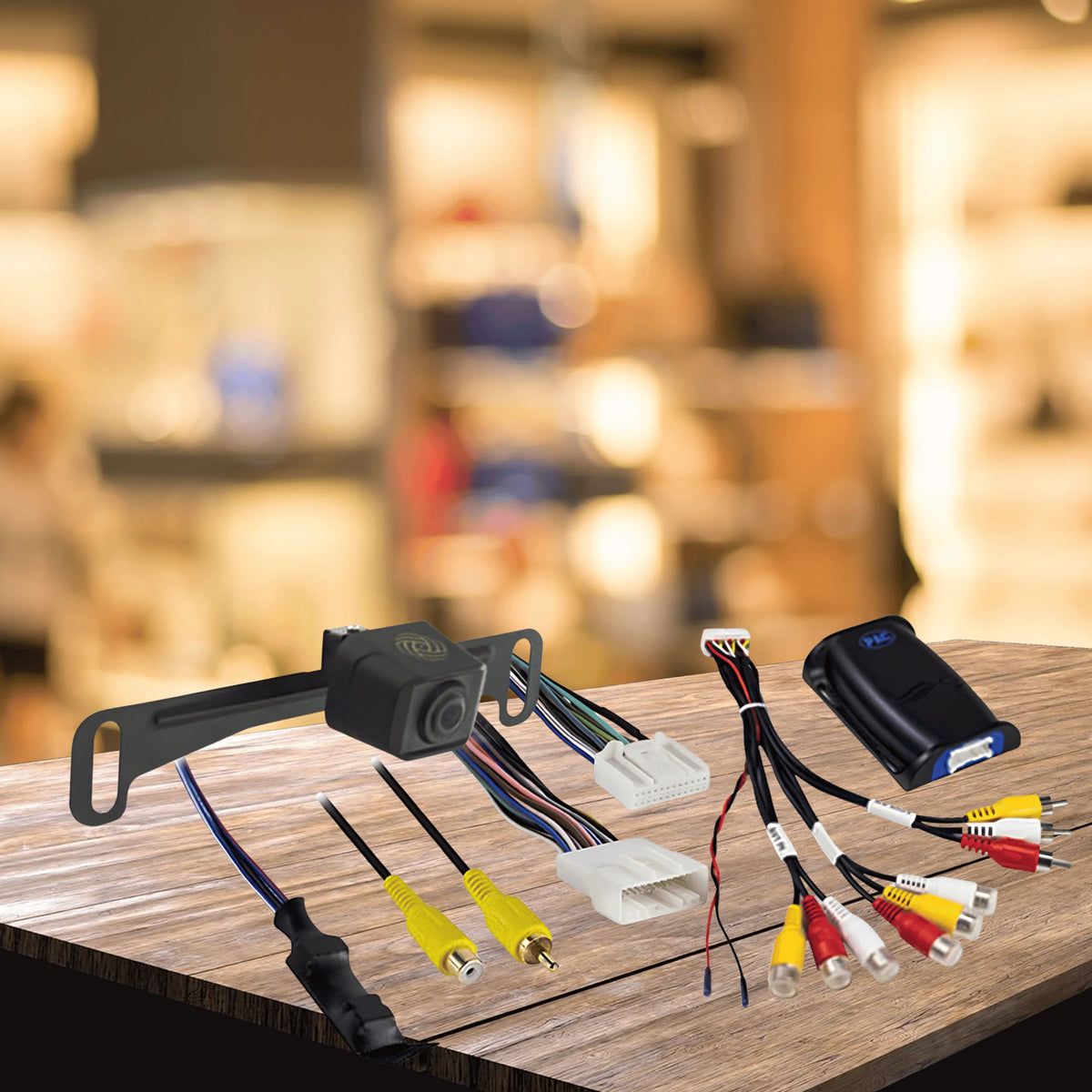

The bundle includes the PCAM-WLP wireless camera, PAC PACAVS-21 audio/video switching unit, and the vehicle-specific Toyota 24-pin harness (AXBUCH-T36V). Compatible vehicles include the Aurion, Camry, Corolla Hatch, Corolla Sedan, Fortuner, HiLux, Kluger, LandCruiser 200 Series, LandCruiser Prado 150 Series, and RAV4 spanning 2012 to 2023 across 14 model/chassis combinations.

Key Specifications

• Manufacturer Part Number: TCTOY3KIT
• Function: Wireless trailer/caravan reverse camera kit
• Wireless camera: Echomaster PCAM-WLP
• Wireless range: Up to 45 metres (without obstacles)
• Wireless frequency: 2.4GHz with digital encryption
• Camera viewing angle: 140°
• Camera IP rating: IP67 (water and debris proof)
• Camera minimum illumination: 0.1 LUX
• Camera power supply: PWM — safe for CAN-controlled tail lights
• Camera operating temperature: -20°C to +65°C
• Vehicle connector: 24-pin Toyota camera connector at back of factory radio
• Parking lines: No
• Factory reverse camera retention: Yes — overridden when trailer connected; resumes when disconnected
• Aftermarket camera fitment: Supported — if no factory camera fitted
• Mounting brackets: Included
• Plug & Play: Factory connector to bare wires — some wiring required

Features & Benefits

• 45-Metre Wireless Range — The PCAM-WLP transmits video wirelessly up to 45 metres, eliminating the need to run cabling through caravans, horse floats, or trailers.
• 2.4GHz Digital Encrypted Wireless — Digital encryption on the 2.4GHz wireless link provides a stable, secure video signal.
• IP67 Waterproof Camera — Full IP67 rating makes the wireless camera suitable for trailer mounting in all weather conditions — rain, dust, mud, and debris.
• PWM Power Supply — CAN Bus Safe — The PCAM-WLP uses a PWM power supply, making it safe for use on modern Toyota vehicles with CAN-controlled tail light circuits.
• Factory Camera Retained — Where fitted, the factory OEM reverse camera is retained. The trailer camera automatically takes priority when the trailer is connected — the factory camera resumes when the trailer is removed.
• 140° Wide Viewing Angle — A broad 140° field of view covers the full width of a trailer or caravan when reversing.
• Vehicle-Specific 24-Pin Harness — The AXBUCH-T36V vehicle harness is included, providing a matched connection to the Toyota's factory 24-pin camera connector.
• PAC AV Switching Unit — The PACAVS-21 manages input switching between factory and trailer cameras automatically.
• Broad Newer Toyota Coverage — 14 model/chassis combinations covering newer Toyota models from 2012 to 2023, including the N80 HiLux, GX50 Kluger, AN150/160 Fortuner, and LandCruiser 200 Series.

Technical Specs

Compatible With / Goes Well With

• Toyota Aurion XV50 2015–2017
• Toyota Camry XV50 2012–2017
• Toyota Corolla Hatch E180 2013–2015
• Toyota Corolla Hatch E180/E200 2015–2018
• Toyota Corolla Sedan E170 2014–2016
• Toyota Corolla Sedan E170 2017–2018
• Toyota Fortuner AN150/AN160 2015–2019
• Toyota HiLux AN120/AN130 2015–2020
• Toyota Kluger XU50 2014–2019
• Toyota LandCruiser 200 Series 2013–2015
• Toyota LandCruiser 200 Series 2016–2021
• Toyota LandCruiser Prado 150 Series 2013–2017
• Toyota LandCruiser Prado 150 Series 2017–2023
• Toyota RAV4 XA40 2014–2018

Caution: This kit uses the 24-pin Toyota camera connector located at the back of the factory radio — confirm your vehicle has this connector before purchase. The kit connects factory connector to bare wires and requires some wiring — it is not fully plug-and-play. Parking guidelines are not provided on the trailer camera image.

Frequently Asked Questions

Does the trailer camera replace my factory reverse camera permanently?

No — when the trailer is connected and reverse is engaged, the trailer camera overrides the factory camera. When the trailer is disconnected, the factory OEM reverse camera resumes normal operation automatically.

Do I need to run a cable through my caravan or trailer?

No — the PCAM-WLP transmits wirelessly up to 45 metres. The camera is powered by the trailer's reverse lights and transmits to a receiver installed behind the dashboard with no video cable routed through the trailer.

Is the wireless camera safe for vehicles with CAN-controlled tail lights?

Yes — the PCAM-WLP uses a PWM power supply specifically designed to be safe for use on vehicles with CAN-controlled tail light circuits, which are common on newer Toyota models.

How do I confirm this kit suits my Toyota?

This kit requires a 24-pin Toyota camera connector at the back of the factory radio. Confirm your vehicle's factory camera connector type and location before purchase. The compatible model list above includes confirmed chassis codes and year ranges.

Will this kit show parking guidelines on the trailer camera image?

No — parking lines are not provided on the trailer camera feed. The PCAM-WLP displays a raw camera view without overlay guidelines.
