Stinger TCTOY2KIT Trailer Camera Kit 2 To Suit Toyota

Stinger TCTOY2KIT Wireless Trailer Camera Kit for Toyota Aurion, Estima, Kluger and Tundra with Factory Camera Retention

The Stinger TCTOY2KIT is a wireless trailer camera kit designed for select Toyota vehicles fitted with a 24-pin Toyota camera connector, making it straightforward to reverse when towing a caravan, horse float, or trailer without running video cabling through the rig. The Echomaster PCAM-WLP wireless camera transmits video up to 45 metres at 2.4GHz with digital encryption. The kit includes the PCAM-WLP wireless camera, PAC PACAVS-21 AV switching unit, and the AXBUCH-T26V vehicle-specific Toyota 24-pin harness.

Product overview

The TCTOY2KIT uses the Echomaster PCAM-WLP wireless camera to transmit live trailer video directly to a receiver installed behind the dashboard, with no video cable required through the caravan, float, or trailer. The camera connects to the trailer's reverse lights for power. When the trailer is connected and reverse is engaged, the trailer camera overrides the factory OEM reverse camera. When the trailer is disconnected, the factory camera resumes normal operation automatically.

The PCAM-WLP uses a PWM power supply, making it safe for use on Toyota vehicles with CAN-controlled tail light circuits. The PAC PACAVS-21 AV switching unit manages input switching between the factory camera and trailer camera automatically. The included AXBUCH-T26V vehicle harness connects to the Toyota factory 24-pin camera connector. Note that the AXBUCH-T26V harness in the TCTOY2KIT is different from the AXBUCH-T36V harness in the TCTOY3KIT, so confirm the correct kit for your specific vehicle model before purchasing.

If no factory camera is fitted, an aftermarket reverse camera can be integrated using this kit. Parking guidelines are not provided on the trailer camera image. The kit connects factory connector to bare wires and requires some wiring, so it is not fully plug-and-play.

Features and benefits

45-metre wireless range: The PCAM-WLP transmits video wirelessly up to 45 metres without obstacles, eliminating the need to run cabling through caravans, horse floats, or trailers.

2.4GHz digital encrypted wireless: Digital encryption on the 2.4GHz wireless link provides a stable and secure video signal without interference from other wireless devices.

IP67 waterproof camera: Full IP67 rating makes the wireless camera suited to trailer mounting in all weather conditions including rain, dust, mud, and debris.

PWM power supply, CAN-bus safe: The PCAM-WLP uses a PWM power supply specifically designed for vehicles with CAN-controlled tail light circuits, preventing issues that conventional accessory connections can cause on modern Toyota vehicles.

Factory camera retention: Where the Toyota is fitted with a factory OEM reverse camera, it is retained by the kit. The trailer camera automatically takes priority when the trailer is connected and reverse is engaged, and the factory camera resumes when the trailer is removed.

140-degree wide viewing angle: A broad 140-degree field of view covers the full width of a trailer or caravan, reducing blind spots when reversing.

Vehicle-specific 24-pin Toyota harness: The AXBUCH-T26V vehicle harness provides a matched connection to the Toyota factory 24-pin camera connector across the compatible vehicle range.

PAC PACAVS-21 AV switching unit: The included PAC AV switching unit manages input switching between the factory camera and trailer camera, enabling automatic override when the trailer is connected and reverse is engaged.

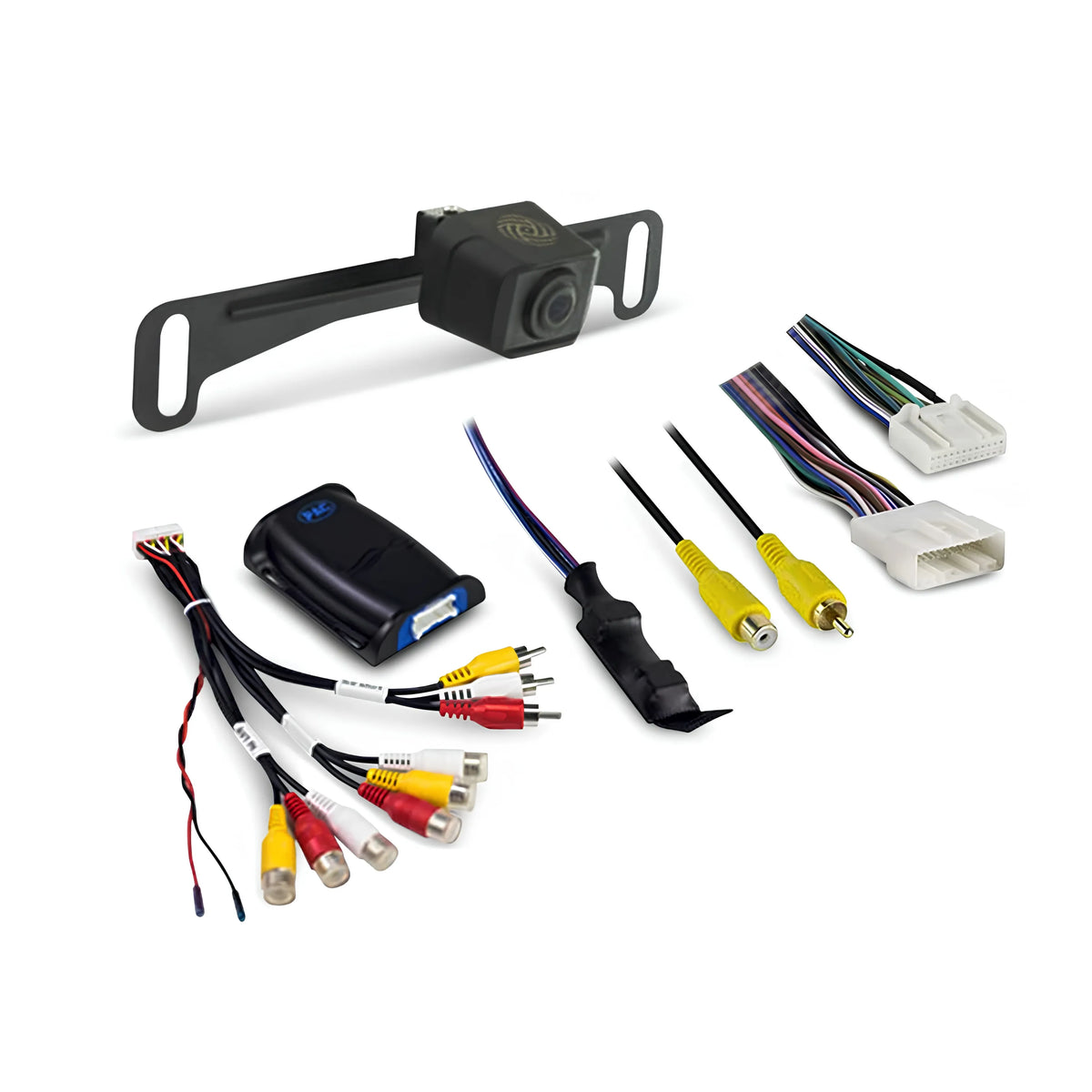

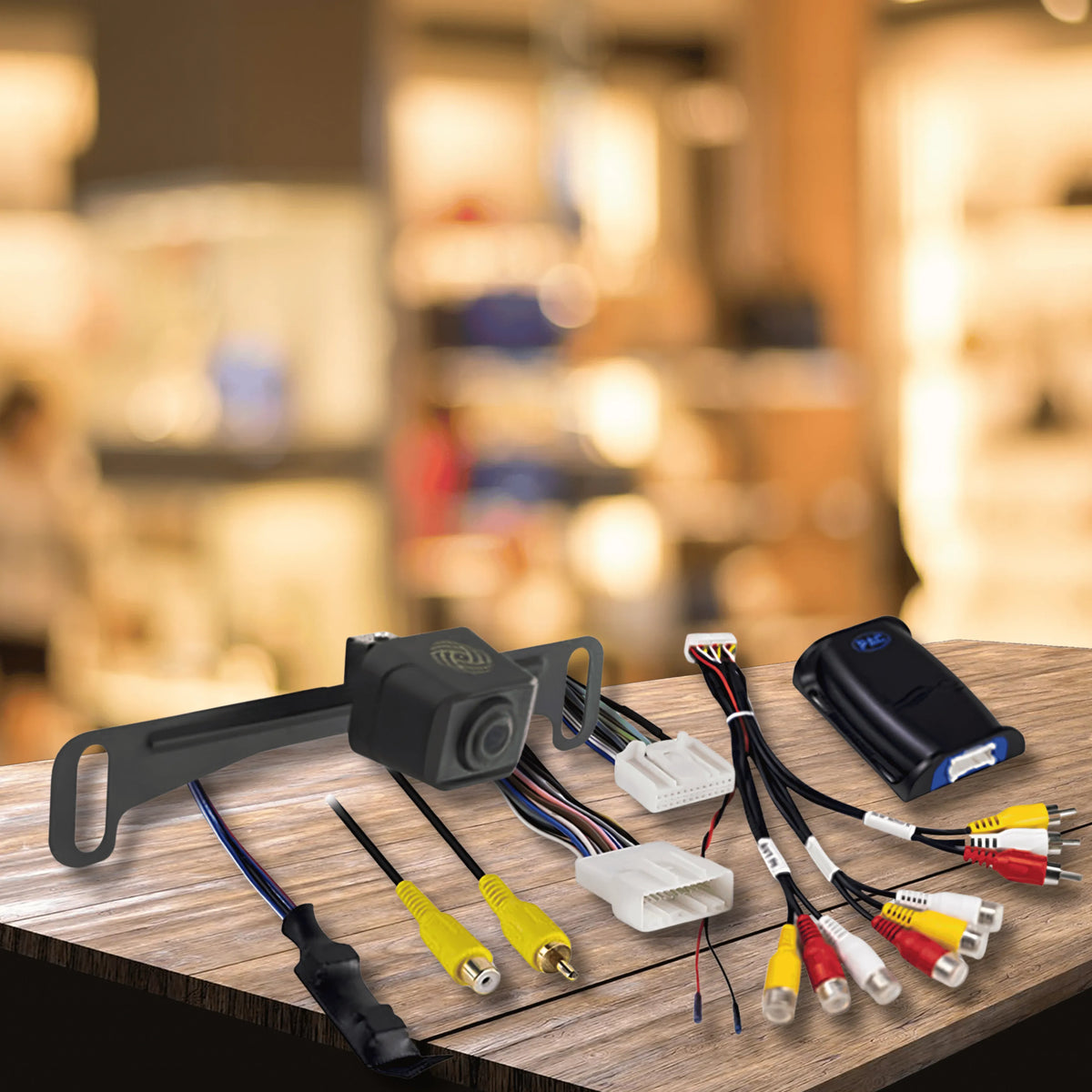

What's in the box

• 1 x Echomaster PCAM-WLP wireless camera
• 1 x PAC PACAVS-21 AV switching unit
• 1 x AXBUCH-T26V Toyota 24-pin vehicle harness
• Mounting brackets

Technical specs

Compatible with

The Stinger TCTOY2KIT is confirmed for the following Toyota models fitted with a factory 24-pin Toyota camera connector:

This kit uses the 24-pin Toyota style connector (AXBUCH-T26V harness), which is different from the 24-pin harness (AXBUCH-T36V) used in the TCTOY3KIT. Confirm the correct kit for your specific vehicle model before purchasing. Parking guidelines are not provided on the trailer camera image.

Frequently asked questions

Does the trailer camera replace my factory reverse camera permanently?
No. The trailer camera overrides the factory camera when the trailer is connected and reverse is engaged. When the trailer is disconnected, the factory OEM reverse camera resumes normal operation automatically.

Do I need to run a cable through my caravan or trailer?
No. The PCAM-WLP transmits wirelessly up to 45 metres. The camera is powered by the trailer's reverse lights and transmits to a receiver installed behind the dashboard, so no video cable needs to be routed through the trailer.

What is the difference between the TCTOY2KIT and the TCTOY3KIT?
Both kits use a 24-pin Toyota connector but with different harnesses. The TCTOY2KIT uses the AXBUCH-T26V and suits the Aurion XV40, Estima, Kluger XU40, and Tundra XK50. The TCTOY3KIT uses the AXBUCH-T36V and covers newer models including the N80 HiLux, XU50 Kluger, Fortuner, and LandCruiser 200 and Prado 150 Series from 2012 onwards. Always confirm the correct kit for your specific vehicle model, year, and chassis code.

Is the wireless camera safe for CAN-controlled tail lights?
Yes. The PCAM-WLP uses a PWM power supply designed for safe use on vehicles with CAN-controlled tail light circuits, which are common on modern Toyota models.

Will this kit show parking guidelines on the trailer camera image?
No. Parking lines are not provided on the trailer camera feed. The PCAM-WLP displays a raw camera view without overlay guidelines.
