Stinger TCTOY1KIT 16Pin Trailer Camera Kit 1 To Suit Toyota

Tow With Confidence Across a Wide Range of Toyotas Wireless 16-Pin Trailer Camera Kit, No Cabling Required

Product Overview

The Stinger TCTOY1KIT is a wireless trailer camera kit designed for a broad range of Toyota vehicles fitted with a 16-pin Toyota camera connector, covering 22 Toyota model/chassis combinations and the Subaru Forester SJ (2013–2014) which shares the same connector. It makes reversing when towing a caravan, horse float, or trailer straightforward without running any video cable through the rig.

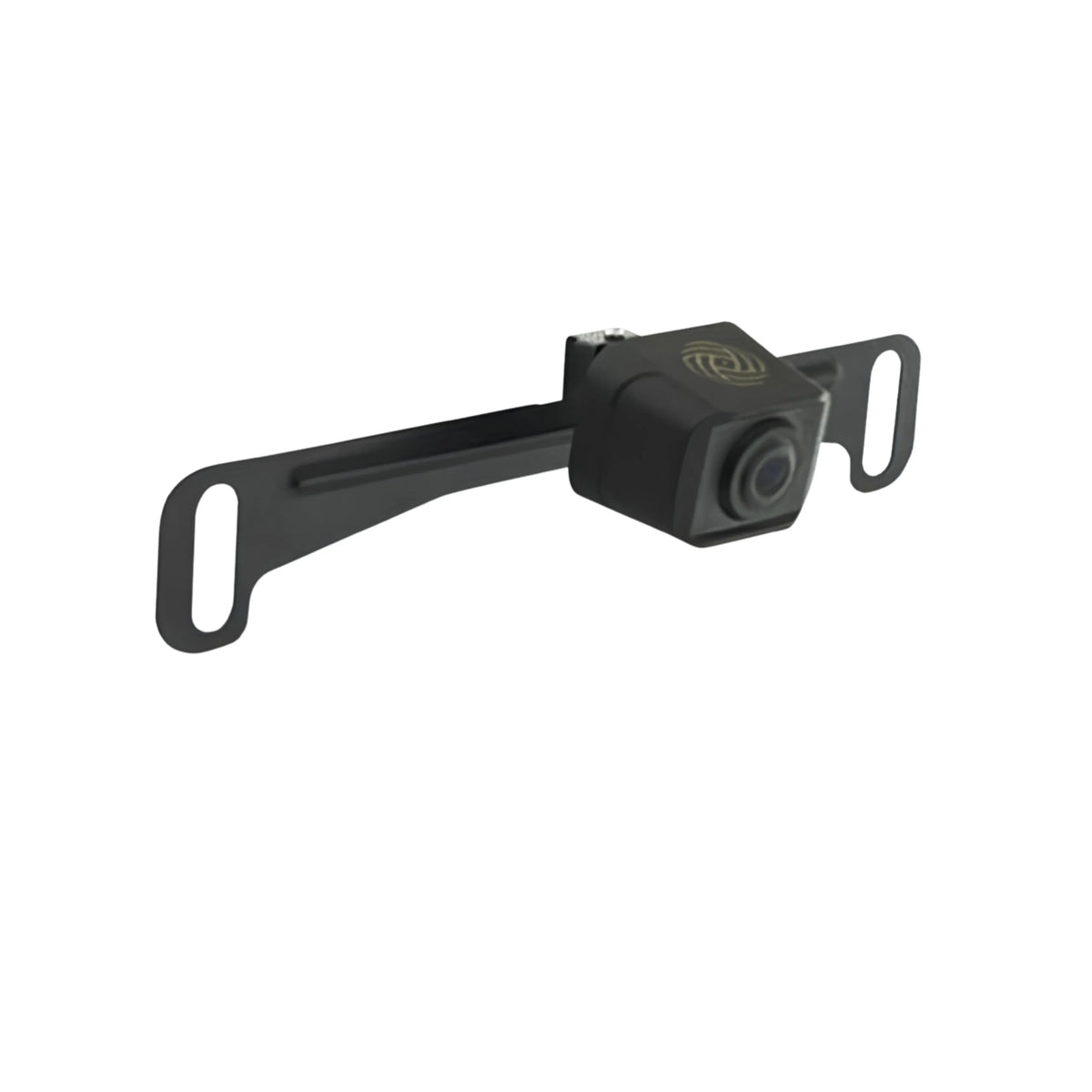

The Echomaster PCAM-WLP wireless camera transmits video up to 45 metres (without obstacles) to a receiver installed behind the dashboard, powered directly from the trailer's reverse lights. When the trailer is connected and reverse is engaged, the trailer camera automatically overrides the factory OEM reverse camera. When the trailer is disconnected, the factory camera resumes normal operation. Where no factory camera is fitted, an aftermarket reverse camera can be integrated using this kit.

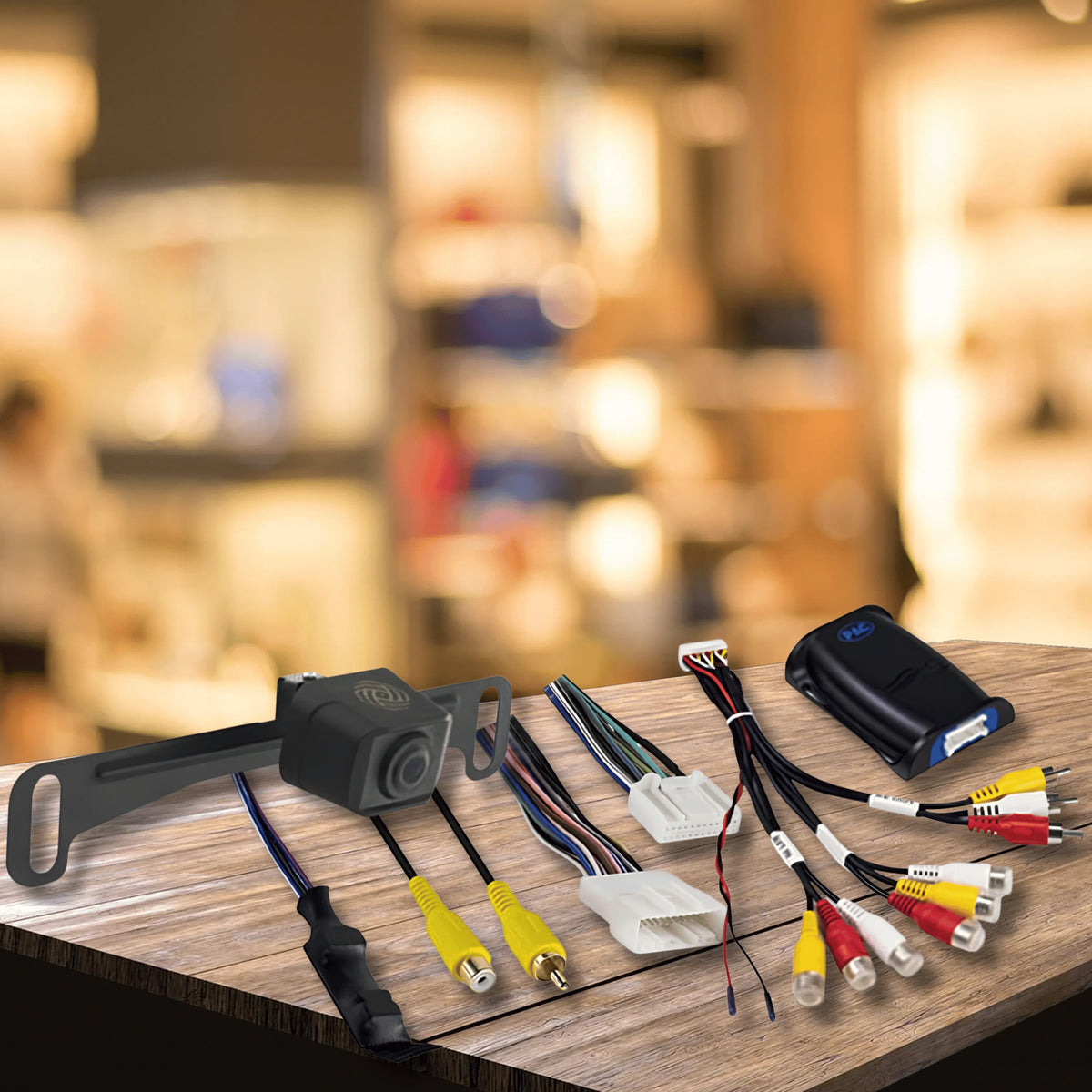

The bundle includes the PCAM-WLP wireless camera, PAC PACAVS-21 audio/video switching unit, and the vehicle-specific Toyota 16-pin harness (AXBUCH-T16V). Note: this kit is not fully plug-and-play the factory connector terminates in bare wires and some wiring is required.

Key Specifications

• Manufacturer Part Number: TCTOY1KIT
• Function: Wireless trailer/caravan reverse camera kit
• Wireless camera: Echomaster PCAM-WLP
• Wireless range: Up to 45 metres (without obstacles)
• Wireless frequency: 2.4GHz with digital encryption
• Camera viewing angle: 140°
• Camera IP rating: IP67 (water and debris proof)
• Camera minimum illumination: 0.1 LUX
• Camera power supply: PWM — safe for CAN-controlled tail lights
• Camera operating temperature: -20°C to +65°C
• Vehicle connector: 16-pin Toyota style connector
• Parking lines: No
• Factory reverse camera retention: Yes — overridden when trailer connected; resumes when disconnected
• Aftermarket camera fitment: Supported — if no factory camera fitted
• Mounting brackets: Included
• Plug & Play: Factory connector to bare wires — some wiring required

Features & Benefits

• 45-Metre Wireless Range — The PCAM-WLP transmits video wirelessly up to 45 metres, eliminating the need to run cabling through caravans, horse floats, or trailers.
• 2.4GHz Digital Encrypted Wireless — Digital encryption on the 2.4GHz wireless link provides a stable, secure video signal.
• IP67 Waterproof Camera — Full IP67 rating makes the wireless camera suitable for trailer mounting in all weather conditions — rain, dust, mud, and debris.
• PWM Power Supply — CAN Bus Safe — The PCAM-WLP uses a PWM power supply, making it safe for use on modern Toyota vehicles with CAN-controlled tail light circuits.
• Factory Camera Retained — Where fitted, the factory OEM reverse camera is retained. The trailer camera automatically takes priority when the trailer is connected and reverts when removed.
• 140° Wide Viewing Angle — A broad 140° field of view covers the full width of a trailer or caravan when reversing.
• Vehicle-Specific 16-Pin Harness — The AXBUCH-T16V harness is included, matched to the 16-pin Toyota connector used across the compatible range.
• PAC AV Switching Unit — The PACAVS-21 manages automatic input switching between factory and trailer cameras.
• Broad Compatibility — 23 model/chassis combinations across 22 Toyota models and the Subaru Forester SJ, covering a wide range of vehicles from 2002 to 2020.

Technical Specs

Compatible With / Goes Well With

• Subaru Forester SJ 2013–2014
• Toyota 86 GSE/ZN6 2012–2017 (pre-facelift)
• Toyota 86 GSE/ZN6 2017–2020 (post-facelift)
• Toyota Aurion XV40 2006–2011
• Toyota Aurion XV50 2012–2015
• Toyota Camry XV40 2007–2011
• Toyota Camry XV50 2012–2017
• Toyota Corolla E120 2009–2012
• Toyota Corolla Hatch E180 2013–2015
• Toyota FJ Cruiser GSJ10 2010–2016
• Toyota HiAce H200 2005–2019
• Toyota HiLux AN10/AN20/AN30 2013–2015
• Toyota LandCruiser Prado 120 Series 2002–2009
• Toyota LandCruiser Prado 150 Series 2009–2013 — without factory navigation only
• Toyota Prius XW20 2004–2009
• Toyota Prius XW30 2010–2015
• Toyota Prius C XP130 2012–2018
• Toyota Prius V ZVW40/ZVW41 2015–2019
• Toyota RAV4 XA40 2012–2013
• Toyota Rukus E150 2010–2014
• Toyota Tarago XR50 2005–2017
• Toyota Tundra XK50 2007–2013
• Toyota Yaris XP90 2012–2014

Caution: This kit uses the 16-pin Toyota style connector — confirm your vehicle has this connector before purchase. The LandCruiser Prado 150 Series is compatible with non-navigation models only (2009–2013). The kit connects factory connector to bare wires and requires some wiring — it is not fully plug-and-play. Parking guidelines are not provided on the trailer camera image. The Subaru Forester SJ (2013–2014) is listed as compatible due to shared connector type — confirm fitment with the supplier before purchase.

Frequently Asked Questions

Does the trailer camera replace my factory reverse camera permanently?

No — the trailer camera overrides the factory camera when the trailer is connected and reverse is engaged. When the trailer is disconnected, the factory OEM reverse camera resumes normal operation automatically.

Do I need to run a cable through my caravan or trailer?

No — the PCAM-WLP transmits wirelessly up to 45 metres. The camera is powered by the trailer's reverse lights and transmits to a receiver installed behind the dashboard with no video cable routed through the trailer.

Is this kit compatible with the Subaru Forester?

The Subaru Forester SJ 2013–2014 is listed as compatible by the supplier, as it uses the same 16-pin connector. Confirm fitment with the supplier before purchase if the Forester is your vehicle.

Does the LandCruiser Prado 150 Series need to be non-navigation?

Yes — the TCTOY1KIT is compatible with the LandCruiser Prado 150 Series (2009–2013) in non-navigation models only. Navigation-equipped 150 Series Prado models are not supported.

Will this kit show parking guidelines on the trailer camera image?

No — parking lines are not provided on the trailer camera feed. The PCAM-WLP displays a raw camera view without overlay guidelines.
