Stinger TCMITSUKIT Trailer Camera Kit To Suit Mitsubishi

Tow With Confidence in Your Mitsubishi Wireless Trailer Camera Kit, No Cables, Factory Camera Kept

Product Overview

The Stinger TCMITSUKIT is a wireless trailer camera kit designed for select Mitsubishi vehicles fitted with an 8-pin Mitsubishi camera connector at the back of the factory radio. It makes reversing a caravan, horse float, or trailer straightforward without running video cabling through or along the rig.

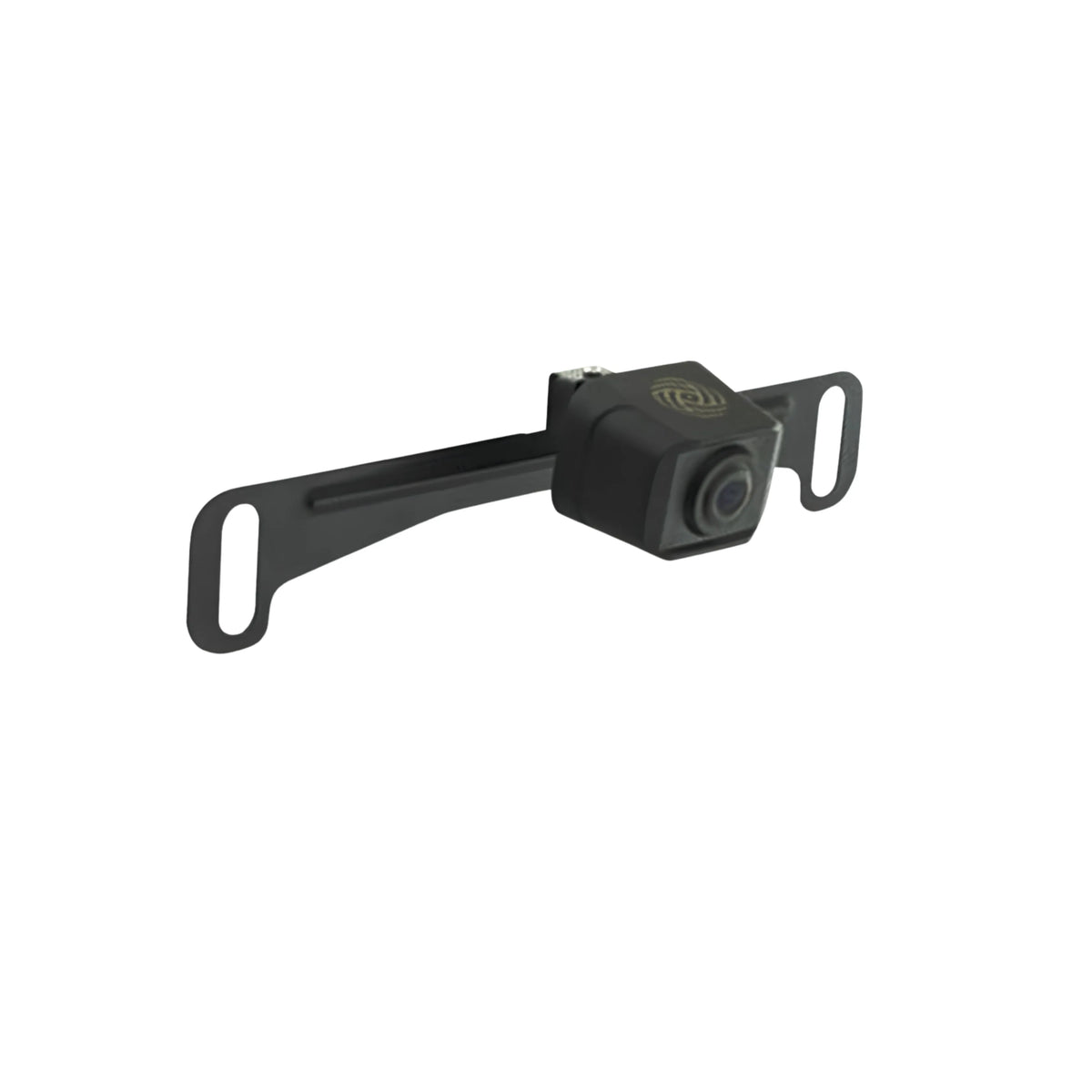

The Echomaster PCAM-WLP wireless camera transmits video up to 45 metres (without obstacles) to a receiver installed behind the dashboard, powered directly from the trailer's reverse lights. When the trailer is connected and reverse is engaged, the trailer camera automatically overrides the factory OEM reverse camera. When the trailer is disconnected, the factory camera resumes normal operation. If no factory camera is fitted, an aftermarket reverse camera can be integrated using this kit.

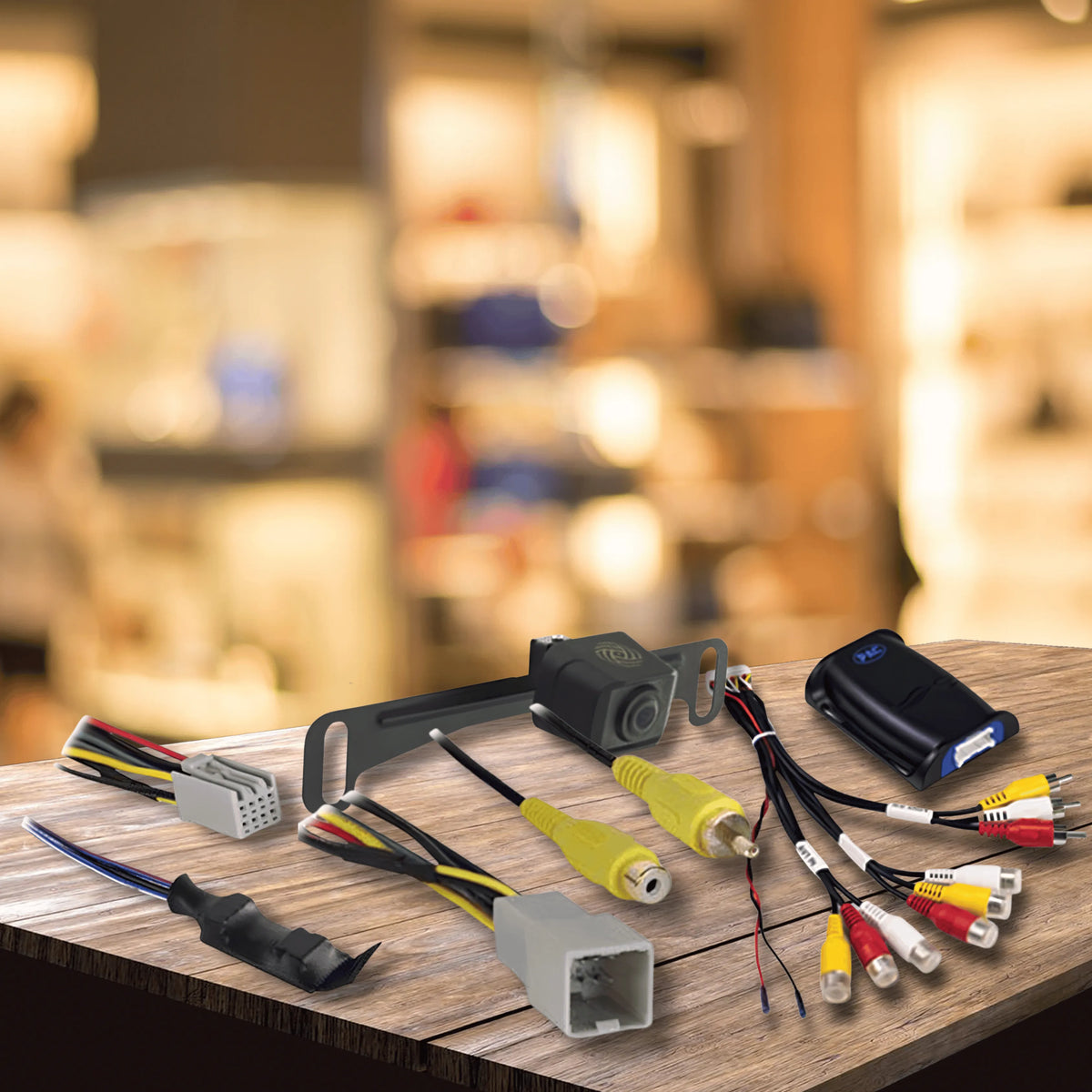

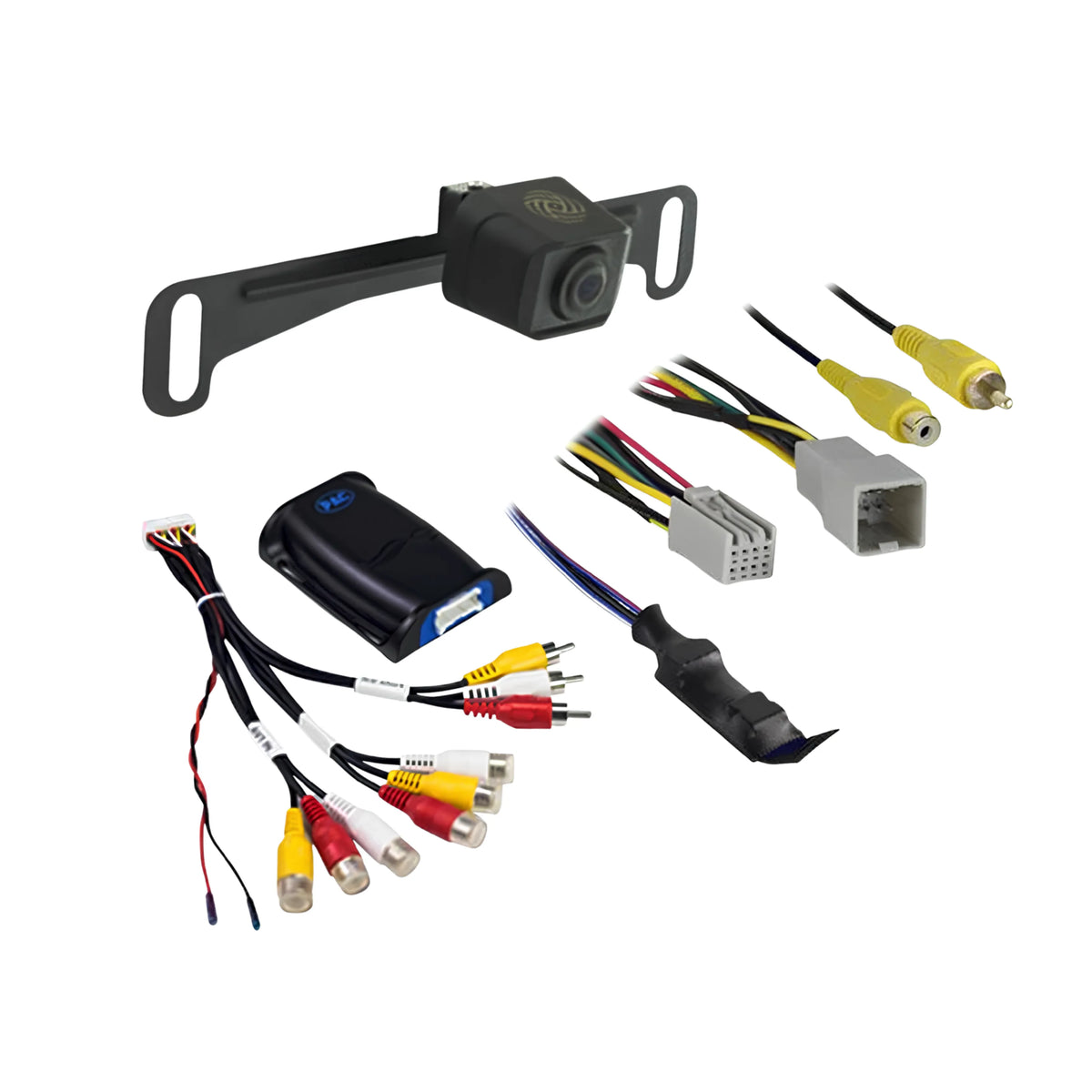

The bundle includes the PCAM-WLP wireless camera, PAC PACAVS-21 audio/video switching unit, and the vehicle-specific Mitsubishi 8-pin harness (AXBUCH-MI6V). Compatible vehicles span the ASX, Challenger, Lancer (including Evolution), Outlander, Pajero, Pajero Sport, and Triton covering both MQ and MR Triton generations. Note: the kit is not fully plug-and-play the factory connector terminates in bare wires and some wiring is required.

Key Specifications

• Manufacturer Part Number: TCMITSUKIT
• Function: Wireless trailer/caravan reverse camera kit
• Wireless camera: Echomaster PCAM-WLP
• Wireless range: Up to 45 metres (without obstacles)
• Wireless frequency: 2.4GHz with digital encryption
• Camera viewing angle: 140°
• Camera IP rating: IP67 (water and debris proof)
• Camera minimum illumination: 0.1 LUX
• Camera power supply: PWM — safe for CAN-controlled tail lights
• Camera operating temperature: -20°C to +65°C
• Vehicle connector: 8-pin Mitsubishi camera connector at back of factory radio
• Parking lines: No
• Factory reverse camera retention: Yes — overridden when trailer connected; resumes when disconnected
• Aftermarket camera fitment: Supported — if no factory camera fitted
• Mounting brackets: Included
• Plug & Play: Factory connector to bare wires — some wiring required

Features & Benefits

• 45-Metre Wireless Range — The PCAM-WLP transmits video wirelessly up to 45 metres, eliminating the need to run cabling through caravans, horse floats, or trailers.
• 2.4GHz Digital Encrypted Wireless — Digital encryption on the 2.4GHz wireless link provides a stable, secure video signal.
• IP67 Waterproof Camera — Full IP67 rating makes the wireless camera suitable for trailer mounting in all weather conditions — rain, dust, mud, and debris.
• PWM Power Supply — CAN Bus Safe — The PCAM-WLP uses a PWM power supply, making it safe for use on Mitsubishi vehicles with CAN-controlled tail light circuits.
• Factory Camera Retained — Where fitted, the factory OEM reverse camera is retained. The trailer camera automatically takes priority when the trailer is connected and reverts when removed.
• 140° Wide Viewing Angle — A broad 140° field of view covers the full width of a trailer or caravan when reversing.
• Vehicle-Specific 8-Pin Harness — The AXBUCH-MI6V harness is included, matched to the 8-pin Mitsubishi connector at the back of the factory radio.
• PAC AV Switching Unit — The PACAVS-21 manages automatic input switching between factory and trailer cameras.
• Covers Key Mitsubishi Tow Vehicles — Compatible across the Triton MQ and MR, Pajero NT/NX, Pajero Sport, Outlander, ASX, Challenger, and Lancer CF — covering the core Mitsubishi towing range in Australia.

Technical Specs

Compatible With / Goes Well With

• Mitsubishi ASX XB–XC 2013–2019
• Mitsubishi Challenger PC 2013–2015
• Mitsubishi Lancer CF 2014–2018 (including Evolution)
• Mitsubishi Outlander ZJ–ZK–ZL 2013–2021
• Mitsubishi Pajero NT–NX 2015–2021
• Mitsubishi Pajero Sport KR–KS–QE 2016–2018
• Mitsubishi Triton MQ 2015–2018
• Mitsubishi Triton MR 2019–2021

Caution: This kit uses the 8-pin Mitsubishi camera connector located at the back of the factory radio — confirm your vehicle has this connector before purchase. The kit connects factory connector to bare wires and requires some wiring — it is not fully plug-and-play. Parking guidelines are not provided on the trailer camera image.

Frequently Asked Questions

Does the trailer camera replace my factory reverse camera permanently?

No — the trailer camera overrides the factory camera when the trailer is connected and reverse is engaged. When the trailer is disconnected, the factory OEM reverse camera resumes normal operation automatically.

Do I need to run a cable through my caravan or trailer?

No — the PCAM-WLP transmits wirelessly up to 45 metres. The camera is powered by the trailer's reverse lights and transmits to a receiver installed behind the dashboard with no video cable routed through the trailer.

Is the wireless camera safe for CAN-controlled tail lights?

Yes — the PCAM-WLP uses a PWM power supply designed for safe use on vehicles with CAN-controlled tail light circuits, which are common on modern Mitsubishi models.

Is this kit compatible with the Mitsubishi Lancer Evolution?

Yes — the Lancer CF (2014–2018) entry includes the Evolution variant as stated by the supplier. Confirm fitment with the supplier if your Evolution has any non-standard factory camera configuration.

Will this kit show parking guidelines on the trailer camera image?

No — parking lines are not provided on the trailer camera feed. The PCAM-WLP displays a raw camera view without overlay guidelines.
