Stinger STDAB-2 DAB Hidden Glass Mount Antenna
Click to open expanded view
STINGER logo

Stinger STDAB-2 DAB Hidden Glass Mount Antenna

SKU: STDAB2
Sale price
$44.10
Regular price
$49
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

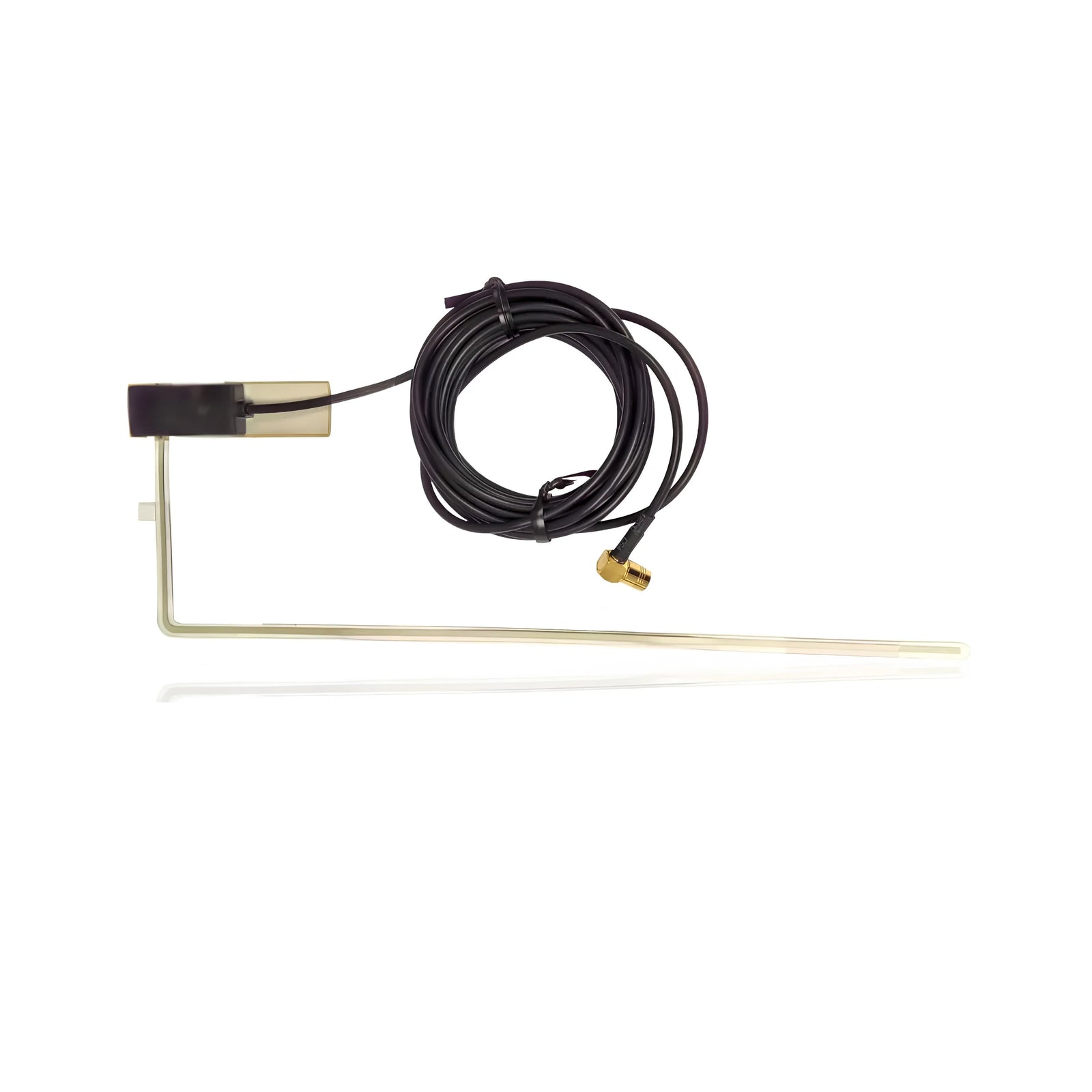

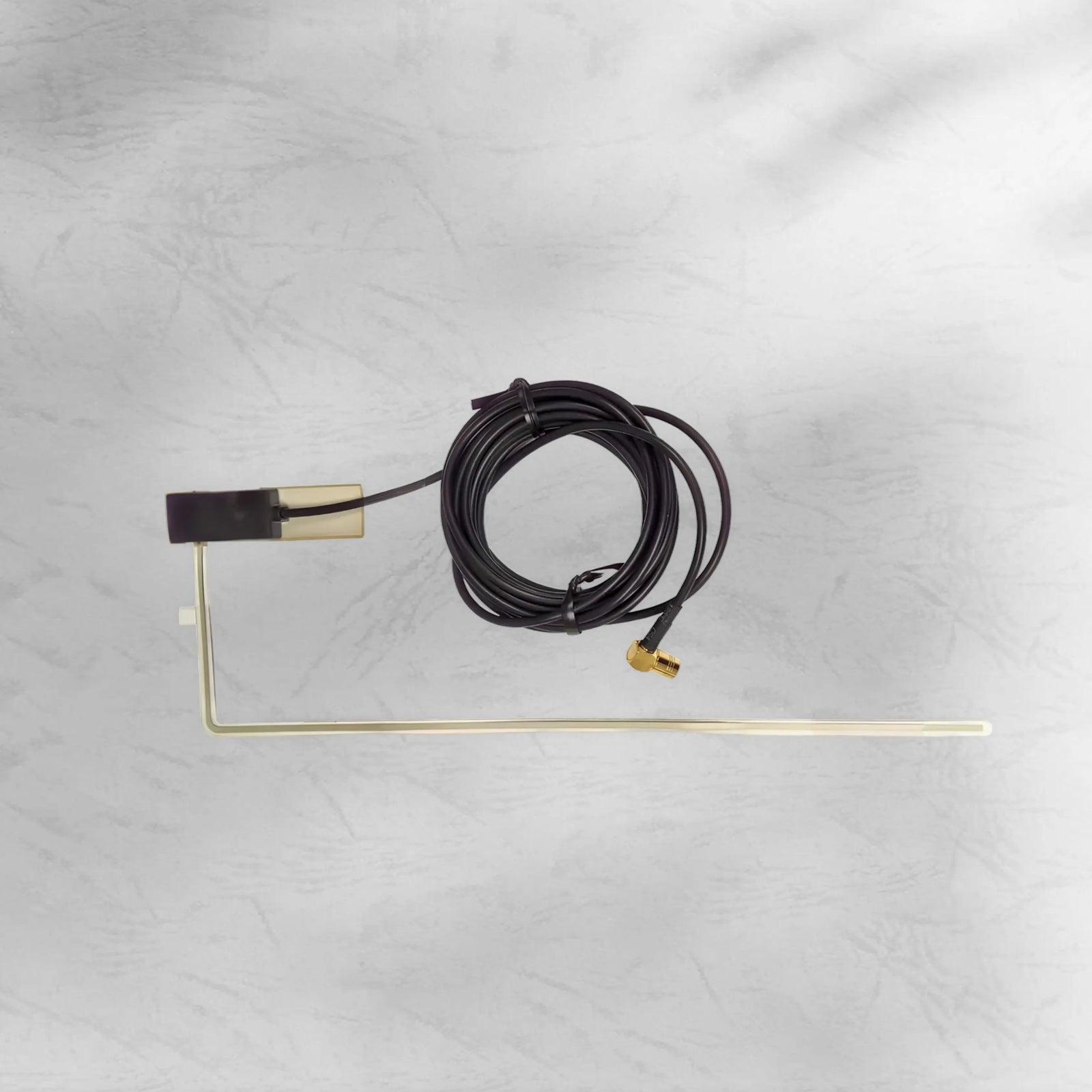

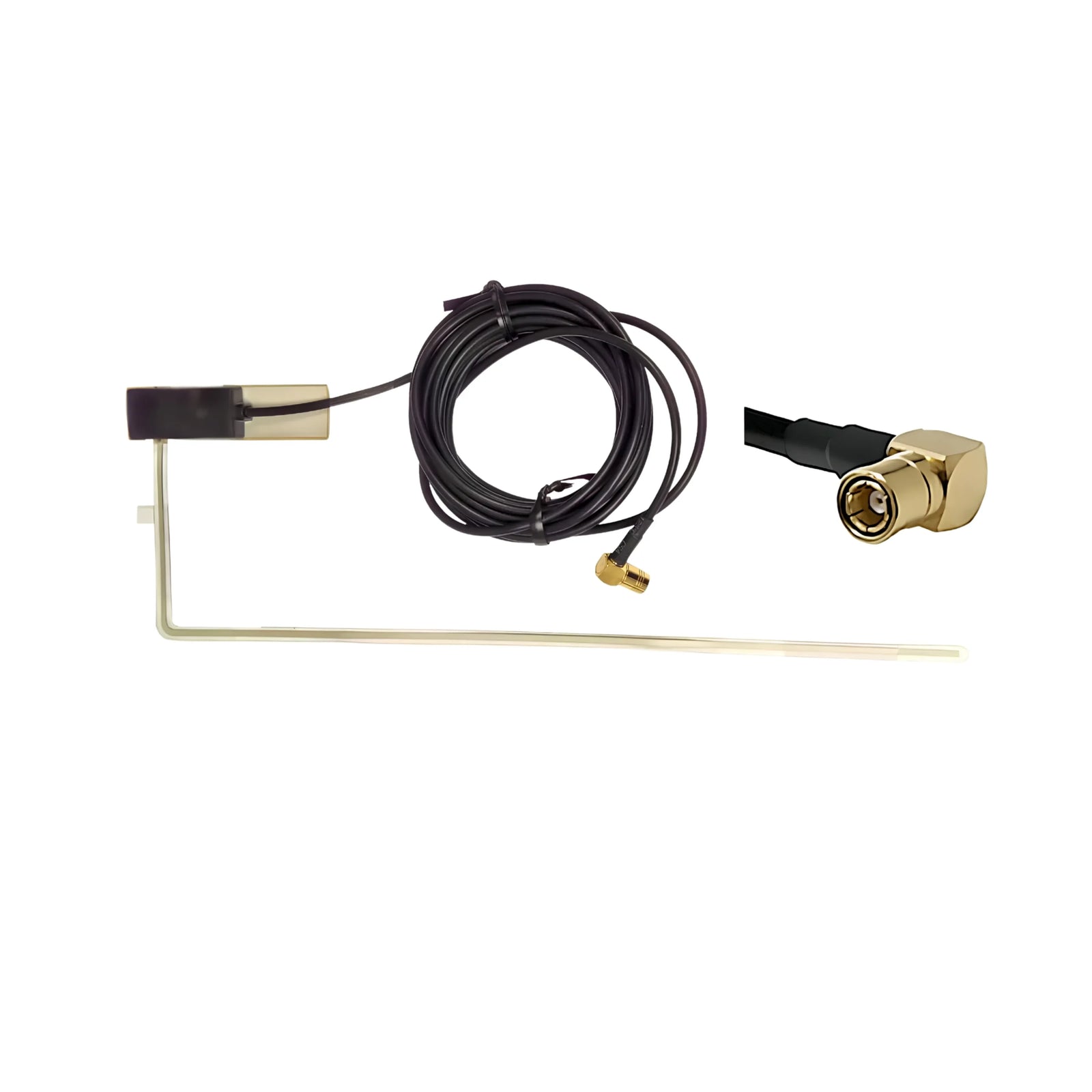

Stinger STDAB-2 DAB Hidden Glass Mount Antenna with SMB Connector, 3 Metre Cable

A hidden-installation DAB antenna that mounts directly to the vehicle's glass only the copper element strip is visible once installed, with no antenna module or cable in sight.

Product Overview

The Stinger STDAB-2 is a DAB glass mount antenna designed for a concealed installation. The active antenna element mounts to the inside of the windscreen or side glass as a thin copper strip, while the antenna module and cable are routed behind the trim. Once installed, no module, housing, or cable is visible only the slim copper element on the glass.

Covering both DAB Band III (174–237MHz) and L-Band (1452–1492MHz), the STDAB-2 delivers a significant improvement over the basic stub antennas bundled with most aftermarket head units. Gain of 10±2dB in Band III and 2dBi in L-Band. The 3-metre RG174 cable with SMB connector is compatible with the DAB tuner inputs found on most aftermarket head units and DAB adaptor modules.

Features & Benefits

  • Hidden glass mount installation — only copper element strip visible on glass
  • No antenna module or cable visible once installed
  • Covers DAB Band III (174–237MHz) and L-Band (1452–1492MHz)
  • 10±2dB gain in Band III for improved DAB reception
  • 3 metre (9.8ft) RG174 cable for flexible routing

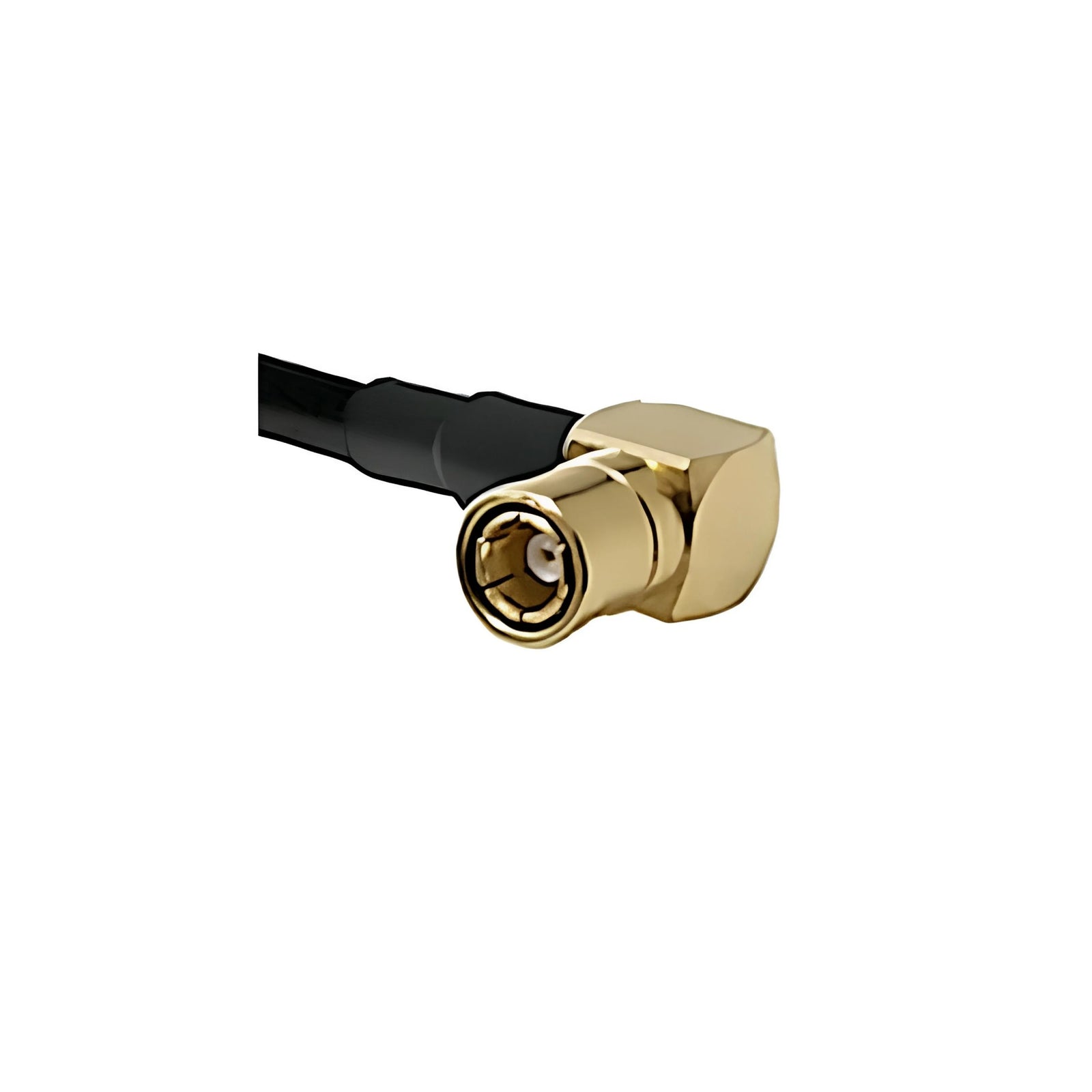

  • SMB connector — standard for most aftermarket DAB tuners
  • 12V DC active antenna (40mA current draw)
  • Operating temperature -40°C to +85°C
  • Improved performance over standard bundled DAB antennas

Technical Specs

Specification Detail
SKU / Part Number STDAB-2
Brand Stinger
Antenna Type Active DAB Glass Mount
Frequency Range 174–237MHz (Band III) / 1452–1492MHz (L-Band)
Wave Band DAB BIII / L-Band
Impedance 50 Ohm
Gain (Band III) 10 ± 2dB
Gain (L-Band) 2dBi
Supply Voltage 12V DC
Current Draw 40mA
Cable RG174
Cable Length 3 metres (9.8ft)
Connector SMB
Operating Temperature -40°C to +85°C
Installation Hidden glass mount — copper element strip on glass only

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Universal — compatible with any vehicle with glass mounting surface and SMB DAB tuner input

Goes Well With:

  • Aftermarket head units with built-in DAB+ tuner and SMB antenna input
  • External DAB+ tuner adaptors with SMB antenna connection
  • Stinger HEIGH10 (UN1810) and other Stinger infotainment systems with DAB capability

Frequently Asked Questions

Will this antenna work with any DAB head unit?

The STDAB-2 uses an SMB connector, which is the standard connection type for most aftermarket DAB+ tuners and head units with built-in DAB. Confirm your head unit has an SMB DAB antenna input before purchasing — some head units use a different connector type (e.g. MCX or SMA).

What does "active antenna" mean?

An active antenna contains an amplifier that boosts the received DAB signal before sending it to the head unit. The STDAB-2 requires a 12V DC power supply (40mA) from the head unit's antenna phantom power output to activate the amplifier. Most modern aftermarket head units with DAB tuners provide this automatically.

Can this antenna be installed on any window?

Yes. The copper element strip can be applied to the windscreen, side windows, or rear window. The windscreen or rear window typically provides the best signal reception. Avoid mounting over metallic window tinting or heated rear window elements, which can reduce signal quality.

Is this antenna compatible with both DAB and DAB+ broadcasts?

The STDAB-2 covers the DAB Band III and L-Band frequency ranges used for both DAB and DAB+ broadcasts in Australia and internationally.

How much of the antenna is visible after installation?

Only the thin copper element strip on the glass is visible — the antenna module and cable are completely hidden behind the trim. The copper strip is low-profile and typically unobtrusive on the glass surface.
