Stinger STDAB-1 DAB Glass Mount Antenna

Stinger STDAB-1 DAB and DAB Plus Amplified On-Glass Windscreen Antenna with SMB Female Connector and 3 Metre Cable

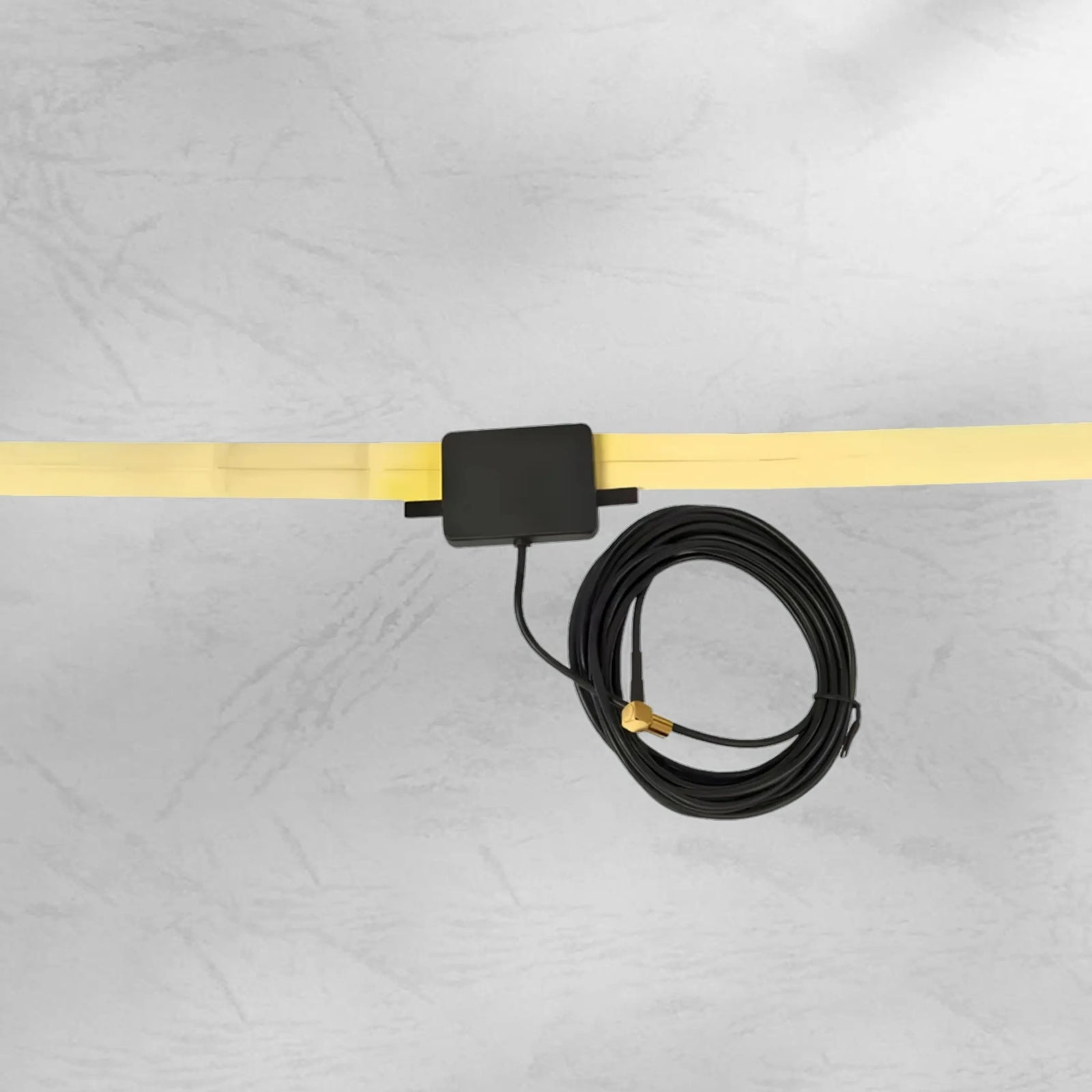

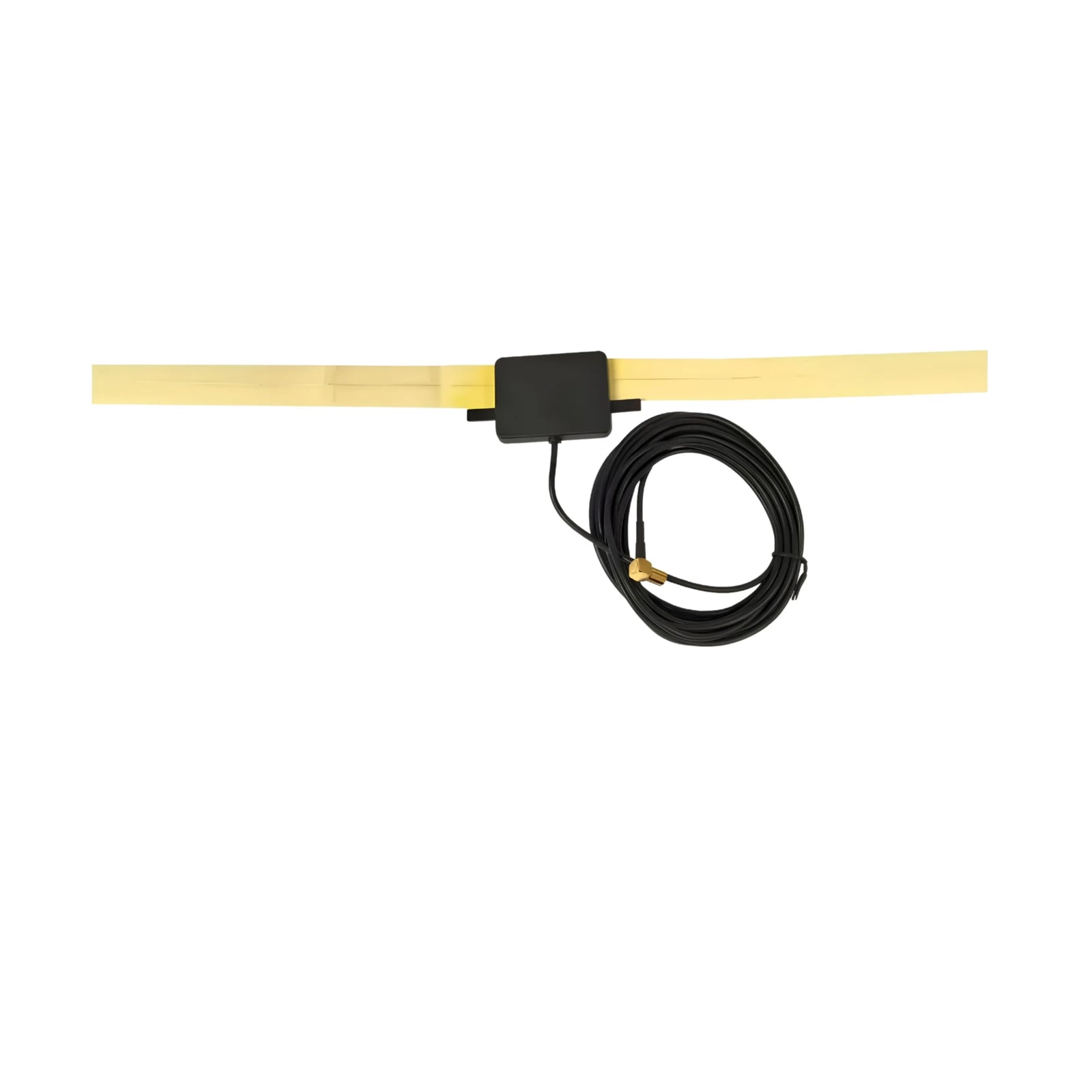

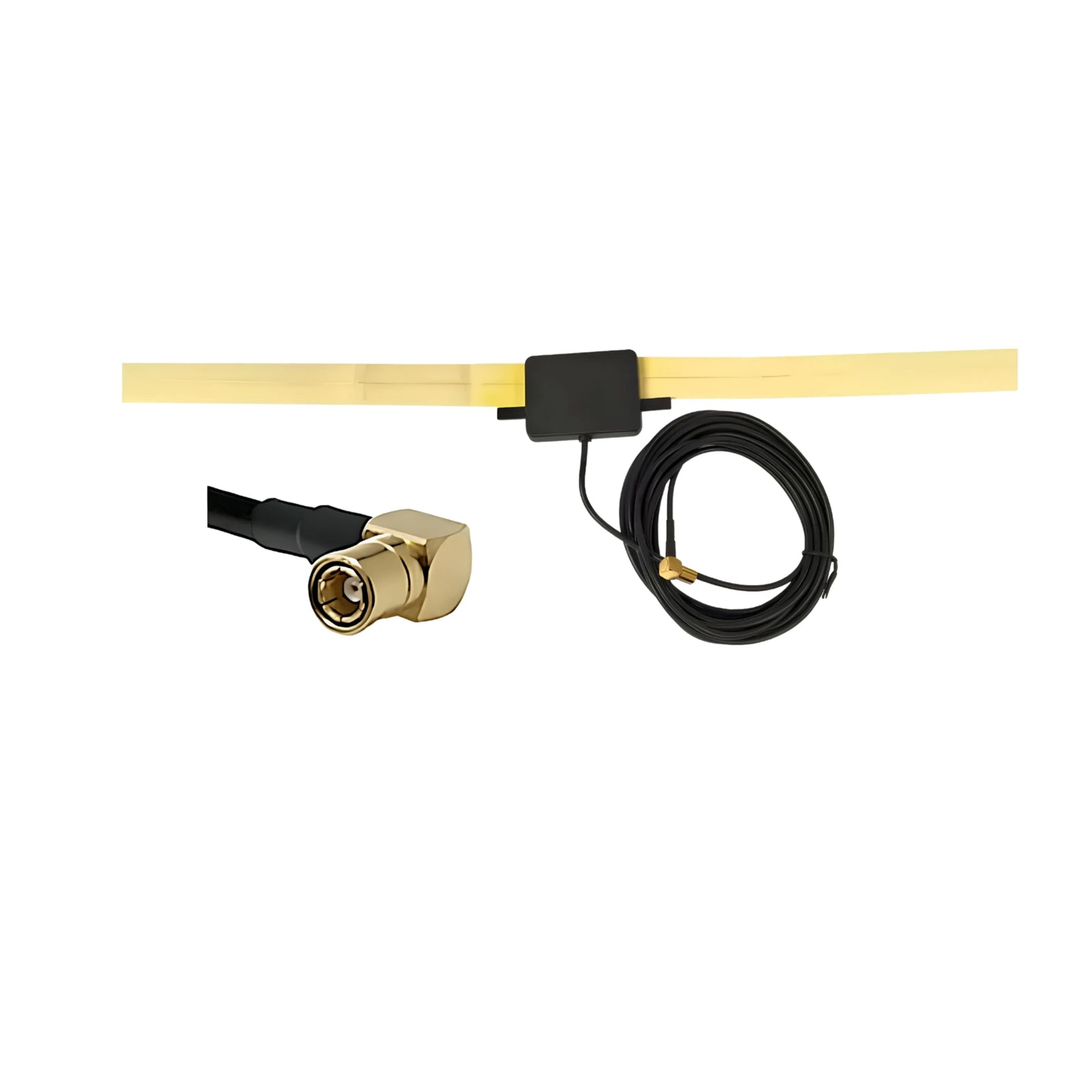

The STDAB-1 from Stinger Australia is an amplified DAB and DAB+ on-glass windscreen antenna providing improved reception over standard DAB antennas supplied with aftermarket head units. The antenna features a self-adhesive backing for internal windscreen mounting, a long metal element for improved reception in areas where DAB broadcast may be average, an SMB female connector, and a 3 metre cable. This antenna is designed for internal glass mounting only and is not suitable for external mounting.

Product overview

The STDAB-1 mounts on the inside of the vehicle windscreen using its self-adhesive backing. Before permanently fixing the antenna, temporarily position it to confirm the best location for reception. The antenna should not be mounted where it will interfere with the driver's view. For vehicles with metallic tinted glass, locate the area used for toll-tags (refer to the vehicle owner's manual) and test the aerial in that area before permanent installation. Ensure the glass surface is above 20 degrees Celsius and clean it thoroughly with isopropanol or similar before applying the adhesive.

Features and benefits

Improved DAB and DAB+ reception: The amplified dipole design with long metal element provides improved reception over standard DAB antennas supplied with aftermarket head units, particularly in areas where DAB broadcast signal may be average.

On-glass internal windscreen mount: Designed for internal windscreen mounting with a self-adhesive backing. Not suitable for external mounting.

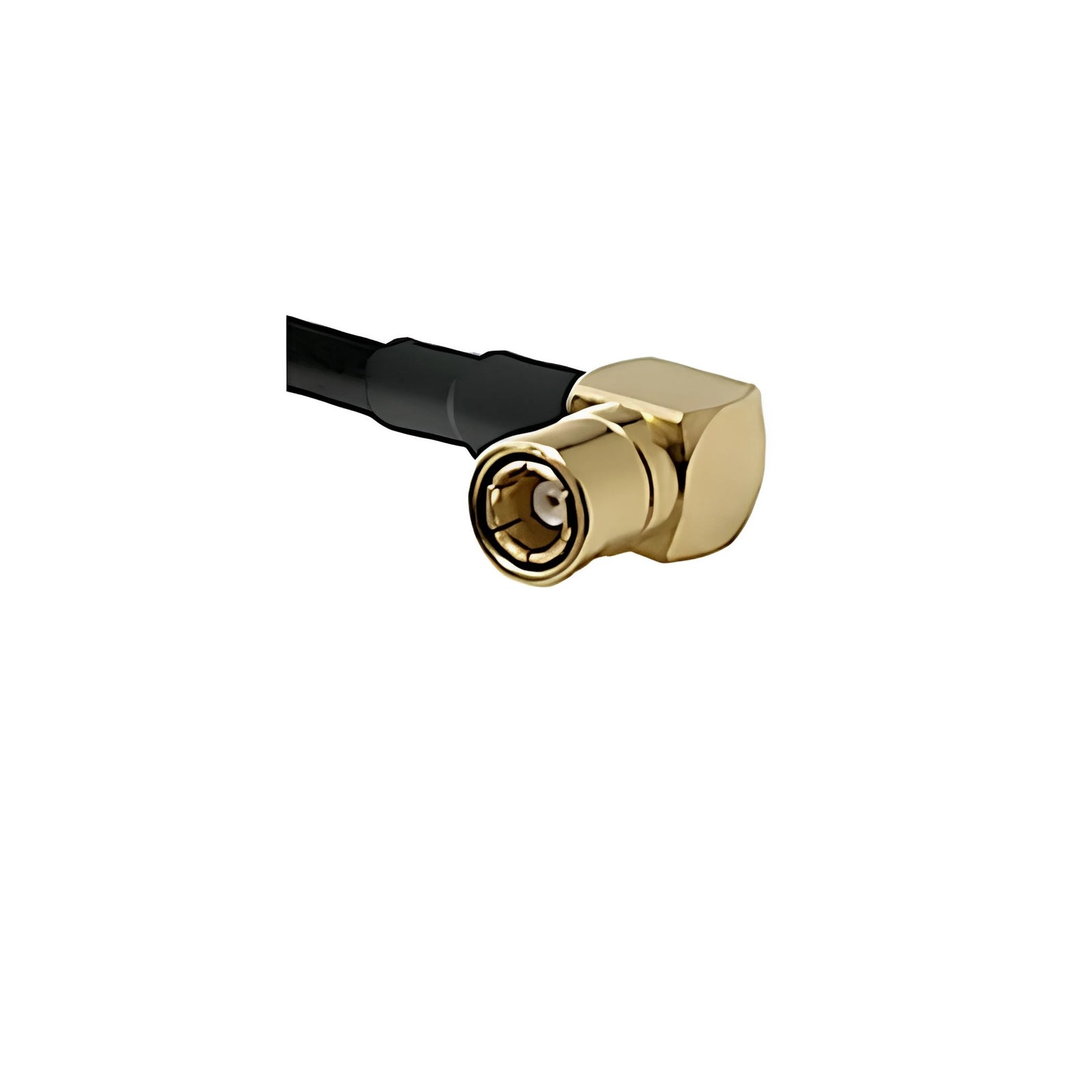

SMB female connector: The STDAB-1 uses an SMB female connector compatible with aftermarket DAB tuners and head units equipped with an SMB antenna input.

3 metre cable: The approximately 3 metre RG174 cable provides sufficient length to route from the windscreen to the aftermarket head unit in most vehicle installations.

Band III and L-Band coverage: Covers Band III (174 to 237 MHz) and L-Band (1452 to 1492 MHz) for full DAB and DAB+ broadcast reception.

Phantom powered: The antenna receives 12V DC supply voltage via phantom power from the DAB tuner. No separate power connection is required.

Installation notes

Mount on the inside of the windscreen only. Do not mount externally. Before permanently fixing, use a temporary mount to confirm the optimal location and reception quality. Do not mount where it will obstruct the driver's view. For vehicles with metallic tinted glass, test in the toll-tag area first (refer to the vehicle owner's manual). Ensure the glass is above 20 degrees Celsius and clean the surface thoroughly with isopropanol or a similar cleaner before applying the adhesive backing.

Technical specs

Frequently asked questions

Can the STDAB-1 be mounted on the outside of the windscreen?
No. The STDAB-1 is designed for internal windscreen mounting only and is not suitable for external mounting.

What connector does the STDAB-1 use?
The STDAB-1 uses an SMB female connector. Confirm that your aftermarket DAB tuner or head unit has a compatible SMB antenna input before ordering.

Can I use the STDAB-1 in a vehicle with metallic tinted glass?
Metallic tinted glass can reduce reception. For these vehicles, locate the area typically used for toll-tags (refer to your vehicle owner's manual) and test the antenna in that area before permanently fixing it in position.

Does the STDAB-1 require a separate power connection?
No. The STDAB-1 receives 12V DC supply via phantom power from the DAB tuner. No separate power connection is required.

Is professional installation recommended for the STDAB-1?
The STDAB-1 is designed for straightforward self-adhesive installation. For best results, temporary positioning before permanent installation is strongly recommended to confirm optimal reception quality and location before committing to the adhesive mount.
