Product features
One HEIGH10 Kit, Dozens of Toyotas CarPlay, SWC and Reverse Camera Retention Across 22 Models
Product Overview
The Stinger SRP-TY011H is an all-inclusive infotainment replacement kit designed to fit a wide range of Toyota vehicles from 2000 to 2019. This kit combines the Stinger HEIGH10 10" infotainment system with the hardware needed to retain factory steering wheel audio controls and factory reverse cameras (where applicable), covering 22 Toyota model/chassis combinations spanning the Corolla, Echo, Estima, FJ Cruiser, HiAce, HiLux, Kluger, LandCruiser, LandCruiser Prado, MR2, Prius C, RAV4, Rukus, Tarago, and Yaris.

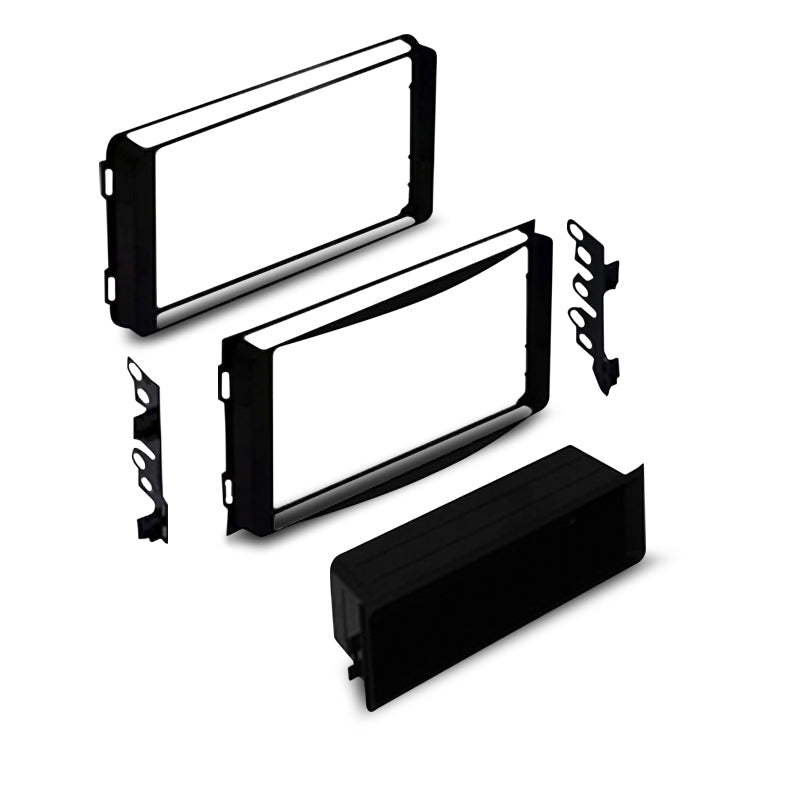

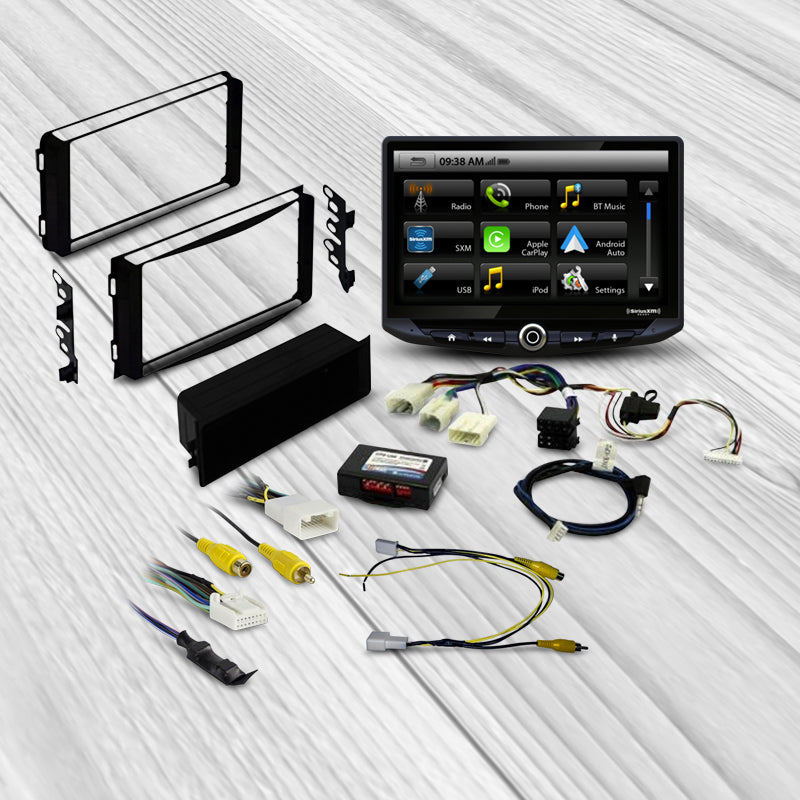

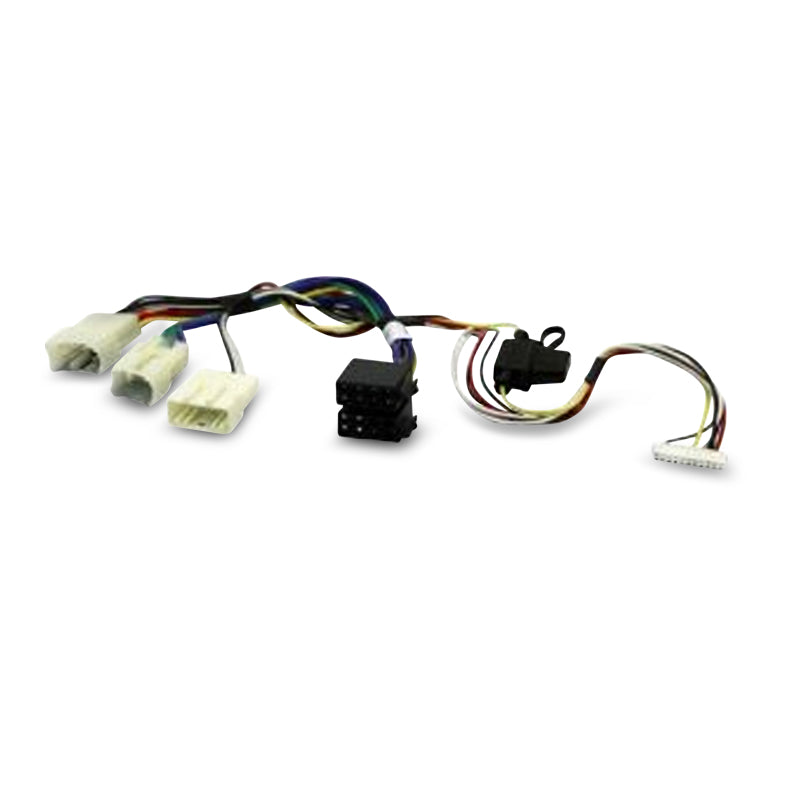

The bundle includes the HEIGH10 (UN1810), BKTTR998 radio mounting kit, SWI-TY01 vehicle interface with harness, two camera retention harnesses (SCTYRT4 for 4-pin connector vehicles and AXBUCH-T16V for 16-pin connector vehicles), and a CPH-STI01 ISO harness. iGo navigation is optional and not included in the standard kit.
Reverse camera retention applies only to vehicles where the camera signal runs through the factory OEM infotainment system via a 4-pin or 16-pin connector cameras displayed in the rear view mirror or on an external display separate to the factory radio are not retained.
Key Specifications
- Manufacturer Part Number: SRP-TY011H
- Included head unit: Stinger HEIGH10 UN1810 (10" display)
- Vehicle compatibility: Select Toyota models 2000–2019 — see full compatibility list
- Screen size: 10" HD capacitive touchscreen
- Colour depth: 16.7 million colours
- Apple CarPlay: Yes
- Android Auto: Yes
- AM/FM radio: Yes — with RDS tuner
- Dual USB: Yes
- HDMI input: Yes
- RCA output: 4V, 6-channel
- Digital Sound Processor: Yes — with TOSLINK output
- Bluetooth: Yes — handsfree and audio playback with aptX
- iGo navigation: Optional — not included in standard kit
- Steering wheel audio control retention: Yes — via SWI-TY01
- Reverse camera retention: Yes — 4-pin and 16-pin OEM infotainment connector vehicles only
- Camera exclusion: Mirror-integrated and external-display cameras not retained
- Plug & Play: Yes
Features & Benefits

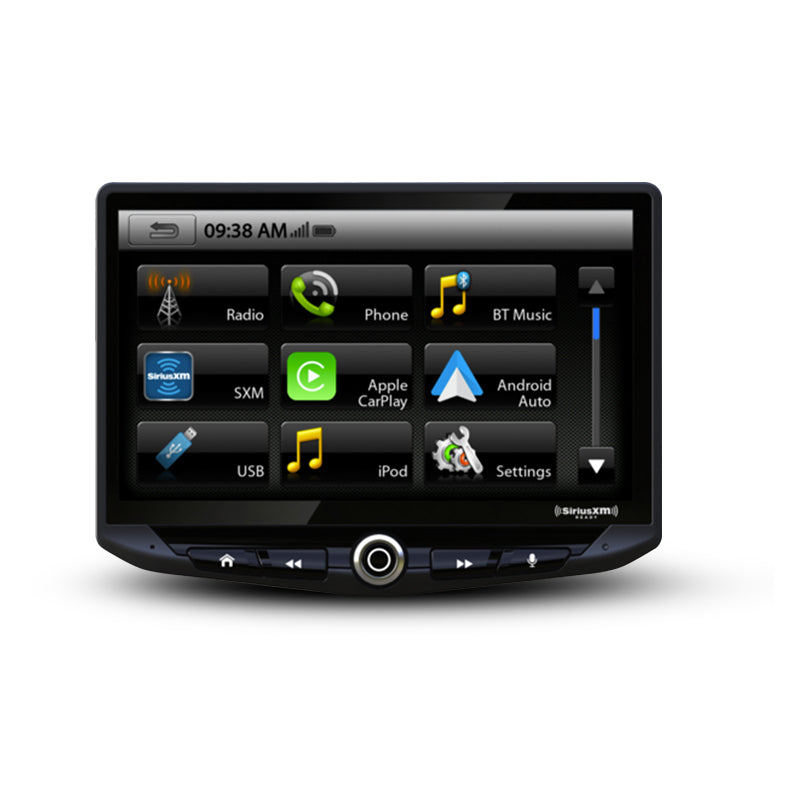

- 10" HD Capacitive Touchscreen — The HEIGH10's 10" display with 16.7 million colours brings modern infotainment to a broad range of Toyota models spanning two decades of production.
- Apple CarPlay & Android Auto — Certified CarPlay and Android Auto with full access to navigation, music, calls, and messaging from a connected smartphone on the 10" screen.

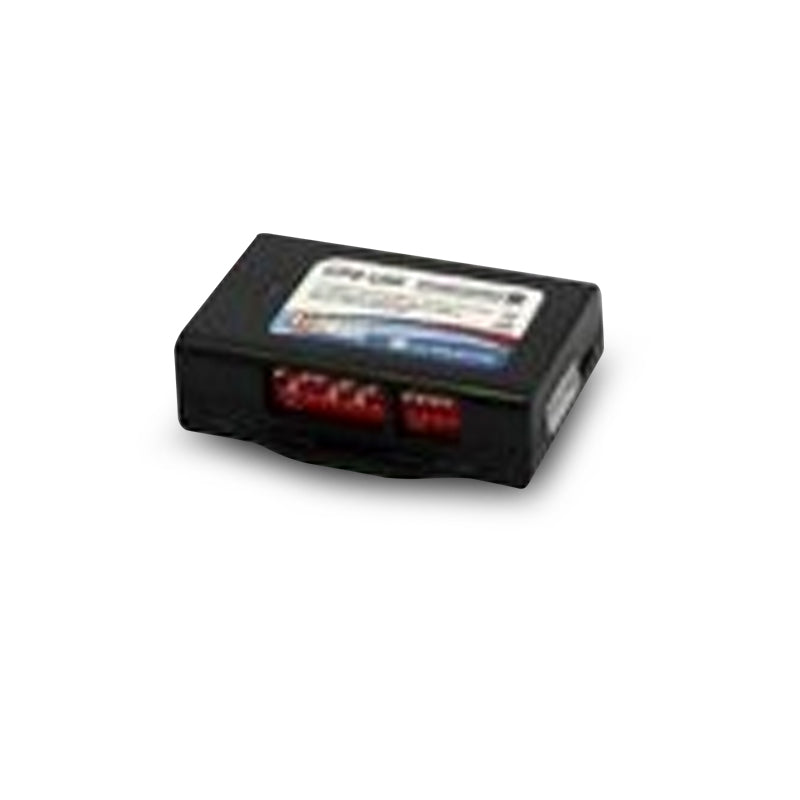

- Steering Wheel Audio Control Retention — Factory steering wheel audio buttons are retained via the SWI-TY01 vehicle interface across all compatible Toyota models.

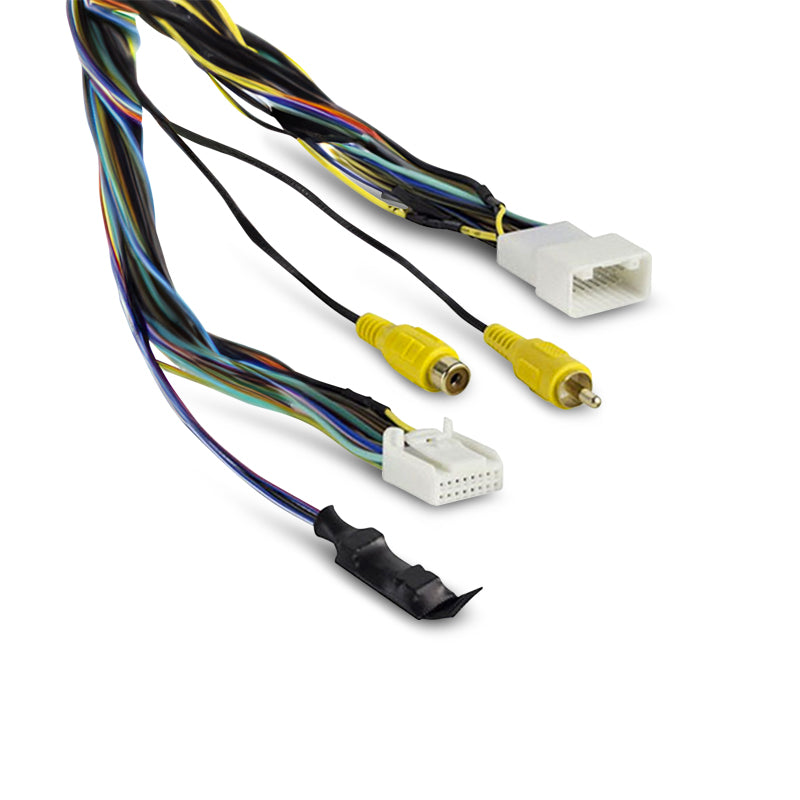

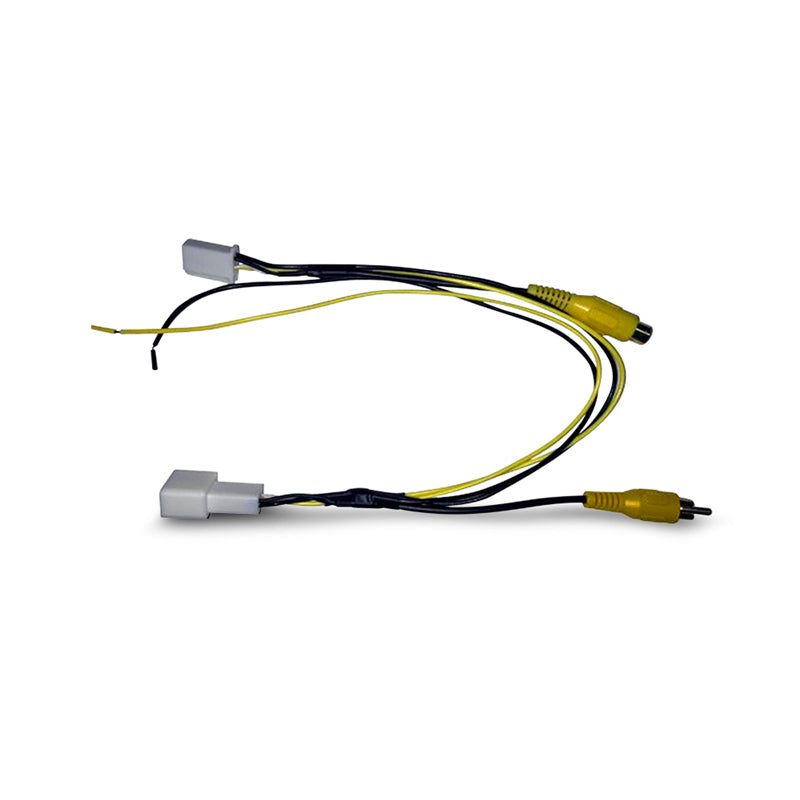

- Dual Camera Retention Harnesses — Two camera harnesses are included — the SCTYRT4 (4-pin) and AXBUCH-T16V (16-pin) — covering both connector types used across the compatible Toyota range. Camera retention applies where the factory camera signal runs through the OEM infotainment system.
- 4V 6-Channel RCA Output + DSP — The HEIGH10's output stage and TOSLINK optical output provide the foundation for connecting external amplifiers and audio processors.
- Broad Toyota Compatibility — 22 model/chassis combinations across the Corolla, Echo, Estima, FJ Cruiser, HiAce, HiLux, Kluger, LandCruiser (100/120/200 Series), LandCruiser Prado, MR2, Prius C, RAV4, Rukus, Tarago, and Yaris.
Technical Specs
| Specification | Detail |
|---|---|
| Part Number | SRP-TY011H |
| Included Head Unit | Stinger HEIGH10 UN1810 |
| Brand | Stinger |
| Screen Size | 10" HD capacitive touchscreen |
| Colour Depth | 16.7 million colours |
| Apple CarPlay | Yes |
| Android Auto | Yes |
| AM/FM Radio | Yes — RDS tuner |
| Dual USB | Yes |
| HDMI Input | Yes |
| RCA Output | 4V, 6-channel |
| Digital Sound Processor | Yes — TOSLINK output |
| Bluetooth | Yes — handsfree + audio, aptX |
| iGo Navigation | Optional — not included |
| SWC Retention | Yes — via SWI-TY01 |
| Reverse Camera Retention | Yes — 4-pin and 16-pin OEM infotainment connector only |
| Camera Exclusion | Mirror-integrated and external-display cameras not retained |
| Camera Harnesses Included | SCTYRT4 (4-pin) and AXBUCH-T16V (16-pin) |
| Plug & Play | Yes |
| Included Components | HEIGH10 UN1810, BKTTR998 mounting kit, SWI-TY01 interface, SCTYRT4 camera harness, AXBUCH-T16V camera harness, CPH-STI01 ISO harness |
Compatible With / Goes Well With
- Toyota Corolla E140/E160 2003–2009
- Toyota Corolla E120 2009–2012
- Toyota Echo XP10 2000–2004
- Toyota Estima XR30/XR40 2000–2005
- Toyota FJ Cruiser GSJ10 2010–2016
- Toyota HiAce H200 2005–2019
- Toyota HiLux AN10/AN20/AN30 2005–2010
- Toyota HiLux AN10/AN20/AN30 2011–2013
- Toyota Kluger XU20 2003–2006
- Toyota Kluger XU40 2007–2013
- Toyota LandCruiser 100 Series 2001–2008
- Toyota LandCruiser 120 Series 2002–2009
- Toyota LandCruiser 200 Series 2008–2012
- Toyota LandCruiser Prado 120 Series 2002–2009
- Toyota MR2 W30 2000–2005
- Toyota Prius C XP130 2012–2018
- Toyota RAV4 XA20 2001–2005
- Toyota RAV4 XA40 2012–2013
- Toyota Rukus E150 2010–2014
- Toyota Tarago XR50 2005–2017
- Toyota Yaris XP90 2005–2011
- Toyota Yaris XP90 2012–2014
Caution: Reverse camera retention applies only to vehicles where the factory camera signal is displayed through the OEM infotainment system via a 4-pin or 16-pin connector. Cameras displayed in the rear view mirror or via an external display separate to the factory radio are not retained by this kit. Confirm your vehicle's camera connector type before purchase if reverse camera retention is required. iGo navigation is optional and not included in the standard kit. A compatibility verification is recommended for your specific model, year, and variant before purchase — particularly for LandCruiser and Kluger models where multiple trim levels exist within a given year range.
Frequently Asked Questions
Does the SRP-TY011H include the HEIGH10 head unit?
Yes — the Stinger HEIGH10 infotainment system (UN1810) is included along with all vehicle-specific installation hardware. iGo navigation is optional and not included in the standard kit.
Will my factory reverse camera be retained?
Only if the factory camera signal runs through the OEM infotainment system via a 4-pin or 16-pin connector. Two camera harnesses are included in the kit (SCTYRT4 for 4-pin, AXBUCH-T16V for 16-pin). If your camera is displayed in the rear view mirror or through an external display separate to the factory radio, it cannot be retained with this kit.
How do I confirm which camera harness applies to my vehicle?
The SCTYRT4 suits vehicles with a 4-pin camera connector at the OEM infotainment system. The AXBUCH-T16V suits vehicles with a 16-pin connector. Both are included in the kit — identify your vehicle's factory camera connector type before installation. If unsure, confirm with the supplier before purchase.
Is this kit compatible with my specific Toyota variant?
The SRP-TY011H covers 22 Toyota model and chassis combinations from 2000 to 2019. Refer to the full compatibility list above for confirmed models, years, and chassis codes. For LandCruiser, Kluger, and HiLux variants where multiple trim levels exist within a year range, confirm your specific configuration before purchase.
Is iGo navigation included?
No — iGo navigation is optional and not included in the standard SRP-TY011H kit. Contact the supplier to confirm availability and pricing if onboard navigation is required.
