Stinger SRP-RAM13H HEIGH10 Dodge RAM Truck Infotainment Kit 2013 - 2021
Stinger SRP-RAM13H HEIGH10 Dodge RAM Truck Infotainment Kit 2013 - 2021
Stinger SRP-RAM13H HEIGH10 Dodge RAM Truck Infotainment Kit 2013 - 2021
Stinger SRP-RAM13H HEIGH10 Dodge RAM Truck Infotainment Kit 2013 - 2021
Stinger SRP-RAM13H HEIGH10 Dodge RAM Truck Infotainment Kit 2013 - 2021
Click to open expanded view
STINGER logo

Out of stock

Stinger SRP-RAM13H HEIGH10 Dodge RAM Truck Infotainment Kit 2013 - 2021

SKU: SRPRAM13H
Regular price
$2,599
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Stinger SRP-RAM13H HEIGH10 Complete 10 Inch Infotainment Upgrade Kit for RAM 1500 and 2500 Classic Style 2013 to 2019 with CarPlay Android Auto and Factory Feature Retention

The SRP-RAM13H from Stinger is a complete HEIGH10 infotainment upgrade kit for the RAM 1500 and 2500 Classic Style from 2013 to 2019, pairing the Stinger HEIGH10 10 inch infotainment system with a complete vehicle-specific installation kit. The kit retains factory steering wheel controls, factory antenna, factory amplifier (if fitted), factory reverse camera (if fitted), factory TPMS display, and vehicle settings. Onscreen climate control is retained on 8.4 inch uConnect equipped vehicles only. Note that this product is designed for USA left-hand drive vehicles but is confirmed for use in Australian right-hand drive vehicles with limitations on climate control display and vehicle image orientation.

Product overview

The SRP-RAM13H combines the Stinger HEIGH10 (UN1810) 10 inch infotainment system with the Stinger HEIGH10 RAM installation kit (SRK-RAM13H), providing every component required for a complete factory-integrated infotainment upgrade in a single purchase. The HEIGH10 features a 16.7 million colour HD 10 inch capacitive touchscreen with Apple CarPlay, Android Auto, AM/FM with RDS, dual USB, HDMI input, 4V 6-channel RCA outputs, a digital sound processor with TOSLINK output, Bluetooth with aptX, and iGo navigation.

Two important right-hand drive notes apply for Australian installations. First, the product is designed for USA left-hand drive vehicles. Temperature, speed, and statistics can be displayed in Celsius and bar in right-hand drive vehicles, however the climate control on-screen display and vehicle images on the screen are fixed to left-hand drive layout and cannot be changed. Second, onscreen climate control display is only available for vehicles originally fitted with the 8.4 inch factory uConnect display. Vehicles with a 5 inch factory display do not have onscreen climate control retention with this kit.

Features and benefits

Stinger HEIGH10 10 inch HD capacitive touchscreen: 16.7 million colour HD 10 inch capacitive touchscreen with Apple CarPlay, Android Auto, AM/FM with RDS tuner, dual USB, HDMI input, Bluetooth with aptX, and iGo navigation with SD card.

4V 6-channel RCA outputs and digital sound processor: Four volt 6-channel RCA preouts and a digital sound processor with TOSLINK output provide comprehensive audio connectivity and processing for amplified system integration.

Complete vehicle-specific installation kit included: Includes the CH4A-SRK RadioPRO Advanced vehicle integration module, PAC-Link adapter, high-definition factory camera retention module, vehicle-specific plug and play wire harness, satellite antenna adapter, AM/FM antenna adapter, USB retention cables, external chime speaker, and iGo navigation SD card.

Factory steering wheel control retention: OEM audio steering wheel controls are retained and are customisable via the vehicle integration module.

Factory camera and amplifier retention: Factory reverse camera (if fitted) and factory amplified audio system (if fitted) are retained.

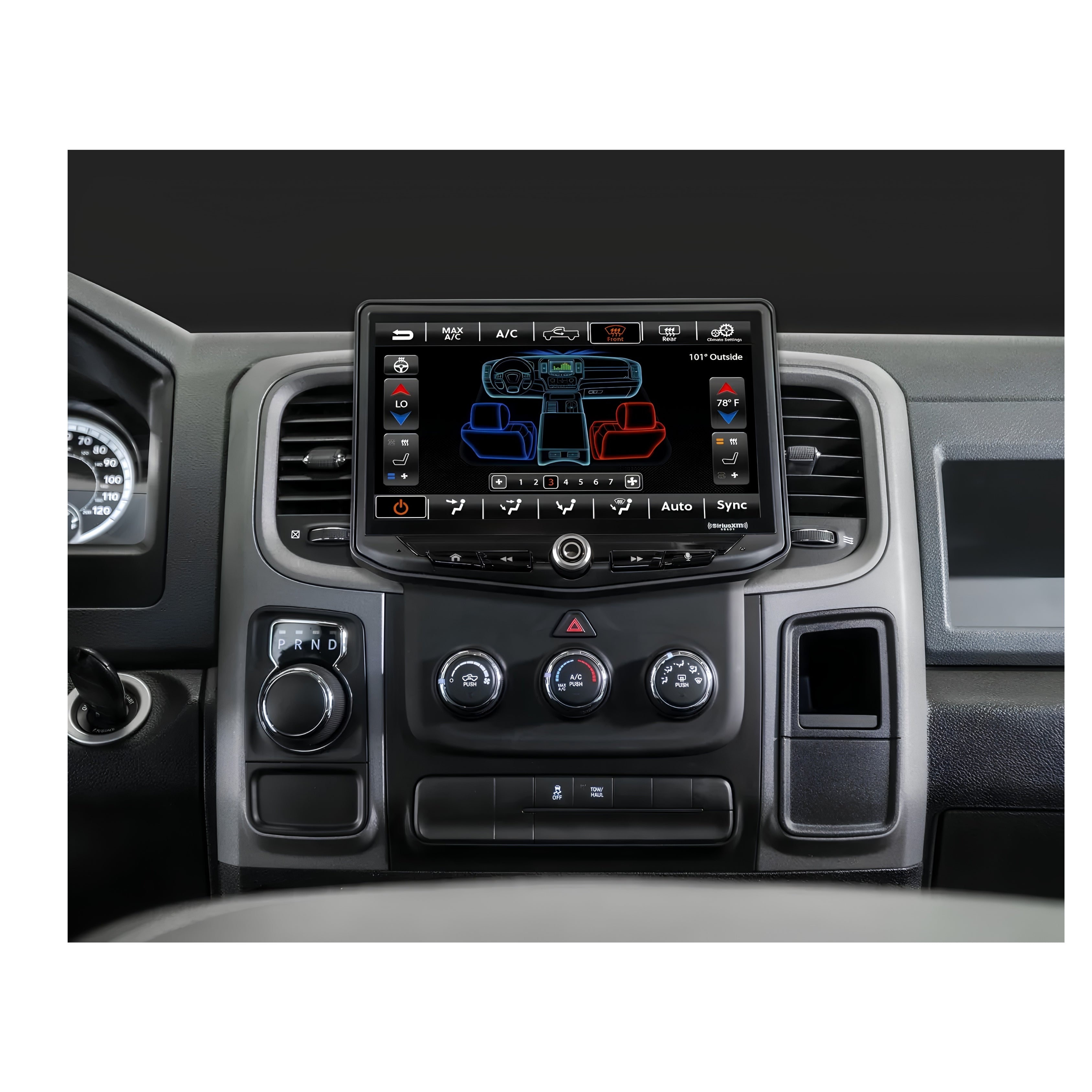

Onscreen climate control for 8.4 inch uConnect vehicles: Onscreen climate control display is retained for vehicles originally fitted with the 8.4 inch factory uConnect display only. Not available for 5 inch factory display vehicles.

Onscreen digital gauges and vehicle settings: Factory TPMS display, vehicle settings retention, and customisable vehicle performance gauges and vehicle information are provided via the HEIGH10 display.

Australian right-hand drive compatible with limitations: Temperature, speed, and statistics display in Celsius and bar. Climate control on-screen display and vehicle images are fixed to left-hand drive layout and cannot be changed.

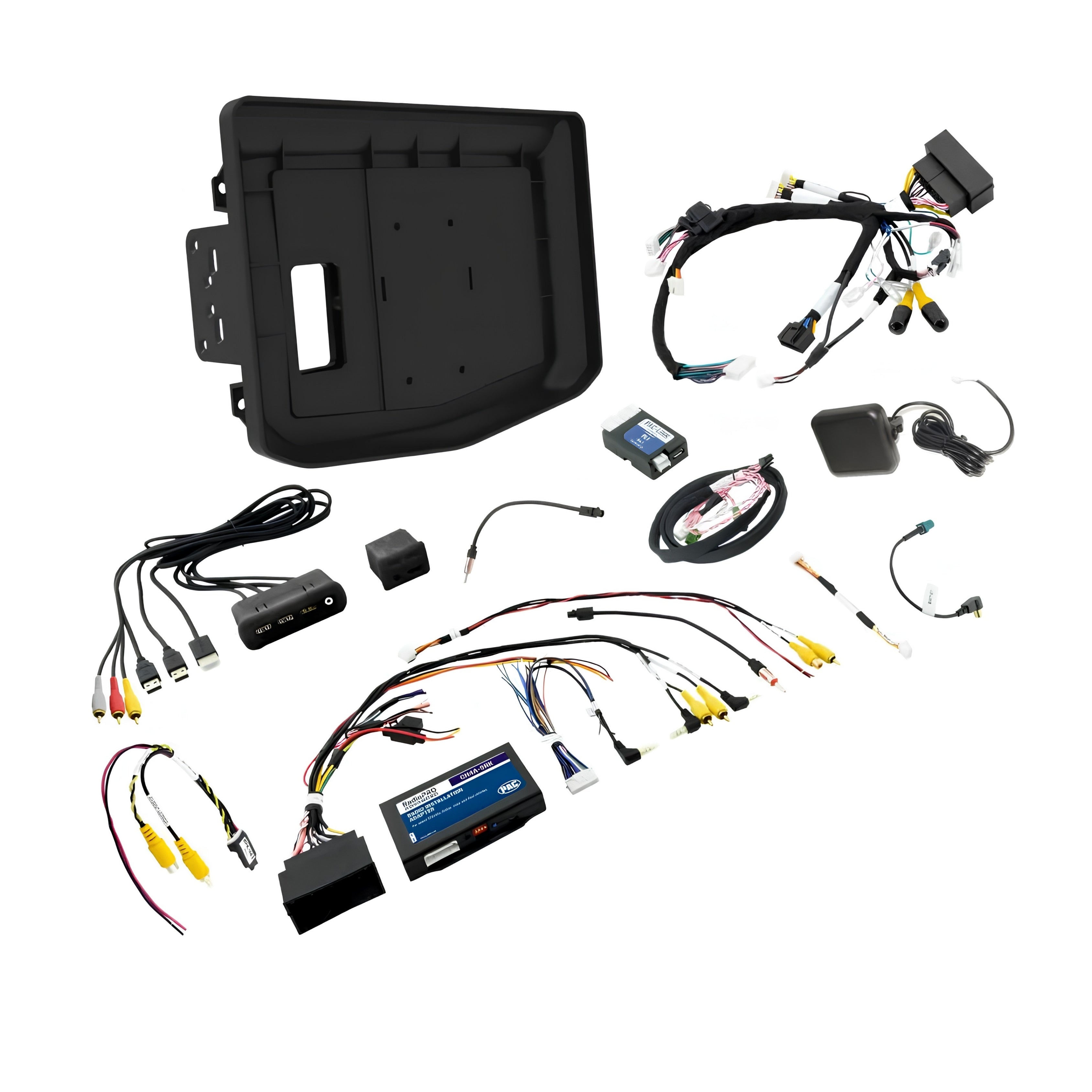

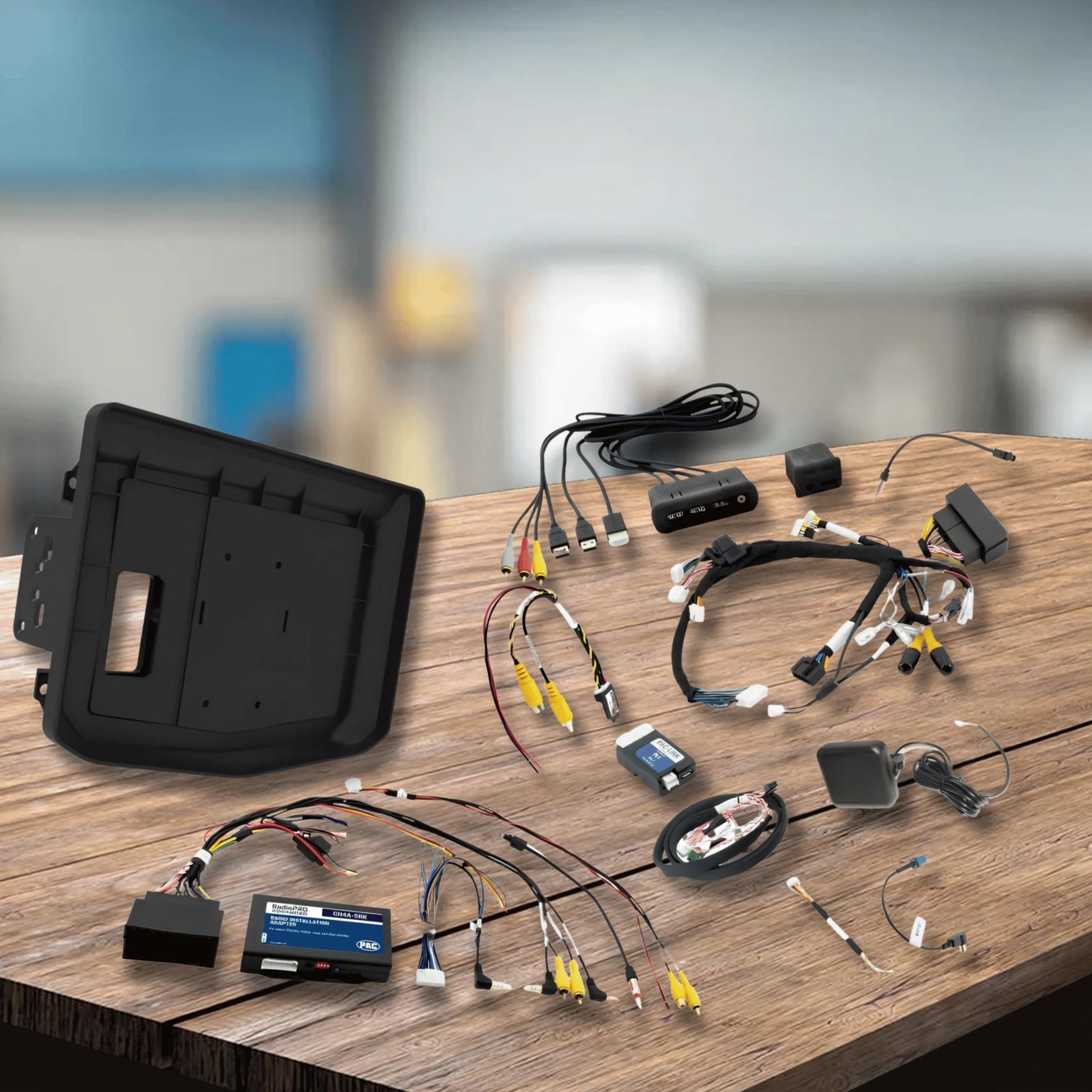

What's in the box

  • 1x Stinger HEIGH10 UN1810 10 inch Infotainment System
  • 1x Stinger HEIGH10 RAM Installation Kit SRK-RAM13H including:
    • CH4A-SRK RadioPRO Advanced Vehicle Integration Module
    • PAC-Link Adapter for Stinger Multimedia Units
    • High-Definition Factory Camera Retention Module
    • Vehicle-Specific Plug and Play Wire Harness
    • Satellite Antenna Adapter
    • AM/FM Antenna Adapter
    • USB Retention Cables
    • External Chime Speaker
    • iGo Navigation SD Card

Vehicle feature retention

Feature Retained
Steering Wheel Audio Controls Yes, customisable
Factory Antenna Yes
Factory Reverse Camera Yes, if fitted
Factory Amplified Audio Yes, if fitted
Onscreen Climate Control Yes, 8.4 inch uConnect vehicles only
TPMS Display Yes
Vehicle Settings Yes


Technical specs

Specification Detail
SKU SRP-RAM13H
Manufacturer Part Number SRP-RAM13H
Brand Stinger
Included Head Unit HEIGH10 UN1810
Screen Size 10 inch HD capacitive touchscreen
Colour Depth 16.7 million colours
Apple CarPlay Yes
Android Auto Yes
AM/FM Tuner Yes, with RDS
USB Inputs Dual USB
HDMI Input Yes
RCA Outputs 4V, 6 channel
DSP Yes, with TOSLINK output
Bluetooth Yes, handsfree and audio with aptX
Navigation iGo, SD card included
RHD Compatible Yes, with display layout limitations
Compatible Factory Display 5 inch and 8.4 inch uConnect


Compatible with

This kit is confirmed for the following RAM vehicles. Note the title references 2013 to 2021 however the vehicle application guide confirms 2013 to 2019. Confirm your specific variant and build year with us before ordering.

Make Model Variant Years
RAM 1500 4th Generation DS-DJ-D2 chassis, Classic Style 2013 - 2019
RAM 2500 4th Generation DS-DJ-D2 chassis, Classic Style 2013 - 2019


Frequently asked questions

Can the SRP-RAM13H be used in an Australian right-hand drive RAM Truck?
Yes, with limitations. Temperature, speed, and statistics can be displayed in Celsius and bar. However the climate control on-screen display and vehicle images are fixed to left-hand drive layout and cannot be changed to right-hand drive. Confirm you are comfortable with these limitations before ordering.

Does the SRP-RAM13H retain onscreen climate control in all RAM Trucks?
No. Onscreen climate control display is only retained in vehicles originally fitted with the 8.4 inch factory uConnect display. Vehicles with a 5 inch factory display do not have onscreen climate control retention with this kit.

Does the SRP-RAM13H include the HEIGH10 head unit?
Yes. The SRP-RAM13H includes both the Stinger HEIGH10 UN1810 10 inch infotainment system and the complete RAM-specific installation kit SRK-RAM13H. All components required for a complete installation are included in a single purchase.

Does the SRP-RAM13H retain the factory reverse camera?
Yes. A high-definition factory camera retention module is included in the installation kit, retaining the factory reverse camera if the vehicle is fitted with one.

Is professional installation recommended for the SRP-RAM13H?
Given the complexity of the HEIGH10 integration with the RAM Truck electrical systems including factory amplifier, camera, and TPMS retention, professional installation by an experienced car audio technician is strongly recommended.
