Stinger SRP-JW07H HEIGH10 10" Infotainment Kit for Jeep Wrangler JK (2007–2018)

A complete, vehicle-specific HEIGH10 infotainment upgrade for the Jeep Wrangler JK Apple CarPlay, Android Auto, factory amp and SWC retention, 4 camera inputs, and everything needed for a plug-and-play install included in the box.

Product Overview

The Stinger SRP-JW07H is a complete HEIGH10 infotainment kit purpose-built for the Jeep Wrangler JK (2007–2018). Unlike the standalone UN1810, this kit ships with every vehicle-specific component needed to install the HEIGH10 into the JK without sourcing additional parts vehicle-specific dash panel, interface and harness, antenna adaptor, dual USB accessory socket/cigarette lighter replacement harness, and full installation instructions are all included.

The kit retains factory amplified audio (where fitted) and factory steering wheel controls (where fitted). Note that front-to-rear fader control on factory-amplified vehicles is not retained due to limitations of the Chrysler OEM amplifier.

The HEIGH10 connects via a 22-pin Chrysler-style connector. While the kit is marketed for 2007–2010 JK models, it is confirmed compatible with all JK Wrangler models through to 2018.

Please note: Offline iGO navigation is not included and is available separately. Minor trimming behind the dash may be required on some vehicles. Fitting instructions are included.

Features & Benefits

  • Complete vehicle-specific kit — no additional parts required for installation
  • 10-inch 1024 x 600 HD capacitive touchscreen
  • Certified Apple CarPlay and Google Android Auto
  • Retains factory amplified audio system (if equipped)
  • Retains factory steering wheel controls (if equipped)
  • Note: front-to-rear fader not retained on amplified models
  • High power 4 x 50W peak built-in amplifier
  • 6-channel 4V RCA pre-outs with subwoofer control
  • Toslink (optical) variable audio output for external DSP and amplifiers
  • 15-band adjustable EQ with 3 user presets per audio source
  • 4 camera inputs with individual 12V wired triggers and touchscreen switching
  • Bluetooth 4.2 hands-free calling and A2DP with aptX wireless audio
  • Dual USB rear inputs (1.5A charging, CarPlay/Android Auto, mass storage)
  • Certified HDMI input (up to 1920 x 1080p)
  • High-resolution video and audio playback
  • AV RCA input
  • Dual zone rear seat entertainment output (2x video, 1x audio)
  • MicroSD card slot for optional iGO offline navigation
  • Customisable RGB illumination and display backgrounds
  • AM/FM tuner with RDS support
  • 22-pin Chrysler-style plug — factory connector to bare wires

Technical Specs

Specification Detail
SKU / Part Number SRP-JW07H
Brand Stinger
Head Unit Stinger HEIGH10 (UN1810)

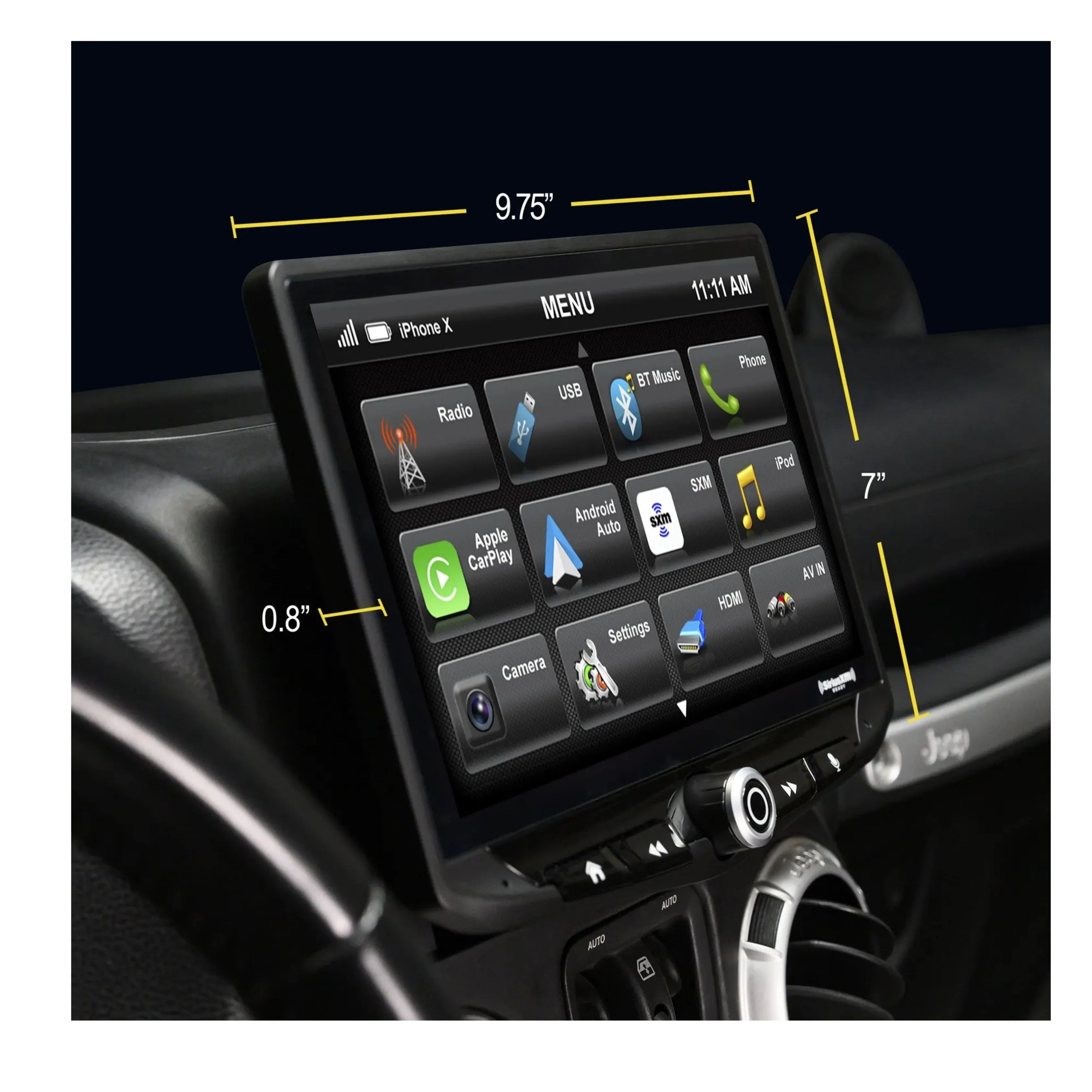

Display 10" Capacitive, 1024 x 600, 16.7M colours
Plug & Play Yes — Factory Connector to Bare Wires
Vehicle Plug Style 22-Pin Chrysler Style Connector
Bluetooth 4.2 Hands-Free + A2DP with aptX
Built-In Amplifier 4 x 50W Peak
RCA Pre-Outs 6 Channel (Front / Rear / Subwoofer), 4V
Toslink Output Yes — Variable
EQ 15-Band, 3 User Presets per Source
USB 2x Rear, 1.5A
HDMI Input Yes — up to 1920 x 1080p
AV Input 1x AV RCA Input
Camera Inputs 4x RCA with individual 12V wired triggers
RCA Outputs 1x Stereo Audio, 2x Video (Rear Seat Entertainment)
Factory Amp Retention Yes — if equipped (fader not retained)
Factory SWC Retention Yes — if equipped
iGO Navigation Optional — microSD slot included, mapping sold separately
Vehicle Compatibility Jeep Wrangler JK 2007–2018
What's in the Box HEIGH10 10" Infotainment System, Vehicle-Specific Dash Panel, Vehicle-Specific Interface + Harness, Vehicle-Specific Antenna Adaptor, Dual USB Accessory Socket / Cig Lighter Replacement Harness, Installation Instructions

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Jeep Wrangler 2007–2018 (JK)

Goes Well With:

  • Echomaster PCAM-JP2-N Jeep Wrangler specific reverse camera (sold separately)
  • Echomaster PCAM-10FF-N off-road ready camera (sold separately)
  • iGO offline navigation mapping via naviextras.com (sold separately)
  • External amplifiers (6-channel RCA pre-outs)
  • External DSP processors (Toslink optical output)
  • Aftermarket subwoofer and amplifier (dedicated subwoofer RCA output)

Frequently Asked Questions

Is this kit compatible with all Jeep Wrangler JK years, or just 2007–2010?

While the kit is marketed for 2007–2010 JK models, it is confirmed compatible with all Jeep Wrangler JK models from 2007 through to 2018. If you have a 2011–2018 JK, this kit will work with your vehicle.

Will my factory amplifier and steering wheel controls still work after installation?

Factory amplified audio and factory steering wheel controls are retained where fitted. Note that front-to-rear fader control on amplified models is not retained due to limitations of the Chrysler OEM amplifier — this is a known limitation that applies to all aftermarket head unit installations on amplified JK models.

Does this kit include a reverse camera?

No. The SRP-JW07H includes 4 camera inputs but no camera. For a Jeep Wrangler-specific reverse camera, Stinger recommends the Echomaster PCAM-JP2-N. For an off-road ready option, the Echomaster PCAM-10FF-N is also available separately.

Is offline navigation included?

No. The HEIGH10 has a built-in microSD card slot ready for iGO offline navigation, but the mapping software is not included. It is available separately and can be updated at any time via a naviextras.com account — no phone data or reception required once installed.

Will installation require any dash modification?

The SRP-JW07H is designed for plug-and-play installation with the included vehicle-specific dash panel and harness. However, some vehicles may require minor trimming behind the dash to accommodate the HEIGH10 module depth. Full fitting instructions are included in the box.
