Stinger SRP-JW03H HEIGH10 Package To Suit JEEP Wrangler TJ 03-07

Modernise Your Wrangler TJ HEIGH10 10" With CarPlay, 4-Camera Inputs and Trail-Ready Features

Product Overview

The Stinger SRP-JW03H is an all-inclusive infotainment replacement kit designed for the 2003–2006 Jeep Wrangler TJ. This kit combines the Stinger HEIGH10 10" infotainment system with all vehicle-specific hardware dash panel, antenna adaptor, two era-specific Jeep radio harnesses, and dual USB accessory harness providing everything needed to install a modern infotainment system into the Wrangler TJ's dated factory dash.

The HEIGH10 delivers Apple CarPlay, Android Auto, a 4 x 50W built-in amplifier, 4V 6-channel RCA output, TOSLINK optical output, 15-band EQ with three presets per source, dual USB, HDMI input, four camera inputs with 12V wired triggers, rear seat entertainment output, and Bluetooth 4.2 with aptX. The screen mount is adjustable, allowing fine-tuning of the display position to suit the application. iGo offline navigation is not included and is available separately. The Stinger HEIGH10 head unit is included.

Key Specifications

• Manufacturer Part Number: SRP-JW03H

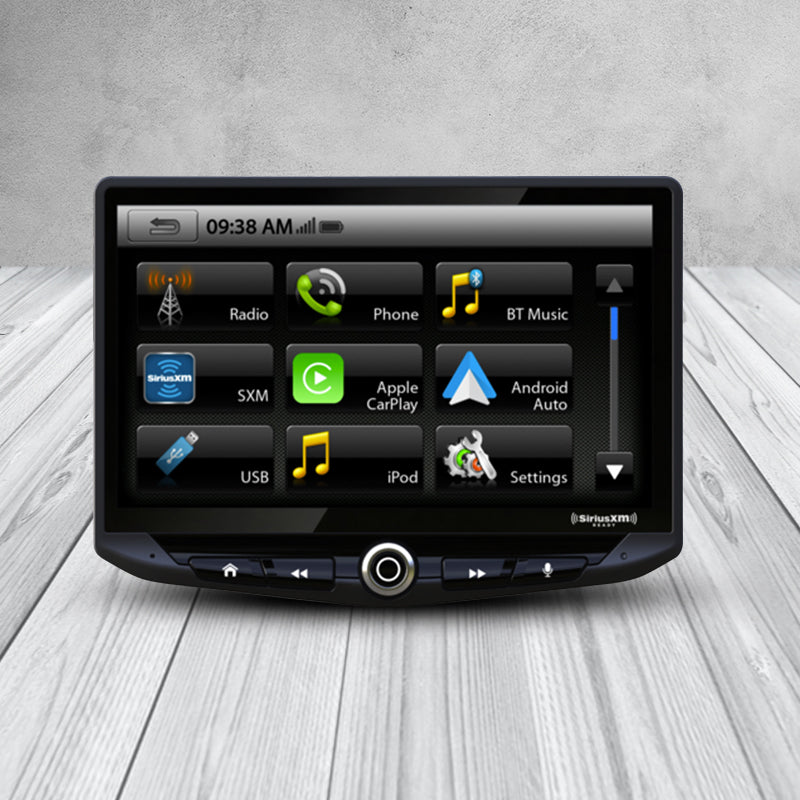

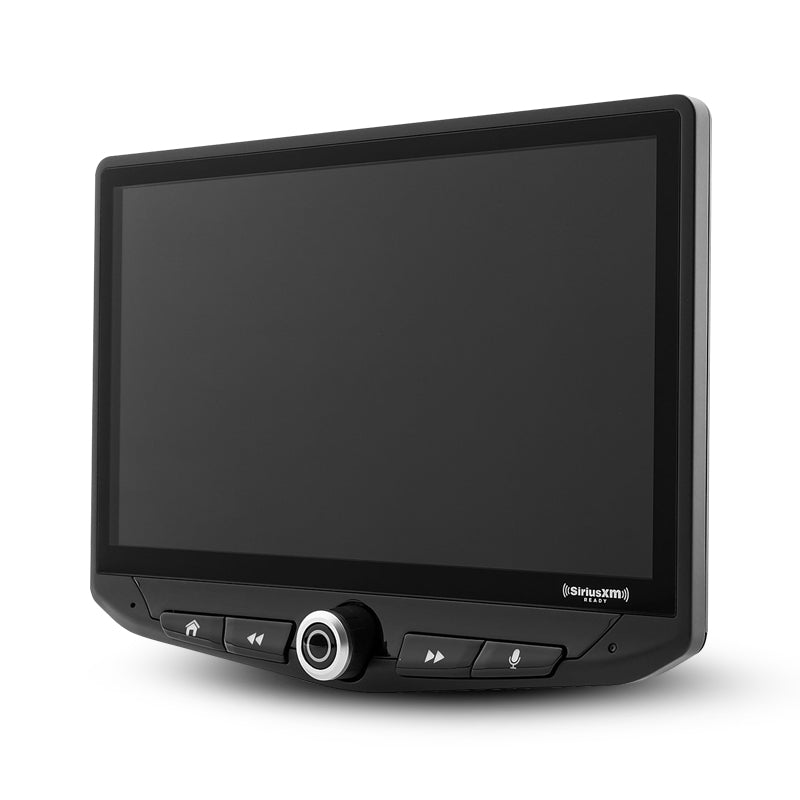

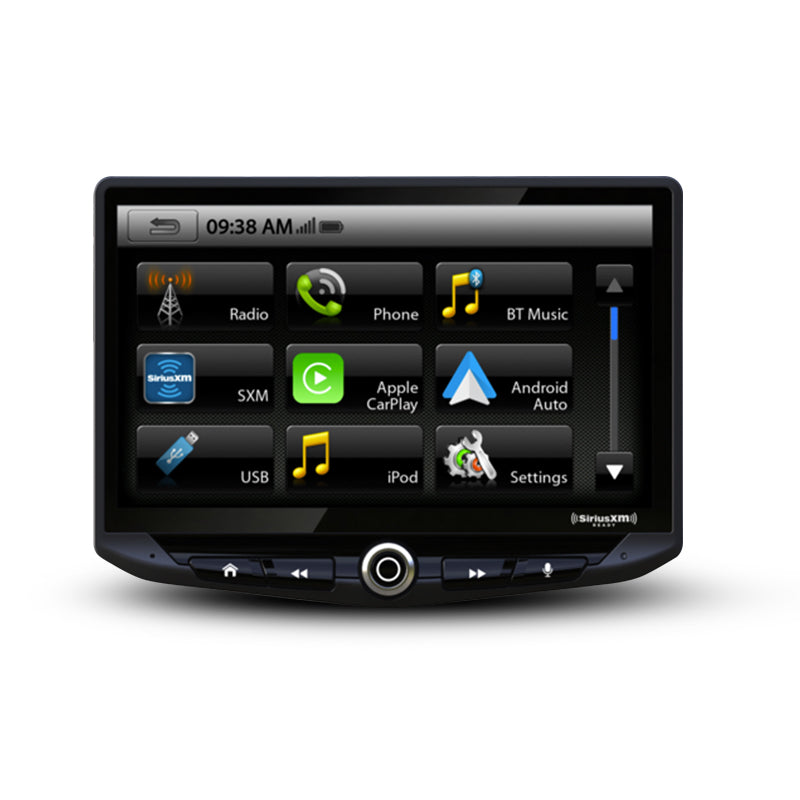

• Included head unit: Stinger HEIGH10 (10" display, 1024 x 600)
• Vehicle compatibility: Jeep Wrangler TJ 2003–2006
• Factory connector type: 22-pin Chrysler style connector (to bare wires)
• Screen size: 10" HD capacitive touchscreen
• Resolution: 1024 x 600
• Colour depth: 16.7 million colours
• Apple CarPlay: Yes
• Android Auto: Yes
• AM/FM radio: Yes — PTY/RT RDS support
• Built-in amplifier: 4 x 50W peak
• RCA output: 4V, 6-channel (front/rear/subwoofer)
• TOSLINK output: Yes — variable optical audio
• Equaliser: 15-band adjustable, 3 presets per source
• Bluetooth: 4.2 — handsfree + A2DP with aptX
• Dual USB: Yes — 1.5A output
• HDMI input: 1x
• AV RCA input: 1x
• Camera inputs: 4x RCA with 12V wired triggers
• Rear camera mic input: Yes
• Rear seat entertainment: 2x video output, 1x audio output
• Adjustable screen mount: Yes
• SWC: Hardwired remote control ready (no SWC interface included)
• iGo navigation: Not included — available separately
• Plug & Play: No — wiring required (factory to bare wires)
• Smartphone: Not included

Features & Benefits

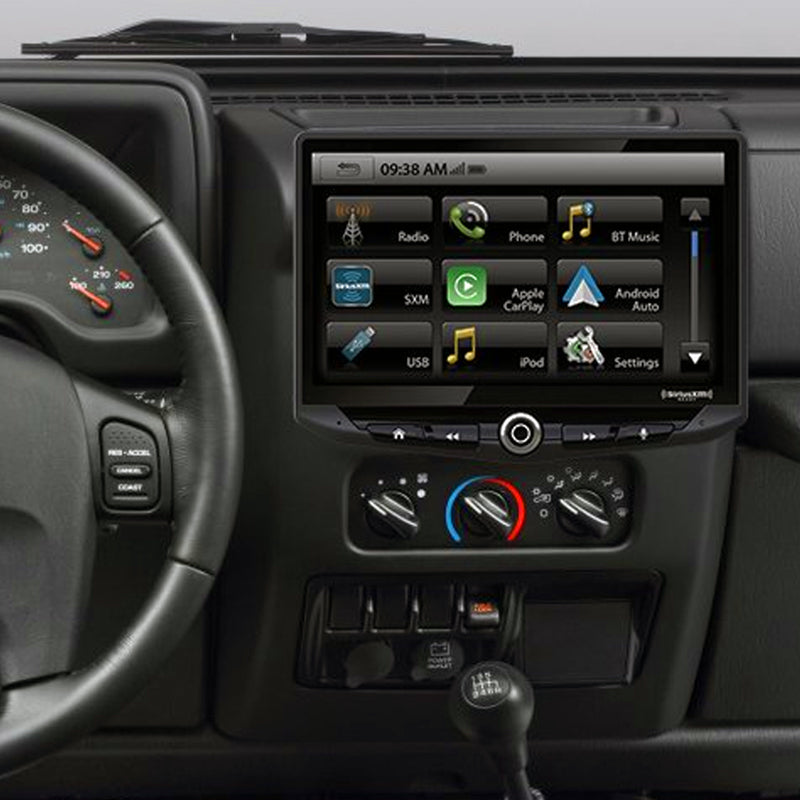

• 10" HD Capacitive Touchscreen with Adjustable Mount — 1024 x 600 resolution with 16.7 million colours, and an adjustable mounting bracket to fine-tune screen position within the TJ's dash opening.
• Apple CarPlay & Android Auto — Certified CarPlay and Android Auto with full access to navigation, music, calls, and messaging from a connected smartphone on the 10" screen.
• 4-Camera Input System — Four independent RCA camera inputs with dedicated 12V wired triggers allow front, rear, and side cameras to be connected simultaneously with touchscreen switching between views — well-suited for trail cameras and off-road setups.
• 4 x 50W Built-In Amplifier with 15-Band EQ — High-power built-in amplification with 15-band adjustable EQ and three presets per source, plus a 4V 6-channel RCA output for external amplifiers and TOSLINK for digital audio processors.
• Rear Seat Entertainment Output — Two video and one audio output support connection of a rear seat entertainment screen.
• Dual USB Flush Mount Harness — The included dual USB accessory/cig lighter replacement harness provides clean USB access for smartphone connectivity and media playback.
• Two Era-Specific Jeep Harnesses — Both 1999–2001 and 2002–2005 Jeep radio harnesses are included, covering variation in WJ/TJ factory wiring without needing to source the correct harness separately.
• Trail Camera Ready — The four camera inputs with external trigger support make this kit well-suited for Wrangler owners running trail cameras, bull bar cameras, or recovery-focused camera setups. The Echomaster PCAM-201-N and PCAM-10FF-N cameras are recommended options available separately.

Technical Specs

Compatible With / Goes Well With

• Jeep Wrangler TJ 2003, 2004, 2005, 2006
• External amplifiers and processors via 4V 6-channel RCA output
• TOSLINK-compatible digital audio processors
• Up to 4x RCA cameras via independent triggered inputs
• Echomaster PCAM-201-N universal flush mount reverse camera (sold separately)
• Echomaster PCAM-10FF-N off-road camera (sold separately)

Caution: Wiring is required — this is not a plug-and-play kit. The factory connector terminates in bare wires and installation requires automotive wiring experience. Vehicle installation instructions are included; professional installation is recommended. No SWC retention interface is included — the HEIGH10 is hardwired remote control ready but a SWC interface must be sourced separately if SWC retention is required. iGo offline navigation is not included and must be purchased separately. A compatible smartphone must be supplied by the user.

Frequently Asked Questions

Does the SRP-JW03H include the HEIGH10 head unit?

Yes — the Stinger HEIGH10 infotainment system is included along with all vehicle-specific installation hardware. iGo navigation is not included and is available separately.

Is this kit plug-and-play?

No — some wiring is required. The factory connector terminates in bare wires and the kit is not fully plug-and-play. Vehicle installation instructions are included; professional installation is recommended.

Does the kit include a steering wheel control interface?

No — a dedicated SWC retention interface is not included in the SRP-JW03H. The HEIGH10 is hardwired remote control ready, but a compatible SWC interface will need to be sourced separately if OEM steering wheel control retention is required.

Why are two radio harnesses included?

The Jeep TJ's factory wiring varied between the 1999–2001 and 2002–2005 model years. Both harnesses are included in the kit, covering the relevant wiring variants without needing to source the correct harness separately.

Does this kit support a reverse camera?

The HEIGH10 supports up to four RCA camera inputs with 12V wired triggers. No factory camera is retained (the TJ did not have a factory reverse camera). The Echomaster PCAM-201-N universal flush mount reverse camera or the Echomaster PCAM-10FF-N off-road camera are recommended options available separately.
