Stinger SRP-IZ003H HEIGH10 Infotainment Package For Isuzu D-MAX/MUX '19–'22

The Complete Isuzu Upgrade HEIGH10 10" Infotainment With CarPlay, iGo Navigation, DSP and 4-Camera Inputs

Product Overview

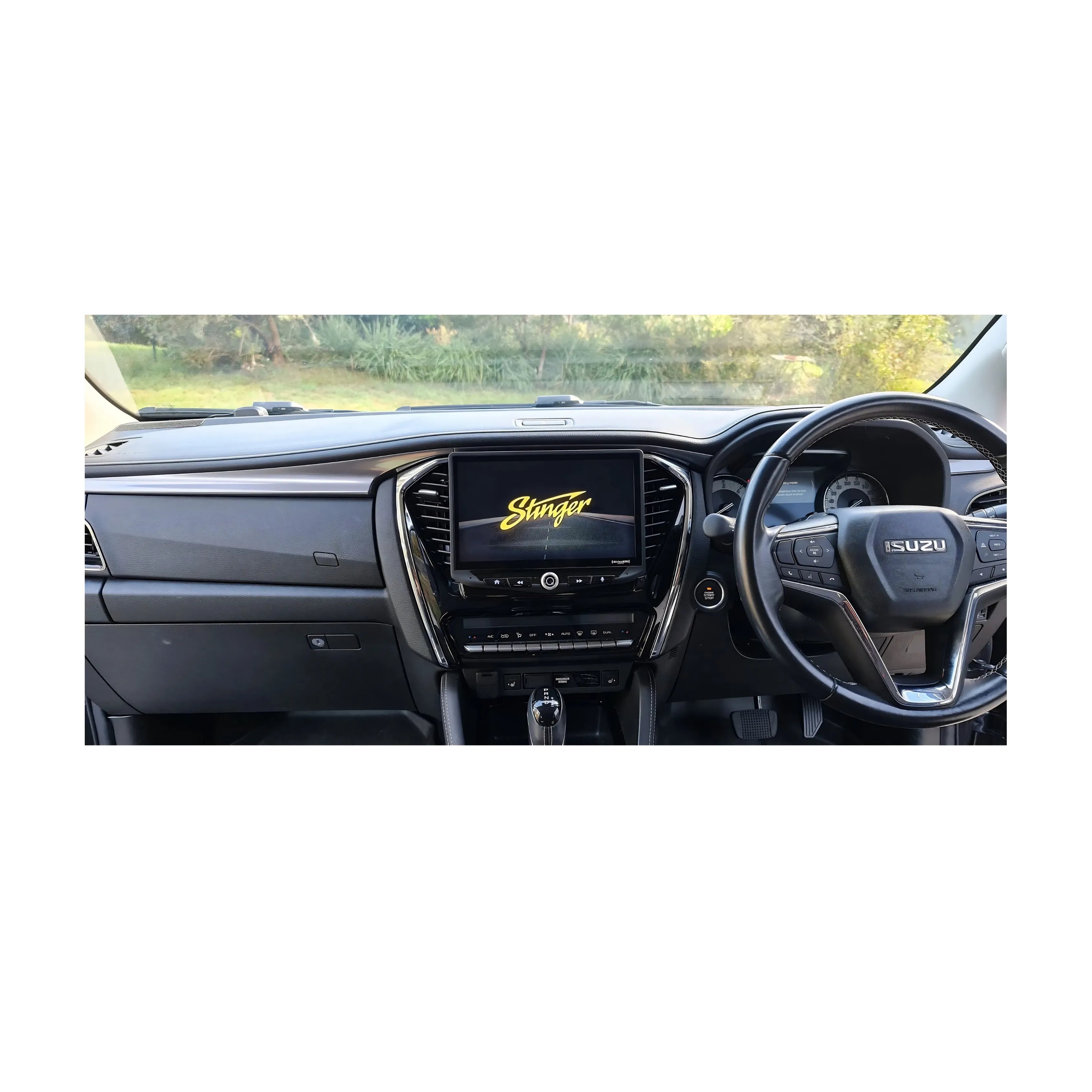

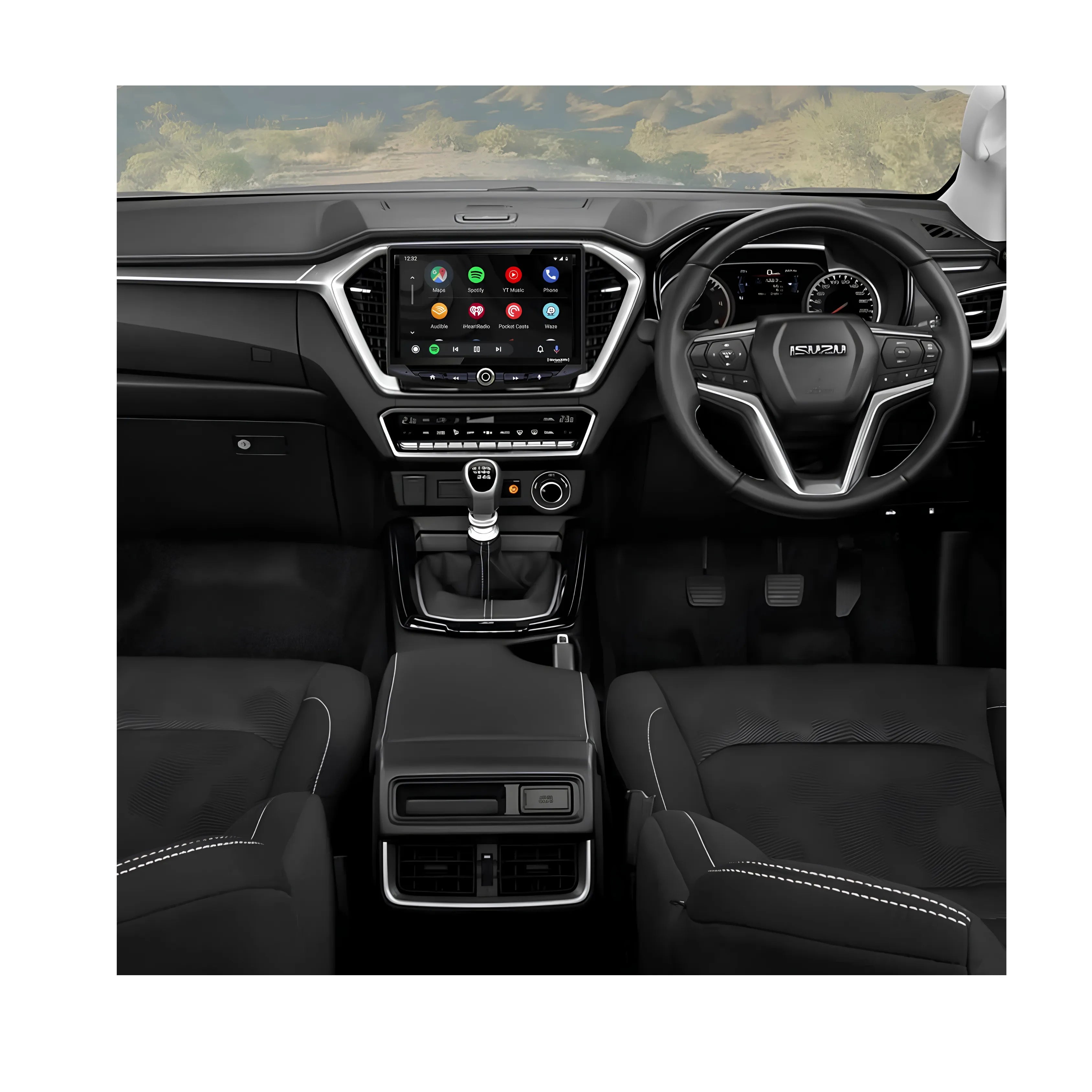

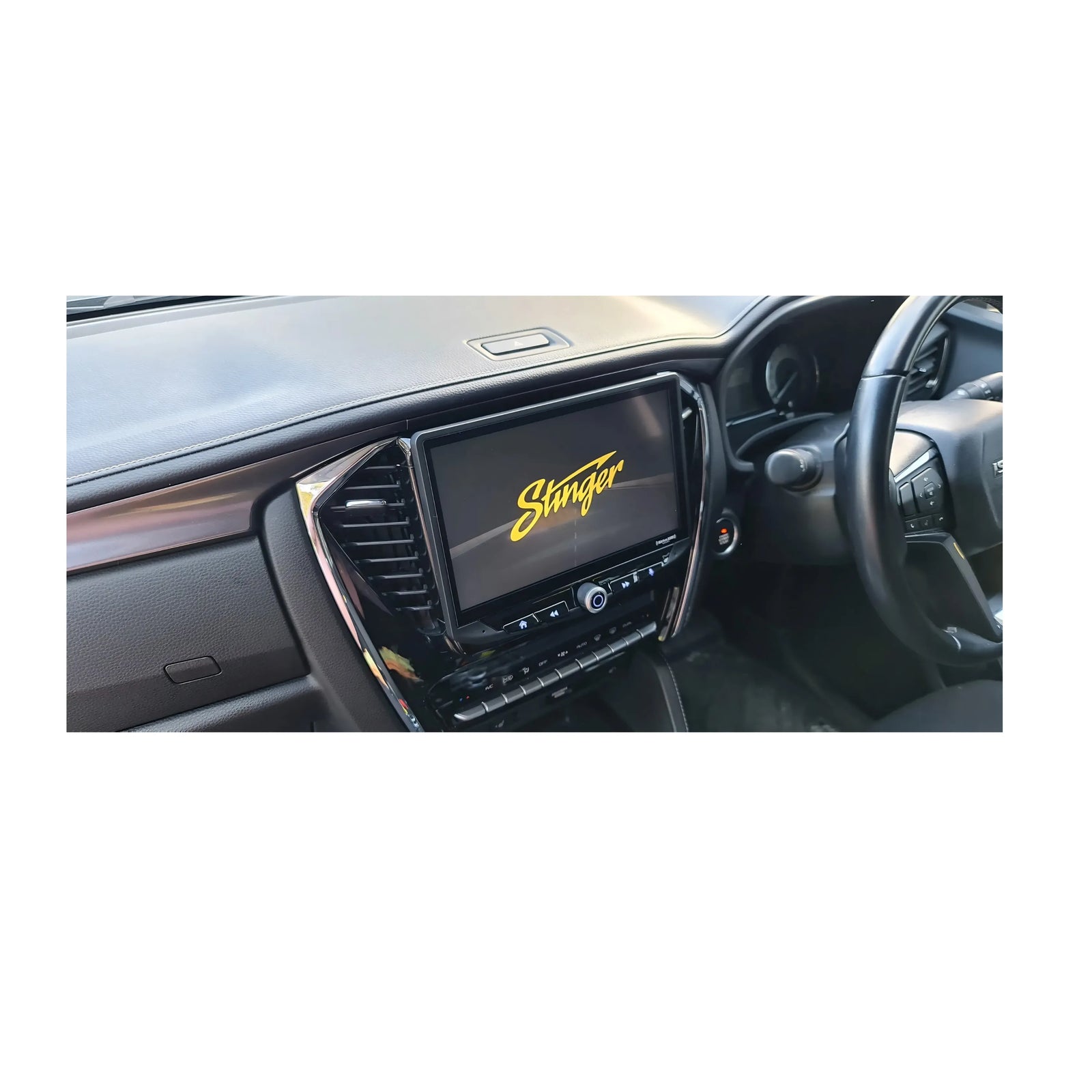

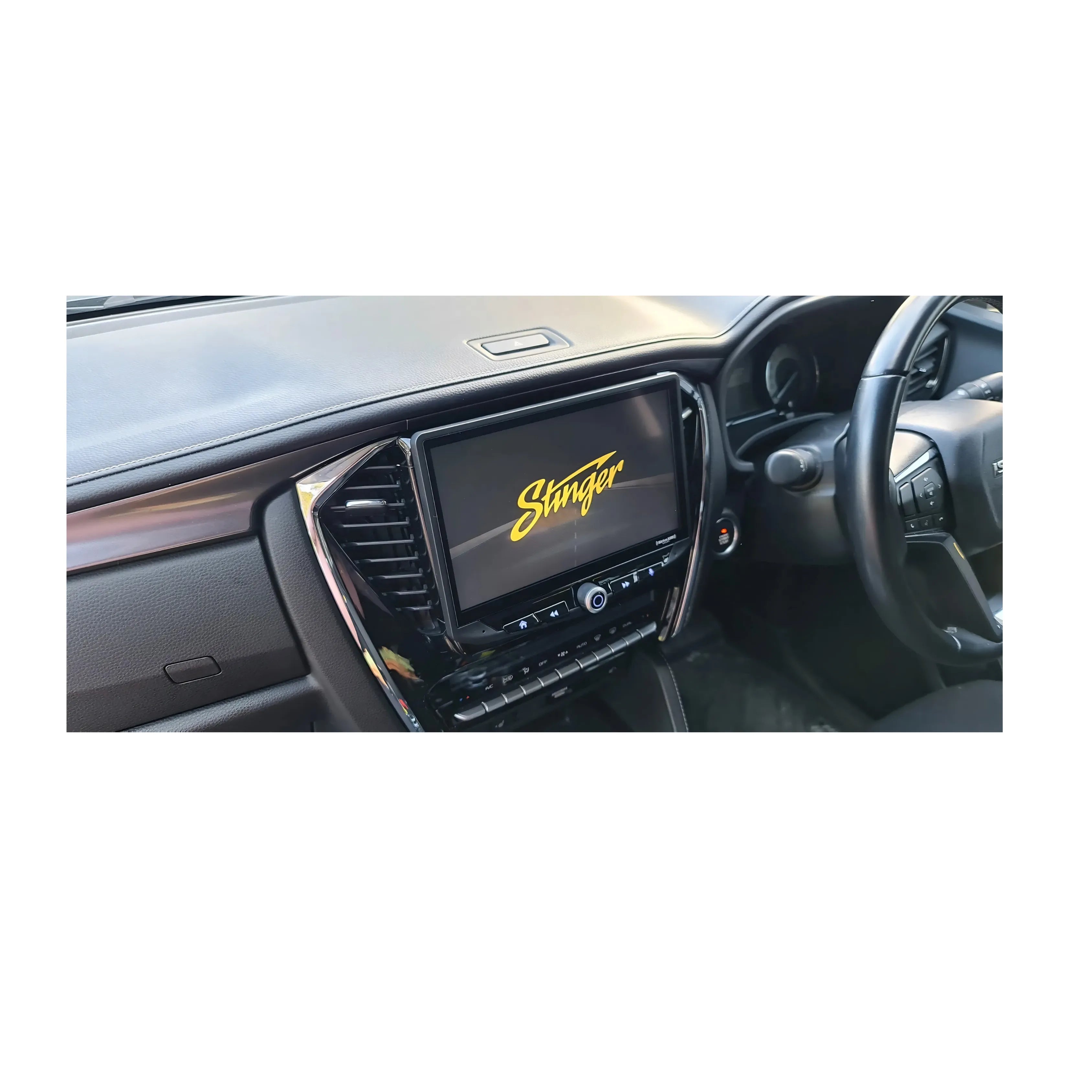

The Stinger SRP-IZ003H is an all-inclusive infotainment replacement kit designed for the 2019–2022 Isuzu D-MAX RG and 2021–2023 Isuzu MU-X RJ20. This kit combines the Stinger HEIGH10 10" infotainment system with all vehicle-specific dash hardware, antenna adaptor, radio harness, USB adaptor harness, and mounting brackets providing everything needed for a professional installation result.

The HEIGH10 (1024 x 600 HD capacitive touchscreen, 16.7 million colours) delivers Apple CarPlay, Android Auto, AM/FM with RDS, high-power 4 x 50W built-in amplifier, 4V 6-channel RCA output, TOSLINK optical output, 15-band EQ with three presets per source, dual USB, HDMI input, four camera inputs with wired triggers, rear seat entertainment output, and iGo offline navigation via the included navigation card. An adjustable screen mounting allows the display position to be fine-tuned to suit the installation.

Key Specifications

• Manufacturer Part Number: SRP-IZ003H
• Included head unit: Stinger HEIGH10 (10" display, 1024 x 600)
• Vehicle compatibility: Isuzu D-MAX RG 2019–2022; Isuzu MU-X RJ20 2021–2023
• Screen size: 10" HD capacitive touchscreen
• Resolution: 1024 x 600
• Colour depth: 16.7 million colours
• Apple CarPlay: Yes
• Android Auto: Yes
• AM/FM radio: Yes — PTY/RT RDS support
• Built-in amplifier: 4 x 50W peak
• RCA output: 4V, 6-channel (front/rear/subwoofer)
• TOSLINK output: Yes — variable optical audio
• Equaliser: 15-band adjustable, 3 presets per source
• Bluetooth: 4.2 — handsfree + A2DP with aptX
• Dual USB: Yes — 1.5A output
• HDMI input: 1x
• AV RCA input: 1x
• Camera inputs: 4x RCA with 12V wired triggers
• Rear camera mic input: Yes
• Rear seat entertainment: 2x video output, 1x audio output
• iGo navigation: Yes — included (microSD navigation card, Australian/NZ maps, updatable via naviextras.com)
• Customisable illumination: Yes — colours and display backgrounds
• SWC: Hardwired remote control ready
• Plug & Play: Partial — some wiring required
• Smartphone: Not included

Features & Benefits

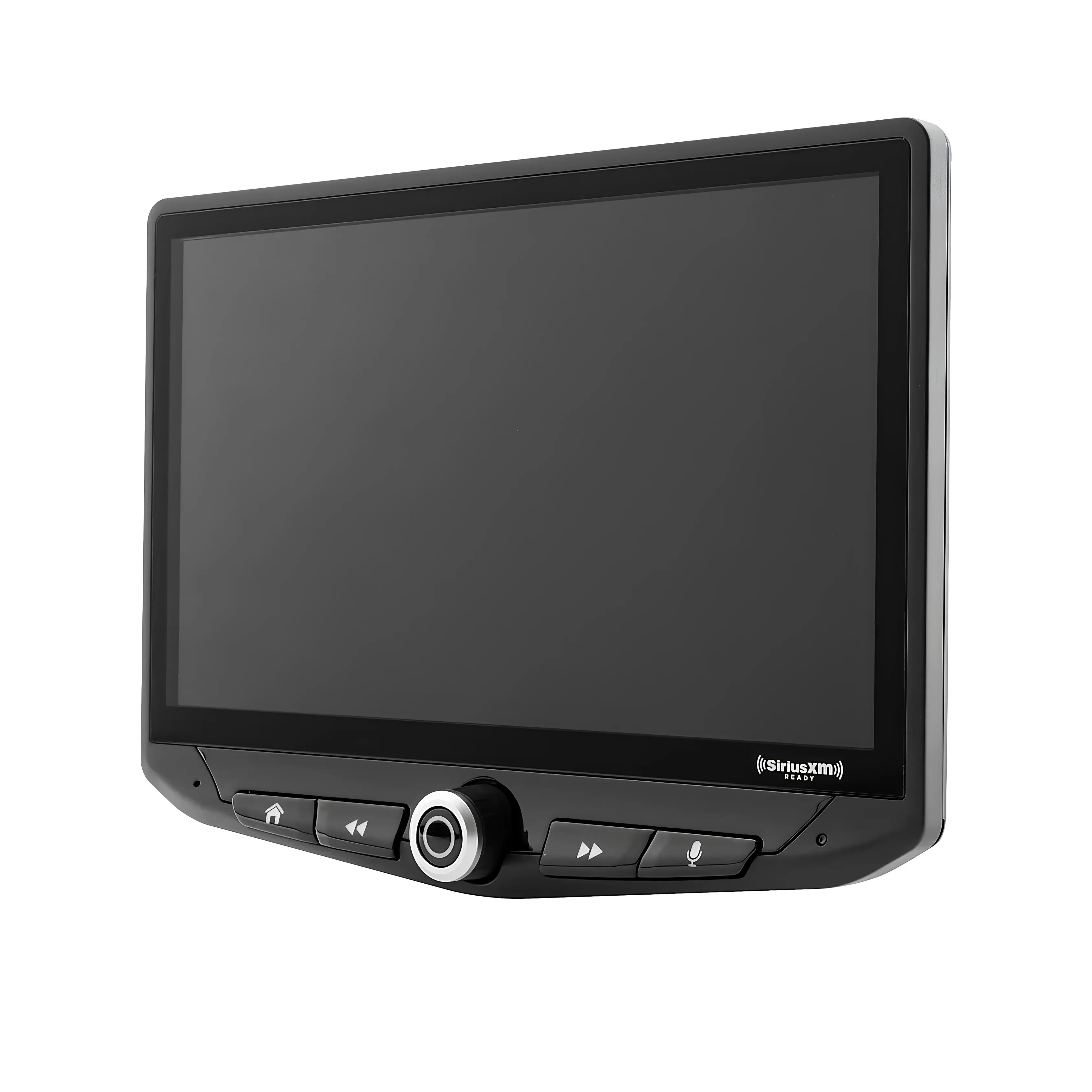

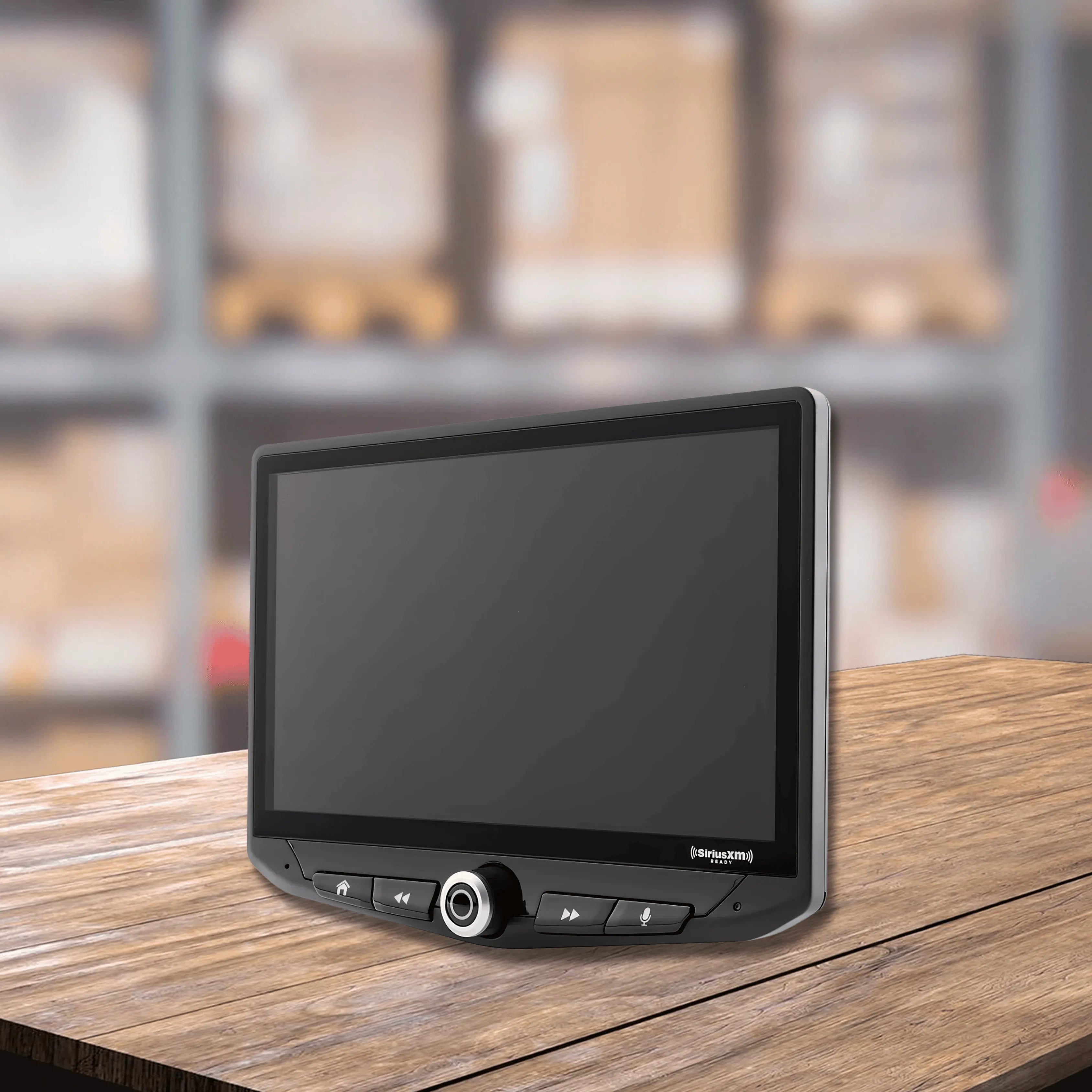

• 10" HD Capacitive Touchscreen — 1024 x 600 resolution with 16.7 million colour display and adjustable screen mounting for precise positioning in the D-MAX and MU-X dash.
• Apple CarPlay & Android Auto — Certified CarPlay and Android Auto with full access to navigation, music, calls, and messaging from a connected smartphone on the 10" screen.
• iGo Offline Navigation Included — The included iGo navigation card provides full Australian and New Zealand offline mapping — no mobile reception required. Maps are updatable via a naviextras.com account at any time.
• 4 x 50W Built-In Amplifier with 15-Band EQ — High-power built-in amplification with 15-band adjustable EQ and three presets per audio source, plus a 4V 6-channel RCA output for connecting external amplifiers and a TOSLINK optical output for high-end digital processors.
• 4-Camera Input System — Four independent RCA camera inputs, each with a dedicated 12V wired trigger, allow simultaneous use of front, rear, and side cameras with touchscreen switching between views.
• Rear Seat Entertainment Output — Two video and one audio output enable connection of a rear seat entertainment screen, extending multimedia capability to rear passengers.
• Dual Zone & Dual USB — Dual 1.5A USB inputs support smartphone charging, mass storage, and USB thumb drive playback alongside the head unit's other input sources.
• Adjustable Screen Mounting — Screen position can be fine-tuned after installation, accommodating variation in dash fit between individual vehicles.
• Vehicle-Specific Hardware Bundle — Dash panel, antenna adaptor, D-MAX radio harness, USB adaptor harness, mounting brackets, and installation instructions are all included and matched to the D-MAX RG and MU-X RJ20.

Technical Specs

Compatible With / Goes Well With

• Isuzu D-MAX RG 2019, 2020, 2021, 2022
• Isuzu MU-X RJ20 2021, 2022, 2023
• External amplifiers and processors via 4V 6-channel RCA output
• TOSLINK-compatible digital audio processors
• Up to 4x RCA cameras via independent triggered inputs
• Rear seat entertainment screens via RSE output
• naviextras.com for iGo map updates (Australian/NZ)

Frequently Asked Questions

Does the SRP-IZ003H include the HEIGH10 head unit and iGo navigation?

Yes — the Stinger HEIGH10 infotainment system and an iGo navigation card with Australian and New Zealand maps are both included. Maps can be updated at any time via a naviextras.com account.

Is this kit fully plug-and-play?

No — some wiring is required. The kit is not 100% plug-and-play, and vehicle-specific installation instructions are included. Professional installation is recommended if you are not confident with automotive wiring.

How many cameras can the HEIGH10 support?

The HEIGH10 supports up to four RCA camera inputs, each with a dedicated 12V wired trigger for independent switching. This enables front, rear, and side cameras to be connected simultaneously with touchscreen control.

Does the kit support rear seat entertainment?

Yes — the HEIGH10 includes two video outputs and one audio output for connecting a rear seat entertainment screen, extending multimedia content to rear passengers.

What audio outputs are available for a system build?

The HEIGH10 provides a 4V 6-channel RCA output (front/rear/subwoofer), a TOSLINK optical output for digital audio processors, and a 15-band EQ with three presets per source — a comprehensive output stage for building a more involved audio system.
