Stinger SRP-IZ001H HEIGH10 Infotainment Kit Suits Isuzu D-MAX / MUX

Older D-MAX and MU-X, Modern Infotainment HEIGH10 10" With CarPlay and Steering Wheel Control Retention

Product Overview

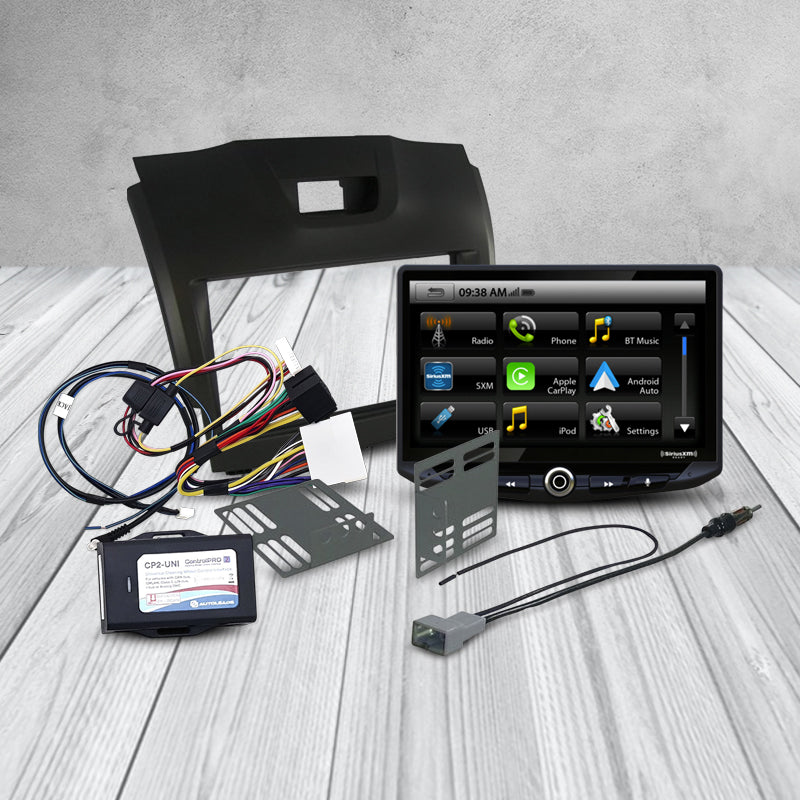

The Stinger SRP-IZ001H is an all-inclusive infotainment replacement kit designed for the 2012–2016 Isuzu D-MAX (RT50/RT85) and 2013–2015 Isuzu MU-X (RF10). This kit combines the Stinger HEIGH10 10" infotainment system with all vehicle-specific hardware radio mounting kit, antenna adaptor, vehicle interface, and ISO harness providing a complete upgrade package for these older Isuzu models.

The SWI-IZ01 vehicle interface retains and allows customisation of OEM steering wheel audio controls. iGo navigation is available as an optional addition it is not included in the standard kit. The Stinger HEIGH10 head unit is included.

Key Specifications

• Manufacturer Part Number: SRP-IZ001H

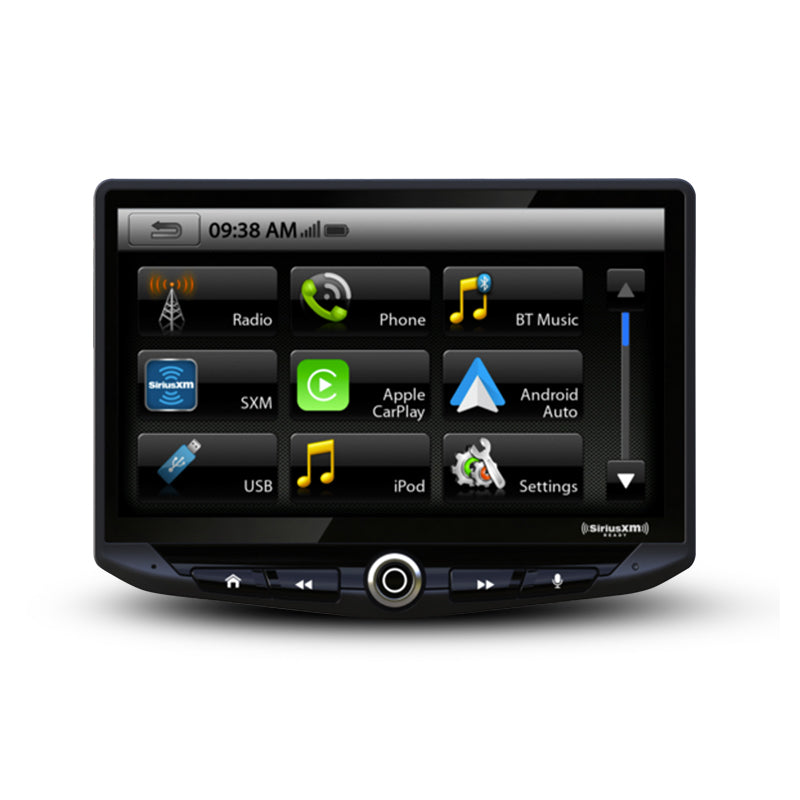

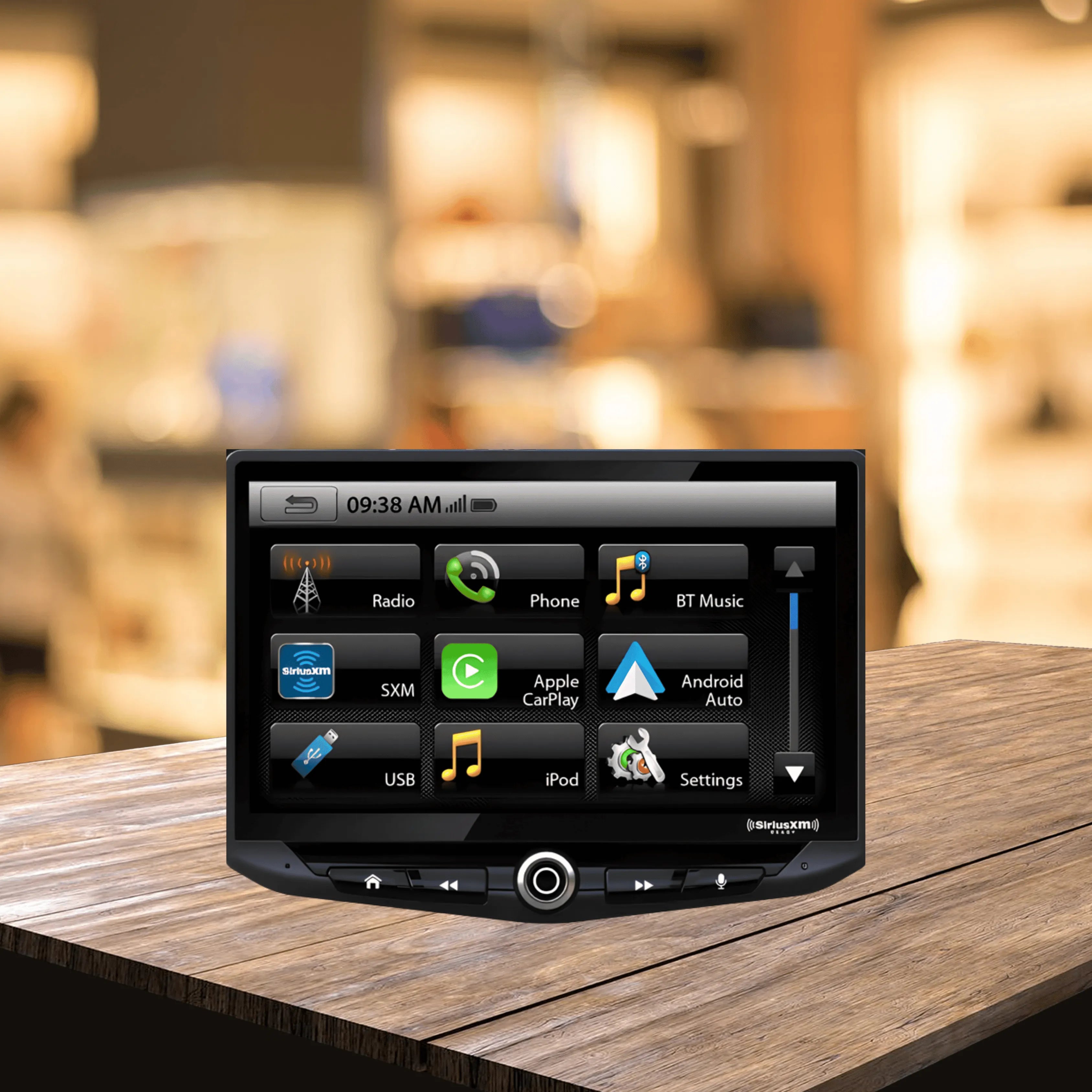

• Included head unit: Stinger HEIGH10 UN1810 (10" display)
• Vehicle compatibility: Isuzu D-MAX RT50/RT85 2012–2016; Isuzu MU-X RF10 2013–2015
• Screen size: 10" HD capacitive touchscreen
• Colour depth: 16.7 million colours
• Apple CarPlay: Yes
• Android Auto: Yes
• AM/FM radio: Yes — with RDS tuner
• Dual USB: Yes
• HDMI input: Yes
• RCA output: 4V, 6-channel
• Digital Sound Processor: Yes — with TOSLINK output
• Bluetooth: Yes — handsfree and audio playback with aptX
• iGo navigation: Optional — not included in standard kit
• Steering wheel audio control retention: Yes — OEM SWC retained and customisable via SWI-IZ01
• Reverse camera retention: Not specified
• USB retention: Not specified

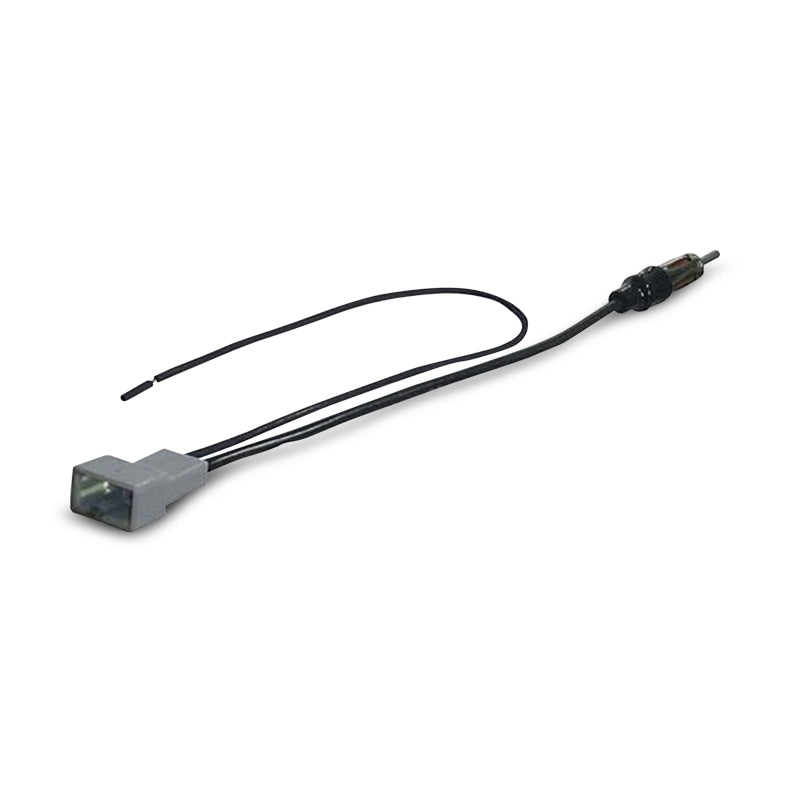

• Antenna adaptor: Included (STBAA28)
• Plug & Play: Yes

Features & Benefits

• 10" HD Capacitive Touchscreen — The HEIGH10's 10" display with 16.7 million colours brings a modern infotainment interface to the older D-MAX and MU-X dash.
• Apple CarPlay & Android Auto — Certified CarPlay and Android Auto with full access to navigation, music, calls, and messaging from a connected smartphone on the 10" screen.
• OEM Steering Wheel Control Retention — The SWI-IZ01 vehicle interface retains factory steering wheel audio buttons and allows them to be customised, keeping hands-free audio control functional after installation.
• 4V 6-Channel RCA Output + DSP — The HEIGH10's output stage and TOSLINK optical output provide the foundation for connecting external amplifiers and audio processors.

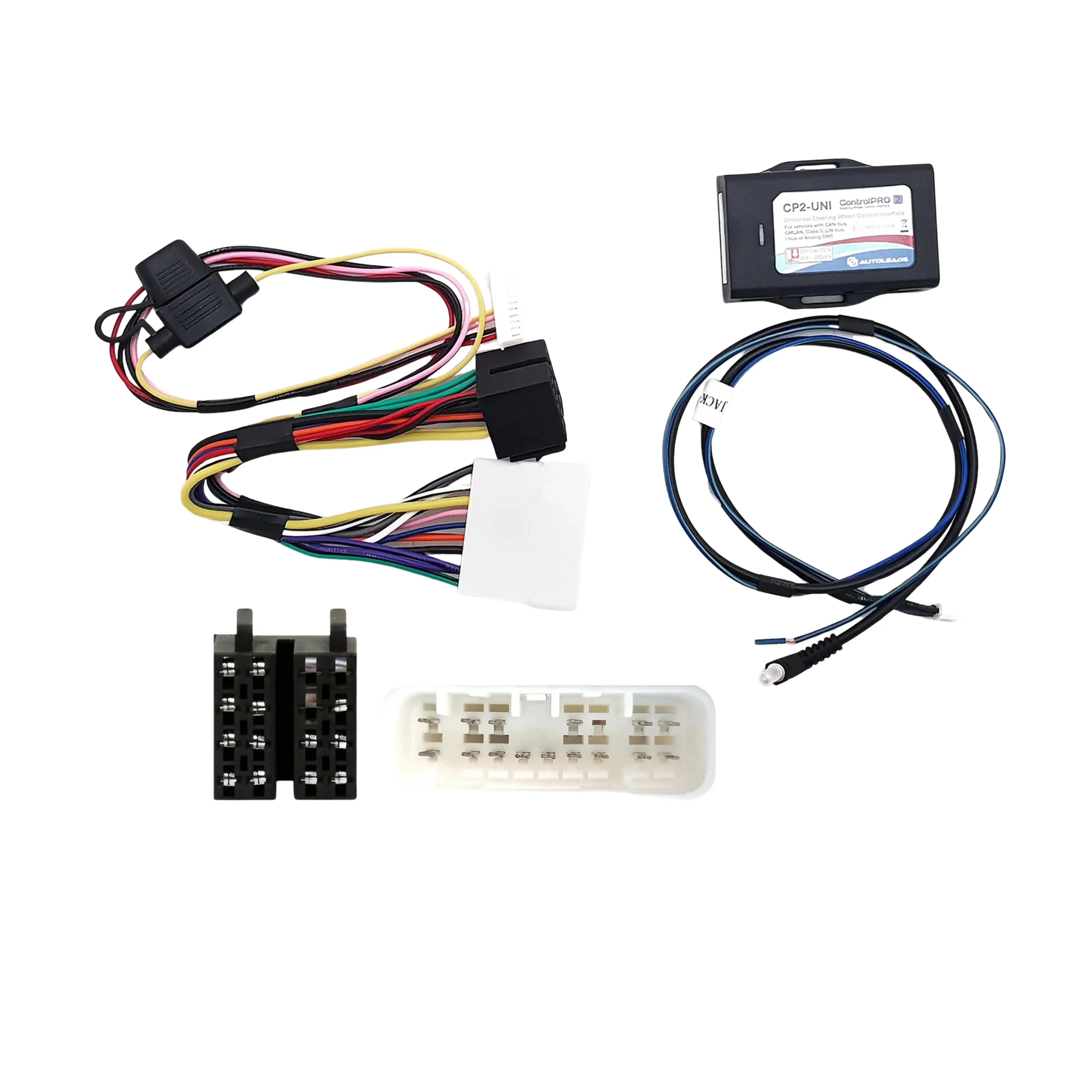

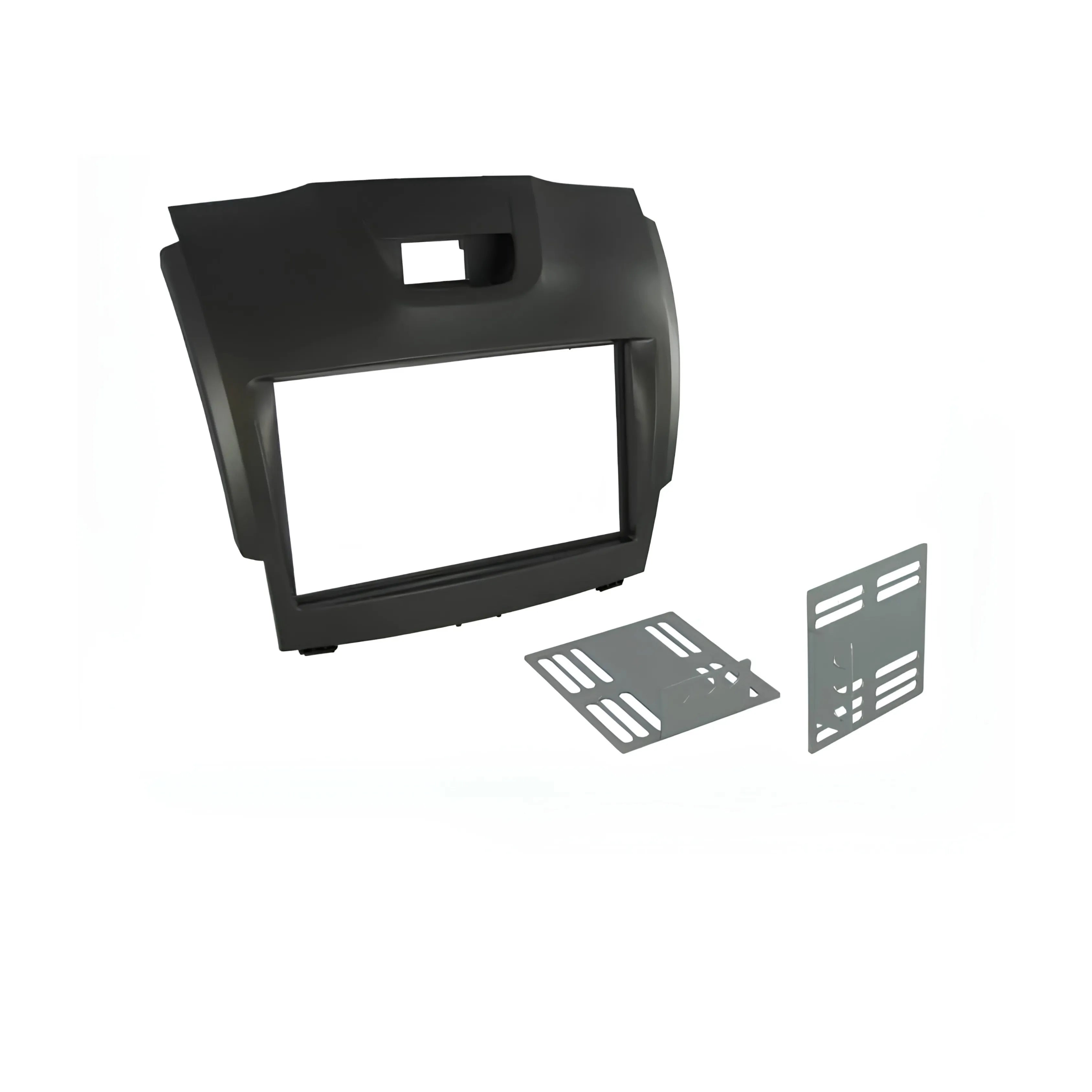

• Vehicle-Specific Hardware Included — Radio mounting kit (SFDIZ02), antenna adaptor (STBAA28), vehicle interface (SWI-IZ01), and ISO harness are all included and matched to the D-MAX and MU-X.

Technical Specs

Compatible With / Goes Well With

• Isuzu D-MAX RT50 2012, 2013, 2014, 2015, 2016
• Isuzu D-MAX RT85 2012, 2013, 2014, 2015, 2016
• Isuzu MU-X RF10 2013, 2014, 2015
• External amplifiers and processors via 4V 6-channel RCA output
• TOSLINK-compatible digital audio processors

Frequently Asked Questions

Does the SRP-IZ001H include the HEIGH10 head unit?

Yes — the Stinger HEIGH10 infotainment system (UN1810) is included along with all vehicle-specific installation hardware. iGo navigation is optional and is not included in the standard kit.

Is iGo navigation included?

No — iGo navigation is optional and not included in the standard SRP-IZ001H kit. Contact the supplier to confirm availability and pricing if onboard navigation is required.

Will my factory steering wheel controls be retained?

Yes — the SWI-IZ01 vehicle interface retains OEM steering wheel audio controls and allows them to be customised, keeping hands-free volume and track control functional after installation.

Is reverse camera retention included?

Reverse camera retention is not specified in the supplier data for this kit. Confirm with the supplier before purchase if retaining a factory reverse camera is a requirement.

What are the D-MAX and MU-X chassis codes for this kit?

The SRP-IZ001H is confirmed for the Isuzu D-MAX RT50 and RT85 chassis (2012–2016) and the Isuzu MU-X RF10 chassis (2013–2015). These are the older generation D-MAX and MU-X models preceding the RG and RJ20 platforms.
