Stinger SPXULEDR SPX Red LED Underbody / Rock Light Set

SKU: SPXULEDR
Sale price
$35.10
Regular price
$39
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Stinger SPXULEDR 2-Pod Red CREE LED Rock and Underbody Lights IP68 9W Per Pod 120 Degree Die-Cast Aluminium 12V DC Off-Road Use Only

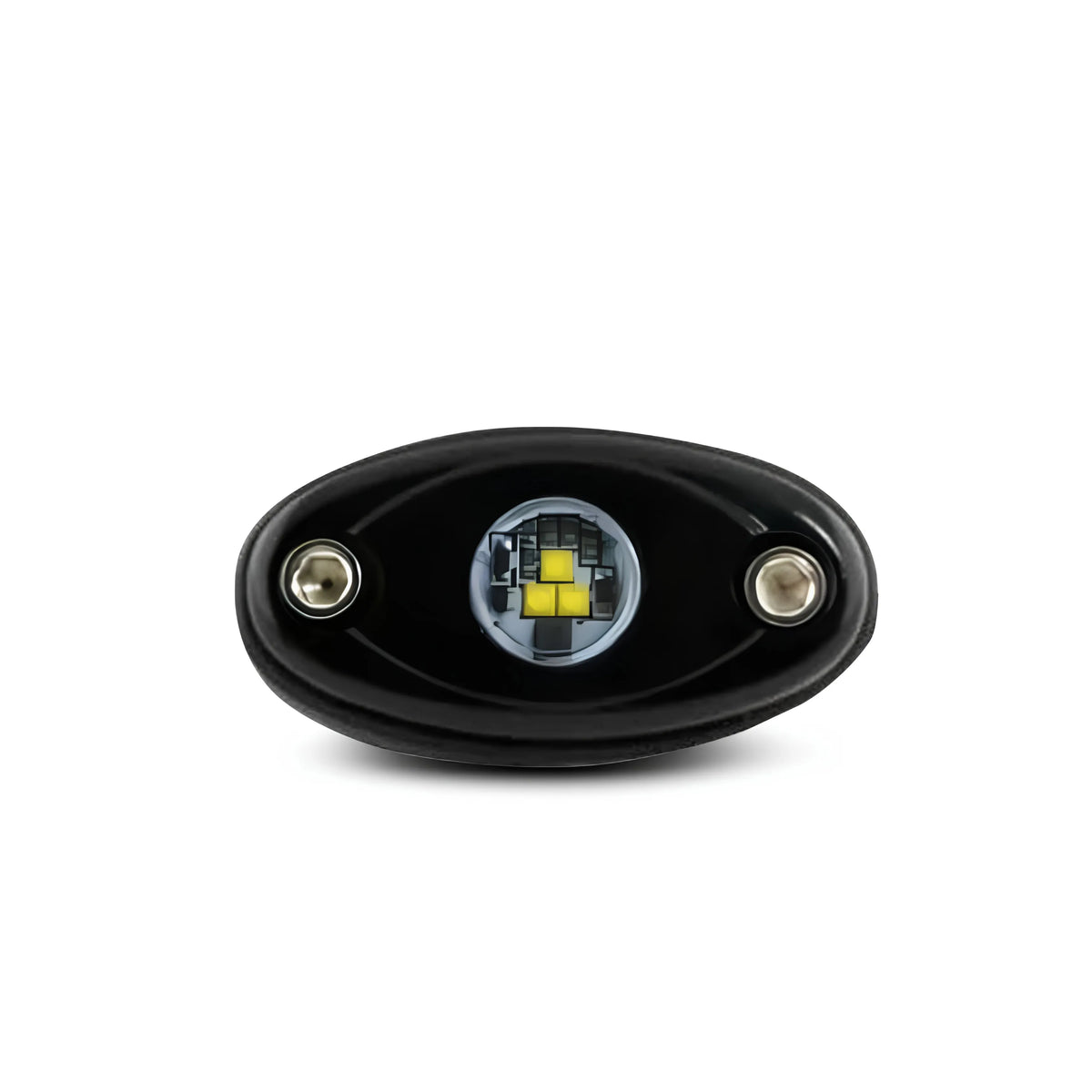

The Stinger SPXULEDR is a 2-pod red CREE LED rock and underbody light set from the Stinger SPX Powersports range. Each pod houses 3 red CREE LEDs delivering 9W output at a 120-degree beam angle, in an IP68-rated die-cast aluminium housing. Waterproof, dustproof, and rated for continuous water immersion. Rubber mounting pads and hardware included for flat and tubular surface mounting. 12V DC only. For off-road use only, not road-legal in Australia.

Product overview

The SPXULEDR is built for the demands of genuine off-road environments. IP68 rating provides complete dustproof protection and resistance to continuous water immersion, suited to river crossings, heavy rain, mud, and extreme off-road water exposure. Die-cast aluminium housing resists impact, vibration, and heat while keeping the pods compact and lightweight.

Three CREE LEDs per pod deliver 9W of focused red light across a 120-degree beam angle for underbody, wheel well, engine bay, and interior lighting applications. Rubber mounting pads allow installation on flat and tubular surfaces including roll cage tubing, bash bars, and curved panels. Mounting hardware for both pods is included in the box.

Operating voltage is 12V DC only. Not compatible with 24V systems. The working temperature range is -20°C to +40°C.

For off-road use only. Red underbody and rock lights are not road-legal for use on public roads in Australia. CE and RoHS certified.

Features and benefits

IP68 waterproof and dustproof housing: Completely dustproof and protected against continuous water immersion — suited to river crossings, mud, heavy rain, and extreme off-road conditions.

3x CREE LEDs per pod, 9W, 120-degree beam: Focused red output with a wide beam angle for underbody and wheel well illumination.

Die-cast aluminium housing: Resists impact, vibration, and heat in demanding off-road environments.

Flat and tubular surface mounting: Rubber mounting pads support installation on both flat panels and tubular surfaces including roll cages and bash bars.

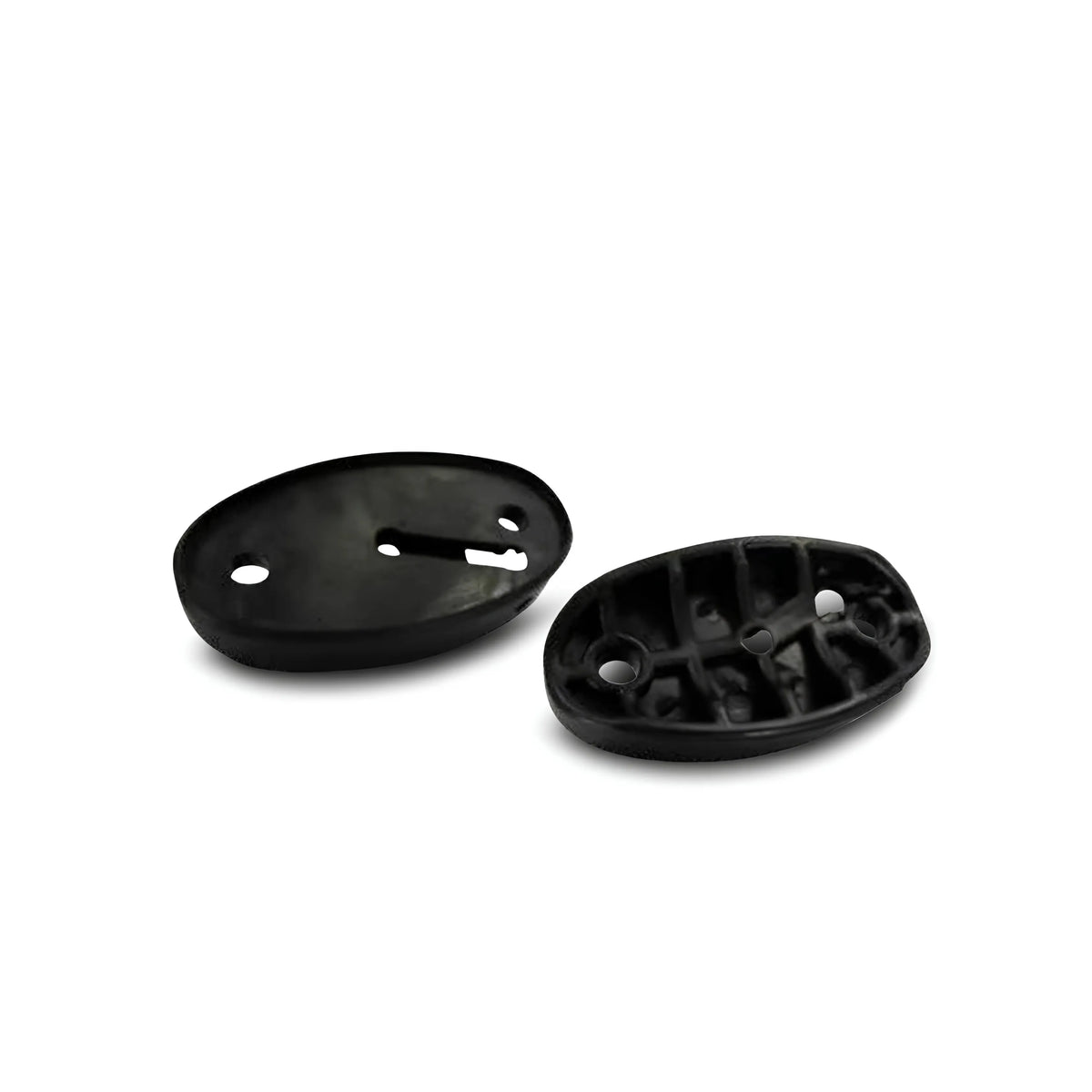

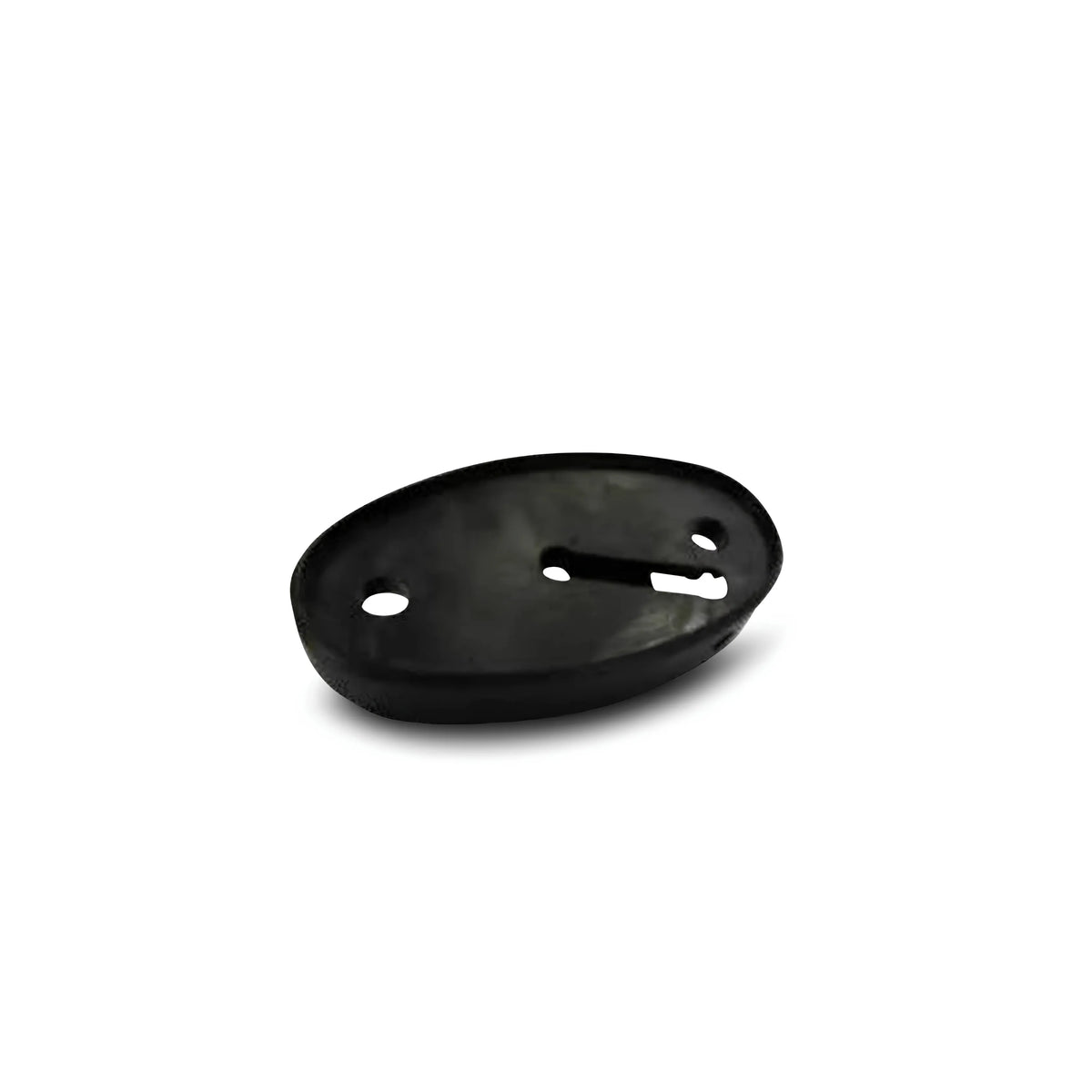

Complete mounting kit included: 2 rubber mounting pads and 4 pieces of mounting hardware supplied for both pods.

CE and RoHS certified: Meets international electrical safety and environmental standards.

12V DC only: Not compatible with 24V systems.

Off-road use only: Not road-legal for use on public roads in Australia.

What's in the box

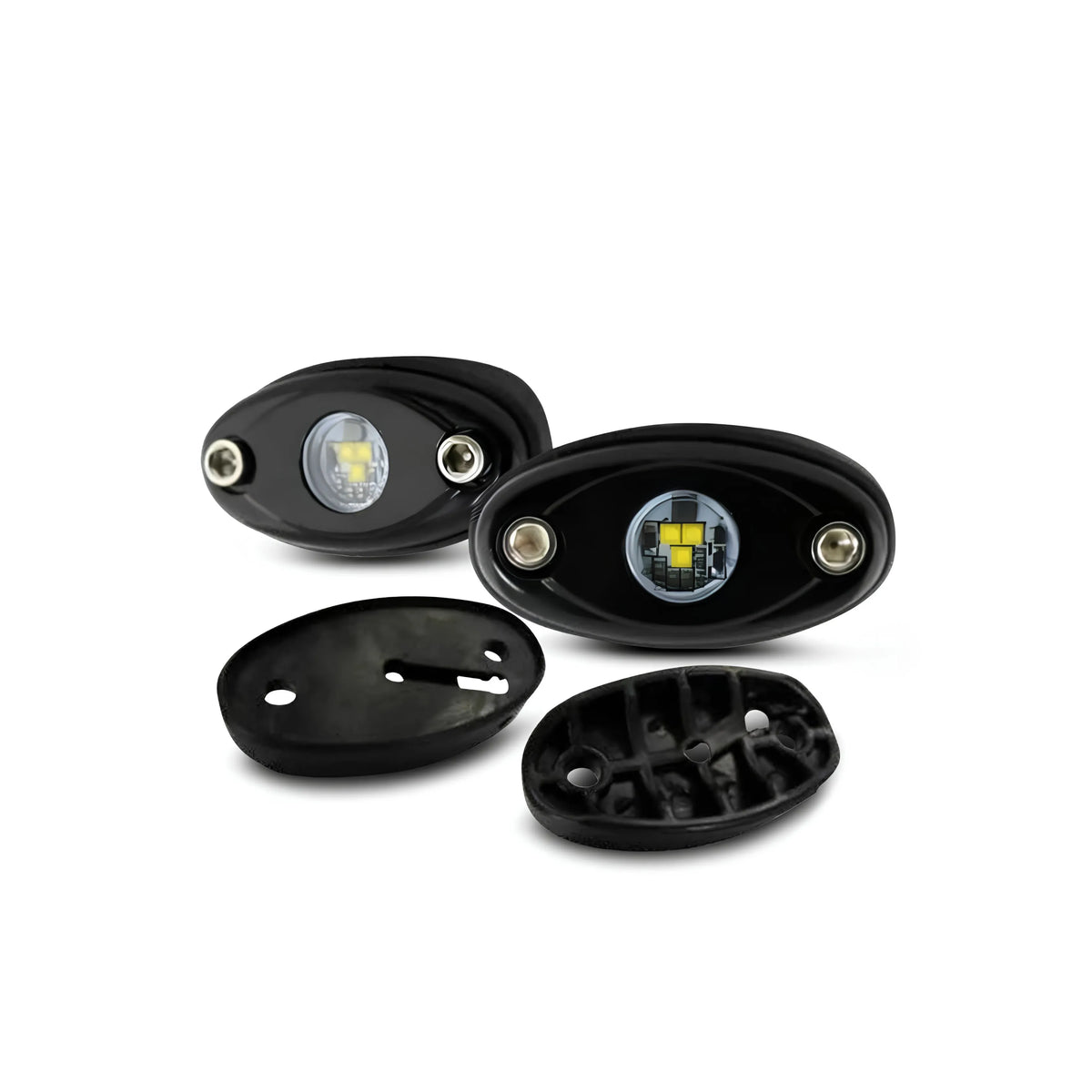

  • 2x Red CREE LED Pods
  • 2x Rubber Mounting Pads
  • 4x Mounting Hardware Pieces

Technical specs

Specification Detail
SKU SPXULEDR
Brand Stinger
LED Colour Red
LED Type CREE
LED Count 3x per pod
LED Power 9W per pod
Beam Angle 120 degrees
IP Rating IP68
Housing Material Die-cast aluminium
Housing Colour Black
Operating Voltage 12V DC only
Working Temperature -20°C to +40°C
Dimensions (per pod) 70mm (L) x 35mm (W) x 10mm (H)
Certifications CE, RoHS
Quantity 2 pods
Includes 2x pods, 2x rubber mounting pads, 4x mounting hardware
Application Off-road use only

Frequently asked questions

Is the SPXULEDR road-legal in Australia? No. The SPXULEDR is for off-road use only. Red underbody and rock lights are not road-legal for use on public roads in Australia. Use is restricted to off-road environments.

What does IP68 mean for these pods? IP68 is the highest common IP ingress protection rating, indicating the pods are completely dustproof and protected against continuous water immersion beyond 1 metre depth. This suits river crossings, heavy rain, mud, and extreme off-road water exposure.

How many pods are included? The SPXULEDR includes 2 LED pods, 2 rubber mounting pads, and 4 pieces of mounting hardware for both pods.

Can the SPXULEDR be mounted on tubular surfaces like roll cages or bash bars? Yes. The rubber mounting pads support installation on both flat and tubular surfaces, including roll cage tubing, bash bars, and other curved surfaces.

What voltage do the SPXULEDR pods require? The SPXULEDR operates on 12V DC only. It is not compatible with 24V electrical systems.
