Stinger SPXRGBUBKIT SPX 4-Way RGB Underbody / Rock Light Kit

SKU: SPXRGBUBKIT
Sale price
$179.10
Regular price
$199
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Stinger SPXRGBUBKIT 4 Pod CREE RGB Underbody and Rock Light Kit with Bluetooth App Control Music Sync IP65 and 12V 24V Operation for Off-Road Vehicles

The SPXRGBUBKIT from Stinger is a 4-module CREE RGB underbody and rock light kit for PowerSports and off-road vehicles, controlled via Bluetooth using a free iOS or Android application. Each of the four die-cast aluminium pods houses three software-adjustable RGB LEDs with colour selection, dynamic lighting modes, and music-sync mode all available through the app. The system retains the last preset without requiring the app to be open. IP65 rated, 12V and 24V compatible. For off-road use only.

Product overview

The SPXRGBUBKIT provides a complete four-pod RGB lighting solution for underbody, wheel well, engine bay, and general off-road vehicle lighting applications. The included Bluetooth controller handles all four pod outputs simultaneously with a maximum output current of 18A, and pairs with the free iOS or Android app for colour selection, mode control, and music-sync configuration. Bluetooth range is 10 to 20 metres.

The system retains the last preset configured via the app. Once a setting has been saved, the lights will power on to that preset automatically without the app being open or connected. Both flat and curved rubber mounting pads are included for secure mounting on flat or tubular surfaces, and two 48-inch extension harnesses provide flexible routing for varied installation layouts. The SPXRGBUBKIT is for off-road use only. RGB underbody lighting is restricted on public roads in most Australian states.

Features and benefits

4x CREE RGB LED pods with Bluetooth app control: Four die-cast aluminium pods each with three software-adjustable CREE RGB LEDs, controlled via a free iOS or Android Bluetooth app for full colour selection, dynamic mode, and music-sync control.

Music-sync mode: The music-controlled sync mode synchronises LED colour changes to the beat of your music through the Bluetooth app, providing a dynamic lighting effect tied to audio playback.

System retains last preset: The system automatically retains the last preset configured via the app. The lights will power on to the saved setting without the app being open or connected each time.

IP65 weather resistance: The IP65 rating provides full dustproof protection and resistance to low-pressure water jets from any direction, suited to most off-road conditions including dust, mud, and rain. Not rated for full submersion.

Flat and curved rubber mounting pads included: Both flat and curved rubber mounting pads are included for secure mounting on flat or tubular surfaces across a range of vehicle mounting locations.

Two 48-inch extension harnesses: Two 48-inch extension harnesses are included for flexible cable routing to suit varied installation layouts.

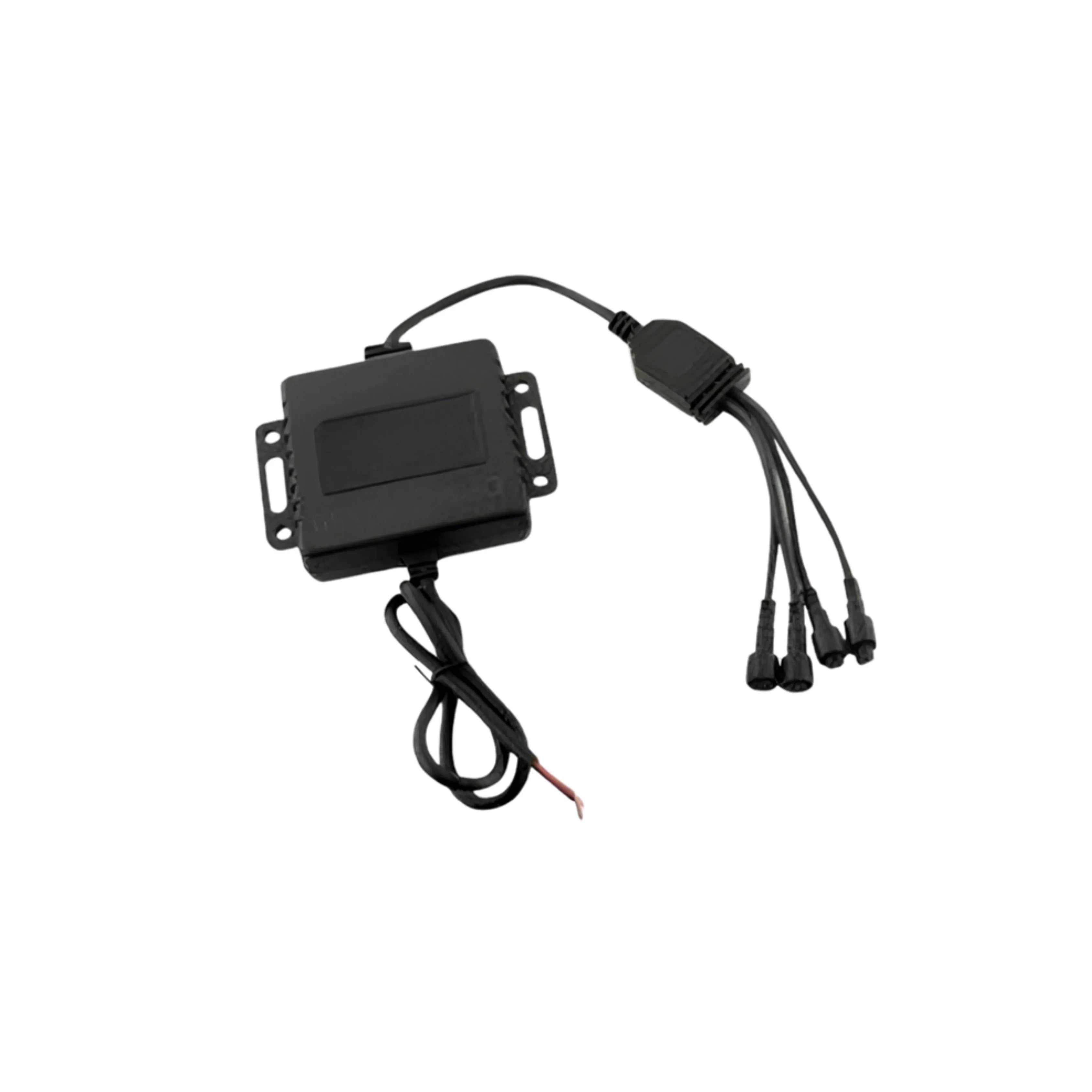

4-output controller with 18A maximum output: The included controller handles all four pod outputs with a maximum total output current of 18A and Bluetooth connectivity up to 10 to 20 metres.

12V and 24V compatible: Operates on both 12V and 24V electrical systems, suited to passenger vehicles and commercial or PowerSports applications.

Off-road use only: The SPXRGBUBKIT is for off-road use only and is not approved for use on public roads in Australia. RGB underbody lighting is restricted in most Australian states.

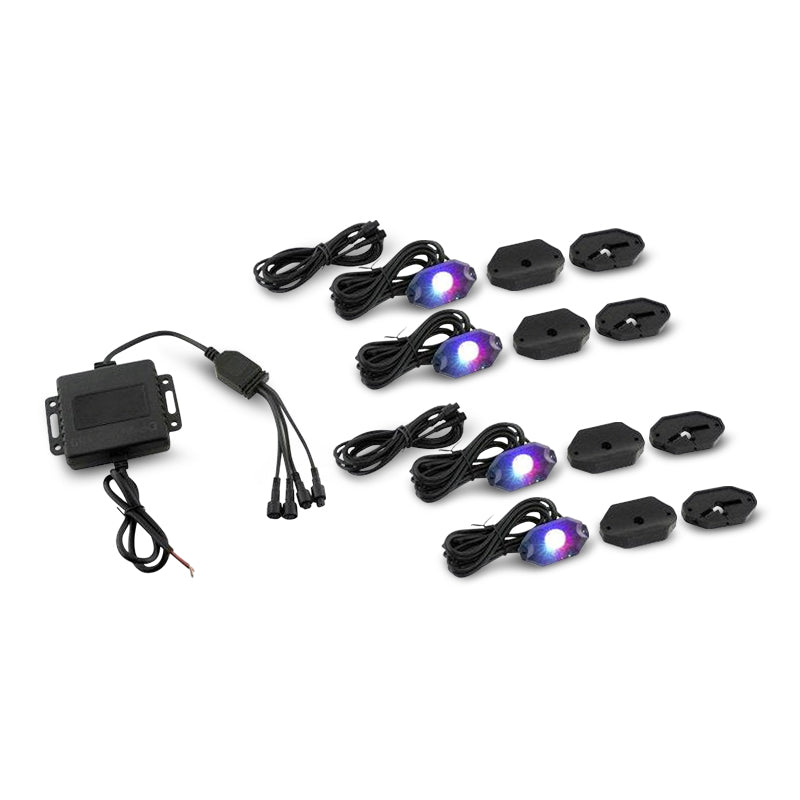

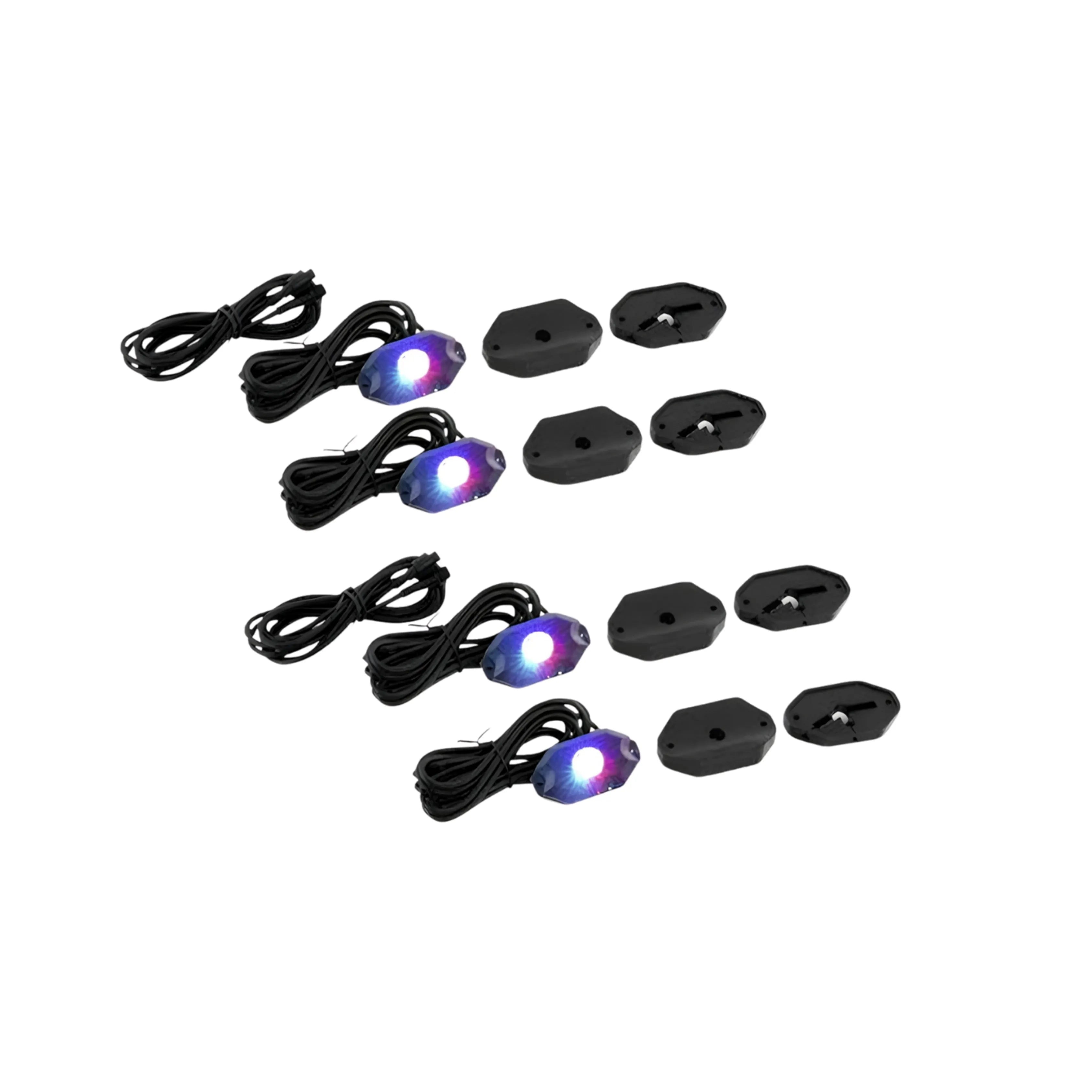

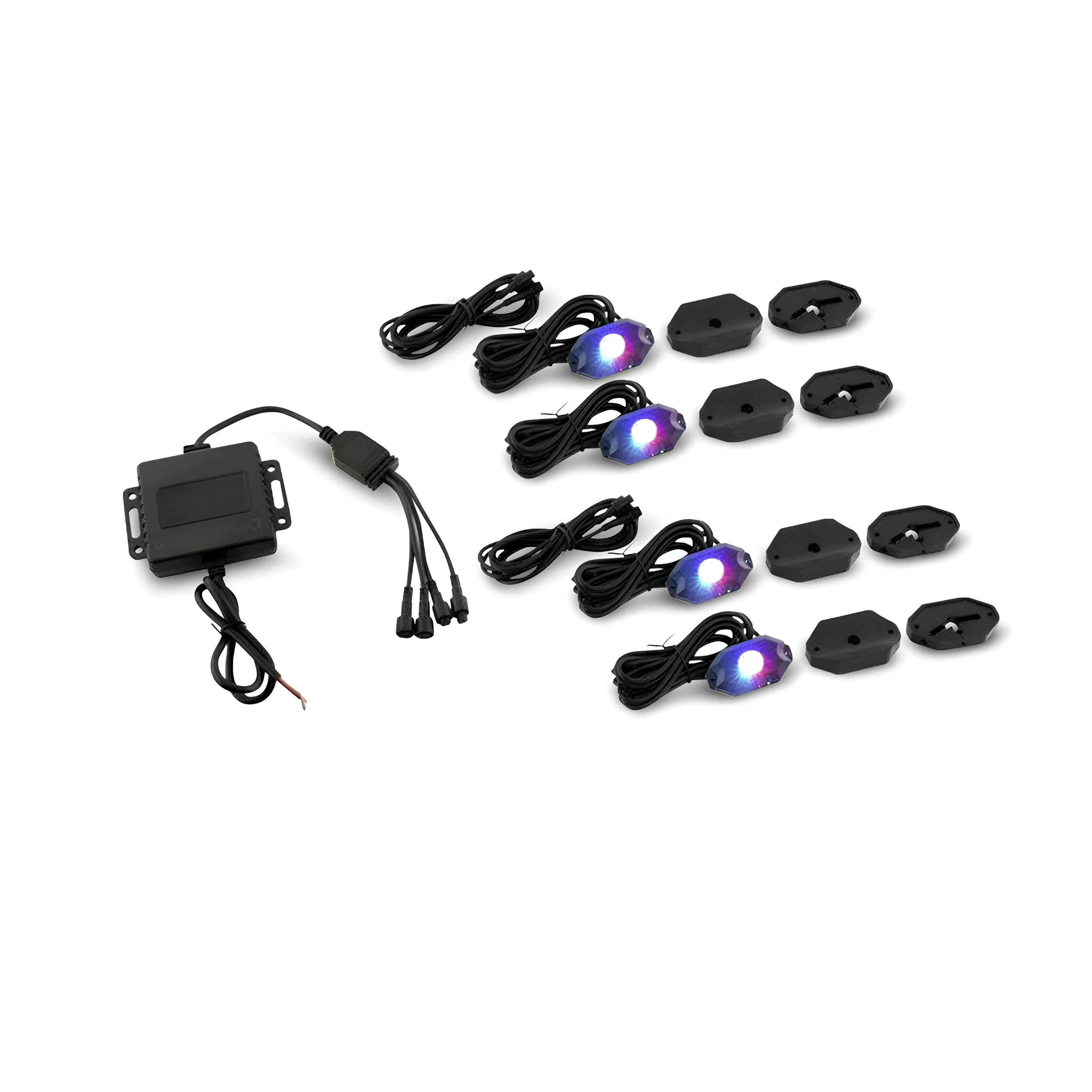

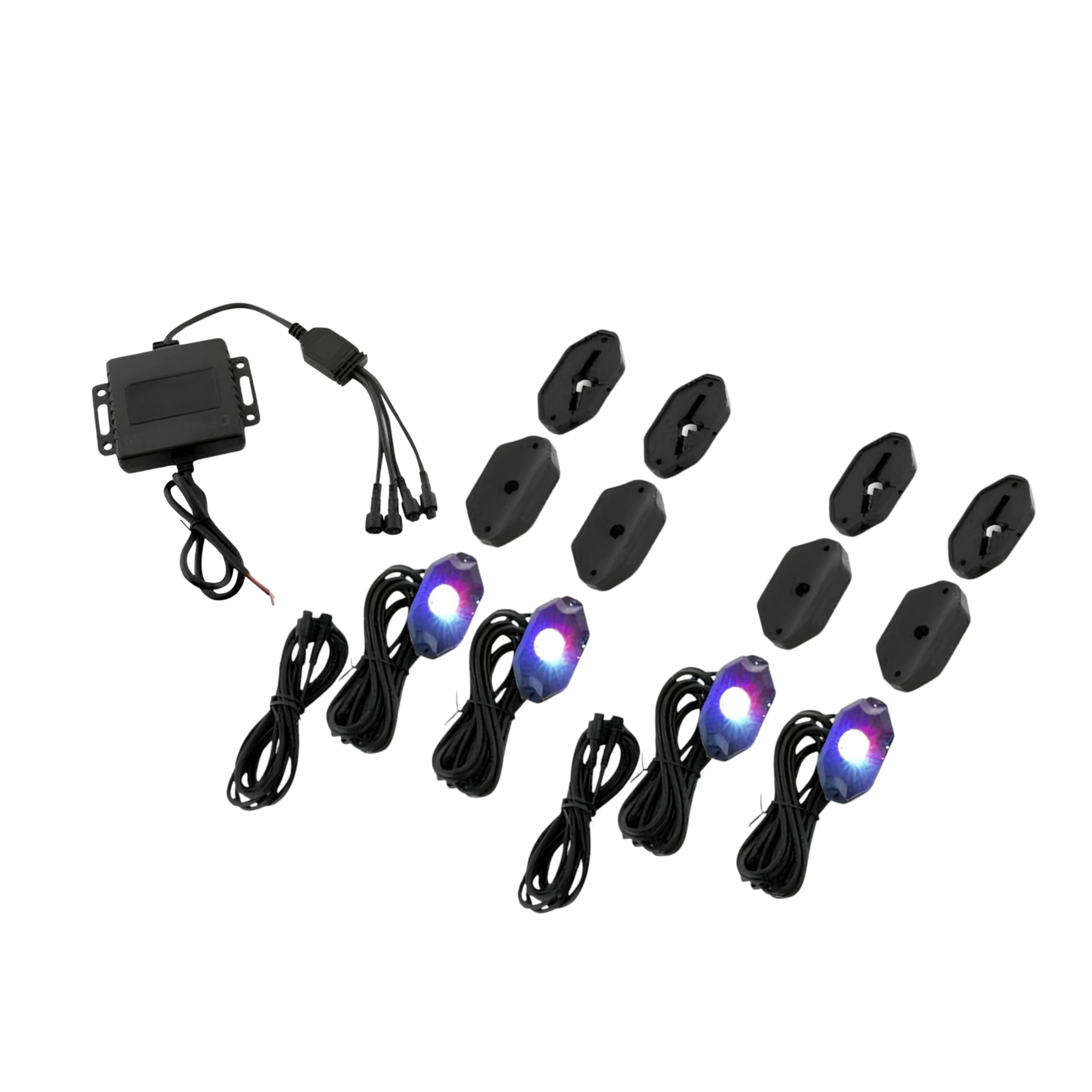

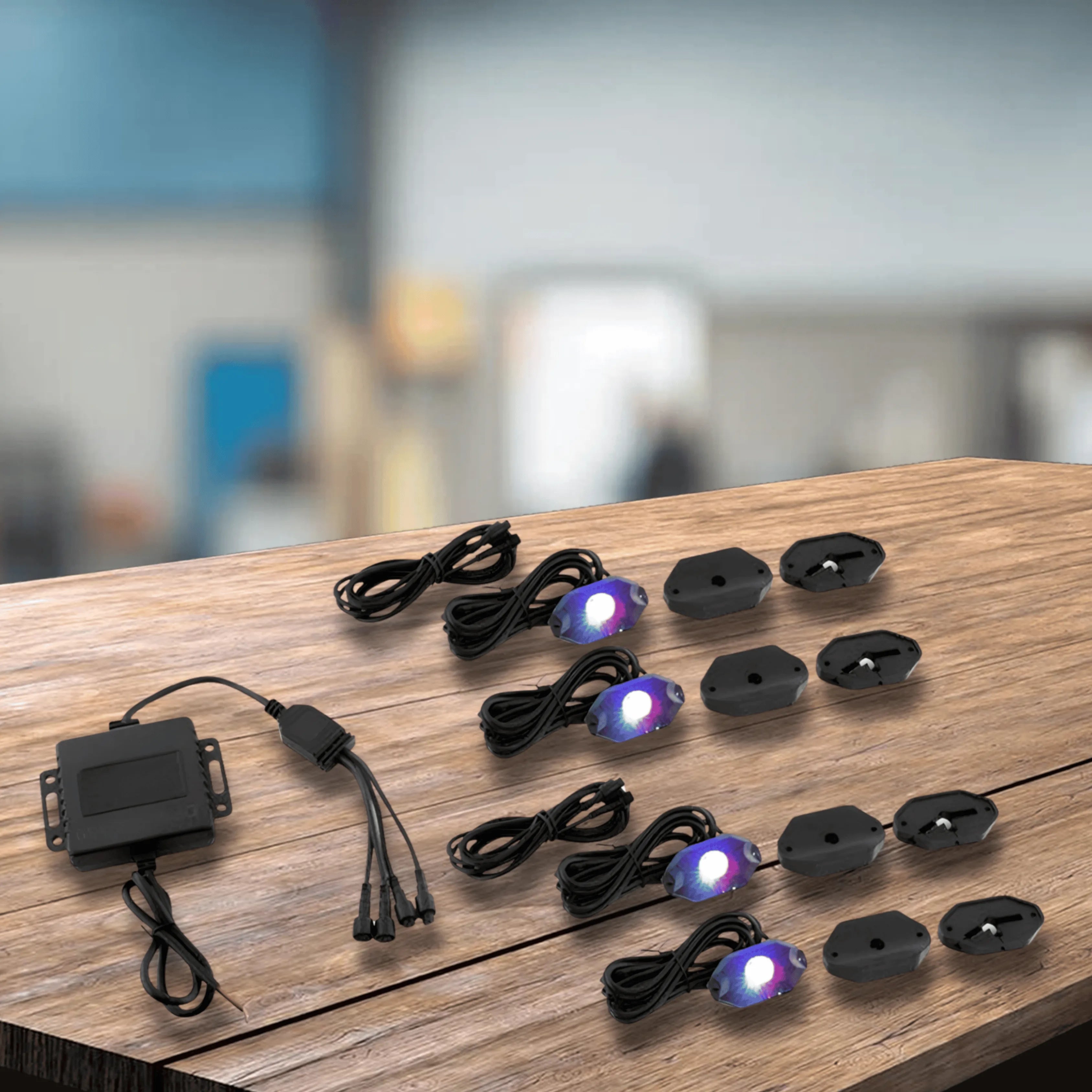

What's in the box

  • 4x CREE RGB LED Pods
  • 4x Flat Rubber Mounting Pads
  • 4x Curved Rubber Mounting Pads
  • 2x 48 inch Extension Harnesses
  • 1x Bluetooth Controller
  • 8x Mounting Screws

Technical specs

Specification Detail
SKU SPXRGBUBKIT
Brand Stinger
LED Type CREE RGB
LED Count 3x RGB per pod, 4 pods
IP Rating IP65
Housing Black die-cast aluminium
Operating Voltage 12V or 24V
Operating Temperature -20 to 80 degrees Celsius
Controller Outputs 4
Max Output Current 18A
Bluetooth Range 10 to 20 metres
App Compatibility iOS and Android (free download)
Use Off-road use only

Frequently asked questions

Do I need the app to use the SPXRGBUBKIT?
No. The app is required to change colours, modes, and settings, but once a setting has been saved the system retains that preset and the lights will power on to it automatically without the app being open or connected.

What lighting modes are available?
The SPXRGBUBKIT supports static colour selection, dynamic pattern modes, and a music-controlled sync mode that synchronises LED colour changes to the beat of your music. All modes are controlled via the free iOS or Android Bluetooth app.

Are the SPXRGBUBKIT pods road legal in Australia?
No. The SPXRGBUBKIT is for off-road use only and is not approved for use on public roads in Australia. RGB underbody lighting is restricted in most Australian states. Confirm your local regulations before installation.

What is the difference between IP65 and IP68?
IP65 is fully dustproof and protected against low-pressure water jets from any direction, suited to most off-road conditions including dust, mud, and rain but not designed for full submersion. IP68 provides full submersion protection. The SPXULED1 and SPXULEDA pods are IP68 rated for applications requiring submersion protection.

Can I expand beyond four pods?
The SPXRGBUBKIT controller supports four outputs. To expand beyond four pods, an additional controller and kit would be required. Multiple SPXRGBUBKIT units can be used together on the same vehicle for greater coverage.
