Stinger SPXM1 2.7″ Marine & PowerSports Media Player Gauge Mount Infotainment System

Stinger SPXM1 2.7 Inch Marine and PowerSports Gauge Mount Infotainment System with Bluetooth AM FM USB RCA Camera Input and SwitchHUB Compatibility

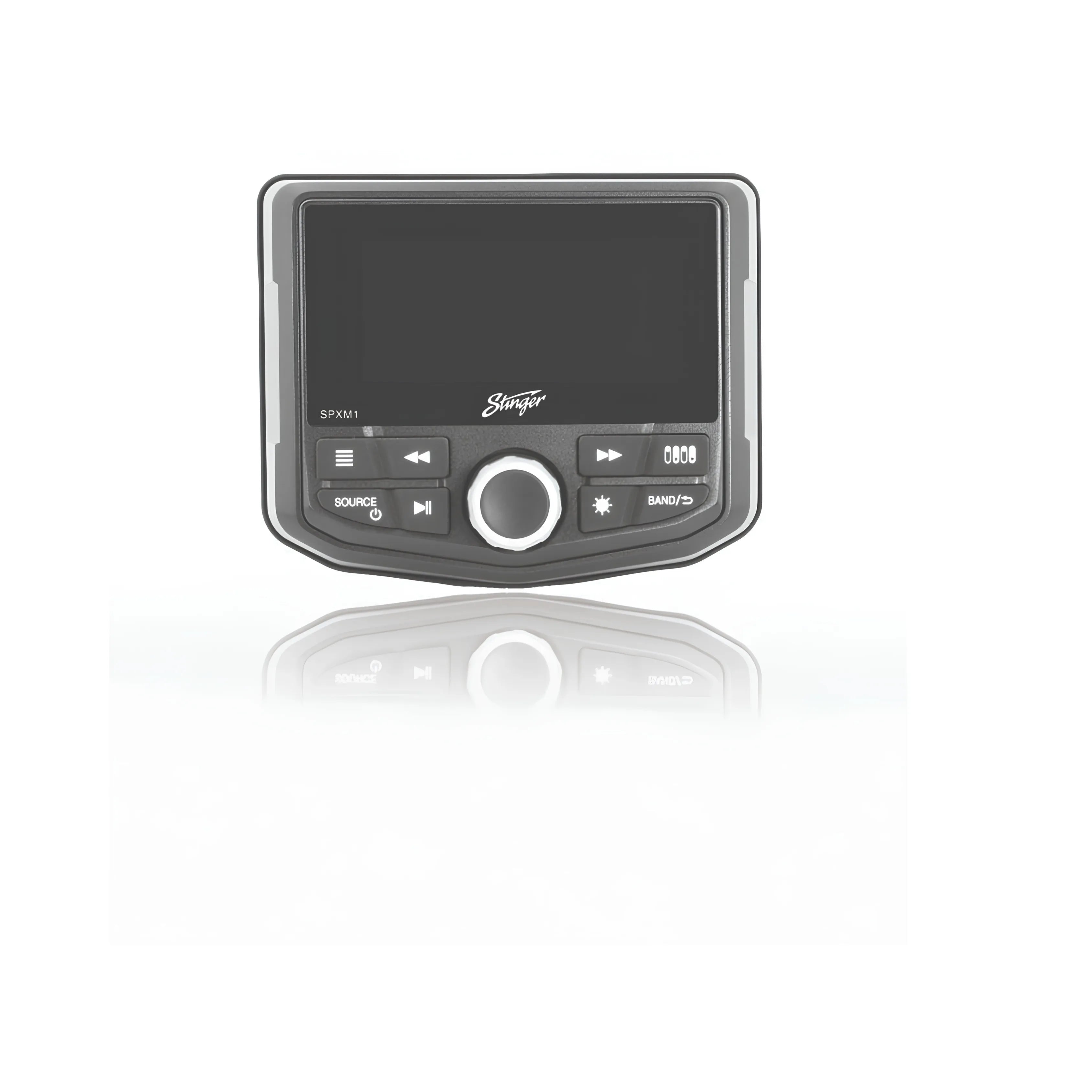

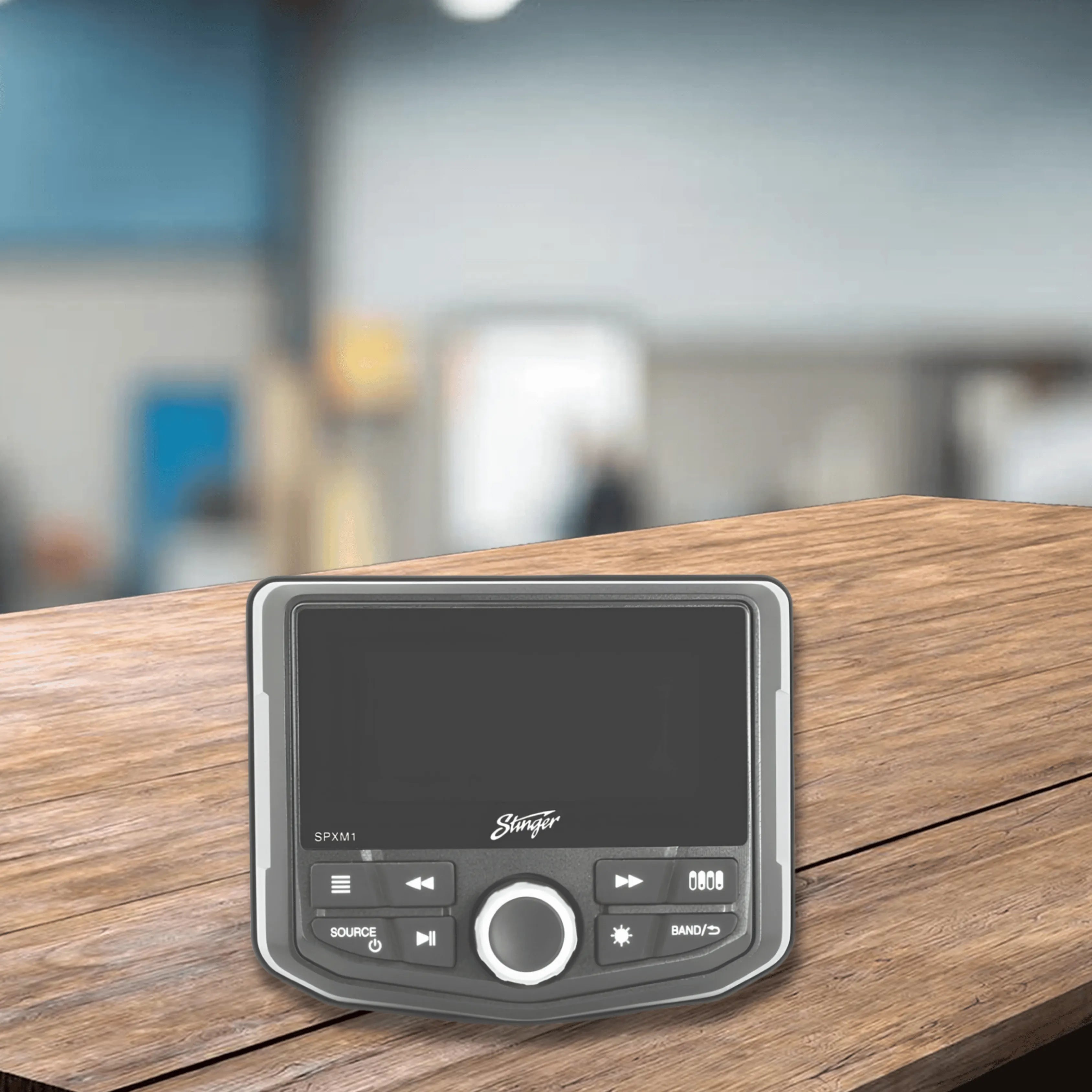

The SPXM1 from Stinger is a 2.7 inch gauge mount marine and PowerSports digital media player engineered for boats, ATVs, and off-road vehicles. The IPX6-rated optical bonded front panel and conformal-coated circuit board provide protection against harsh outdoor elements, and the full-colour TFT display with LED-backlit buttons remains visible in all lighting conditions including with polarised sunglasses. Compatible with the optional Stinger SwitchHUB (SPXSH440) for control of up to four external devices.

Product overview

The SPXM1 fits a standard 3 inch gauge mount opening, making it compatible with many factory marine and ATV instrument positions without cutting. For vehicles with a larger factory radio position, the optional SEADASH3W or SEADASH3B universal marine mounting plates provide a clean installation alternative.

Audio sources include a global AM/FM/weather tuner covering odd and even-numbered stations worldwide, USB input for MP3, WMA, WAV, and FLAC files, Bluetooth audio, and a wired AUX RCA input. The built-in 45x4W peak amplifier supports direct speaker connection without an external amplifier. Two pairs of RCA preouts at 2V cover front and selectable rear or subwoofer channels for amplifier integration. A 7-band EQ with up to eight presets, high and low pass crossover filters, and subwoofer level control are all provided. A rear RCA camera input and battery voltage gauge with low voltage alert are also included.

The optional SPXSH440 SwitchHUB enables control of up to four external devices (100A total load) including lighting, amplifiers, pumps, and compressors. The optional SPXR2 marine grade remote controller provides wireless remote media control. Operating voltage is 9V to 18V DC, making the SPXM1 compatible with both 12V and certain 24V applications.

Features and benefits

2.7 inch full-colour TFT optical bonded display: The 2.7 inch full-colour TFT display with optical bonding and LED-backlit buttons provides clear visibility in all lighting conditions including direct sunlight and when wearing polarised sunglasses.

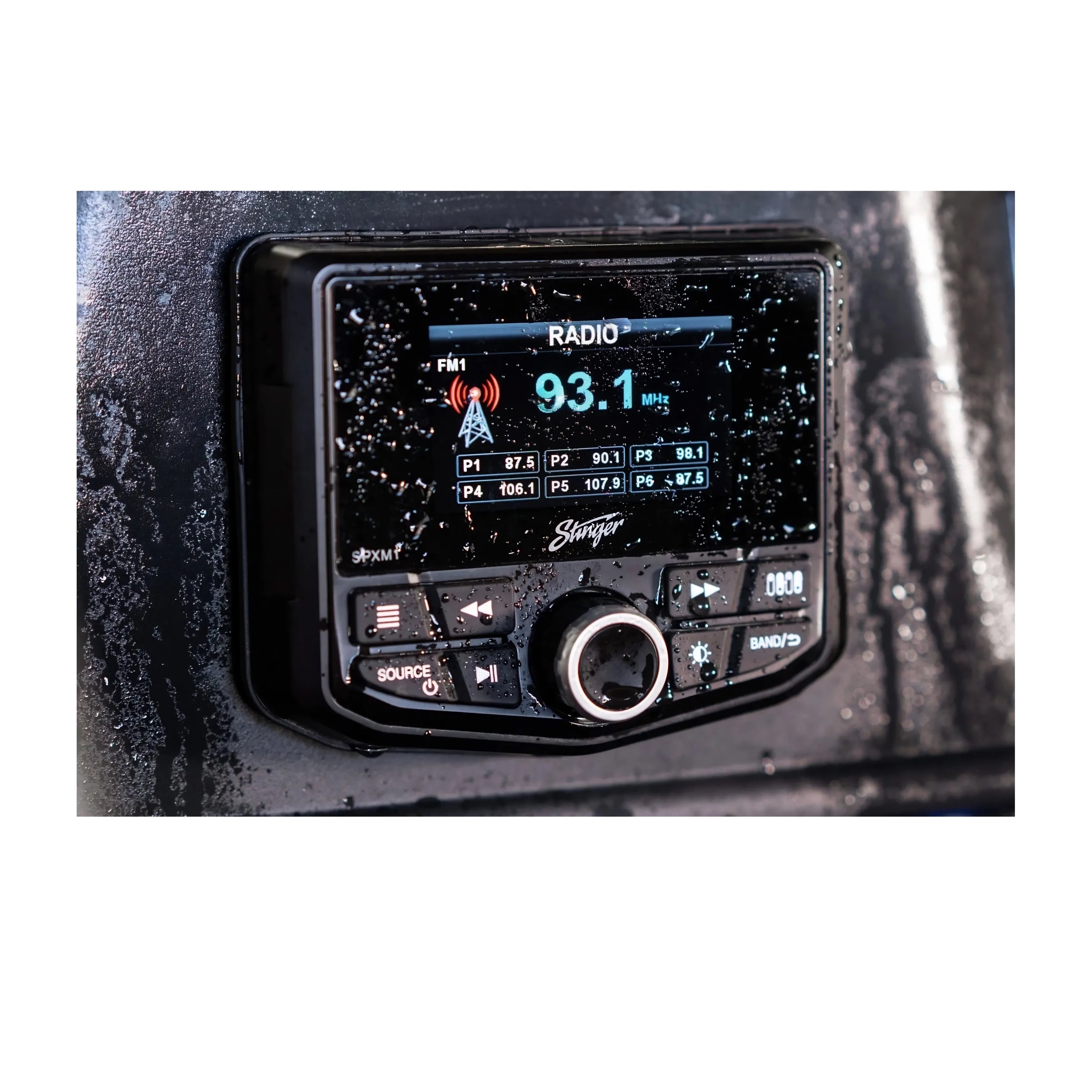

IPX6-rated front panel and conformal-coated circuit board: The IPX6-rated optical bonded front panel and conformal-coated circuit board are engineered to withstand water spray, dust, and harsh outdoor conditions in marine and off-road applications.

3 inch gauge mount design: The standard 3 inch gauge mount design fits many factory marine and ATV instrument positions without cutting, with the optional SEADASH3W or SEADASH3B mounting plates available for larger radio positions.

Global AM/FM/weather tuner: The global tuner covers 87.9 to 107.9 MHz FM and 530 to 1710 KHz AM, including odd and even-numbered stations worldwide, with weather band reception.

Built-in 45x4W peak amplifier: The 25W x 4 continuous (45W x 4 peak) built-in amplifier supports direct connection of up to four speakers at 4 ohms without requiring an external amplifier.

Two pairs of 2V RCA preouts: Front and selectable rear or subwoofer RCA outputs at 2V allow connection to external PowerSports amplifiers for expanded audio capability.

7-band EQ, crossover filters, and subwoofer level control: A 7-band graphic EQ with up to eight presets, high and low pass crossover filters, and subwoofer level control provide comprehensive audio tuning.

Bluetooth, USB, and AUX connectivity: Bluetooth 3.0 audio streaming, USB input for MP3/WMA/WAV/FLAC files (up to 32GB, 999 songs), and wired AUX RCA input are all provided.

RCA camera input: An RCA camera input accepts NTSC and PAL video formats with external and internal trigger options, selectable from the main menu.

Battery voltage gauge with low voltage alert: The onboard battery voltage gauge with low voltage alert provides easy monitoring of electrical system health.

SwitchHUB compatible: Compatible with the optional Stinger SPXSH440 SwitchHUB for control of up to four external devices (100A total load) including lighting, amplifiers, pumps, and compressors. A dedicated switch panel button on the SPXM1 displays all four device statuses simultaneously.

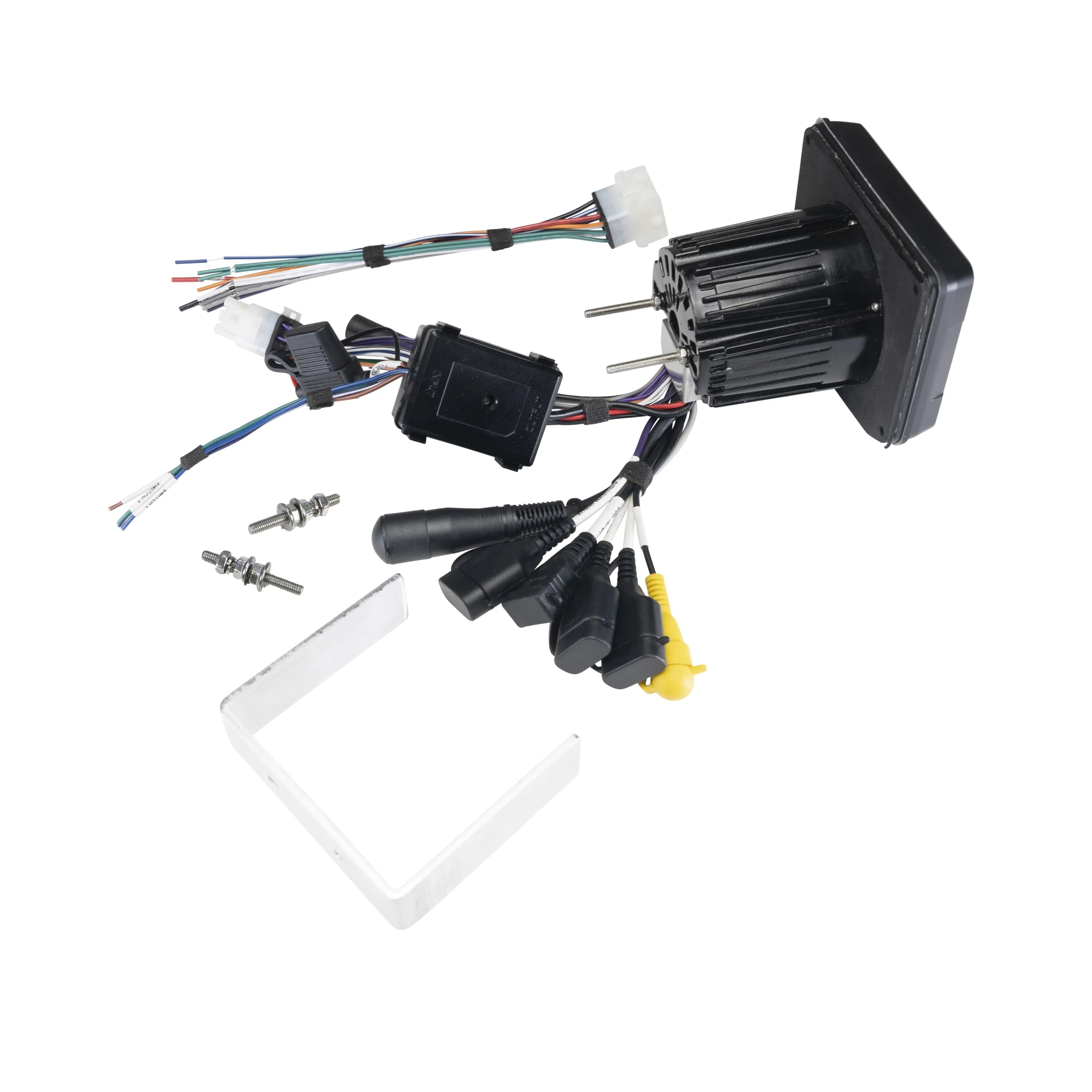

What's in the box

• 1x SPXM1 Source Unit
• 1x Source Unit Trim Plate
• 1x Mounting Bracket
• Mounting Screws
• Threaded Studs
• Flange Nuts
• 1x Power and Speaker Harness

Technical specs

Optional accessories

Frequently asked questions

What vehicles is the SPXM1 suited to?
The SPXM1 is designed for boats, ATVs, and off-road vehicles. The standard 3 inch gauge mount design fits many factory marine and ATV instrument positions. For vehicles with a larger factory radio position, the optional SEADASH3W or SEADASH3B universal marine mounting plates are available for a clean installation result.

Does the SPXM1 require an external amplifier?
No. The built-in 25W x 4 continuous (50W x 4 peak) amplifier supports direct connection of up to four speakers at 4 ohms without an external amplifier. For expanded audio capability, two pairs of 2V RCA preouts allow connection to optional PowerSports amplifiers.

What is the SwitchHUB and how does it work with the SPXM1?
The optional Stinger SPXSH440 SwitchHUB connects to the SPXM1 and enables control of up to four external devices (100A total load) including lighting, amplifiers, pumps, and compressors. A dedicated switch panel button on the SPXM1 displays all four device statuses simultaneously on the onboard display.

Is the SPXM1 waterproof?
The SPXM1 features an IPX6-rated optical bonded front panel, providing protection against powerful water jets. The conformal-coated circuit board also provides additional protection against moisture and corrosion in marine and outdoor environments.

Does the SPXM1 work at 24V?
The SPXM1 operates from 9V to 18V DC. It is not confirmed for 24V applications. Confirm your vessel or vehicle operating voltage before ordering.
