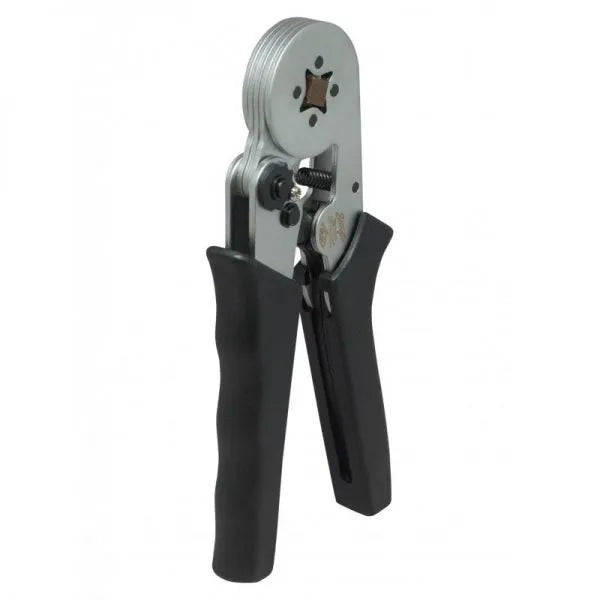

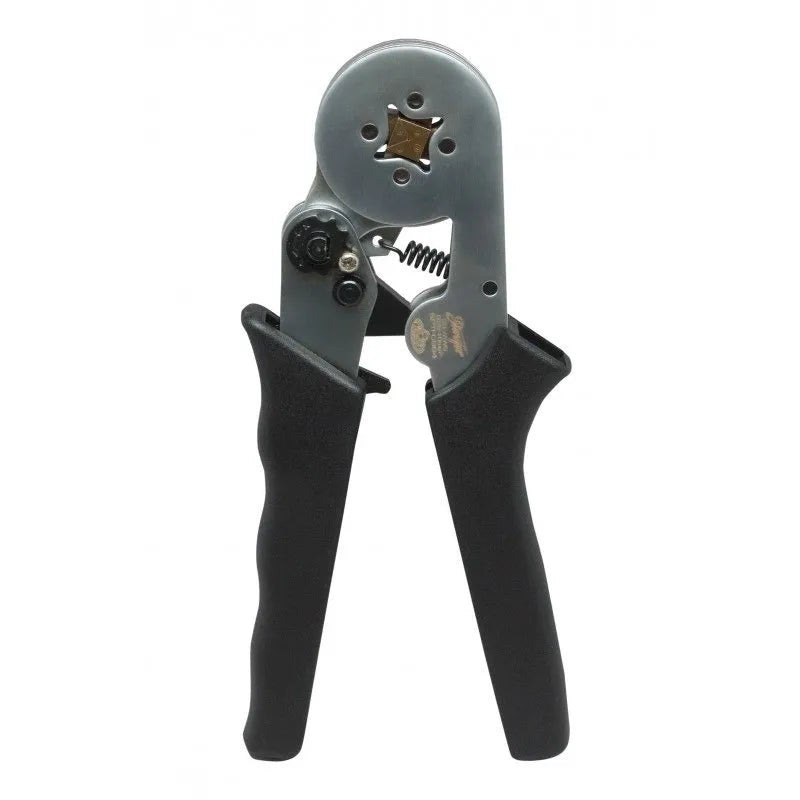

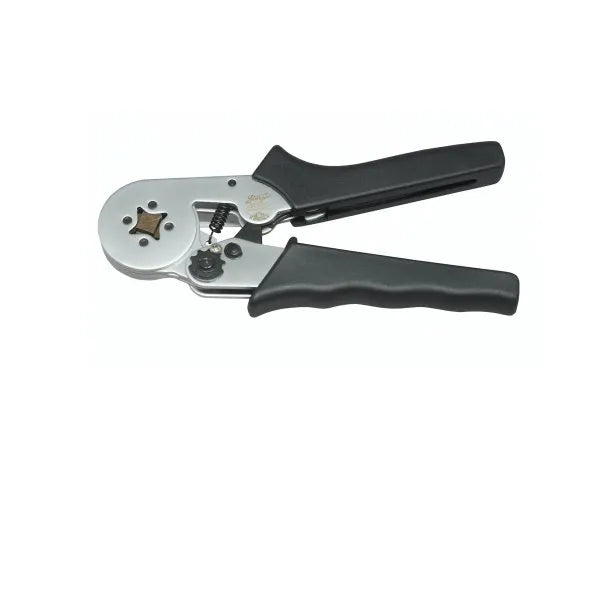

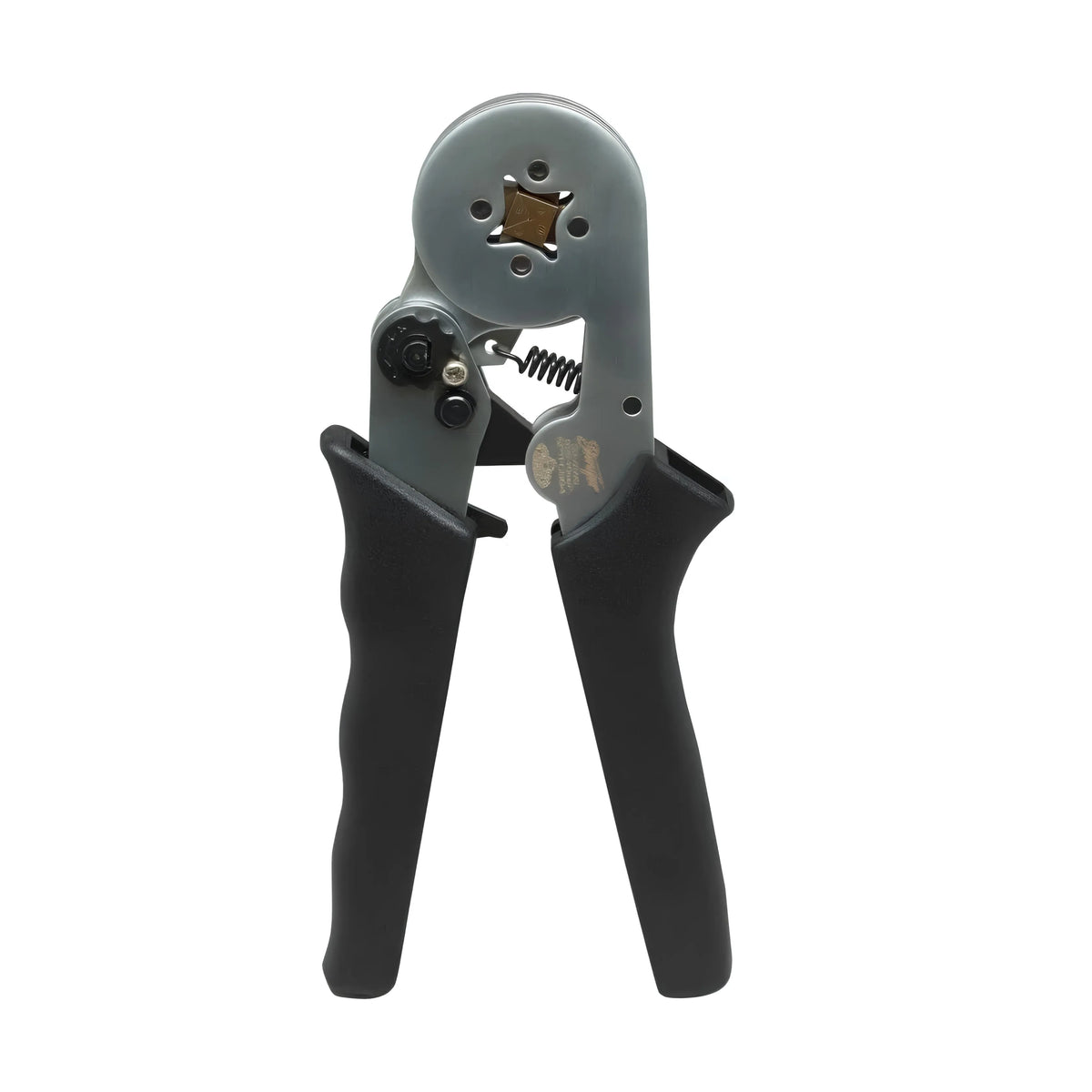

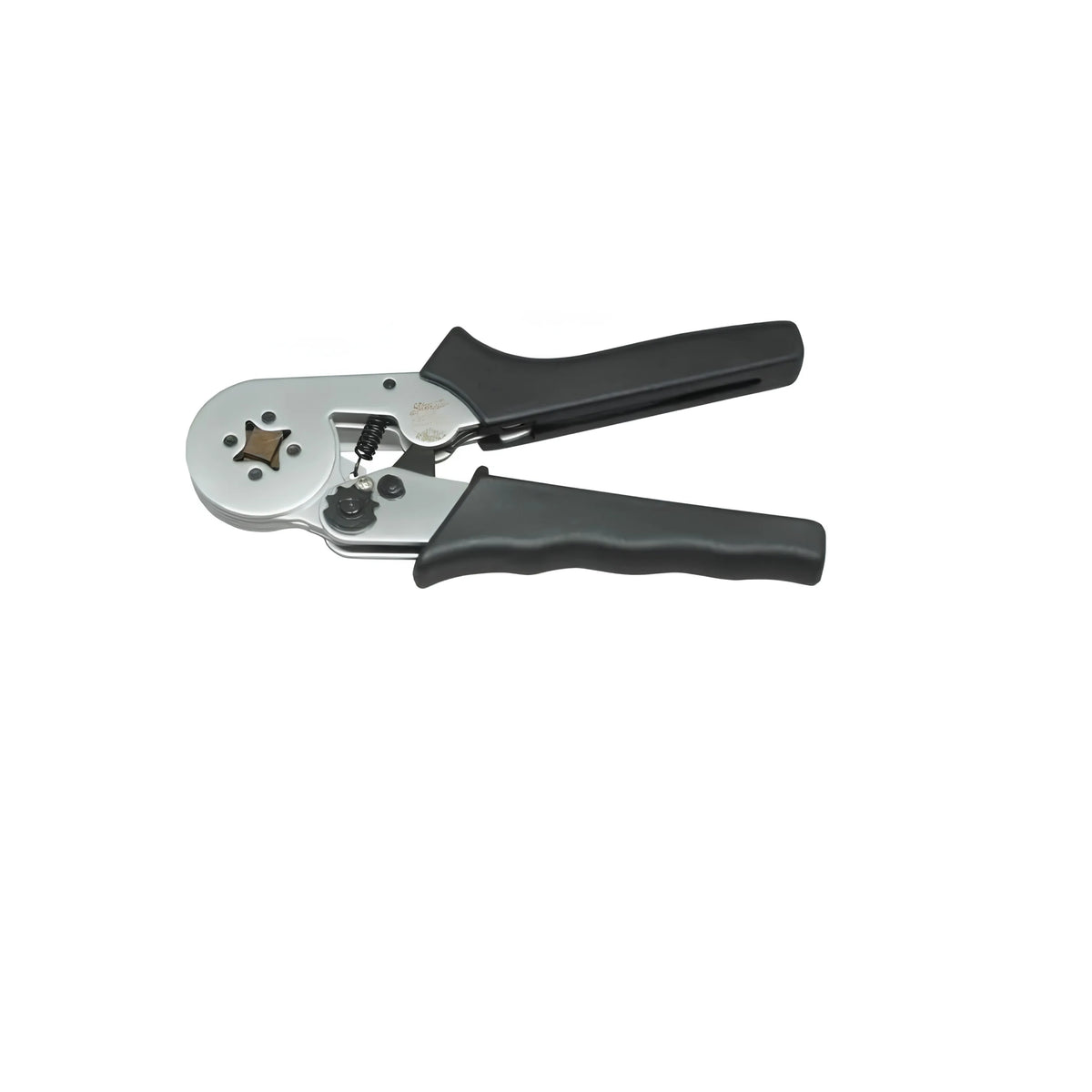

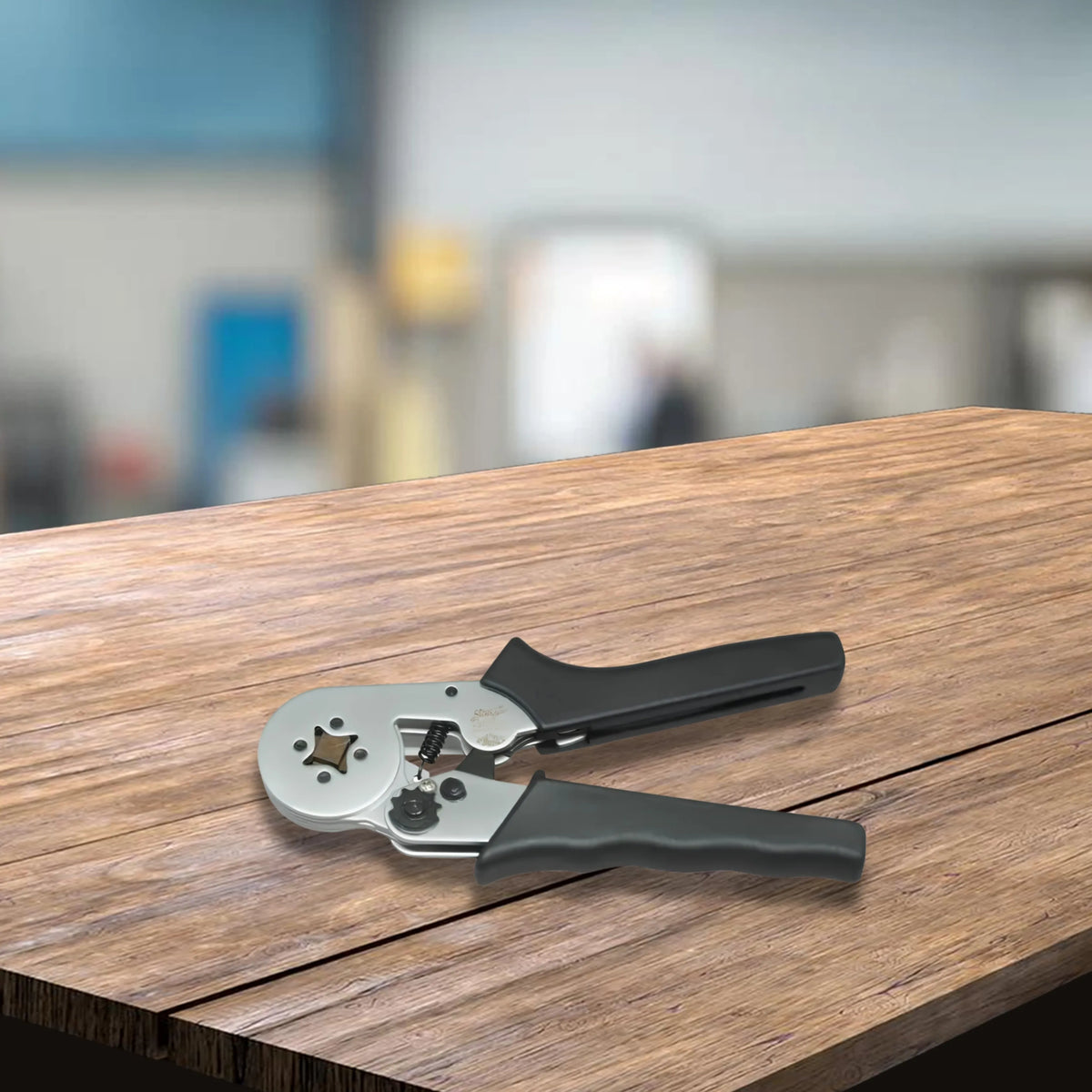

Stinger SPTFC864 Self-Adjusting Ferrule Crimping Tool 7-23 AWG

Stinger SPTFC864 Self-Adjusting Ferrule Crimping Tool AWG 7-23

The SPTFC864 is a self-adjusting ratchet ferrule crimping tool from Stinger, designed for crimping end-sleeve ferrules across AWG 7-23 (0.25-6.0mm²) without manual die selection. The automatic size adjustment mechanism detects the inserted ferrule and positions the jaws correctly for every crimp. The integral ratcheting mechanism ensures a fully formed square crimp before the jaws release. Oil-hardened special metal construction with an ergonomic nylon handle.

Product overview

The Stinger SPTFC864 is a professional-grade ferrule crimping tool for end-sleeve terminations in automotive, marine, and electrical installation applications. The automatic size adjustment mechanism selects the correct crimp position for the inserted ferrule without manual die selection, allowing the tool to be used across the full AWG 7-23 (0.25-6.0mm²) range without changing settings between crimps. This streamlines workflow when terminating multiple wire gauges in a single installation job.

The integral ratcheting mechanism requires the crimp cycle to be completed fully before the jaws release, preventing partial crimps that can cause loose connections, high resistance, or termination failure under load or vibration. The self-releasing mechanism automatically opens the jaws once the crimp is complete for efficient single-handed operation. The square crimp profile maximises contact area between the ferrule and conductor strands, minimising resistance at the termination point for reliable current transfer.

The crimping jaws and mechanism are manufactured from oil-hardened special metal for high hardness, dimensional precision, and long service life under the repeated mechanical stress of professional daily use. The nylon handle is shaped ergonomically to distribute grip pressure comfortably across the hand during extended crimping sessions.

Features and benefits

Self-adjusting for AWG 7-23 ferrules: The automatic size adjustment mechanism detects the ferrule size inserted into the jaws and positions the correct crimp die without manual intervention, allowing use across AWG 7-23 (0.25-6.0mm²) without changing dies or adjusting settings between crimps.

Ratcheting mechanism with integral lock and self-release: The ratcheting mechanism requires the full crimp cycle to be completed before the jaws release, preventing partial crimps that cause loose connections or high resistance. The self-releasing mechanism automatically opens the jaws once the crimp is complete for efficient single-handed operation.

Square crimp for best current transfer: The square crimp profile provides maximum contact area between the ferrule and conductor strands, minimising resistance at the termination and ensuring the most reliable electrical connection for the ferrule size.

Oil-hardened special metal construction: Crimping jaws and mechanism are manufactured from oil-hardened special metal, providing high hardness, dimensional precision, and long service life under the repeated mechanical stress of professional daily use.

Ergonomic nylon handle: The nylon handle is shaped ergonomically to distribute grip pressure comfortably across the hand, reducing fatigue during extended crimping sessions.

Wide AWG range in a single tool: Coverage from AWG 7 (6.0mm²) down to AWG 23 (0.25mm²) in a single tool eliminates the need for multiple crimpers for different wire gauges, making the SPTFC864 suitable for the full range of ferrule termination sizes encountered in automotive and marine electrical installations.

Technical specs

Frequently asked questions

What is a ferrule and why is it used for wire terminations?
A ferrule is a small metal tube crimped onto the stripped end of a stranded wire conductor. It holds all individual strands together in a clean, uniform bundle that inserts cleanly into screw terminals, compression blocks, and push connectors without stray strands causing shorts or poor contact. Ferrule-terminated connections provide more consistent contact resistance than bare stranded wire, which can fray and lose individual strands over time under vibration.

What does the self-adjusting mechanism do and why is it better than a manual die-selection crimper?
A manual die-selection crimper requires the user to rotate a die selector to the correct position for each ferrule size before crimping. If the wrong size is selected, the crimp will be too tight or too loose, producing a damaged or weak connection. The SPTFC864 automatic size adjustment detects the inserted ferrule and positions the jaws correctly without manual selection, reducing the risk of incorrect crimp size and speeding up workflow when crimping multiple wire gauges in a single installation.

What does the ratcheting mechanism prevent?
The ratcheting mechanism prevents the tool from releasing before the crimp cycle is complete. Without a ratchet, it is possible to partially squeeze the jaws and release before the ferrule is fully crimped, producing a weak connection that may pass visual inspection but fail under load or vibration. The SPTFC864 ratchet locks the jaws until the full crimp force has been applied, ensuring every termination is fully formed before the tool releases.

What is the difference between a square crimp and a round or hexagonal crimp?
A square crimp applies uniform pressure to all four sides of the ferrule simultaneously, deforming it evenly and maximising the contact area between the ferrule wall and the conductor strands. Round and hexagonal crimps concentrate pressure differently and may leave voids between the ferrule and conductor that increase resistance. The square crimp profile of the SPTFC864 is optimised for end-sleeve ferrules to produce the best possible electrical contact and mechanical retention at the termination.

Can the SPTFC864 be used for other crimp connectors beyond end-sleeve ferrules?
The SPTFC864 is specifically designed and calibrated for end-sleeve ferrule crimping in the AWG 7-23 range. Using the tool outside its intended application may produce incorrect crimp geometry and is not recommended. For crimping automotive terminals, ring terminals, or other connector types, a dedicated tool designed for those connector profiles should be used.
