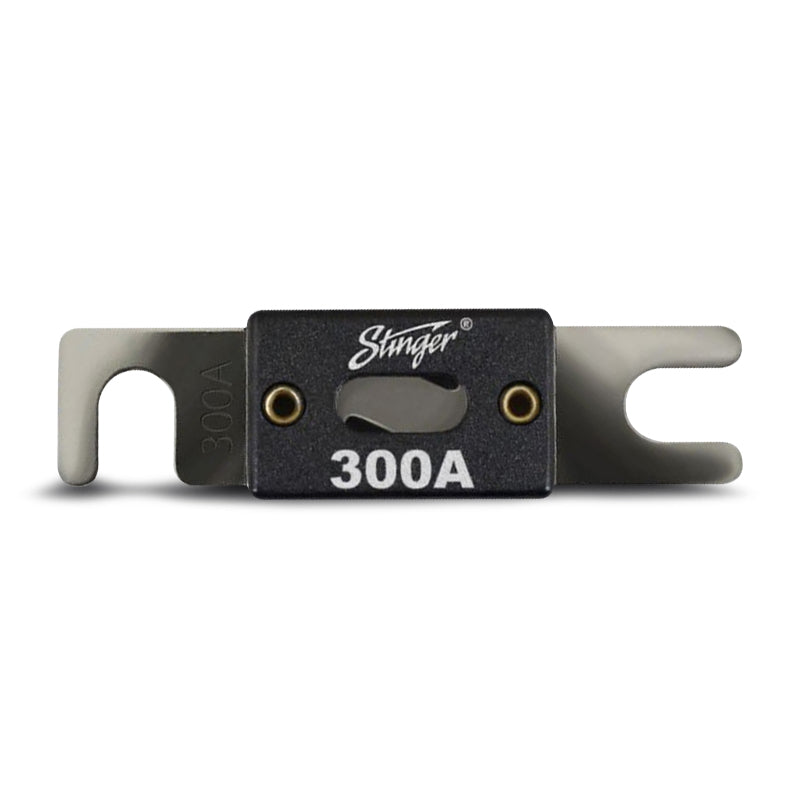

Stinger SPF52300 1 Pack Shoc-Krome 300 AMP ANL Fuse
Click to open expanded view
STINGER logo

Out of stock

Stinger SPF52300 1 Pack Shoc-Krome 300 AMP ANL Fuse

SKU: SPF52300
Regular price
$22.50
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Stinger SPF52300 300 Amp ANL Fuse with Shoc-Krome Plating

A high-current 300A ANL fuse with Shoc-Krome plating for ultimate circuit protection and maximum current transfer suited to high-powered car audio main power runs and large multi-amplifier systems.

Product Overview

The Stinger SPF52300 is a 300 Amp ANL-style fuse with Shoc-Krome plating. Designed for use with Stinger ANL fuse holders, it provides ultimate circuit protection for high-powered automotive electrical installations, with high-conductivity plating to minimise resistance and maximise current transfer at the fuse connection point.

At 300A, this is a high-capacity fuse suited to large car audio systems with multiple amplifiers or high-powered mono amplifiers requiring a high-current main power feed.

Features & Benefits

  • 300A ultimate circuit protection
  • ANL fuse format
  • Shoc-Krome plating for high conductivity and maximum current transfer
  • Compatible with all Stinger ANL fuse holders
  • Sold individually

Technical Specs

Specification Detail
SKU / Part Number SPF52300
Brand Stinger
Fuse Type ANL Style
Amperage Rating 300A
Plating Shoc-Krome
Pack Quantity 1 fuse

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Universal — compatible with any standard ANL fuse holder

Goes Well With:

  • Stinger ANL fuse holders
  • 1/0 AWG or 2 AWG main power wiring for high-powered systems
  • High-current distribution blocks and battery terminals
  • Stinger SPF5280 80A ANL fuse (lower amperage ANL option)

Frequently Asked Questions

What is an ANL fuse and when do I need a 300A rating?

ANL fuses are bolt-down high-current fuses used for main power circuit protection in automotive installations. A 300A fuse is suited to large multi-amplifier car audio systems or single high-powered amplifiers requiring significant continuous current draw. The fuse should be installed as close to the battery as possible on the main power run.

Is this fuse sold individually or in a pack?

The SPF52300 is sold as a single fuse.

What wire gauge pairs with a 300A ANL fuse?

A 300A fuse typically pairs with 1/0 AWG (zero gauge) or 2 AWG main power wiring, depending on the run length and total system load. Always ensure your wiring is rated to handle the continuous current draw of your system before sizing the fuse.

Why does fuse plating matter?

Shoc-Krome plating reduces contact resistance at the fuse terminal, ensuring maximum current transfer between the fuse and holder. At 300A, even small amounts of resistance create measurable voltage drop and heat — high-quality plating is particularly important at this current level.

Are these fuses compatible with non-Stinger ANL fuse holders?

The SPF52300 is a standard ANL-style fuse compatible with any standard ANL fuse holder. Confirm your holder accepts standard ANL fuses before purchasing.
