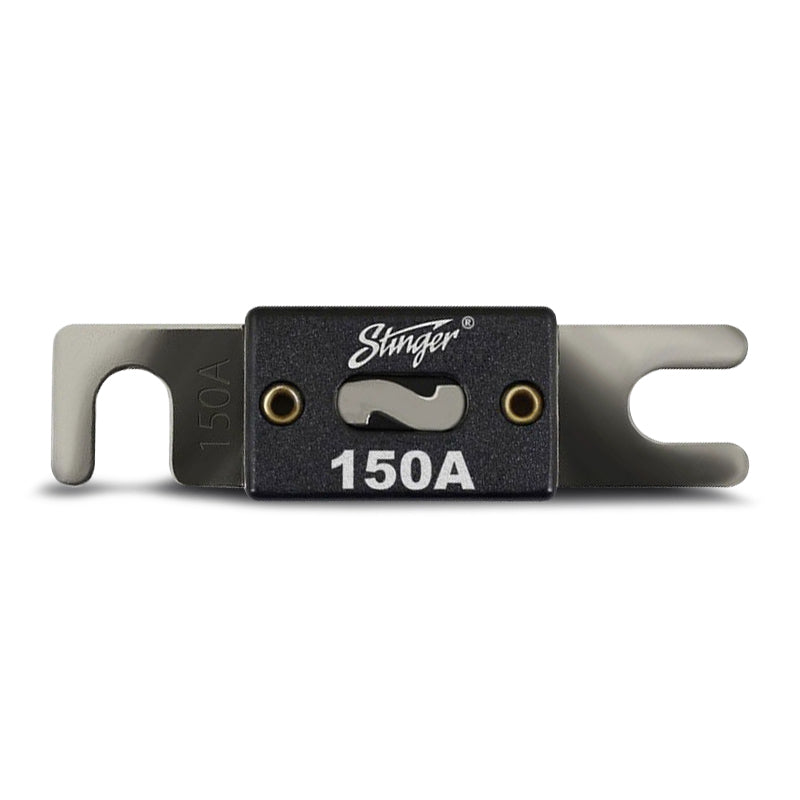

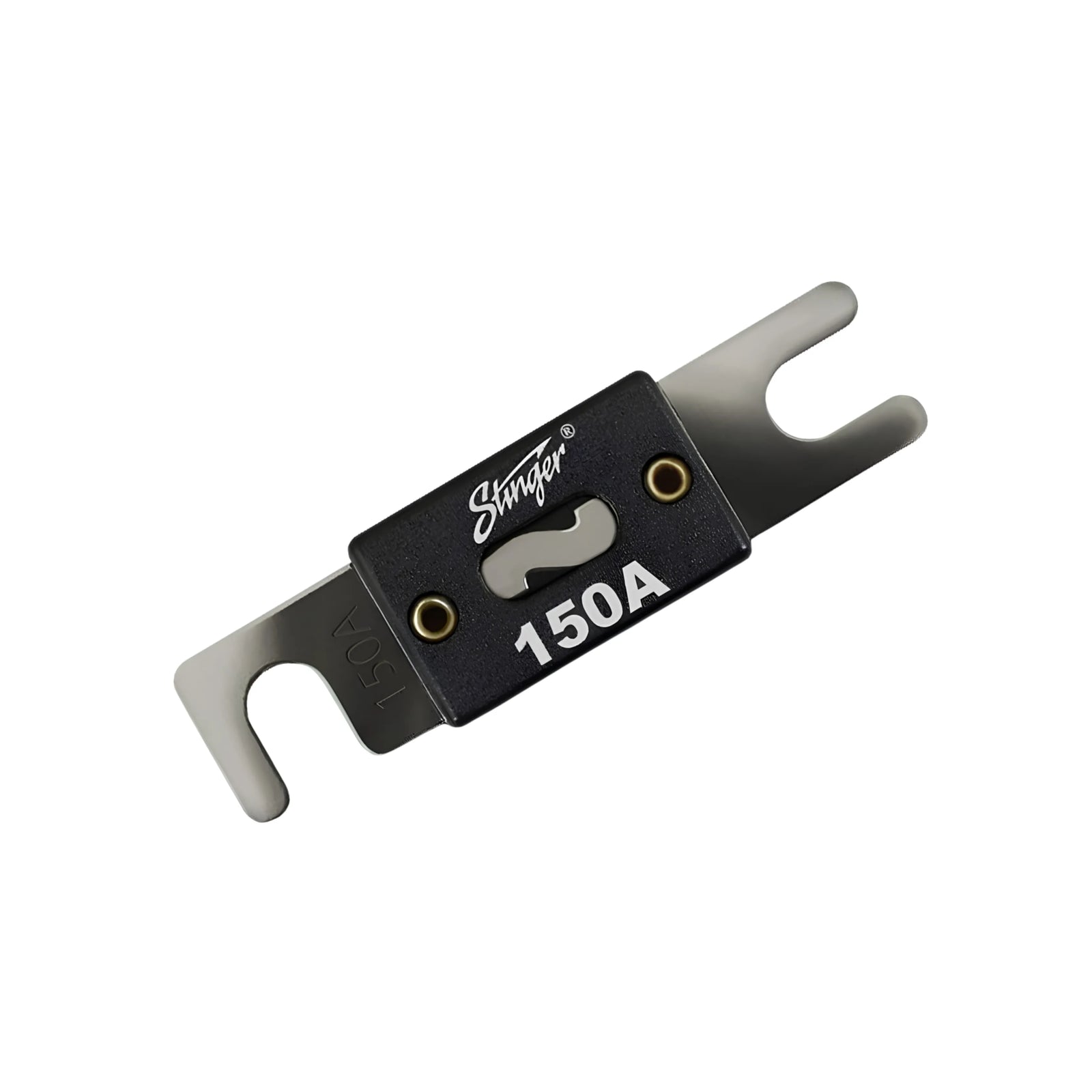

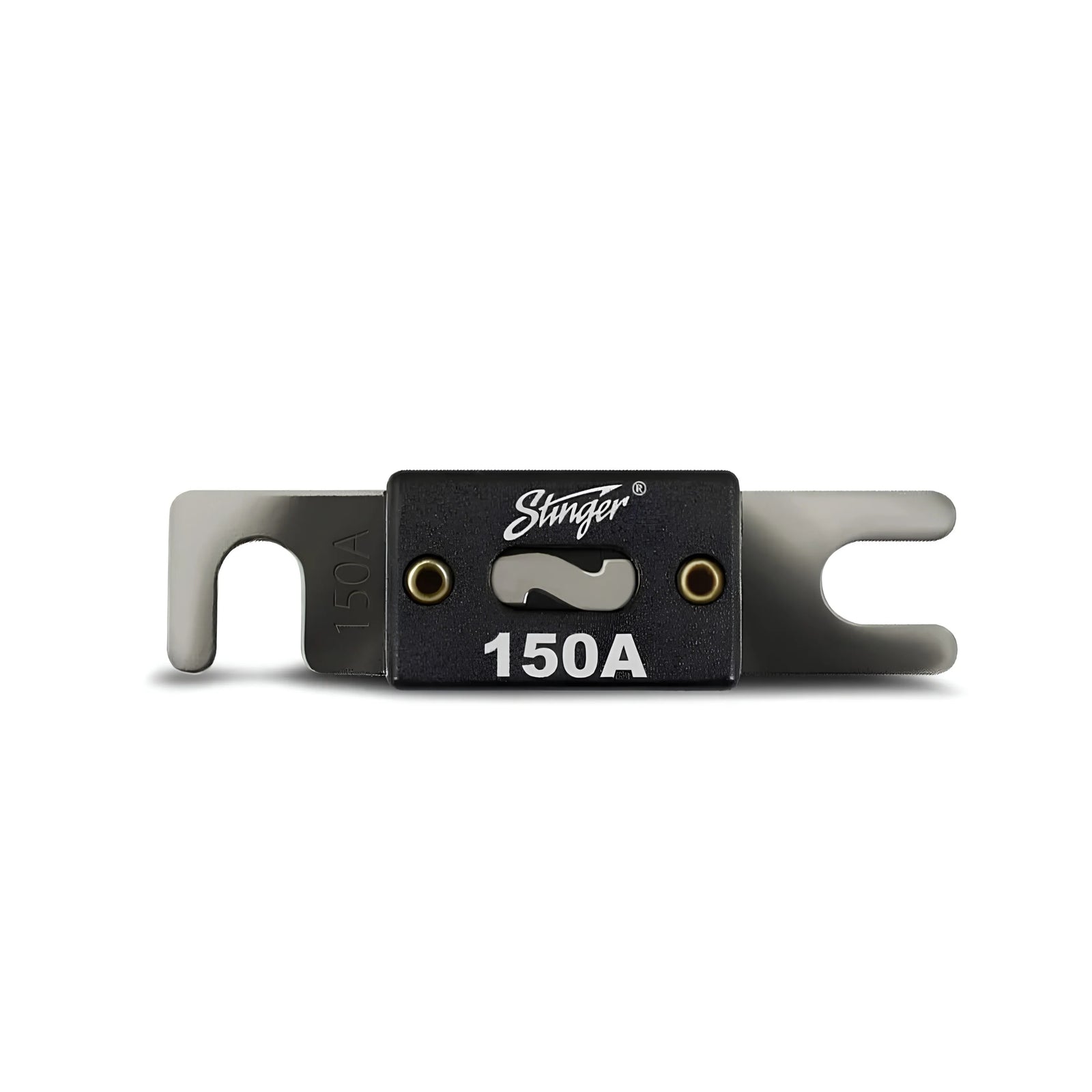

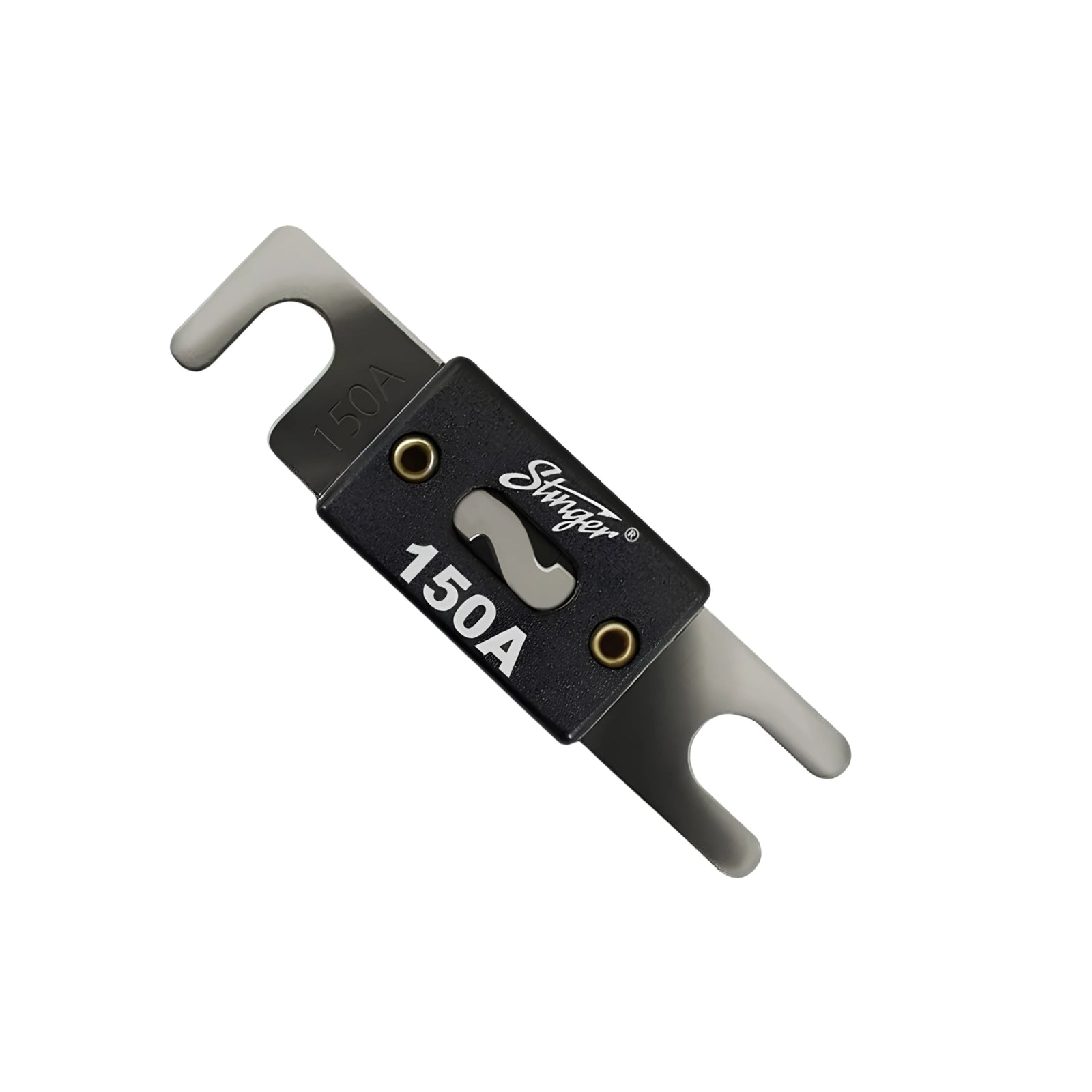

Stinger SPF52150 150 Amp ANL Fuse with Shoc-Krome Plating

A high-current 150A ANL fuse with Shoc-Krome plating for ultimate circuit protection and maximum current transfer suited to mid-to-high powered car audio main power runs.

Product Overview

The Stinger SPF52150 is a 150 Amp ANL-style fuse with Shoc-Krome plating. Designed for use with Stinger ANL fuse holders, it provides ultimate circuit protection for high-powered automotive electrical installations, with high-conductivity plating to minimise resistance and maximise current transfer at the fuse connection point.

At 150A, the SPF52150 sits between the 80A (SPF5280) and 200A (SPF52200) options in the Stinger ANL fuse range a practical choice for a single high-powered amplifier or a combined dual-amplifier setup on 2 AWG main power wiring.

Features & Benefits

  • 150A ultimate circuit protection
  • ANL fuse format
  • Shoc-Krome plating for high conductivity and maximum current transfer
  • Compatible with all Stinger ANL fuse holders
  • Sold individually

Technical Specs

Specification Detail
SKU / Part Number SPF52150
Brand Stinger
Fuse Type ANL Style
Amperage Rating 150A
Plating Shoc-Krome
Pack Quantity 1 fuse

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Universal — compatible with any standard ANL fuse holder

Goes Well With:

  • Stinger ANL fuse holders
  • 2 AWG or 1/0 AWG main power wiring
  • High-current distribution blocks and battery terminals
  • Stinger SPF5280 80A ANL fuse (lower amperage ANL option)
  • Stinger SPF52200 200A, SPF52250 250A, and SPF52300 300A ANL fuses (higher amperage ANL options)

Frequently Asked Questions

What is an ANL fuse and when do I need a 150A rating?

ANL fuses are bolt-down high-current fuses used for main power circuit protection in automotive installations. A 150A fuse is suited to a single high-powered amplifier or combined dual-amplifier setup where total continuous current draw falls in the 100–150A range on a 2 AWG or heavier main power run. Install as close to the battery as possible.

Is this fuse sold individually or in a pack?

The SPF52150 is sold as a single fuse.

What wire gauge pairs with a 150A ANL fuse?

A 150A fuse typically pairs with 2 AWG or 1/0 AWG main power wiring, depending on run length and total system load. Always confirm your wiring is rated for the continuous current draw before selecting a fuse rating.

Why does fuse plating matter?

Shoc-Krome plating reduces contact resistance at the fuse terminal, ensuring maximum current transfer between the fuse and holder. Lower resistance means less voltage drop and less heat generation at the connection point — important at 150A continuous draw.

Are these fuses compatible with non-Stinger ANL fuse holders?

The SPF52150 is a standard ANL-style fuse compatible with any standard ANL fuse holder. Confirm your holder accepts standard ANL fuses before purchasing.
