Stinger SPD8124 2 4GA In 4 8GA Out Gold AGU Fused Distribution Block
Click to open expanded view
STINGER logo

Out of stock

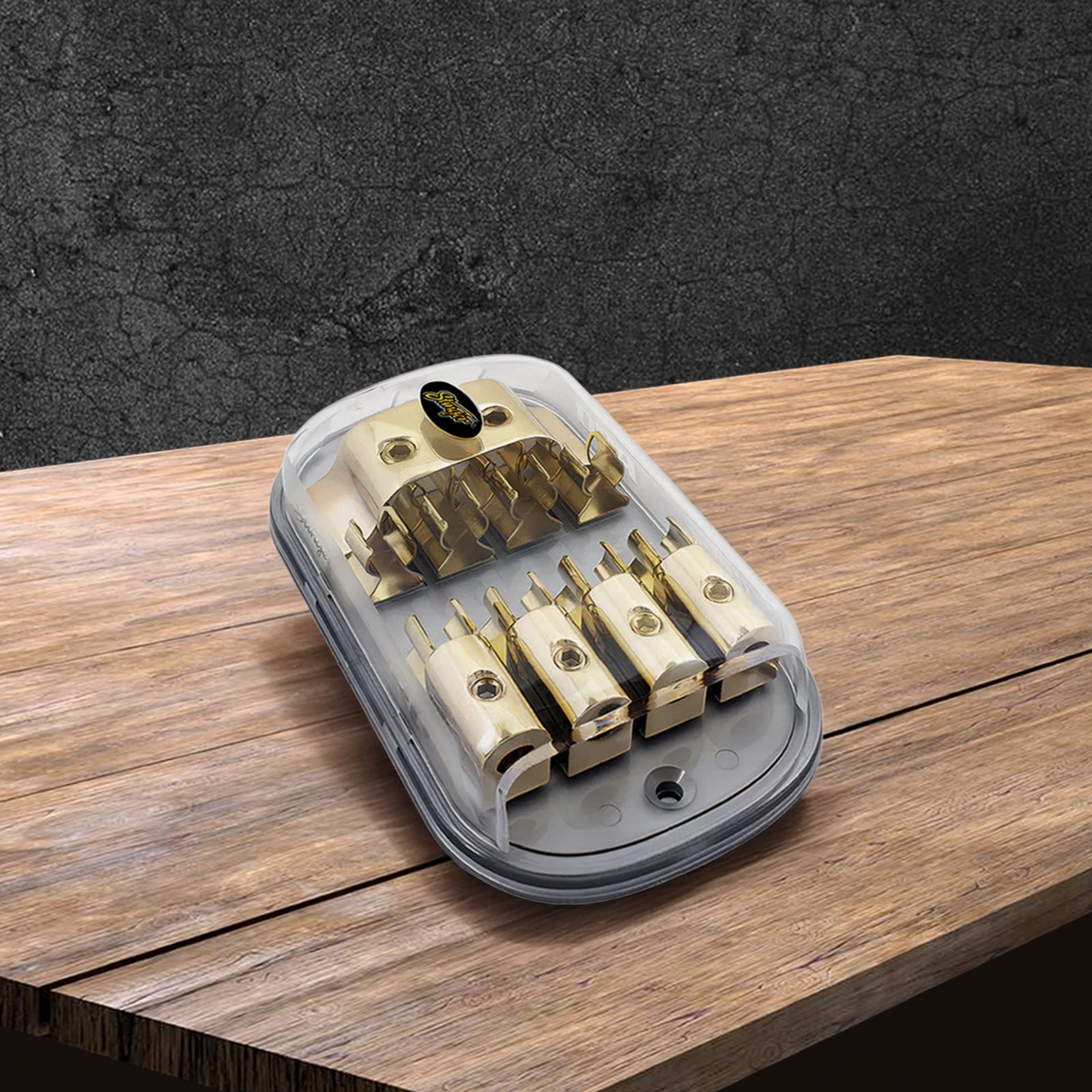

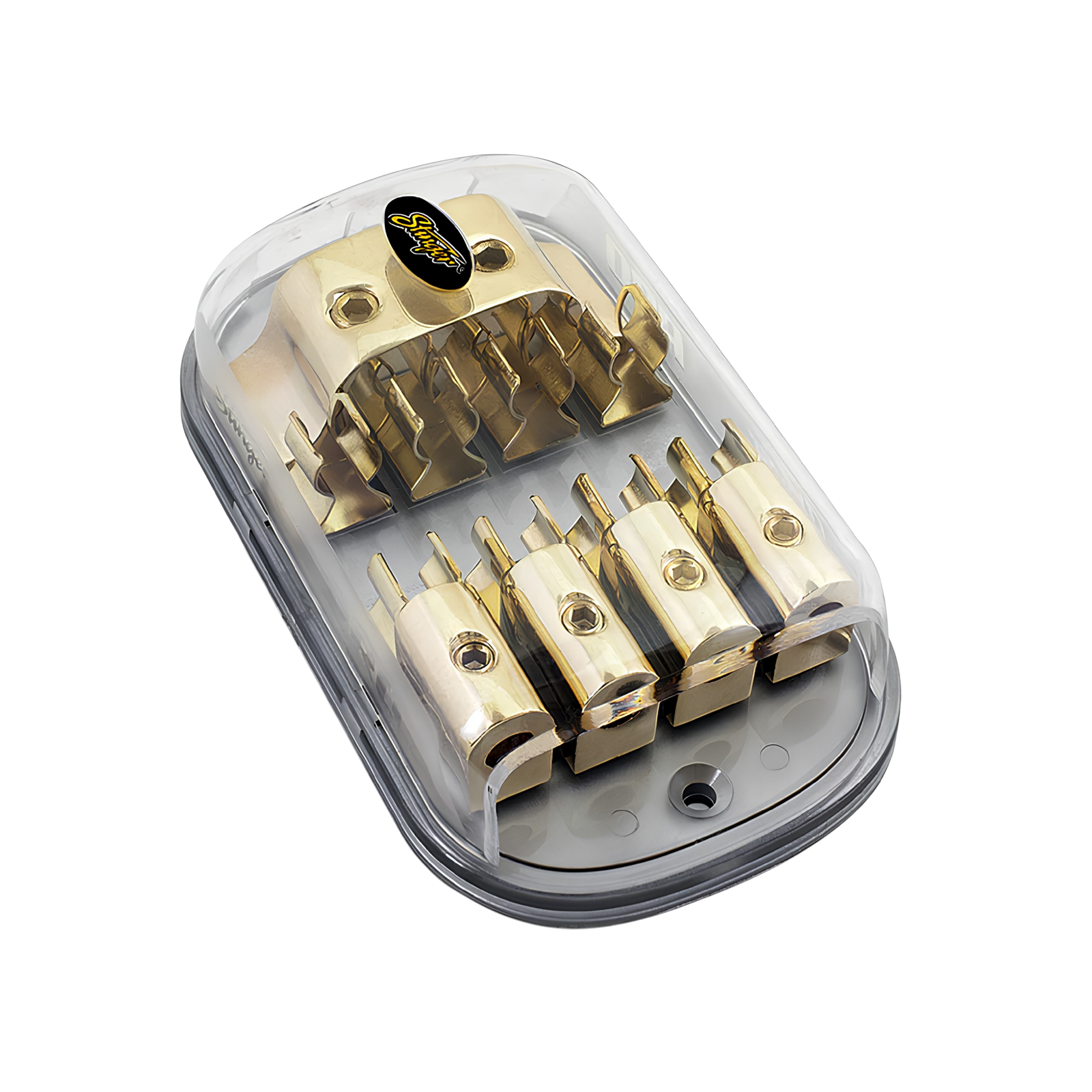

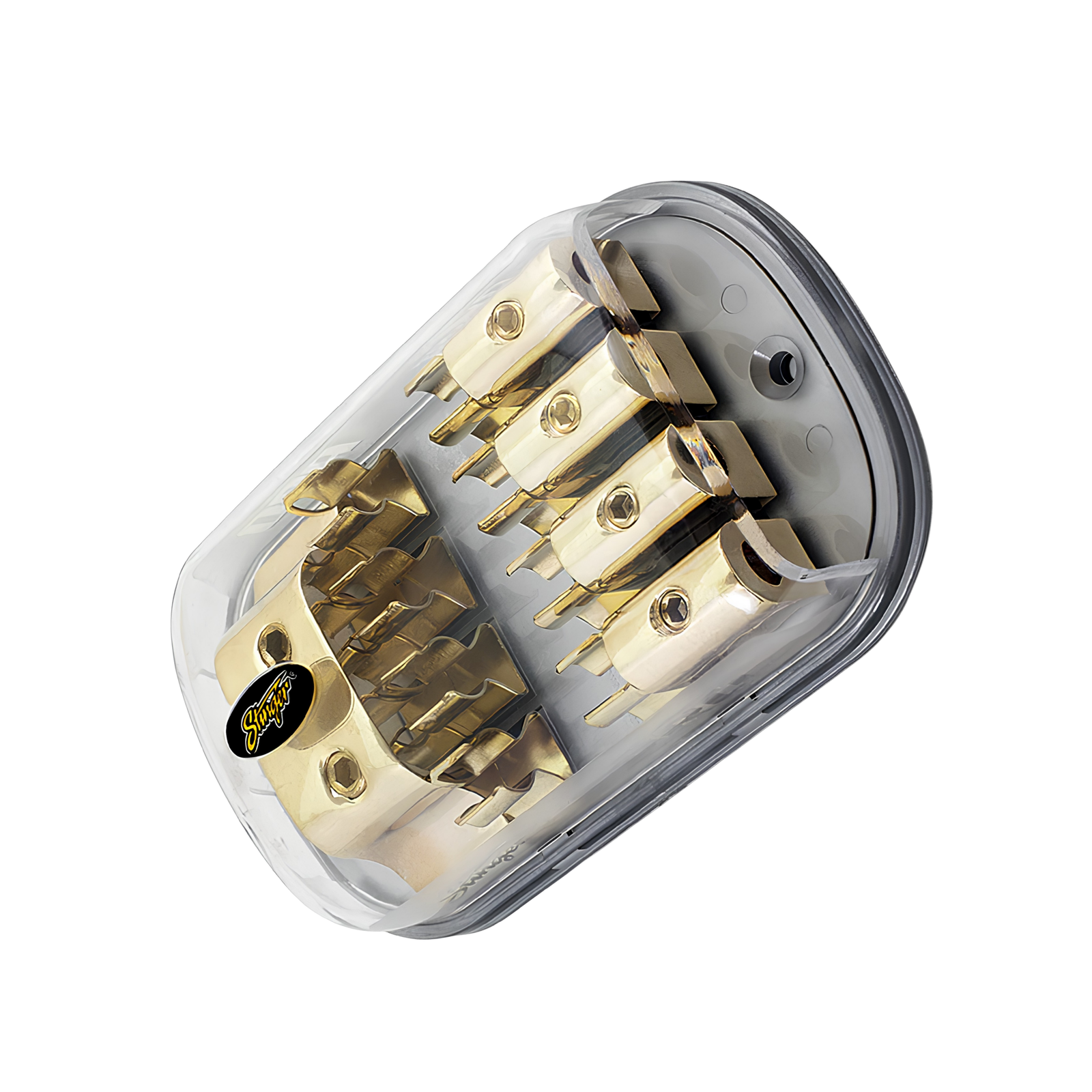

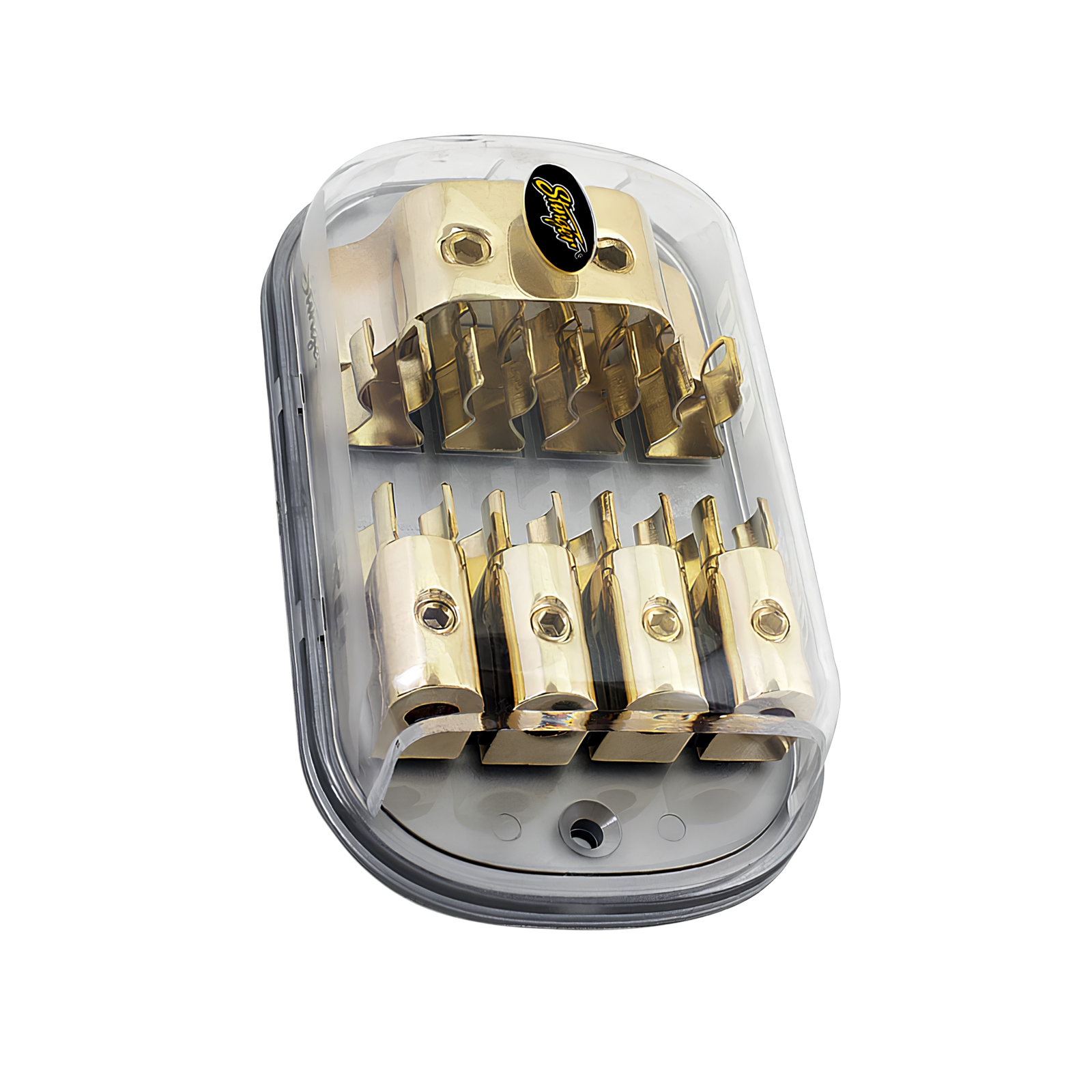

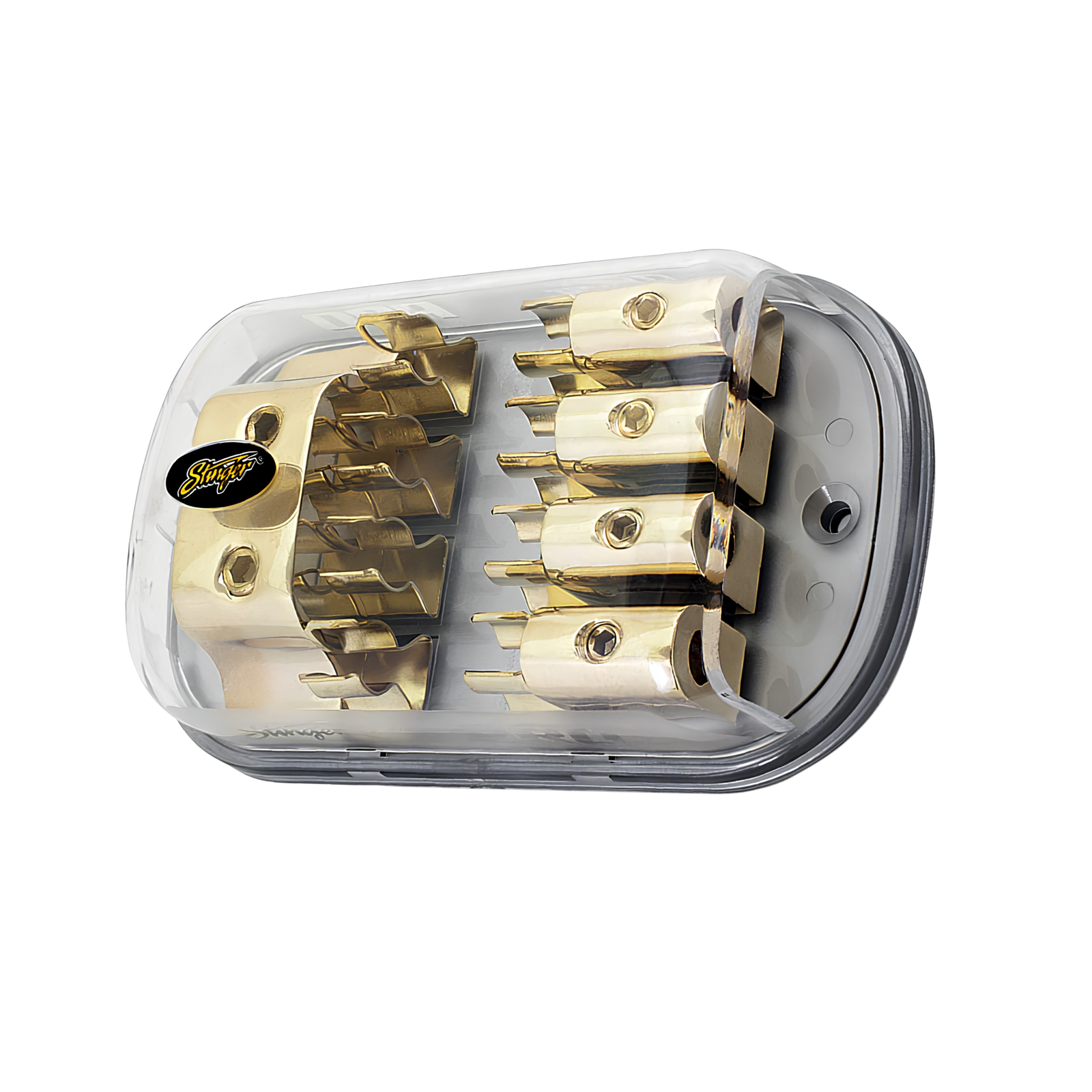

Stinger SPD8124 2 4GA In 4 8GA Out Gold AGU Fused Distribution Block

SKU: SPD8124
Regular price
$70
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Stinger SPD8124 PRO Series AGU Fused Distribution Block, 2×4GA Input / 4×8GA Outputs

A PRO Series AGU fused distribution block for larger multi-amplifier builds two 4GA inputs, four fused 8GA outputs, individual AGU fuse protection per output, clear acrylic cover. Fuses not included.

Product Overview

The Stinger SPD8124 is the larger AGU fused distribution block in the PRO Series the 4-output counterpart to the SPD8120. It accepts two 4GA inputs and provides four individually fused 8GA outputs, each with its own AGU fuse position for per-amplifier protection. AGU fuses from 5A to 60A are compatible.

The clear acrylic high-temperature base and screen-printed snap-off top cover allow visual fuse inspection without tools. Oversized set screws and deep wire recesses provide secure, professional termination.

Fuses are not included.

Features & Benefits

  • Two 4GA inputs, four fused 8GA outputs
  • Individual AGU fuse per output — per-amplifier protection for up to four amplifiers
  • Accepts AGU fuses 5A–60A
  • Clear acrylic high-temperature base
  • Screen-printed snap-off top cover — visual fuse inspection
  • Oversized set screws for maximum contact
  • Deep wire recesses — no exposed wire
  • Compact space-saving design
  • Fuses not included

Technical Specs

Specification Detail
SKU / Part Number SPD8124
Brand Stinger
Series PRO
Inputs 2 × 4GA
Outputs 4 × 8GA (fused)
Fuse Type AGU
Fuse Range 5A–60A
Fuse Positions 4 (one per output)
Base Clear acrylic — high temperature
Cover Screen-printed snap-off top cover
Wire Connection Oversized set screws
Fuses Included No

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Universal — suitable for 4GA to 8GA power distribution with AGU fusing in multi-amplifier builds

Goes Well With:

  • Stinger SK4241 4GA amplifier wiring kit (4GA input connections)
  • Stinger STK4 4GA amplifier wiring kit
  • Car audio amplifiers requiring individual 8GA power connections
  • Stinger SPD8120 (2-output version — for smaller 2-amplifier builds)

Frequently Asked Questions

What is the difference between the SPD8124 and the SPD8120?

Both are PRO Series AGU fused distribution blocks with the same AGU fuse compatibility, clear acrylic cover, and set screw termination. The SPD8120 has one input and two fused outputs — suited to two-amplifier builds. The SPD8124 has two inputs and four fused outputs — suited to four-amplifier builds.

What is the difference between the SPD8124 and the SHD821?

Both are 2-input, 4-output fused distribution blocks. The SPD8124 uses AGU fuses (5–60A) for 4GA to 8GA wiring — suited to lower-powered builds. The SHD821 uses MIDI, AFS, or Mini ANL fuses (up to 175A) for 1/0GA or 4GA to 4GA or 8GA wiring — suited to higher-powered builds.

Are fuses included?

No. AGU fuses must be purchased separately. Select the rating appropriate to each amplifier as stated in its installation manual.

Can I inspect the fuses without tools?

Yes. The screen-printed snap-off top cover allows quick manual removal for visual fuse inspection and replacement without tools.

Is this block suitable for ground distribution?

Yes. The SPD8124 can be used on either the power or ground side of the installation.
