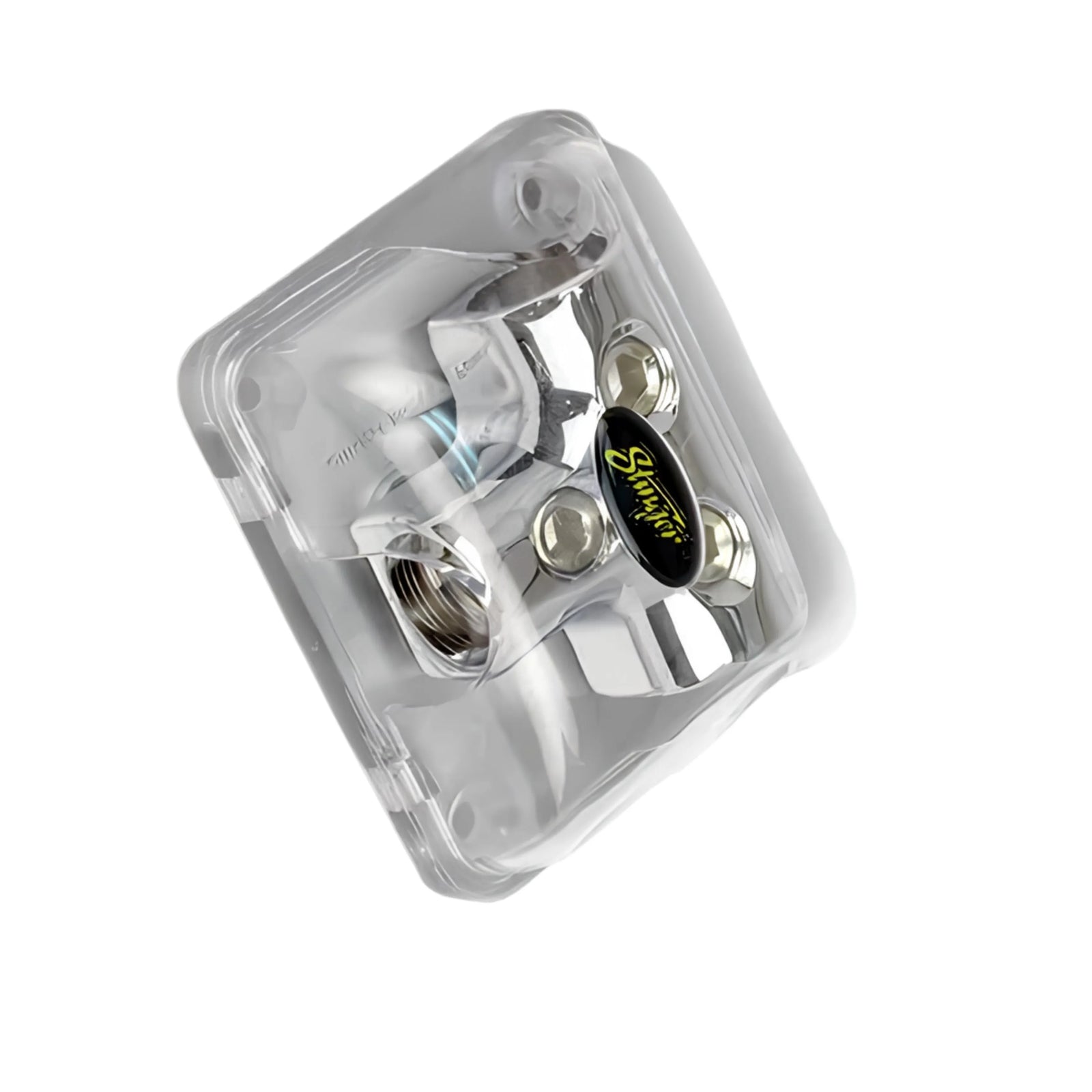

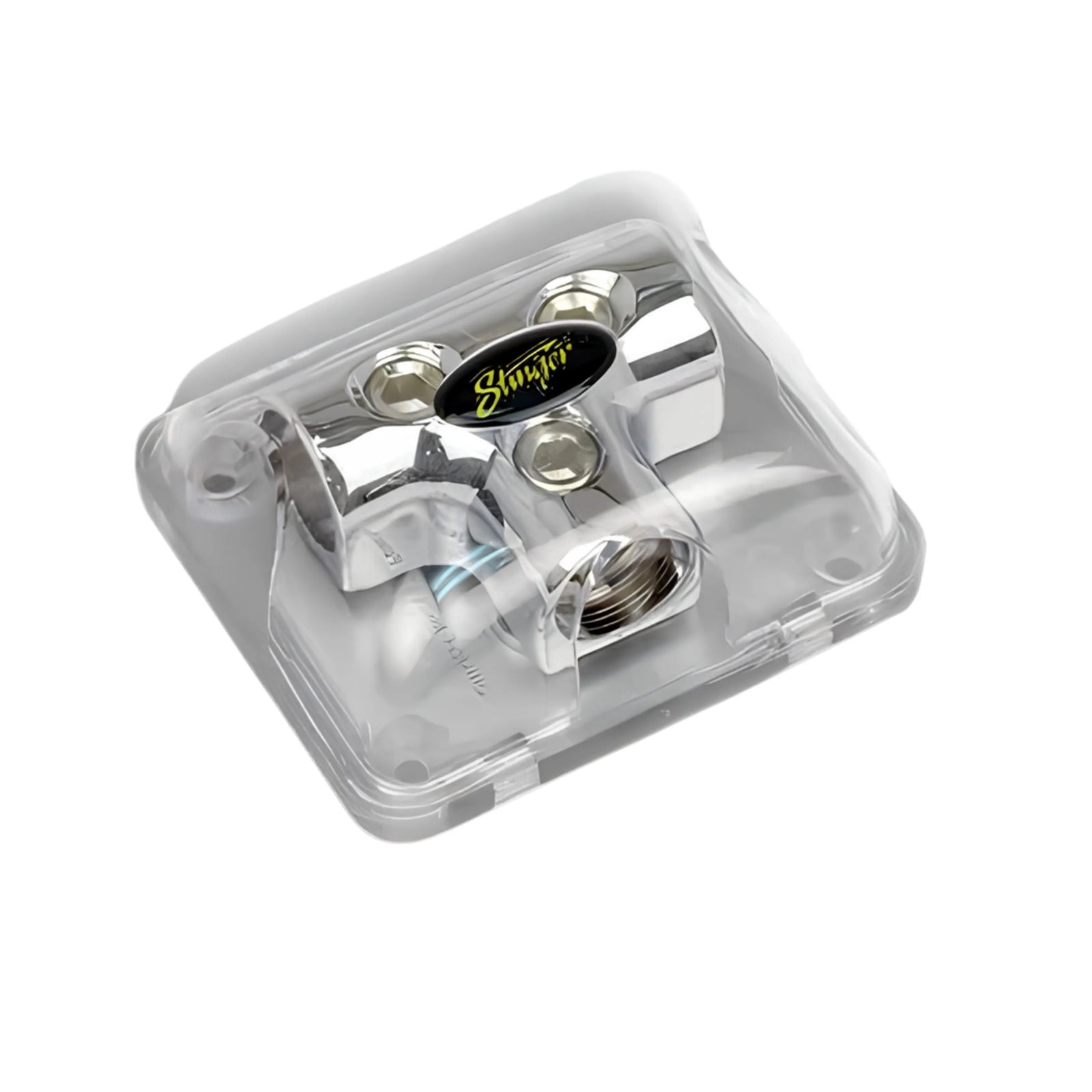

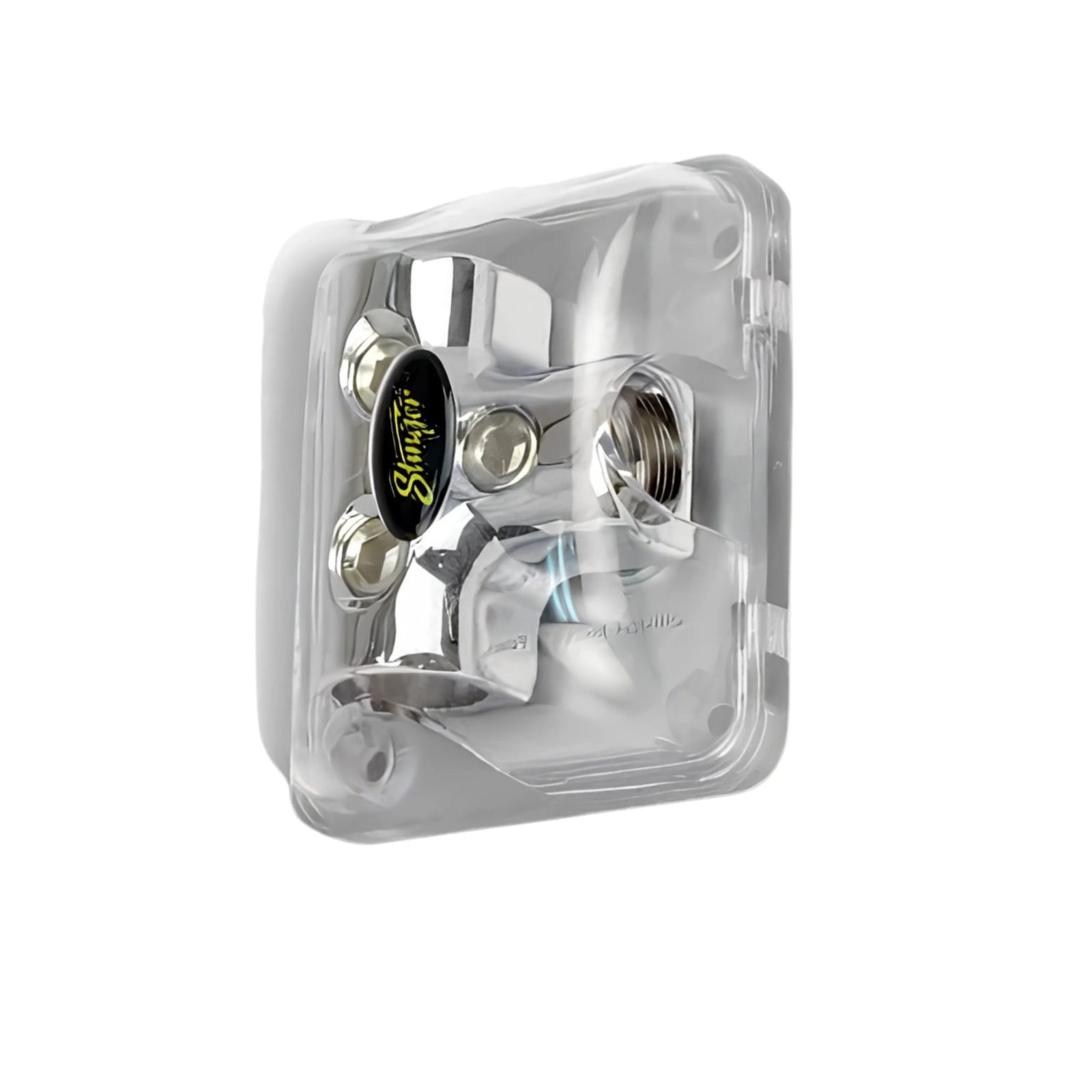

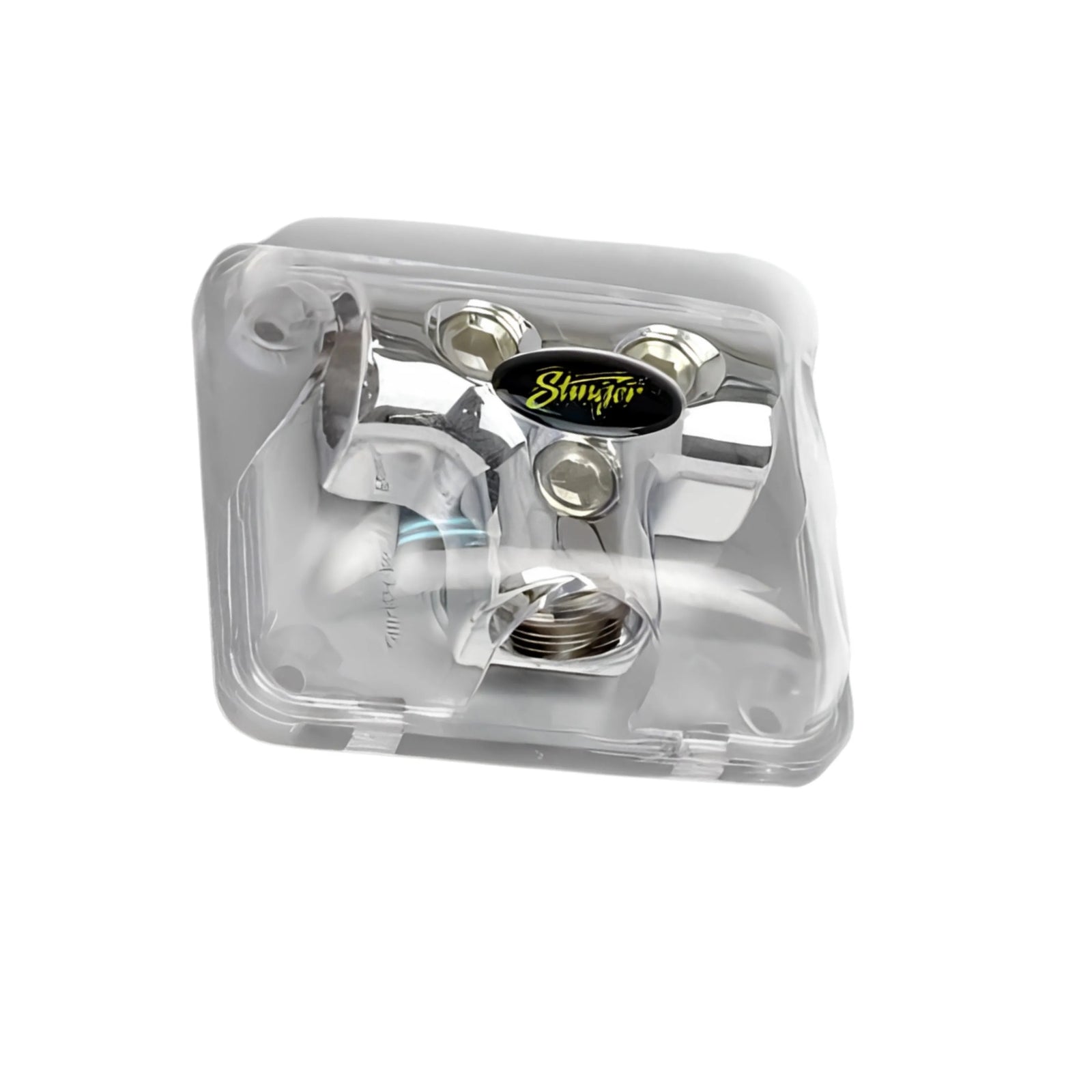

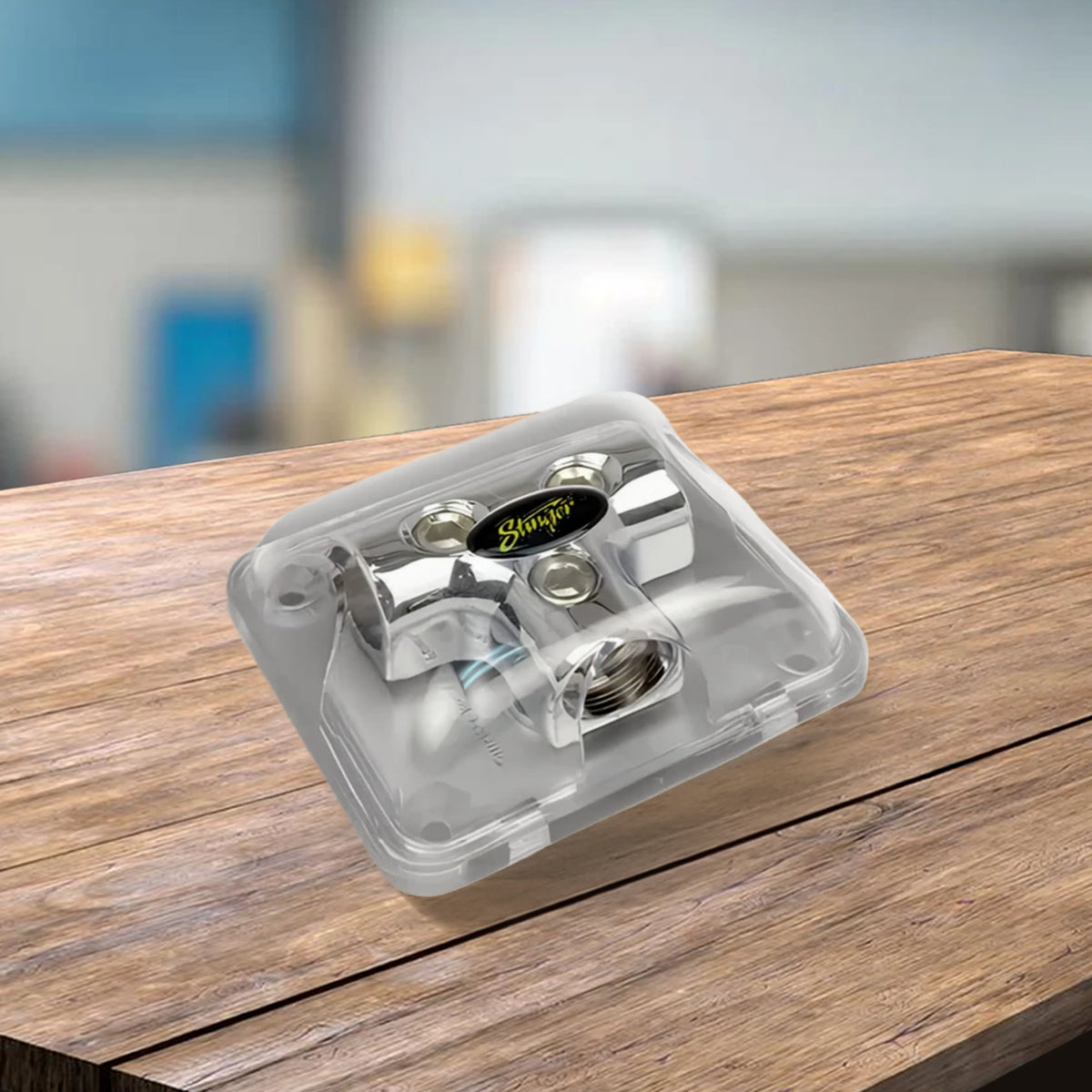

Stinger SPD512 PRO 0 Gauge T Distribution Block
Stinger SPD512 PRO 0 Gauge T Distribution Block
Stinger SPD512 PRO 0 Gauge T Distribution Block
Stinger SPD512 PRO 0 Gauge T Distribution Block
Click to open expanded view
STINGER logo

Stinger SPD512 PRO 0 Gauge T Distribution Block

SKU: SPD512
Sale price
$34.65
Regular price
$38.50
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Stinger SPD512 PRO Series 0GA T-Block Power Distribution Block

A compact 3-port 0GA (1/0 gauge) T-distribution block from the Stinger PRO Series Shoc-Krome corrosion-resistant finish, oversized set screws, deep wire recesses, and daisy-chain design for high-powered multi-amplifier builds.

Product Overview

The Stinger SPD512 is the 0GA (1/0 gauge) version of the PRO Series T-distribution block the largest gauge in the SPD51x T-block range. With three 1/0GA ports, it is suited to high-powered multi-amplifier builds where the main power run is 0GA and needs to be split to two amplifiers, or to daisy-chained configurations in very large systems.

Oversized set screws provide maximum contact and vibration-resistant termination for heavy-gauge wiring. Deep wire recesses eliminate exposed cable for a safe, professional installation.

Features & Benefits

  • Three 1/0GA (0 gauge) ports — input and two outputs, or daisy-chain configuration
  • Daisy-chain design for flexible multi-block configurations
  • Corrosion-resistant Shoc-Krome finish
  • Oversized set screws for maximum contact with heavy-gauge wire
  • Deep wire recesses — no exposed wire
  • Non-fused — suitable for both power and ground side use

Technical Specs

Specification Detail
SKU / Part Number SPD512
Brand Stinger
Series PRO
Port Count 3
Wire Gauge 0 AWG (1/0 GA)
Finish Shoc-Krome (corrosion resistant)
Wire Connection Oversized set screws
Fused No

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Universal — suitable for 0GA (1/0GA) power or ground distribution in high-power builds

Goes Well With:

  • Stinger SK4201 0GA 4000 Series amplifier wiring kit
  • High-powered car audio amplifiers rated above 1,500W RMS
  • Stinger SPD511 PRO 4GA T-block (for 4GA outputs from a 0GA distribution point)
  • Stinger SHD20 / SHD820 HPM distribution blocks (if transitioning to fused outputs)

Frequently Asked Questions

What is the difference between the SPD512, SPD511, and SPD510?

All three are PRO Series T-distribution blocks with the same Shoc-Krome finish, oversized set screws, and daisy-chain design. The SPD512 is 0GA (1/0GA), the SPD511 is 4GA, and the SPD510 is 8GA. Choose the gauge that matches your main power run.

When do I need a 0GA distribution block?

The SPD512 is suited to systems running 0GA (1/0GA) main power cable — typically high-powered builds rated above 1,500W RMS with large monoblock or multi-amplifier setups driven by the Stinger SK4201 or similar 0GA wiring kit.

Can the SPD512 be daisy-chained?

Yes. Multiple SPD512 blocks can be linked together for very large 0GA distribution systems.

Is this block fused?

No. The SPD512 is a non-fused T-distribution block. The main 0GA power run must be fused with an appropriately rated ANL fuse at the battery — typically 250A for a 0GA run, as provided in the SK4201 kit.

Can this be used for both power and ground?

Yes. The SPD512 can be used on either the positive power or negative ground side of the installation.
