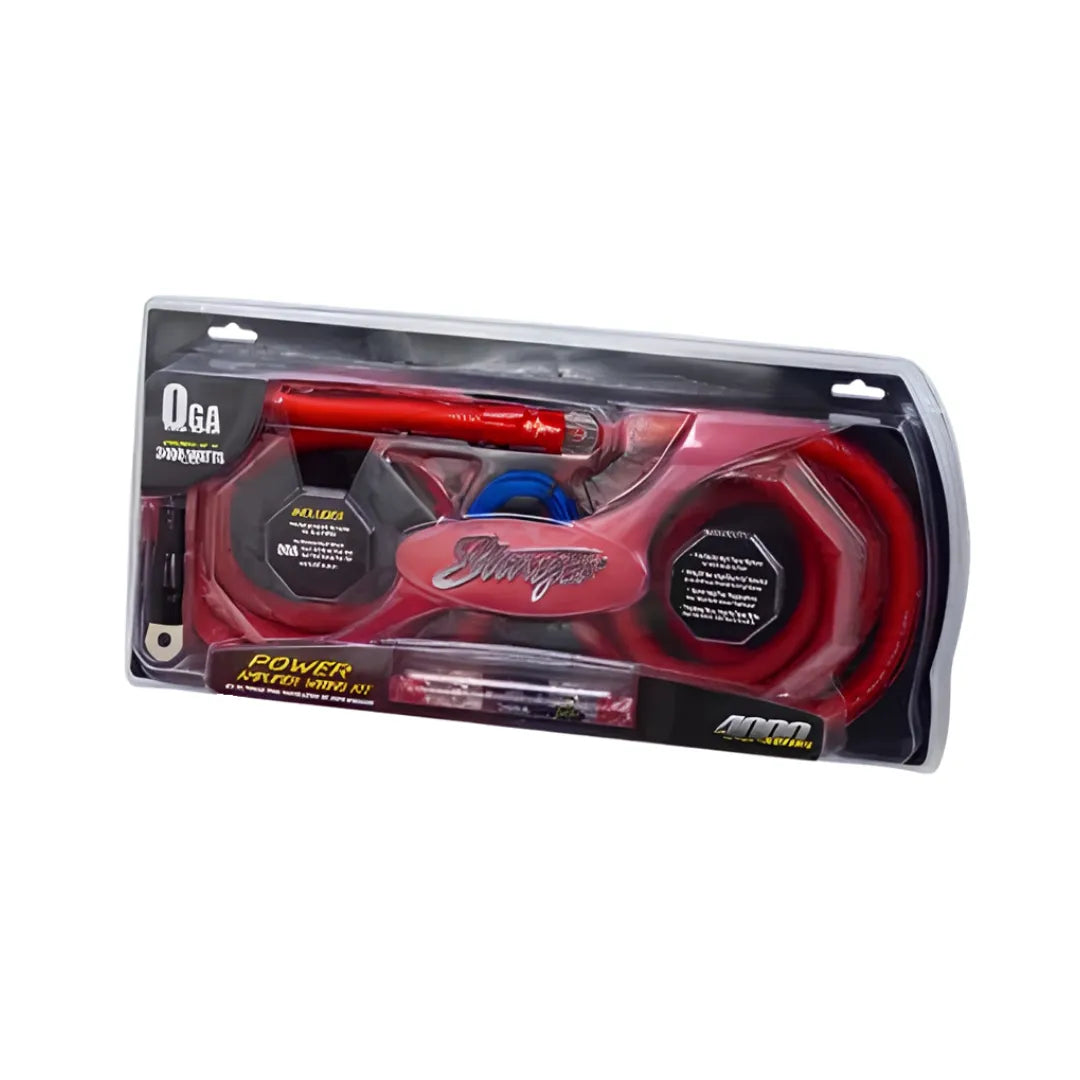

Stinger SK4201 0GA 4000 Series Power Wiring Kit

Stinger SK4201 4000 Series 1/0 Gauge Amplifier Power Wiring Kit with ANL Fuse Holder and Pre-Terminated Ring Terminals

The SK4201 from Stinger is a 1/0 gauge amplifier power wiring kit from the 4000 Series range, designed for car audio systems up to 3400 watts or 250 amps. The kit includes 5.5 metres of matte red hyper-twist power wire, 0.9 metres of ground wire, a remote turn-on wire, an ANL fuse holder, a 250 amp fuse, pre-installed crimp ring terminals, and all supporting installation hardware.

Product overview

The Stinger 4000 Series is built for high-demand car audio systems where power delivery, noise rejection, and signal integrity are critical. The SK4201 uses true-spec tinned oxygen-free copper conductors throughout, ensuring maximum current transfer without the resistance and corrosion issues that affect lesser cable constructions. The matte finish hyper-twist wire construction provides excellent flexibility during installation while maintaining a clean, professional appearance in the finished result.

All power connections are pre-terminated with 1/0 gauge crimp ring terminals, removing the need for field termination of the main power connections. The included SPD5201 ANL fuse holder and 250 amp Shoc-Krome ANL fuse provide rated circuit protection for systems drawing up to 250 amps. Supporting hardware including a firewall grommet, self-drilling mounting screws, a butt connector, and wire ties are all included, making the SK4201 a complete wiring solution for high-powered installations.

Features and benefits

Rated for systems up to 3400 watts or 250 amps: Designed specifically for high-powered car audio systems drawing up to 3400 watts or 250 amps, making the SK4201 suited to the most demanding single or multi-amplifier installations.

True-spec tinned OFC conductors: All cable is manufactured from 100% oxygen-free copper to true-spec tolerances with tinned conductors throughout, providing maximum current transfer and long-term corrosion resistance.

Matte finish hyper-twist wire construction: The hyper-twist construction delivers excellent flexibility for routing through tight spaces, while the matte finish provides a clean, professional appearance in the finished installation.

Pre-terminated power connections: The 1/0 gauge crimp ring terminals are pre-installed on the power wire, providing reliable, factory-grade terminations without the need for field crimping of the main power connections.

SPD5201 ANL fuse holder and 250 amp Shoc-Krome fuse included: The ANL-style fuse holder and matching 250 amp fuse provide correctly rated circuit protection for high-current installations, with the Shoc-Krome fuse delivering reliable performance under sustained load.

Complete installation hardware included: A 1/0 gauge snap-in firewall grommet, self-drilling mounting screws, a 16 gauge blue butt connector, and ten wire ties are all included, covering the supporting hardware typically needed to complete a professional installation.

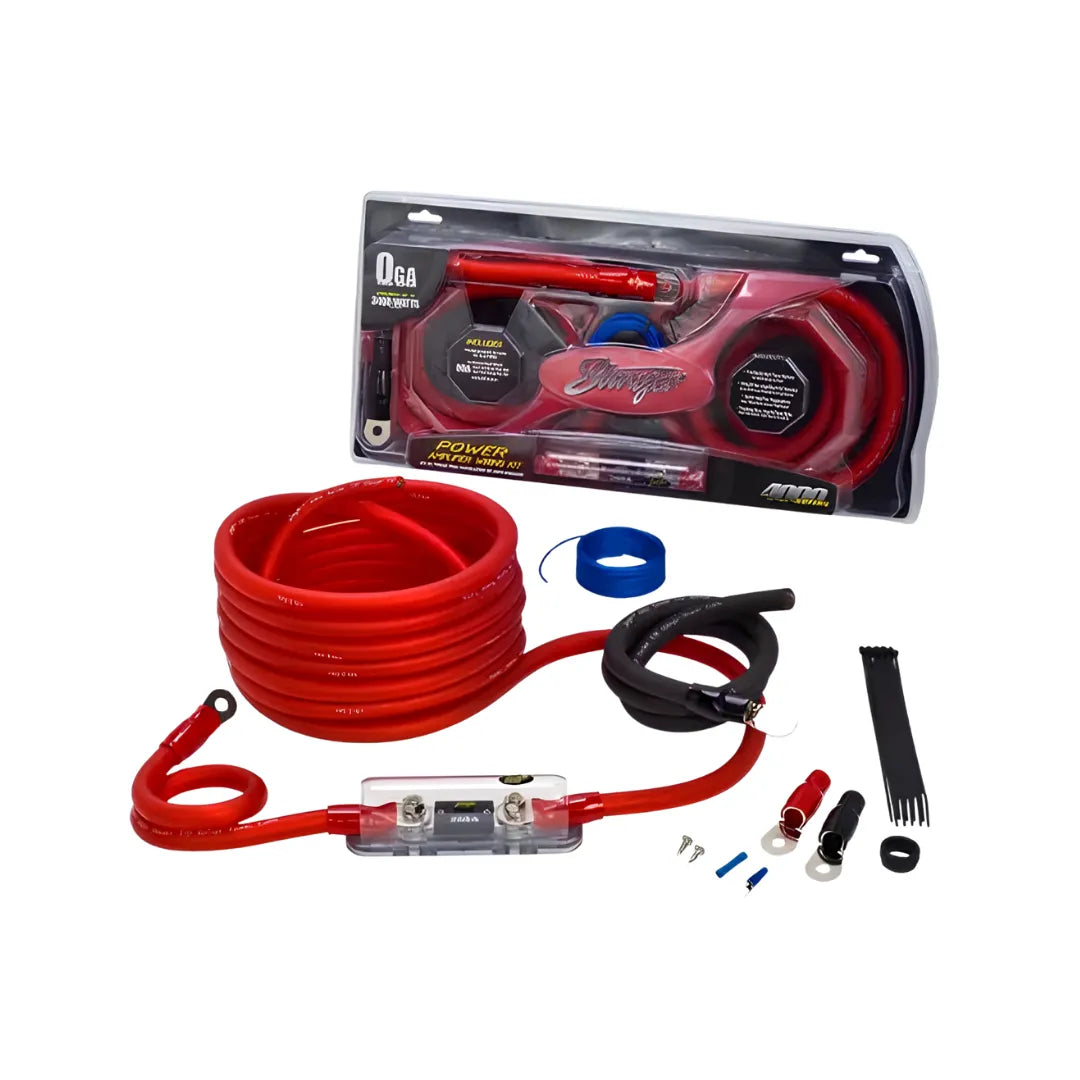

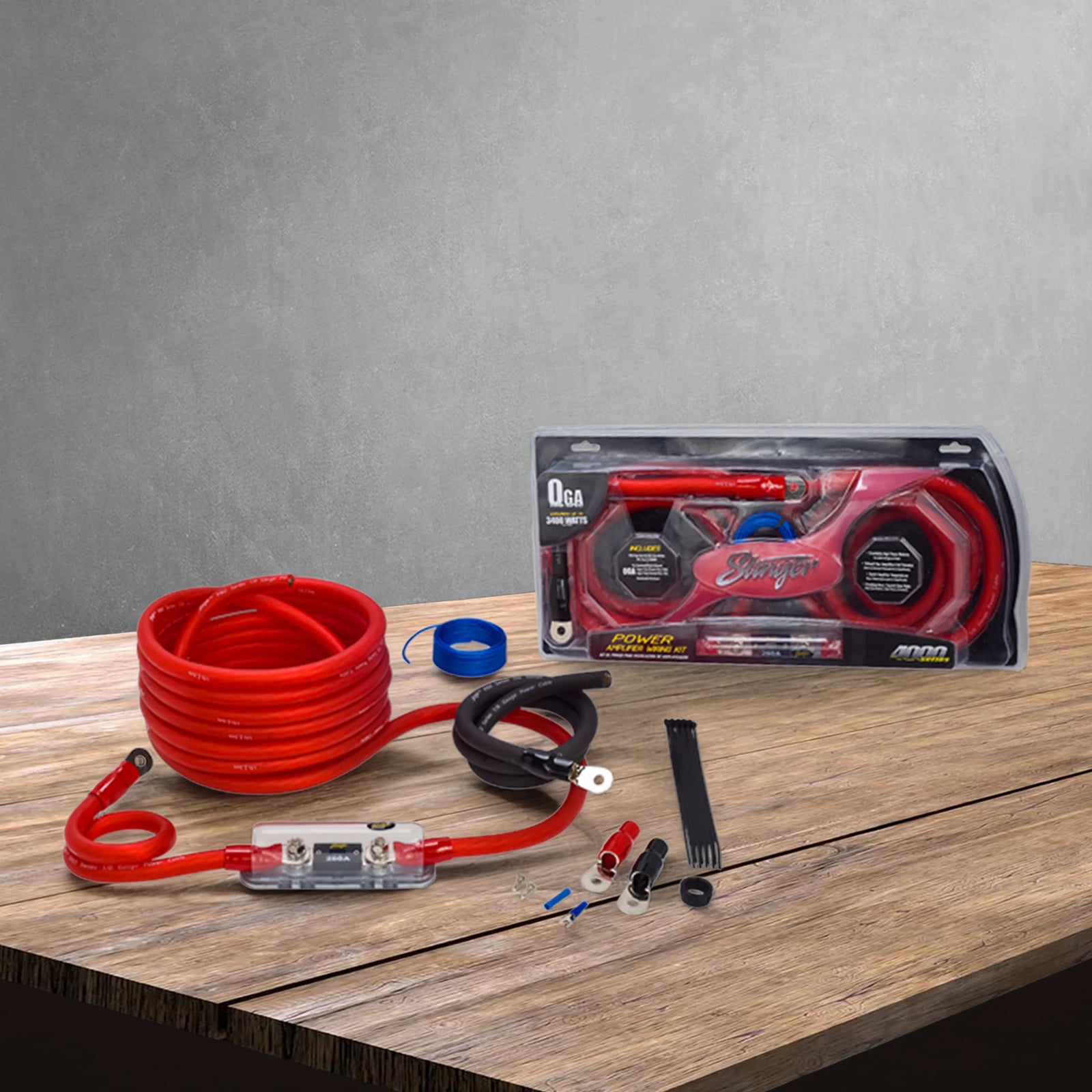

What's in the box

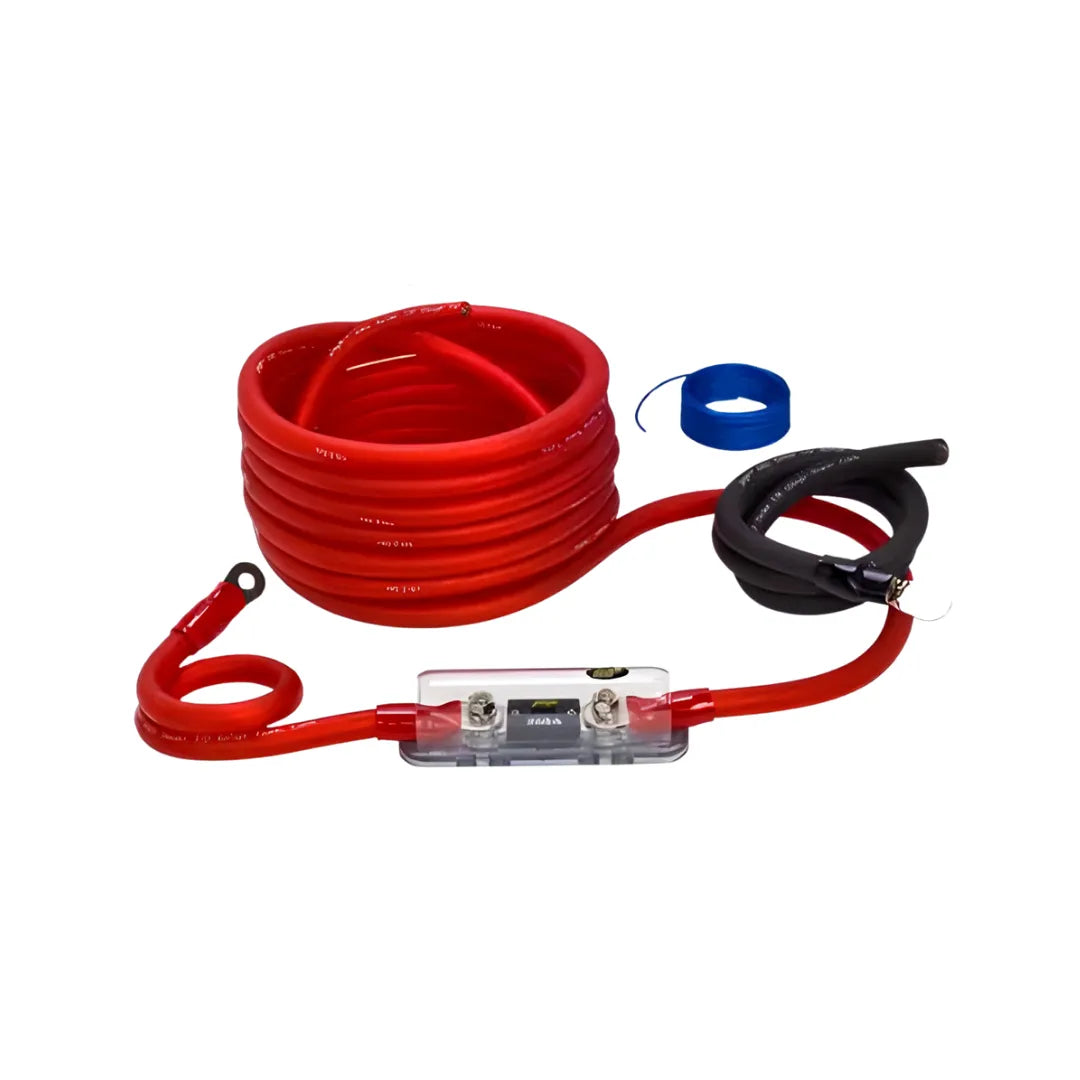

• 18ft (5.5m) Matte Red Hyper-Twist 1/0 Gauge Power Wire with pre-installed crimp ring terminals
• 3ft (0.9m) Matte Black Hyper-Twist 1/0 Gauge Ground Wire
• 17ft (5.2m) Matte Blue 18 Gauge Remote Turn-On Wire
• SPD5201 ANL Fuse Holder
• 250 Amp Shoc-Krome ANL Fuse

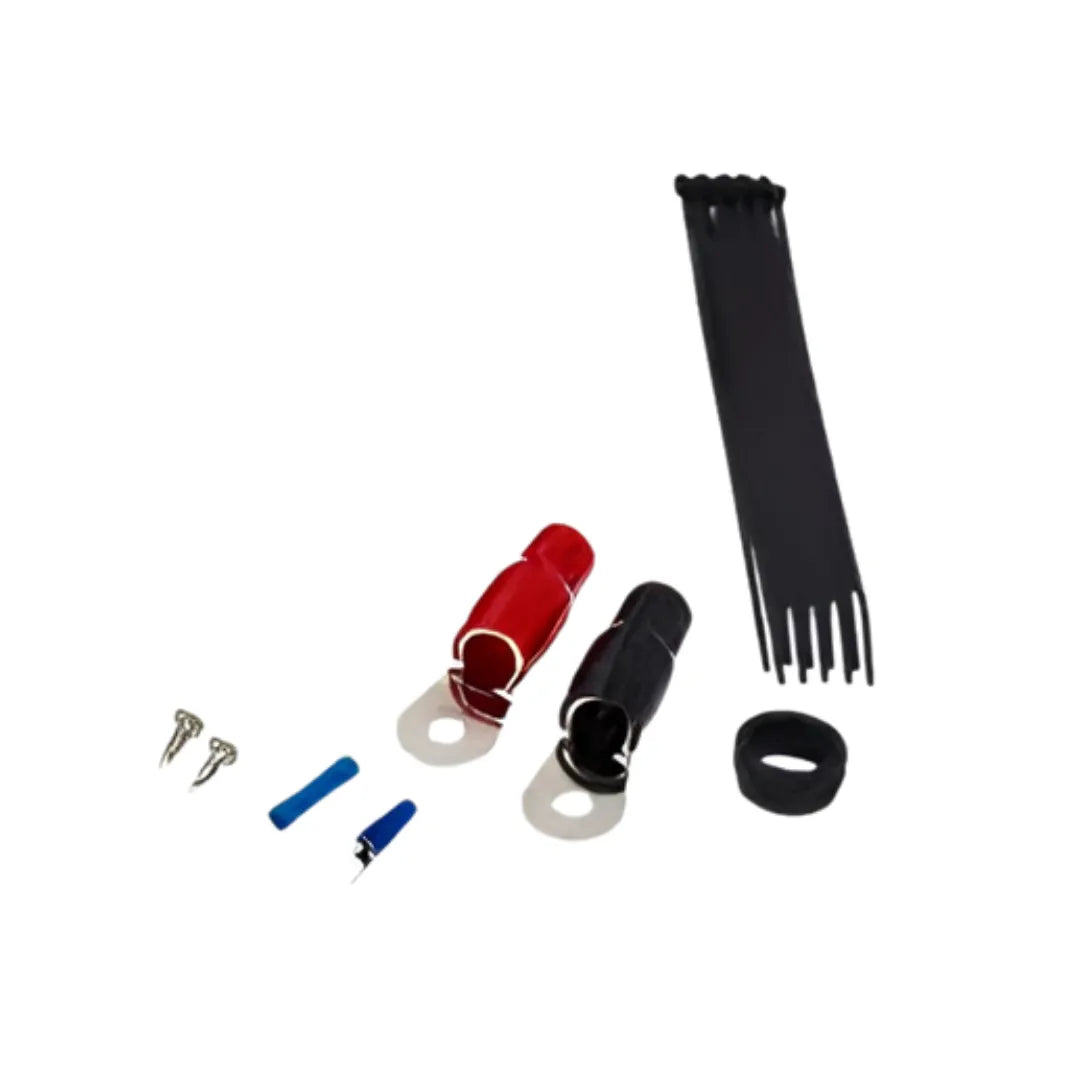

• 16 Gauge Blue Butt Connector
• 1/0 Gauge Snap-In Protective Firewall Grommet
• Self-Drilling Mounting Screws
• 10x Wire Ties (178mm)

Technical specs

Frequently asked questions

What system power rating is the SK4201 designed for?
The SK4201 is designed for car audio systems up to 3400 watts or 250 amps. It is suited to high-powered single or multi-amplifier installations requiring 1/0 gauge power delivery.

Are the ring terminals already installed on the power wire?
Yes. The 1/0 gauge crimp ring terminals are pre-installed on the power wire, providing reliable, factory-grade terminations on the main power connections without the need for field crimping.

What fuse holder and fuse are included with the SK4201?
The kit includes the Stinger SPD5201 ANL fuse holder and a 250 amp Shoc-Krome ANL fuse. These provide correctly rated circuit protection for high-current installations drawing up to 250 amps.

Does the SK4201 include a firewall grommet?
Yes. A 1/0 gauge snap-in protective firewall grommet is included in the kit, protecting the power cable where it passes through the firewall and providing a clean, secure entry point into the vehicle cabin.

What is the difference between the SK4201 and other Stinger wiring kit series?
The 4000 Series is positioned as a high-performance wiring kit range using true-spec tinned OFC conductors and matte hyper-twist construction. Contact us if you need help selecting the correct Stinger wiring kit series for your specific installation requirements.
