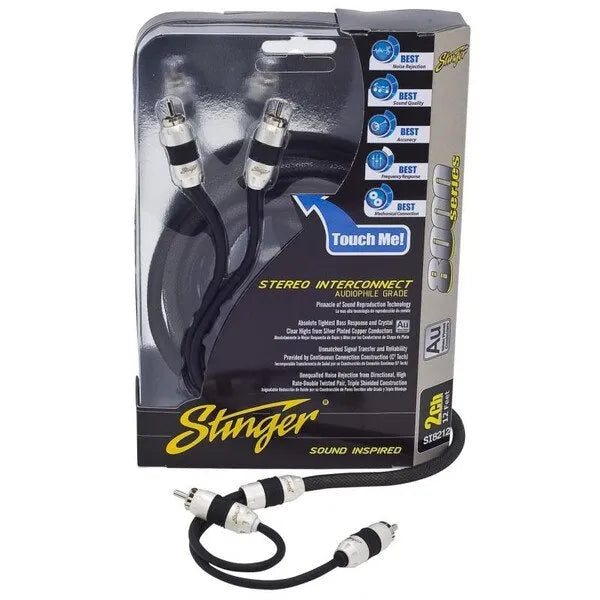

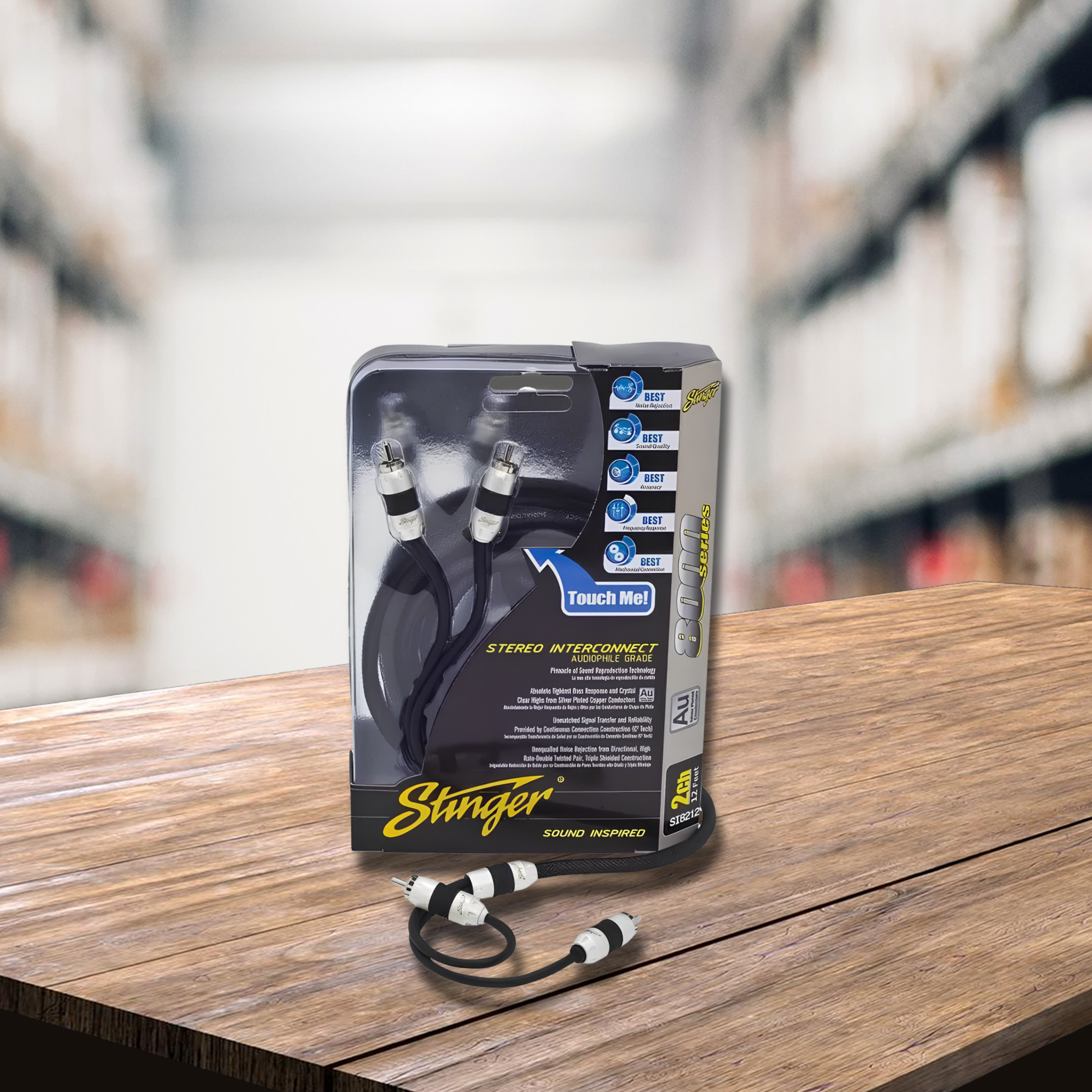

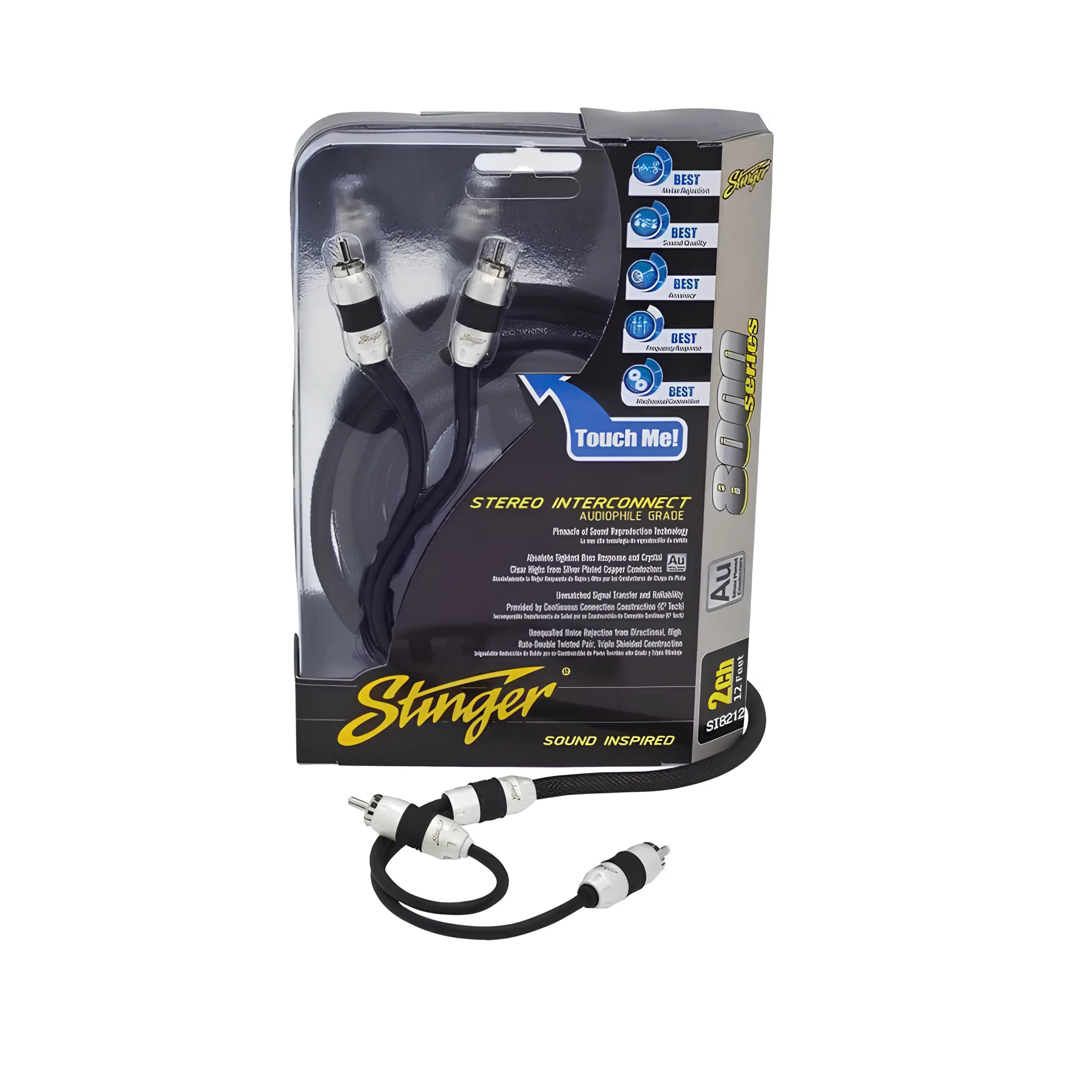

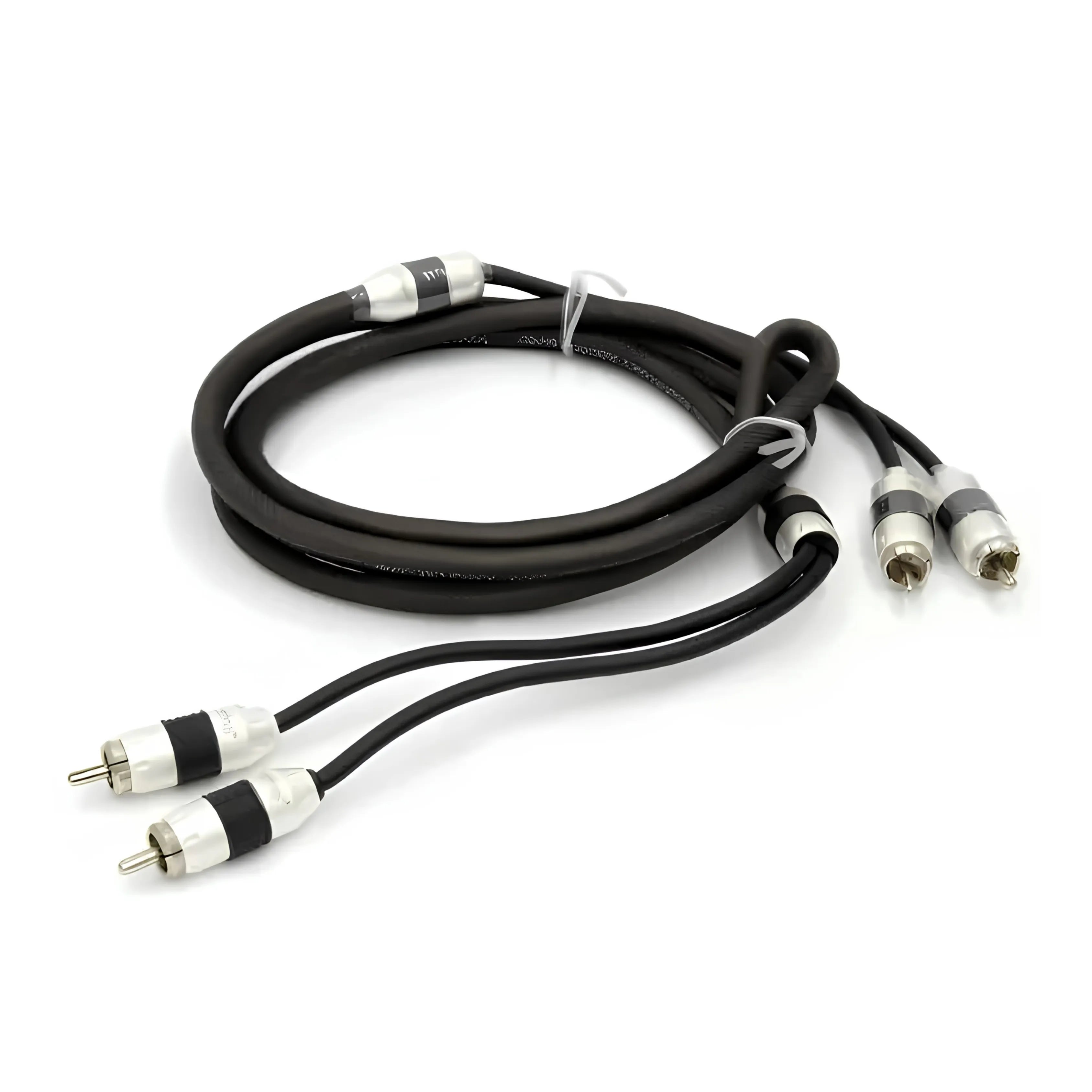

Stinger SI826 8000 Series 2-Channel Triple Shielded RCA 6ft

8000 Series 2-Channel Triple Shielded RCA 6ft, Oversized Silver-Plated Copper, Triple-Braided + Mylar Shielding, Locking Split-Tip Connectors, 3 Conductors per Channel, C3 Tech.

Product Overview

The Stinger SI826 is a 6-foot (1.8-metre) 2-channel audiophile-grade RCA interconnect from the 8000 Series engineered for installations where signal quality between the source unit and the amplifier is the priority. At 6 feet, the SI826 suits installations where the amplifier is mounted under a seat, behind the centre console, or otherwise within close proximity of the head unit.

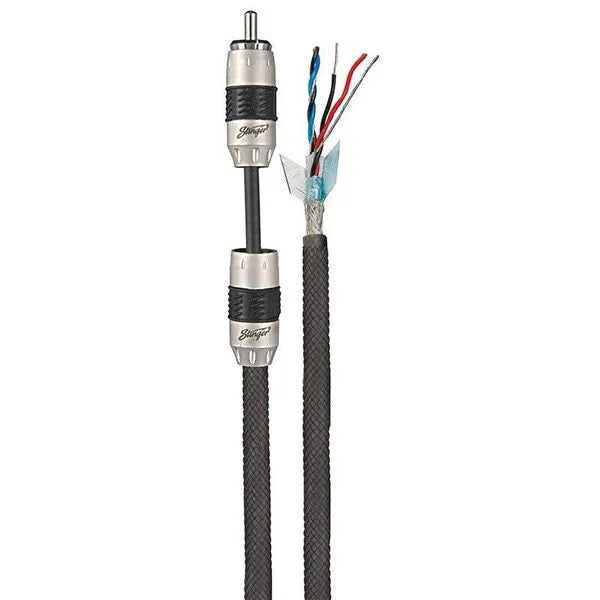

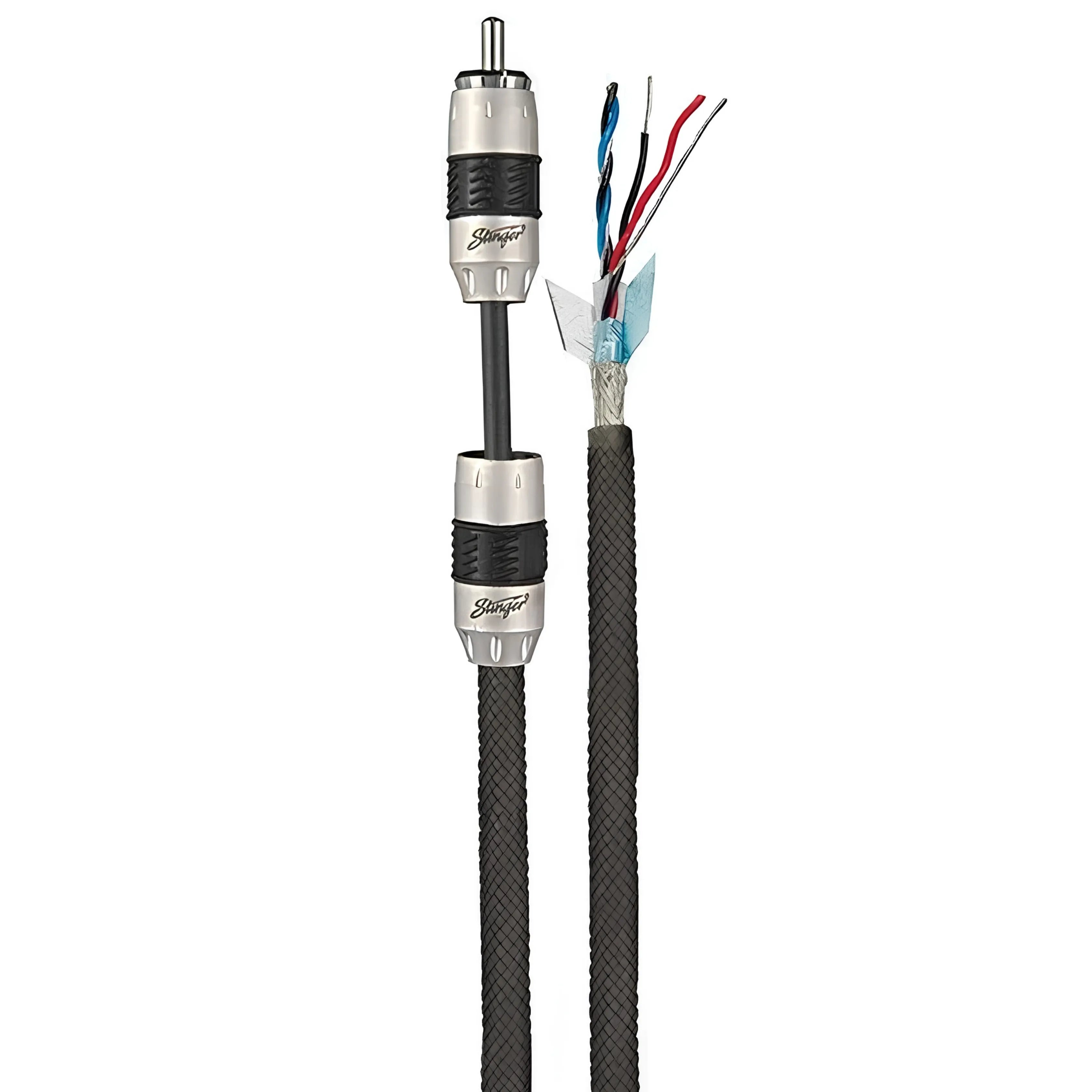

Oversized silver-plated copper conductors use three conductors per channel (six total) separate positive, negative, and signal drain paths per channel providing true channel separation and a low-impedance signal return. Triple-braided shielding combined with an inner Mylar foil layer provides multi-directional noise rejection from both external radiated interference and conducted noise within the cable. A directional high-rate double twisted-pair construction adds a further architectural layer of noise cancellation. Precision machined pewter-finish locking metal ends with channel identification, locking split-tip connectors, no solder joints, moulded strain reliefs, and C3 Tech (Continuous Connection Construction) complete the build.

Key Specifications

• SKU: SI826
• Series: 8000 Series
• Channels: 2
• Length: 6 feet (1.8 metres)
• Conductor: Oversized silver-plated copper
• Conductors per channel: 3 (positive, negative, signal drain)
• Total conductors: 6
• Construction: Directional high-rate double twisted-pair
• Shielding: Triple-braided + Mylar foil
• Connector type: Locking split-tip RCA
• Connector finish: Pewter
• Connector end: Precision machined locking metal with channel ID
• Solder joints: None
• Strain relief: Moulded
• Outer jacket: Black mesh protective
• Construction method: C3 Tech (Continuous Connection Construction)
• Warranty: Not specified — confirm with Stinger

Features & Benefits

• Oversized Silver-Plated Copper Conductors Oversized silver-plated copper combines the high-frequency precision of silver with the current-carrying capacity of copper — delivering tight, controlled bass response and crystal-clear high-frequency detail across the full audio spectrum. Silver's low surface resistance improves high-frequency transmission; copper's conductivity supports the lower-frequency current demands of subwoofer signal paths.
• Three Conductors per Channel — True Channel Separation Standard RCA cables use two conductors per channel — a positive signal and a combined negative/shield return. The SI826 uses three conductors per channel: dedicated positive, negative, and signal drain paths. The separated shield drain eliminates the interaction between shielding current and audio signal return that introduces noise in a standard two-conductor design, ensuring true channel separation and a lower-impedance return path for both channels.
• Triple-Braided + Mylar Shielding — Multi-Directional Noise Rejection Three independent layers of braided shielding cascade over each other — each layer covering any gaps in the coverage of the layer beneath it — combined with an inner Mylar foil layer. The result addresses both radiated electromagnetic interference from alternators, ignition systems, and external sources, and conducted noise within the cable structure itself. Standard single-braid cables leave significantly higher total coverage gaps.
• Directional High-Rate Double Twisted-Pair Construction The double twisted-pair winding is directional — orientated to maximise noise cancellation when signal flows from source unit to amplifier. Directional markings indicate correct orientation. Installing in the correct direction maximises the architectural noise-cancelling effect of the twisted-pair geometry.
• C3 Tech — Continuous Connection Construction Stinger's C3 Tech ensures no breaks, discontinuities, or resistance variations in the signal chain throughout the full 6-foot length — providing consistent signal transfer from source unit to amplifier.
• Locking Split-Tip Connectors The split-tip connector design mechanically grips the RCA socket's inner contact with spring tension — resisting vibration-induced loosening and maintaining consistent contact force across both channel connections. Standard push-fit connectors rely on friction only and can loosen over time in the automotive environment.
• Precision Machined Pewter-Finish Metal Ends with Channel ID Precision machined from metal with channel identification markings — correct channel identification at both ends eliminates the left/right reversal errors that can occur with unlabelled cables in complex installations. The pewter finish provides corrosion resistance and a premium high-end aesthetic.
• No Solder Joints — Moulded Strain Reliefs The absence of solder joints eliminates resistance discontinuities and long-term reliability issues associated with solder-based connections. Moulded strain reliefs at both connector ends protect the cable-to-connector junction from flex fatigue under sustained vibration.

Technical Specs

Compatible With / Goes Well With

Suitable for:

• 2-channel amplifier installations with amplifier under seat, behind centre console, or in close proximity to the head unit
• Subwoofer monoblock installations with short head-unit-to-amplifier routing distance

Pairs well with:

• Rockford Fosgate, Hertz, Morel, and AudioControl amplifiers
• Stinger SI82YF and SI82YM 8000 Series Y-adapters (same construction for consistent system build)
• Stinger SI8212 (12ft / 3.7m) for boot-mounted amplifier runs in compact to mid-size vehicles
• Stinger SI8217 (17ft / 5m) for larger vehicles and longer routing paths

Length selection guide: SI826 (6ft / 1.8m) — amplifier in close proximity to head unit. SI8212 (12ft / 3.7m) — standard boot-mounted installation. SI8217 (17ft / 5m) — large vehicles and long routing paths.

Frequently Asked Questions

What is the difference between the SI826, SI8212, and SI8217?

All three are identical in specification, construction, and performance — same 8000 Series triple-braided shielding, silver-plated conductors, locking connectors, and C3 Tech construction. The only difference is length: SI826 is 6 feet (1.8m) for short-run installations, SI8212 is 12 feet (3.7m) for compact to mid-size vehicles, and SI8217 is 17 feet (5m) for larger vehicles. Select based on the measured routing distance from head unit to amplifier in the specific vehicle.

What does triple-braided shielding provide that standard single-braid does not?

A single-braid shield leaves gaps in its woven coverage that can allow interference to penetrate. The SI826's three independent braided layers cascade over each other — each covering any gaps in the layer beneath — achieving dramatically higher total shield coverage. Combined with the inner Mylar foil layer, the shielding system addresses both radiated external interference and conducted internal noise from multiple directions simultaneously.

Why does the SI826 use three conductors per channel rather than two?

Standard RCA cables combine the negative signal return and shield drain into one conductor. The SI826 separates these into dedicated individual conductors per channel — providing a lower-impedance signal return path and isolating the shield drain from the signal return. This reduces the interaction between shielding current and audio signal that introduces noise in a standard two-conductor design.

What is the benefit of locking split-tip connectors over standard push-fit RCA connectors?

Standard push-fit RCA connectors rely on friction to maintain contact — which can loosen under vibration and cause intermittent noise or signal dropout. The SI826's locking split-tip connectors mechanically grip the socket's inner contact with spring tension, providing a vibration-resistant hold that maintains consistent contact force over time in the automotive environment.

What does the directional construction mean, and how should I orient the cable?

The directional double twisted-pair winding cancels noise most effectively when signal flows in one specific direction. Directional markings on the cable indicate which end connects to the source unit and which end connects to the amplifier. Correct orientation maximises the noise-cancelling effect of the twisted-pair architecture — installing in reverse does not damage the cable but reduces its effectiveness.
