Product features

Compact Amplifier Cooling in a Tight Space Stinger's 5.75″ Crossflow Fan.

Product Overview

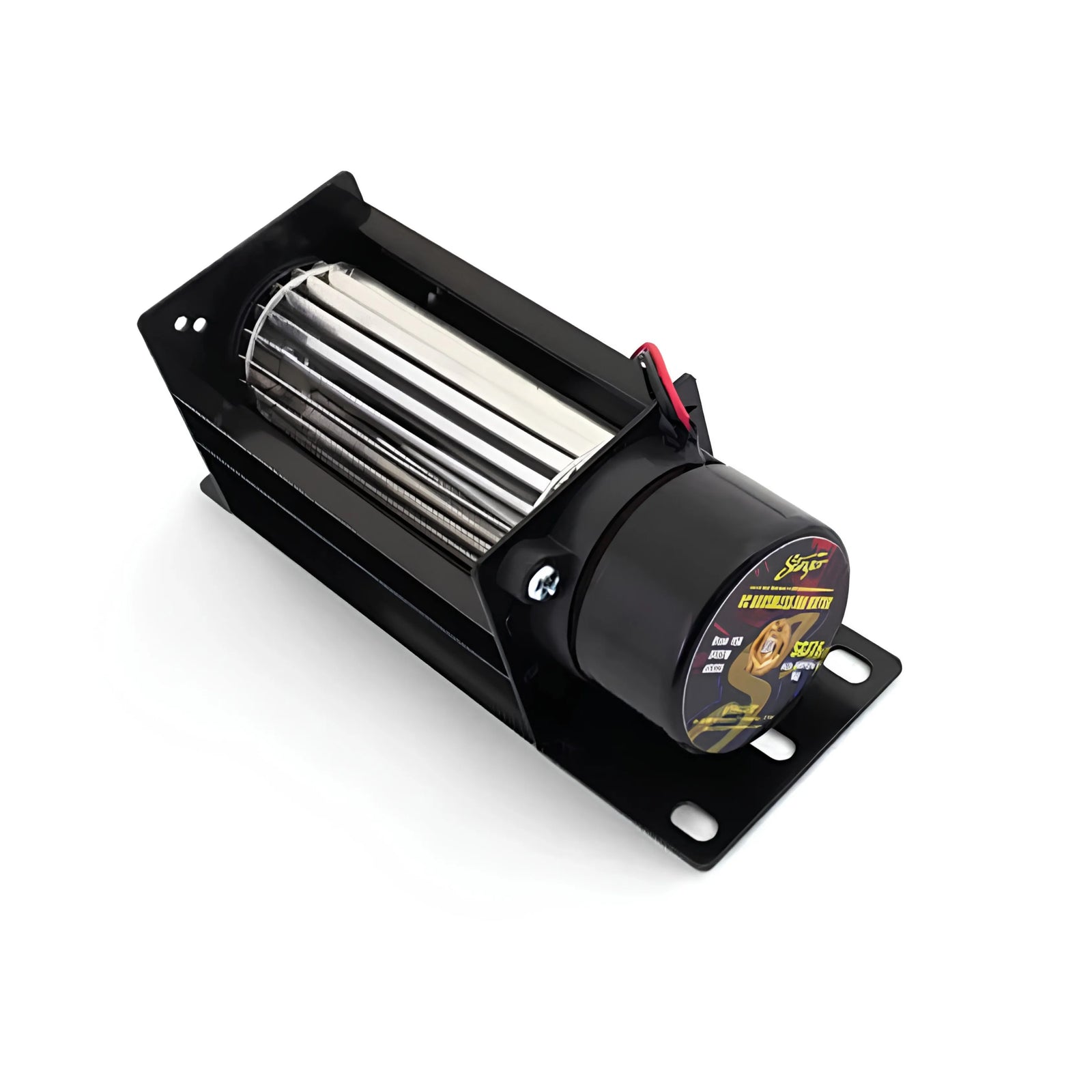

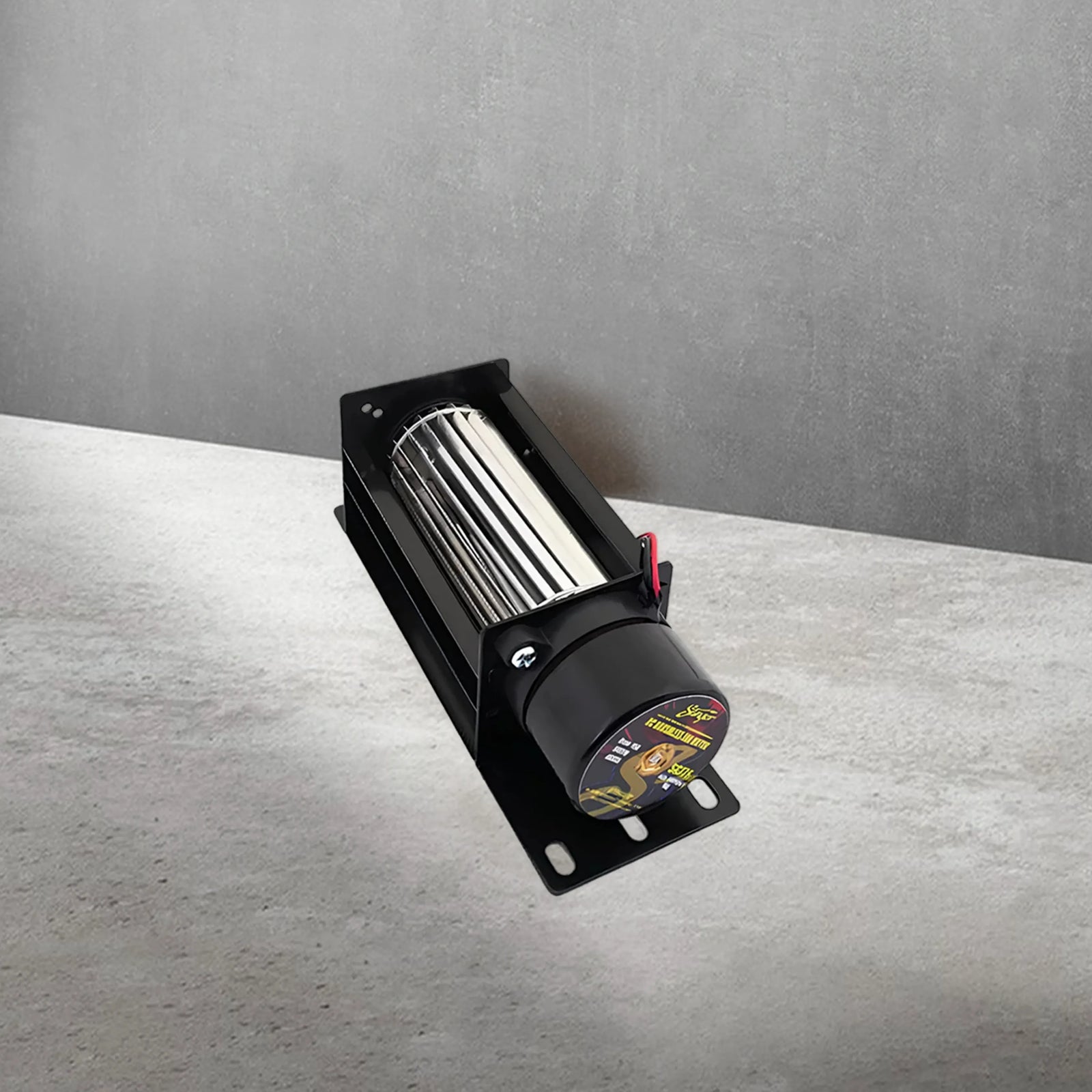

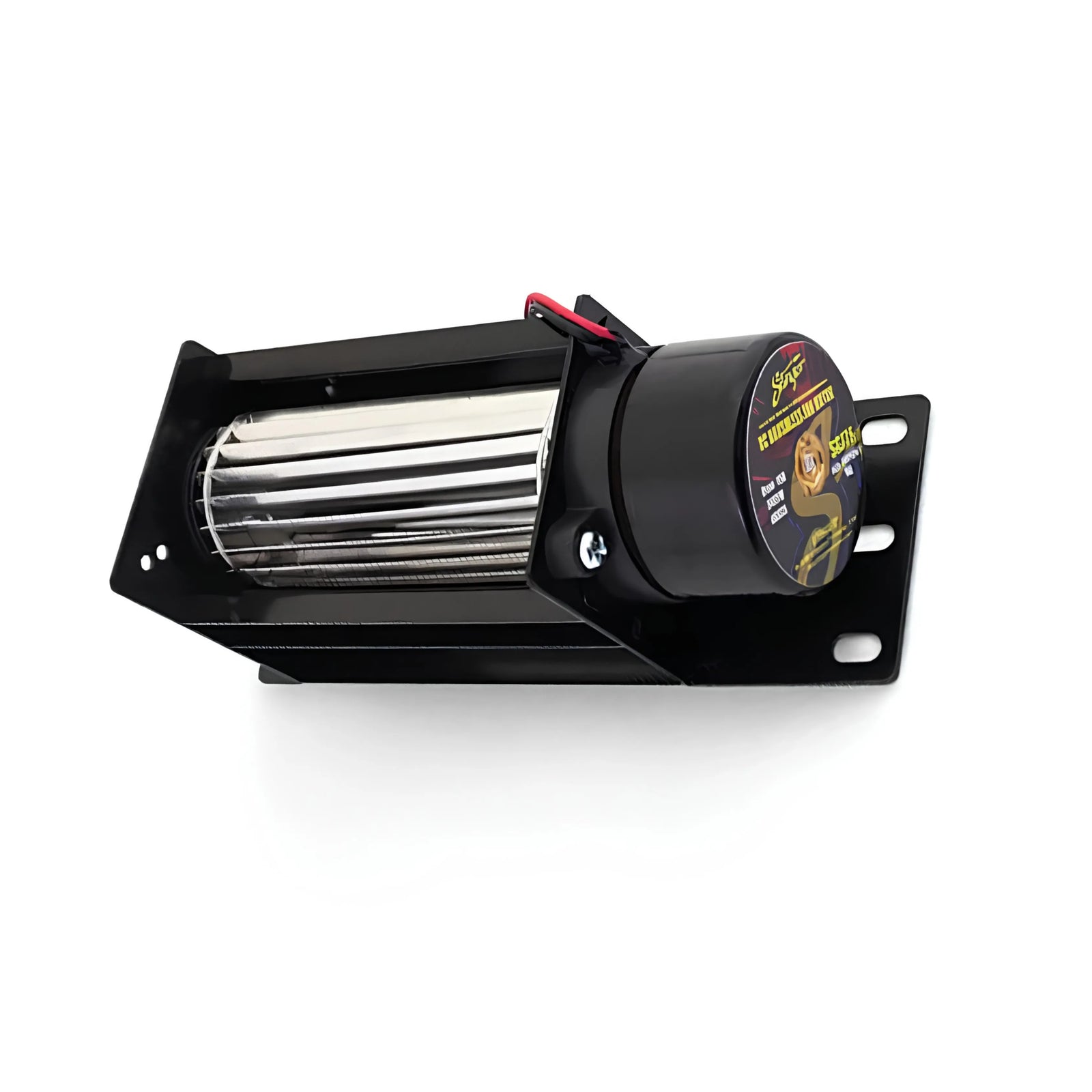

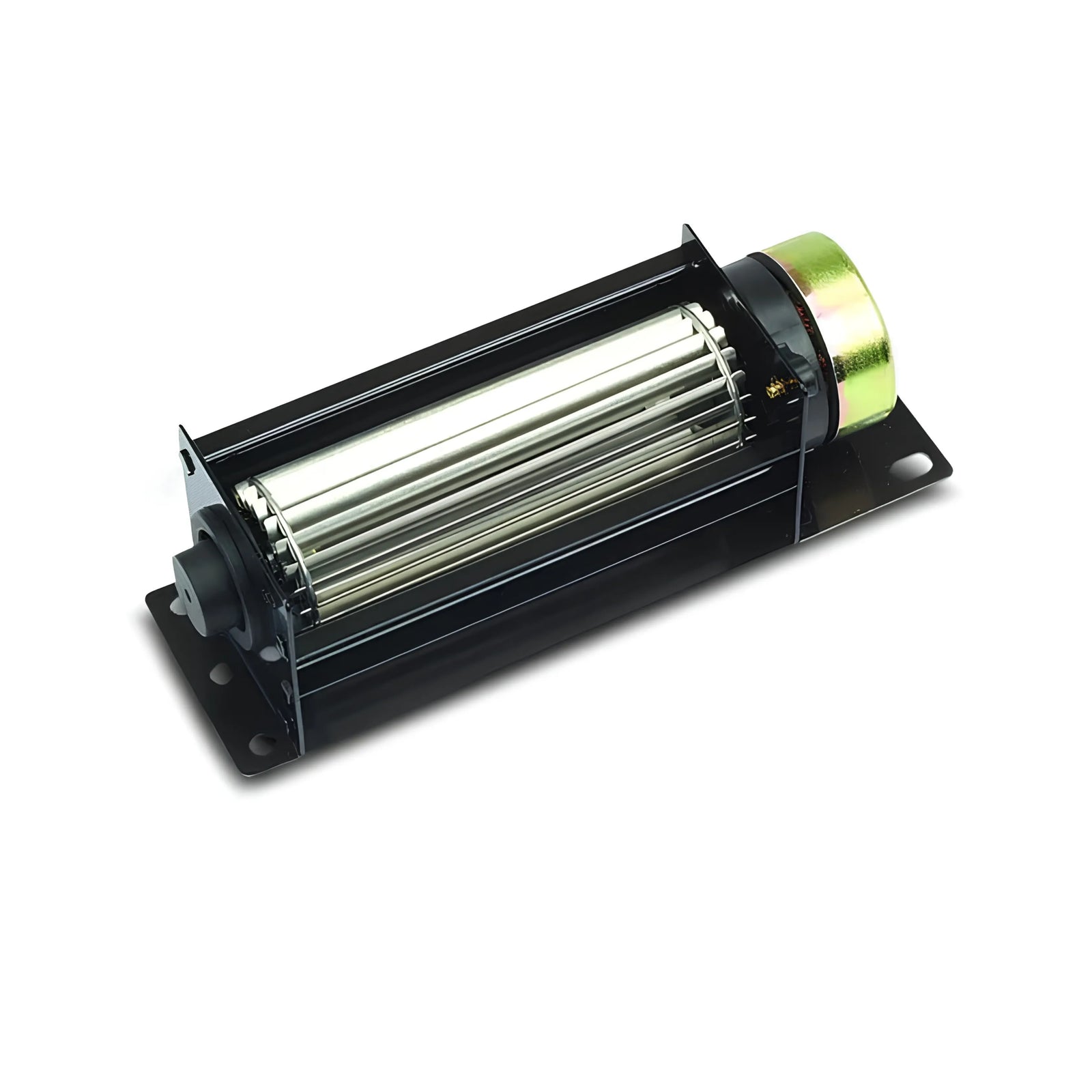

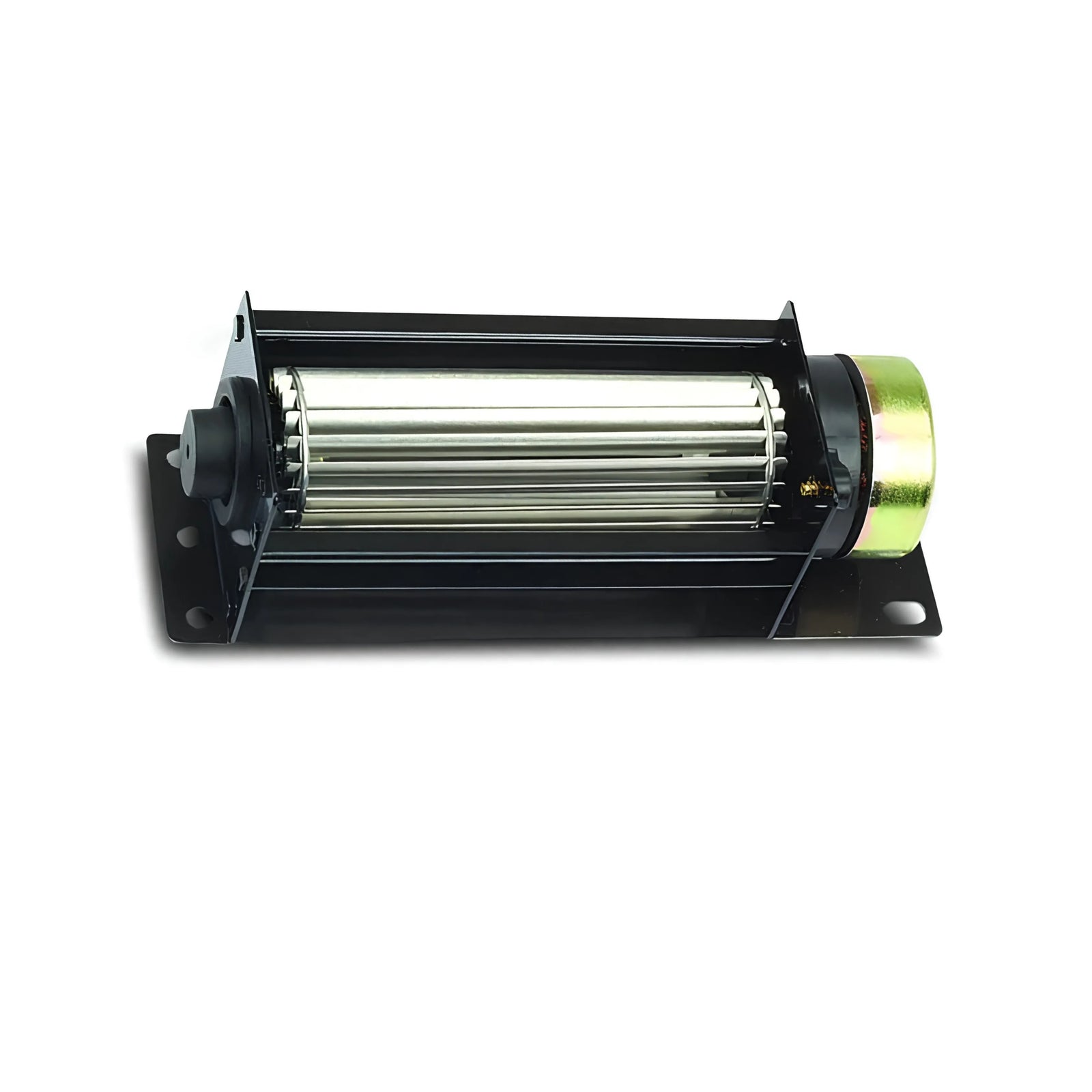

The Stinger SGJ76 is a 12V 5.75″ compact crossflow cooling fan designed to keep car audio amplifiers and other 12V components running at safe operating temperatures in tight installation spaces. Slightly smaller than the SGJ78 (8.25″), the SGJ76 is purpose-built for custom amplifier installs where space is at a premium delivering a 43 CFM airflow rate through a compact 5.75″ x 2″ x 2″ body that fits neatly into under-seat enclosures, boot builds, and custom racks.

What sets the SGJ76 apart is its push-pull capability Stinger specifically recommends using two SGJ76 fans in a push-pull configuration for the ultimate cooling setup, maximising airflow across the heat sink for high-output amplifiers running in demanding environments. With a low 0.19A current draw and a quiet 35 dBA sound level, this fan is a practical, low-impact cooling solution for any 12V audio build.

Key Specifications

  • Voltage: 12V DC
  • Airflow: 43 CFM (cubic feet per minute)
  • Sound level: 35 dBA
  • Current draw: 0.19A
  • Dimensions: 5.75″ x 2″ x 2″ (approx. 146mm x 51mm x 51mm)
  • Design: Compact low-profile crossflow
  • Push-pull configuration: Yes use two SGJ76 fans for maximum cooling
  • Application: Universal suits custom amplifier installations
  • Brand: Stinger
  • SKU: SGJ76

Features & Benefits

  • 43 CFM airflow rate: Delivers reliable cooling across amplifier heat sinks and components, helping maintain safe operating temperatures under load
  • Compact 5.75″ crossflow design: The smaller form factor compared to the SGJ78 makes the SGJ76 ideal for the tightest installation spaces without sacrificing effective airflow
  • Push-pull configuration: Two SGJ76 fans can be paired in a push-pull configuration for the ultimate cooling performance on high-output amplifiers in demanding builds
  • Low 0.19A current draw: Minimal electrical load on the vehicle's 12V system, practical to run alongside high-powered audio equipment
  • Quiet 35 dBA operation: Low noise output keeps fan sound from becoming a cabin distraction during listening
  • 12V DC operation: Direct 12V compatibility makes wiring into any standard automotive installation quick and straightforward

Technical Specs

Specification Detail
SKU SGJ76
Brand Stinger
Voltage 12V DC
Airflow Rate 43 CFM
Sound Level 35 dBA
Current Draw 0.19A
Dimensions 5.75″ x 2″ x 2″ (approx. 146mm x 51mm x 51mm)
Fan Type Compact low-profile crossflow
Push-Pull Configuration Yes pair two SGJ76 fans for maximum cooling
Application Universal custom amplifier and component installations

Compatible With

Universal suits all 12V automotive and custom audio installations including:

  • Car audio amplifiers (under-seat, boot, and custom rack installs)
  • Custom amplifier enclosures
  • Any 12V component requiring supplemental cooling in a tight space

Push-Pull Configuration:

  • Use two Stinger SGJ76 fans in a push-pull arrangement for maximum heat sink cooling on high-output amplifiers

Pairs well with:

  • Stinger SGJ78 (8.25″ crossflow fan) for larger installations
  • Stinger SVMR / SVMB Digital Voltage Gauges (for automatic fan control)
  • Car audio amplifiers
  • Power distribution blocks and wiring kits

Frequently Asked Questions

What is the airflow rate of the SGJ76?

The SGJ76 delivers 43 CFM (cubic feet per minute) of airflow, providing effective cooling for car audio amplifiers and other 12V components in compact custom installations.

Can I use two SGJ76 fans together for better cooling?

Yes Stinger specifically recommends using two SGJ76 fans in a push-pull configuration for the ultimate cooling setup. This arrangement maximises airflow across the amplifier heat sink and is ideal for high-output builds in demanding environments.

How does the SGJ76 differ from the Stinger SGJ78?

The SGJ76 is the smaller of the two fans at 5.75″ (approximately 146mm) versus the SGJ78 at 8.25″ (approximately 210mm). The SGJ76 is better suited to tighter spaces, while the SGJ78 delivers a higher 54 CFM airflow rate. Both share a similar low-profile crossflow design and quiet operation.

How much current does this fan draw?

The SGJ76 draws 0.19A at 12V, placing minimal load on the vehicle's electrical system. Running two fans in push-pull configuration draws approximately 0.38A total still very low impact on system power.

Can this fan be used with the Stinger SVMB or SVMR voltage gauge for automatic fan control?

Yes the Stinger SVMB and SVMR voltage gauges feature a 2A fan control output with temperature-adjustable on/off function. At 0.19A per fan, up to ten SGJ76 fans could theoretically be powered from a single gauge output making automated cooling management in custom builds straightforward.
