Stinger SFDFR03 Double DIN Radio Fascia Kit To Suit Ford Fiesta WS/WT/WZ 2009-2016
Click to open expanded view
STINGER logo

Stinger SFDFR03 Double DIN Radio Fascia Kit To Suit Ford Fiesta WS/WT/WZ 2009-2016

SKU: SFDFR03
Sale price
$260.10
Regular price
$289
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Stinger SFDFR03 Double DIN Radio Fascia Kit for Ford Fiesta WS/WT/WZ (2009–2016)

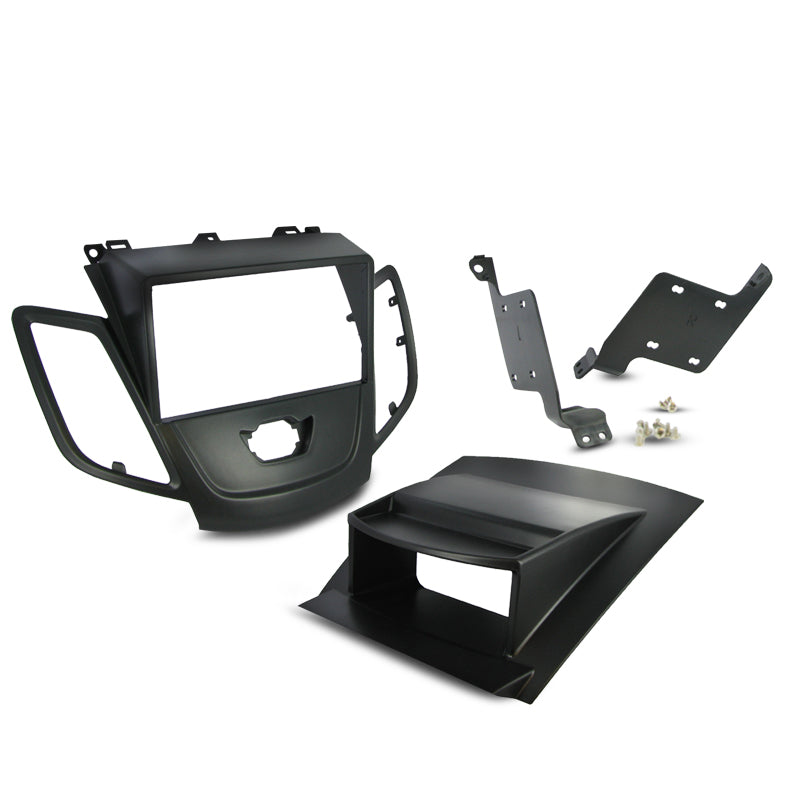

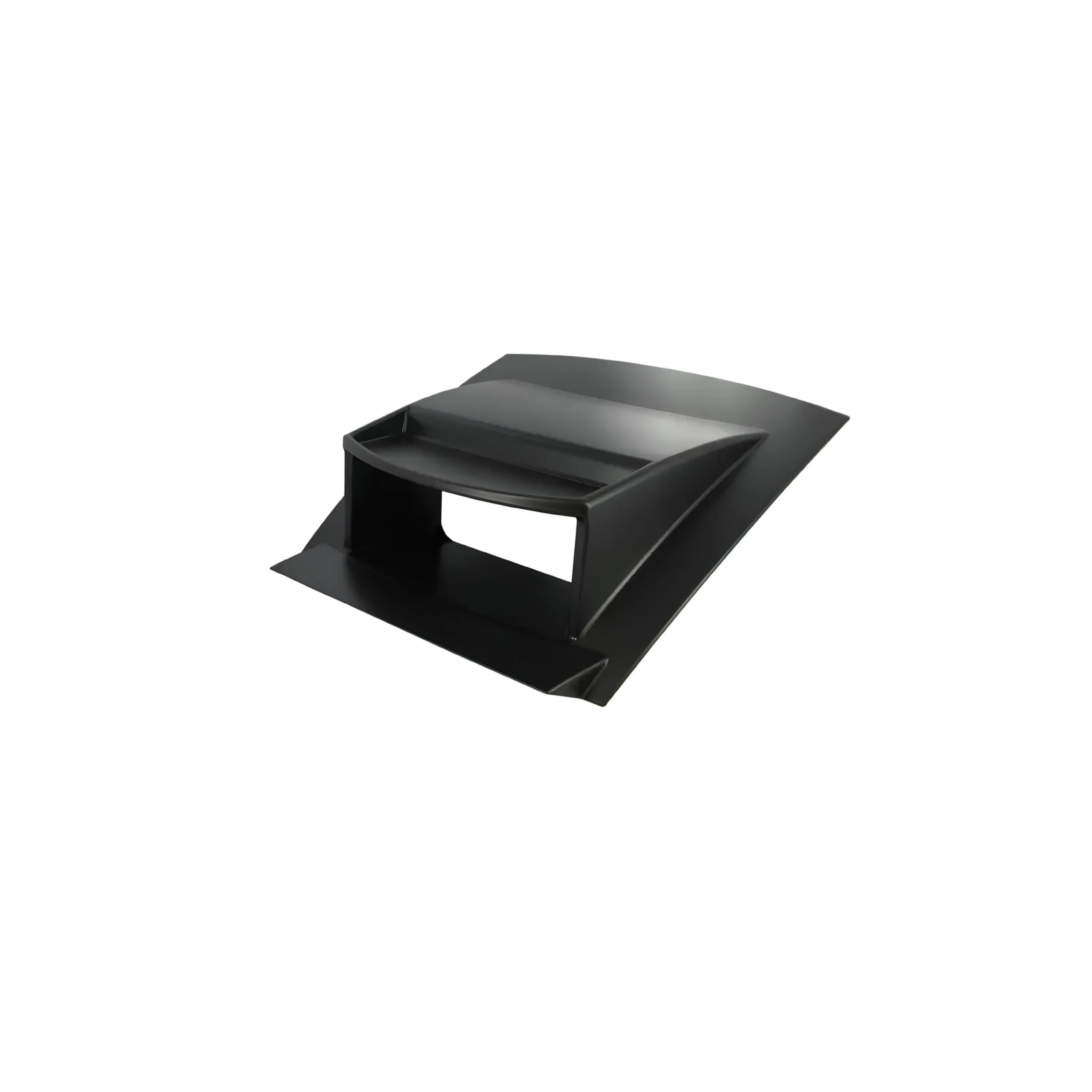

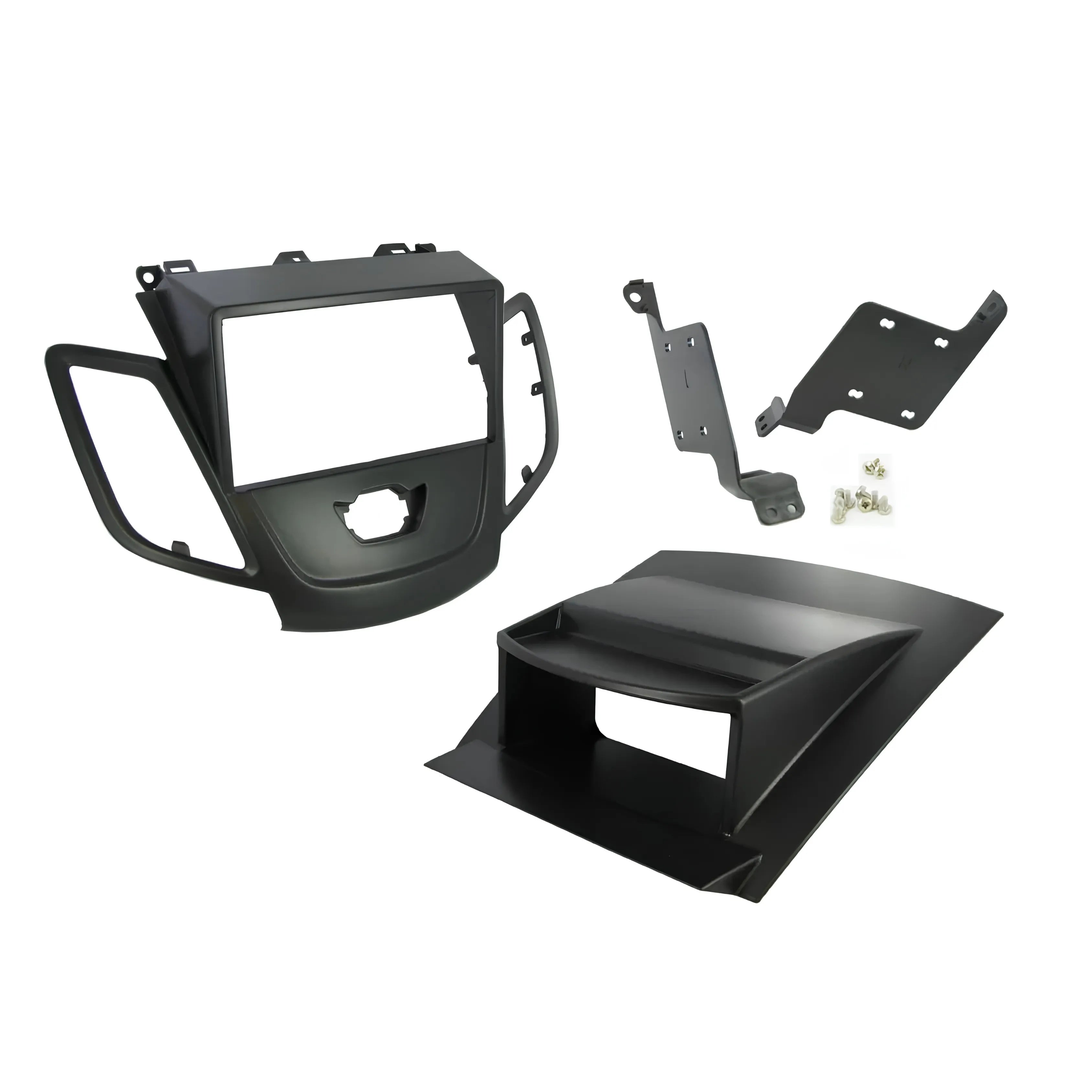

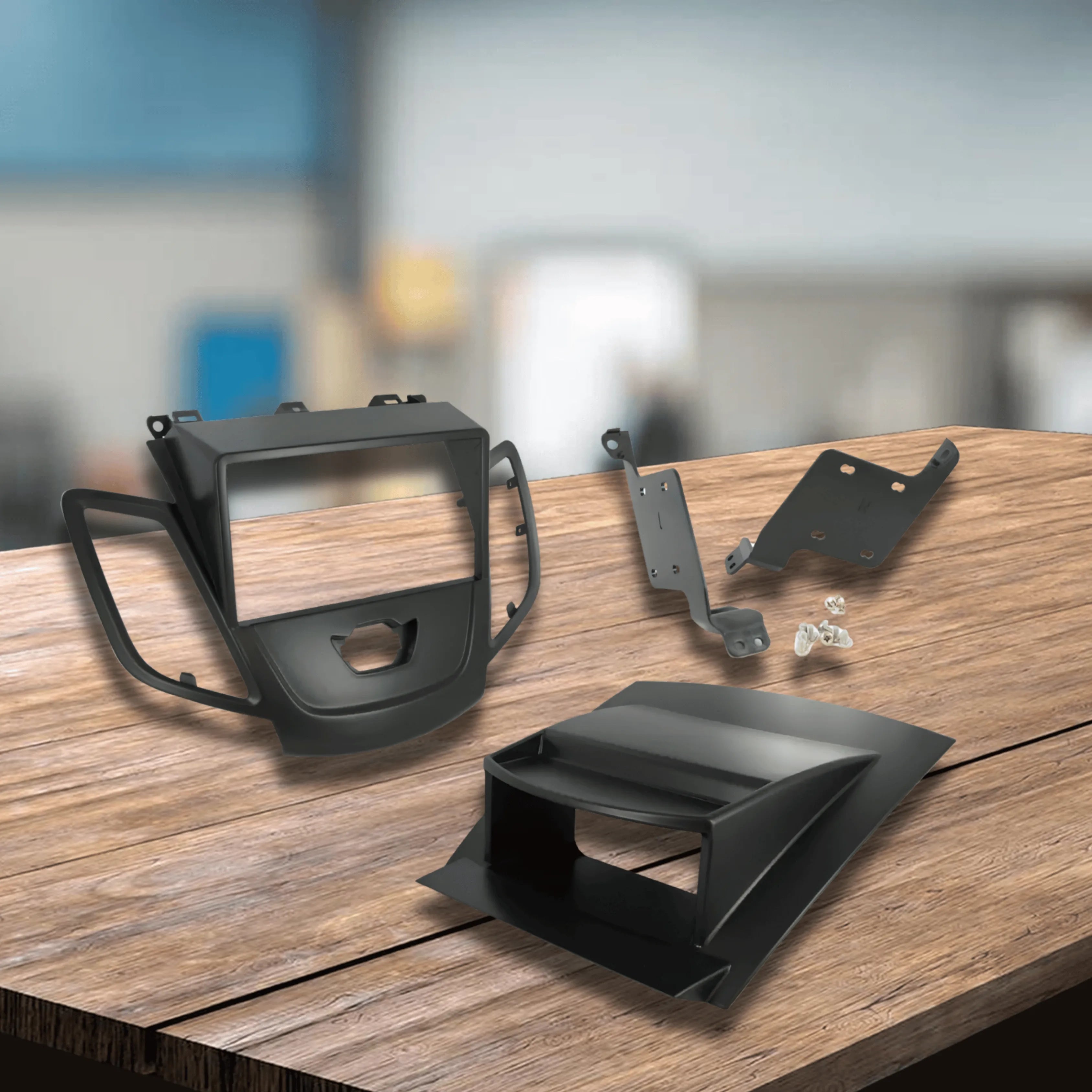

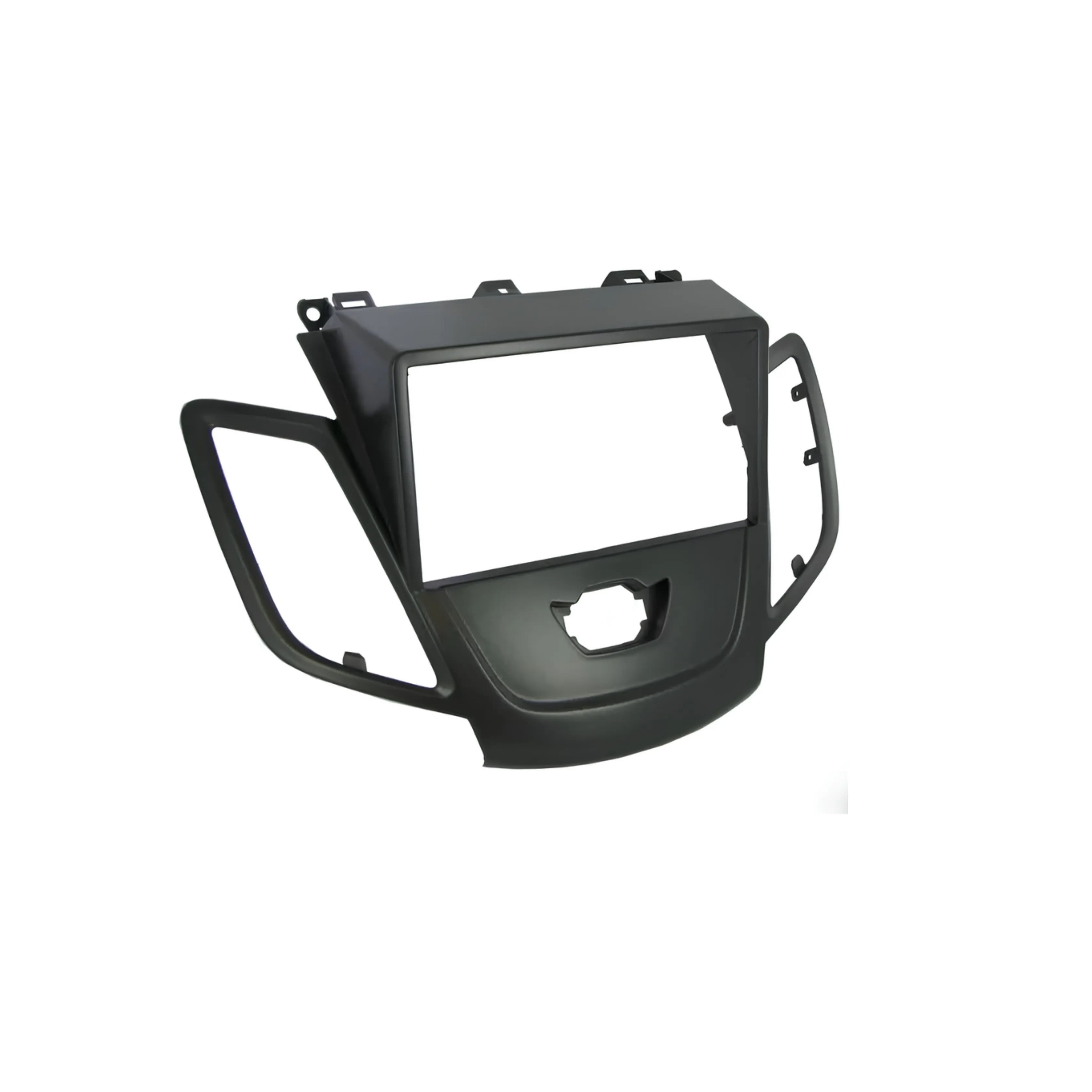

A vehicle-specific double DIN fascia kit for the Ford Fiesta WS/WT/WZ black finish, mounting brackets included. Important: subframe cutting is required for installation, and the BKFR046 hazard/door lock button must be purchased separately.

Product Overview

The Stinger SFDFR03 is a vehicle-specific double DIN radio fascia kit for the Ford Fiesta WS, WT, and WZ series (2009–2016). It provides the dash framework and mounting brackets required to install an aftermarket 2DIN head unit into the factory radio opening.

Critical installation notes:

  • Subframe cutting is required. The factory dash subframe will need to be cut during installation. This is not a straightforward bolt-in process — confirm you are comfortable with this step or have it professionally installed.
  • BKFR046 hazard/door lock replacement button is required and sold separately. The factory hazard and door lock button must be replaced during the installation — do not purchase the SFDFR03 without also sourcing the BKFR046.

This kit is not suitable for:

  • Ford Fiesta ST models fitted with the factory Sony piano black radio

Features & Benefits

  • Vehicle-specific fit for Ford Fiesta WS/WT/WZ 2009–2016
  • Allows installation of aftermarket double DIN head units

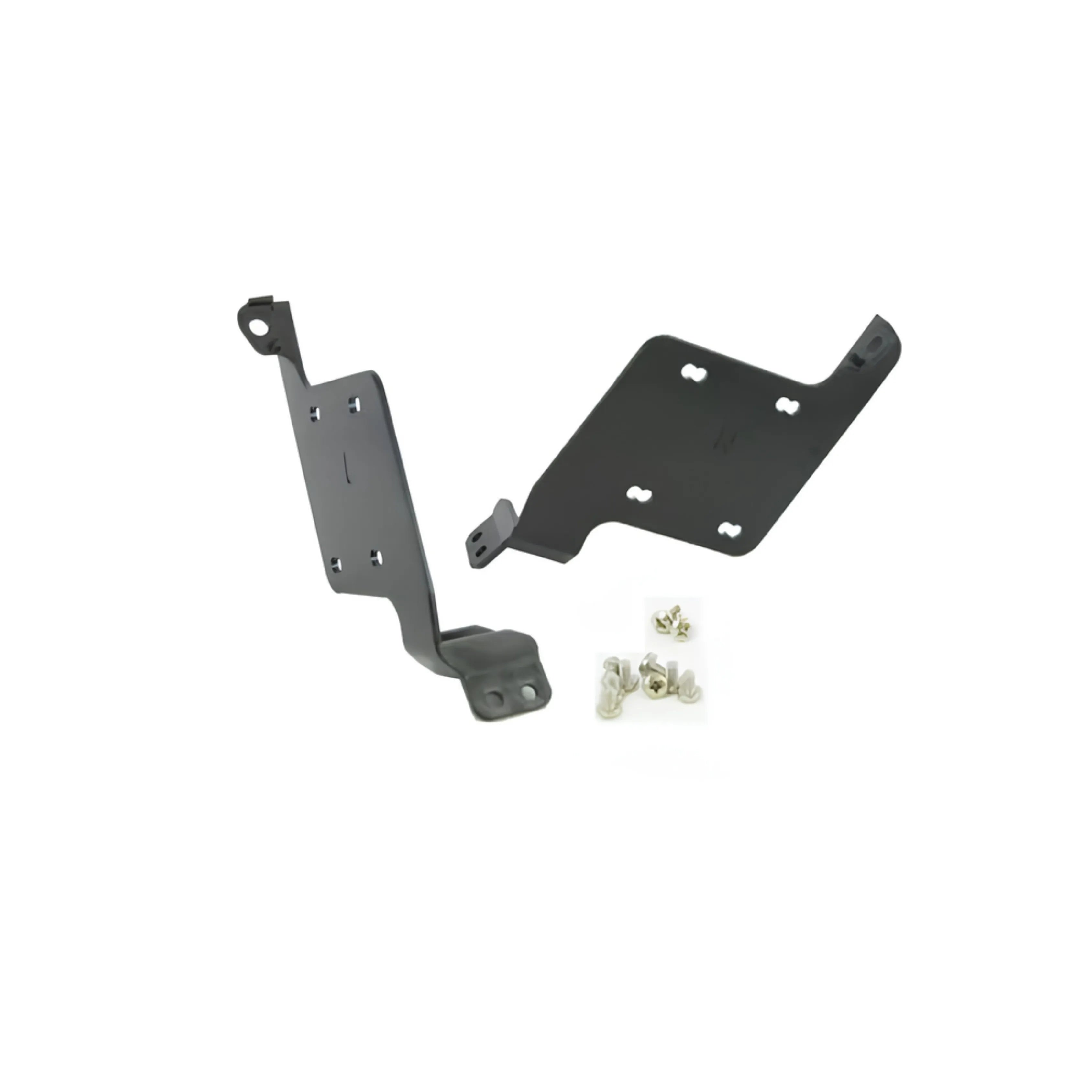

  • Mounting brackets included
  • Black finish matched to factory interior trim

Technical Specs

Specification Detail
SKU / Part Number SFDFR03
Brand Stinger
Colour / Finish Black
Radio Size Compatibility Double DIN (2DIN)
Mounting Brackets Included Yes
Custom Fabrication Required Yes — subframe cutting required
Required Accessory (not included) BKFR046 hazard/door lock button — sold separately
Vehicle Notes Not suitable for Fiesta ST models with factory Sony piano black radio
Antenna Adaptor Included Not included
Wiring Harness Included Not included
SWC Interface Included Not included

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Ford Fiesta 2009–2016 (WS/WT/WZ) — excludes ST models with factory Sony piano black radio

Goes Well With:

  • BKFR046 hazard/door lock replacement button — required for installation (sold separately)
  • Aftermarket double DIN head units (Pioneer, Kenwood, Sony, JVC)
  • Vehicle-specific ISO wiring harness for Ford Fiesta WS/WT/WZ
  • Antenna adaptor for Ford (if required by chosen head unit)
  • Steering wheel control interface for Ford Fiesta (if applicable)

Frequently Asked Questions

What does "subframe cutting required" mean for this installation?

During installation of the SFDFR03, the factory plastic subframe behind the dash opening will need to be trimmed or cut to accommodate the new fascia panel and head unit. This is a more involved installation than a straightforward bolt-in fascia kit. Professional installation is recommended if you are not confident performing this modification yourself.

Is the BKFR046 hazard/door lock button included?

No. The BKFR046 is required but sold separately. When the factory head unit is removed from the Ford Fiesta WS/WT/WZ, the hazard and door lock button integrated into the factory fascia must be replaced with the BKFR046. Do not order the SFDFR03 without also sourcing this part.

Is this kit suitable for the Ford Fiesta ST?

No. The SFDFR03 is not compatible with Ford Fiesta ST models fitted with the factory Sony piano black radio. Confirm your specific Fiesta variant before purchasing.

Is a wiring harness included?

No. The SFDFR03 is a fascia and bracket kit only. A vehicle-specific ISO wiring harness will need to be sourced separately to connect your aftermarket head unit to the factory wiring.

Is an antenna adaptor included?

No. An antenna adaptor is not included. Ford vehicles from this era typically require a specific antenna adaptor — confirm the correct type for your Fiesta WS/WT/WZ with the F.A.E. team before purchasing.
