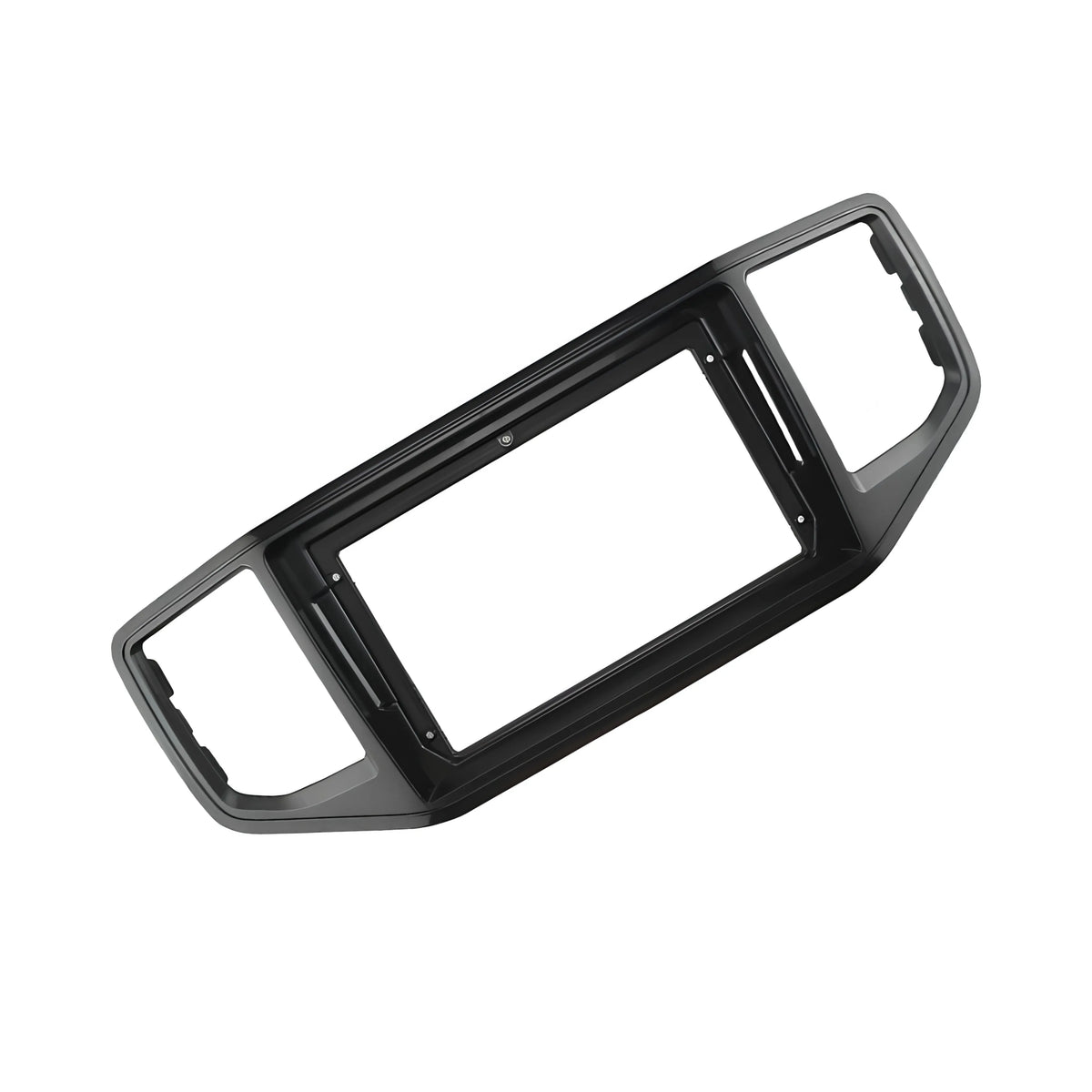

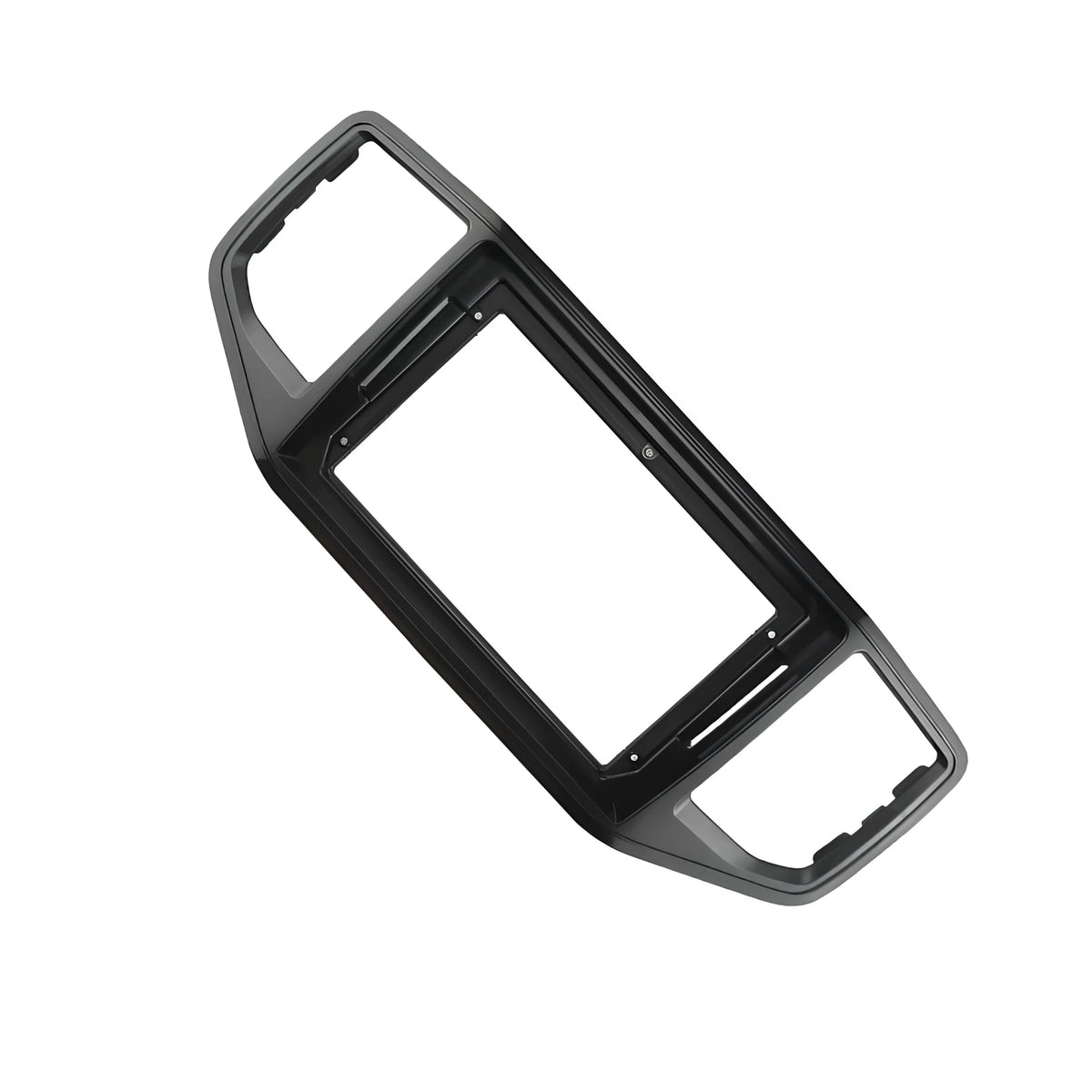

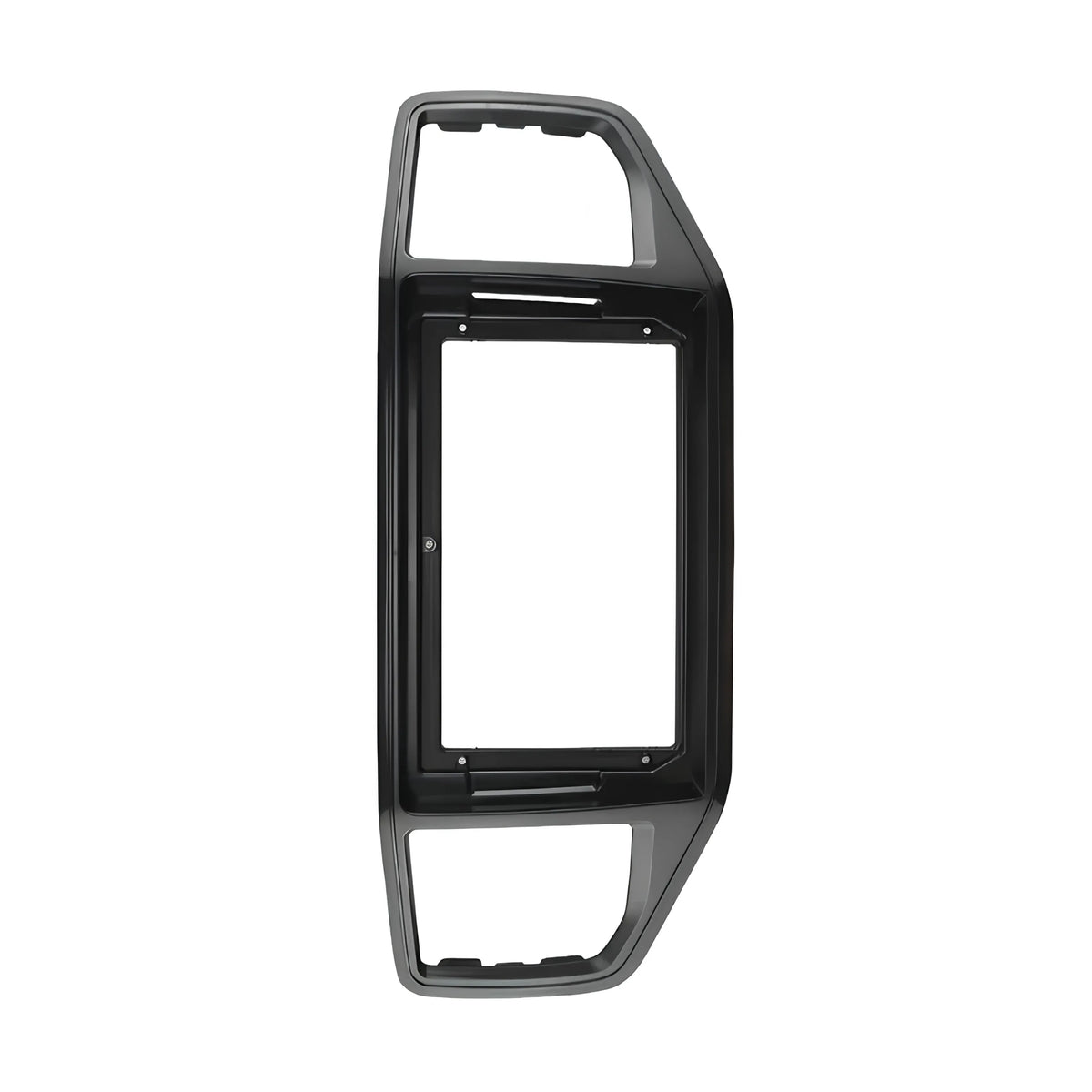

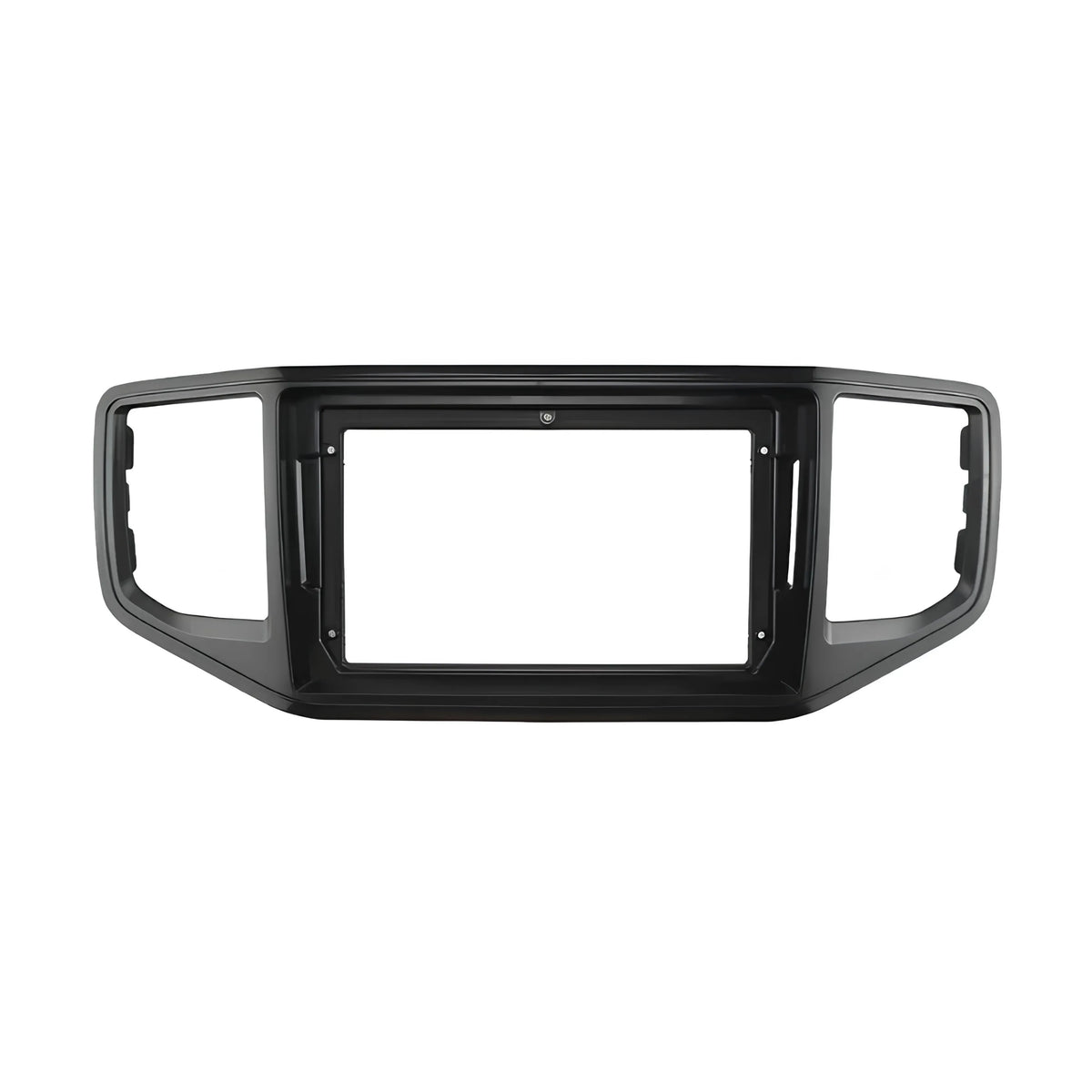

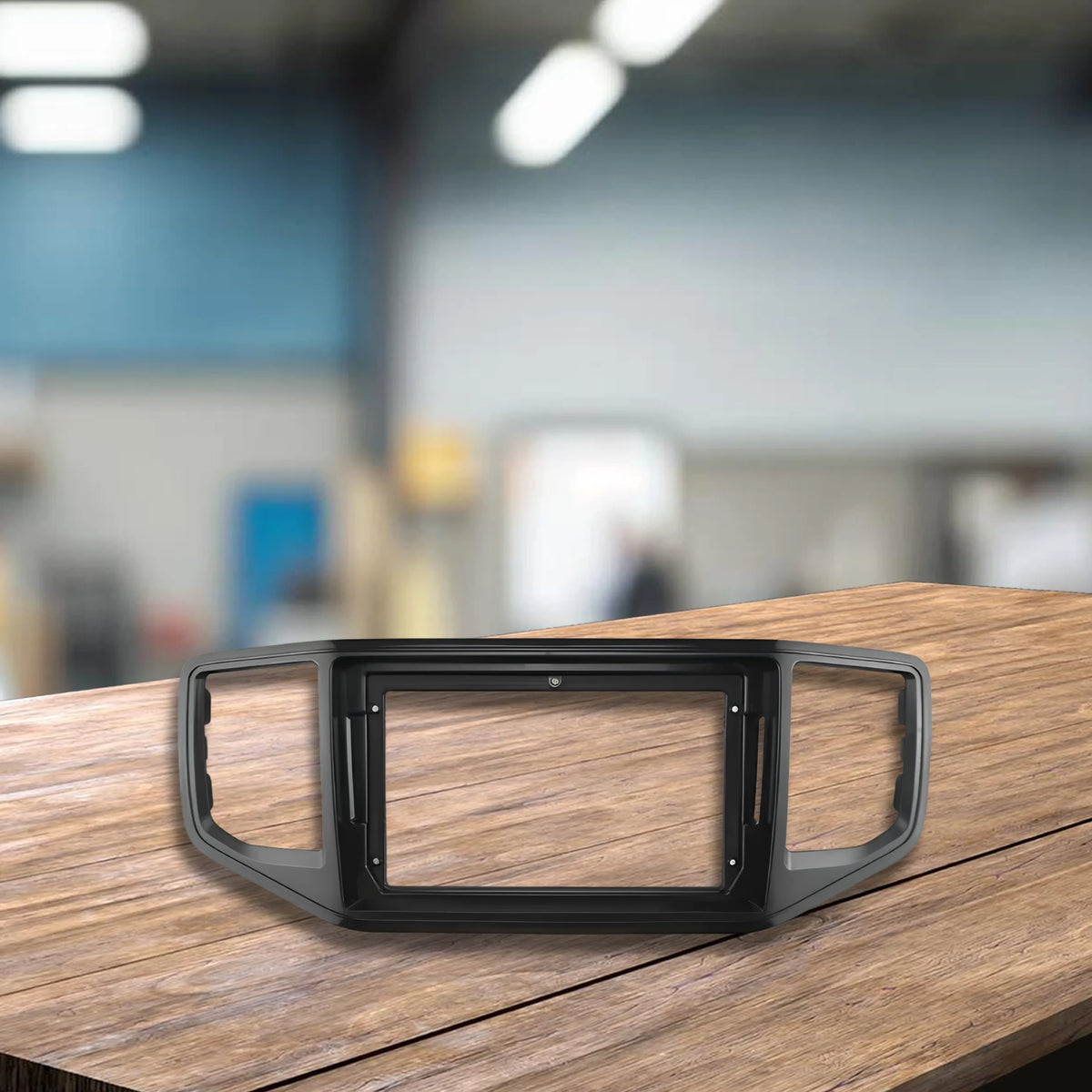

STINGER SF9-VW02 9-Inch Trapezoid Fascia for 2017-2021 Volkswagen Amarok 2H Series

9-Inch Trapezoid Head Unit Fascia Volkswagen Amarok 2H Series 2017–2021 with Squared Air Vent Design. VW Factory Finish. Fakra Antenna Adaptor Required. Fascia Panel Only.

Product Overview

The Stinger SF9-VW02 is a vehicle-specific 9-inch trapezoid head unit fascia designed for Volkswagen Amarok 2H Series models (2017–2021) featuring the squared air vent dashboard configuration. The Amarok's dashboard design evolved throughout production the SF9-VW02 is precision-moulded for the squared vent variant specifically. Models with circular or rounded air vents require a different fascia solution.

Key Specifications

• Part number: SF9-VW02
• Brand: Stinger
• Product type: 9-inch trapezoid head unit fascia
• Compatible head unit format: 9-inch trapezoid only
• Finish: Volkswagen factory colour match with textured grain
• Vehicle: Volkswagen Amarok 2H Series 2017–2021
• Dashboard qualification: Squared air vent design only
• Confirmed compatible head units: Alpine INE-AW4095, Alpine INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT
• Not compatible with: Amarok models with circular/rounded vents
• Antenna: Fakra proprietary connector — Fakra adaptor required separately
• Includes: Fascia panel only
• Wiring harness: Not included — sold separately
• Fakra antenna adaptor: Not included — sold separately (required)
• SWC interface: Not included — sold separately
• Camera retention harness: Not included — sold separately

Features & Benefits

• Squared Vent Design — Physical Dashboard Inspection Required This is the only fascia in the batch requiring a visual dashboard inspection as the primary fitment check. The squared/rectangular air vents with straight edges are characteristic of 2017–2021 Amarok production. If the vents are circular or rounded, this fascia is not compatible regardless of model year.
• Fakra Antenna Connector — VW-Specific Requirement The Volkswagen Amarok uses a Fakra proprietary antenna connector — not the standard DIN connector used on most Japanese and Korean vehicles. A Fakra-to-standard antenna adaptor is a mandatory separate purchase for this installation.
• CAN-Bus Integration Note The Amarok uses a sophisticated VW CAN-bus architecture. Some factory functions previously accessible through the factory head unit — including vehicle settings display — may require a dedicated CAN-bus integration module for continued access through the aftermarket head unit. Consult a VW-experienced installer.
• OEM Volkswagen Aesthetic Moulded to match the Amarok factory dashboard finish including texture and grain — maintaining the premium VW interior presentation appropriate for European utility vehicle ownership.
• Fascia Panel Only — Installer Flexibility Supplied as the fascia panel alone, allowing installers to source the correct harness, Fakra adaptor, and accessories independently.

Technical Specs

Compatible With / Goes Well With

Vehicle compatibility:

Not compatible with:

• Volkswagen Amarok models with circular or rounded air vents
• Any other VW model (Golf MK6 uses SF9-VW03)

Confirmed compatible 9-inch trapezoid head units:

• Alpine INE-AW4095
• Alpine INE-AX809
• Kenwood DMX80AXS
• Pioneer DMH-AP6650BT

Required accessories (sold separately):

• VW Amarok wiring harness (VW-to-ISO)
• Fakra antenna adaptor (VW proprietary to standard — required)
• Steering wheel control interface
• Camera retention harness (if equipped with reverse camera)

Frequently Asked Questions

How do I confirm my Amarok has the squared vent design compatible with the SF9-VW02?

Inspect the dashboard air vents. Compatible Amarok models have squared/rectangular vents with straight edges. If the vents are circular or rounded, this fascia is not compatible. If uncertain, photograph the dashboard and confirm with Stinger or F.A.E. before purchasing.

Why does the Amarok require a Fakra antenna adaptor?

Volkswagen vehicles use a proprietary Fakra antenna connector rather than the standard DIN antenna connector used on most Japanese and Korean vehicles. A standard antenna adaptor will not connect to the Amarok's factory antenna cable. A specific Fakra-to-standard adaptor must be purchased separately for this installation.

Does the SF9-VW02 include wiring harnesses or installation accessories?

No — the SF9-VW02 is a fascia panel only. A VW Amarok-specific wiring harness, Fakra antenna adaptor, steering wheel control interface, and camera retention harness are all required separately.

Will all factory Amarok functions be maintained after installation?

Physical climate controls, vents, and switches remain fully functional. Steering wheel controls and factory camera retain function through the appropriate harnesses. Some factory screen functions may require CAN-bus integration for continued access through the aftermarket head unit — consult a VW-experienced installer before purchasing.

Is professional installation recommended for the SF9-VW02?

Yes — the Amarok uses sophisticated Volkswagen CAN-bus electronics requiring specialized knowledge for correct integration. Professional installation by a VW-experienced car audio installer is strongly recommended to ensure proper wiring integration, steering wheel control programming, and system functionality.
