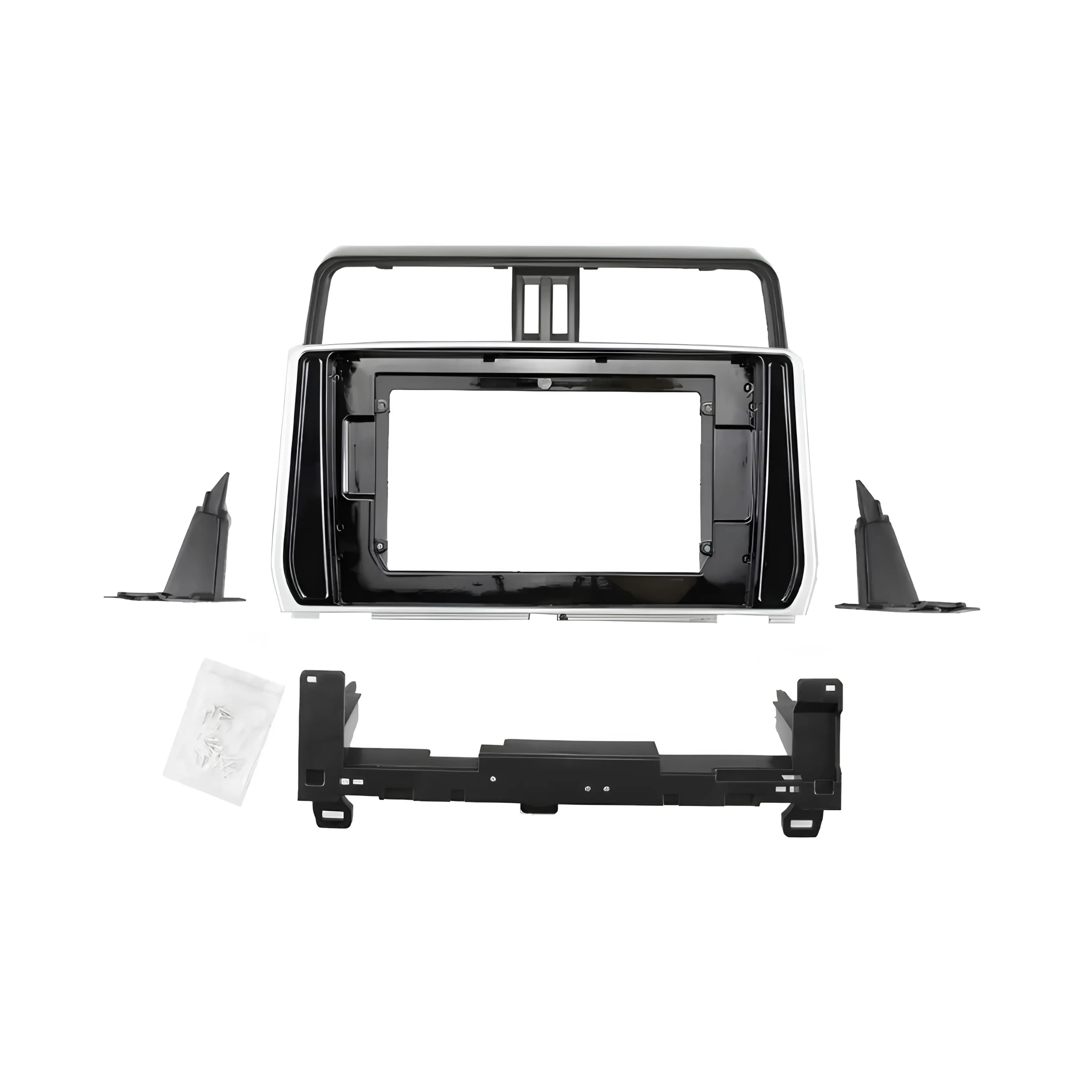

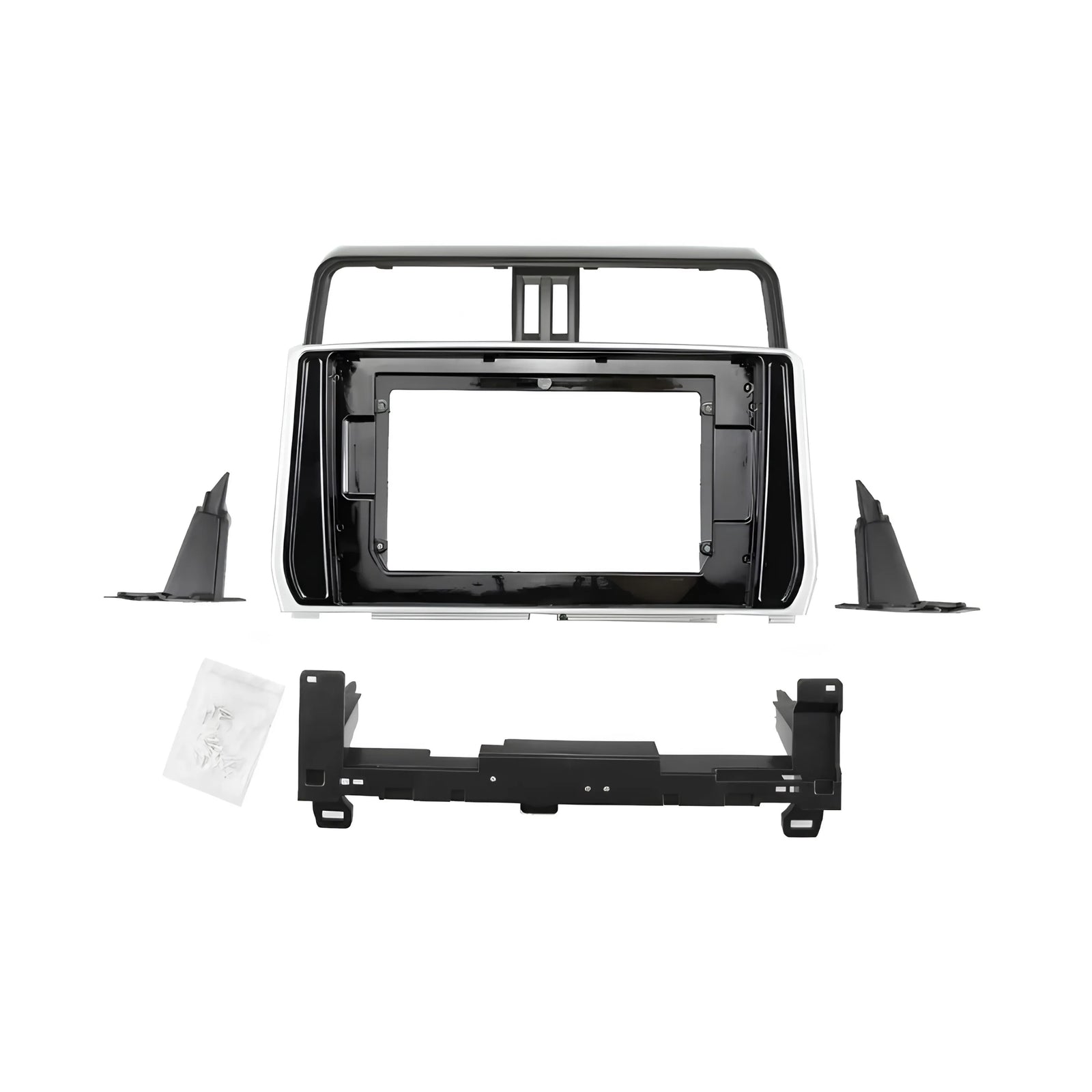

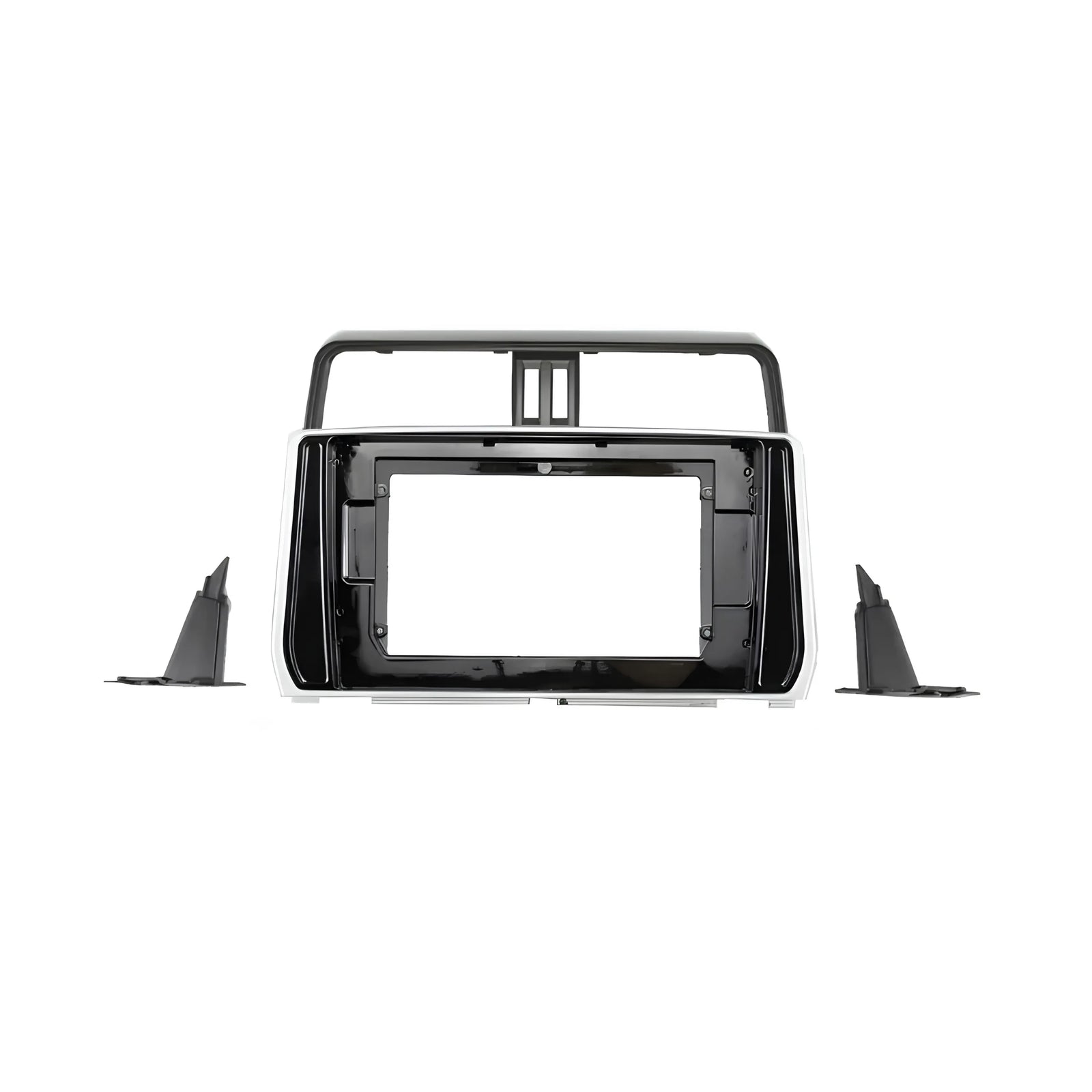

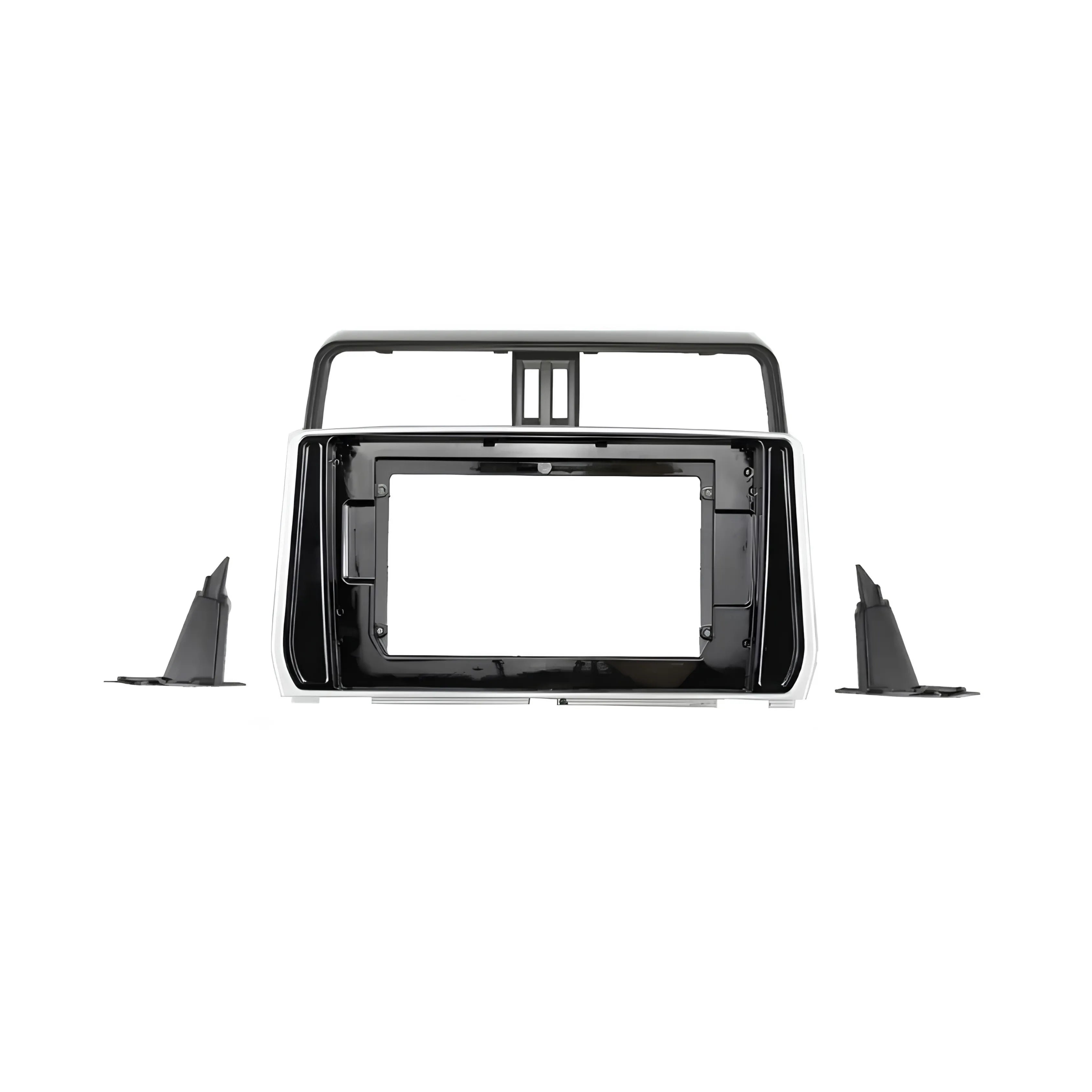

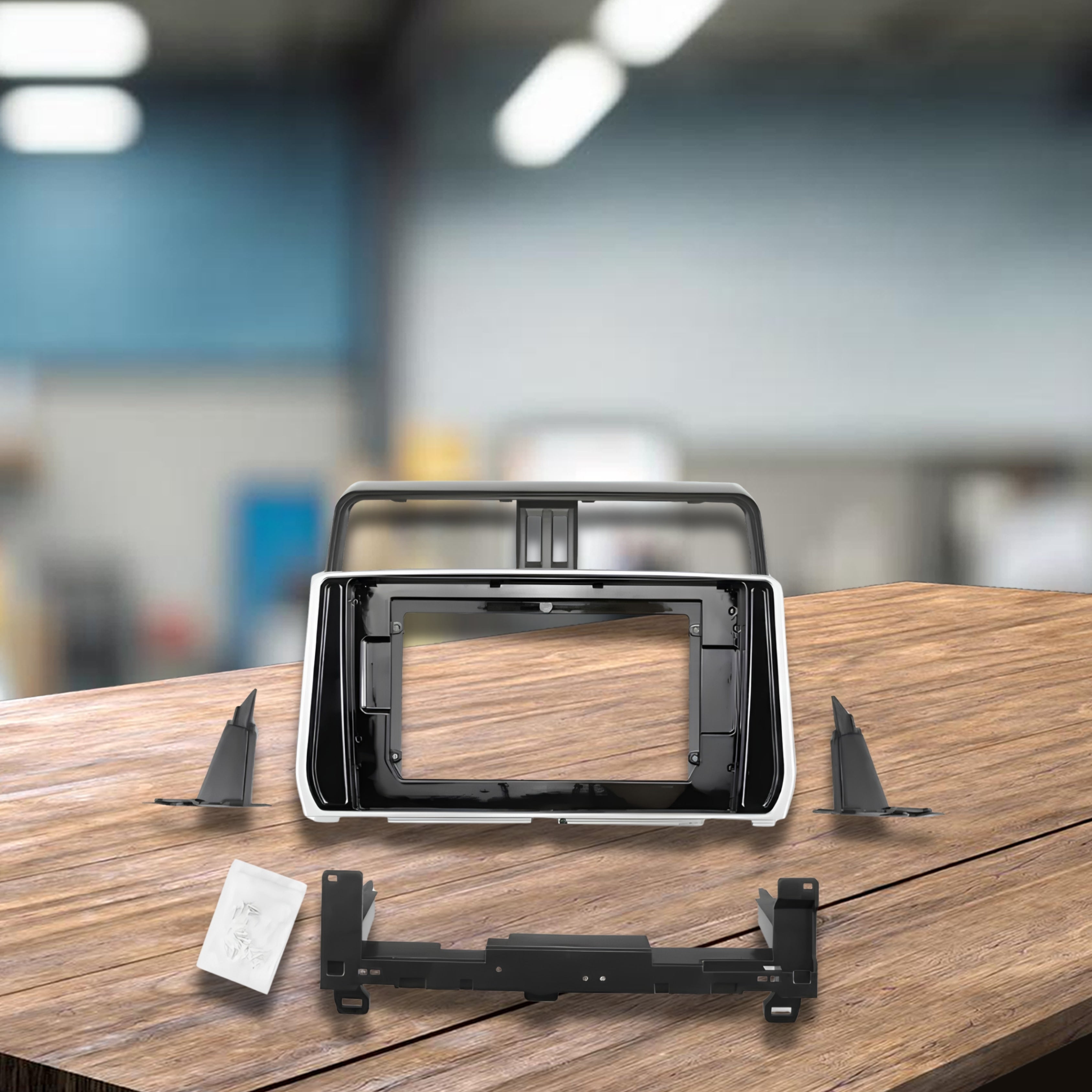

STINGER SF9-TY11 9-Inch & 10-Inch Trapezoid Fascia for 2018-2023 Toyota LandCruiser Prado 150 Series

9-Inch and 10-Inch Trapezoid Head Unit Fascia Toyota LandCruiser Prado 150 Series 2017–2023. Includes 10-to-9-Inch Reducer Panel. For Models with 8-Inch or 9-Inch Factory Screen. Fascia Panel Only.

Product Overview

The Stinger SF9-TY11 is a vehicle-specific trapezoid head unit fascia designed for the Toyota LandCruiser Prado 150 Series late-production models (2017–2023). It is the only fascia in this range that includes a reducer panel in the box the SF9-TY11 accommodates both 9-inch and 10-inch trapezoid head units, with the included reducer trim converting the opening from 10-inch to 9-inch configuration.

Key Specifications

• Part number: SF9-TY11
• Brand: Stinger
• Product type: 9-inch and 10-inch trapezoid head unit fascia
• Compatible head unit formats: 9-inch trapezoid and 10-inch trapezoid
• Reducer panel: Included (converts 10-inch opening to 9-inch)
• Finish: Toyota factory colour match with textured grain
• Vehicle: Toyota LandCruiser Prado 150 Series 2017–2023 (late production)
• Factory screen compatibility: 8-inch screen (2017–2020) and 9-inch screen (2021–2023)
• Not compatible with: Prado 150 Series 2013–2017 (requires SF9-TY10)
• Confirmed compatible head units: Alpine INE-AW4095, Alpine INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT
• Includes: Fascia panel and 10-to-9-inch reducer trim
• Wiring harness: Not included — sold separately
• Antenna adaptor: Not included — sold separately
• SWC interface: Not included — sold separately
• Camera retention harness: Not included — sold separately (required)

Features & Benefits

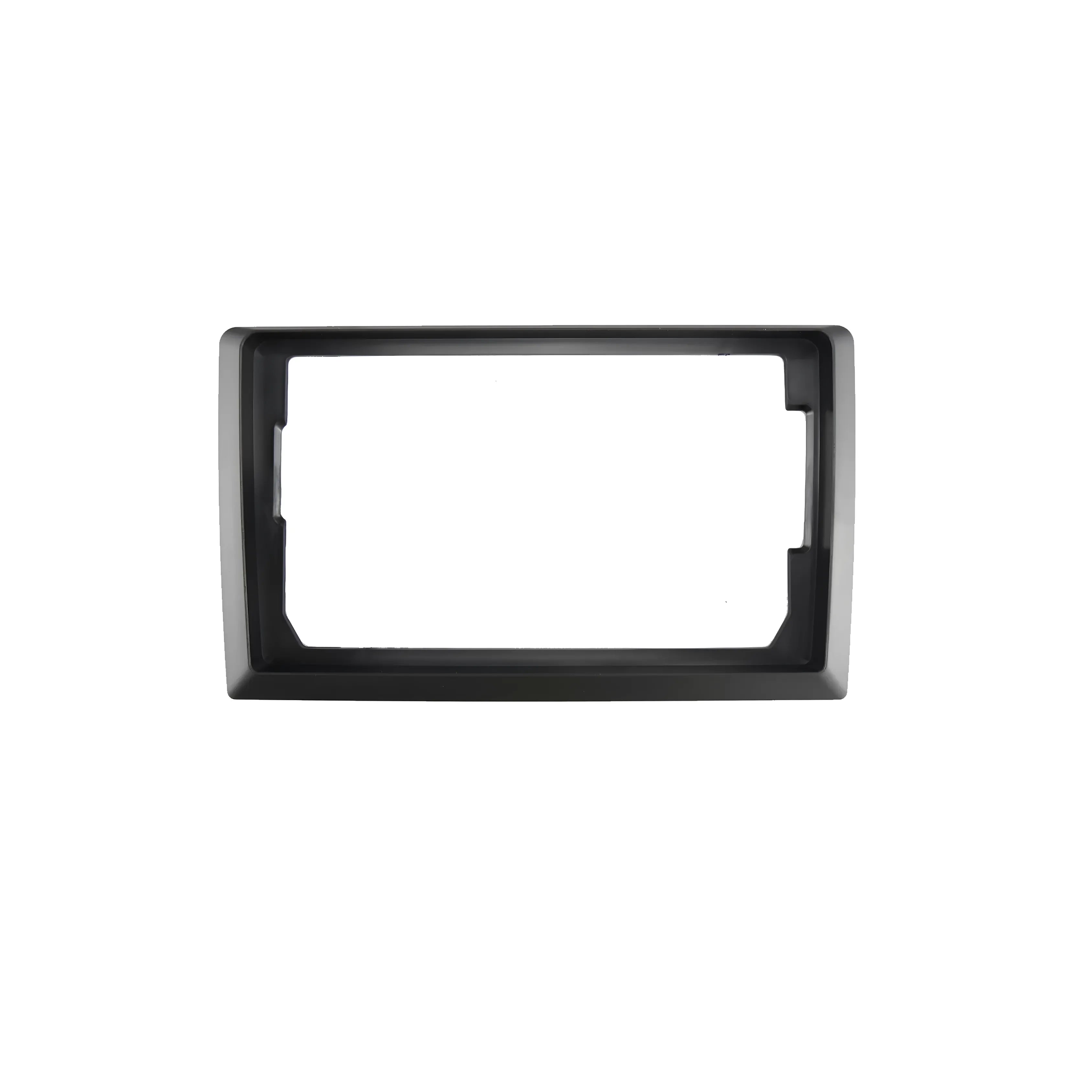

• Includes 10-to-9-Inch Reducer Panel The SF9-TY11 is the only fascia in this batch that includes a format reducer panel in the package. For a 10-inch head unit, the fascia opening is used at full size. For a 9-inch head unit, the included reducer panel is fitted behind the fascia to create the correct 9-inch aperture. No separate adapter purchase required for either format.
• Covers Both Factory Screen Variants — 8-Inch and 9-Inch The 2017–2020 Prado had a factory 8-inch screen; the 2021–2023 Prado upgraded to a 9-inch screen. The SF9-TY11 is confirmed compatible with both variants — the factory screen size does not affect compatibility; only the model year matters.
• Late-Production Prado Only — Not for 2013–2017 Models The late-production Prado (2017–2023) has a different dashboard layout from the earlier 2013–2017 models, and crucially does not require hazard button relocation during installation. The earlier 2013–2017 Prado requires the SF9-TY10.
• Toyota Factory Finish — Textured Grain Moulded to match the Prado 150 Series factory dashboard finish including texture and grain — integrating the head unit as a factory-matched component appropriate for the Prado's premium SUV interior.
• Camera Retention Harness Required All 2017+ Prado 150 models are equipped with a factory reverse camera. A camera retention harness must be purchased separately to maintain reverse camera functionality.

Technical Specs

Compatible With / Goes Well With

Vehicle compatibility:

Not compatible with:

• Toyota LandCruiser Prado 150 Series 2013–2017 (requires SF9-TY10)

Confirmed compatible 9-inch and 10-inch trapezoid head units:

• Alpine INE-AW4095
• Alpine INE-AX809
• Kenwood DMX80AXS
• Pioneer DMH-AP6650BT

Required accessories (sold separately):

• Toyota Prado 150 wiring harness (Toyota-to-ISO)
• Antenna adaptor (Toyota proprietary to standard)
• Steering wheel control interface
• Reverse camera retention harness (required — all 2017+ Prado)

Frequently Asked Questions

What is the difference between the SF9-TY10 (2013–2017 Prado) and SF9-TY11 (2017–2023 Prado)?

The SF9-TY10 covers the earlier 2013–2017 Prado 150 which has a different dashboard requiring factory hazard button relocation during installation. The SF9-TY11 covers the later 2017–2023 Prado 150 with an updated dashboard that eliminates this requirement. Both include reducer panels for dual 9/10-inch format compatibility. Choose the fascia matching your specific Prado model year.

Does the SF9-TY11 include the reducer panel for 9-inch head units?

Yes — the SF9-TY11 includes a 10-to-9-inch reducer trim in the box. For 10-inch head units, the fascia is used without the reducer. For 9-inch head units, the reducer panel is fitted to create the correct aperture.

My Prado has a factory 8-inch screen. Is the SF9-TY11 compatible?

Yes — the SF9-TY11 covers both the 2017–2020 Prado (8-inch factory screen) and the 2021–2023 Prado (9-inch factory screen). The factory screen size does not affect compatibility — only confirm your Prado falls within the 2017–2023 model year range.

What accessories are required for a complete Prado installation?

At minimum: a Toyota Prado-specific wiring harness (Toyota-to-ISO), antenna adaptor, steering wheel control interface, and reverse camera retention harness. Advanced features (premium audio, driver assistance systems) may also require a sound processor or CAN-bus integration module. Consult a professional installer for a complete parts list specific to your Prado's configuration and model year.

Is professional installation recommended?

Yes — the Prado 150 dashboard requires Mazda-specific disassembly procedures, factory integration harnesses, steering wheel control programming, and camera retention. Professional installation by a qualified car audio installer is strongly recommended.
