STINGER SF9-TY09 9-Inch Trapezoid Fascia for 2016-2021 Toyota LandCruiser 200 Series GXL

9-Inch Trapezoid Head Unit Fascia Toyota LandCruiser 200 Series GXL 2016–2021. GXL Trim Only. Not Compatible with GX, Sahara, VX, or Pre-2016 Models.

Product Overview

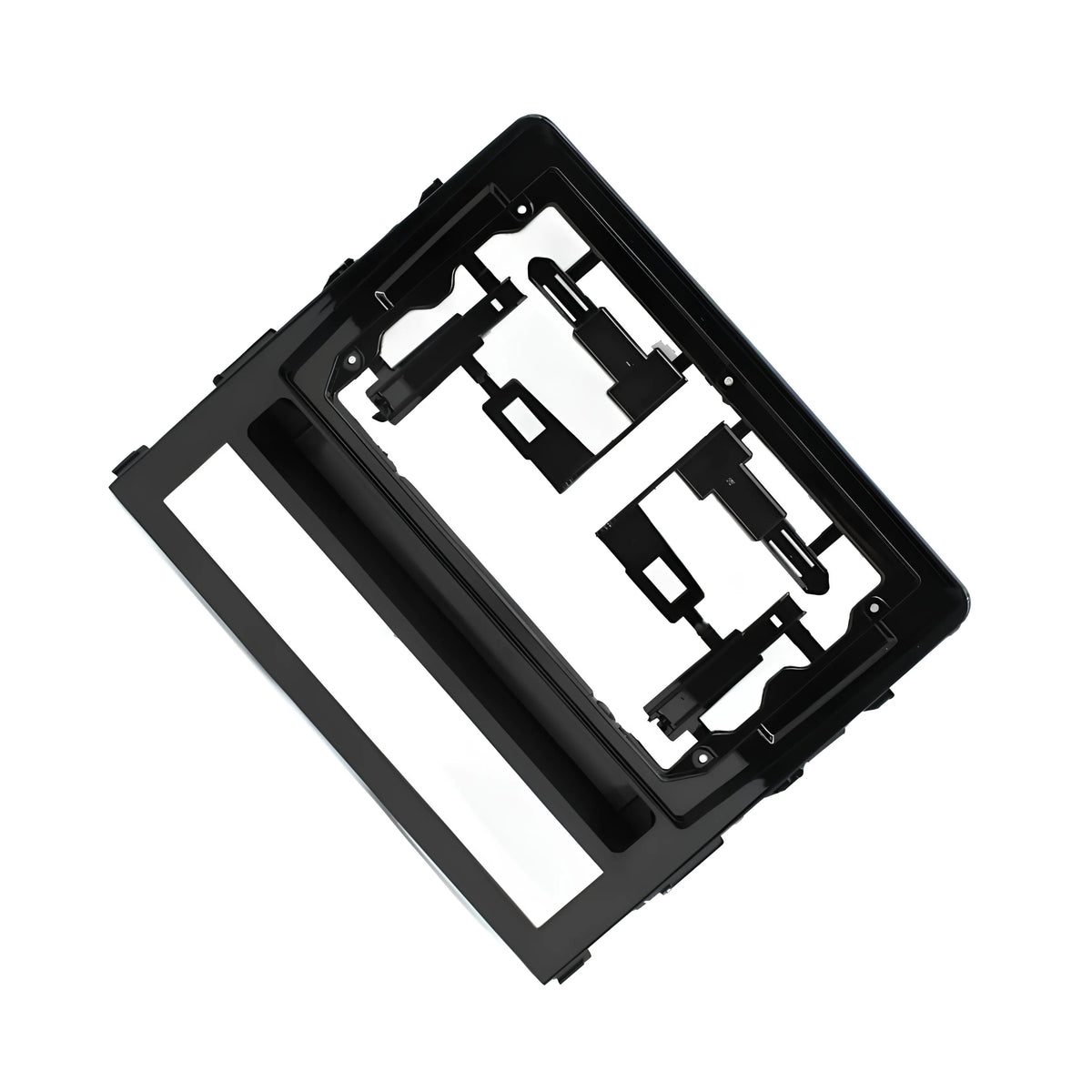

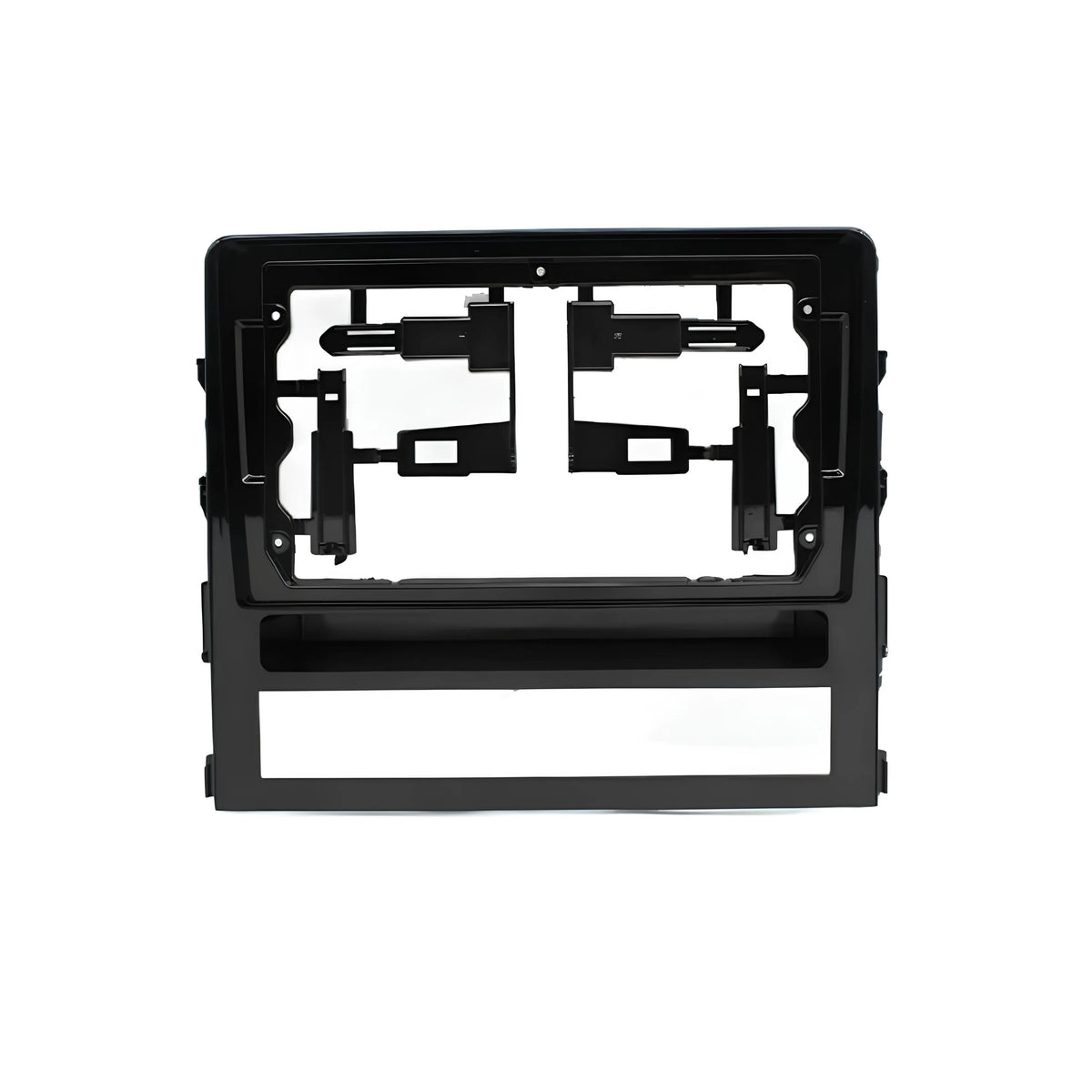

The Stinger SF9-TY09 is a vehicle-specific 9-inch trapezoid head unit fascia designed for the Toyota LandCruiser 200 Series in GXL trim specification, covering the 2016–2021 late-production model years. The LandCruiser 200 was sold across multiple trim levels with different dashboard architectures the SF9-TY09 is precision-moulded for the GXL-specific dashboard layout only.

Key Specifications

• Part number: SF9-TY09
• Brand: Stinger
• Product type: 9-inch trapezoid head unit fascia
• Compatible head unit format: 9-inch trapezoid only
• Finish: Toyota factory colour match with textured grain
• Vehicle: Toyota LandCruiser 200 Series 2016–2021
• Trim level: GXL only
• Not compatible with: GX trim / Sahara trim / VX trim / 200 Series 2008–2015 (SF9-TY08)
• Confirmed compatible head units: Alpine INE-AW4095, Alpine INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X
• Includes: Fascia panel only
• Wiring harness: Not included — sold separately
• Antenna adaptor: Not included — sold separately
• SWC interface: Not included — sold separately
• Camera retention harness: Not included — sold separately (required)

Features & Benefits

• GXL Trim Specific — The Most Critical Qualifier in This Range The LandCruiser 200 was sold across four distinct trim levels (GX, GXL, VX, Sahara), each with different dashboard trim materials, control layouts, and factory electronics. The SF9-TY09 is precision-moulded for the GXL dashboard only. Using this fascia in a GX, VX, or Sahara model will result in incorrect fitment. Confirm the trim level from the vehicle identification plate before purchasing.
• 2016–2021 Late Production Only — Not for Pre-2016 The 2016 Prado received a dashboard update that distinguishes late-production models from the earlier 2008–2015 run. The SF9-TY08 covers the earlier GX and GXL 200 Series (2008–2015) with dual 9+10-inch format capability. The SF9-TY09 covers the later GXL only (2016–2021) in 9-inch format only.
• 9-Inch Only — No 10-Inch Compatibility Unlike the SF9-TY08 which includes a reducer for dual format, the SF9-TY09 is 9-inch trapezoid only. Confirm the head unit is 9-inch trapezoid before purchasing.
• Camera Retention Harness Required All 2016+ LandCruiser 200 Series models are equipped with a factory reverse camera. A camera retention harness is required to maintain this functionality.
• Sound Processor May Be Required GXL models feature an upgraded audio system that may require a dedicated sound processor to maintain audio quality and prevent speaker damage from incorrect signal levels after head unit replacement. Consult a professional installer before purchasing.

Technical Specs

Compatible With / Goes Well With

Vehicle compatibility:

Not compatible with:

• Toyota LandCruiser 200 Series GX trim (different dashboard)
• Toyota LandCruiser 200 Series Sahara trim (integrated factory navigation)
• Toyota LandCruiser 200 Series VX trim (advanced dashboard architecture)
• Toyota LandCruiser 200 Series 2008–2015 (all trims — requires SF9-TY08)

Confirmed compatible 9-inch trapezoid head units:

• Alpine INE-AW4095
• Alpine INE-AX809
• Kenwood DMX80AXS
• Pioneer DMH-AP6650BT
• Aerpro AM9X

Required accessories (sold separately):

• Toyota LandCruiser 200 GXL-specific wiring harness (Toyota-to-ISO)
• Antenna adaptor (Toyota proprietary to standard)
• Steering wheel control interface
• Reverse camera retention harness (required — all 2016+ 200 Series)
• Sound processor (recommended for GXL audio — confirm with installer

Frequently Asked Questions

Why is the SF9-TY09 only compatible with GXL trim and not other LandCruiser 200 variants?

Each LandCruiser 200 trim level (GX, GXL, VX, Sahara) has a different dashboard architecture — different trim materials, control layouts, and factory electronics. The SF9-TY09 is precision-moulded for the GXL dashboard only. GX uses different trim materials; Sahara has integrated factory navigation; VX has a top-tier advanced dashboard. All require separate fascia solutions.

What is the difference between the SF9-TY08 and SF9-TY09?

The SF9-TY08 covers the earlier 2008–2015 LandCruiser 200 GX and GXL models with dual 9+10-inch trapezoid capability (reducer panel included). The SF9-TY09 covers the later 2016–2021 GXL only, 9-inch trapezoid format only. Choose the fascia matching your specific model year and trim level.

Does the SF9-TY09 include wiring harnesses or installation accessories?

No — the SF9-TY09 is a fascia panel only. A Toyota LandCruiser 200 GXL-specific wiring harness, antenna adaptor, SWC interface, and reverse camera retention harness are all required separately. GXL models with upgraded audio may also require a sound processor.

Do all 2016–2021 LandCruiser 200 GXL models have a factory reverse camera?

Yes — all 2016+ LandCruiser 200 Series models are equipped with a factory reverse camera. A camera retention harness is required to maintain this functionality after fitting an aftermarket head unit.

Is professional installation recommended for the SF9-TY09?

Yes — the LandCruiser 200 has sophisticated vehicle electronics, a comprehensive steering wheel control system, and a high-value dashboard that requires careful disassembly. Professional installation by a qualified car audio installer is strongly recommended to ensure correct integration and protect the vehicle's value.
