STINGER SF9-TY08 9-Inch & 10-Inch Trapezoid Fascia for 2008-2015 Toyota LandCruiser 200 Series GX & GXL

9-Inch and 10-Inch Trapezoid Head Unit Fascia Toyota LandCruiser 200 Series GX and GXL 2008–2015. GX and GXL Trim Only. 10-to-9-Inch Reducer Panel Included. Fascia Panel Only.

Product Overview

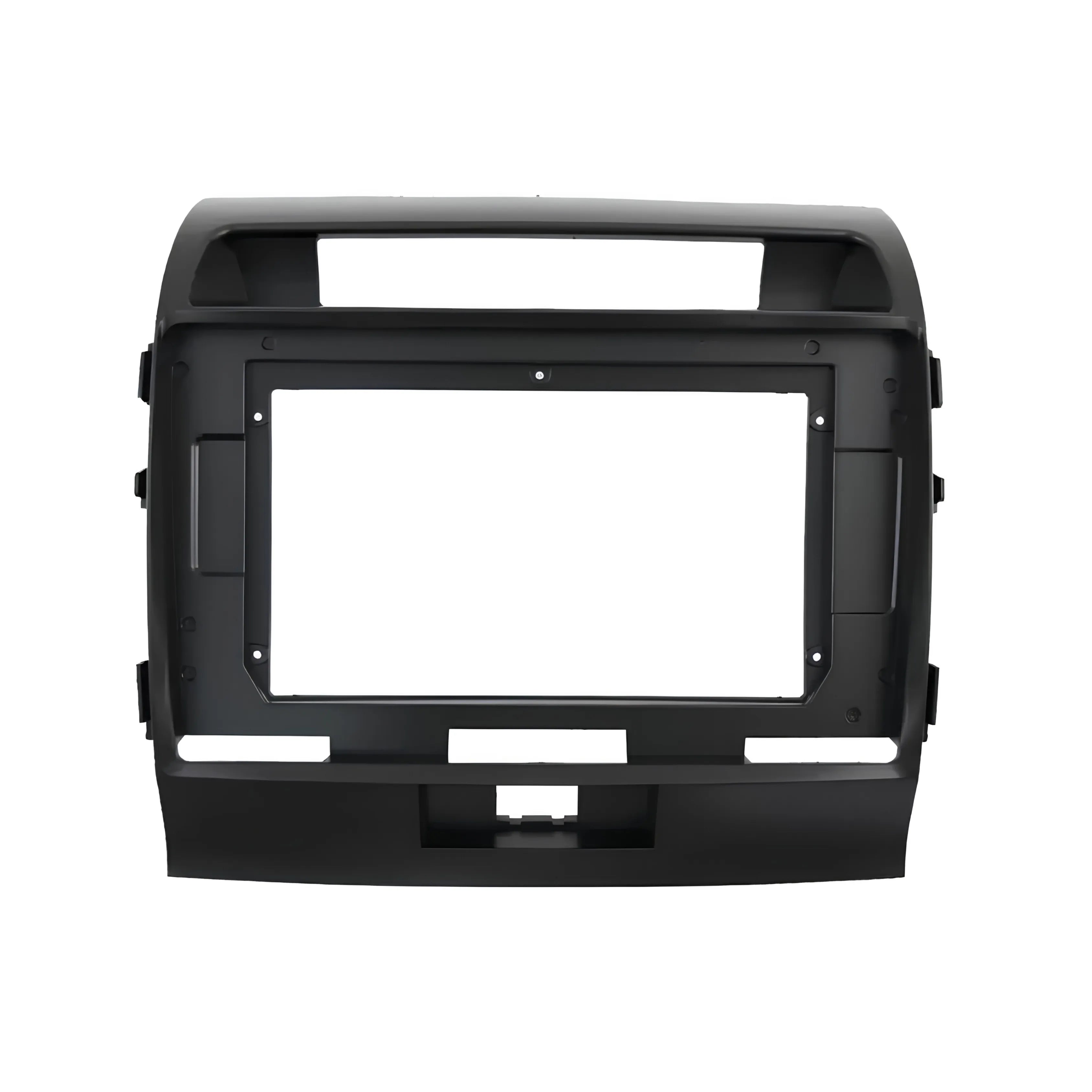

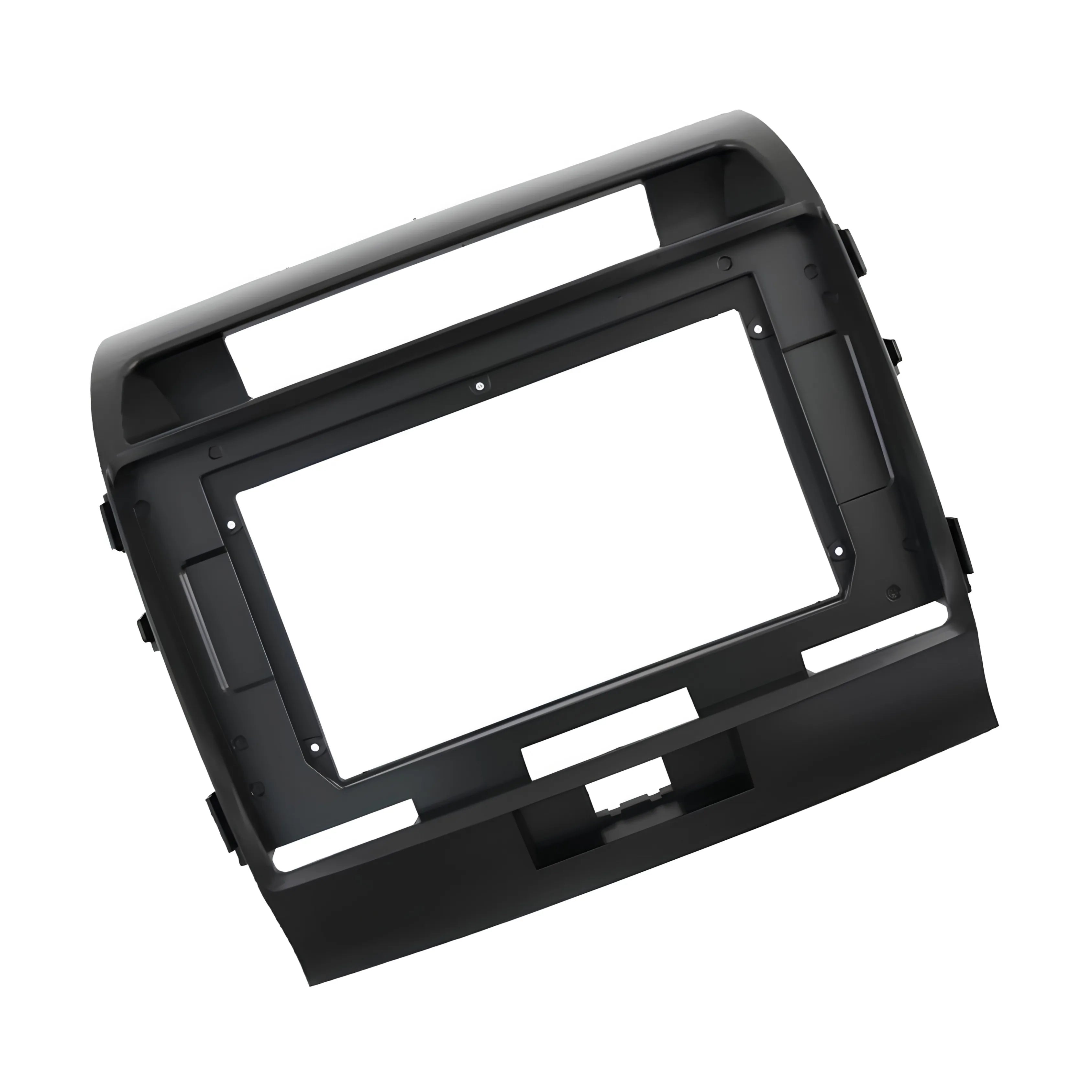

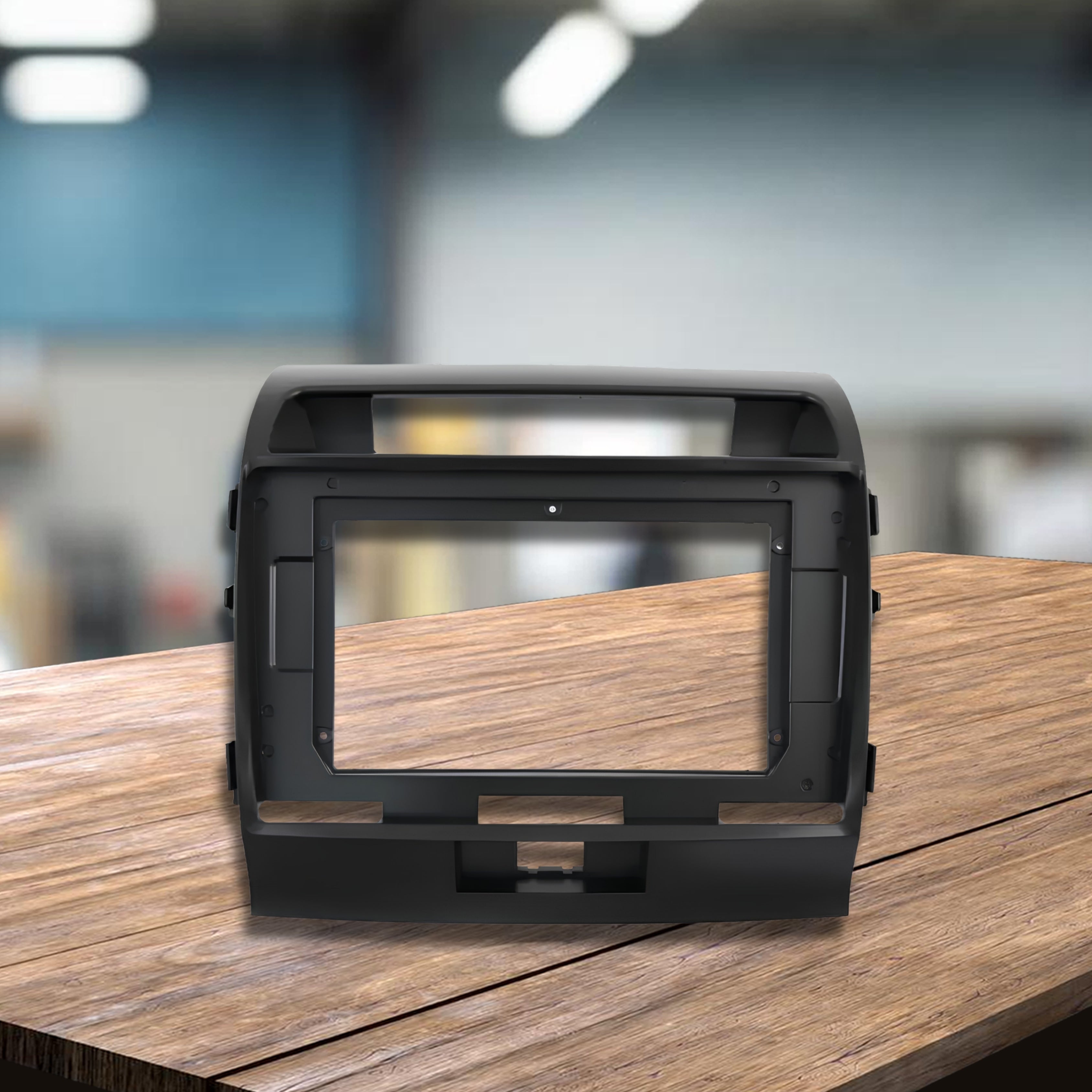

The Stinger SF9-TY08 is a vehicle-specific 9-inch and 10-inch trapezoid head unit fascia designed for the Toyota LandCruiser 200 Series in GX and GXL trim levels, covering the full early-production run from 2008 to 2015. The SF9-TY08 covers both the base GX specification (standard equipment, cloth seats) and the mid-specification GXL (leather seats, enhanced features), both of which share a common dashboard architecture suited to this fascia. A 10-to-9-inch reducer panel is included in the package the 10-inch format uses the full fascia opening, while the 9-inch format uses the reducer panel for a clean, gap-free fit. Confirmed compatible head units span both 9-inch and 10-inch formats: Alpine INE-AW409S, INE-AX809, INE-AW409S-10, INE-AX809-10, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X, and Aerpro AM10X.

The SF9-TY08 covers the GX and GXL trim levels only it is not compatible with premium Sahara or VX variants, which feature different dashboard architectures including integrated factory navigation systems, larger factory screens, and complex control interfaces. For the later 2016–2021 LandCruiser 200 GXL, see the SF9-TY09 (9-inch only, GXL only). GXL models equipped with factory JBL premium audio require a sound processor (sold separately) to maintain audio quality after head unit replacement. Wiring harness, antenna adaptor, steering wheel control interface, and reverse camera retention harness must all be purchased separately.

Key Specifications

• Part number: SF9-TY08
• Brand: Stinger
• Product type: 9-inch and 10-inch trapezoid head unit fascia
• Compatible head unit formats: 9-inch trapezoid and 10-inch trapezoid

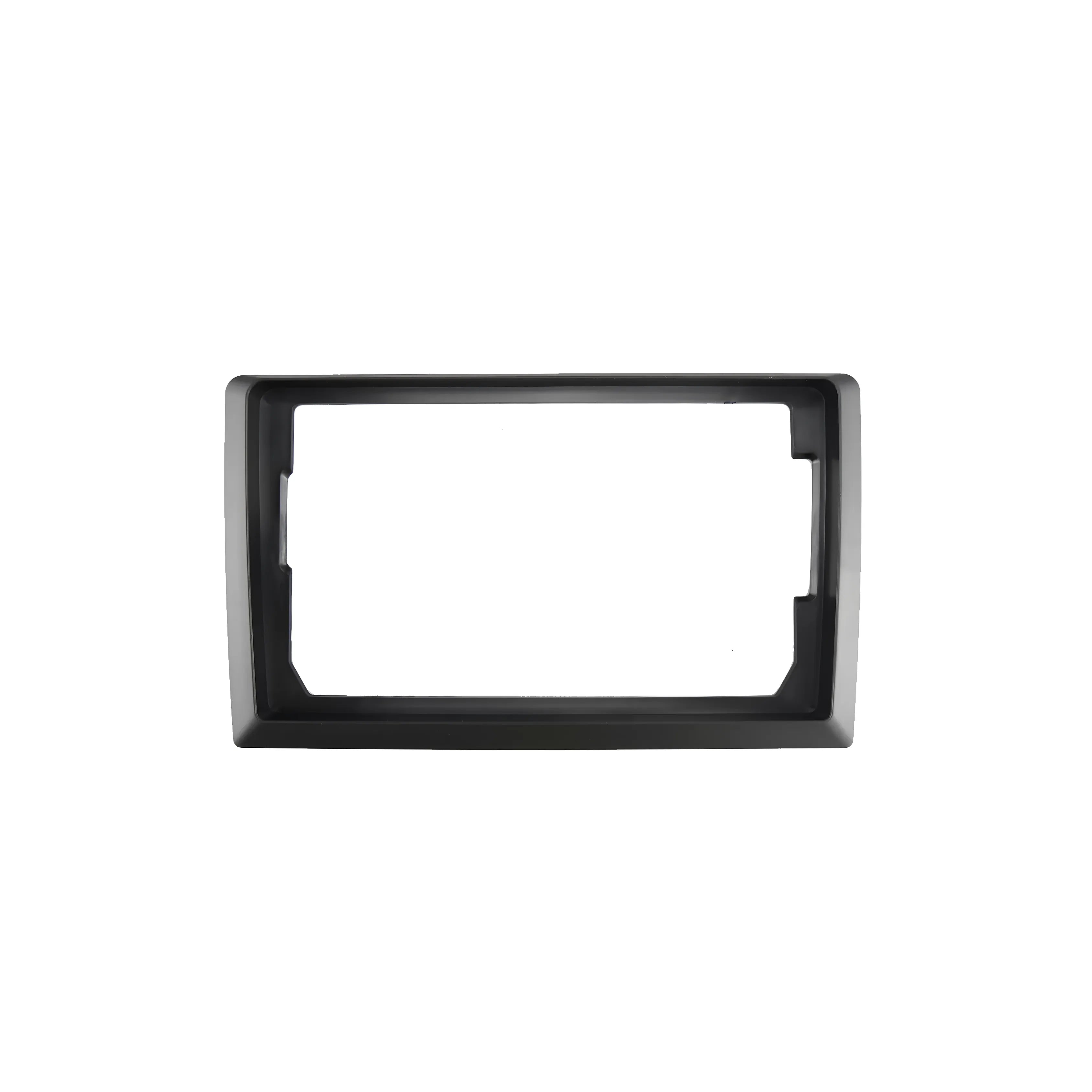

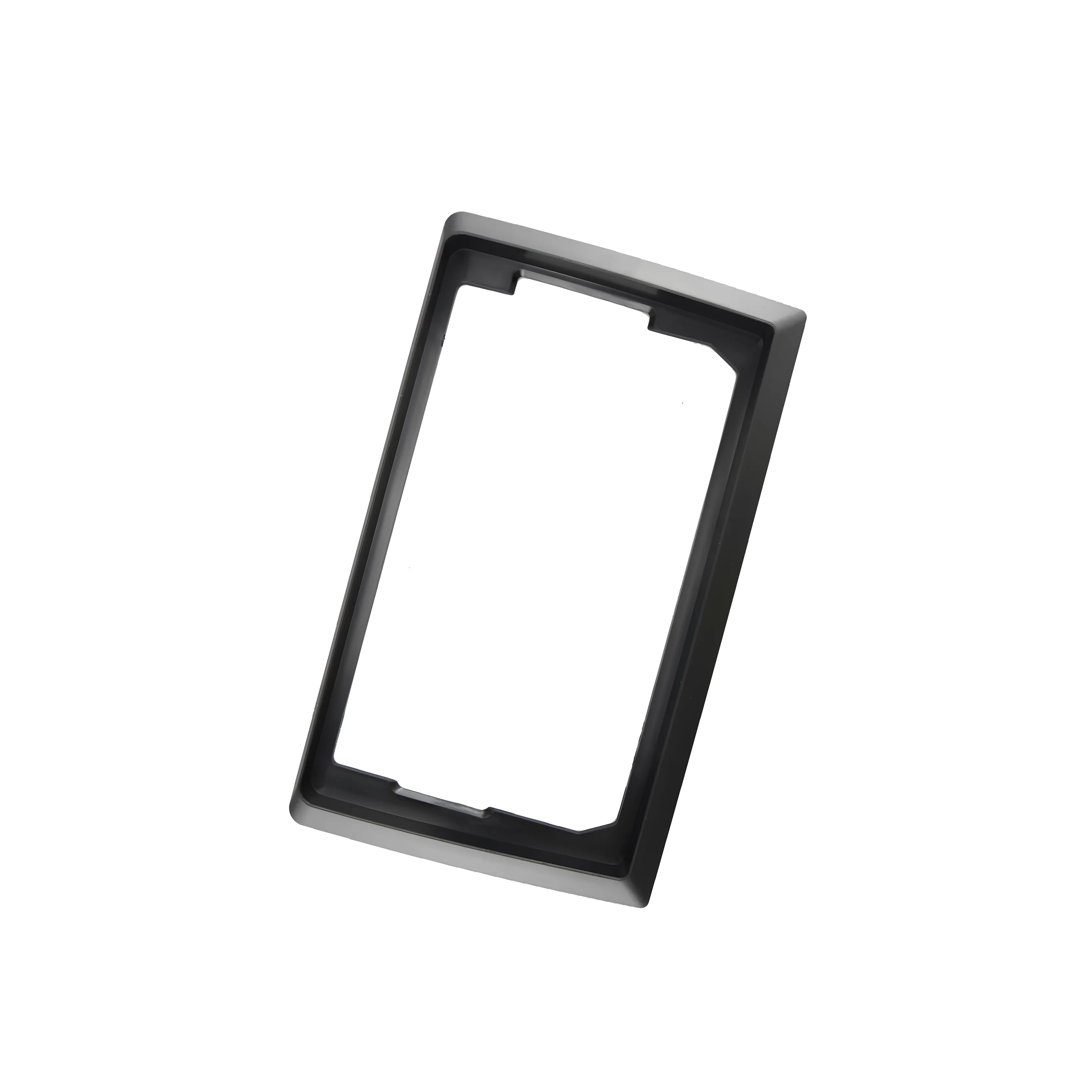

• Reducer panel: Included (10-inch to 9-inch)
• Finish: Toyota factory colour match with textured grain
• Vehicle: Toyota LandCruiser 200 Series 2008–2015
• Trim levels: GX and GXL only
• Not compatible with: Sahara / VX / other premium trims / 200 Series 2016+ (SF9-TY09)
• Confirmed compatible head units: Alpine INE-AW409S, INE-AX809, INE-AW409S-10, INE-AX809-10; Kenwood DMX80AXS; Pioneer DMH-AP6650BT; Aerpro AM9X, AM10X
• Includes: Fascia panel and 10-to-9-inch reducer panel
• Wiring harness: Not included — sold separately
• Antenna adaptor: Not included — sold separately
• SWC interface: Not included — sold separately
• Camera retention harness: Not included — sold separately (required)
• Sound processor: Not included — required for GXL JBL audio

Features & Benefits

• GX and GXL Only — Not Sahara or VX The LandCruiser 200 Series was sold across four trim levels. The SF9-TY08 covers GX (base) and GXL (mid-spec), which share a common standard dashboard configuration. Premium Sahara and VX variants feature fundamentally different dashboards with integrated factory navigation, larger screens, and complex control interfaces — these require separate fascia solutions and are not compatible with the SF9-TY08. Confirm the trim level from the vehicle identification plate before purchasing.
• Dual Format — 9-Inch and 10-Inch, Reducer Included The SF9-TY08 package includes a 10-to-9-inch reducer panel. For 10-inch head units, the fascia is used at full opening. For 9-inch head units, the included reducer panel is fitted to create the correct aperture. No separate adapter purchase is required for either format.
• Confirmed for Both 9-Inch and 10-Inch Alpine Models The spec table confirms compatibility with both the standard Alpine units (INE-AW409S, INE-AX809) and the larger-screen 10-inch variants (INE-AW409S-10, INE-AX809-10), along with Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X, and AM10X.
• GXL JBL Premium Audio — Sound Processor Required GXL models equipped with the factory JBL premium audio system require a dedicated sound processor (sold separately) to maintain audio quality and prevent speaker damage from incorrect signal levels when replacing the head unit.
• Camera Retention Harness Required All 2008+ LandCruiser 200 Series models are equipped with a factory reverse camera. A camera retention harness is required to maintain this functionality.
• Pairs with SF9-TY09 for Later 200 Series The SF9-TY08 covers GX and GXL 2008–2015. The SF9-TY09 covers GXL only from 2016–2021 (9-inch only, different dashboard). Both are in the F.A.E. catalogue.

Technical Specs

Compatible With / Goes Well With

Vehicle compatibility:

Not compatible with:

• Toyota LandCruiser 200 Series Sahara trim
• Toyota LandCruiser 200 Series VX trim
• Any other premium 200 Series trim
• Toyota LandCruiser 200 Series 2016–2021 (GXL — requires SF9-TY09)

Confirmed compatible head units (9-inch and 10-inch):

• Alpine INE-AW409S / INE-AX809 (9-inch)
• Alpine INE-AW409S-10 / INE-AX809-10 (10-inch)
• Kenwood DMX80AXS
• Pioneer DMH-AP6650BT
• Aerpro AM9X (9-inch) / AM10X (10-inch)

Required accessories (sold separately):

• Toyota LandCruiser 200 GX/GXL wiring harness (Toyota-to-ISO)
• Antenna adaptor (Toyota proprietary to standard)
• Steering wheel control interface
• Reverse camera retention harness (required — all models)
• Sound processor (required for GXL JBL premium audio)

Frequently Asked Questions

Why is the SF9-TY08 only compatible with GX and GXL trim levels and not Sahara or VX?

The GX and GXL share a standard dashboard configuration with a conventional head unit mounting area. Sahara and VX variants feature a different dashboard architecture incorporating integrated factory navigation, larger factory screens, premium trim materials, and additional control interfaces — these are not compatible with the SF9-TY08. Confirm the trim level from the vehicle identification plate before purchasing.

Does the SF9-TY08 include the reducer panel for 9-inch head units?

Yes — the SF9-TY08 includes a 10-to-9-inch reducer panel. For 10-inch head units, the fascia is used at its full opening. For 9-inch head units, the reducer panel is fitted during installation to create the correct aperture.

What is the difference between the SF9-TY08 and SF9-TY09?

The SF9-TY08 covers GX and GXL trim levels for the 2008–2015 LandCruiser 200, with dual 9/10-inch format capability and a reducer panel included. The SF9-TY09 covers GXL only for 2016–2021, is 9-inch format only, and has a different dashboard design. Choose the fascia matching both the model year and the trim level.

My GXL has factory JBL audio. What additional accessories are needed?

GXL models with factory JBL premium audio require a sound processor (sold separately) in addition to the standard wiring harness and antenna adaptor. Without the sound processor, the JBL amplifier will receive incorrect signal levels from the aftermarket head unit, resulting in poor audio quality or potential speaker damage.

Is professional installation recommended for the SF9-TY08?

Yes — the LandCruiser 200 dashboard involves complex disassembly, Toyota-specific wiring architecture, steering wheel control programming, and camera retention. GXL models with JBL audio add sound processor integration. Professional installation by a qualified car audio installer is strongly recommended to ensure correct integration and protect the vehicle's value.
