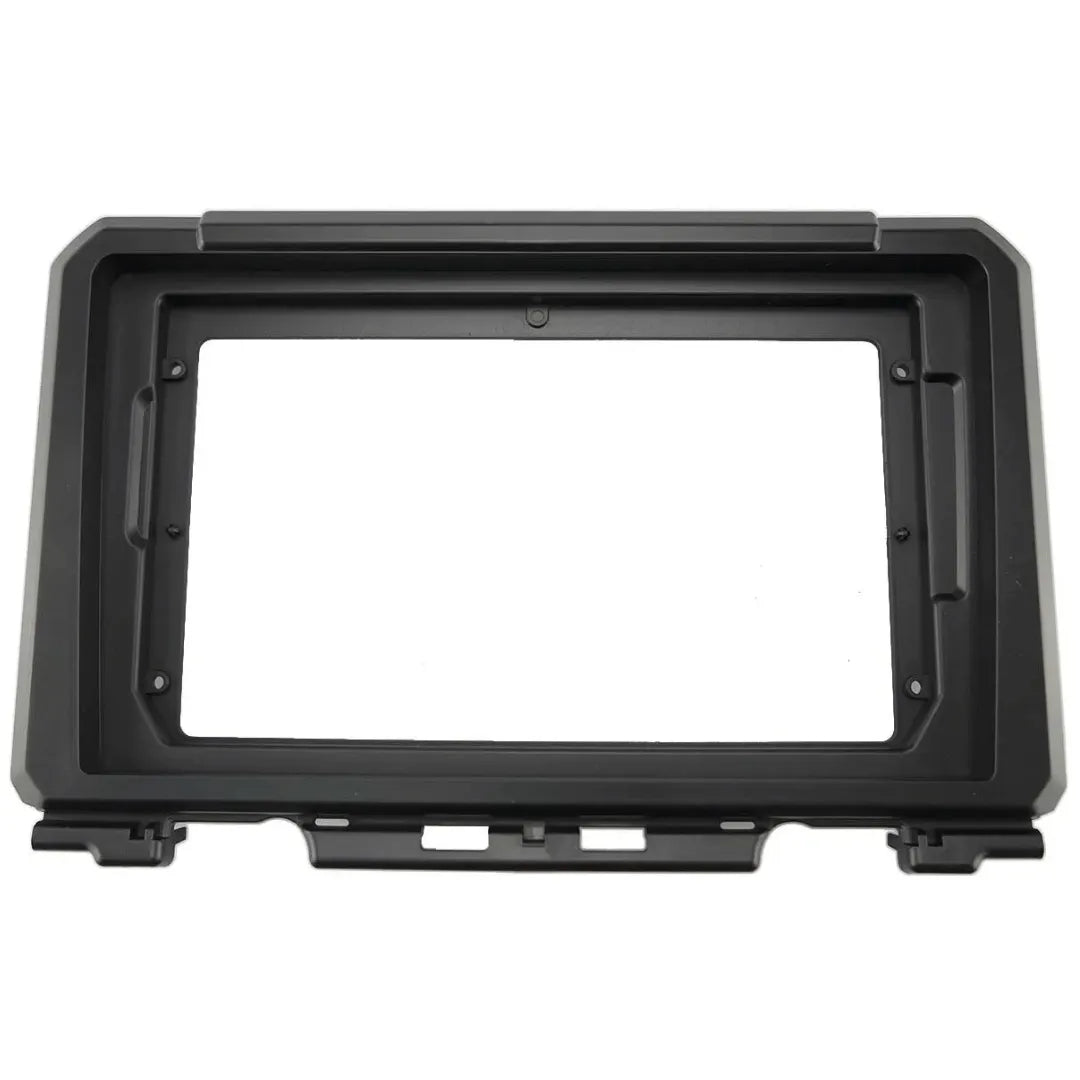

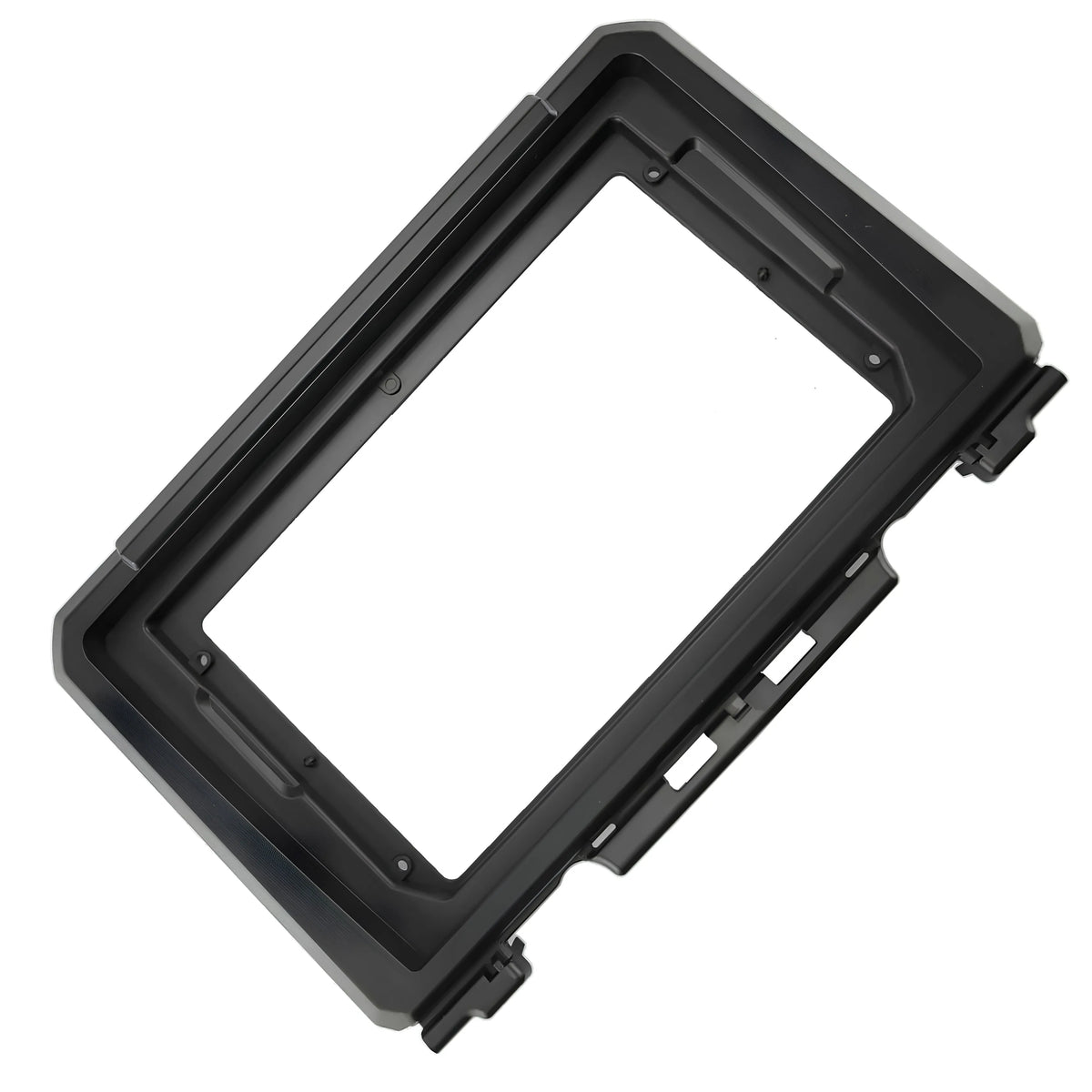

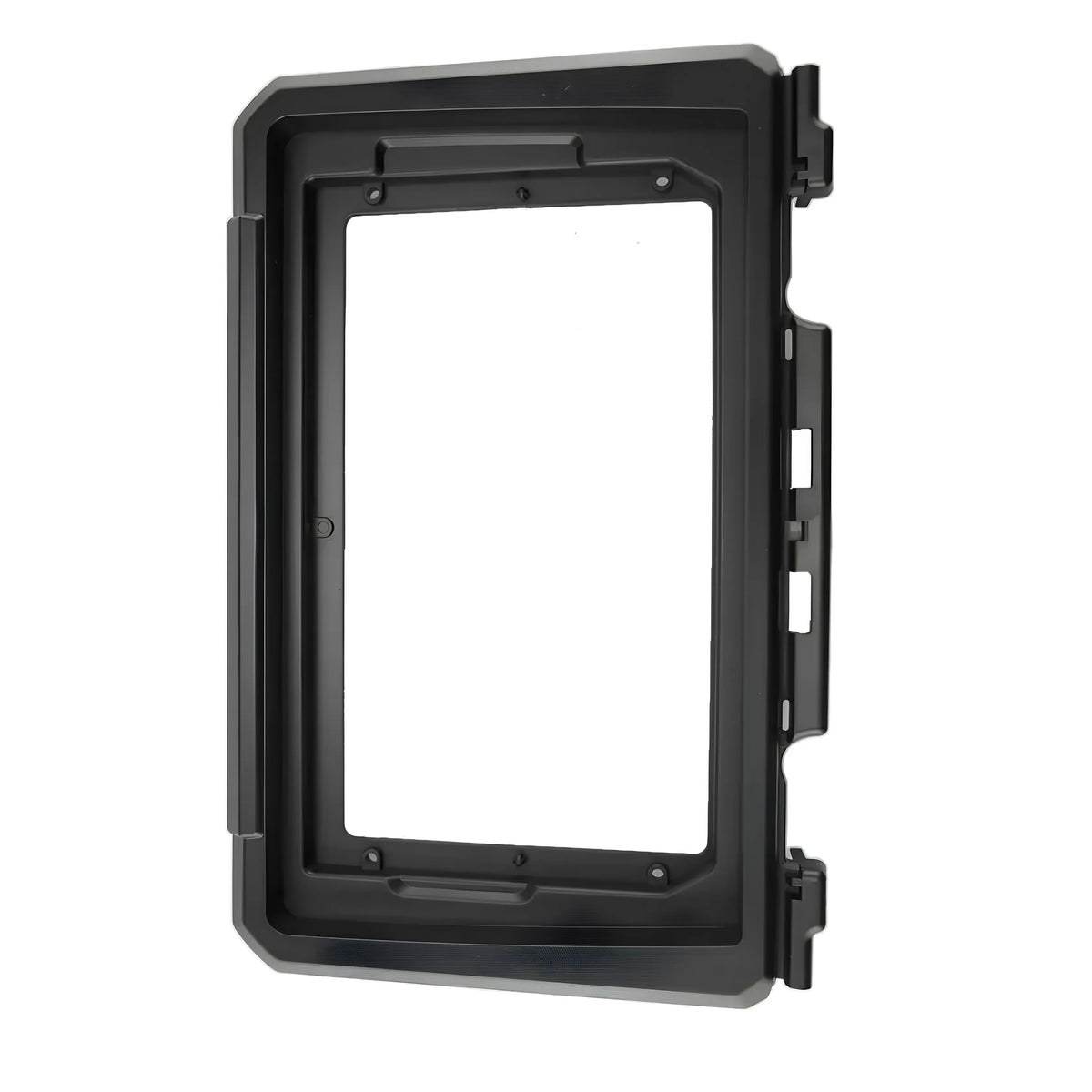

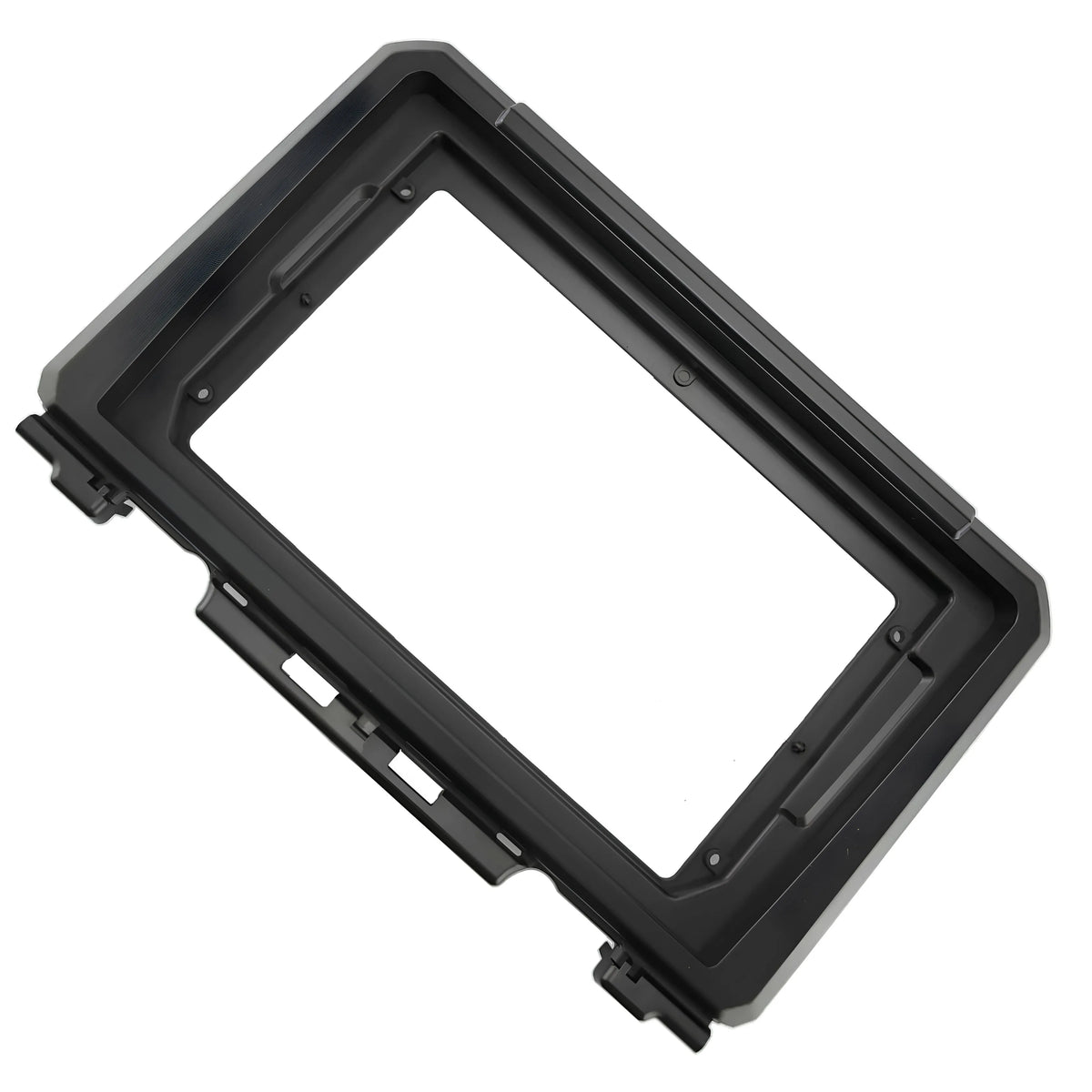

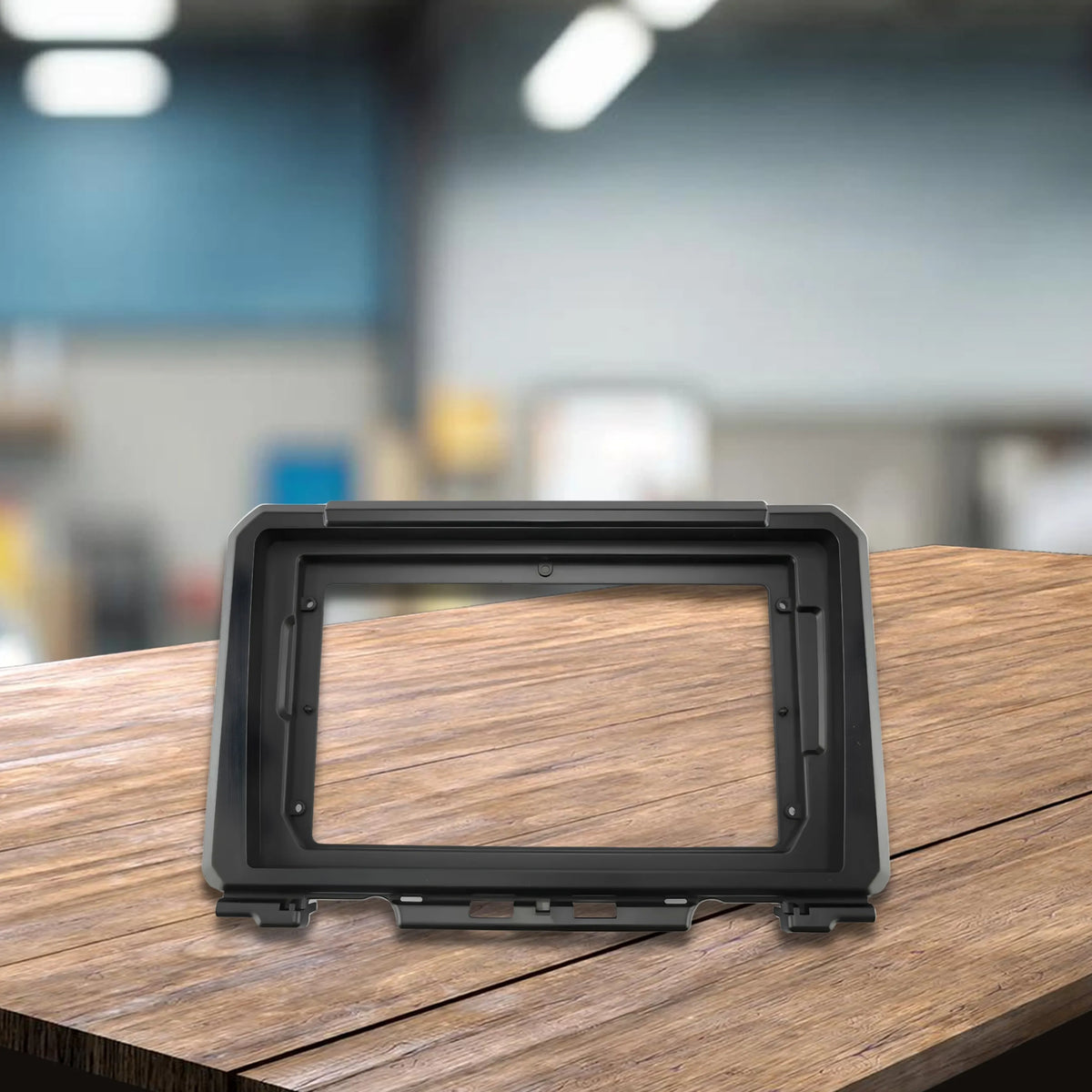

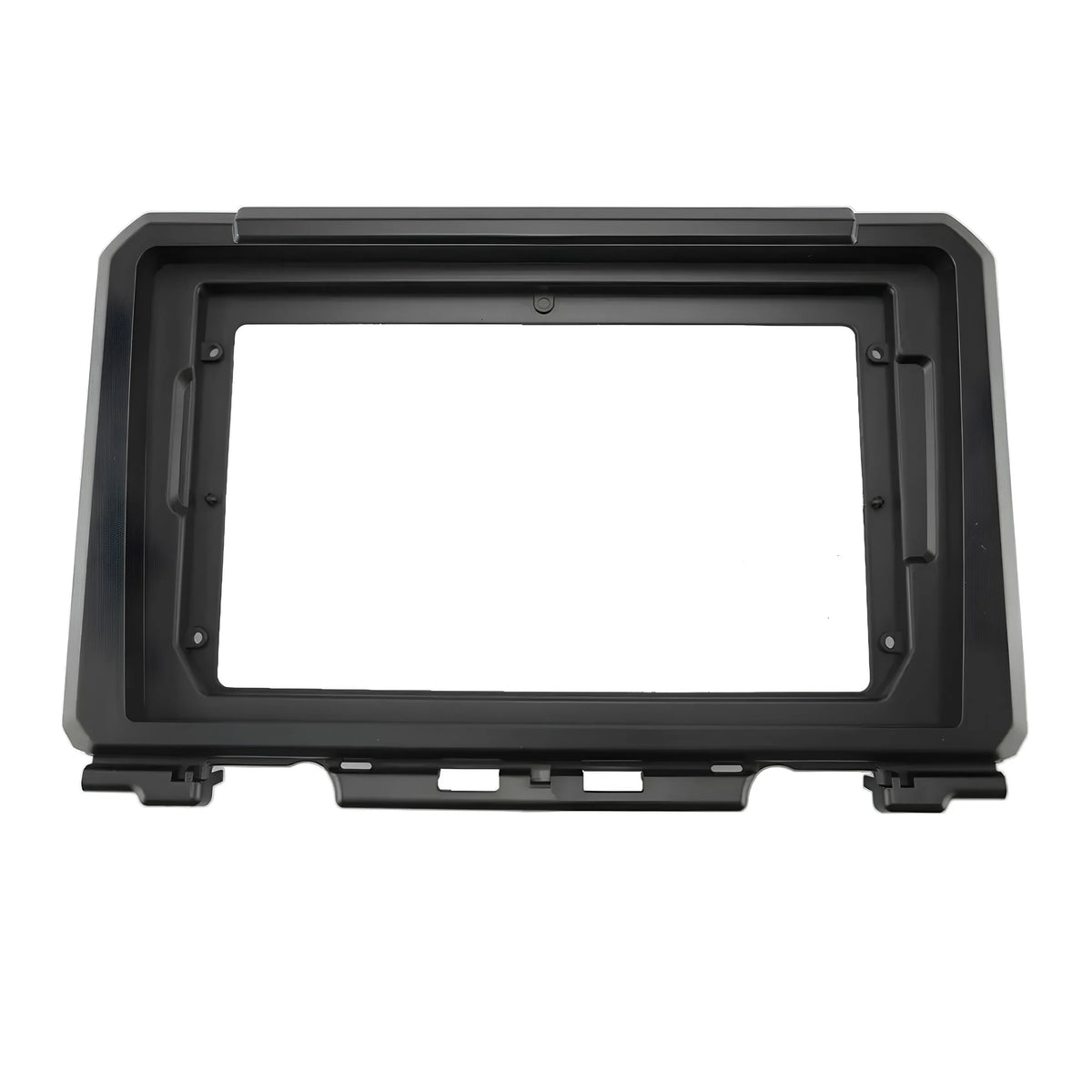

Stinger SF9-SZ04 9" Trapezoid Fascia for Suzuki Jimny JB74W/JC74W (2018-2025)

Dual-chassis fascia engineered for fourth-generation Jimny 3-door and new 5-door variants

Product Overview

The Stinger SF9-SZ04 is a vehicle-specific fascia panel designed for Suzuki Jimny JB74W (2018-2025, 3-door) and JC74W (2024-2025, 5-door) models featuring trapezoid-shaped factory dash apertures. This fascia addresses the unique geometry of the fourth-generation Jimny dashboard architecture shared across both the iconic 3-door and the newly released 5-door variants, where standard double-DIN fascias cannot accommodate the non-standard trapezoid aperture. Engineered to OEM specifications, the SF9-SZ04 provides seamless integration between compatible 9" floating-screen head units and the factory dashboard, maintaining the Jimny's characterful retro-modern interior aesthetic while enabling wireless Apple CarPlay, Android Auto, and modern navigation features. Compatible with select Alpine, Kenwood, Pioneer, and Aerpro 9" head units featuring trapezoid mounting patterns, this fascia is essential for professional installations in Australia's cult-favourite compact 4WD platform that bridges lifestyle adventure and serious off-road capability.

Key Specifications

• Vehicle fitment: Suzuki Jimny JB74W 3-door (2018-2025) and JC74W 5-door (2024-2025)
• Screen size accommodation: 9" trapezoid-geometry head units
• Compatible head units: Alpine INE-AW4095/INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X
• Manufacturer: Stinger Electronics
• Part number: SF9-SZ04
• Material: injection-moulded ABS plastic (colour-matched to factory trim)
• Installation type: fascia panel only (additional harnesses and brackets sold separately)
• 3-door coverage: 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025 (JB74W chassis)
• 5-door coverage: 2024, 2025 (JC74W chassis)

Features & Benefits

Dual-chassis compatibility covers both JB74W 3-door (2018-2025) and JC74W 5-door (2024-2025) Jimny variants, as both share identical dashboard architecture—enables consistent multimedia upgrades across the entire fourth-generation Jimny lineup from compact adventurers to family-friendly five-seaters without requiring separate fascia inventory.

JB74W/JC74W trapezoid-specific geometry precisely matches the unique non-rectangular aperture shape of the fourth-generation Jimny dash, where standard double-DIN fascias leave visible gaps or fail to mount securely—this vehicle-specific design ensures flush, factory-quality panel alignment that maintains the Jimny's distinctive retro-modern character admired by enthusiasts.

2018-2025 coverage encompasses the entire fourth-generation Jimny production run including early grey-import JB74W models, locally-delivered Australian-spec Jimny variants, and the brand-new JC74W 5-door introduced in 2024—provides upgrade path for vehicles purchased before wireless smartphone integration became standard equipment.

Compatible with modern 9" floating-screen head units including Alpine's iLX-AW4095 and iLX-AX809, Kenwood's DMX80AXS, Pioneer's DMH-AP6650BT, and Aerpro's AM9X—enabling wireless CarPlay, Android Auto, off-road navigation, and 4WD track mapping on vehicles originally equipped with Suzuki's basic multimedia system lacking advanced connectivity.

Injection-moulded construction matches factory dashboard material quality and UV resistance, withstanding the demanding environments Jimny vehicles routinely encounter—beach tracks, high-country trails, outback touring, and urban adventure use where dashboard components face temperature extremes, UV exposure, and vibration from articulated suspension travel.

Factory colour-matching maintains the Jimny's playful yet functional interior aesthetic critical to the enthusiast community where preserving the vehicle's character and potential collector value matters—the fascia blends seamlessly with surrounding trim rather than detracting from the Jimny's distinctive retro-inspired design language.

Essential foundation for complete multimedia upgrades in both 3-door and 5-door Jimny variants—while sold separately from wiring harnesses, antenna adapters, and steering wheel control interfaces, this fascia is the required starting point for professional head unit installations that maintain factory integration quality.

Enthusiast and family appeal across both body styles—3-door buyers prioritizing compact dimensions and off-road agility, plus 5-door buyers seeking family practicality without sacrificing Jimny capability—one fascia serves both demographics in Australia's passionate Jimny community.

Technical Specs

• Part number: SF9-SZ04
• Vehicle application: Suzuki Jimny JB74W (3-door) and JC74W (5-door)
• 3-door year compatibility: 2018-2025 inclusive (JB74W chassis)
• 5-door year compatibility: 2024-2025 inclusive (JC74W chassis)
• Chassis codes: JB74W (3-door), JC74W (5-door)
• Screen accommodation: 9" trapezoid-geometry floating-screen head units
• Material: injection-moulded ABS plastic
• Finish: factory-matched colour (typically black or dark grey depending on interior trim)
• Installation hardware: fascia panel only (mounting brackets, harnesses, and adapters sold separately)
• Compatible head unit models: Alpine INE-AW4095, Alpine INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X
• Trim variants: All JB74W and JC74W trim levels covered (base through top-spec)

Frequently Asked Questions

Does this work for both 3-door and 5-door Jimny models?

Yes, the SF9-SZ04 is compatible with both JB74W 3-door (2018-2025) and JC74W 5-door (2024-2025) Jimny variants, as they share identical dashboard architecture and trapezoid aperture geometry. One fascia covers both body styles across the entire fourth-generation Jimny range.

Does this fascia include wiring harnesses or mounting brackets?

No, the SF9-SZ04 is the fascia panel only. Complete installation requires a separate Suzuki-specific primary wiring harness (connects head unit to factory loom), antenna adapter, and potentially a steering wheel control interface depending on your Jimny variant and desired features. These components are available separately.

Will this fit grey-import JB74W Jimny models?

Yes, grey-import JB74W Jimny models (typically imported from Japan before Australian delivery commenced) share the same dashboard architecture as Australian-delivered variants. The SF9-SZ04 is compatible with all JB74W chassis regardless of market origin, provided the vehicle is a 2018-2025 fourth-generation model.

Which head units are confirmed compatible?

Confirmed compatible units include Alpine INE-AW4095, Alpine INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, and Aerpro AM9X. These feature 9" screens with trapezoid mounting patterns matching the Jimny aperture. Standard double-DIN or universal 9" units will not fit without this vehicle-specific fascia.

Why can't I use a standard double-DIN fascia in my Jimny?

The JB74W and JC74W Jimny feature trapezoid-shaped dash apertures—wider at the top than bottom—which standard rectangular double-DIN fascias cannot accommodate. The SF9-SZ04's trapezoid geometry is essential for proper fitment, eliminating gaps and ensuring secure head unit mounting in this specific Suzuki chassis.

Compatible With / Goes Well With

• Alpine INE-AW4095 9" multimedia receiver (Apple CarPlay/Android Auto)
• Alpine INE-AX809 9" multimedia receiver (wireless CarPlay/Android Auto)
• Kenwood DMX80AXS 9" multimedia receiver (wireless connectivity)
• Pioneer DMH-AP6650BT 9" multimedia receiver (floating screen design)
• Aerpro AM9X 9" multimedia receiver (vehicle-specific integration)
• Suzuki-specific primary wiring harnesses (ISO to factory connector)
• Suzuki antenna adapters (aftermarket to factory antenna connection)
• Steering wheel control retention interfaces (maintain factory controls)
• Reverse camera retention harnesses (preserve factory camera functionality)
• GPS antenna adapters for head units with off-road navigation
• Off-road mapping apps (Hema, ExplorOz) for remote touring
