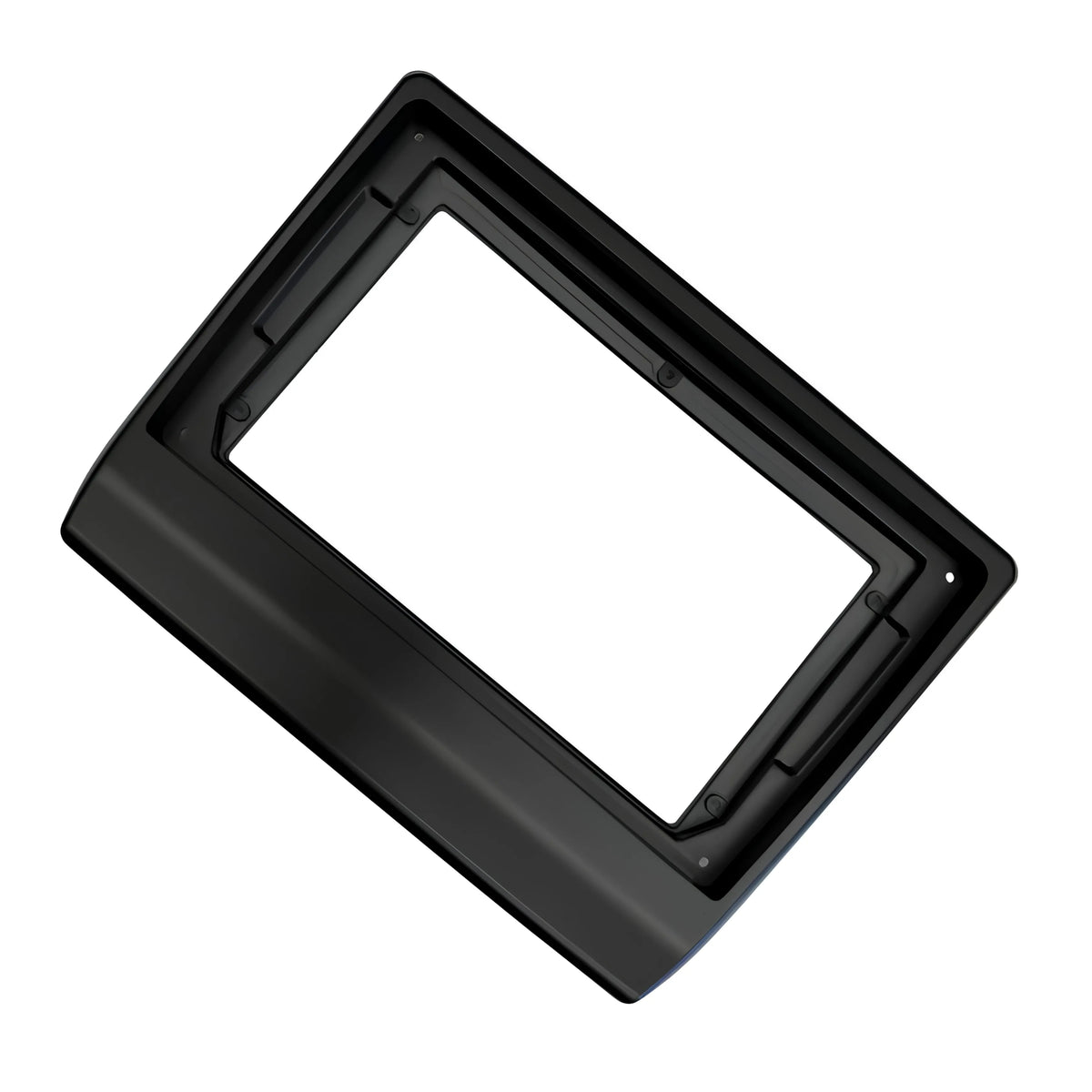

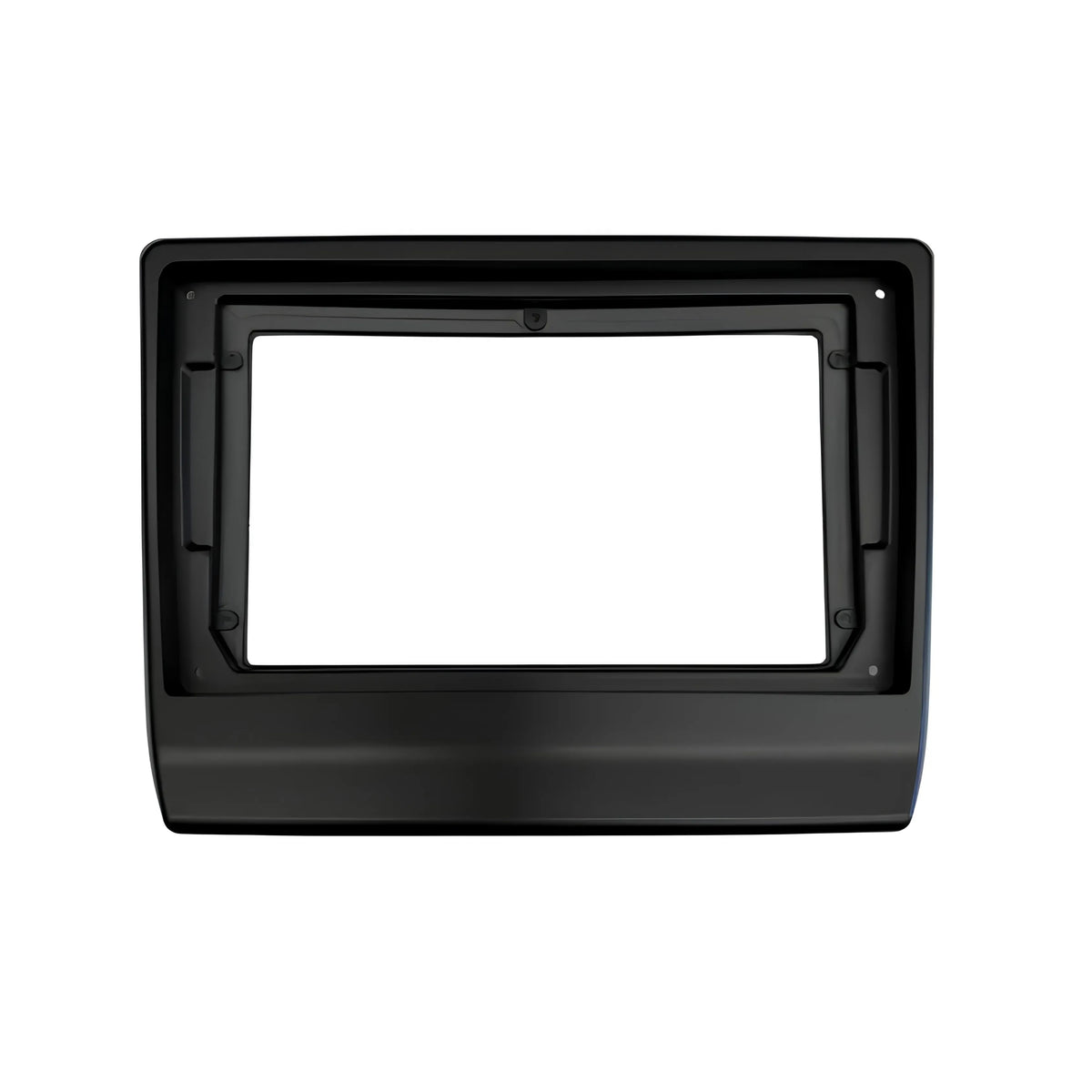

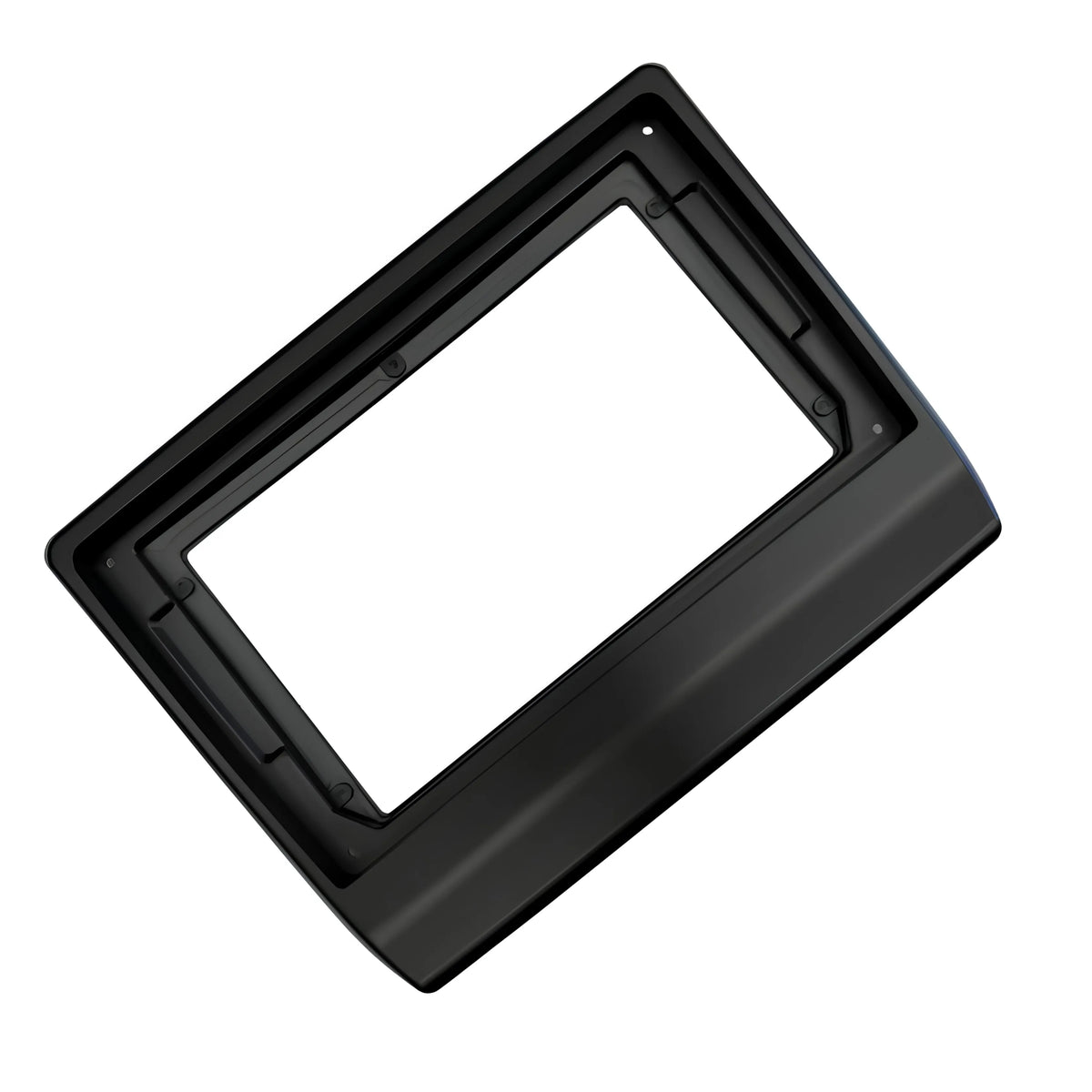

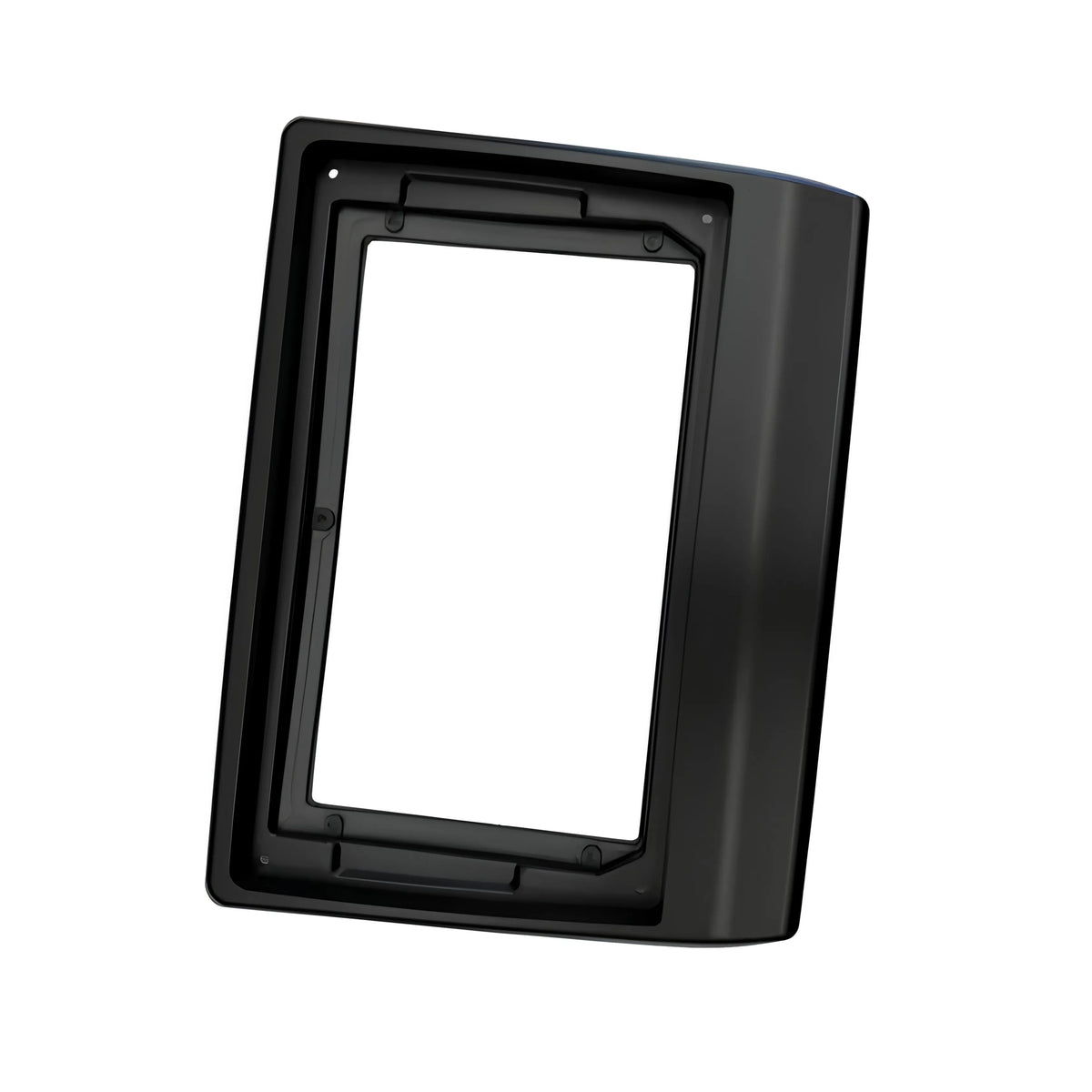

STINGER SF9-MZ03 9-Inch Trapezoid Fascia for 2020-2023 Mazda BT-50 RG04 Series
Click to open expanded view
STINGER logo

STINGER SF9-MZ03 9-Inch Trapezoid Fascia for 2020-2023 Mazda BT-50 RG04 Series

SKU: SF9-MZ03
Sale price
$261
Regular price
$290
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

9-Inch Trapezoid Head Unit Fascia Mazda BT-50 RG04 Series (3rd Generation) 2020–2023. OEM Mazda Finish. Fascia Panel Only. Not Compatible with Previous BT-50 or Isuzu D-MAX/MU-X.

Product Overview

The Stinger SF9-MZ03 is a vehicle-specific 9-inch trapezoid head unit fascia designed exclusively for the Mazda BT-50 RG04 Series (3rd generation, 2020–2023). Although the RG04 BT-50 shares its mechanical platform with the Isuzu D-MAX and MU-X, the BT-50 features a completely distinct Mazda-designed dashboard with brand-specific styling, trim materials, and interior aesthetics the SF9-MZ03 is dedicated to this Mazda-specific dashboard and is not compatible with Isuzu D-MAX or MU-X models, which use the SF9-IZ02.

Key Specifications

  • Part number: SF9-MZ03
  • Brand: Stinger
  • Product type: 9-inch trapezoid head unit fascia
  • Compatible head unit format: 9-inch trapezoid only
  • Finish: Mazda factory colour match with textured grain
  • Vehicle: Mazda BT-50 RG04 Series (3rd generation) 2020–2023
  • Platform: Isuzu-based — Mazda-specific dashboard
  • Confirmed compatible head units: Alpine INE-AW4095, Alpine INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X
  • Not compatible with: BT-50 UR Series 2015–2019 (SF9-MZ02) / Isuzu D-MAX / Isuzu MU-X (SF9-IZ02)
  • Includes: Fascia panel only
  • Wiring harness: Not included — sold separately
  • Antenna adaptor: Not included — sold separately
  • SWC interface: Not included — sold separately
  • Camera retention harness: Not included — sold separately

Features & Benefits

  • Exclusive RG04 BT-50 Fitment — Not Isuzu Compatible Although the BT-50 RG04 shares its mechanical underpinnings with the Isuzu D-MAX/MU-X, the Mazda dashboard is a completely independent design. The SF9-MZ03 is precision-moulded for the Mazda-specific dashboard layout, trim alignment, and brand finish — it will not fit the Isuzu dashboard.
  • Third-Generation BT-50 Only — Not for UR Series The RG04 (2020–2023) and the previous UR Series (2015–2019) are completely different platforms with different dashboard architectures. The SF9-MZ02 covers the UR Series. Confirm the build year before purchasing.
  • Mazda Factory Finish — Textured Grain Moulded to match the BT-50 RG04 factory dashboard finish including texture and grain pattern — integrating the head unit as a factory-matched dashboard component.
  • Camera Retention Harness Required All 2020+ BT-50 RG04 models are equipped with a factory reverse camera. A camera retention harness must be purchased separately to maintain reverse camera functionality with the aftermarket head unit.
  • CAN-Bus Integration Note Some BT-50 RG04 functions previously accessible through the factory screen (vehicle settings, trip computer) may require CAN-bus integration for continued access through the aftermarket head unit. Consult a professional installer for full feature compatibility specific to the vehicle's configuration.

Technical Specs

Specification Detail
Brand Stinger
Part Number SF9-MZ03
Product Type 9-Inch Trapezoid Head Unit Fascia
Compatible Format 9-Inch Trapezoid
Finish Mazda Factory Colour Match, Textured Grain
Vehicle Mazda BT-50 RG04 Series (3rd Gen) 2020–2023
Platform Isuzu-based — Mazda-specific dashboard
Not Compatible BT-50 UR 2015–2019 (SF9-MZ02) / Isuzu D-MAX / Isuzu MU-X (SF9-IZ02)
Confirmed Head Units Alpine INE-AW4095, INE-AX809; Kenwood DMX80AXS; Pioneer DMH-AP6650BT; Aerpro AM9X
Includes Fascia Panel Only
Wiring Harness Not included
Antenna Adaptor Not included
SWC Interface Not included
Camera Retention Harness Not included — required (all RG04 have reverse camera)

Compatible With / Goes Well With

Vehicle compatibility:

Make Model Year Range Series
Mazda BT-50 2020–2023 RG04 Series (3rd Generation)

Not compatible with:

  • Mazda BT-50 UR Series 2015–2019 — requires SF9-MZ02
  • Isuzu D-MAX 2019–2023 — requires SF9-IZ02
  • Isuzu MU-X 2019–2023 — requires SF9-IZ02

Confirmed compatible 9-inch trapezoid head units:

  • Alpine INE-AW4095
  • Alpine INE-AX809
  • Kenwood DMX80AXS
  • Pioneer DMH-AP6650BT
  • Aerpro AM9X

Required accessories (sold separately):

  • Mazda BT-50 RG04 wiring harness (Mazda-to-ISO)
  • Antenna adaptor (Mazda proprietary to standard)
  • Steering wheel control interface
  • Reverse camera retention harness (required — all RG04 models have factory camera)

Frequently Asked Questions

Is the SF9-MZ03 compatible with Isuzu D-MAX or MU-X models?

No — despite sharing the same mechanical platform, the Mazda BT-50 RG04 and the Isuzu D-MAX/MU-X have completely different dashboard designs. The SF9-MZ03 is for the Mazda BT-50 RG04 only. Isuzu D-MAX and MU-X require the SF9-IZ02.

What is the difference between the SF9-MZ02 and SF9-MZ03?

The SF9-MZ02 is for the previous-generation BT-50 UR Series (2015–2019) built on the Ford Ranger platform. The SF9-MZ03 is for the current third-generation BT-50 RG04 Series (2020–2023) built on the Isuzu platform. The two generations have entirely different dashboard architectures and are not interchangeable.

Does the SF9-MZ03 include a wiring harness or steering wheel control interface?

No — the SF9-MZ03 is a fascia panel only. A Mazda BT-50 RG04-specific wiring harness, antenna adaptor, steering wheel control interface, and reverse camera retention harness are all required separately for a complete installation.

Do all 2020–2023 Mazda BT-50 models have a factory reverse camera?

Yes — all third-generation RG04 BT-50 models are equipped with a factory reverse camera. A camera retention harness is required to maintain reverse camera functionality after installing an aftermarket head unit.

Is professional installation recommended for the SF9-MZ03?

Yes — the BT-50 RG04 dashboard involves Mazda-specific disassembly procedures, multiple factory integration harnesses, steering wheel control programming, and camera retention. Professional installation by a qualified car audio installer is strongly recommended.
