STINGER SF9-IZ02 9-Inch Trapezoid Fascia for 2019-2023 Isuzu D-MAX/MU-X
Click to open expanded view
STINGER logo

STINGER SF9-IZ02 9-Inch Trapezoid Fascia for 2019-2023 Isuzu D-MAX/MU-X

SKU: SF9IZ02
Sale price
$134.99
Regular price
$149.99
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

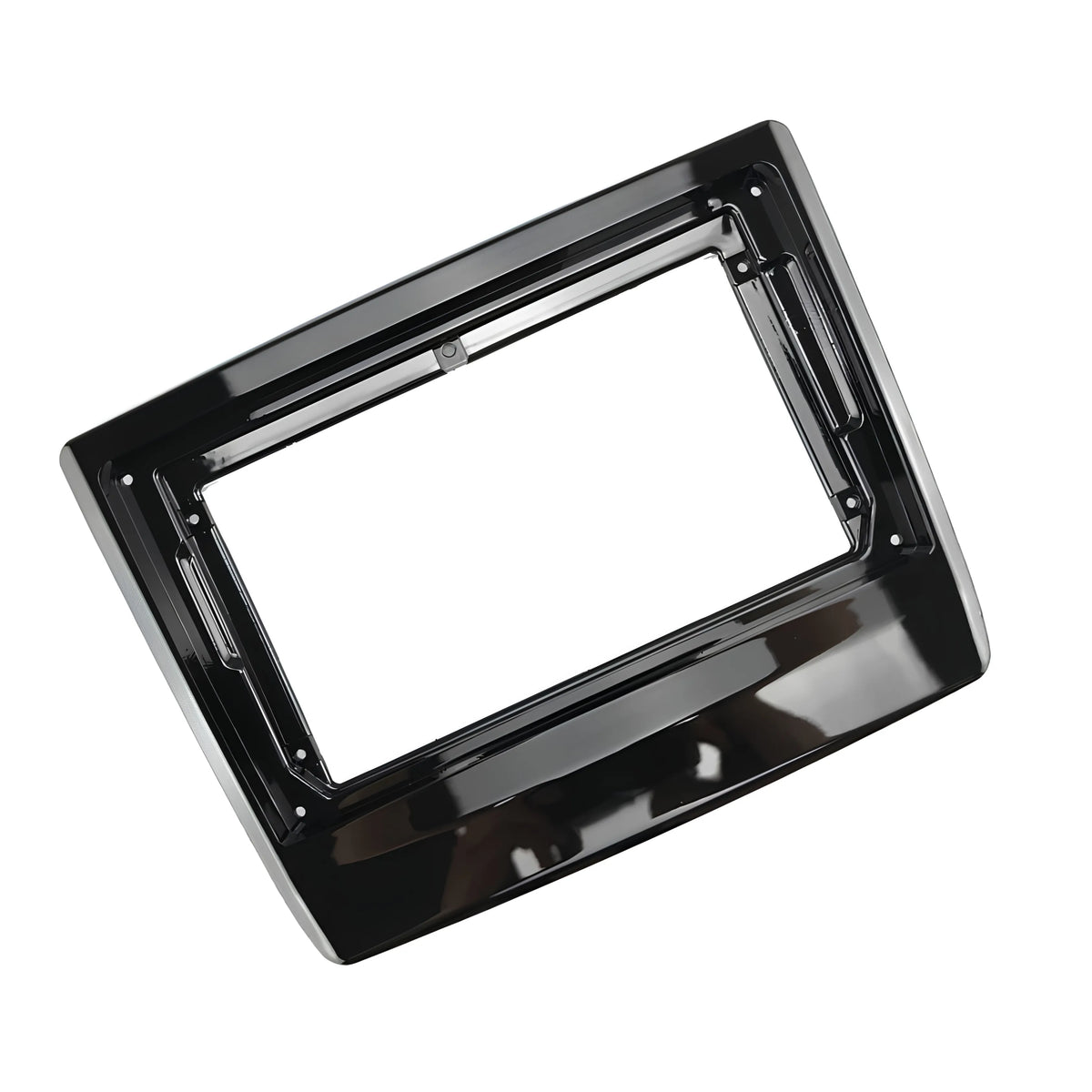

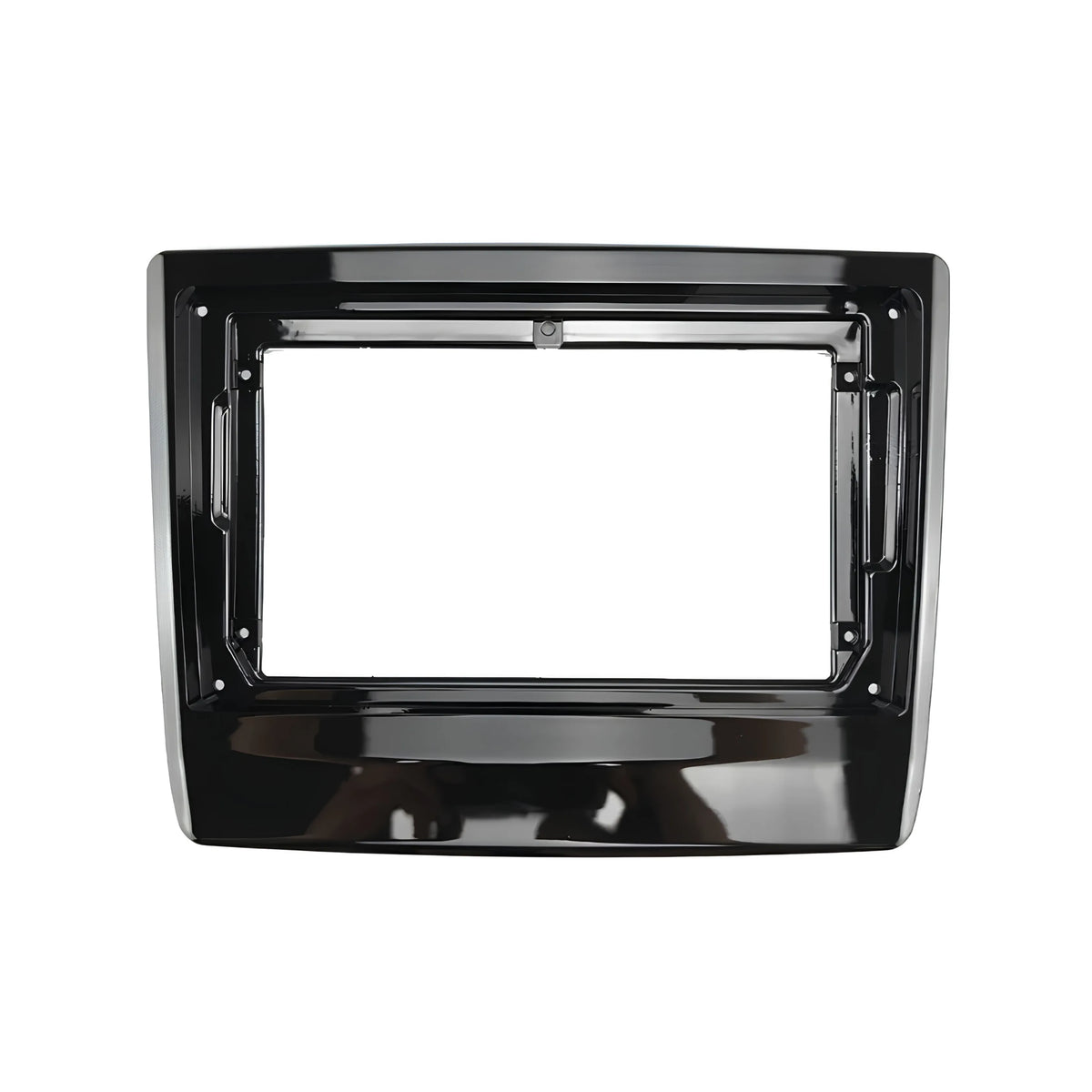

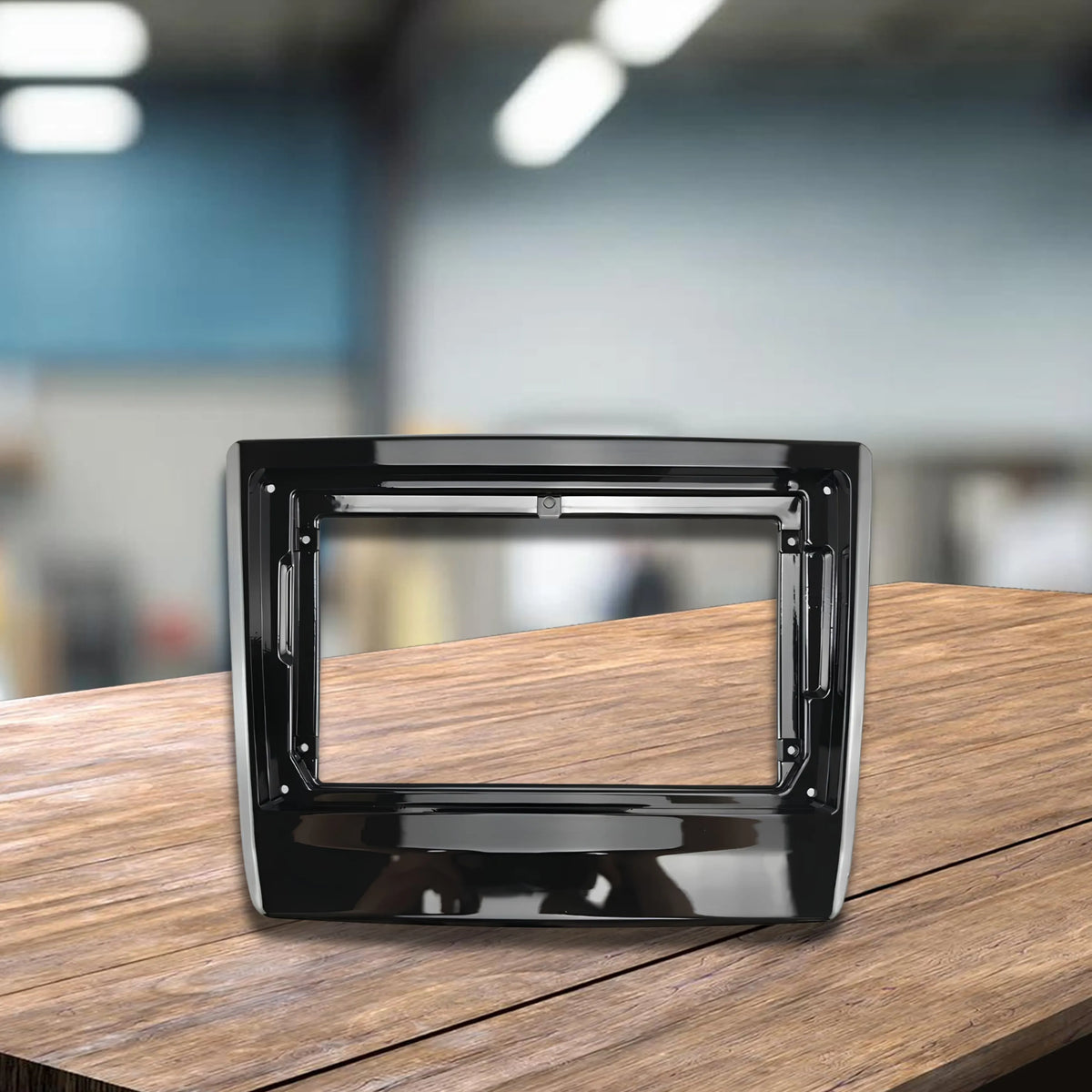

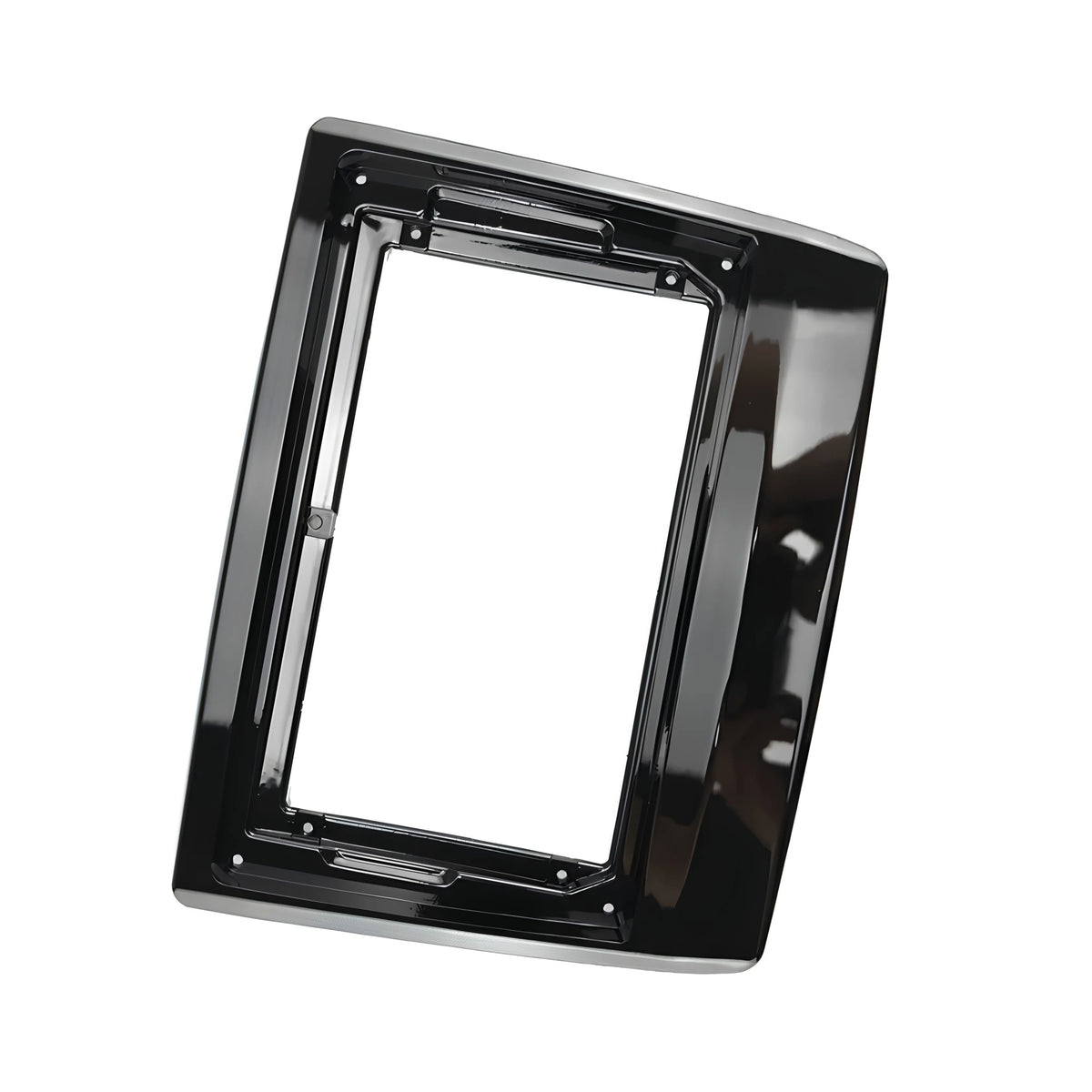

Gloss Black 9-Inch Trapezoid Head Unit Fascia Isuzu D-MAX and MU-X 4th Generation 2019–2023. Covers Both D-MAX Utility and MU-X SUV. Fascia Panel Only. Not Compatible with 3rd Generation Models.

Product Overview

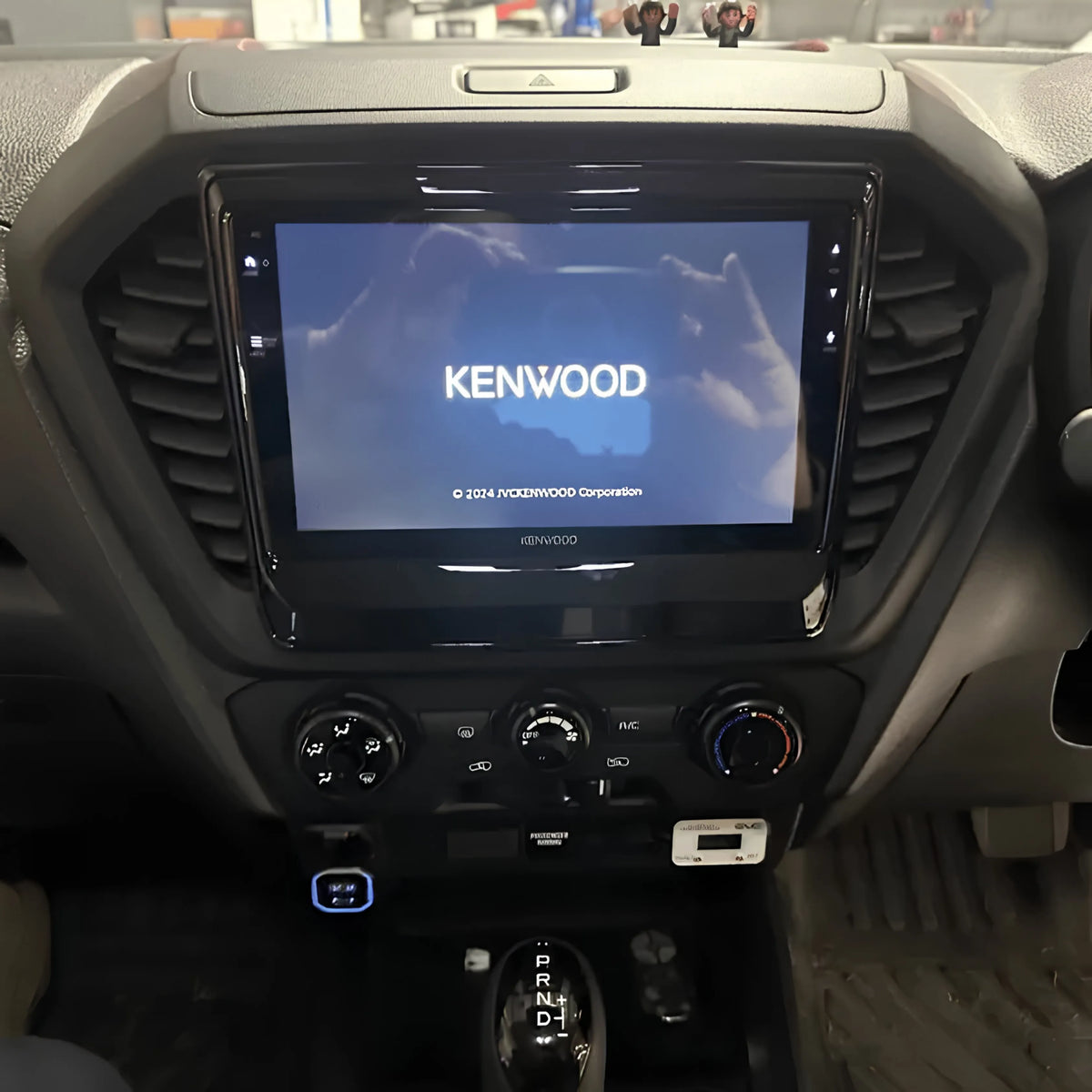

The Stinger SF9-IZ02 is a vehicle-specific gloss black 9-inch trapezoid head unit fascia designed for the 4th-generation Isuzu D-MAX (utility, 2019–2023) and MU-X (seven-seat SUV, 2019–2023). Both models share the same platform architecture and dashboard design a single fascia solution covers both body styles.

Key Specifications

  • Part number: SF9-IZ02
  • Brand: Stinger
  • Product type: 9-inch trapezoid head unit fascia
  • Compatible head unit format: 9-inch trapezoid only
  • Finish: Gloss black
  • Vehicles: Isuzu D-MAX (utility) and MU-X (SUV) 2019–2023 (4th generation)
  • Confirmed compatible head units: Alpine INE-AW4095, Alpine INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X
  • Not compatible with: Isuzu D-MAX 2012–2019 (3rd gen) / Isuzu MU-X 2013–2019 (3rd gen) / Mazda BT-50 RG04 (SF9-MZ03)
  • Includes: Fascia panel only
  • Wiring harness: Not included — sold separately
  • Antenna adaptor: Not included — sold separately
  • SWC interface: Not included — sold separately
  • Camera retention harness: Not included — sold separately (required)

Features & Benefits

  • Covers Both D-MAX and MU-X — One SKU The 4th-generation D-MAX utility and MU-X seven-seat SUV share the same platform and dashboard architecture. The SF9-IZ02 is the correct fascia for both body styles — no separate SKU required based on D-MAX or MU-X variant.
  • 4th-Generation Only — 2019 Onwards The 4th-generation platform (2019+) has a completely different dashboard from the 3rd-generation (D-MAX 2012–2019, MU-X 2013–2019). The SF9-IZ02 will not fit 3rd-generation models. Confirm the build year from the vehicle compliance plate before purchasing.
  • Gloss Black Finish — Matches Isuzu Factory Interior The 4th-generation D-MAX and MU-X feature gloss black trim throughout the infotainment surround, centre console, and dashboard accents. The SF9-IZ02's gloss black finish matches these factory elements for a factory-integrated appearance.
  • Not Compatible with Mazda BT-50 RG04 Despite platform sharing with the Mazda BT-50 RG04 (2020–2023), the Mazda dashboard is a completely different design. The SF9-MZ03 is required for the BT-50 RG04.
  • Camera Retention Harness Required All 4th-generation D-MAX and MU-X models have a factory reverse camera. A camera retention harness must be purchased separately to maintain this functionality.

Technical Specs

Specification Detail
Brand Stinger
Part Number SF9-IZ02
Product Type 9-Inch Trapezoid Head Unit Fascia
Compatible Format 9-Inch Trapezoid
Finish Gloss Black
Vehicles Isuzu D-MAX (utility) / MU-X (SUV) 2019–2023 (4th gen)
Not Compatible D-MAX 2012–2019 (3rd gen) / MU-X 2013–2019 (3rd gen) / Mazda BT-50 RG04 (SF9-MZ03)
Confirmed Head Units Alpine INE-AW4095, INE-AX809; Kenwood DMX80AXS; Pioneer DMH-AP6650BT; Aerpro AM9X
Includes Fascia Panel Only
Wiring Harness Not included
Antenna Adaptor Not included
SWC Interface Not included
Camera Retention Harness Not included — required for all 2019+ models

Compatible With / Goes Well With

Vehicle compatibility:

Make Model Year Range Generation
Isuzu D-MAX 2019–2023 4th Generation
Isuzu MU-X 2019–2023 4th Generation

Not compatible with:

  • Isuzu D-MAX 2012–2019 (3rd generation)
  • Isuzu MU-X 2013–2019 (3rd generation)
  • Mazda BT-50 RG04 2020–2023 (requires SF9-MZ03 — different dashboard)

Confirmed compatible 9-inch trapezoid head units:

  • Alpine INE-AW4095
  • Alpine INE-AX809
  • Kenwood DMX80AXS
  • Pioneer DMH-AP6650BT
  • Aerpro AM9X

Required accessories (sold separately):

  • Isuzu D-MAX / MU-X 4th gen wiring harness (Isuzu-to-ISO)
  • Antenna adaptor (Isuzu proprietary to standard)
  • Steering wheel control interface
  • Reverse camera retention harness (required — all models)

Frequently Asked Questions

Is the SF9-IZ02 compatible with both the D-MAX utility and MU-X SUV?

Yes — both the 4th-generation D-MAX (2019–2023) and MU-X (2019–2023) share the same platform and dashboard design. The SF9-IZ02 covers both body styles in a single fascia solution.

Is the SF9-IZ02 compatible with Mazda BT-50 RG04 models?

No — despite sharing the same mechanical platform, the Mazda BT-50 RG04 (2020–2023) has a completely different dashboard design. The correct fascia for the BT-50 RG04 is the SF9-MZ03.

What additional components are required for a complete installation?

A complete installation requires a 4th-gen Isuzu-specific wiring harness (Isuzu-to-ISO), antenna adaptor, steering wheel control interface, and reverse camera retention harness. All are sold separately — consult a professional installer or contact F.A.E. for a complete parts list specific to the vehicle's configuration.

Will all factory D-MAX and MU-X functions be maintained?

Physical climate controls, vents, and switches remain fully functional. Steering wheel controls and factory camera retain function through the appropriate retention harnesses. Some factory screen functions (vehicle settings, trip computer data) may require CAN-bus integration for continued access through the aftermarket head unit.

Is professional installation recommended?

Yes — the 4th-generation D-MAX and MU-X dashboard involves specific disassembly procedures, Isuzu factory integration harnesses, steering wheel control programming, and camera retention. Professional installation by a qualified car audio installer is recommended.
