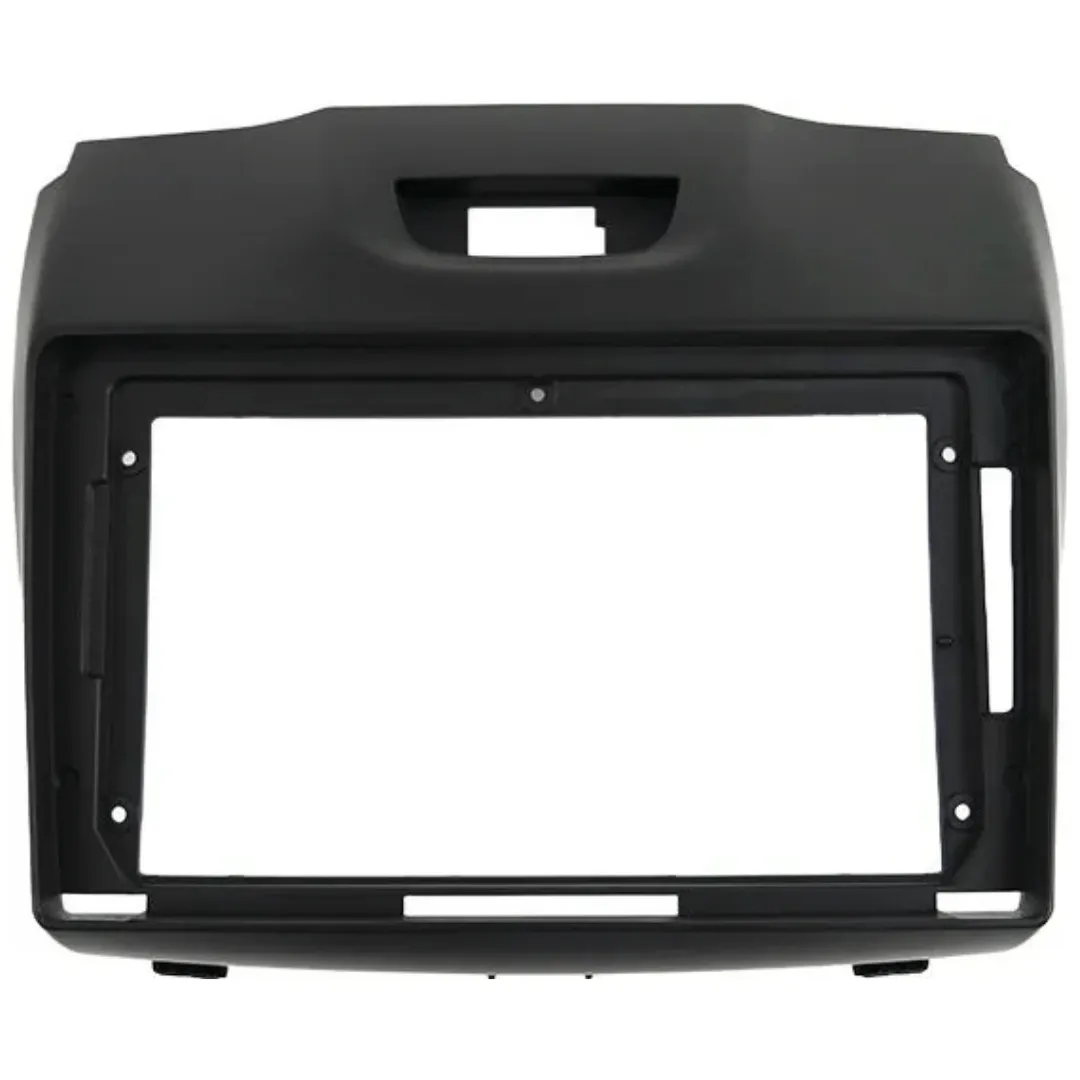

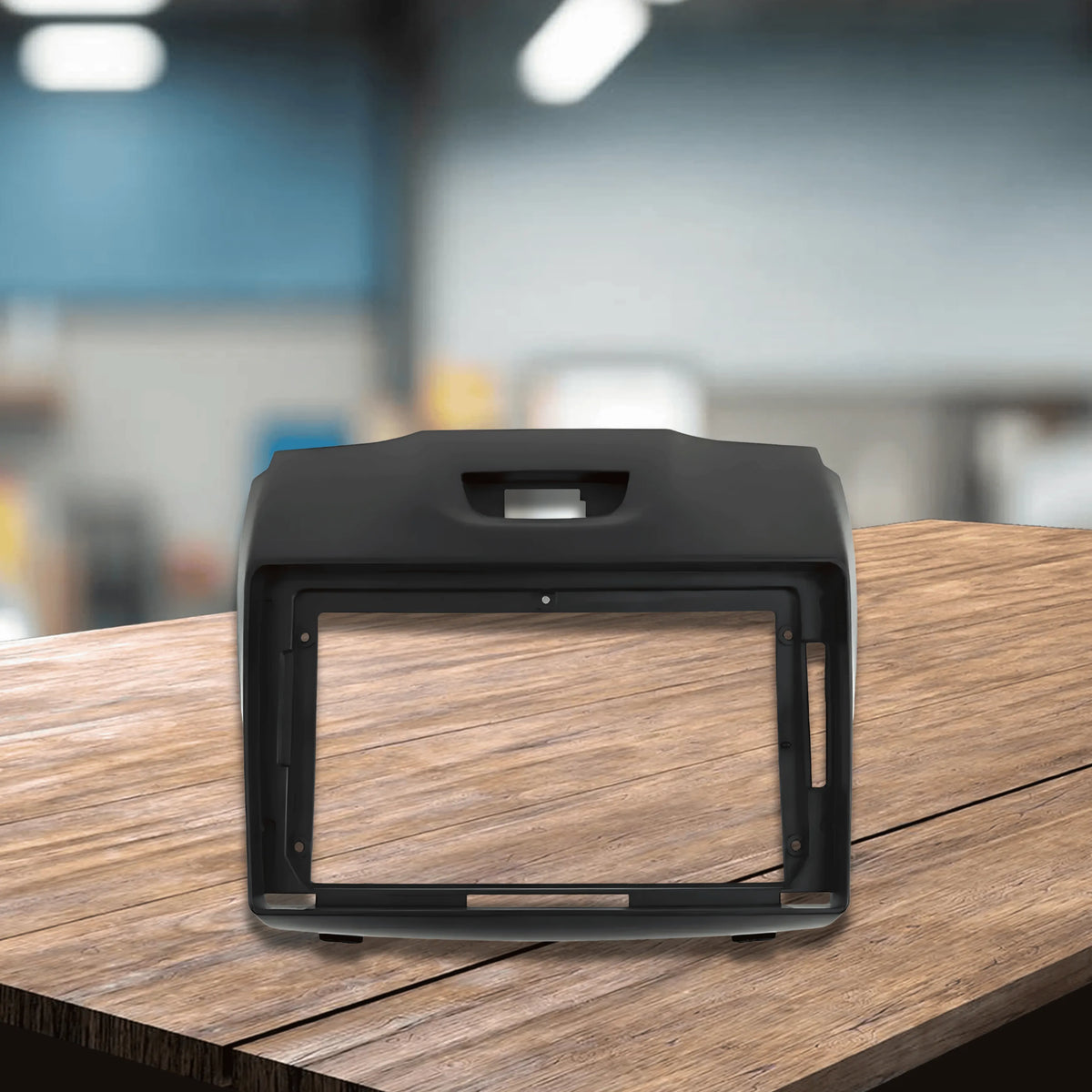

Stinger SF9-IZ01 9" Trapezoid Fascia for Isuzu D-MAX/MU-X (2012-2019)

SKU: SF9IZ01
Sale price
$67.50
Regular price
$75
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

9-Inch Trapezoid Head Unit Fascia Isuzu D-MAX RT50-RT85 (2012–2019) and MU-X RF10/RF20 (2013–2017). Covers Both Ute and SUV. Fascia Panel Only. Not Compatible with 2020+ D-MAX or 2018+ MU-X.

Product Overview

The Stinger SF9-IZ01 is a vehicle-specific 9-inch trapezoid head unit fascia designed for the Isuzu D-MAX (RT50-RT85 chassis, 2012–2019) and MU-X (RF10/RF20 chassis, 2013–2017). Both models share identical dashboard architecture during these production periods one fascia covers both. This is the earlier-generation companion to the SF9-IZ02, which covers the redesigned 2019–2023 fourth-generation D-MAX and MU-X. The D-MAX and MU-X factory dashboards feature a trapezoid-shaped aperture that standard rectangular double DIN fascias cannot accommodate. The SF9-IZ01 is precision-moulded for this trapezoid geometry, providing a flush, factory-quality fit across D-MAX variants (SX, LS-M, LS-U, LS-T) and MU-X variants (LS-M, LS-U, LS-T) for the complete respective production runs.

Confirmed compatible head units include Alpine INE-AW4095, Alpine INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, and Aerpro AM9X. The SF9-IZ01 is not compatible with the 2020+ third-generation D-MAX or the 2018+ second-generation MU-X both received completely redesigned dashboards covered by the SF9-IZ02. The finish is factory colour-matched (typically black or dark grey confirm the exact colour from the official Stinger SF9-IZ01 product page before publishing). Wiring harness, antenna adaptor, and steering wheel control interface are not included.

Key Specifications

  • Part number: SF9-IZ01
  • Brand: Stinger
  • Product type: 9-inch trapezoid head unit fascia
  • Compatible head unit format: 9-inch trapezoid only
  • Finish: Factory colour match — typically black/dark grey (confirm from official product page)
  • D-MAX: RT50-RT85 Series 2012–2019 (SX, LS-M, LS-U, LS-T)
  • MU-X: RF10 2013–2015 / RF20 2016–2017 (LS-M, LS-U, LS-T)
  • Not compatible with: D-MAX 2020+ / MU-X 2018+ (both require SF9-IZ02)
  • Confirmed compatible head units: Alpine INE-AW4095, Alpine INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X
  • Includes: Fascia panel only
  • Wiring harness: Not included — sold separately
  • Antenna adaptor: Not included — sold separately
  • SWC interface: Not included — sold separately
  • Camera retention harness: Not included — sold separately

Features & Benefits

  • Covers Both D-MAX Ute and MU-X SUV — One SKU The RT50-RT85 D-MAX and RF10/RF20 MU-X share the same dashboard architecture. The SF9-IZ01 covers both vehicles across all trim levels without requiring separate products for each.
  • Earlier Generation — Not for 2020+ D-MAX or 2018+ MU-X The 2020+ third-generation D-MAX and 2018+ second-generation MU-X received completely redesigned dashboards. These are covered by the SF9-IZ02. The SF9-IZ01 covers the earlier RT50-RT85/RF10-RF20 generation only. Confirm the chassis code and year before purchasing.
  • 9-Inch Trapezoid — Standard Double DIN Will Not Fit The D-MAX and MU-X factory aperture is trapezoid-shaped. Standard double DIN fascias cannot mount correctly. The SF9-IZ01 is the required solution for 9-inch head unit fitment in these models.
  • Factory Finish — UV-Resistant ABS Moulded to match the Isuzu factory dashboard finish for a factory-integrated appearance across the D-MAX and MU-X dashboard.
  • Fascia Panel Only — Installer Flexibility Supplied as the fascia alone, allowing installers to source the correct wiring harness, SWC interface, and accessories for the vehicle's specific trim configuration.

Technical Specs

Specification Detail
Brand Stinger
Part Number SF9-IZ01
Product Type 9-Inch Trapezoid Head Unit Fascia
Compatible Format 9-Inch Trapezoid
Finish Factory colour match, typically black/dark grey (confirm from official page)
D-MAX Application RT50-RT85 Series 2012–2019 (SX, LS-M, LS-U, LS-T)
MU-X Application RF10 2013–2015 / RF20 2016–2017 (LS-M, LS-U, LS-T)
Not Compatible D-MAX 2020+ / MU-X 2018+ (SF9-IZ02)
Confirmed Head Units Alpine INE-AW4095, INE-AX809; Kenwood DMX80AXS; Pioneer DMH-AP6650BT; Aerpro AM9X
Includes Fascia Panel Only
Wiring Harness Not included
Antenna Adaptor Not included
SWC Interface Not included
Camera Retention Harness Not included

Compatible With / Goes Well With

Vehicle compatibility:

Make Model Chassis Year Range Trim Variants
Isuzu D-MAX RT50, RT85 2012–2019 SX, LS-M, LS-U, LS-T
Isuzu MU-X RF10, RF20 2013–2017 LS-M, LS-U, LS-T

Not compatible with:

  • Isuzu D-MAX 2020 and newer (requires SF9-IZ02)
  • Isuzu MU-X 2018 and newer (requires SF9-IZ02)

Confirmed compatible 9-inch trapezoid head units:

  • Alpine INE-AW4095
  • Alpine INE-AX809
  • Kenwood DMX80AXS
  • Pioneer DMH-AP6650BT
  • Aerpro AM9X

Recommended accessories (sold separately):

  • Isuzu D-MAX / MU-X-specific wiring harness (Isuzu-to-ISO)
  • Antenna adaptor for Isuzu
  • Steering wheel control interface
  • Reverse camera retention harness (if equipped)

Frequently Asked Questions

Does the SF9-IZ01 cover both the D-MAX ute and MU-X SUV?

Yes — the RT50-RT85 D-MAX (2012–2019) and RF10/RF20 MU-X (2013–2017) share the same dashboard architecture. One fascia covers both vehicles across all trim levels.

What is the difference between the SF9-IZ01 and SF9-IZ02?

The SF9-IZ01 covers the earlier D-MAX RT50-RT85 (2012–2019) and MU-X RF10/RF20 (2013–2017). The SF9-IZ02 covers the redesigned fourth-generation D-MAX and MU-X from 2019 onwards. Both generations have different dashboards — confirm the chassis code and year before purchasing.

Is the SF9-IZ01 compatible with 2020 or newer D-MAX models?

No — the 2020+ D-MAX received a completely redesigned dashboard. The SF9-IZ02 is the correct fascia for 2019-onwards D-MAX and MU-X models.

Does the SF9-IZ01 include wiring harnesses or installation accessories?

No — the SF9-IZ01 is a fascia panel only. An Isuzu-specific wiring harness, antenna adaptor, and SWC interface are all required separately.

Which 9-inch head units are confirmed compatible?

Confirmed compatible head units include Alpine INE-AW4095, Alpine INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, and Aerpro AM9X. Standard double DIN or universal 9-inch units will not fit without this vehicle-specific fascia.
