Stinger SF9-HY01 Hyundai iLoad/iMax 2016-2020 9 Inch Trapezoid Head Unit Fascia Black

SKU: SF9HY01
Sale price
$179.10
Regular price
$199
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

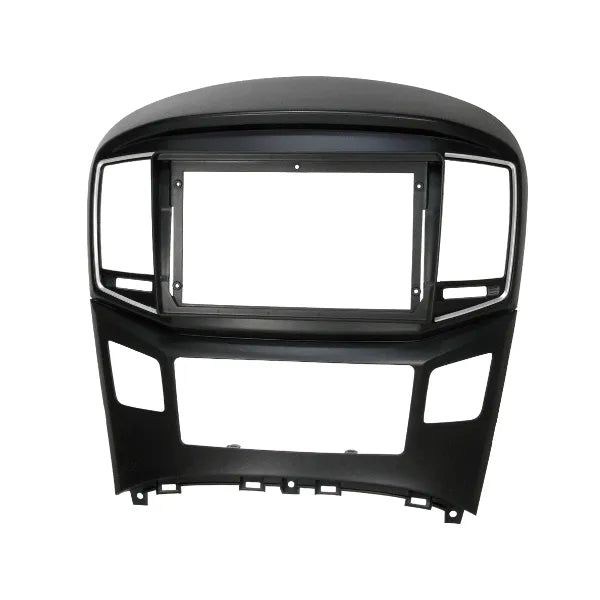

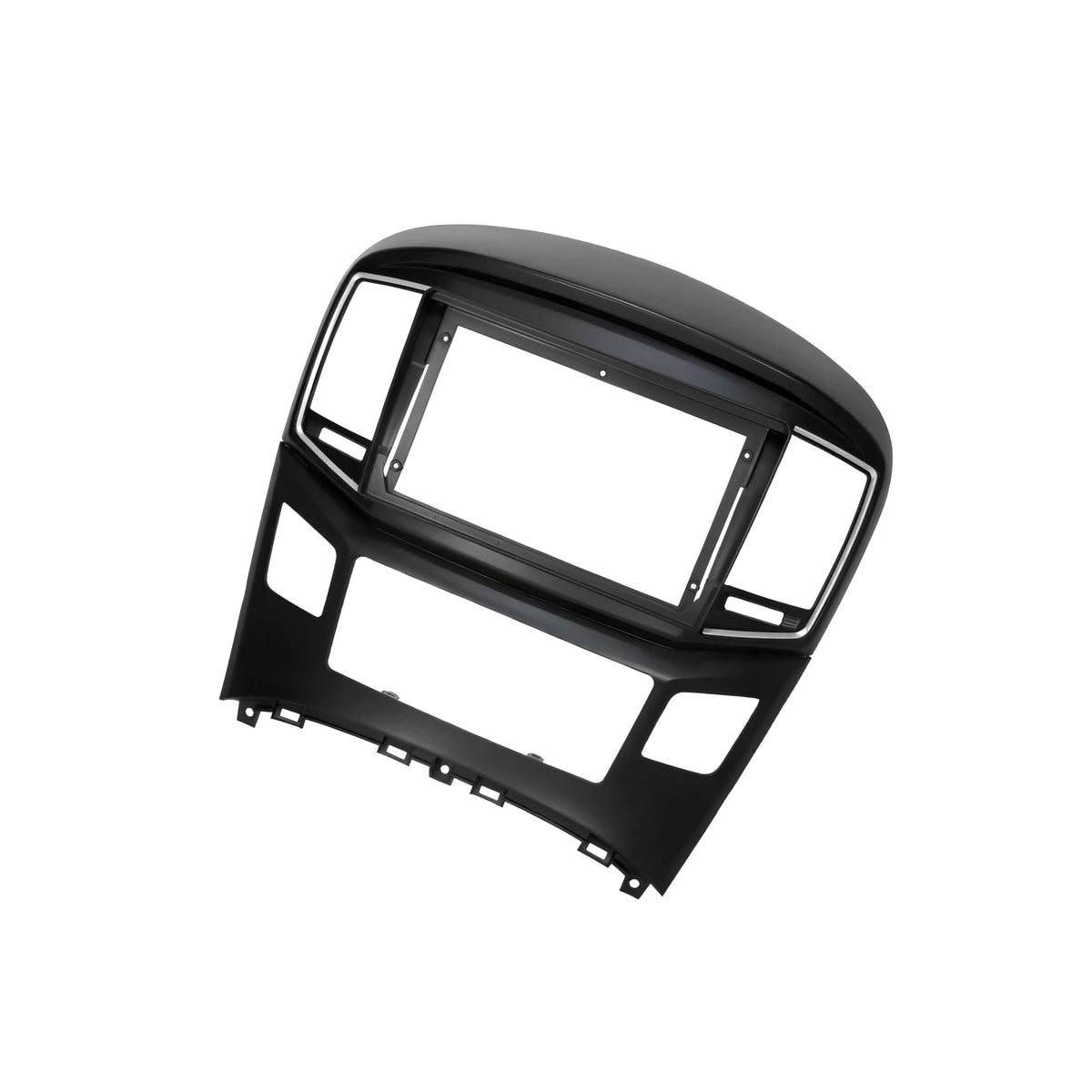

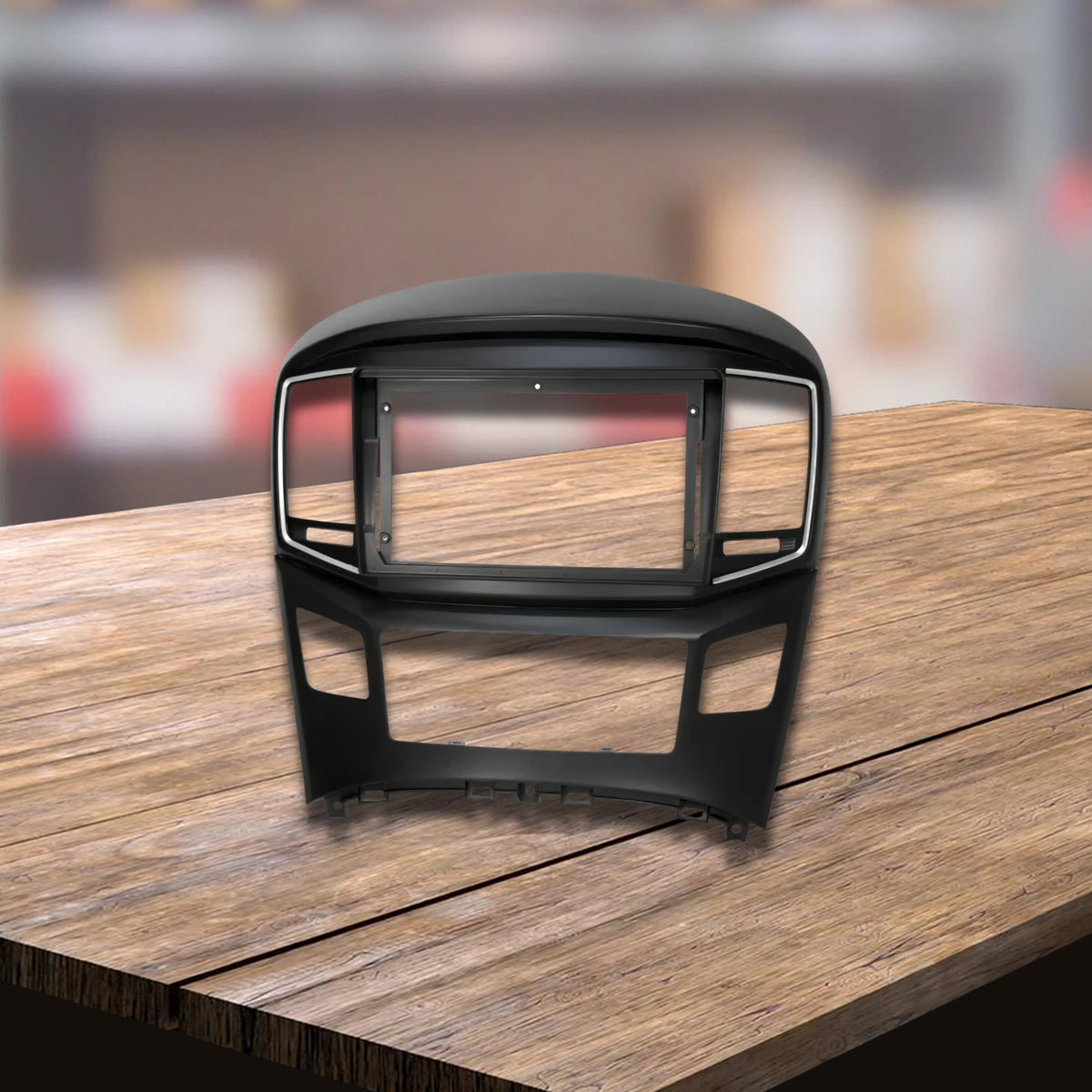

Stinger SF9-HY01 Black 9-Inch Trapezoid Fascia for Hyundai iLoad and iMax 2016–2020

The Stinger SF9-HY01 is a vehicle-specific double DIN fascia adapter designed to suit Hyundai iLoad and iMax models from 2016 to 2020. Built for 9-inch trapezoid-format head units, it provides a clean, factory-matched finish when upgrading the factory stereo. Sold as a fascia panel only.

Product overview

Replacing the factory head unit in a Hyundai iLoad or iMax often means dealing with an awkward dash opening that standard double DIN panels simply won't fill correctly. The SF9-HY01 resolves that with a purpose-built trapezoid fascia that matches the contours of the iLoad and iMax dash. The black finish blends with factory interior trim, and the panel accepts a range of popular 9-inch aftermarket head units including models from Alpine, Kenwood, Mongoose, Pioneer and Aerpro. Installation is straightforward for any experienced auto electrician or installer familiar with these vehicles.

Features and benefits

Vehicle-specific fit for Hyundai iLoad and iMax 2016–2020: Engineered specifically for iLoad and iMax dash openings from 2016 to 2020, eliminating gaps and misalignment common with generic fascias.

Trapezoid head unit format compatibility: Designed around the trapezoid head unit form factor used by several major brands, ensuring a proper face-to-frame fit without modification.

Black finish: Matches factory interior trim colour in the Hyundai iLoad and iMax, producing a clean finished result.

Broad head unit compatibility: Confirmed compatible with popular aftermarket head units from Alpine, Kenwood, Mongoose, Pioneer and Aerpro, covering a wide range of installation scenarios.

Fascia-only design: Supplied as a fascia panel, allowing installers to pair it with the specific head unit and wiring harness of their choice.

Technical specs

Specification Detail
SKU SF9-HY01
Brand Stinger
Colour Black
Compatible Vehicles Hyundai iLoad 2016–2020, Hyundai iMax 2016–2020
Head Unit Format 9" Trapezoid
Sold As Fascia panel only

Compatible head units

The SF9-HY01 is confirmed compatible with the following 9-inch trapezoid head units:

Brand Model
Alpine INE-AW409S
Alpine INE-AX809
Kenwood DMX80AXS
Mongoose Q9WCA
Pioneer DMH-AP6650BT
Aerpro AM9X

Frequently asked questions

Is the SF9-HY01 compatible with both the Hyundai iLoad and iMax? Yes. The SF9-HY01 is designed to fit both the Hyundai iLoad and iMax across the 2016 to 2020 production years. Both models share the same dash configuration for this application.

Does this fascia include a wiring harness or antenna adaptor? No. The SF9-HY01 is a fascia panel only. A compatible wiring harness and antenna adaptor will need to be purchased separately to complete the installation.

Will any 9-inch head unit fit this fascia? Not necessarily. The SF9-HY01 is designed for the trapezoid head unit format. The confirmed compatible models are listed in the Compatible Head Units section above. For units not on that list, contact us before purchasing to confirm fitment.

Can I use a standard double DIN head unit with this fascia? No. This fascia is designed specifically for 9-inch trapezoid-format head units. A standard double DIN unit will not seat correctly in this panel.

Is this a genuine Stinger product? Yes. The SF9-HY01 is manufactured by Stinger and is part of their vehicle-specific fascia range for Australian-market vehicles. Contact us if you need further information.
