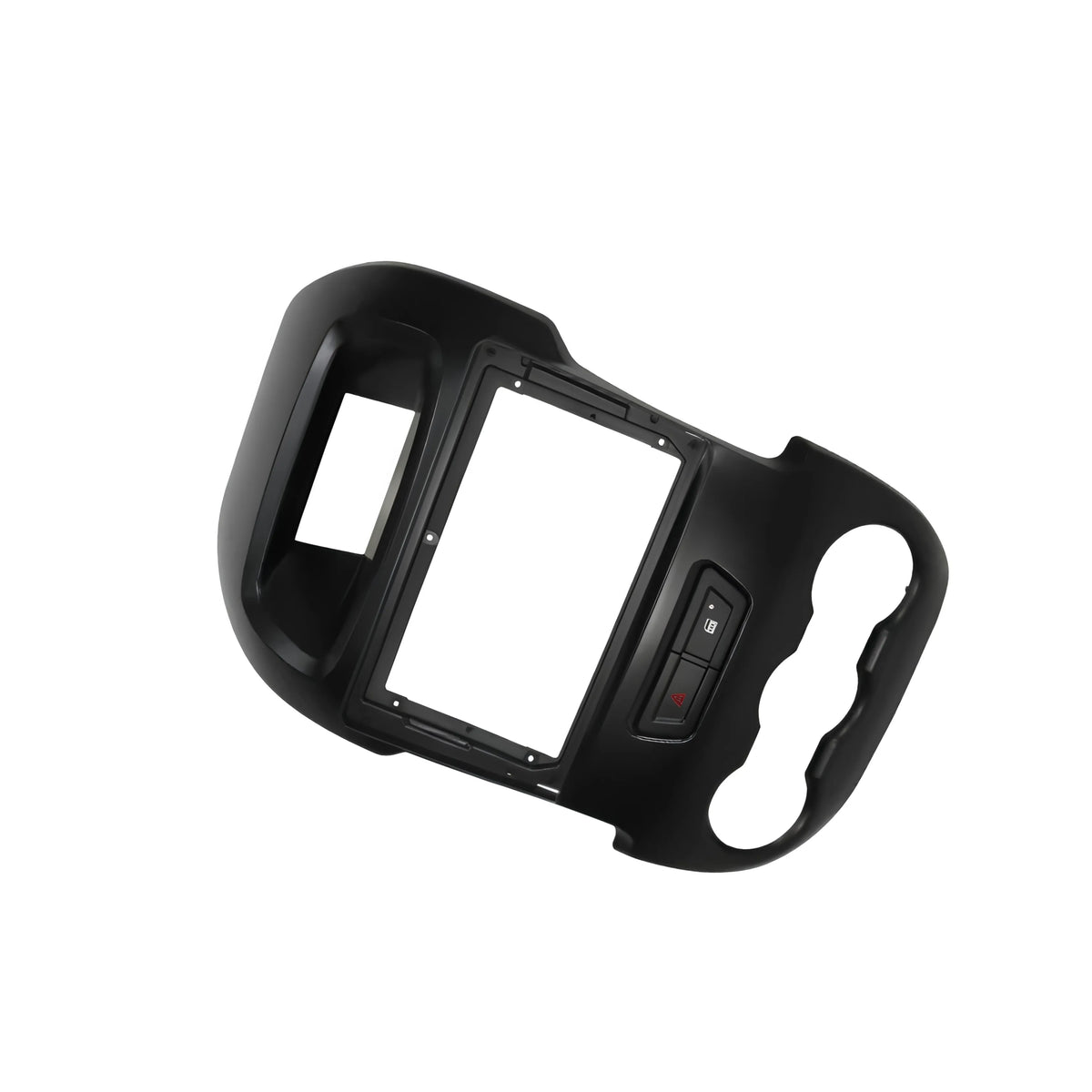

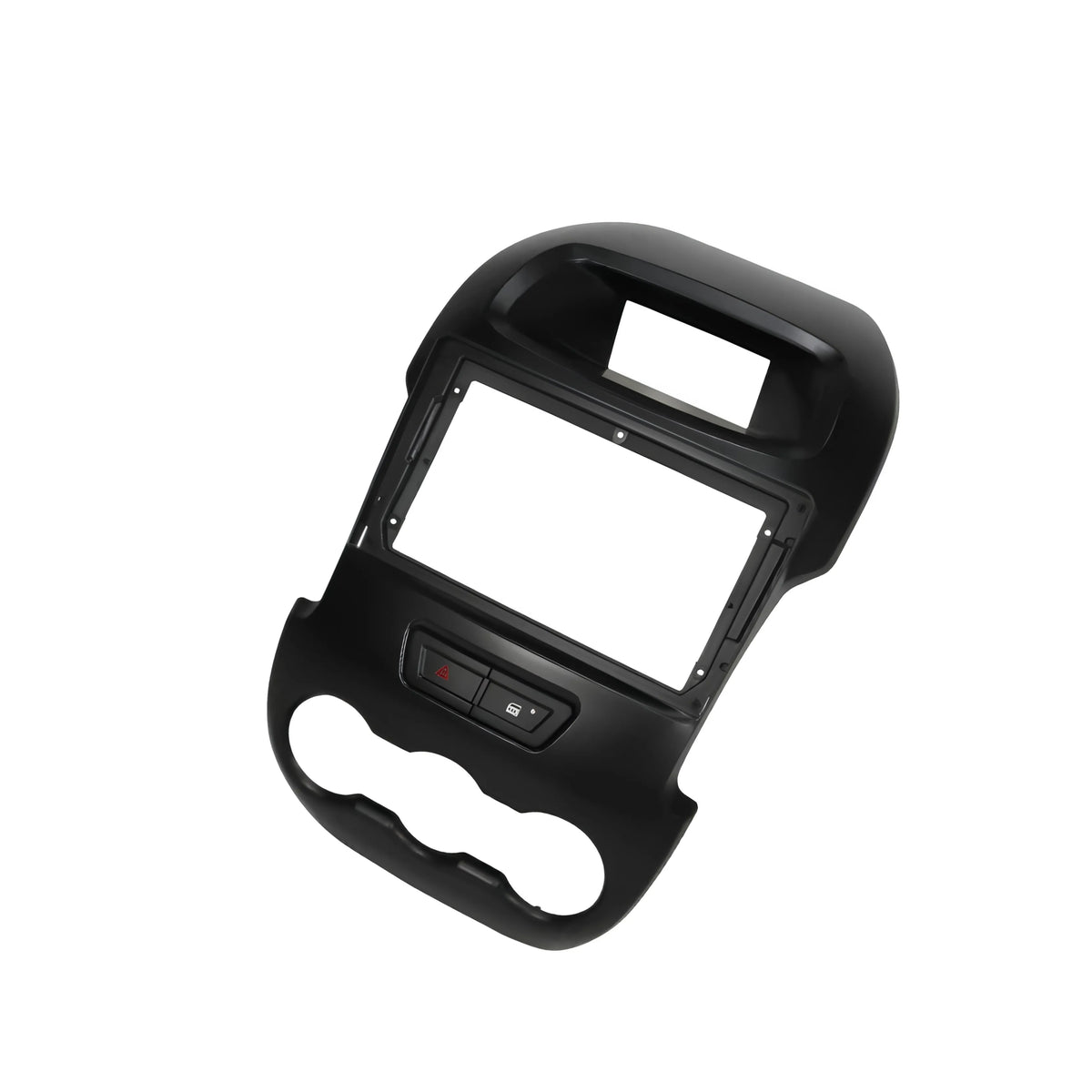

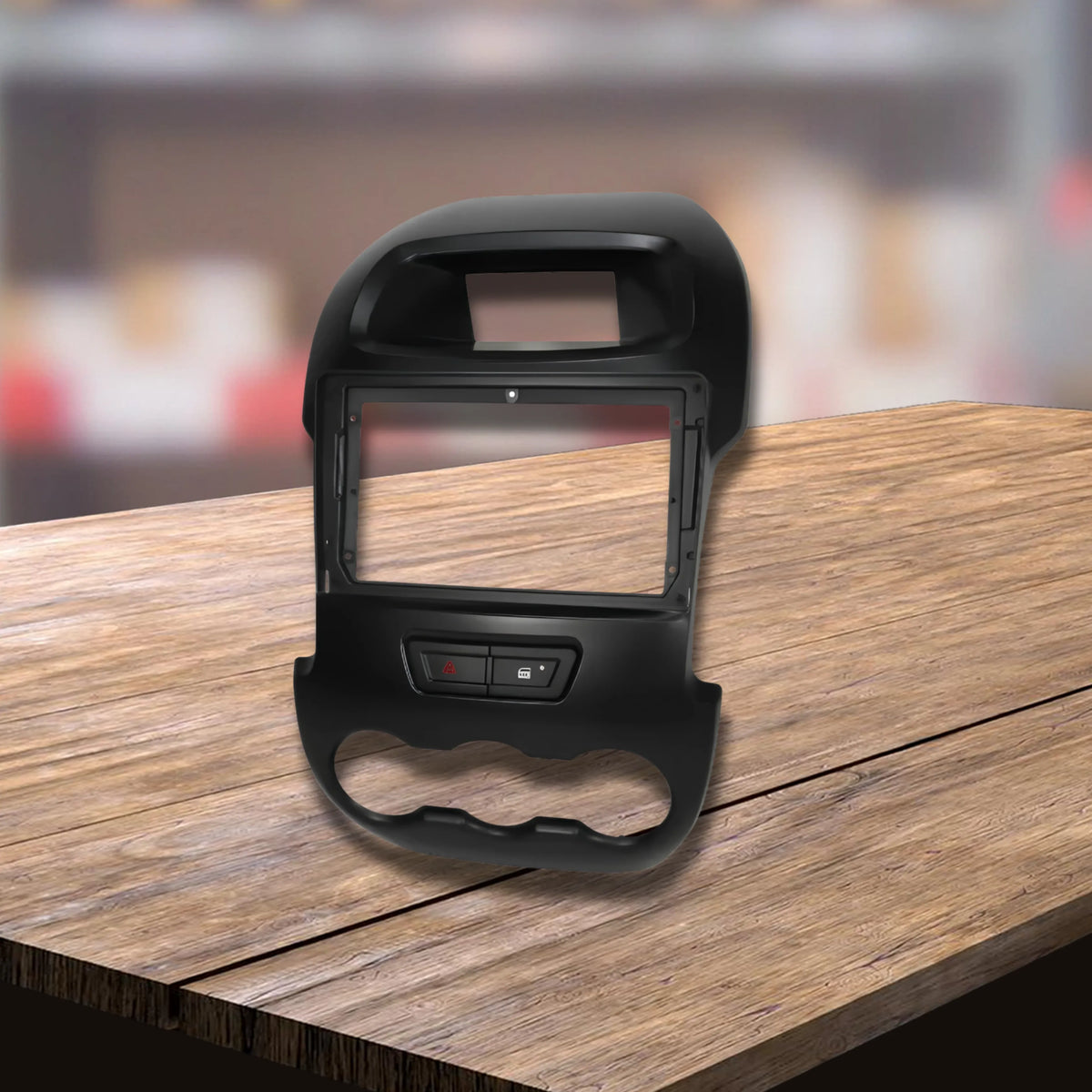

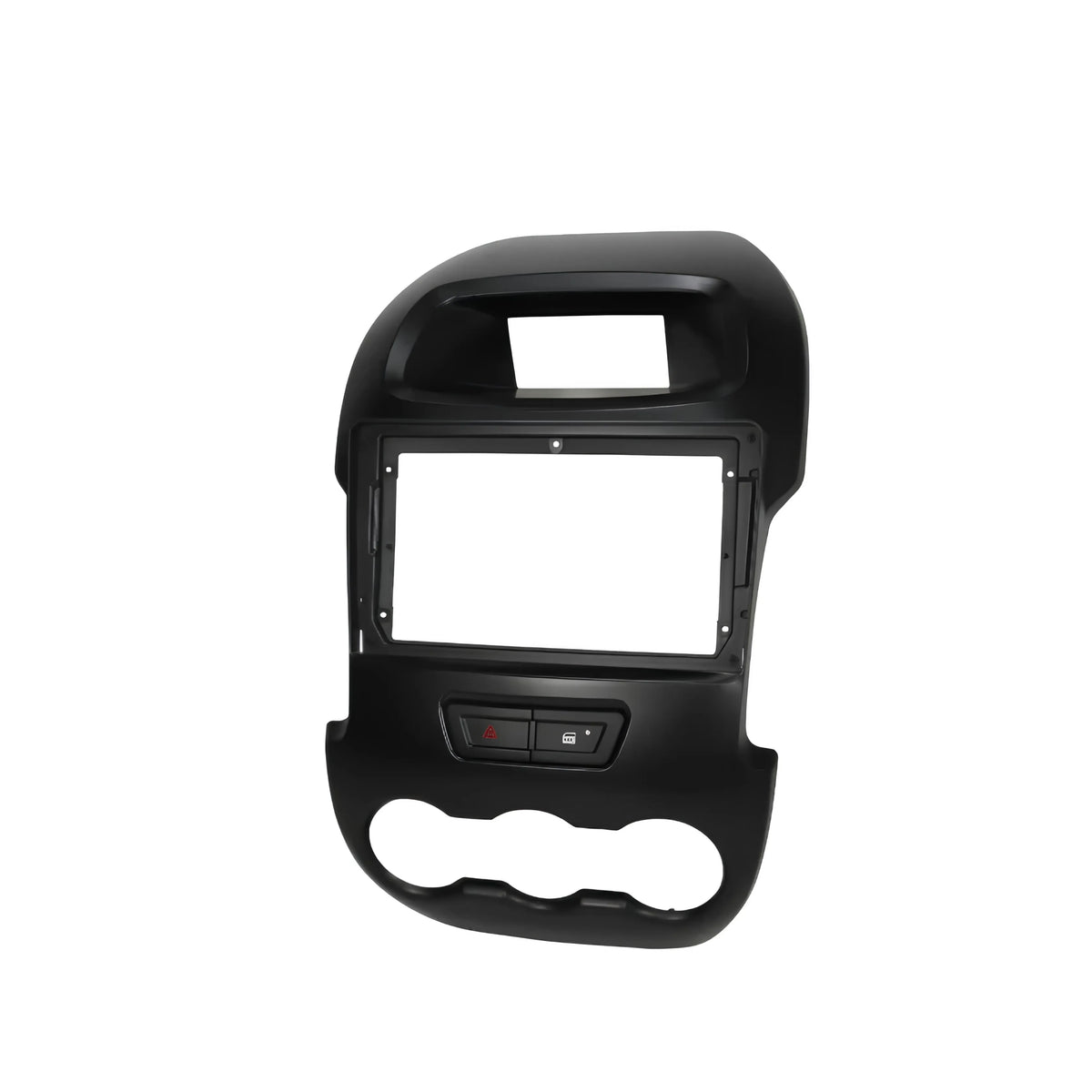

Stinger SF9-FD04 Ford Ranger 2011-2015 PX MK1 9 Inch Trapezoid Head Unit Fascia Black Non-Navigation

9-Inch Trapezoid Head Unit Fascia Ford Ranger PX MK1 2011–2015, Non-Navigation Models Only. Black Finish, OEM Dashboard Integration. Fascia Panel Only.

Product Overview

The Stinger SF9-FD04 is a vehicle-specific 9-inch trapezoid head unit fascia designed exclusively for the Ford Ranger PX MK1 (2011–2015) without factory navigation. The PX MK1 Ranger was produced in both navigation and non-navigation dashboard configurations these two variants have different factory head unit opening dimensions and surrounding trim layouts. The SF9-FD04 is engineered for the non-navigation variant only. PX MK1 Rangers fitted with factory navigation require a separate fascia solution.

Precision-moulded in black to match the Ranger PX MK1 factory dashboard finish, the SF9-FD04 delivers a clean, OEM-style appearance after installation. Compatible with 9-inch trapezoid head units from Alpine, Kenwood, Pioneer, Mongoose, and Aerpro covering the most widely installed large-screen aftermarket options for Ranger PX MK1 owners in the Australian market.

Key Specifications

• Part number: SF9-FD04
• Brand: Stinger
• Product type: 9-inch trapezoid head unit fascia
• Compatible head unit format: 9-inch trapezoid
• Colour: Black
• Vehicle application: Ford Ranger PX MK1 2011–2015
• Navigation compatibility: Non-navigation models only
• Includes: Fascia panel only
• Wiring harness: Not included — sold separately
• Steering wheel control interface: Not included — sold separately
• Antenna adapter: Not included — sold separately

Features & Benefits

• Vehicle-Specific Fitment — Ford Ranger PX MK1 2011–2015 Non-Navigation Precision-moulded specifically for the non-navigation PX MK1 Ranger dashboard, the SF9-FD04 aligns with the factory mounting points and trim lines of this configuration for a factory-finished, professional result. Generic universal fascias require trimming and do not produce an OEM-quality finish.
• Non-Navigation Models Only — Critical Fitment Qualifier The PX MK1 Ranger was sold in navigation and non-navigation variants with different dashboard openings. The SF9-FD04 fits the non-navigation variant only. Installing this fascia in a navigation-equipped PX MK1 Ranger will result in incorrect fitment. Confirm your vehicle's factory equipment before purchasing.
• Black Finish — OEM-Style Dashboard Integration Finished in black to match the Ranger PX MK1 factory dashboard trim — maintaining a consistent interior appearance after installation without colour mismatches or visible panel gaps.
• 9-Inch Trapezoid Format — Wide Head Unit Compatibility Supports the trapezoid 9-inch head unit format used by Alpine (INE-AW409S, INE-AX809), Kenwood (DMX80AXS), Mongoose (Q9WCA), Pioneer (DMH-AP6650BT), and Aerpro (AM9X) — covering the most popular large-screen aftermarket choices for the Ranger PX MK1.
• Fascia Panel Only — Installer Flexibility Supplied as the fascia panel alone, allowing installers to specify the appropriate wiring harness, steering wheel control interface, and accessories for the vehicle's factory equipment level and chosen head unit independently.

Technical Specs

Compatible With / Goes Well With

Vehicle compatibility:

Compatible 9-inch trapezoid head units (confirm your unit's format before purchasing):

• Alpine INE-AW409S / INE-AX809
• Kenwood DMX80AXS
• Mongoose Q9WCA
• Pioneer DMH-AP6650BT
• Aerpro AM9X

Recommended accessories (sold separately):

• Aftermarket head unit harness adapter for Ford Ranger PX MK1 2011–2015
• Steering wheel control interface for Ford Ranger PX MK1 2011–2015
• Reverse camera retention harness for Ford Ranger PX MK1 2011–2015
• Antenna adapter for Ford Ranger PX MK1 2011–2015

Frequently Asked Questions

Why does this fascia specify non-navigation models only?

The Ford Ranger PX MK1 was produced in both navigation and non-navigation variants with different factory head unit opening dimensions and surrounding dashboard trim layouts. The SF9-FD04 is moulded for the non-navigation configuration only — using it in a navigation-equipped PX MK1 will result in incorrect fitment.

How do I know if my Ford Ranger PX MK1 has factory navigation?

Factory navigation models feature a larger integrated centre stack screen with mapping software. Non-navigation models have a smaller factory head unit without mapping capability. If unsure, check the vehicle's original window sticker, service records, or consult a Ford dealer or qualified car audio installer before purchasing.

Does the SF9-FD04 include a wiring harness or steering wheel control interface?

No — the SF9-FD04 is a fascia panel only. Wiring harnesses, steering wheel control interfaces, antenna adapters, and camera retention accessories are all sold separately. A vehicle-specific harness kit is recommended to retain full factory features during installation.

Which 9-inch trapezoid head units are compatible with this fascia?

The SF9-FD04 suits Alpine INE-AW409S and INE-AX809, Kenwood DMX80AXS, Mongoose Q9WCA, Pioneer DMH-AP6650BT, and Aerpro AM9X. Confirm your chosen head unit uses the standard 9-inch trapezoid mounting format before purchasing.

Do I need professional installation for the SF9-FD04?

The fascia panel fitment itself is straightforward, but the broader head unit installation involves vehicle wiring and factory feature integration. Professional installation by a qualified car audio installer is strongly recommended to ensure correct wiring, full retention of factory features including steering wheel controls and reverse camera, and a professional finish.
