Stinger SF9-001 Universal Double DIN Dash Kit to Suit Pioneer DMH-AP6650BT 9″ Head Unit

Stinger SF9-001 Universal Double DIN Fascia Kit for 9-Inch Trapezoid Head Unit Installation

The Stinger SF9-001 is a universal fascia kit designed to allow the installation of a 9-inch trapezoid head unit into a factory dash opening or aftermarket fascia with internal measurements of 183mm x 105mm. The kit includes a mounting panel, metal brackets, spacers and hardware. Note that when using this kit, the head unit will sit forward of the factory dash panel.

Product overview

The SF9-001 serves the same purpose as the SF9-002 but is designed for a different opening size. Where the SF9-002 suits openings measuring 183mm x 113mm internally, the SF9-001 is built for the narrower 183mm x 105mm double DIN opening found in a range of factory and aftermarket fascia applications. Measuring your existing head unit opening before purchasing is essential to confirm which kit is correct for your installation. The SF9-001 adapts this standard double DIN opening to accept a modern 9-inch trapezoid aftermarket head unit without requiring vehicle-specific fascia modifications.

As with the SF9-002, the head unit will sit forward of the factory dash panel when the SF9-001 is installed due to the depth difference between the double DIN opening and the 9-inch trapezoid unit. This is a known characteristic of this type of universal adapter and should be factored into the installation plan. Compatible with popular 9-inch trapezoid head units from Alpine, Kenwood, Mongoose, Pioneer and Aerpro.

Features and benefits

Universal double DIN to 9-inch trapezoid conversion: Adapts any factory or aftermarket dash opening with internal measurements of 183mm x 105mm to accept a standard 9-inch trapezoid head unit.

Complete hardware kit included: Supplied with a mounting panel, metal brackets, spacers and all necessary hardware, providing everything needed to mount the head unit within the adapted opening.

Broad head unit compatibility: Confirmed compatible with popular 9-inch trapezoid head units from Alpine, Kenwood, Mongoose, Pioneer and Aerpro.

Head unit projection note: When installed, the head unit will sit forward of the factory dash panel due to the depth difference between the double DIN opening and the 9-inch trapezoid format. This should be considered during installation planning.

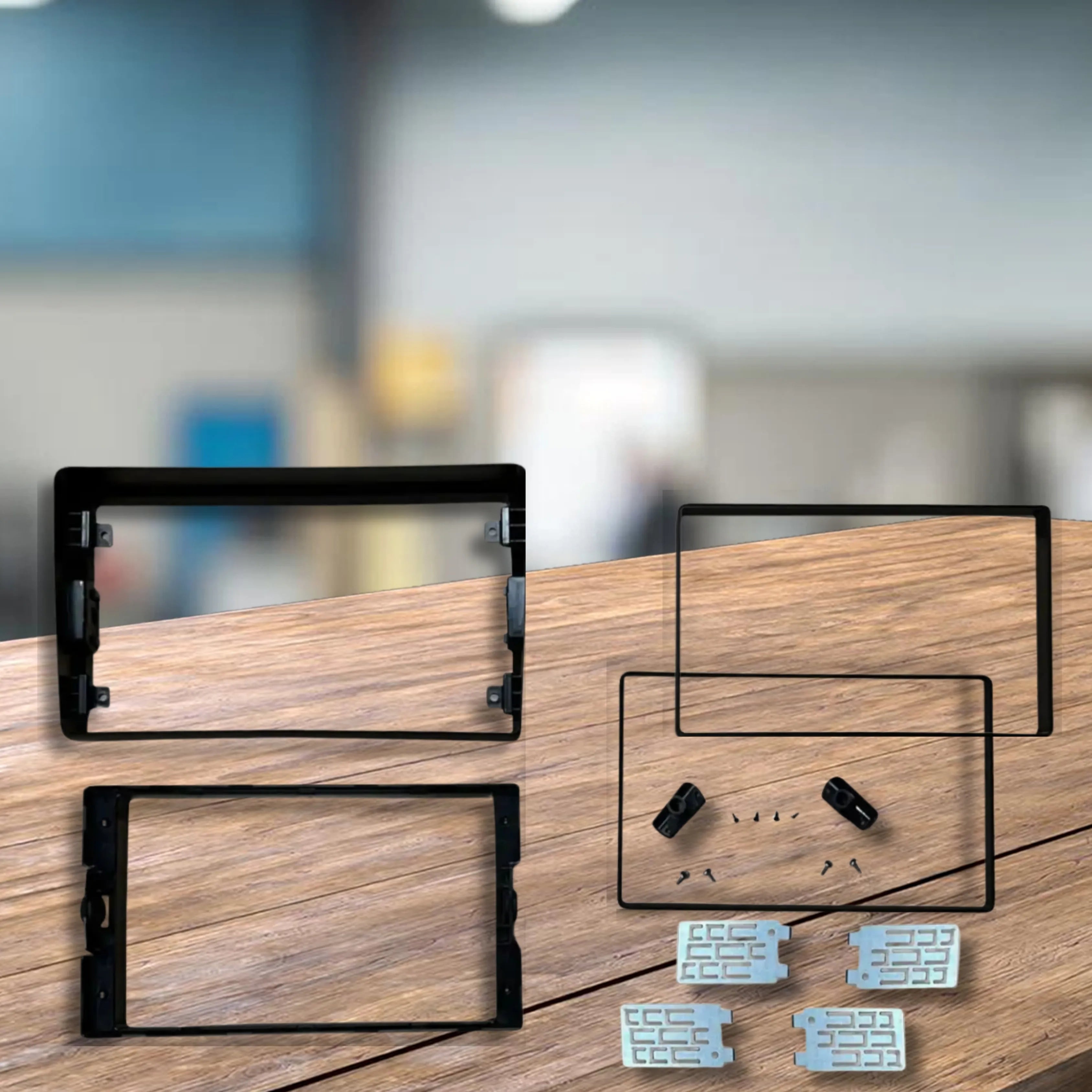

What's in the box

• SF9-001 mounting panel for 9" head unit
• Metal brackets
• Spacers
• Hardware

Technical specs

Compatible head units

The SF9-001 is confirmed compatible with the following 9-inch trapezoid head units:

Frequently asked questions

What is the difference between the SF9-001 and the SF9-002? Both are universal 9-inch trapezoid fascia kits, but they are designed for different opening sizes. The SF9-001 suits openings with internal measurements of 183mm x 105mm, while the SF9-002 suits openings measuring 183mm x 113mm. Measure your existing head unit opening carefully before purchasing to confirm the correct kit for your installation.

How do I know if the SF9-001 will fit my vehicle? Measure the internal width and height of your existing head unit opening. If the opening measures 183mm wide by 105mm tall internally, the SF9-001 is the correct kit. Contact us if you are unsure which kit is right for your application.

Will the head unit be flush with my dash after installation? No. Due to the depth difference between the double DIN opening and the 9-inch trapezoid head unit, the unit will sit forward of the factory dash panel when the SF9-001 is used. This is a known characteristic of this type of universal adapter and should be factored into your installation plan.

Does the SF9-001 include a wiring harness or antenna adaptor? No. The SF9-001 is a fascia and mounting kit only. A compatible wiring harness and antenna adaptor must be purchased separately to complete the installation.

Can I use the SF9-001 with an aftermarket fascia instead of the factory dash opening? Yes. The SF9-001 works with both factory dash openings and compatible aftermarket fascia kits, provided the internal opening measures 183mm x 105mm. Confirm the internal dimensions of your aftermarket fascia before purchasing.
