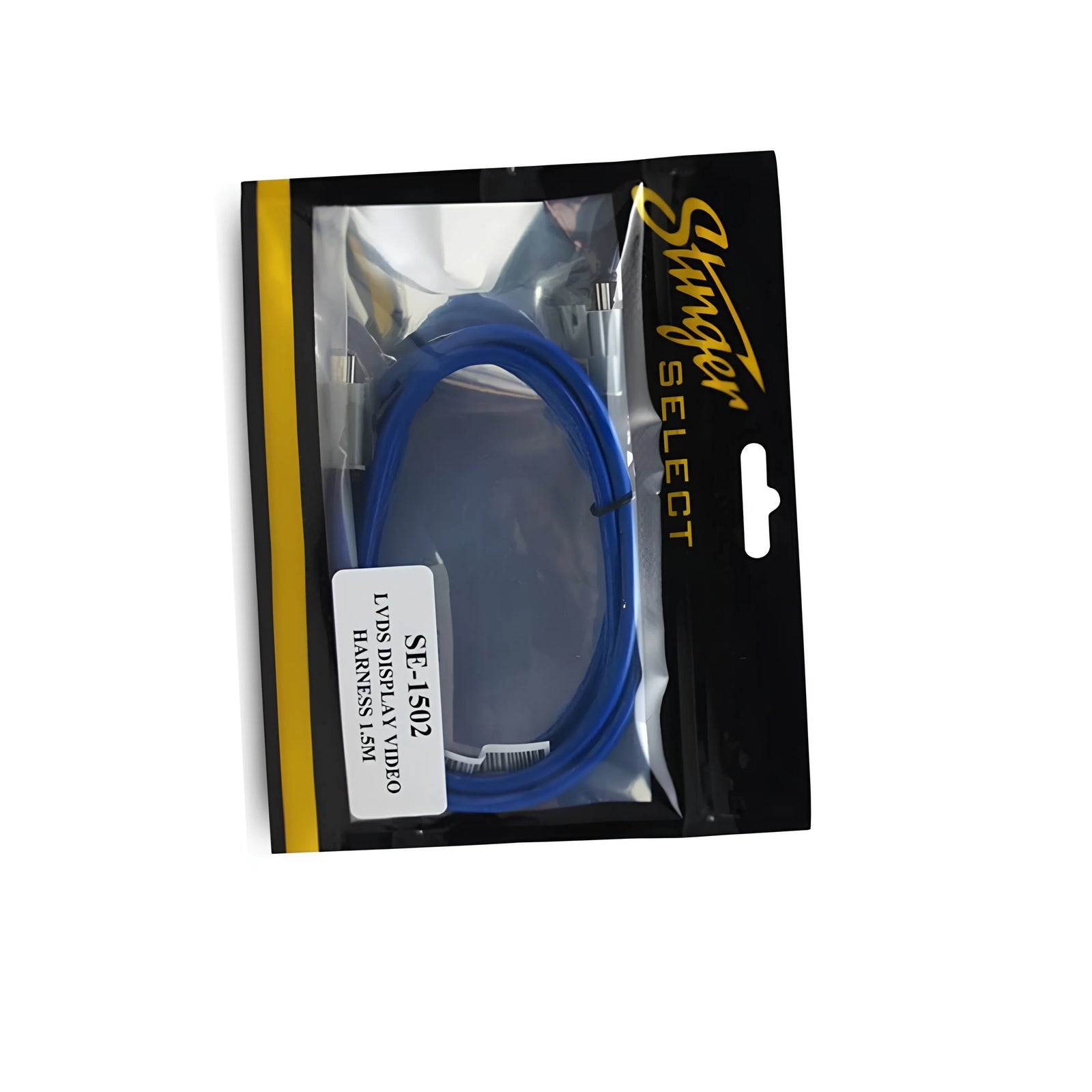

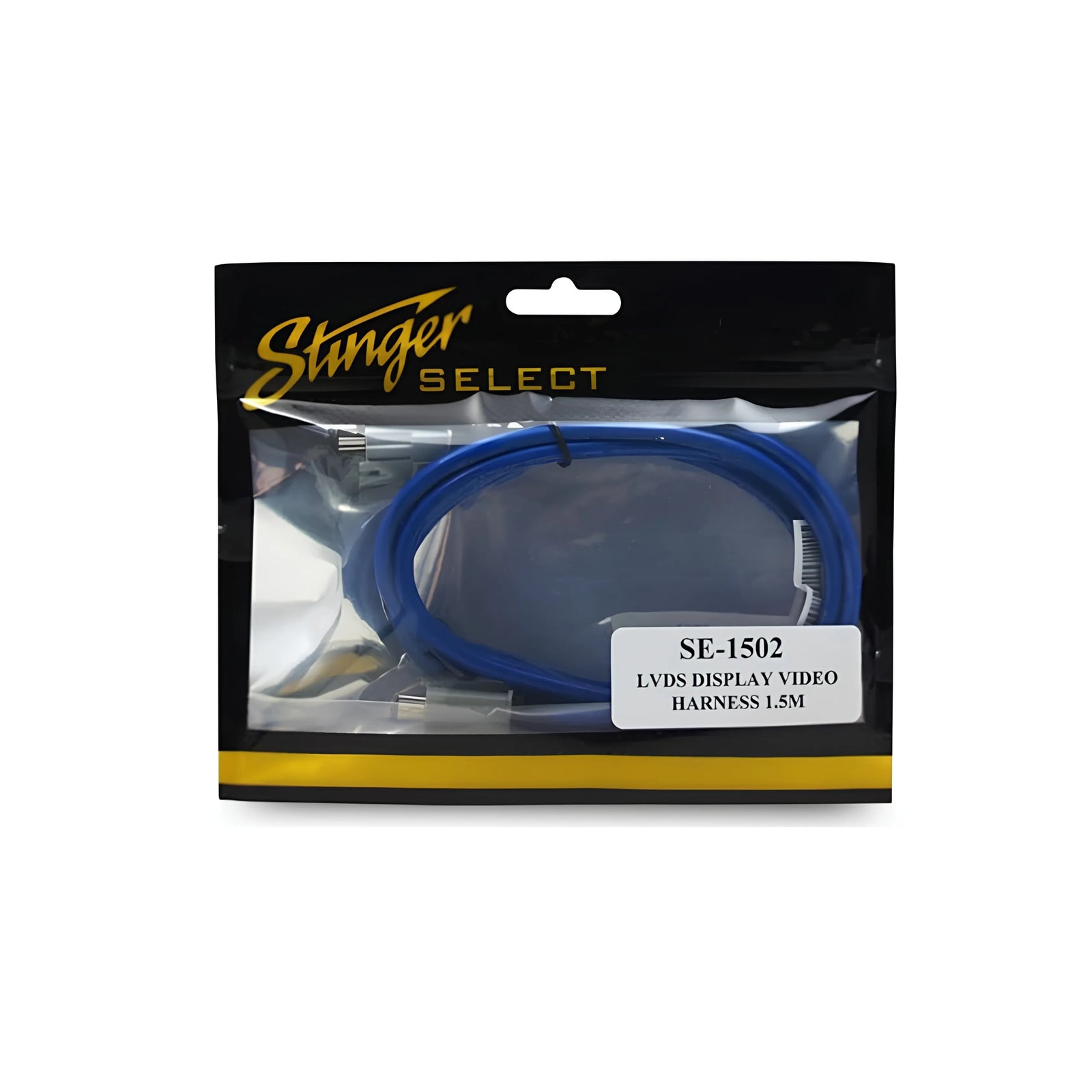

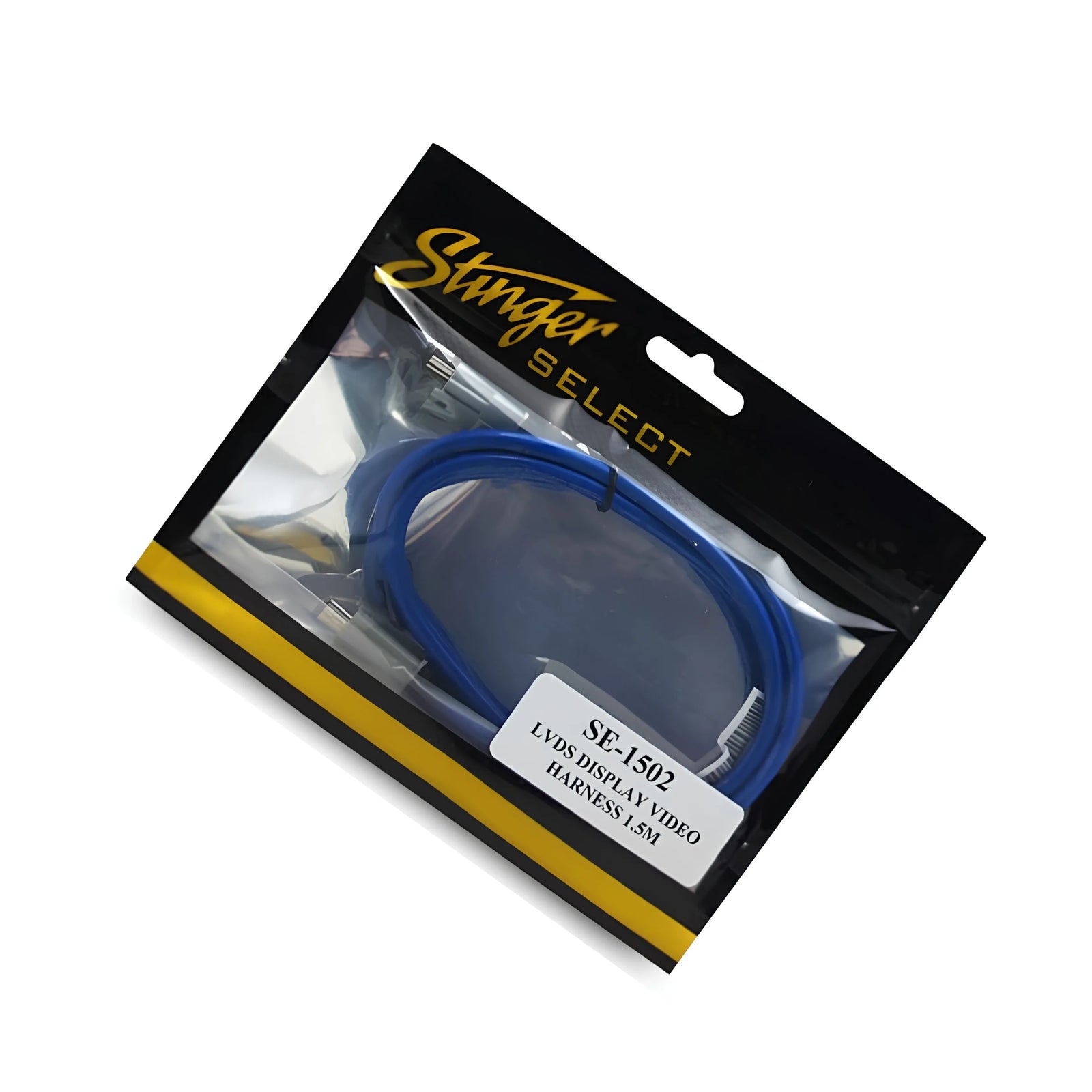

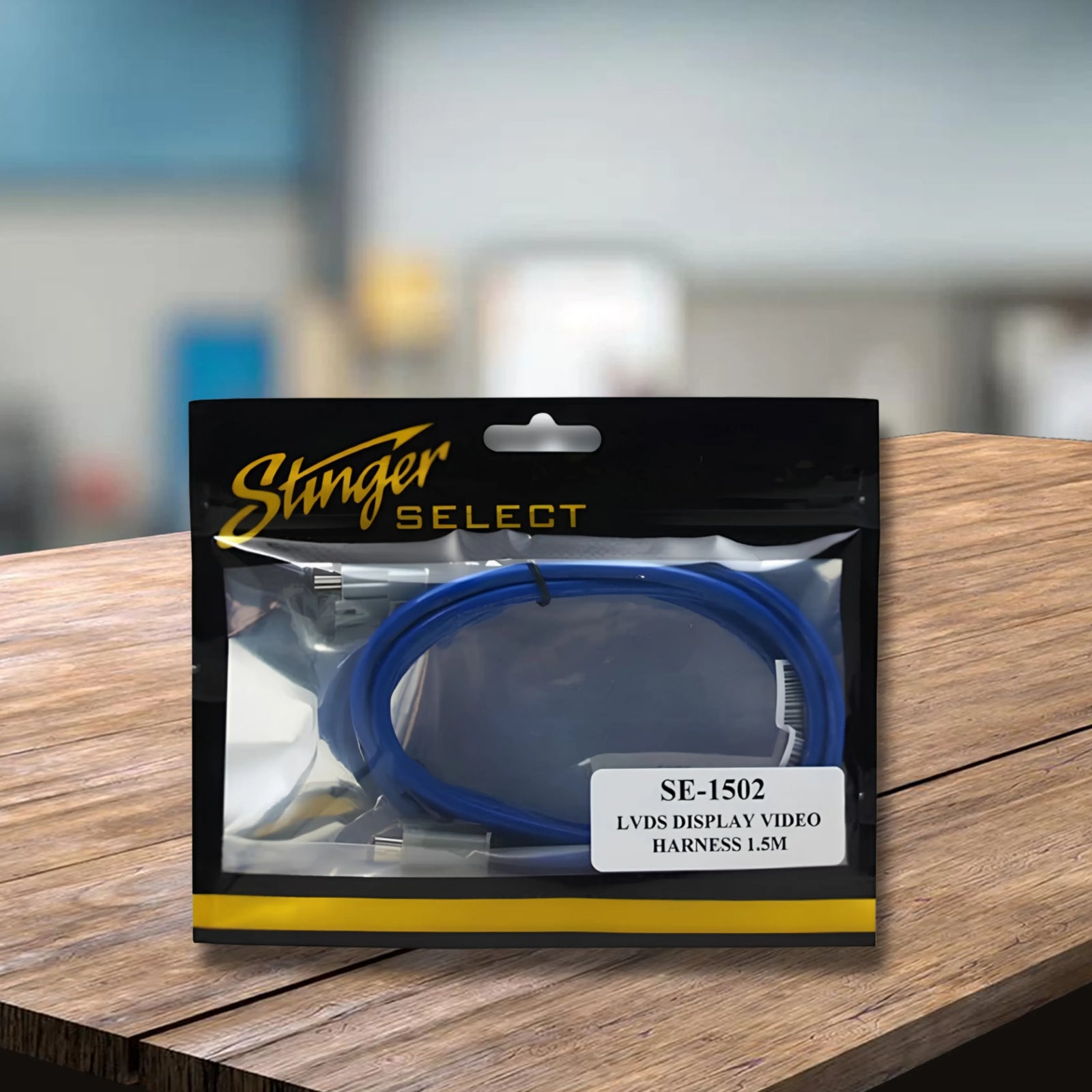

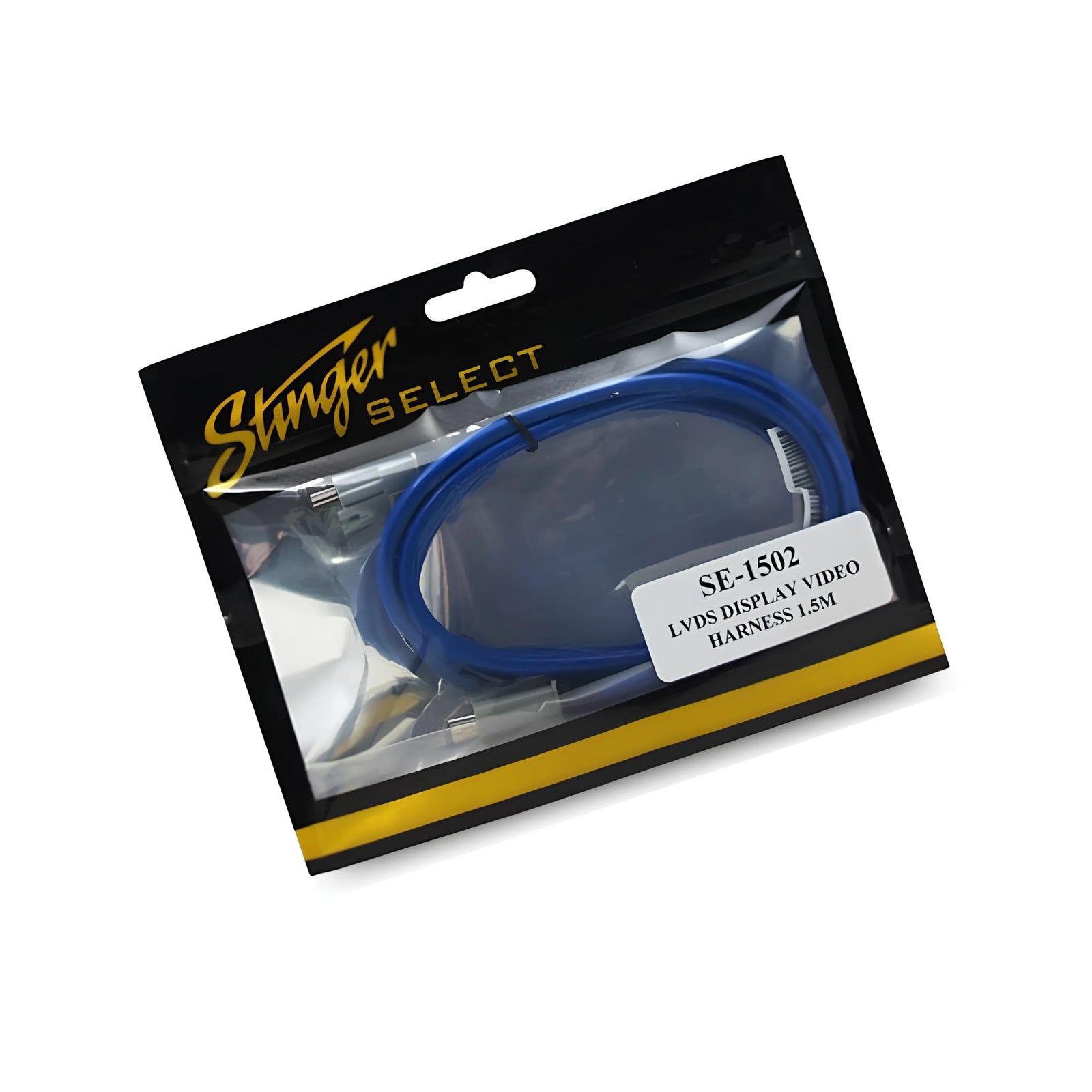

Stinger SE-1502 Infotainment LVDS Extension Harness
Click to open expanded view
STINGER logo

Stinger SE-1502 Infotainment LVDS Extension Harness

SKU: SE1502
Sale price
$66.56
Regular price
$73.95
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Relocate Your HEIGH10 or ELEV8 Hide-Away Module 1.5m LVDS Extension Harness

Product Overview

The Stinger SE-1502 is a 1.5-metre LVDS extension harness designed to extend the LVDS signal connection between the Stinger HEIGH10 (UN1810) or ELEV8 (UN1880) display and the hide-away processing module during relocation installations.

The SE-1502 is used alongside the SE-1501 8-pin display extension harness both harnesses are required when relocating the hide-away module. The SE-1502 is not a standalone solution; it must be paired with the SE-1501. The SE-1501 is sold separately. The SE-1502 is compatible with the HEIGH10 and ELEV8 only it is not a universal LVDS extension cable.

Key Specifications

  • Manufacturer Part Number: SE-1502
  • Function: LVDS extension harness for hide-away module relocation
  • Length: 5ft / 1.5 metres
  • Cable type: LVDS
  • Compatible products: Stinger HEIGH10 UN1810, Stinger ELEV8 UN1880
  • Companion harness required: SE-1501 8-pin harness (sold separately) — required alongside SE-1502 for full module relocation

Features & Benefits

  • Extended LVDS Signal Path — Provides 1.5 metres of additional LVDS harness length, enabling the hide-away module to be positioned further from the display in custom installations.
  • LVDS Signal Integrity — Maintains the high-bandwidth LVDS video signal over the 1.5-metre extension, ensuring display quality is not compromised during relocation.
  • HEIGH10 and ELEV8 Compatible — Confirmed for use with the Stinger HEIGH10 (UN1810) and ELEV8 (UN1880) infotainment systems only.
  • Companion to SE-1501 — Works alongside the SE-1501 8-pin display extension harness for a complete hide-away module relocation solution.

Technical Specs

Specification Detail
Part Number SE-1502
Brand Stinger
Function LVDS extension harness
Length 5ft / 1.5 metres
Cable Type LVDS
Compatible Products Stinger HEIGH10 UN1810, Stinger ELEV8 UN1880
Companion Harness SE-1501 8-pin harness required for hide-away module relocation (sold separately)

Compatible With / Goes Well With

  • Stinger HEIGH10 UN1810 infotainment system
  • Stinger ELEV8 UN1880 infotainment system
  • Stinger SE-1501 8-pin display extension harness (sold separately — required alongside SE-1502 when relocating hide-away module)

Frequently Asked Questions

What does the SE-1502 do?

The SE-1502 extends the LVDS video signal connection between the HEIGH10 or ELEV8 display and the hide-away module by 1.5 metres, enabling the module to be repositioned further from the display in custom installations.

Do I need any other harness alongside the SE-1502?

Yes — the SE-1501 8-pin display extension harness (sold separately) is also required when relocating the hide-away module. The SE-1502 alone is not sufficient for a full module relocation.

Which Stinger infotainment systems is the SE-1502 compatible with?

The SE-1502 is confirmed for use with the Stinger HEIGH10 (UN1810) and ELEV8 (UN1880) only. It is not compatible with other infotainment systems.

How long is the SE-1502 harness?

The SE-1502 is 1.5 metres (5 feet) in length.

What is LVDS and why is a separate harness needed?

LVDS (Low-Voltage Differential Signalling) is a high-speed data connection used to transmit the video signal between the display and the processing module in the HEIGH10 and ELEV8. It uses a different connector and signal type to the 8-pin display harness, which is why both the SE-1502 (LVDS) and the SE-1501 (8-pin) are required for a complete module relocation.
