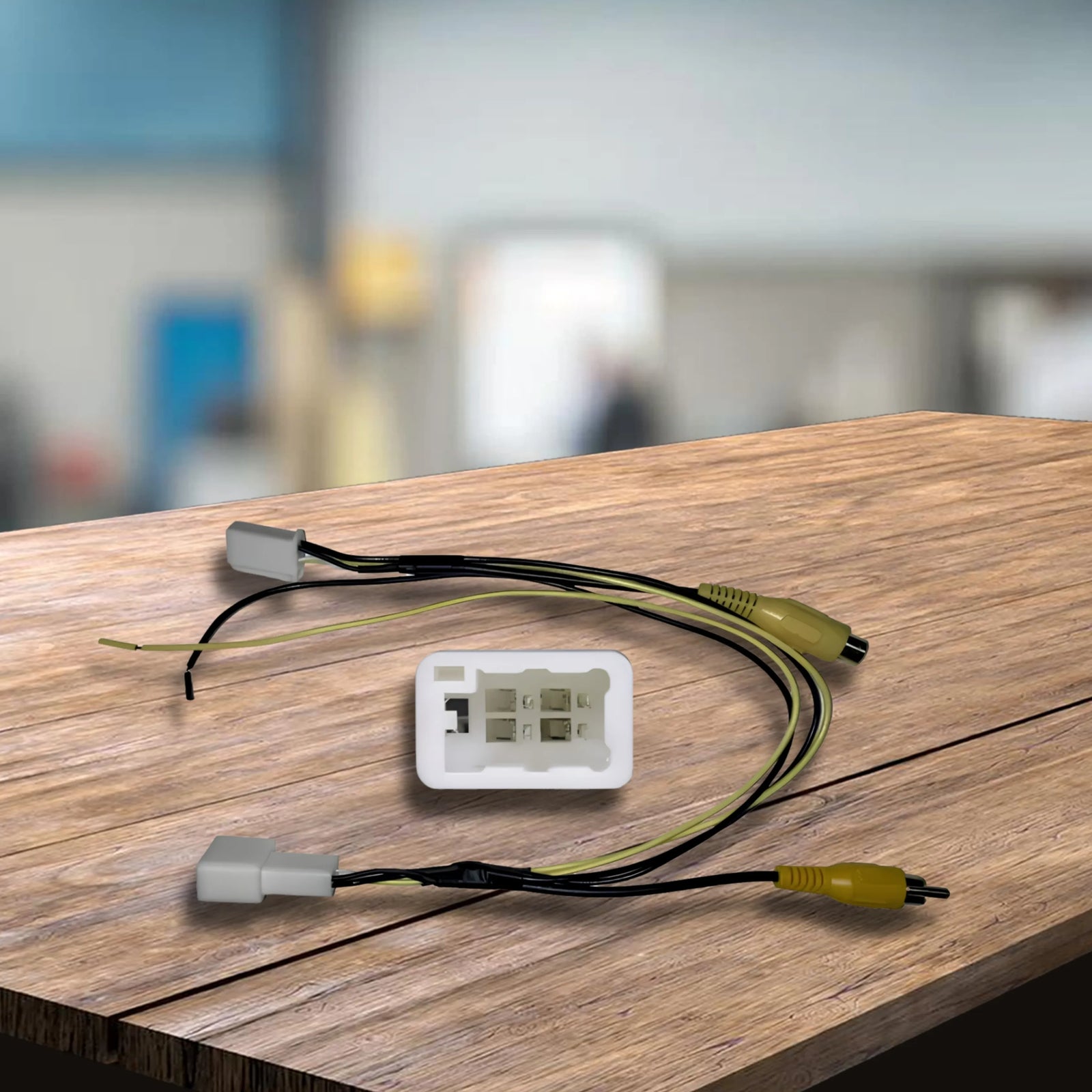

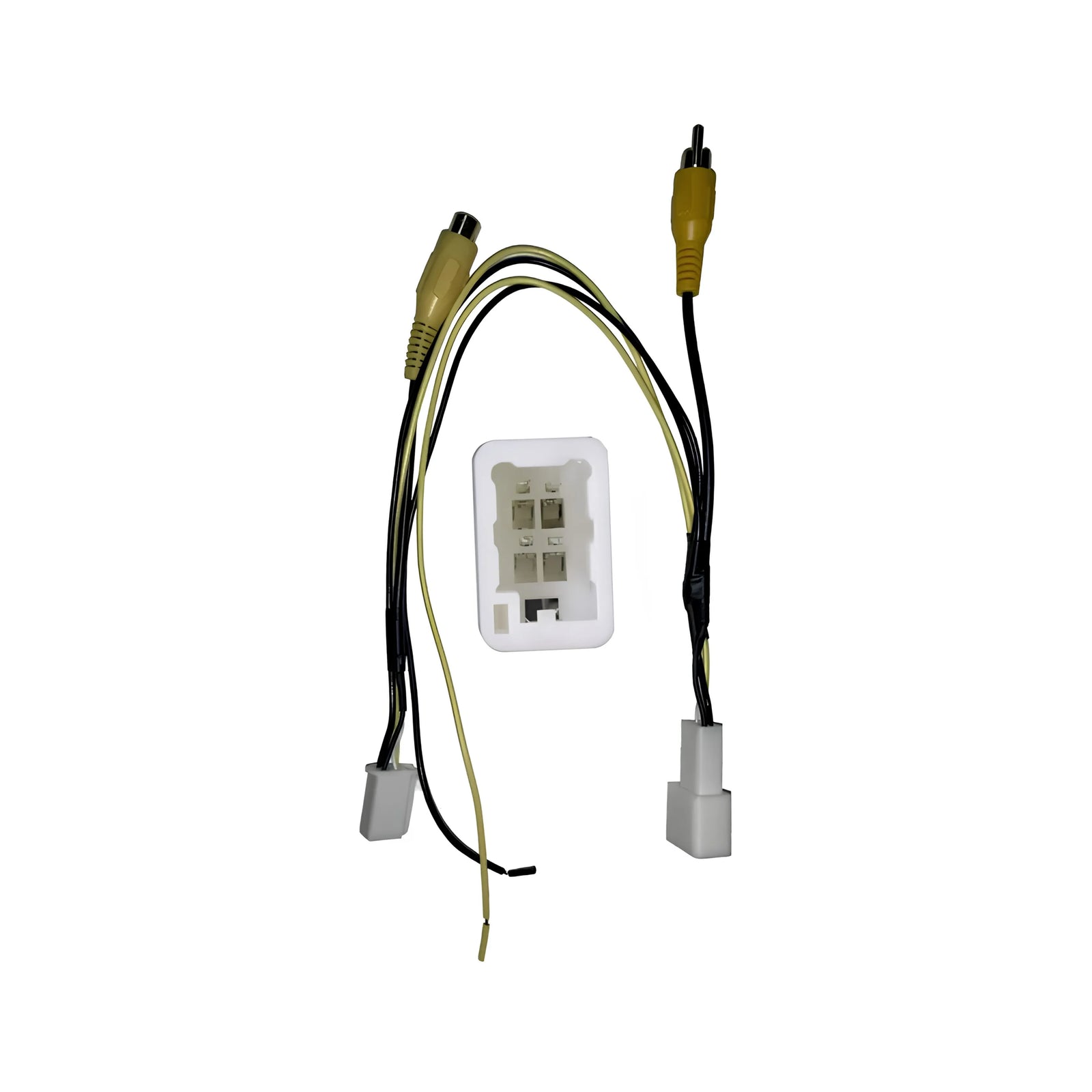

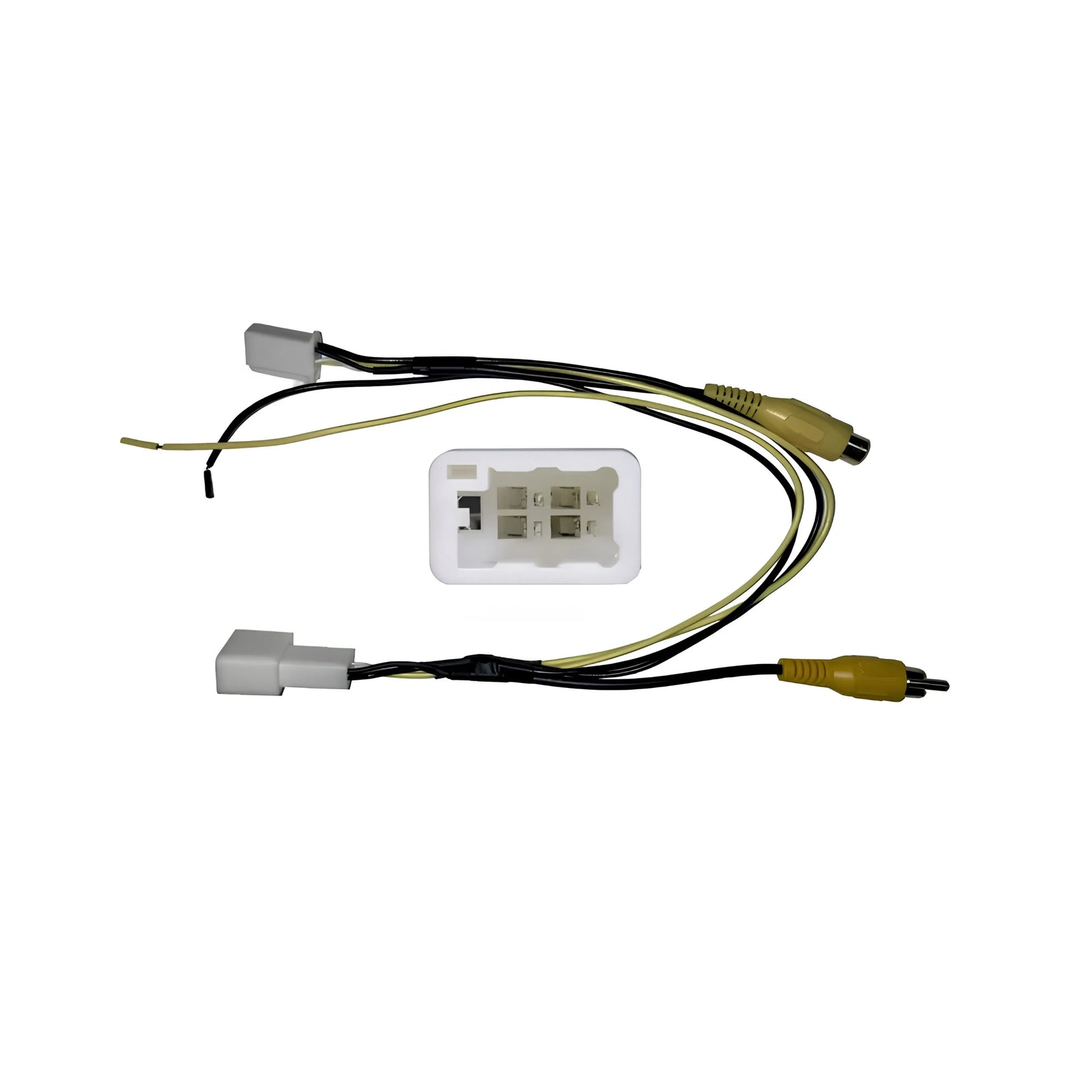

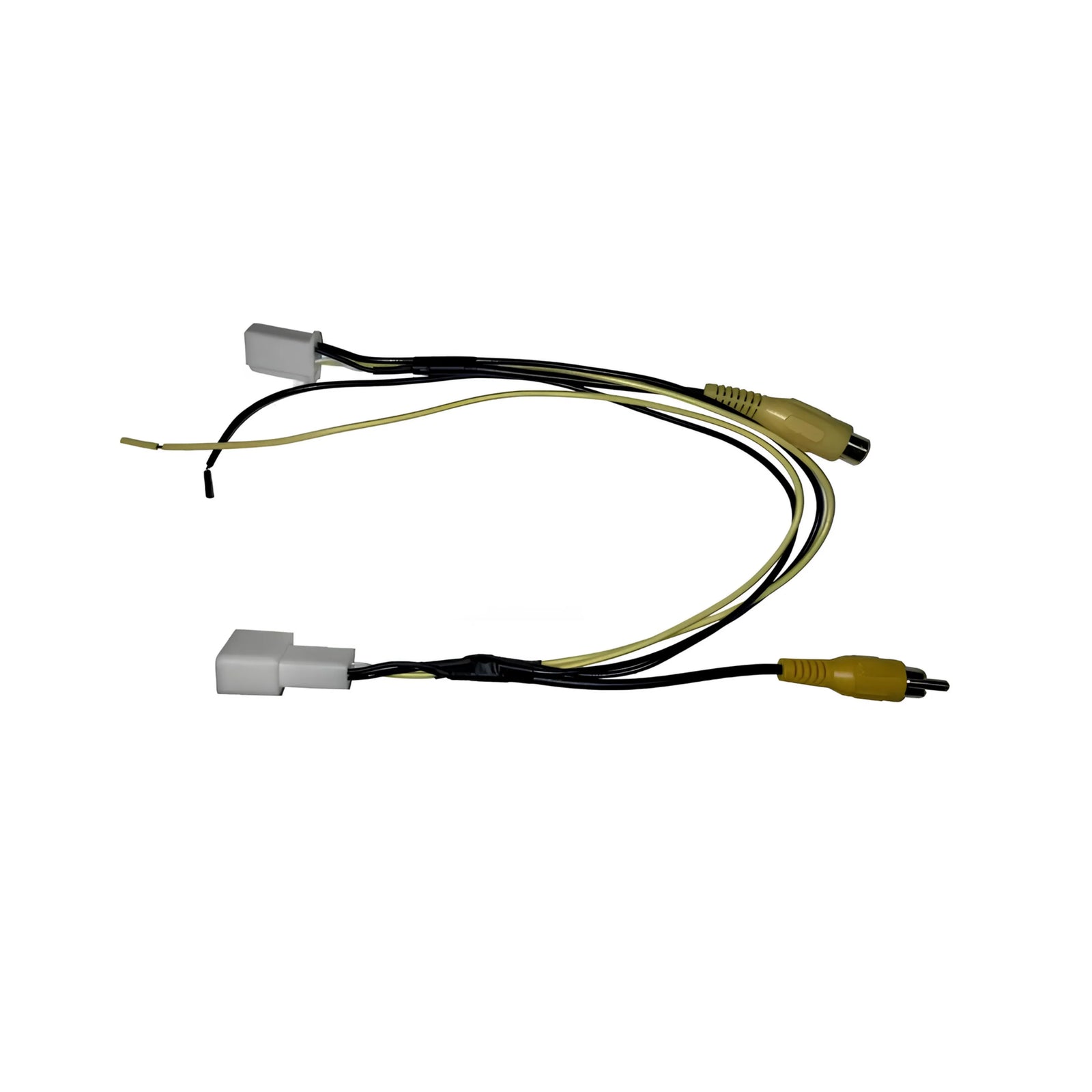

Stinger SCTYRT4 Toyota 4PIN Reverse Camera Retention/Add Camera Adaptor
Click to open expanded view
STINGER logo

Stinger SCTYRT4 Toyota 4PIN Reverse Camera Retention/Add Camera Adaptor

SKU: SCTYRT4
Sale price
$38.66
Regular price
$42.95
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Two Functions, One Adaptor Retain Your Toyota's OEM Camera or Add an Aftermarket One via the 4-Pin Connector

Product Overview

The Stinger SCTYRT4 is a dual-function reverse camera adaptor for select Toyota vehicles fitted with a 4-pin Toyota camera connector at the factory radio. It serves two distinct installation scenarios: retaining the factory OEM reverse camera when replacing the head unit with an aftermarket infotainment system, or adding an aftermarket reverse camera to the existing factory radio without a head unit replacement.

The SCTYRT4 is plug-and-play with the included vehicle harness. However, an important compatibility check is required before installation: some compatible Toyotas have a 6-volt factory camera while others have a 12-volt camera. The voltage must be confirmed by testing the OEM camera power wires before applying power to the harness applying incorrect voltage can damage the factory camera. Where a 6-volt camera is fitted, the Stinger ST5V voltage adaptor (sold separately) is required.

Compatible vehicles include the Toyota 86 (pre and post-facelift), Camry XV30, Estima XR30/XR40, HiLux AN10/AN20/AN30, LandCruiser 200 Series (2008–2012), LandCruiser Prado 120 Series, and LandCruiser Prado 150 Series (without navigation).

Key Specifications

  • Manufacturer Part Number: SCTYRT4
  • Function: Retain OEM camera (aftermarket head unit) OR add aftermarket camera (factory head unit)

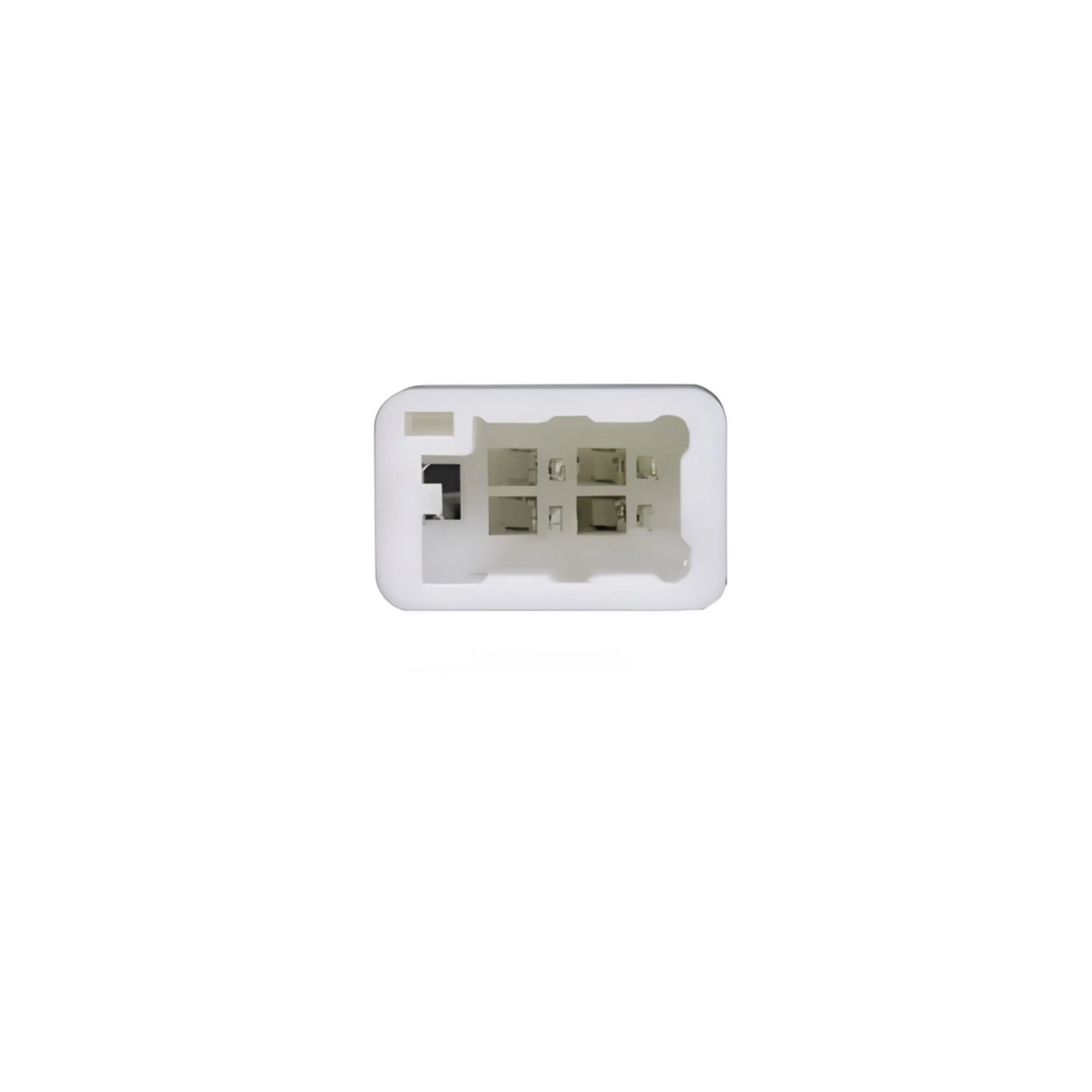

  • Vehicle connector: 4-pin Toyota style
  • Reverse camera retention: Yes — included with interface
  • Plug & Play: Yes
  • Camera voltage warning: Some vehicles have 12V cameras, others have 6V — test before applying power
  • 6V camera requirement: ST5V voltage adaptor required (sold separately)
  • Vehicle harness: Included

Features & Benefits

  • Dual Function — Retain or Add — The SCTYRT4 serves two use cases: replacing the factory head unit and retaining the OEM camera, or keeping the factory head unit and adding an aftermarket camera — both via the same 4-pin connector.
  • 4-Pin Toyota Connector — Specifically engineered for Toyota vehicles using the 4-pin camera connector at the factory radio, providing a purpose-built connection without custom wiring.
  • Vehicle Harness Included — The required vehicle harness is included, simplifying installation.
  • Plug & Play — Connects directly to the factory 4-pin camera connector without cutting or splicing factory wiring.

Technical Specs

Specification Detail
Part Number SCTYRT4
Brand Stinger
Function Retain OEM camera or add aftermarket camera
Vehicle Connector 4-pin Toyota style
Reverse Camera Retention Yes — included with interface
Plug & Play Yes
Camera Voltage 12V or 6V depending on vehicle — test before use
6V Camera Adaptor ST5V required (sold separately)
Vehicle Harness Included

Compatible With / Goes Well With

  • Toyota 86 2012–2017 (pre-facelift)
  • Toyota 86 2017–2020 (post-facelift)
  • Toyota Camry XV30 2002–2006
  • Toyota Estima XR30/XR40 2000–2005
  • Toyota HiLux AN10/AN20/AN30 2011–2013
  • Toyota LandCruiser 200 Series 2008–2012
  • Toyota LandCruiser Prado 120 Series 2002–2009
  • Toyota LandCruiser Prado 150 Series 2009–2013 — without factory navigation only
  • Stinger ST5V voltage adaptor (sold separately — required for 6V factory camera vehicles)

Caution: Some compatible Toyota vehicles have a 12-volt factory camera and others have a 6-volt factory camera. Always test the OEM camera power wires to confirm voltage BEFORE applying power to the harness. Applying incorrect voltage will damage the factory camera — Stinger is not liable for camera damage caused by incorrect voltage application. Where a 6-volt camera is confirmed, the Stinger ST5V voltage adaptor (sold separately) is required before installation. The LandCruiser Prado 150 Series is compatible with non-navigation models only.

Frequently Asked Questions

What are the two functions of the SCTYRT4?

The SCTYRT4 can either retain the factory OEM reverse camera when replacing the head unit with an aftermarket infotainment system, or add an aftermarket reverse camera to the existing factory radio via the 4-pin Toyota connector.

How do I know if my Toyota has a 6V or 12V factory camera?

Test the OEM camera power wires with a multimeter before connecting the harness. Do not apply power without confirming the voltage — applying 12V to a 6V camera will damage it. If your vehicle has a 6V camera, the Stinger ST5V voltage adaptor (sold separately) is required.

What happens if I apply the wrong voltage to the factory camera?

Applying incorrect voltage to the factory camera will damage it. The supplier explicitly states that Stinger is not liable for camera damage caused by incorrect voltage application. Always confirm the camera voltage before use.

Is the LandCruiser Prado 150 Series fully compatible?

The 150 Series Prado is compatible for non-navigation models only (2009–2013). Navigation-equipped 150 Series Prado models are not supported.

Is the vehicle harness included?

Yes — a vehicle harness is included with the SCTYRT4.
