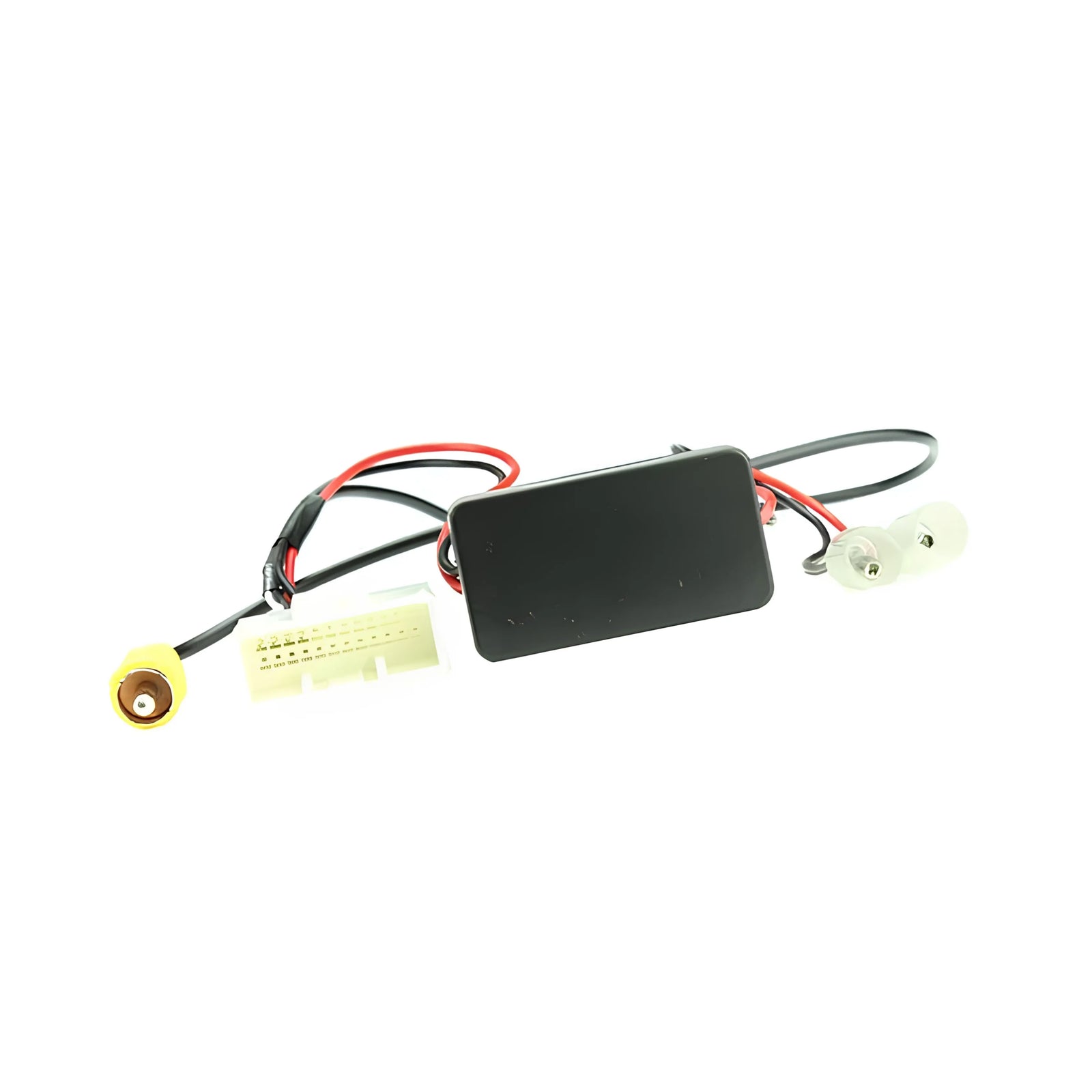

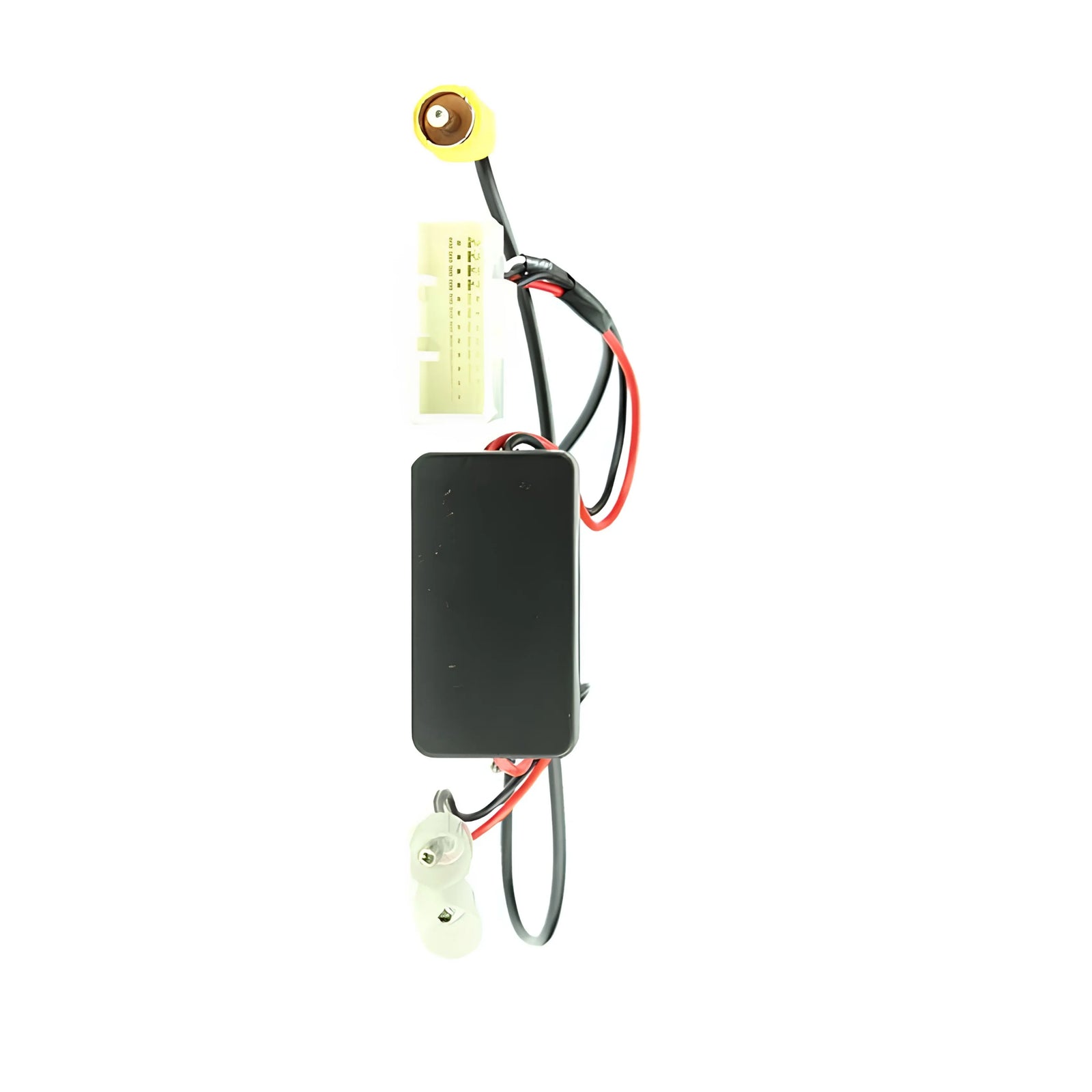

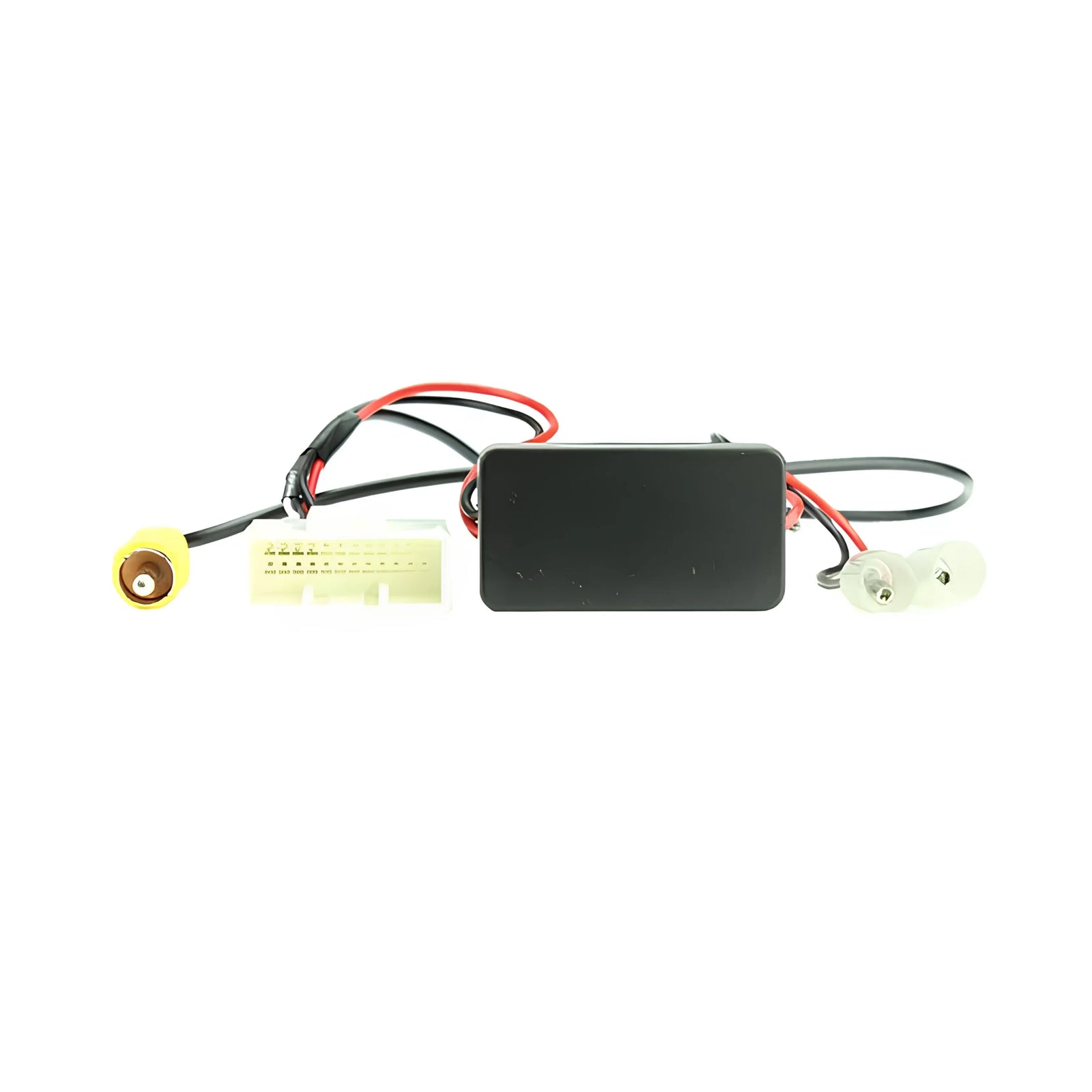

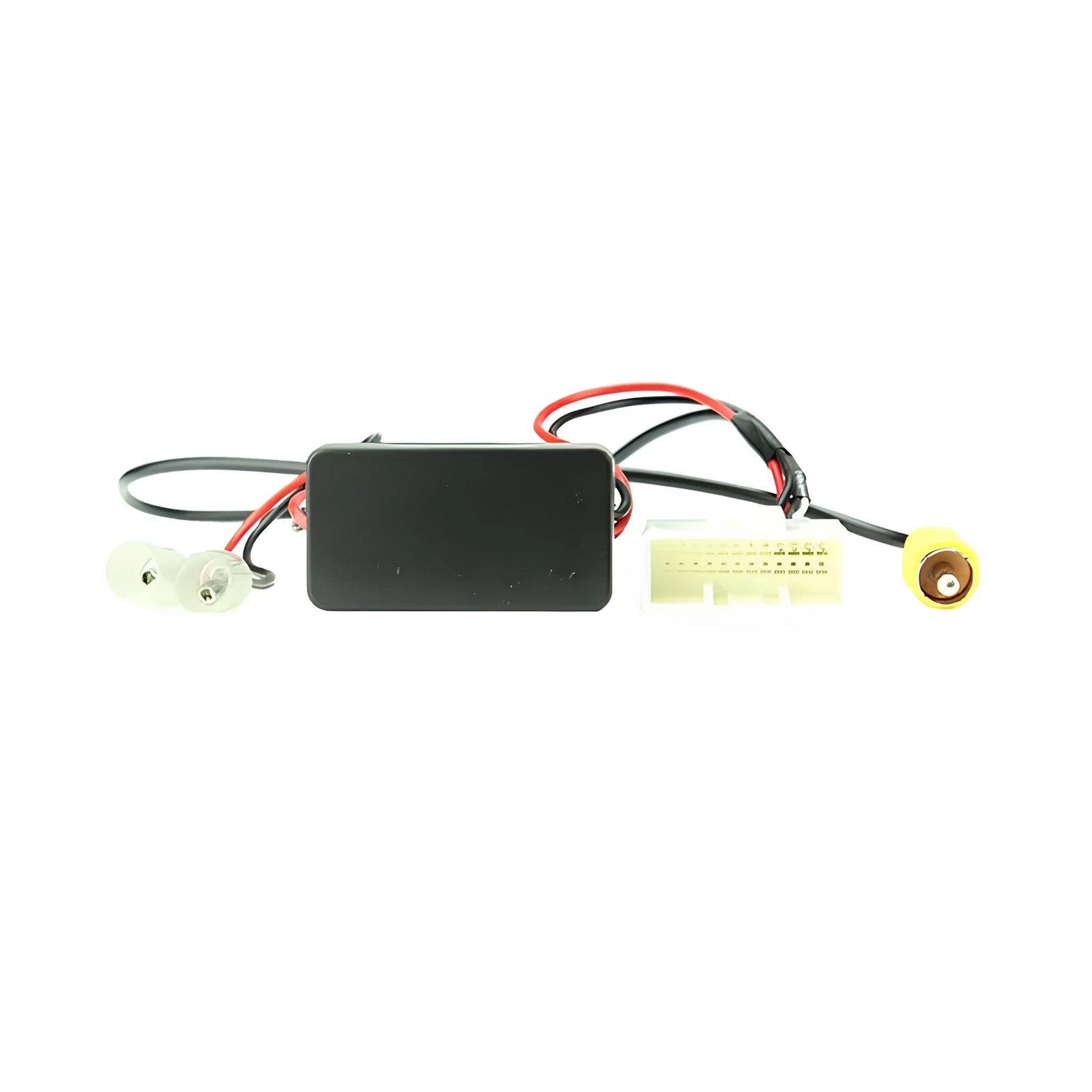

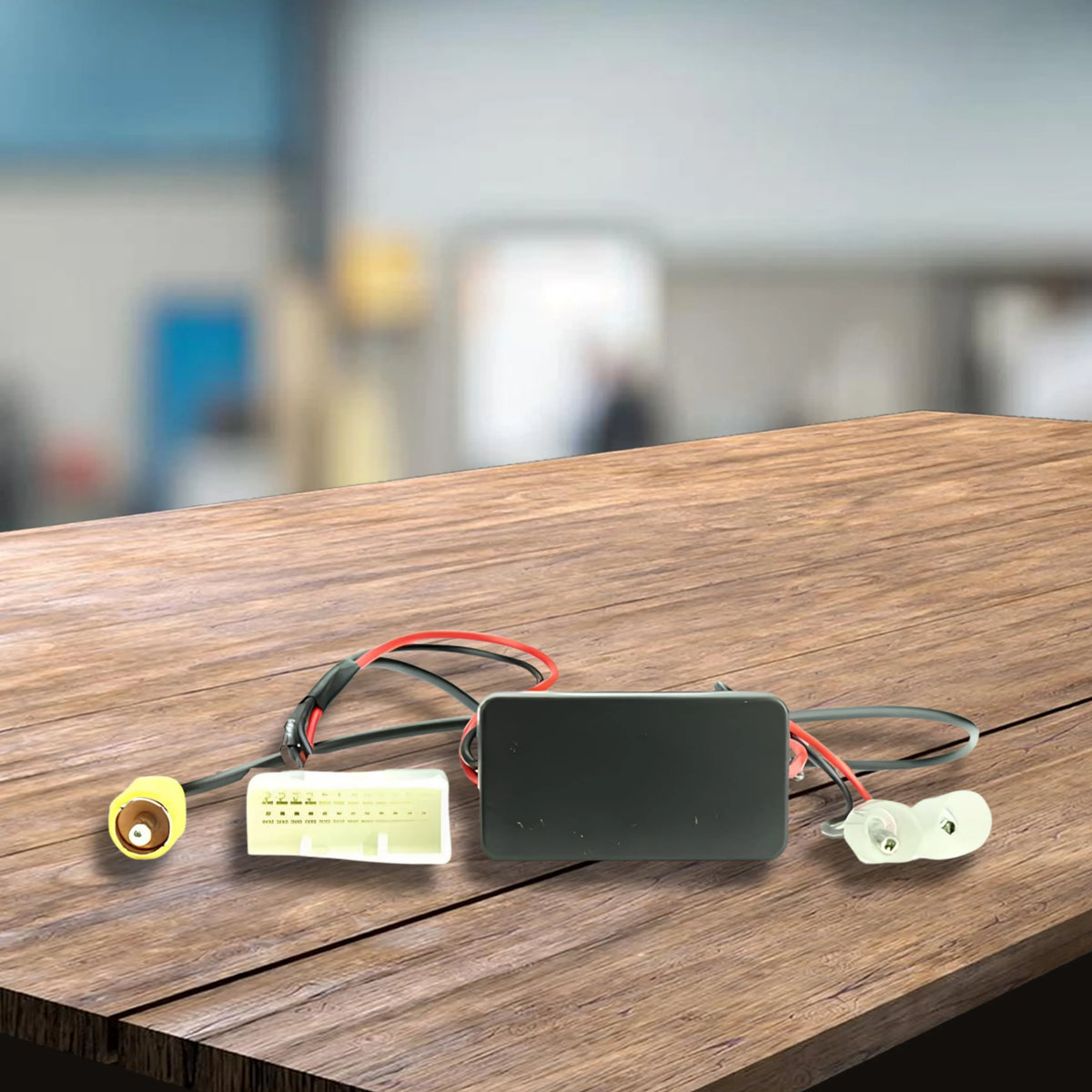

Stinger SCHYRT3 Hyundai 24PIN Reverse Camera Retention Adaptor
Stinger SCHYRT3 Hyundai 24PIN Reverse Camera Retention Adaptor
Stinger SCHYRT3 Hyundai 24PIN Reverse Camera Retention Adaptor
Stinger SCHYRT3 Hyundai 24PIN Reverse Camera Retention Adaptor
Stinger SCHYRT3 Hyundai 24PIN Reverse Camera Retention Adaptor
Click to open expanded view
STINGER logo

Stinger SCHYRT3 Hyundai 24PIN Reverse Camera Retention Adaptor

SKU: SCHYRT3
Sale price
$76.46
Regular price
$84.95
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Stinger SCHYRT3 Factory Reverse Camera Retention Adaptor 24-Pin Hyundai-Style Connector Hyundai ix35 LM 2010 to 2013 Plug and Play No Splicing Required RCA Output

The Stinger SCHYRT3 is a plug-and-play reverse camera retention adaptor for the Hyundai ix35 LM (2010 to 2013). It passes the factory OEM reverse camera signal to a compatible aftermarket head unit without additional wiring. 24-pin Hyundai-style connector. No splicing or soldering required.

Product overview

The SCHYRT3 allows the factory reverse camera in the Hyundai ix35 LM (2010 to 2013) to continue operating after an aftermarket head unit is installed. The adaptor passes the factory camera signal through to the new head unit's RCA reverse camera input using the factory camera harness with no additional wiring. This adaptor covers the early ix35 LM production run (2010 to 2013). The 2014 to 2015 ix35 LM is a different production series and is covered by the SCHYRT2.

Note: In some installations, video noise or lines may appear in the camera image. Stinger recommends the PACRPA-VA1 video noise filter (sold separately) to reduce or eliminate this where it occurs.

Features and benefits

Factory OEM reverse camera retained: The factory camera signal is passed to a compatible aftermarket head unit without running new wiring.

24-pin Hyundai-style connector: Purpose-built for the factory camera harness in the 2010 to 2013 ix35 LM.

Covers early ix35 LM production (2010 to 2013): The 2014 to 2015 ix35 LM is not covered by this adaptor see the SCHYRT2 for that year range.

Plug and play: Connects to the factory camera harness without splicing or soldering.

RCA reverse camera output: Compatible with aftermarket head units featuring an RCA reverse camera input.

Video noise filter available: Where video noise or lines appear in the camera image, the Stinger PACRPA-VA1 (sold separately) is recommended.

Technical specs

Specification Detail
SKU SCHYRT3
Brand Stinger
Function Factory reverse camera retention
Vehicle Connector 24-pin Hyundai-style
Reverse Camera Retention Yes
Plug and Play Yes
Video Noise Risk Possible in some installations
Recommended Accessory PACRPA-VA1 video noise filter (sold separately)

Compatible with

Make Model Variant Years
Hyundai ix35 LM 2010 to 2013

Compatible with aftermarket head units featuring an RCA reverse camera input.

Frequently asked questions

Which ix35 models is the SCHYRT3 compatible with? The SCHYRT3 is confirmed for the Hyundai ix35 LM series from 2010 to 2013. It is not confirmed for the 2014 to 2015 ix35 LM see the SCHYRT2 for that year range.

What connector does the SCHYRT3 use? The SCHYRT3 uses a 24-pin Hyundai-style connector, matching the factory camera harness in the 2010 to 2013 ix35 LM.

My ix35 is a 2014 or 2015 model, is this the right adaptor? No. The 2014 to 2015 ix35 LM is not covered by the SCHYRT3. Contact us to confirm the correct adaptor for your specific model year and variant.

What should I do if I get video noise or lines in my reverse camera image? Stinger recommends the PACRPA-VA1 video noise filter, sold separately, to reduce or eliminate video noise or lines that may appear when retaining a factory reverse camera with an aftermarket head unit.

Does the SCHYRT3 require any wiring modifications? No. The SCHYRT3 is plug and play, connecting directly to the factory camera harness and the aftermarket head unit's RCA reverse camera input without splicing or soldering.
