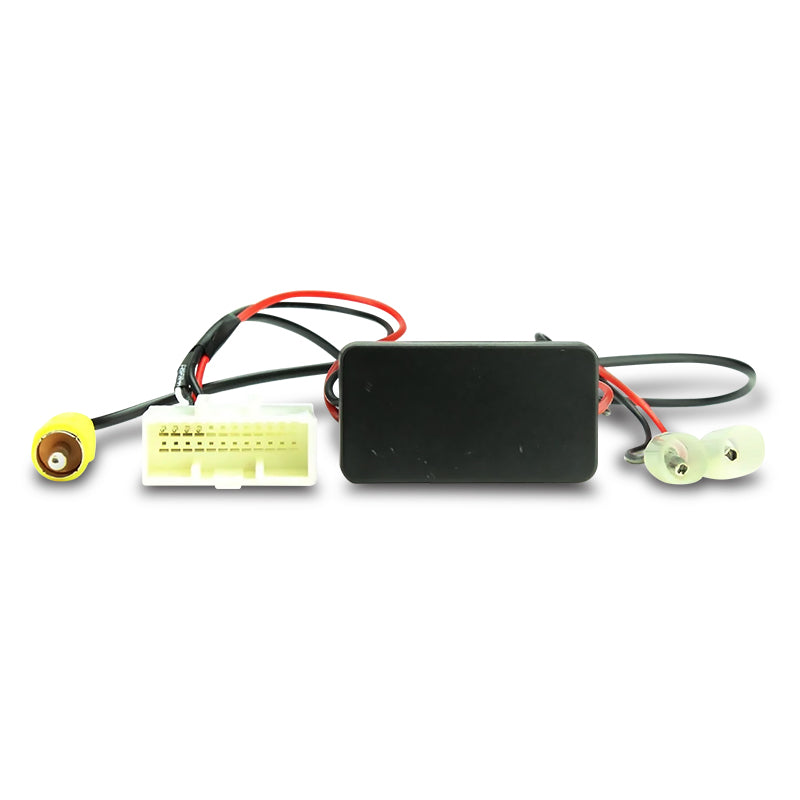

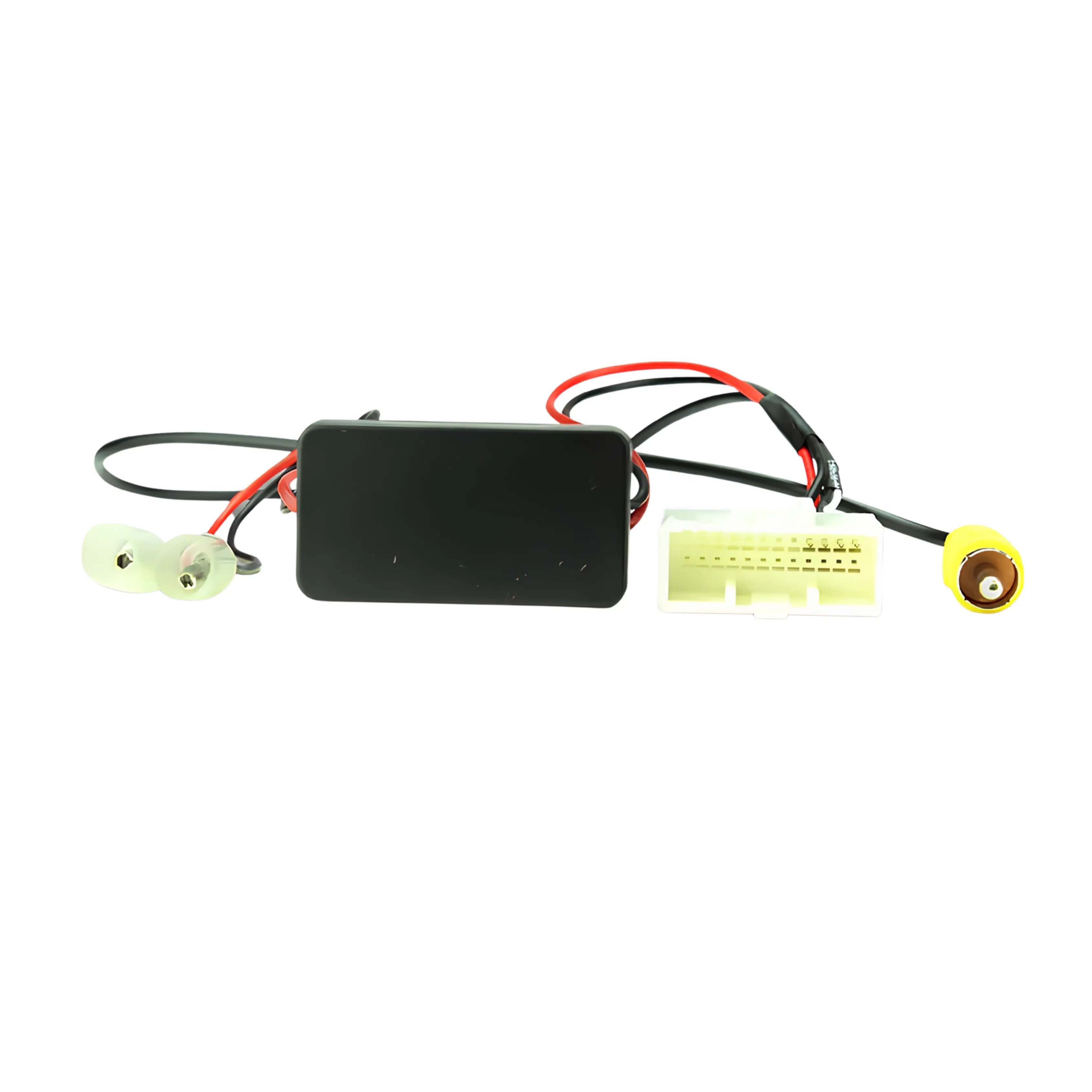

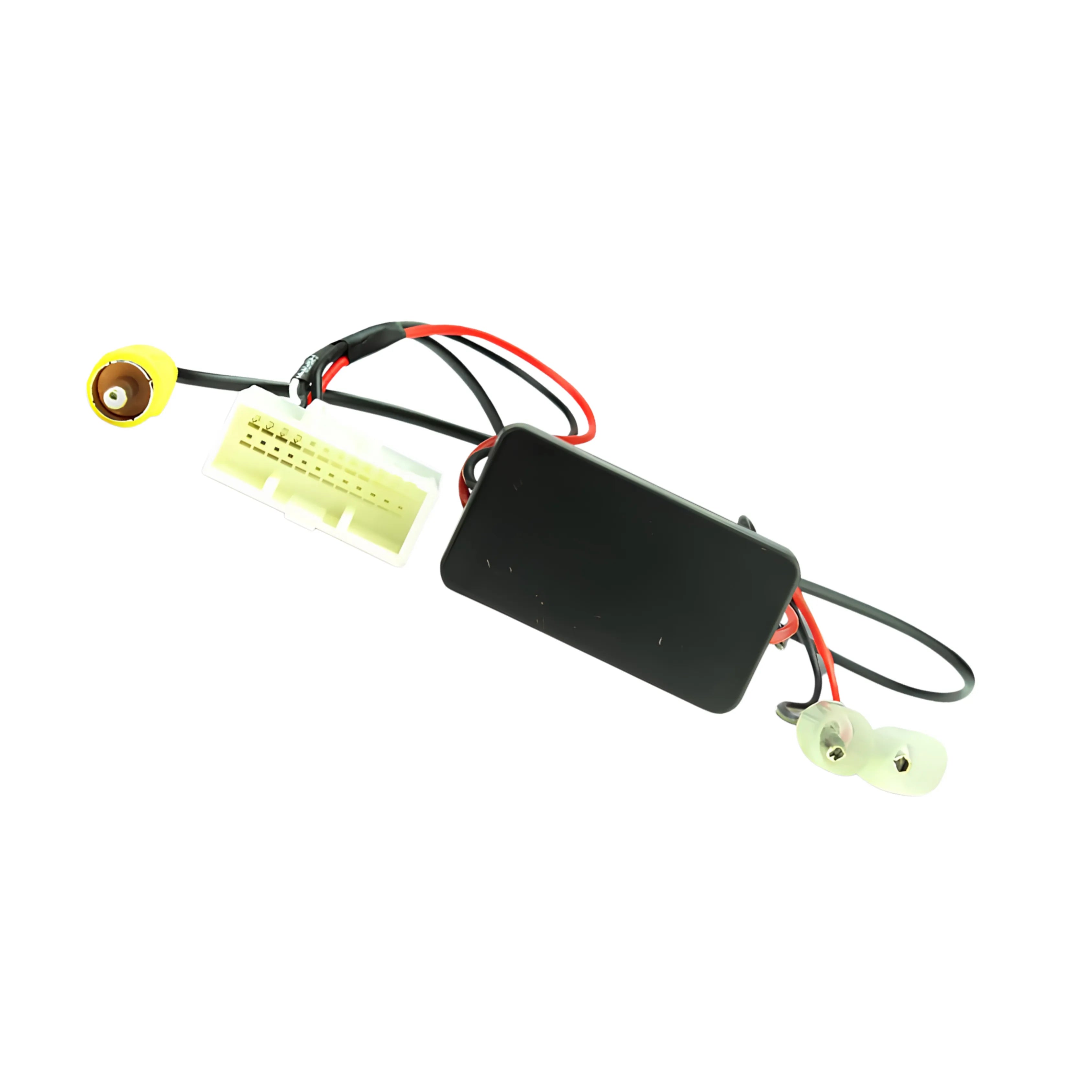

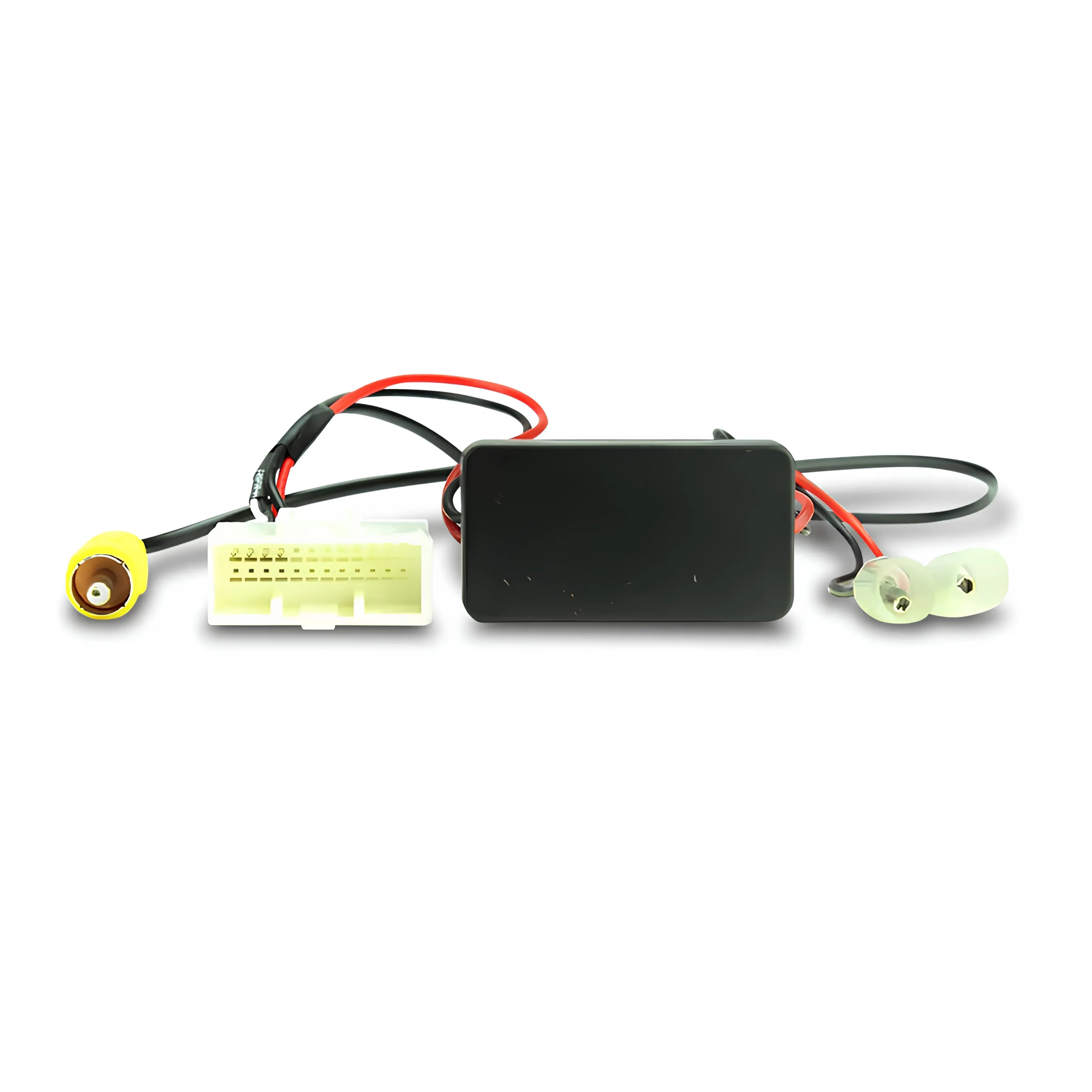

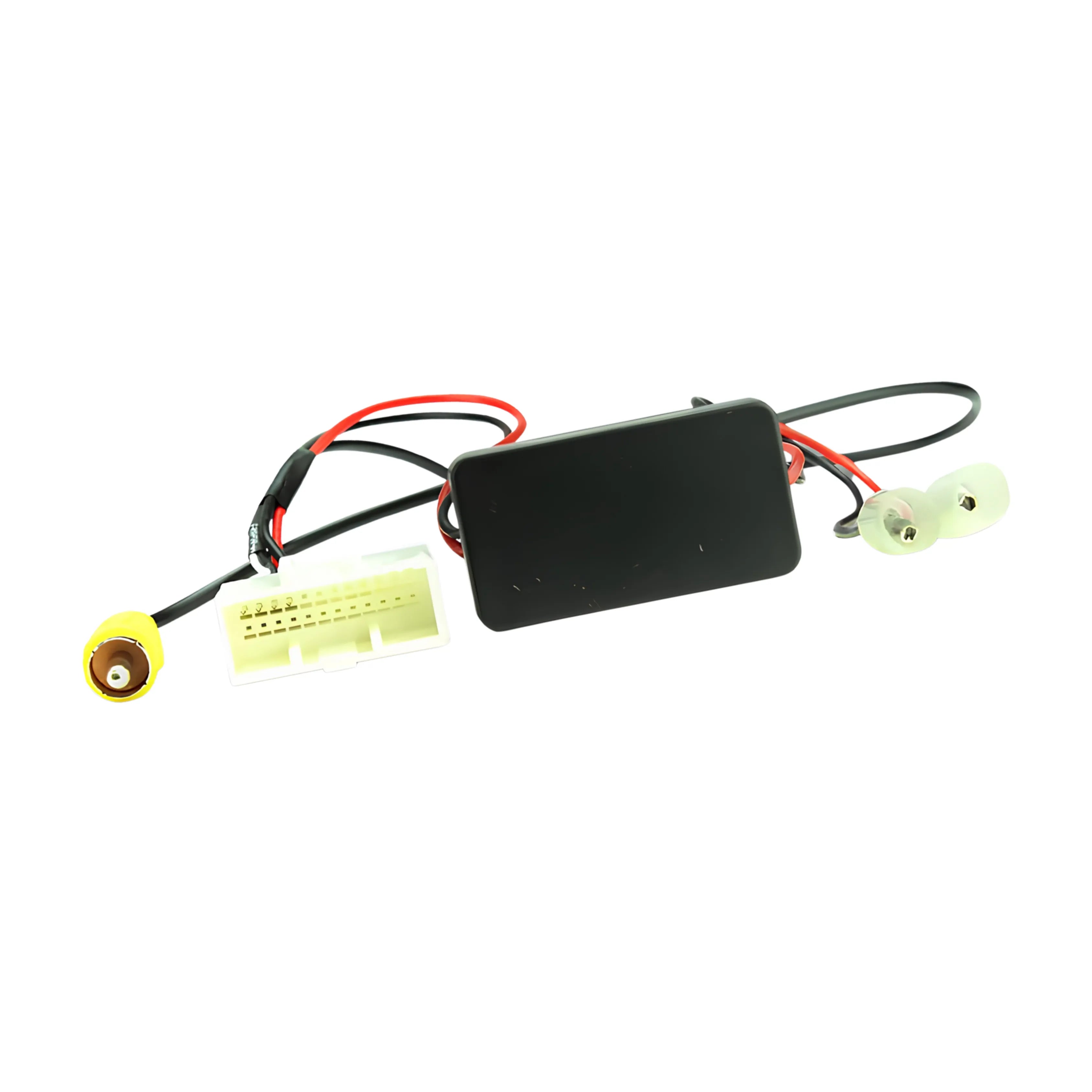

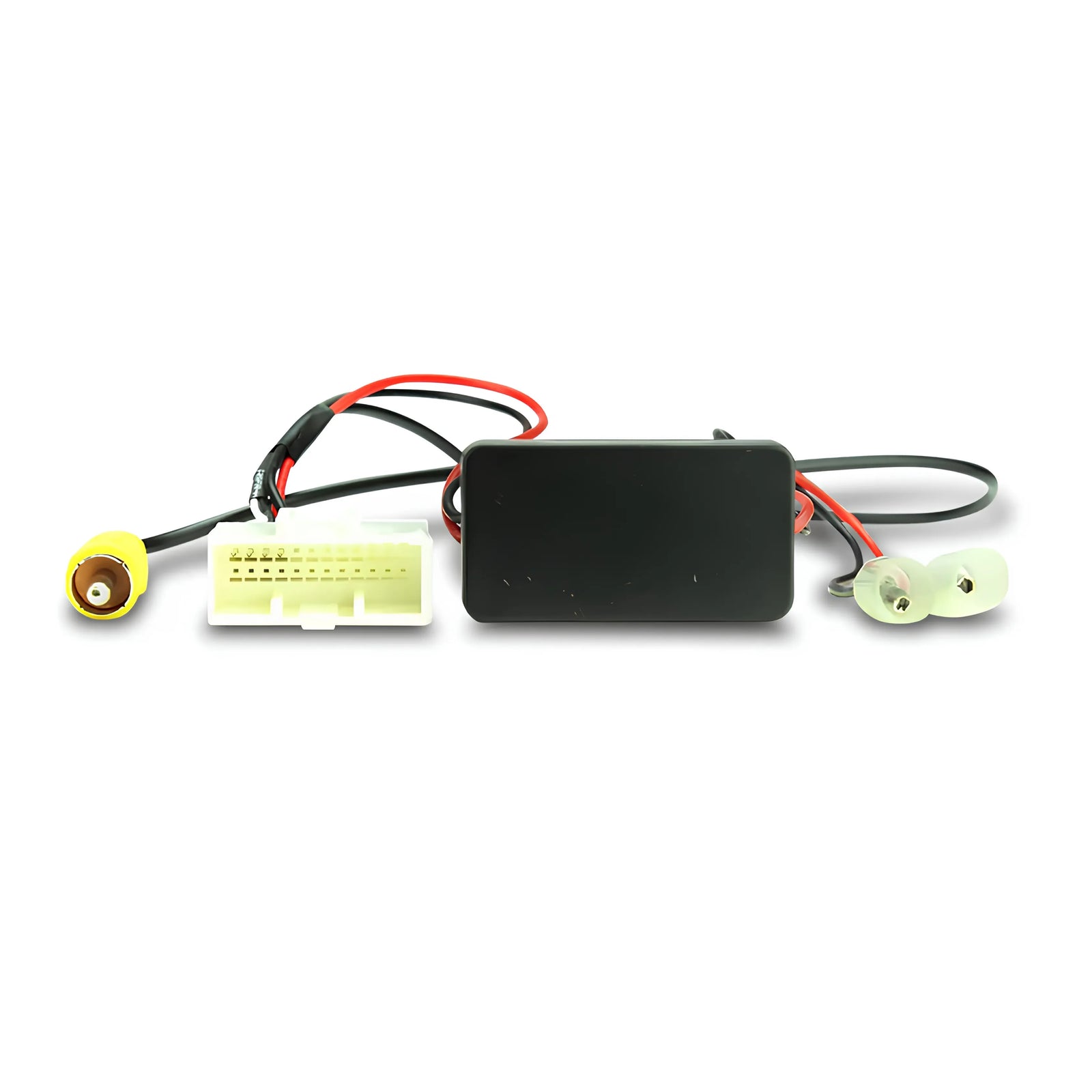

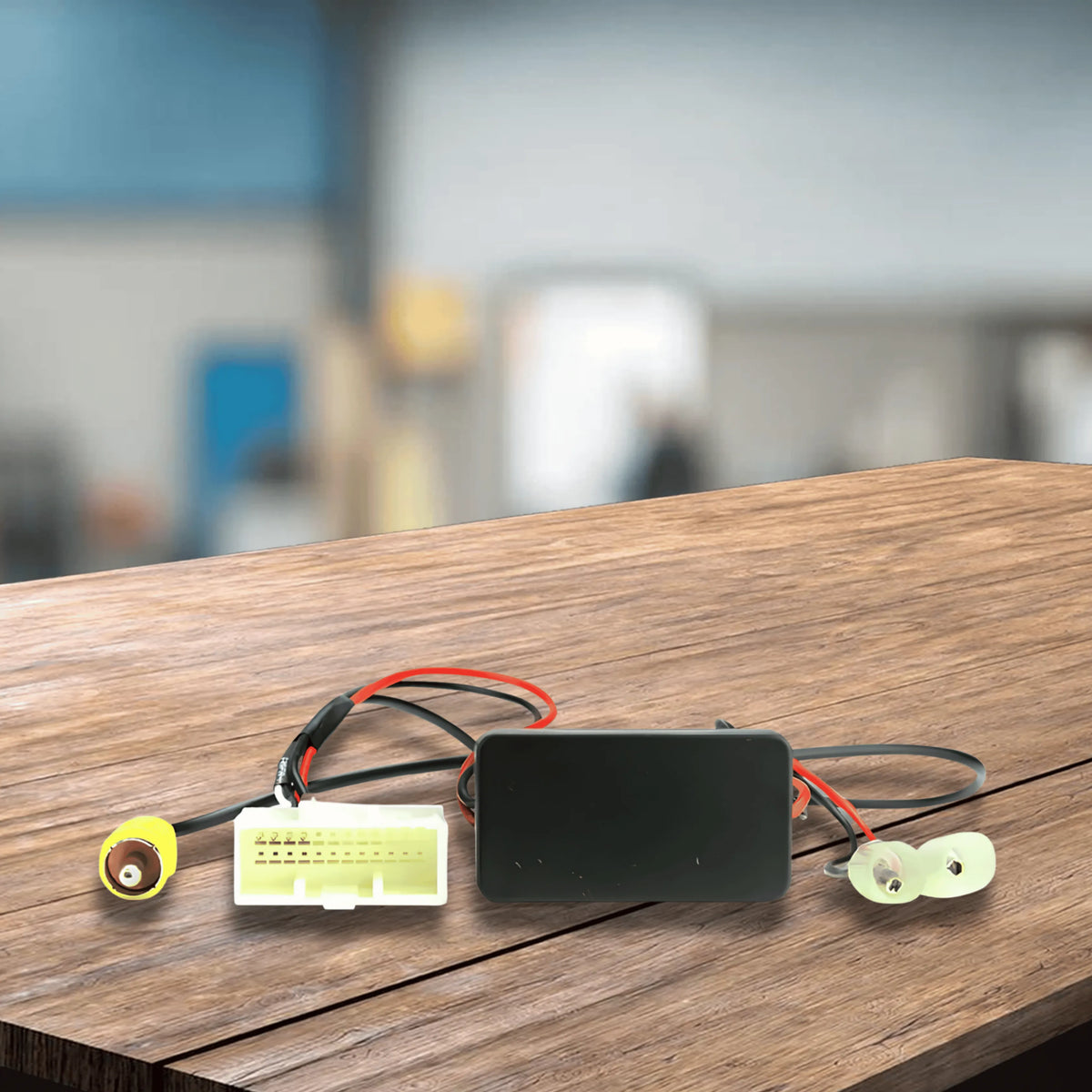

Stinger SCHYRT1 Hyundai 24PIN Reverse Camera Retention Adaptor

Stinger SCHYRT1 Factory Reverse Camera Retention Adaptor 24-Pin Hyundai-Style Connector Plug and Play No Splicing or Soldering Required RCA Output

The Stinger SCHYRT1 is a plug-and-play reverse camera retention adaptor for select Hyundai vehicles fitted with a 24-pin Hyundai-style camera connector. It passes the factory OEM reverse camera signal to a compatible aftermarket head unit without additional wiring.

Product overview

The SCHYRT1 allows the factory reverse camera in compatible Hyundai vehicles to continue operating after an aftermarket head unit is installed. The adaptor passes the factory camera signal through to the new head unit's RCA reverse camera input without running new camera wiring or splicing. Purpose-built for the 24-pin Hyundai-style connector not compatible with Hyundai vehicles using the 18-pin connector.

Important: Some Hyundai vehicles use an 18-pin connector rather than the 24-pin connector this adaptor requires. Confirm your vehicle's factory connector style before purchasing. No specific vehicle compatibility list has been published by the supplier confirm your Hyundai model, year, and connector type before purchase.

Note: In some installations, video noise or lines may appear in the camera image. Stinger recommends the PACRPA-VA1 video noise filter (sold separately) to reduce or eliminate this where it occurs.

Features and benefits

Factory OEM reverse camera retained: The factory camera signal is passed to a compatible aftermarket head unit without running new wiring.

24-pin Hyundai-style connector: Purpose-built for Hyundai vehicles fitted with the 24-pin connector type.

Plug and play: Connects to the factory camera harness without splicing or soldering.

RCA reverse camera output: Compatible with aftermarket head units featuring an RCA reverse camera input.

Video noise filter available: Where video noise or lines appear in the camera image, the Stinger PACRPA-VA1 (sold separately) is recommended.

Technical specs

Compatible with

Select Hyundai vehicles fitted with a 24-pin Hyundai-style camera connector. No specific vehicle compatibility list is published by the supplier. Confirm your Hyundai model, year, and factory camera connector type before purchasing.

Compatible with aftermarket head units featuring an RCA reverse camera input.

Frequently asked questions

Which Hyundai models is the SCHYRT1 compatible with? The supplier has not published a specific vehicle compatibility list for the SCHYRT1. Confirm your Hyundai model, year, and factory camera connector type with the supplier before purchase to verify compatibility.

How do I know if my Hyundai uses the 24-pin or 18-pin connector? Locate the factory head unit connector behind your current radio. The SCHYRT1 suits the 24-pin Hyundai-style connector only. If your vehicle has an 18-pin connector, this adaptor is not compatible. Contact us before purchasing if you are unsure.

What should I do if I get video noise or lines in my reverse camera image? Stinger recommends the PACRPA-VA1 video noise filter, sold separately, to reduce or eliminate video noise or lines that may appear when retaining a factory reverse camera with an aftermarket head unit.

Does the SCHYRT1 require any wiring modifications? No. The SCHYRT1 is plug and play, connecting directly to the factory camera harness and the aftermarket head unit's RCA reverse camera input without splicing or soldering.

What is the difference between the SCHYRT1 and the SCHYRT4? Both are 24-pin Hyundai-style camera retention adaptors. The SCHYRT4 has a confirmed vehicle compatibility list (Hyundai Tucson TL 2015 to 2018 and Kia Cerato YD 2013 to 2018). The SCHYRT1 does not have a published compatibility table confirm your specific vehicle with the supplier before purchase.
