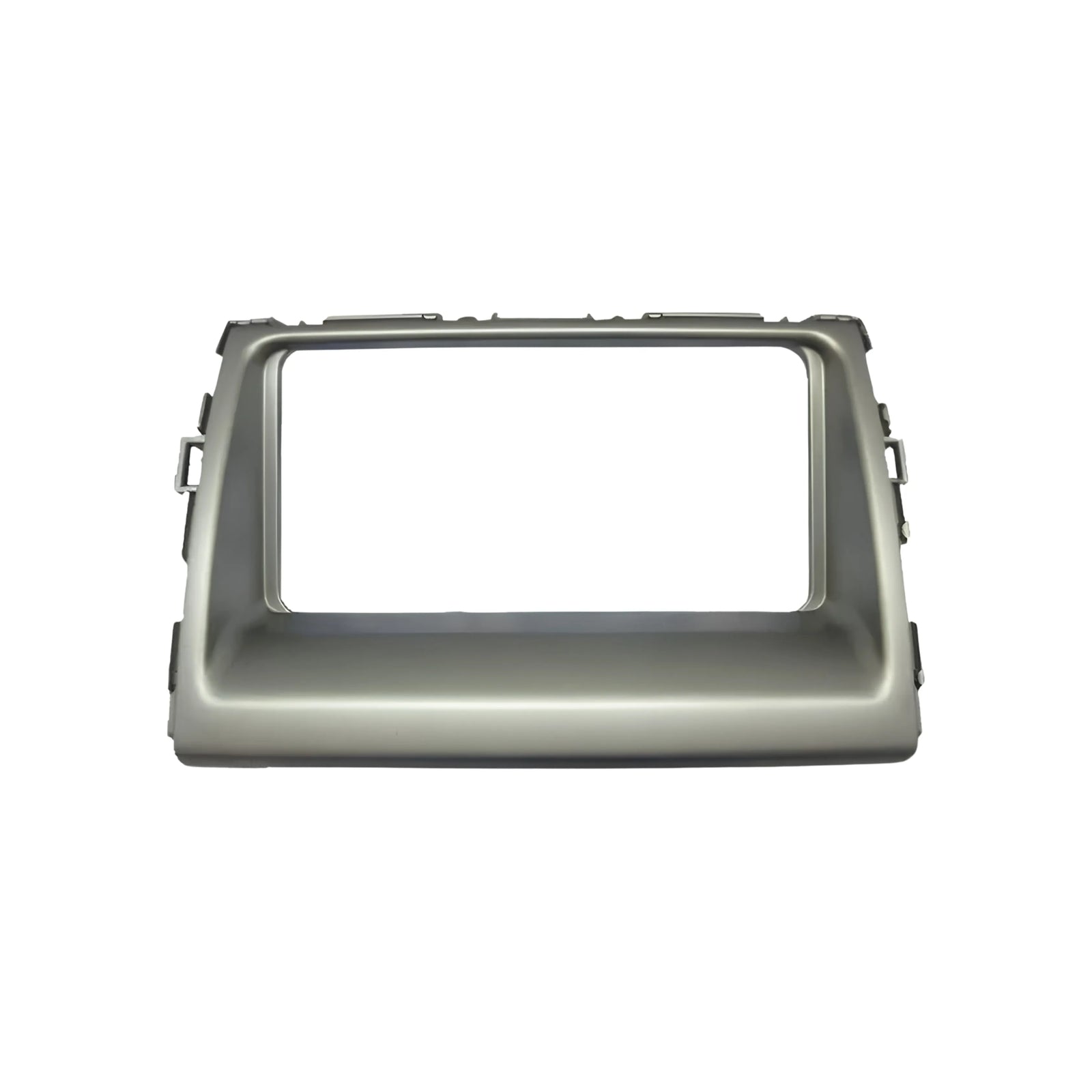

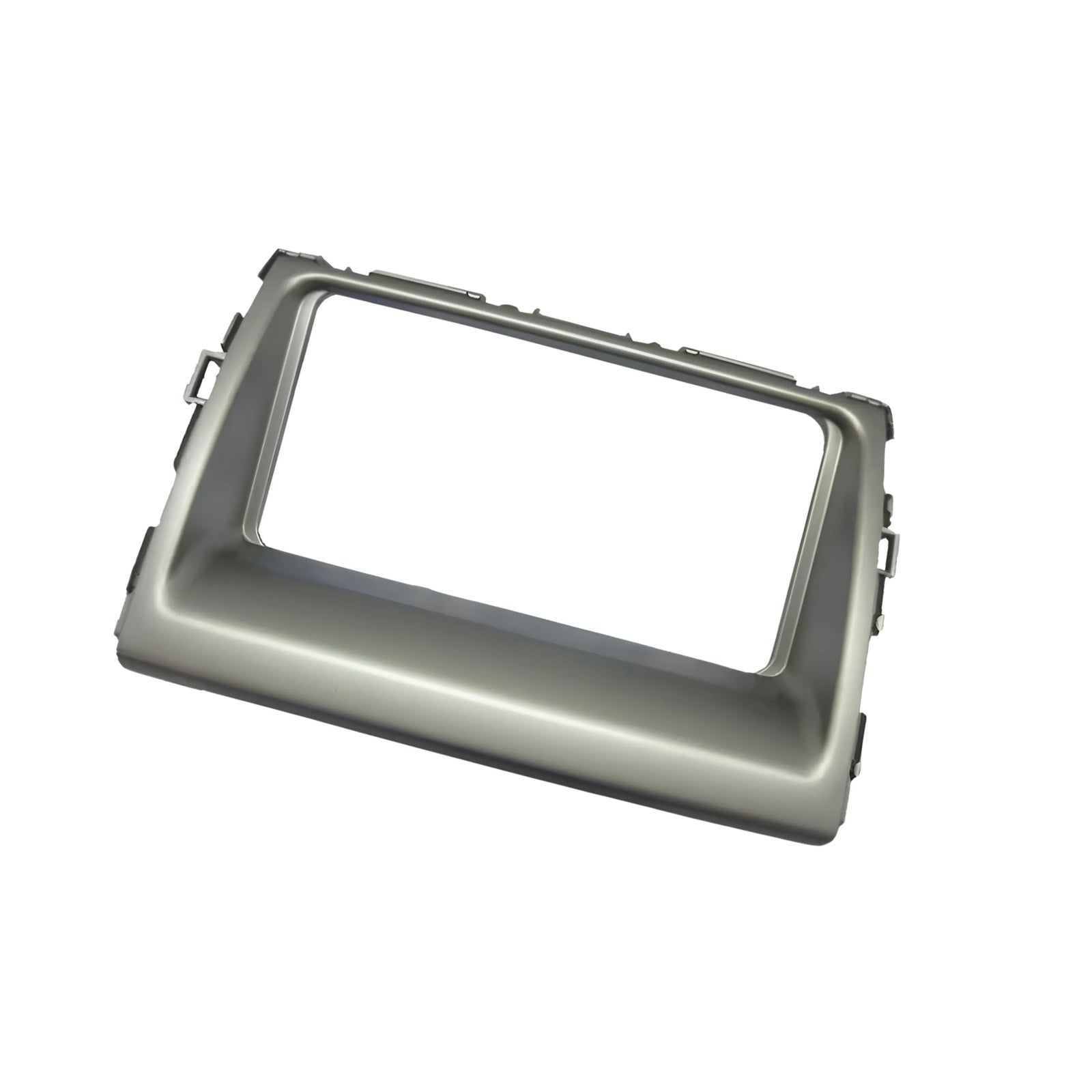

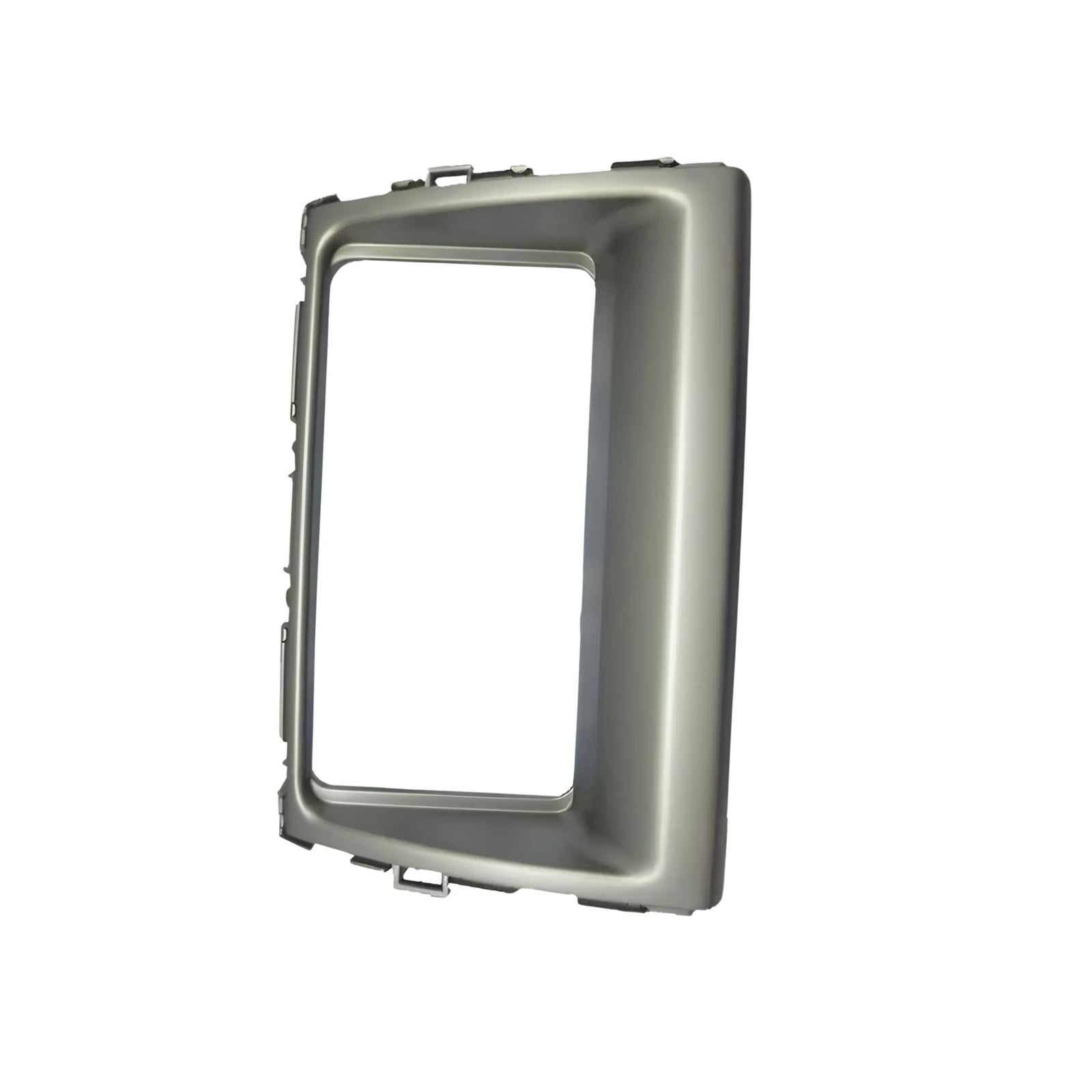

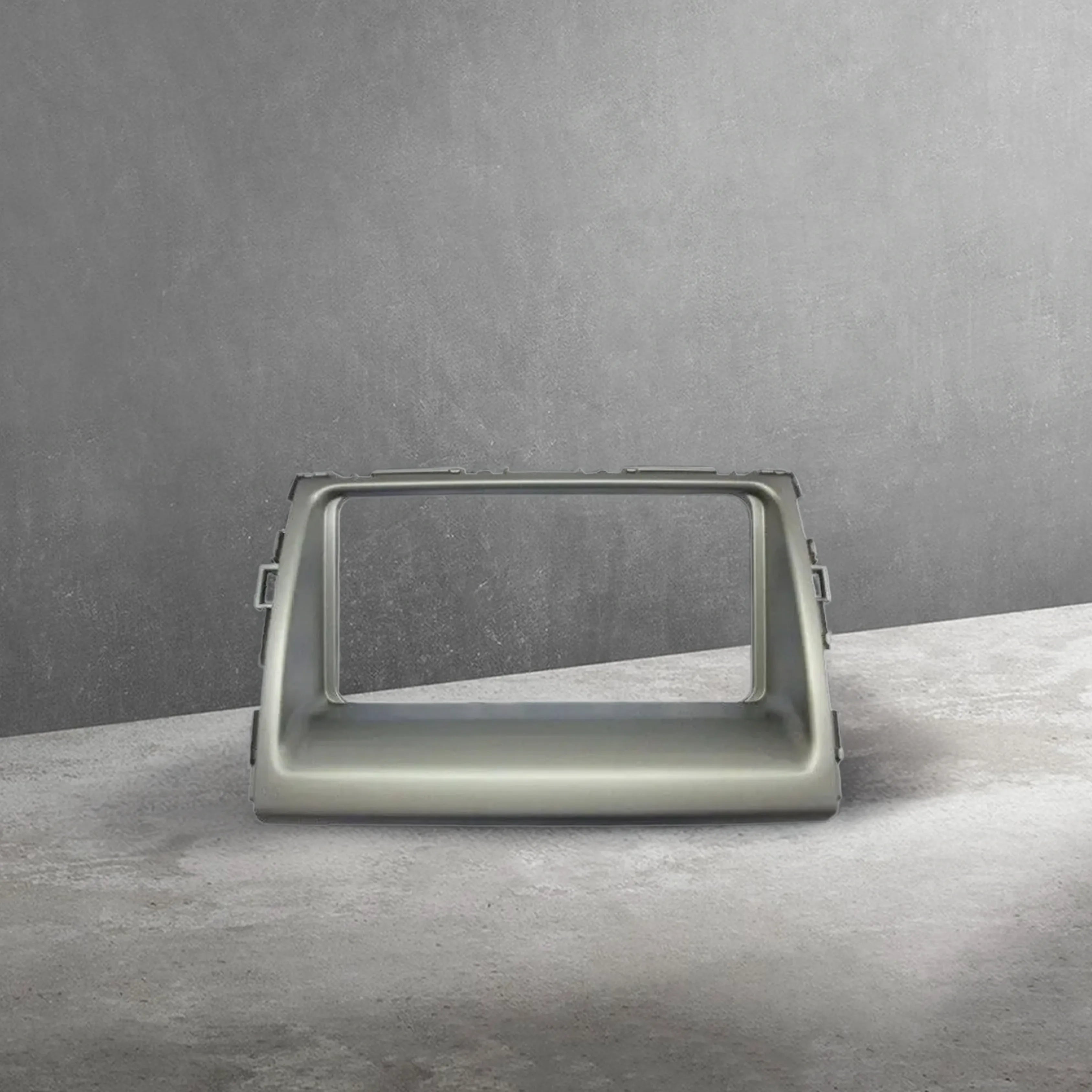

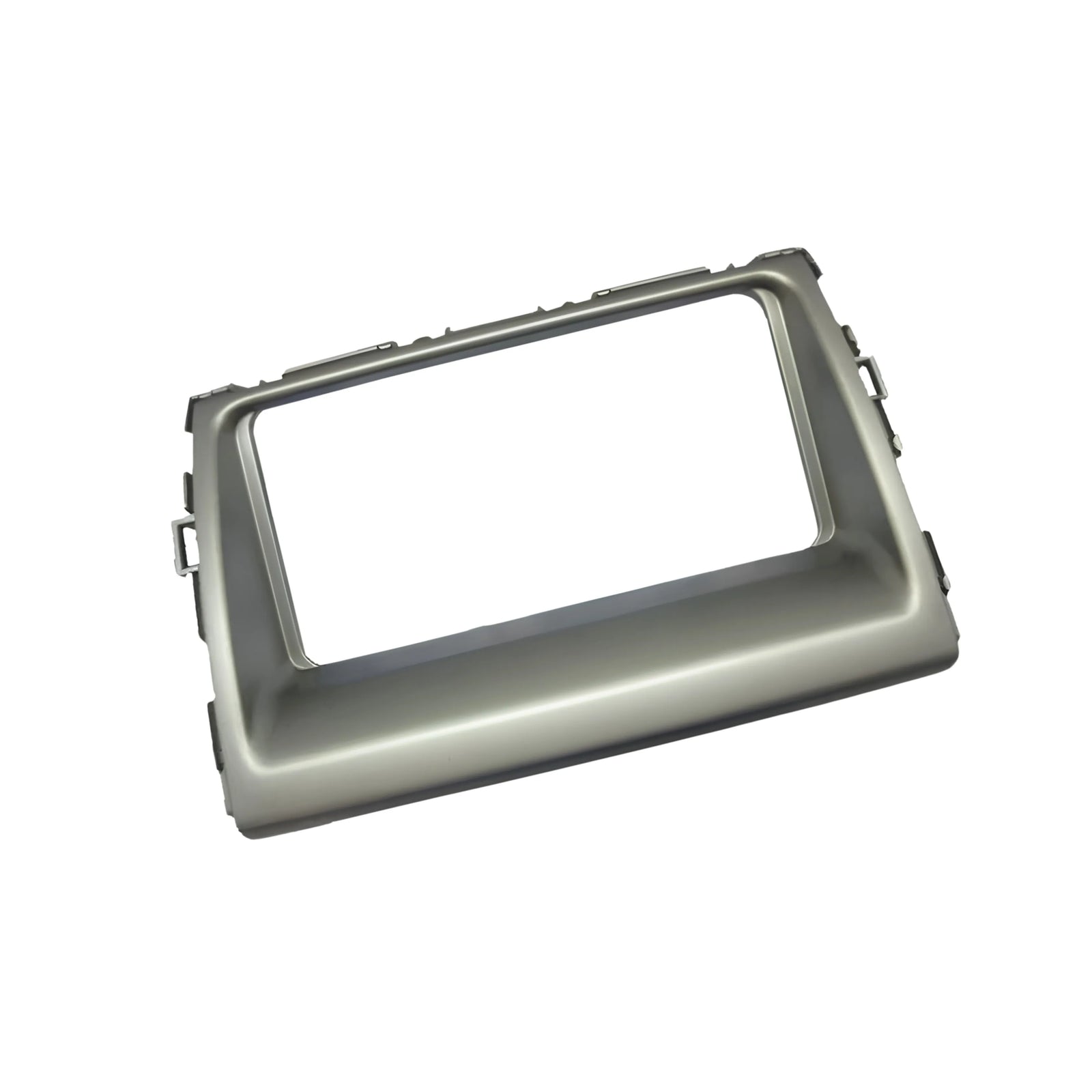

Stinger JPTOY03 Double DIN Radio Fascia Kit To Suit Toyota Estima 2006-2016
Click to open expanded view
STINGER logo

Stinger JPTOY03 Double DIN Radio Fascia Kit To Suit Toyota Estima 2006-2016

SKU: JPTOY03
Sale price
$251.96
Regular price
$279.95
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Stinger JPTOY03 JP Series OEM-Grade Double DIN Fascia Kit for Toyota Estima XR50 (2006–2016)

A premium Japanese OEM-grade fascia for the Toyota Estima XR50 (2006–2016) silver finish, natively supports 200mm Toyota-style radios. 2DIN installation requires the BKTOYBR adaptor, sold separately.

Product Overview

The Stinger JPTOY03 is a JP Series vehicle-specific radio fascia kit for the Toyota Estima XR50 series (2006–2016). Manufactured to Japanese OEM quality standards, it provides a factory-matched fit and finish.

The kit natively supports 200mm Toyota-style radio installation. Standard 2DIN aftermarket head units can also be fitted, but the BKTOYBR bracket adaptor is required and sold separately it is not included with this kit.

Features & Benefits

  • Japanese OEM-grade construction — premium fit and finish
  • Natively supports 200mm Toyota-style radio installation
  • 2DIN installation possible with BKTOYBR adaptor (sold separately — not included)
  • Silver finish matched to Estima XR50 interior trim
  • Uses factory mounting position — no additional brackets required

Technical Specs

Specification Detail
SKU / Part Number JPTOY03
Brand Stinger
Series JP Series (Japanese OEM Grade)
Colour / Finish Silver
Radio Size Compatibility 200mm Toyota-style (native) or 2DIN (BKTOYBR required — sold separately)
Mounting Brackets Included No — uses factory mounting position
2DIN Adaptor Included No — BKTOYBR sold separately
Antenna Adaptor Included Not included
Wiring Harness Included Not included
SWC Interface Included Not included

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Toyota Estima 2006–2016 (XR50 Series)

Goes Well With:

  • BKTOYBR bracket adaptors — required for 2DIN installation (sold separately)
  • Aftermarket 200mm Toyota-style head units (Pioneer, Kenwood, Sony, JVC)
  • Aftermarket double DIN head units (with BKTOYBR adaptors)
  • Stinger HRTY009 radio replacement kit (non-amplified Estima XR50)
  • Stinger HRTY010 radio replacement kit (amplified/HD audio Estima XR50)
  • Vehicle-specific ISO wiring harness for Toyota Estima XR50
  • Stinger STAAT10M antenna adaptor (for Toyota Estima XR50)

Frequently Asked Questions

Is the BKTOYBR adaptor included with this kit?

No. The BKTOYBR bracket adaptor required for 2DIN installation is sold separately and is not included with the JPTOY03. If you are installing a 200mm Toyota-style radio, no additional adaptors are needed.

Does this kit suit all Toyota Estima XR50 variants?

The JPTOY03 is specified for the Toyota Estima XR50 series (2006–2016). For amplified (HD audio / DSP) or non-amplified system variants, also consider the matching Stinger HRTY009 or HRTY010 radio replacement kits which include the SWC interface, camera retention, and harness. Contact the F.A.E. team to confirm the best combination for your Estima.

Is a wiring harness included?

No. The JPTOY03 is a fascia kit only. A vehicle-specific ISO wiring harness will need to be sourced separately to connect your aftermarket head unit to the factory wiring.

Are mounting brackets included?

No. The JPTOY03 uses the vehicle's existing factory mounting position. No additional brackets are required or included.

Is an antenna adaptor included?

No. An antenna adaptor is not included. See the Stinger STAAT10M for a compatible Toyota Estima XR50 antenna adaptor.
