Stinger HRTY009 Toyota Estima Radio Replacement Kit – (Non Amplified)
Click to open expanded view
STINGER logo

Stinger HRTY009 Toyota Estima Radio Replacement Kit – (Non Amplified)

SKU: HRTY009
Sale price
$476.10
Regular price
$529
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Stinger HRTY009 Plug & Play Radio Replacement Kit for Toyota Estima XR50 (Non-Amplified)

Designed exclusively for non-amplified Toyota Estima XR50 models retain steering wheel controls and reverse camera while fitting a 2DIN or 200mm aftermarket radio.

Product Overview

The Stinger HRTY009 is a vehicle-specific radio replacement kit for the Toyota Estima XR50 series (2006–2016) with a non-factory amplified audio system. It is not compatible with vehicles fitted with the HD audio package or DSP amplified system. The kit connects via Toyota 10-pin + 6-pin and 20-pin connectors to a standard ISO harness, with a steering wheel audio buttons adaptor and reverse camera retention module included.

The OEM-grade replacement fascia panel supports both standard 2DIN radio installation (with included adaptors) and 200mm single-DIN radios, offering flexibility for different head unit sizes.

Please note: The following factory features cannot be retained when replacing the factory radio with this kit Parking Assist system, optional side and front-facing cameras, and optional roof mount screen. Reverse camera (rear only) is retained. This kit is not suitable for HD audio or DSP amplified Estima variants.

Features & Benefits

  • Plug & play — factory connector to standard ISO connector

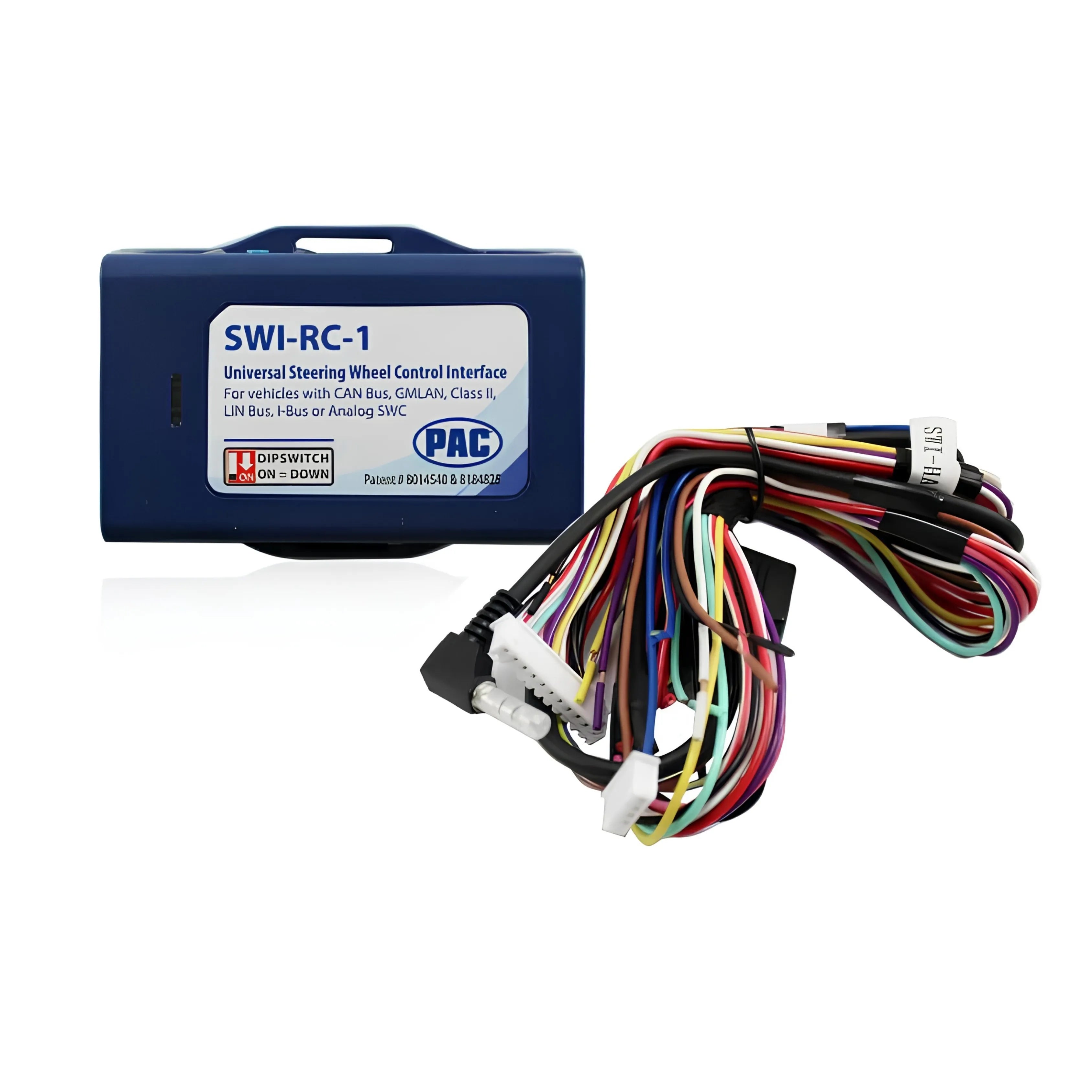

  • Retains steering wheel audio controls — adaptor included
  • Retains factory reverse camera (rear only)
  • OEM-grade replacement radio panel — suits 2DIN or 200mm radios

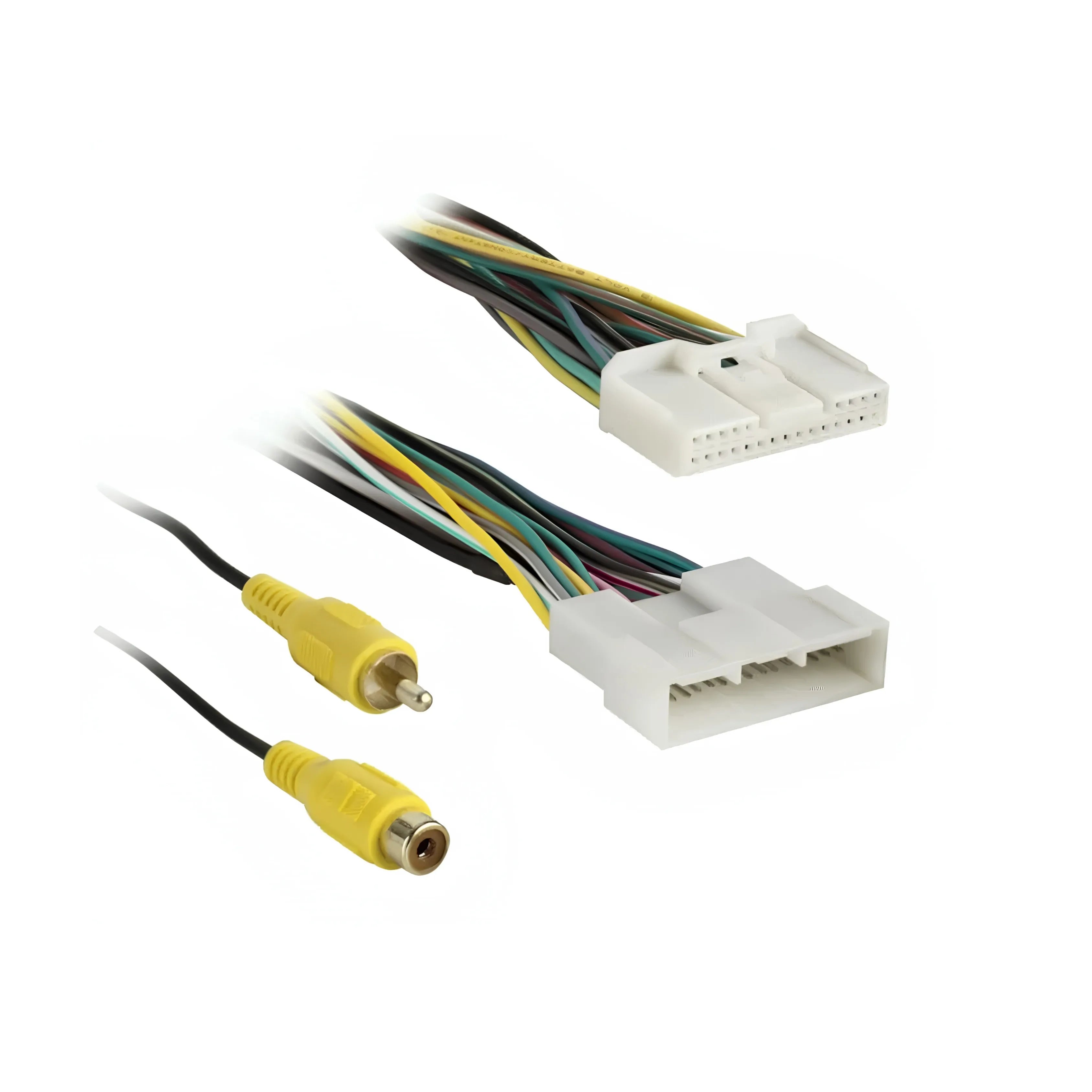

  • Toyota 10-pin + 6-pin and 20-pin connector compatibility
  • Silver finish to match Estima interior
  • Uses factory mounting brackets — no additional brackets required

Technical Specs

Specification Detail
SKU / Part Number HRTY009
Brand Stinger
Colour / Finish Silver
Plug & Play Yes — Factory Connector to Standard ISO Connector
Vehicle Plug Style Toyota 10-Pin + 6-Pin, 20-Pin Toyota Style Connector
Compatible Audio System Non-amplified only (not compatible with HD audio or DSP amplified)
Steering Wheel Control Retention Yes — Adaptor included
Reverse Camera Retention Yes — Rear camera only (side and front cameras not retained)
Parking Assist Retention No — Not retained
Roof Mount Screen Retention No — Not retained
AUX / USB Retention No
Antenna Adaptor Included No

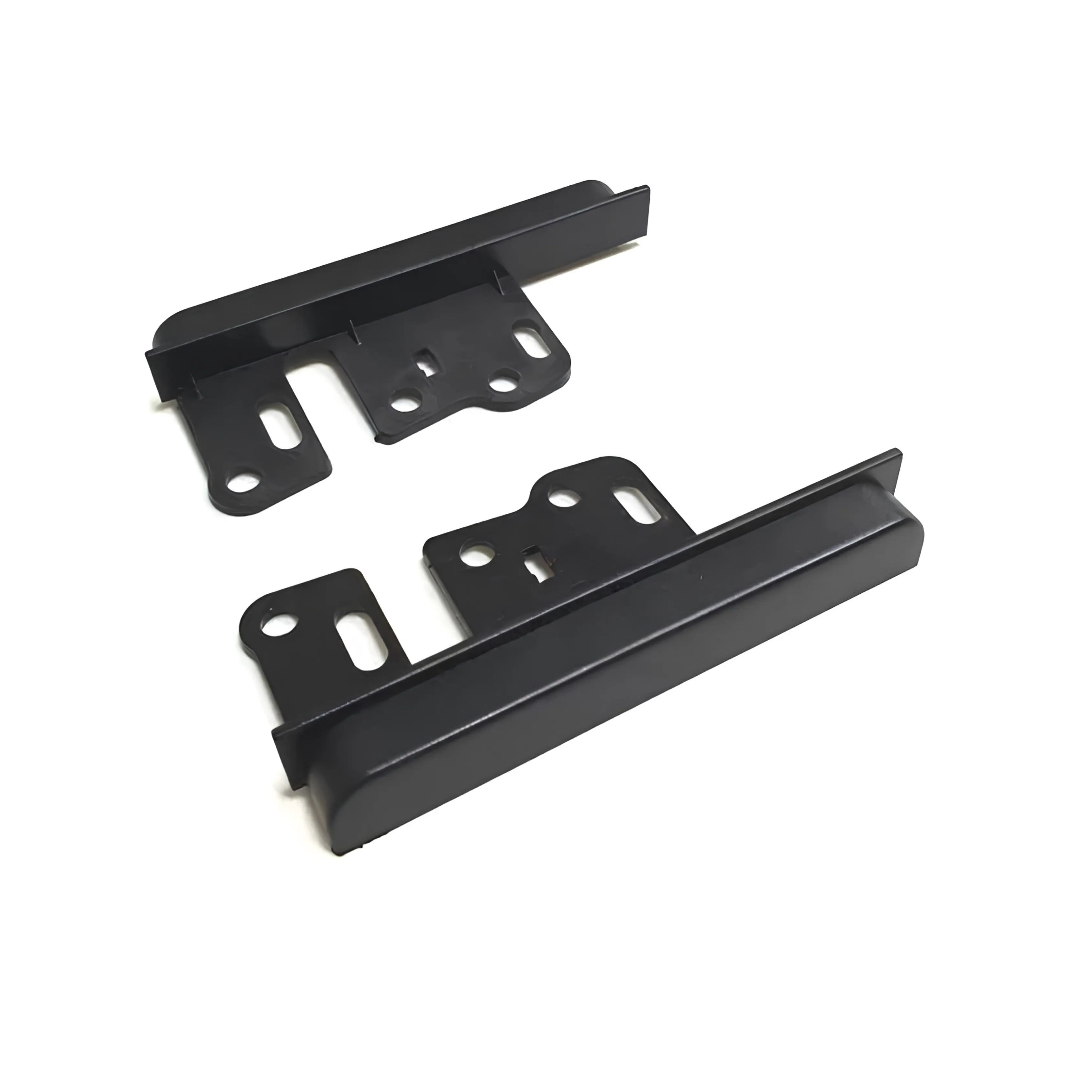

Mounting Brackets Included No — Uses factory brackets
Radio Size Compatibility 2DIN (with included adaptors) or 200mm

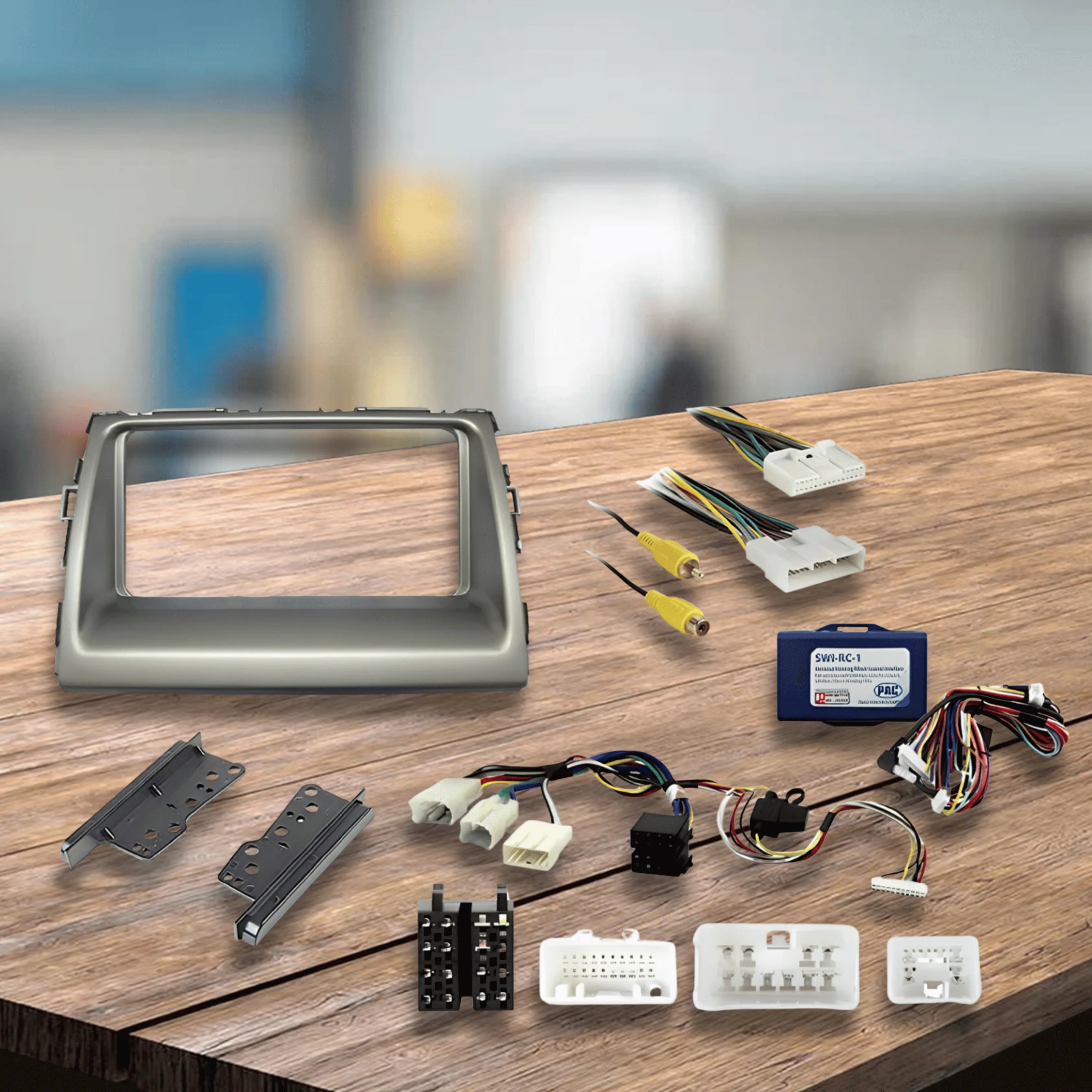

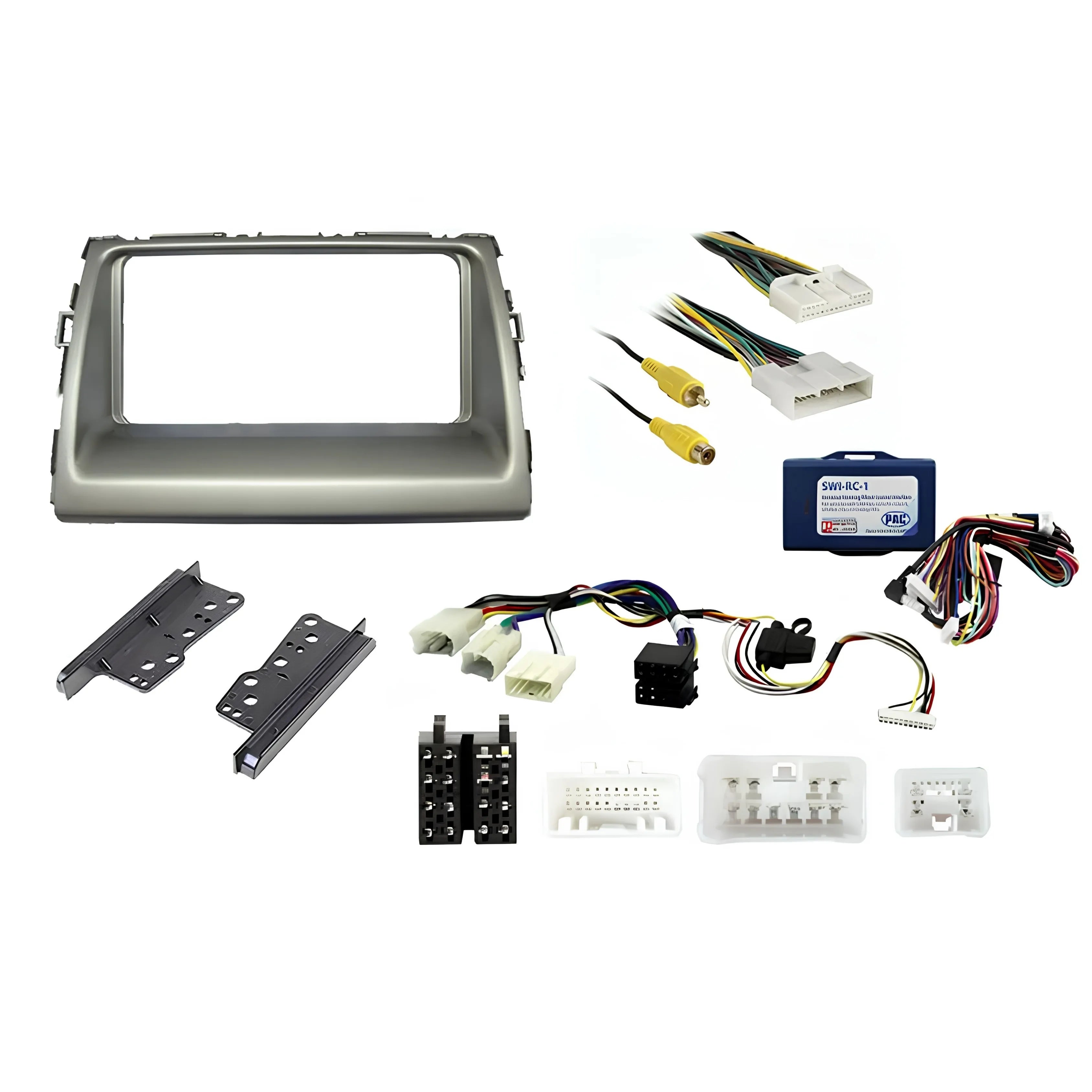

What's in the Box OEM-Grade 2DIN Radio Panel, Steering Wheel Audio Buttons Adaptor, Reverse Camera Retention

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Toyota Estima 2006–2016 (XR50 Series) — Non-amplified models only

Goes Well With:

  • Aftermarket double DIN head units (Pioneer, Kenwood, Sony, JVC)
  • Aftermarket antenna adaptor (not included — may be required depending on head unit)
  • Aftermarket 200mm single DIN head units

Frequently Asked Questions

How do I know if my Estima has a non-amplified system?

The HRTY009 suits Estima XR50 models without the HD audio package or DSP amplified system. If your vehicle has a factory amplifier or premium audio upgrade, this kit is not compatible. Check your vehicle's factory option list or contact F.A.E. to confirm before purchasing.

Will my factory reverse camera still work after installation?

Yes, but only the rear reverse camera is retained. Optional side-facing and front-facing cameras are not retained. The optional roof mount screen also cannot be retained after replacing the factory radio.

What happens to the Parking Assist system after installation?

The factory Parking Assist system cannot be retained when the factory radio is replaced using the HRTY009. This is a known limitation of the installation and applies to all compatible Estima XR50 variants.

Does this kit fit both 2DIN and 200mm radios?

Yes. The OEM-grade fascia panel supports standard 2DIN radio installation using the included adaptors, as well as 200mm single DIN radios, giving you flexibility in your choice of aftermarket head unit.

Is an antenna adaptor included?

No. The HRTY009 does not include an antenna adaptor. Depending on your aftermarket head unit's antenna connector type, an additional adaptor will likely be required and should be sourced separately.
