Stinger HRTY001 Toyota Radio Replacement Kit

Stinger HRTY001 Plug and Play Radio Replacement Kit for Toyota Vehicles with 20-Pin SWC

The HRTY001 is a vehicle-specific plug and play radio replacement kit from Stinger, engineered for a wide range of Toyota models (2000-2019) equipped with a 20-pin steering wheel control connection. It includes a steering wheel control interface with dual-function short and long press button mapping, CAN Bus accessory output, and memory retention after power loss, connecting via factory connector to standard ISO harness without cutting or splicing factory wiring.

Product overview

The Stinger HRTY001 connects an aftermarket head unit to the factory wiring of compatible Toyota vehicles via a plug and play ISO harness. The kit covers twenty Toyota models across multiple generations that share the same 20-pin steering wheel control connection, providing a single kit solution for a broad range of Toyota applications. Refer to the compatibility list to confirm your specific model and year before purchasing.

The steering wheel control interface supports dual-function button assignment, allowing two separate radio functions to be mapped to a single steering wheel button via short press and long press inputs. Three configuration methods are supported: PC via the Autoleads application, dip switch settings, or manual programming directly on the module. A manual learning function is also available for compatibility with unlisted analogue SWC vehicles. The Autoleads PC application enables field firmware updates, a tri-colour LED provides real-time status feedback, and memory is retained even if vehicle power is lost.

The CAN Bus accessory output provides a switched accessory signal in CAN Bus vehicles where a traditional ACC wire may not be available. Note that antenna adaptor, reverse camera retention, and AUX/USB retention are not included. Additional products will need to be sourced separately if these features are required.

Features and benefits

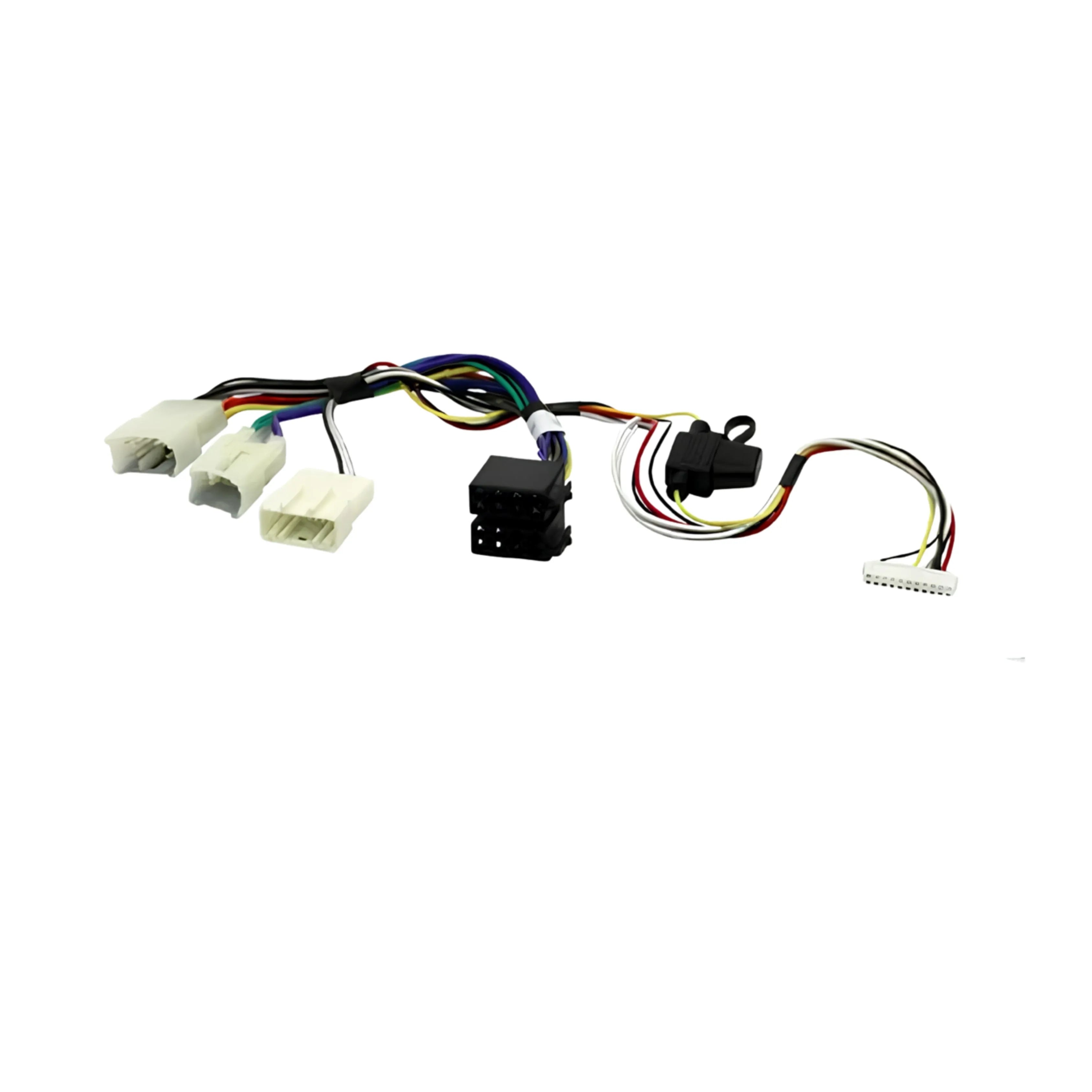

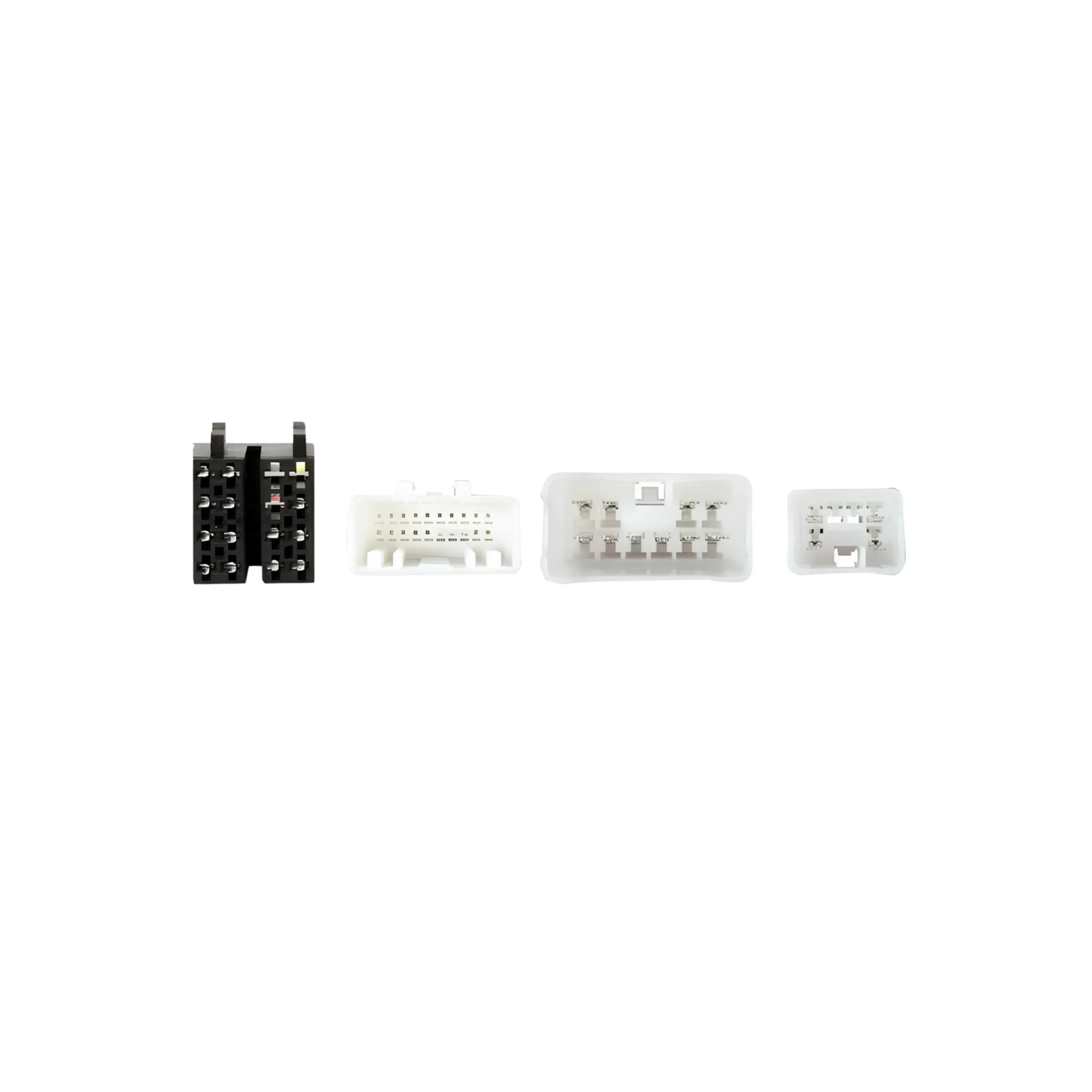

Plug and play factory to ISO harness: Connects directly from the Toyota factory 20-pin SWC wiring to a standard ISO harness for straightforward installation without cutting or splicing factory vehicle wiring.

Steering wheel control retention with dual-function mapping: The included SWC interface retains the factory steering wheel audio controls via a Toyota 20-pin SWC connection, with dual-function button assignment allowing two separate radio functions per button via short press and long press inputs.

Three SWC configuration methods: The SWC interface can be configured via PC using the Autoleads application, dip switch settings, or manual programming on the module, with a manual learning function for compatibility with unlisted analogue SWC vehicles.

Field updatable via Autoleads PC application: Firmware updates are applied through the Autoleads PC application, keeping the SWC interface current and compatible with new head unit releases without replacing the module.

CAN Bus accessory output: Provides a switched accessory signal in CAN Bus vehicles where a traditional ACC wire is not available on the factory harness.

Tri-colour LED status indicator: A tri-colour LED provides real-time status feedback on the SWC interface module during programming and normal operation.

Memory retention after power loss: The SWC interface retains its programmed configuration even if vehicle power is disconnected, removing the need to reprogram after battery changes or electrical work.

Broad Toyota compatibility: A single kit covers twenty Toyota models across multiple generations sharing the 20-pin SWC connection, from 2000 through to 2019.

Black finish: The black fascia panel suits the factory interior trim of compatible Toyota models for a clean, integrated appearance after installation.

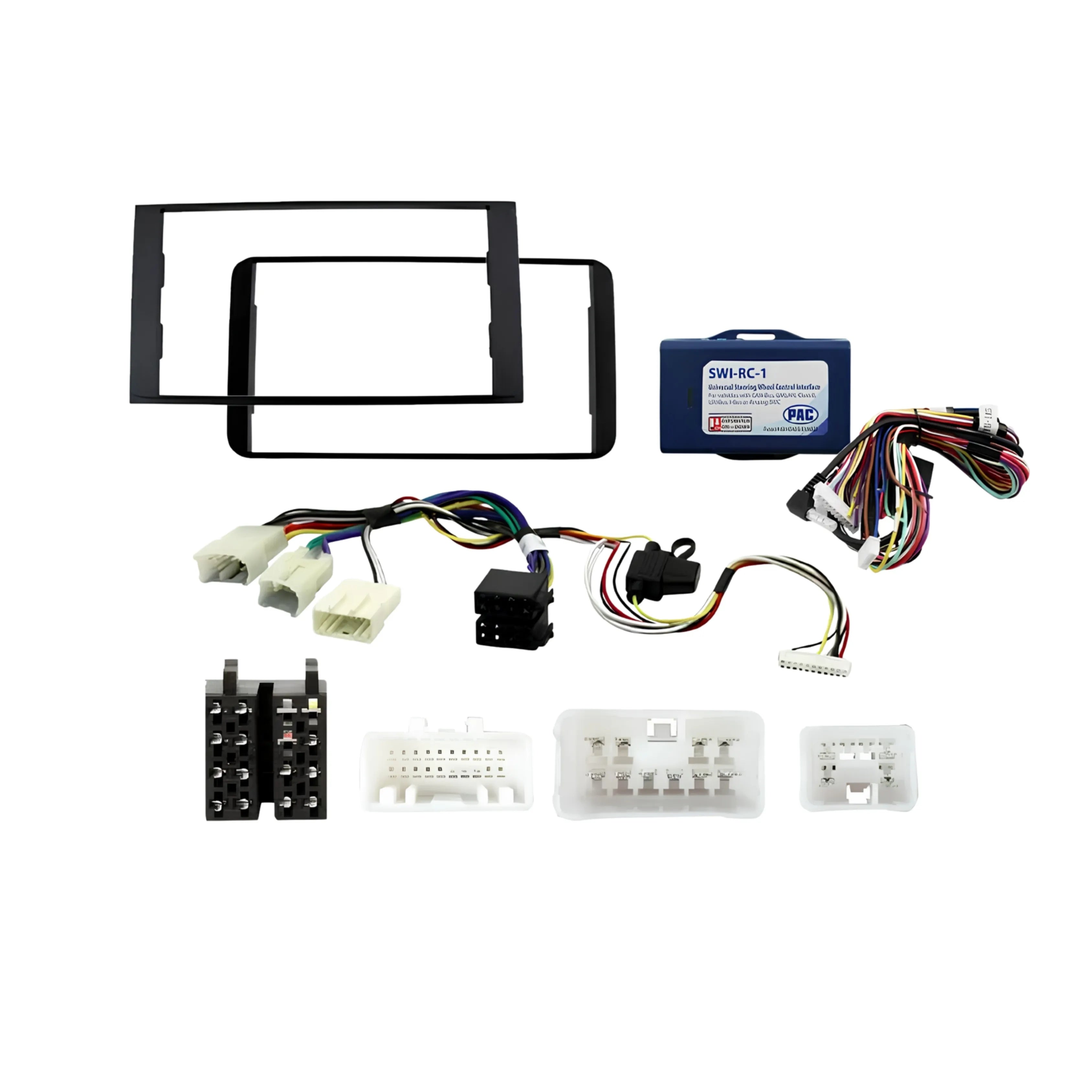

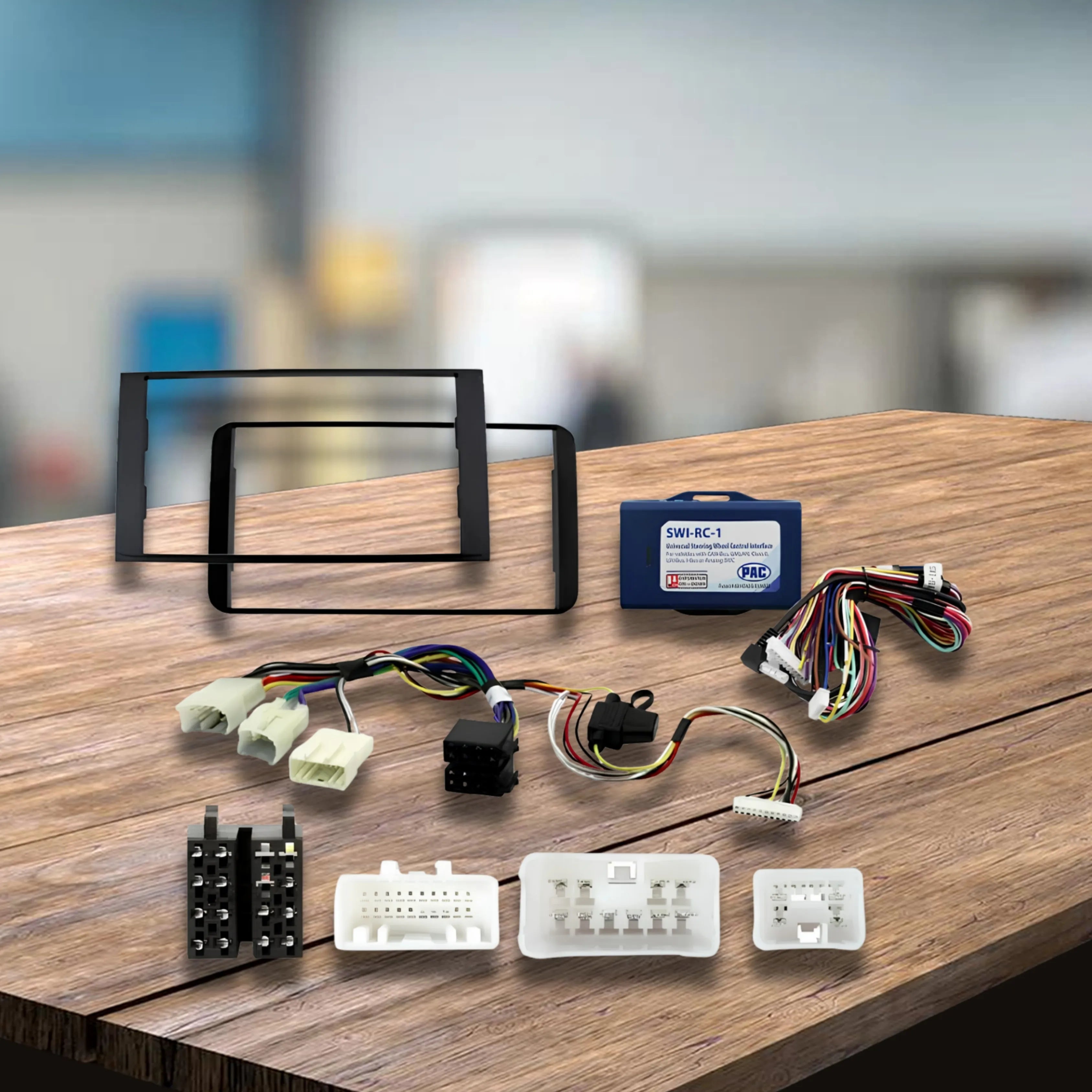

What's in the box

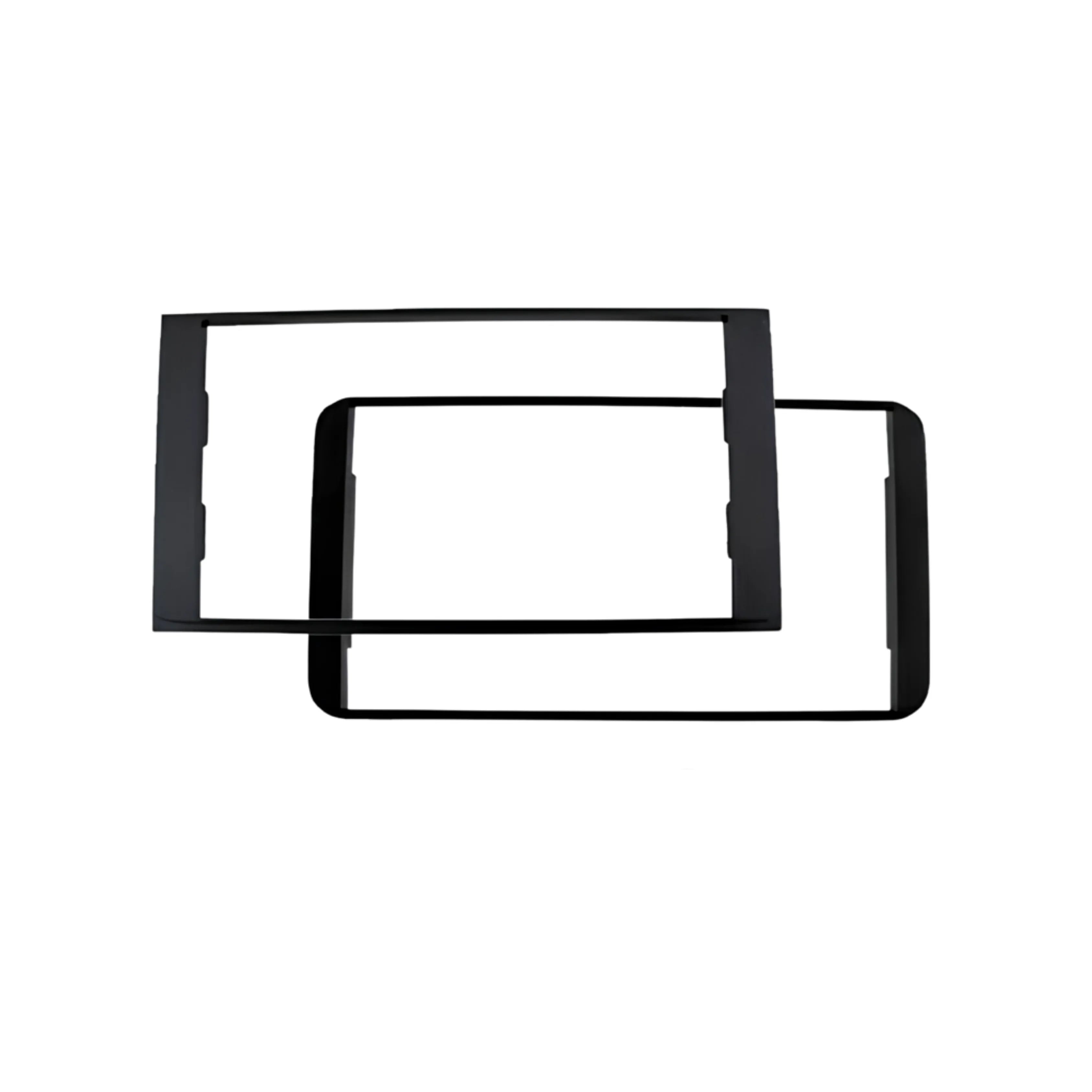

• 2DIN radio fascia panel (black)

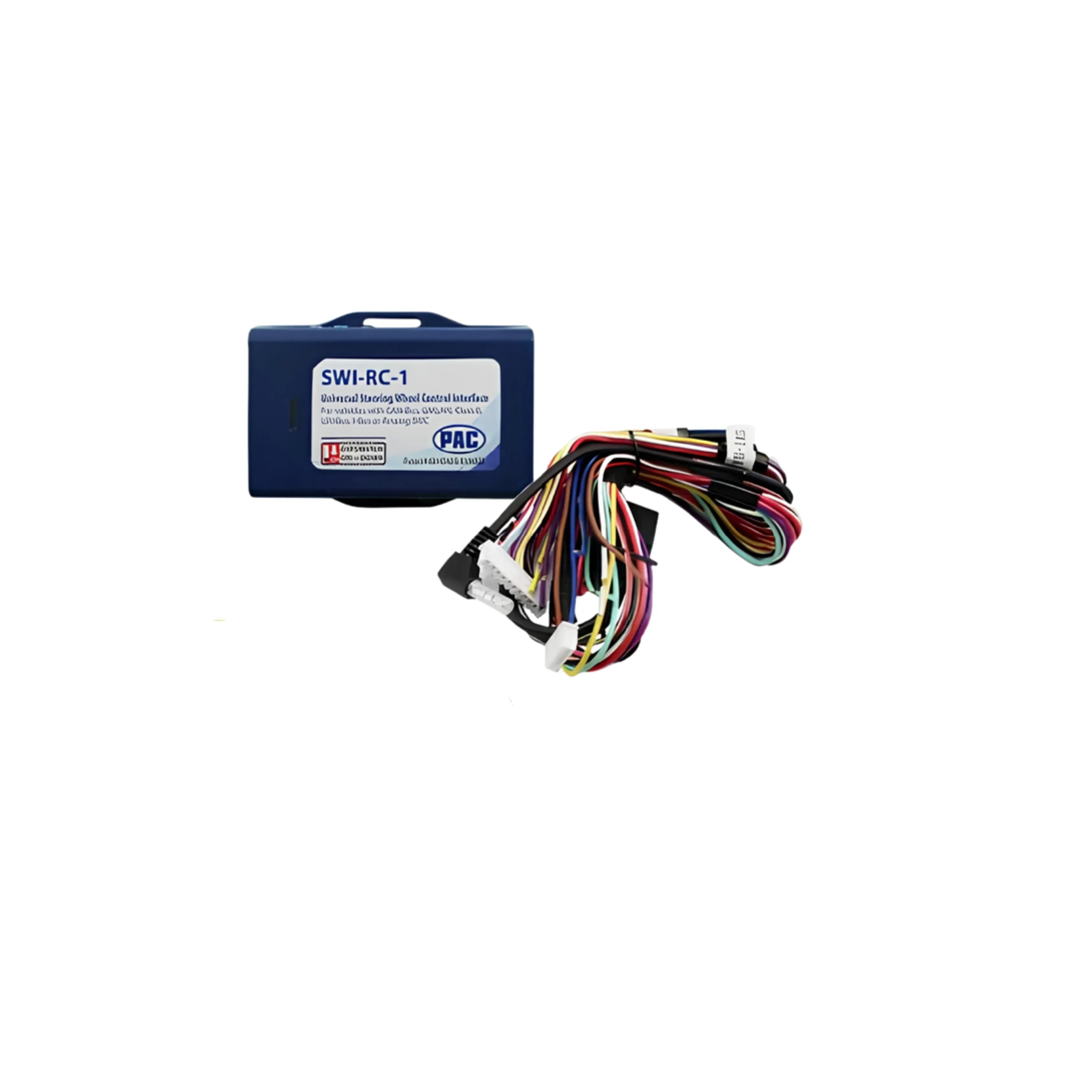

• Steering wheel audio control interface with dual-function mapping

Technical specs

Compatible with

Vehicle feature retention

Frequently asked questions

Does the HRTY001 work with all Toyota vehicles?
No. The HRTY001 is specifically designed for Toyota vehicles equipped with a 20-pin steering wheel control connection. Refer to the compatibility list above to confirm your specific model and year before purchasing. Contact us if your vehicle is not listed.

Can I assign multiple functions to a single steering wheel button?
Yes. The HRTY001 supports dual-function mapping, allowing two separate radio functions to be assigned to a single steering wheel button via short press and long press inputs, effectively doubling the number of assignable functions without additional buttons.

How do I program the steering wheel control interface on the HRTY001?
The SWC interface supports three configuration methods: PC via the Autoleads application, dip switch settings, or manual programming on the module. A manual learning function is also available for compatibility with unlisted analogue SWC vehicles. Firmware updates are applied through the Autoleads PC application.

Is an antenna adaptor included with the HRTY001?
No. An antenna adaptor is not included. Depending on your vehicle and chosen aftermarket head unit, an additional Toyota antenna adaptor may be required and should be sourced separately. Contact us for guidance on compatible antenna adaptors for your specific Toyota model.

Does the HRTY001 retain the factory reverse camera or AUX/USB connectivity?
No. Reverse camera retention and AUX/USB retention are not included with the HRTY001. Additional retention modules will need to be sourced separately if these features are required with your new aftermarket head unit. Contact us for guidance on compatible retention solutions for your specific Toyota model.
