Stinger HRSZ002 Suzuki Swift Radio Replacement Kit
Click to open expanded view
STINGER logo

Stinger HRSZ002 Suzuki Swift Radio Replacement Kit

SKU: HRSZ002
Sale price
$314.10
Regular price
$349
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Complete Plug & Play Radio Upgrade for the Suzuki Swift FZ Steering Wheel Controls Retained

Product Overview

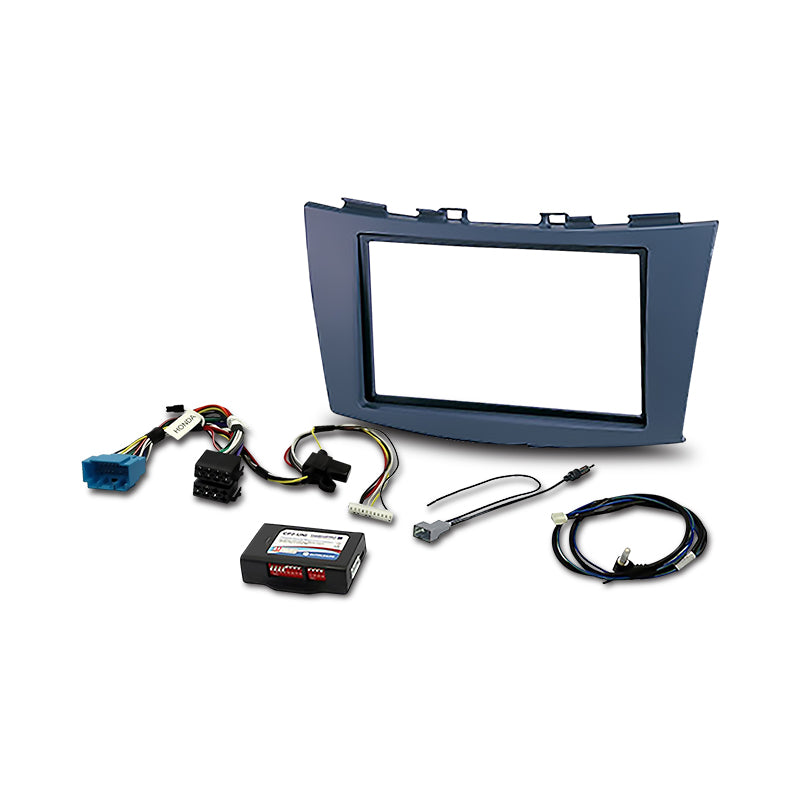

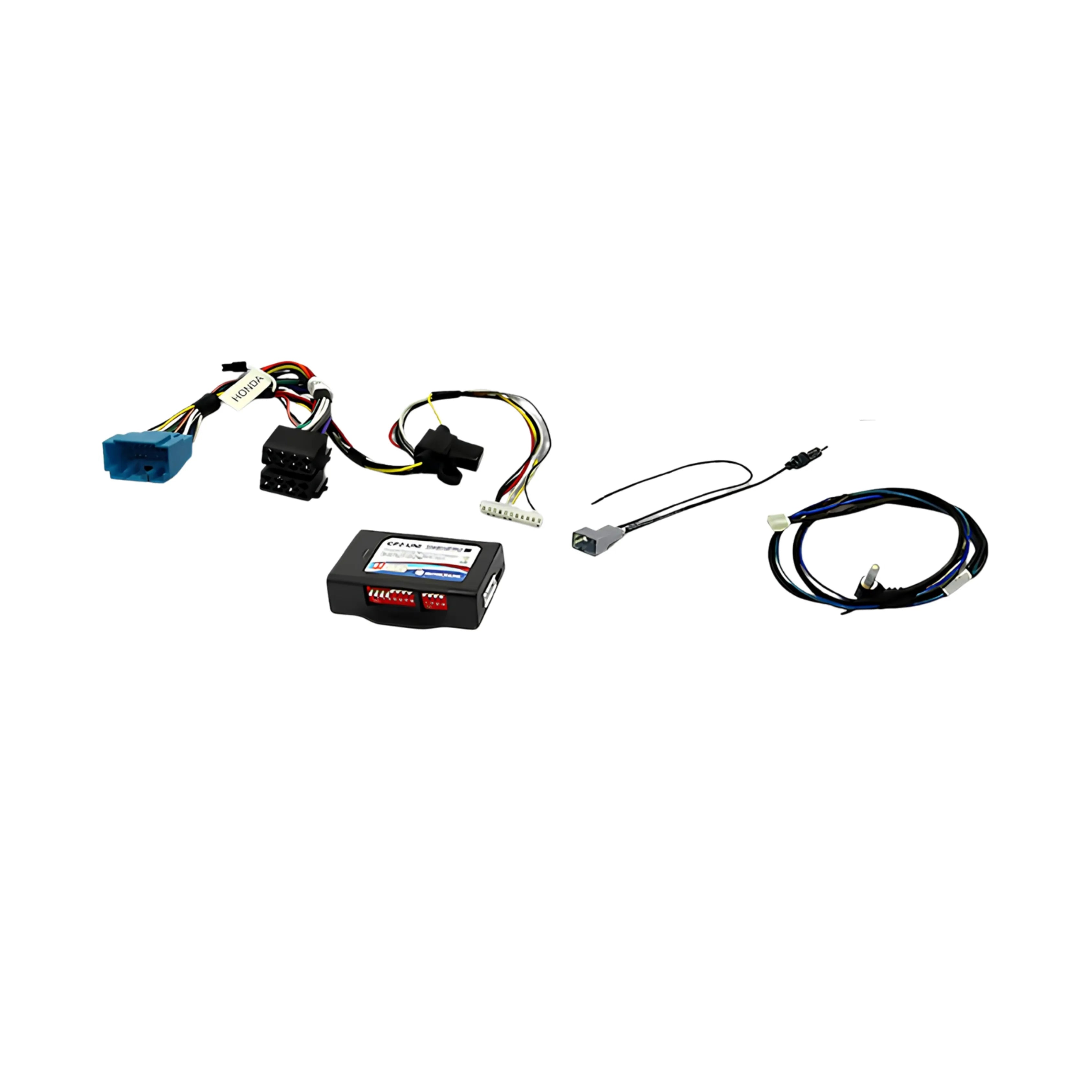

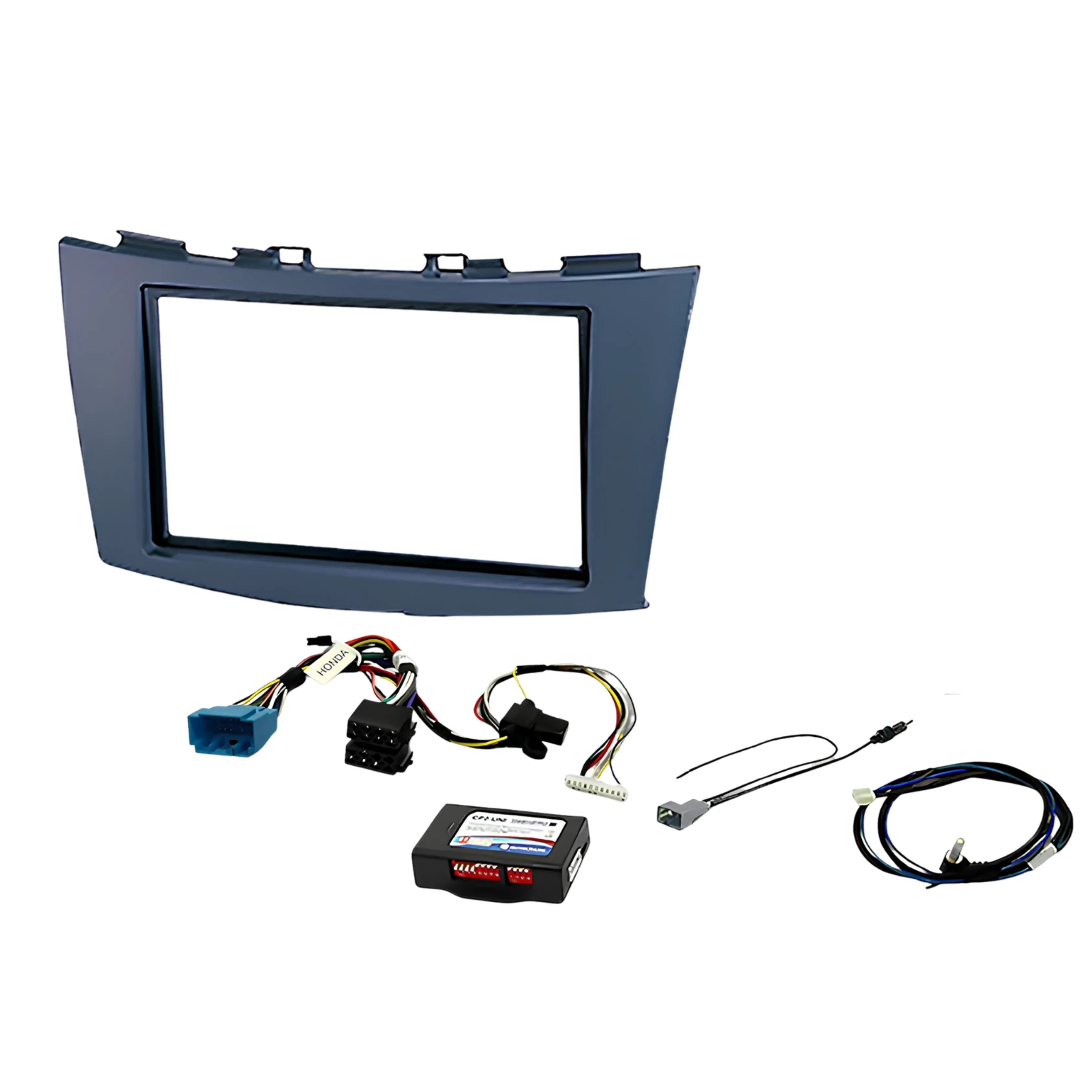

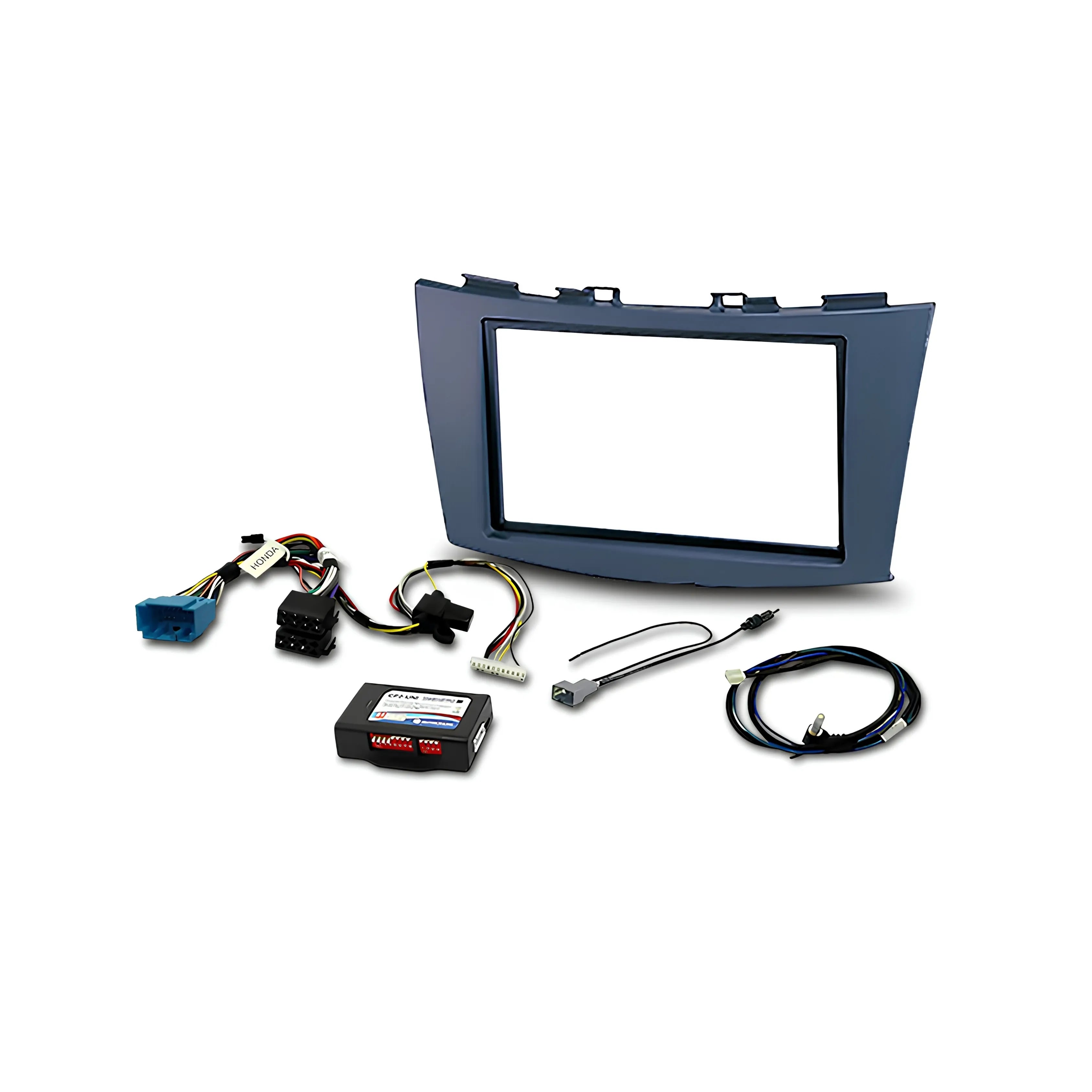

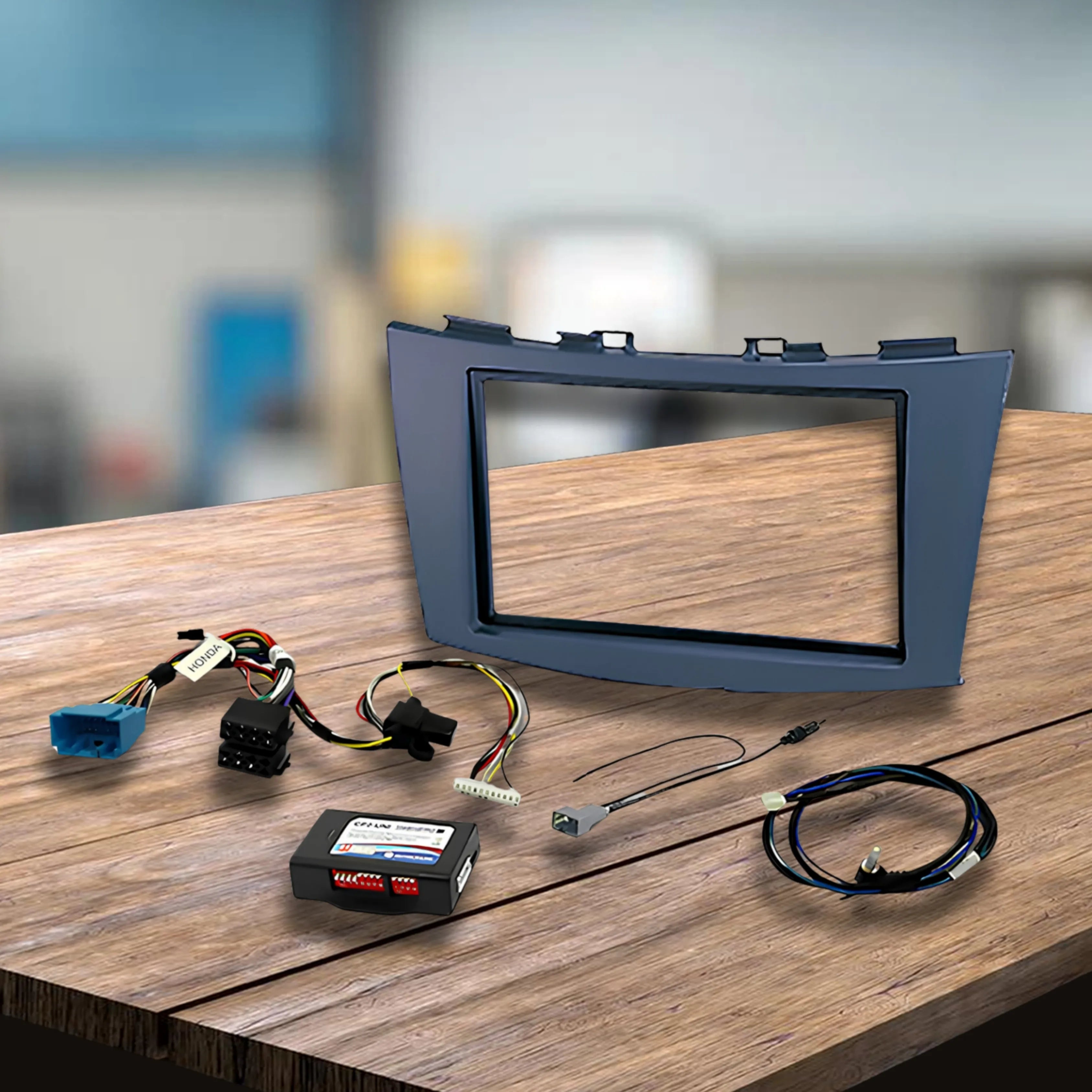

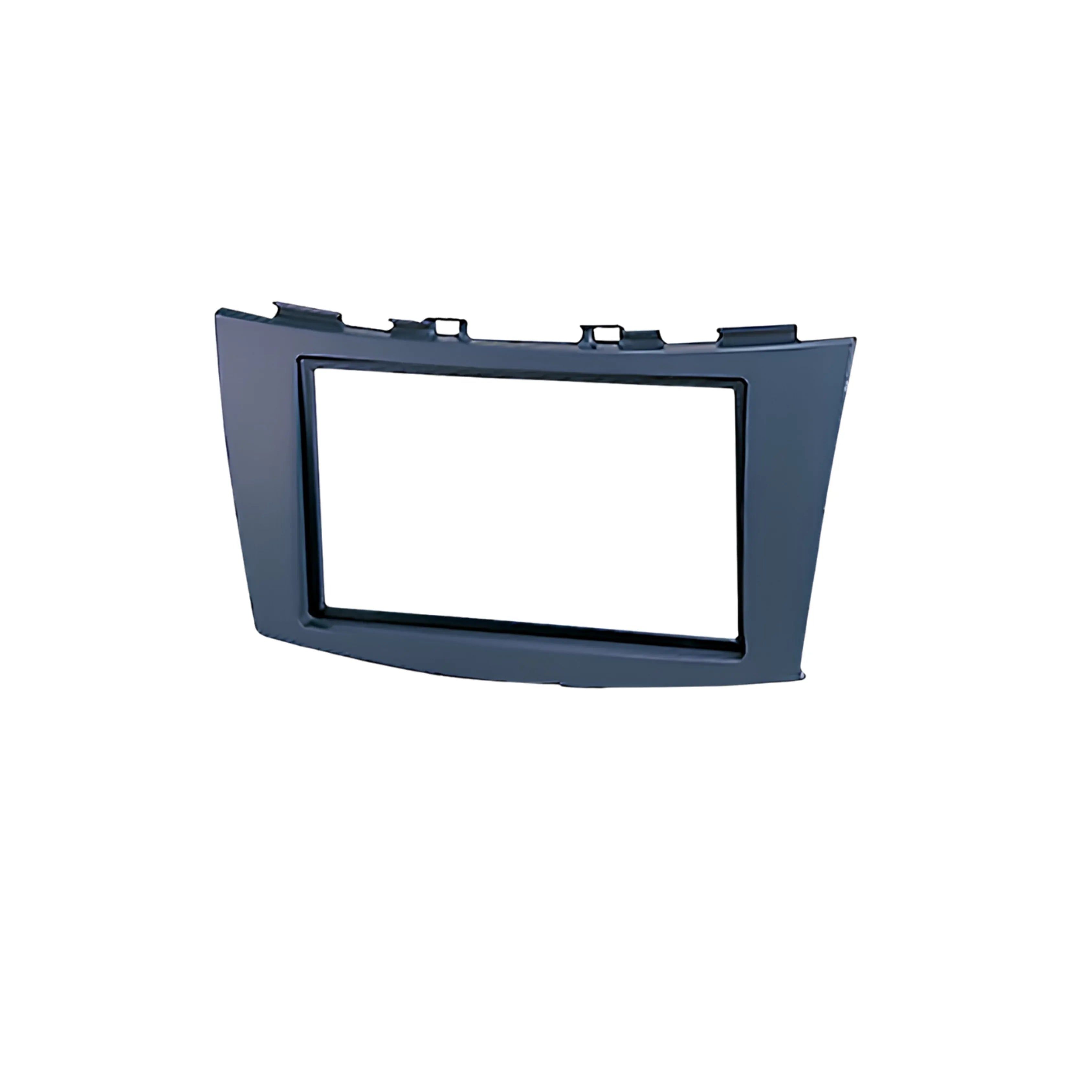

The Stinger HRSZ002 is a complete 2DIN radio replacement kit designed specifically for the Suzuki Swift FZ (2011–2016). The kit bundles everything needed for a clean, professional aftermarket head unit installation including the 2DIN fascia panel, mounting brackets, and a fully configurable steering wheel control adaptor all connecting via a factory plug-and-play connector to a standard ISO output with no cutting of factory wiring.

The steering wheel control interface is one of the most capable in its class: it supports short press and long press assignment for dual radio functions on a single button, offers three configuration methods (PC via Autoleads app, DIP switch, or manual programming), retains memory if power is lost, and includes a tri-colour LED for real-time module status feedback. It is also field-updatable via the Autoleads PC application.

Note: an antenna adaptor is not included in this kit you will need to source one separately for your specific head unit antenna connection.

Features & Benefits

  • Plug & play factory connector: Connects directly to the Swift FZ factory wiring loom and outputs a standard ISO connector — no cutting, no splicing, no irreversible modifications.
  • Advanced steering wheel control interface: Supports short press and long press assignment on a single button, allowing two radio functions per steering wheel control — more flexibility than a standard SWC adaptor.
  • Three configuration methods: Program the SWC interface via the Autoleads PC application, DIP switch settings, or manual learning mode — suitable for workshop or DIY installation.
  • Manual learning mode: Compatible with vehicles equipped with analog steering wheel controls that are not pre-listed in the Autoleads database, extending compatibility beyond the Swift FZ.
  • Tri-colour LED status indicator: A clearly visible LED keeps the installer informed of the module's operational status during setup and use.
  • Retains memory on power loss: The interface retains its programming even if the vehicle battery is disconnected — no need to reprogram after a battery swap or flat.
  • Field-updatable firmware: The module can be updated via the Autoleads PC application, ensuring compatibility with new head unit releases without replacing the interface.
  • Mounting brackets included: All hardware needed to secure the new head unit is supplied — no additional bracket sourcing required.

Technical Specs

Specification Detail
Part Number HRSZ002
Kit Type Complete 2DIN Radio Replacement Kit
Colour Black
Plug & Play Yes — factory connector to standard ISO connector
Steering Wheel Controls Retained — configurable SWC adaptor included
SWC Configuration Methods PC (Autoleads app), DIP switch, manual programming
Short Press / Long Press Yes — dual function assignment per button
Memory Retention Yes — retained on power loss
Firmware Updateable Yes — via Autoleads PC application
Tri-colour LED Yes — module status indicator
Mounting Brackets Yes — included
Antenna Adaptor No — source separately
Compatible Model Suzuki Swift FZ (2011–2016)
Weight Not specified

Compatible With / Goes Well With

  • Suzuki Swift FZ — 2011 to 2016
  • Any standard 2DIN aftermarket head unit with ISO connector
  • Autoleads PC application (for firmware updates and PC-based SWC programming)

Caution: An antenna adaptor is not included with this kit — you will need to source a compatible antenna adaptor for your chosen head unit separately. Confirm the antenna connector type required before ordering.

Frequently Asked Questions

Does the HRSZ002 include an antenna adaptor?

No — despite the "What's In The Box" listing referencing an antenna adaptor, the product specifications explicitly state that no antenna adaptor is included. Confirm with F.A.E. and source the correct antenna adaptor for your chosen head unit separately before installation.

What does short press / long press assignment mean for steering wheel controls?

The SWC interface allows you to assign two different radio functions to a single steering wheel button — one action triggered by a short press and a different action triggered by holding the button. This doubles the number of controllable functions from the steering wheel compared to a standard single-function-per-button adaptor.

How do I configure the steering wheel control interface?

The interface can be configured three ways: via the Autoleads PC application for full control and firmware updates, via DIP switch settings for a quick bench-configurable option, or via manual learning mode where the module self-programs from your steering wheel inputs. Manual learning mode also extends compatibility to vehicles with analog SWC systems not pre-listed in the Autoleads database.

Will the HRSZ002 fit both manual and automatic Suzuki Swift FZ models?

The HRSZ002 is listed for the Suzuki Swift FZ (2011–2016) without body style or transmission restrictions. Confirm with F.A.E. if you have a specific variant concern, as dash configurations can occasionally differ between trim levels.

Is the HRSZ002 covered under warranty?

Stinger products sold through F.A.E. are covered under the manufacturer's warranty. Contact F.A.E. directly for warranty claims, SWC programming support, or fitment questions after purchase.
