Stinger HRSZ001 Suzuki Swift 06-10 Radio Replacement Package
Click to open expanded view
STINGER logo

Stinger HRSZ001 Suzuki Swift 06-10 Radio Replacement Package

SKU: HRSZ001
Sale price
$192.60
Regular price
$214
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Stinger HRSZ001 Plug & Play Radio Replacement Kit for Suzuki Swift 2006–2010

Upgrade your Suzuki Swift's factory radio to a modern 2DIN aftermarket unit while keeping your factory steering wheel audio controls and OEM connectors intact.

Product Overview

The Stinger HRSZ001 is a vehicle-specific radio replacement kit designed for the Suzuki Swift RS416 series (2006–2010). It includes everything needed to install most aftermarket 2DIN head units into the factory dash opening, with a plug-and-play vehicle to ISO harness and the Autoleads CP2-UNI.2 vehicle interface for SWC retention.

The kit uses factory OEM connectors throughout and is compatible with most aftermarket ISO harnesses (not included). Universal mounting brackets are provided, though some installations may require the use of the factory radio brackets already in the vehicle.

Please note: The HRSZ001 may not retain factory answer/hang-up or voice recognition buttons on the steering wheel audio SWC buttons are retained. For some vehicles, OEM radio brackets from the factory installation may be required, and new holes may need to be drilled.

Features & Benefits

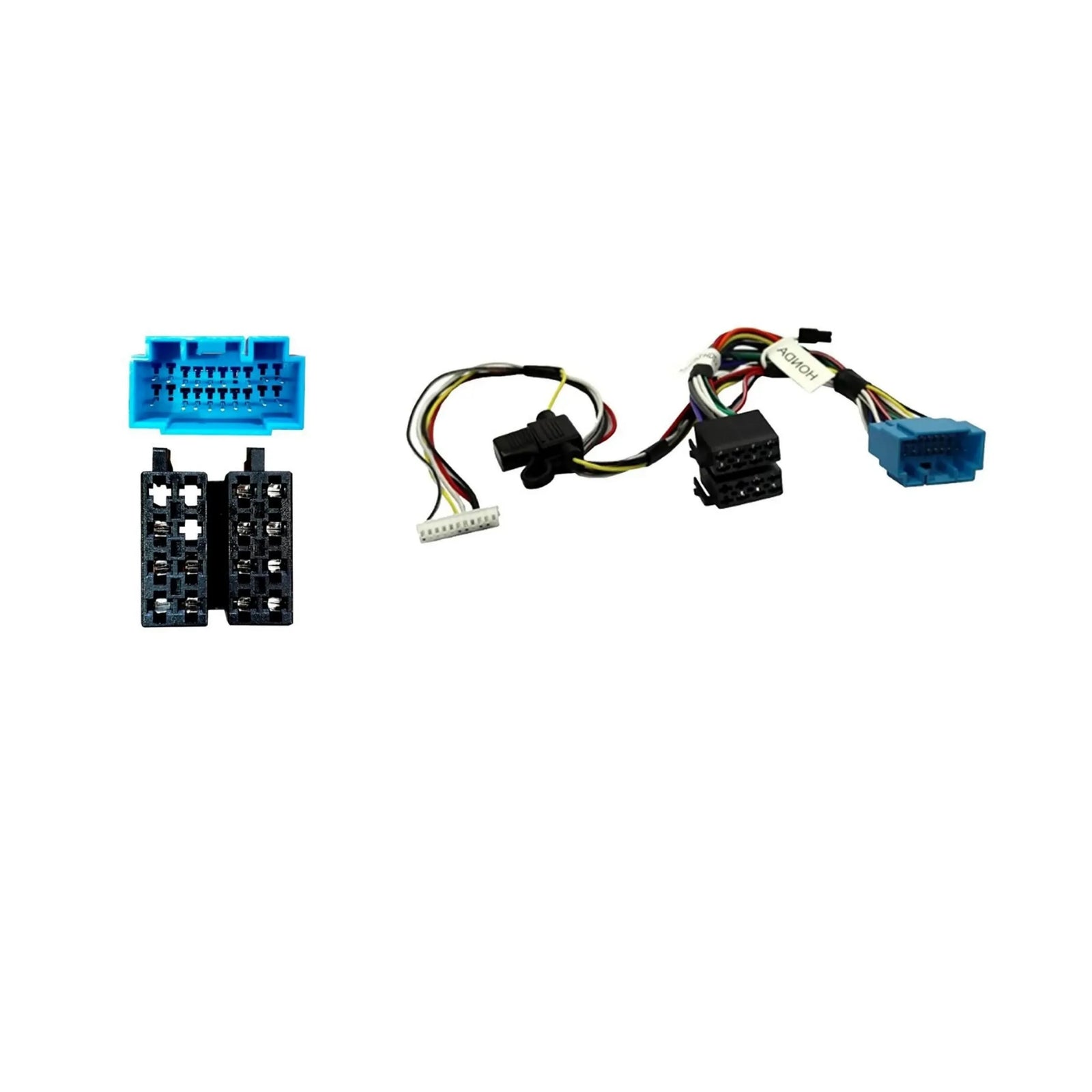

  • Plug & play — factory connector to standard ISO connector
  • Retains factory steering wheel audio control buttons
  • OEM harness and connectors — compatible with most aftermarket ISO harnesses
  • Includes Autoleads CP2-UNI.2 vehicle interface for SWC retention
  • Universal mounting brackets included

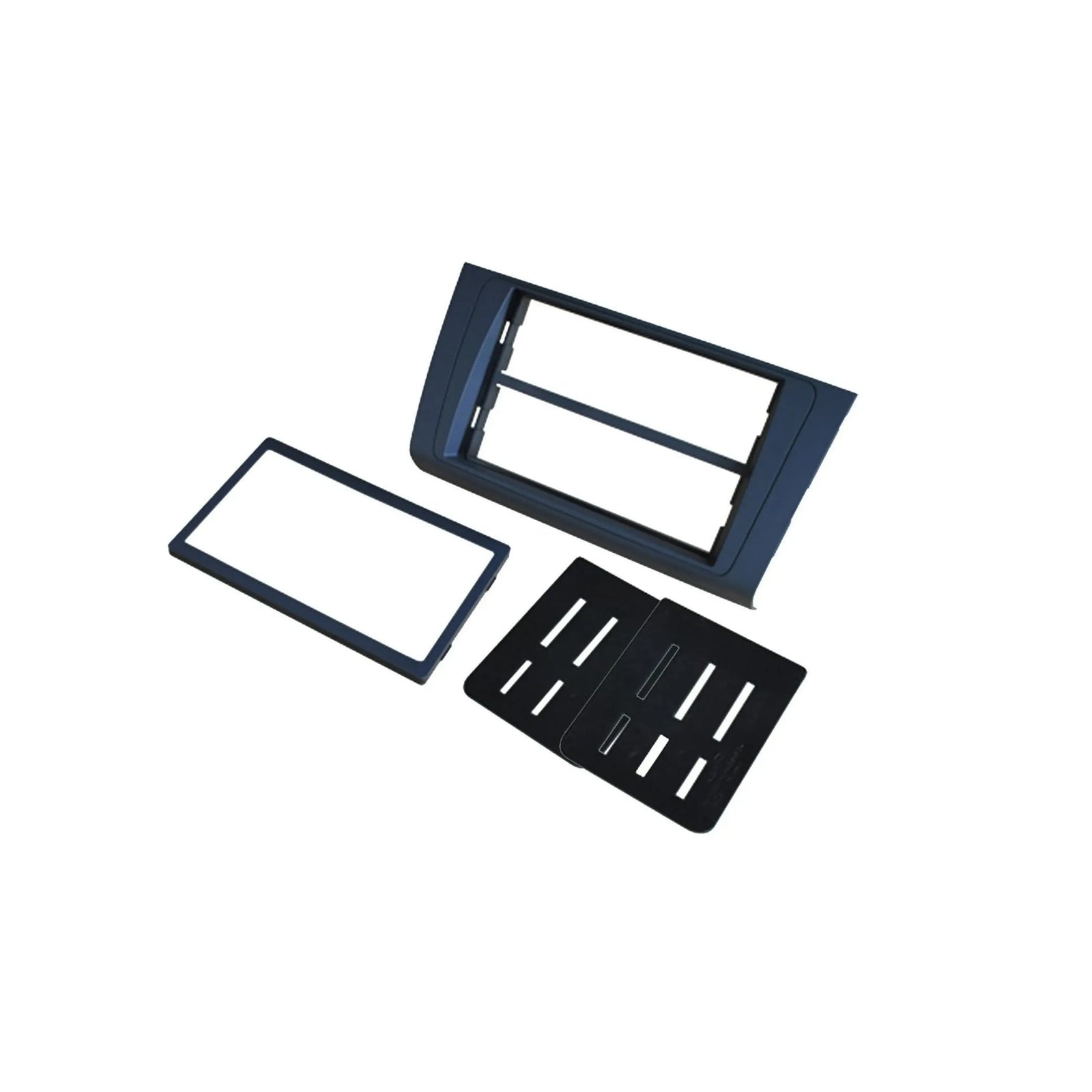

  • Vehicle-specific fascia kit compatible with 2DIN radios
  • Includes 2DIN dash trim ring
  • Black finish

Technical Specs

Specification Detail
SKU / Part Number HRSZ001
Brand Stinger
Colour / Finish Black
Plug & Play Yes — Factory Connector to Standard ISO Connector
Steering Wheel Control Retention Yes — Audio buttons only
SWC Compatibility Note May not retain answer/hang-up or voice recognition buttons
Antenna Adaptor Included No
Mounting Brackets Included Yes — Universal brackets included; some installs may require factory OEM brackets

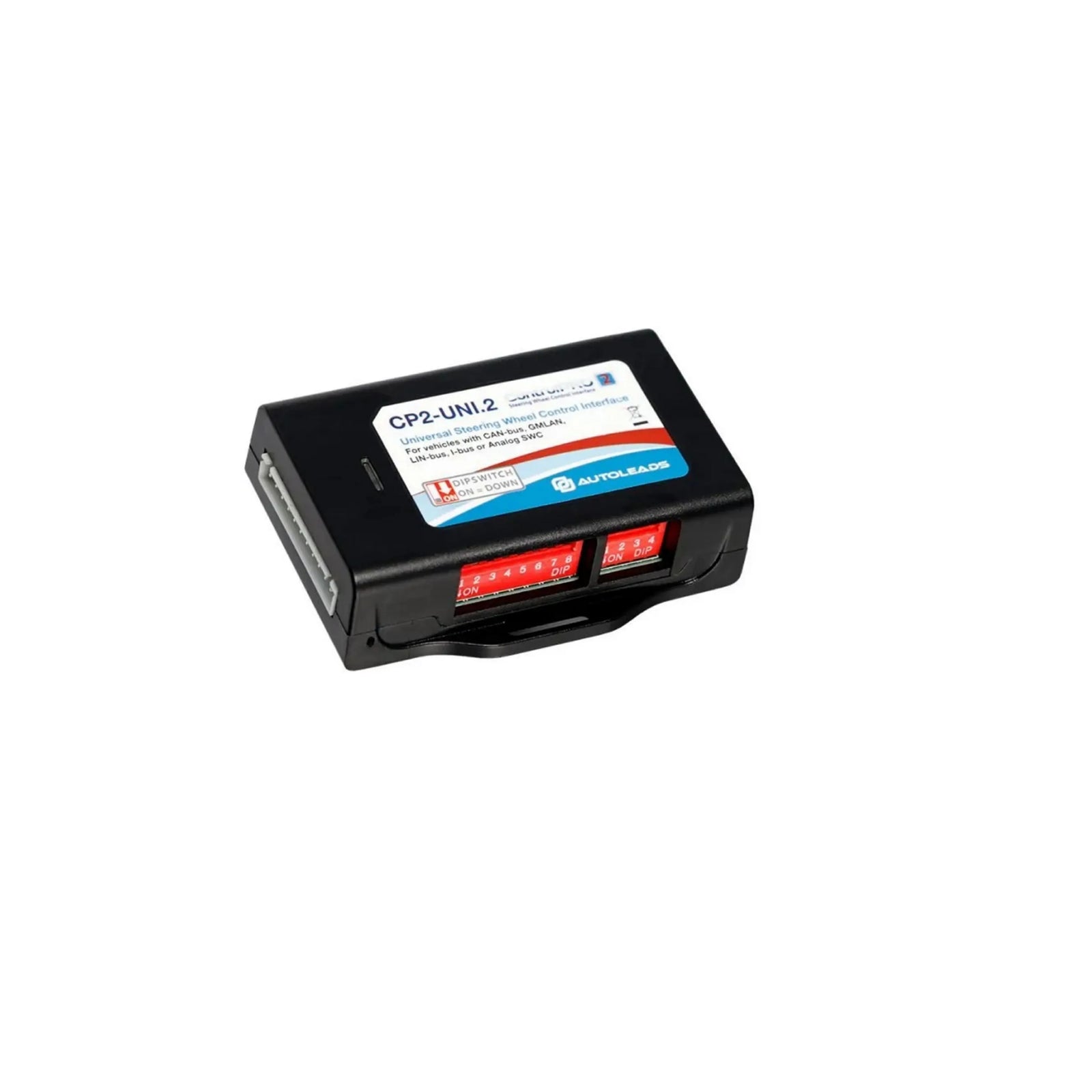

SWC Interface Autoleads CP2-UNI.2

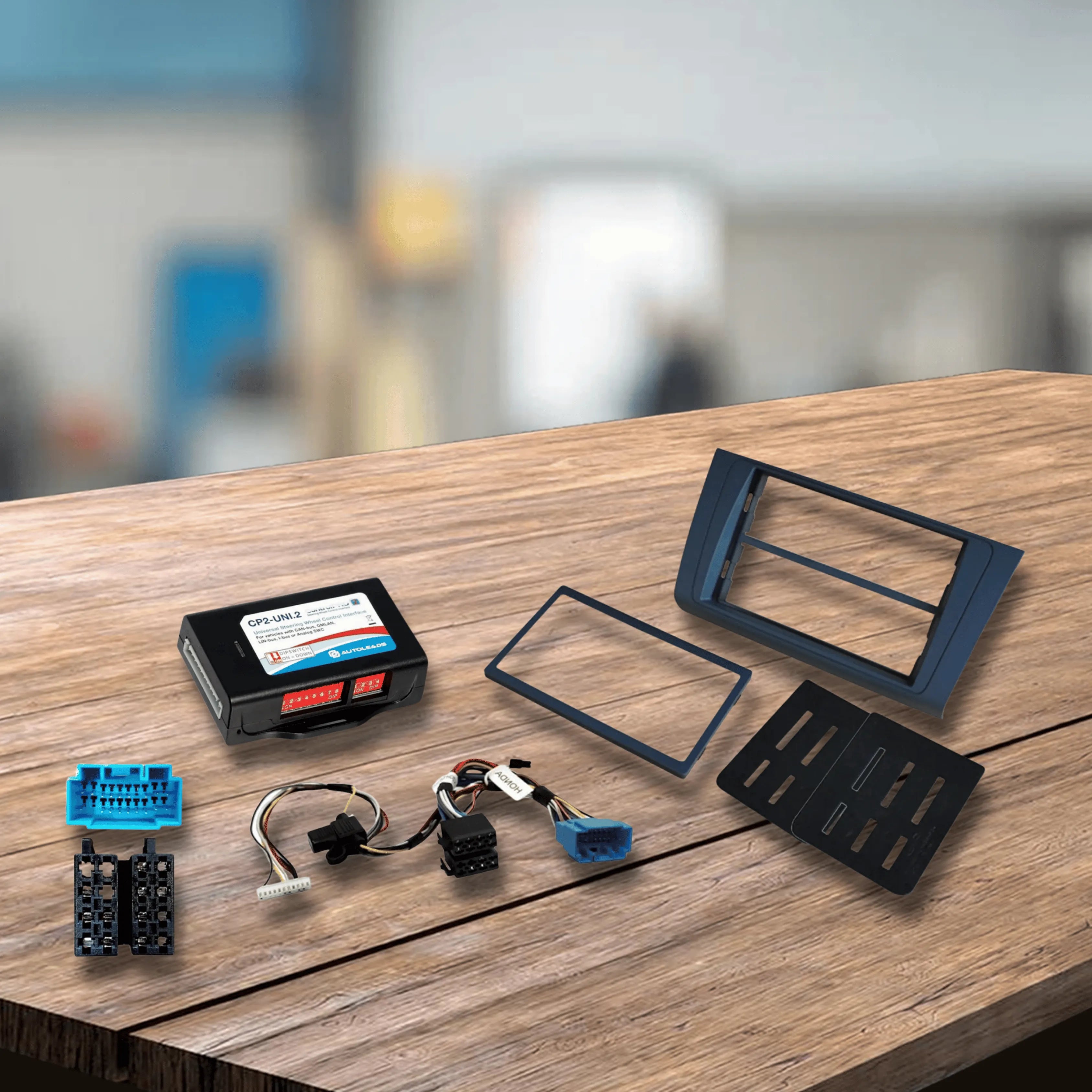

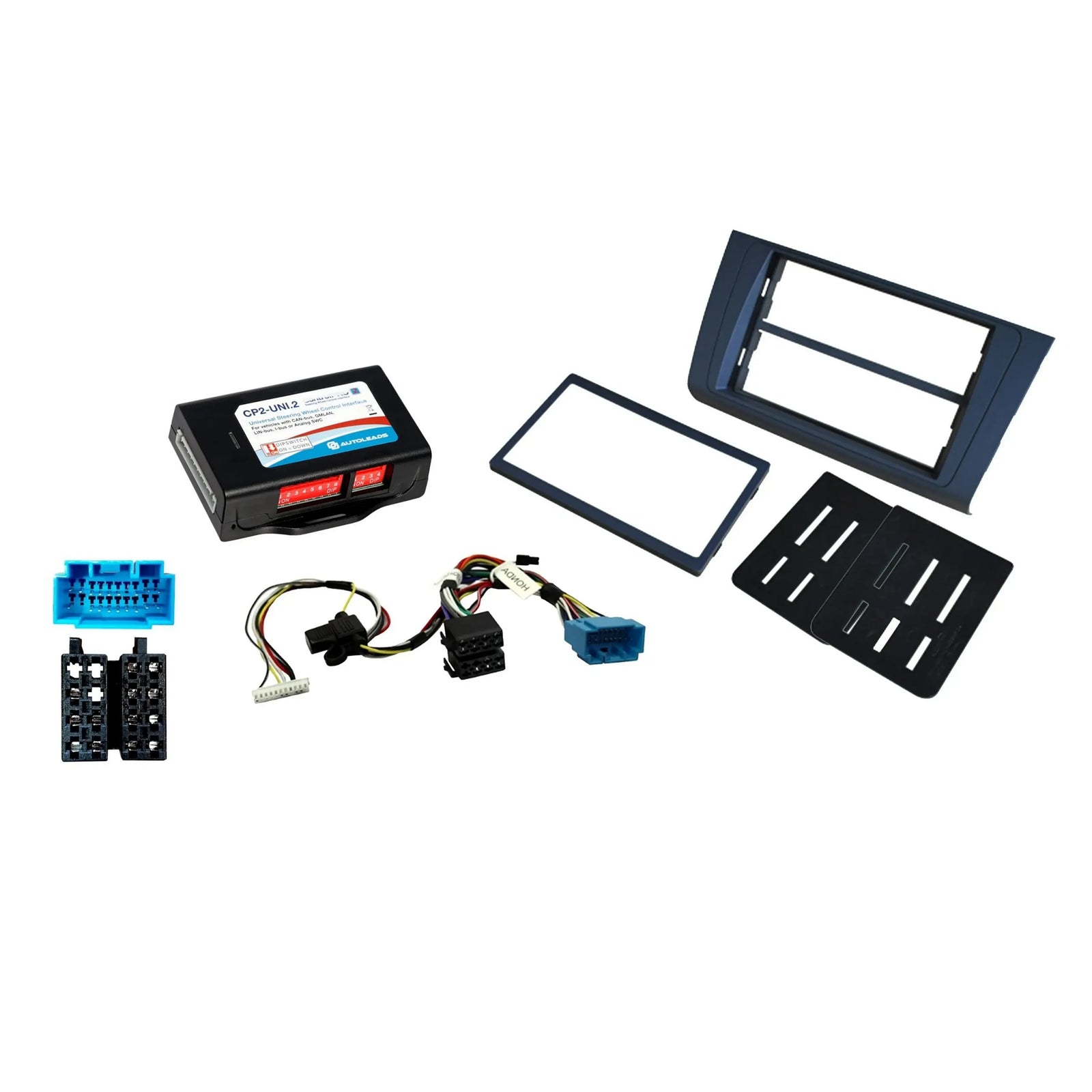

What's in the Box Vehicle Specific Fascia Kit (2DIN compatible), 2DIN Dash Trim Ring, Universal Mounting Brackets, Plug & Play Vehicle to ISO Harness, Autoleads CP2-UNI.2 Vehicle Interface

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Suzuki Swift 2006–2010 (RS416)

Goes Well With:

  • Aftermarket double DIN head units (Pioneer, Kenwood, Sony, JVC)
  • Aftermarket ISO harness (not included — required for head unit connection)
  • Aftermarket antenna adaptor (not included — may be required depending on head unit)

Frequently Asked Questions

Will all my steering wheel buttons work after installation?

The HRSZ001 retains factory steering wheel audio control buttons. However, answer/hang-up and voice recognition buttons on the steering wheel may not be retained — this depends on your specific vehicle and aftermarket head unit combination.

Is an antenna adaptor included?

No. The HRSZ001 does not include an antenna adaptor. Depending on your aftermarket head unit's antenna connector type, an additional adaptor may be required.

Do I need to purchase an ISO harness separately?

Yes. The HRSZ001 includes a plug-and-play vehicle to ISO harness, but the aftermarket head unit ISO harness is not included and will need to be sourced separately to match your chosen head unit.

What mounting brackets does this kit use?

Universal mounting brackets are included with the kit. For some Suzuki Swift installations, the OEM radio brackets already in the vehicle may need to be used instead, and new holes may need to be drilled. Check your specific installation before committing to either bracket option.

Is this kit compatible with all 2006–2010 Suzuki Swift variants?

The HRSZ001 is specified for the Suzuki Swift RS416 series (2006–2010). For confirmation of compatibility with your specific variant or trim level, contact the F.A.E. team before purchasing.
