Stinger HRMA006 Mazda BT-50 Radio Replacement Kit

SKU: HRMA006
Sale price
$404.10
Regular price
$449
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Stinger HRMA006 Plug & Play Radio Replacement Kit for Mazda BT-50 UR with Factory 7" Navigation

Purpose-built for the Mazda BT-50 UR with factory 7-inch navigation retain your steering wheel controls and upgrade your head unit without gutting your factory setup.

Product Overview

The Stinger HRMA006 is a vehicle-specific radio replacement kit designed for the Mazda BT-50 UR series (2015–2019) fitted with the factory 7-inch navigation system. It delivers a true plug-and-play installation via a factory connector to standard ISO connector harness, with no cutting or splicing required.

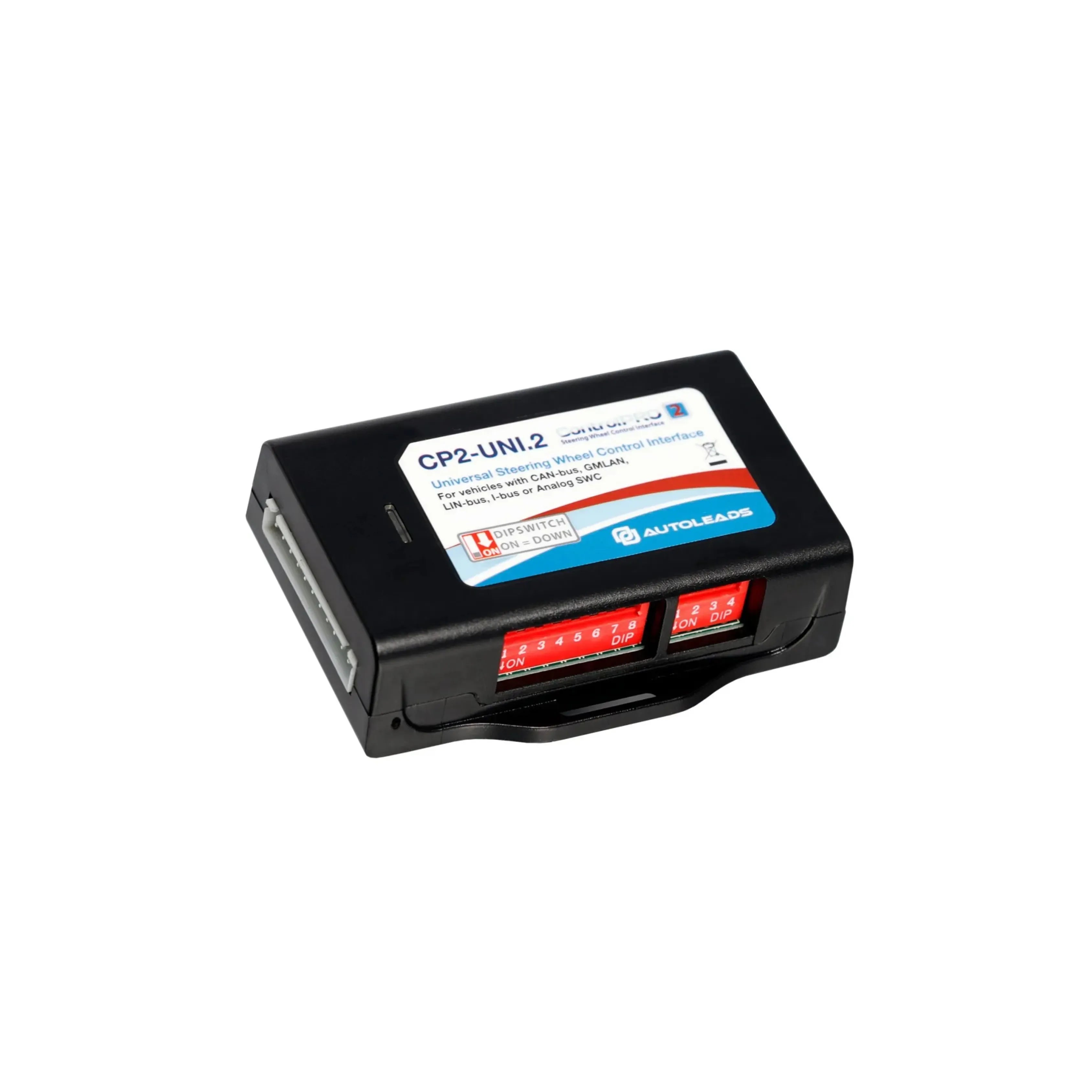

The kit features the same advanced SWC interface as the HRTY001 supporting dual-function button assignment (short press / long press), CAN Bus accessory output, and multiple configuration methods including PC, dip switch, and manual programming. A tri-colour LED provides live module status, and memory is retained even if power is lost.

Please note: This kit suits factory 7-inch navigation models only. Installation of the fascia panel will require fabrication of a blanking panel for the top display area.

Features & Benefits

  • Plug & play — factory connector to standard ISO connector
  • Retains steering wheel audio controls
  • Dual-function SWC assignment — two radio functions per button (short press / long press)
  • Configurable via PC (Autoleads app), dip switch, or manual programming
  • Manual learning function for compatibility with unlisted analogue SWC vehicles
  • Provides accessory output in CAN Bus vehicles
  • Tri-colour LED status indicator
  • Retains memory even if power is lost
  • Updatable via Autoleads PC Application
  • Includes antenna adaptor and mounting brackets
  • Includes hazard and door lock replacement button
  • Black finish
  • Suits factory 7-inch navigation models only

Technical Specs

Specification Detail
SKU / Part Number HRMA006
Brand Stinger
Colour / Finish Black

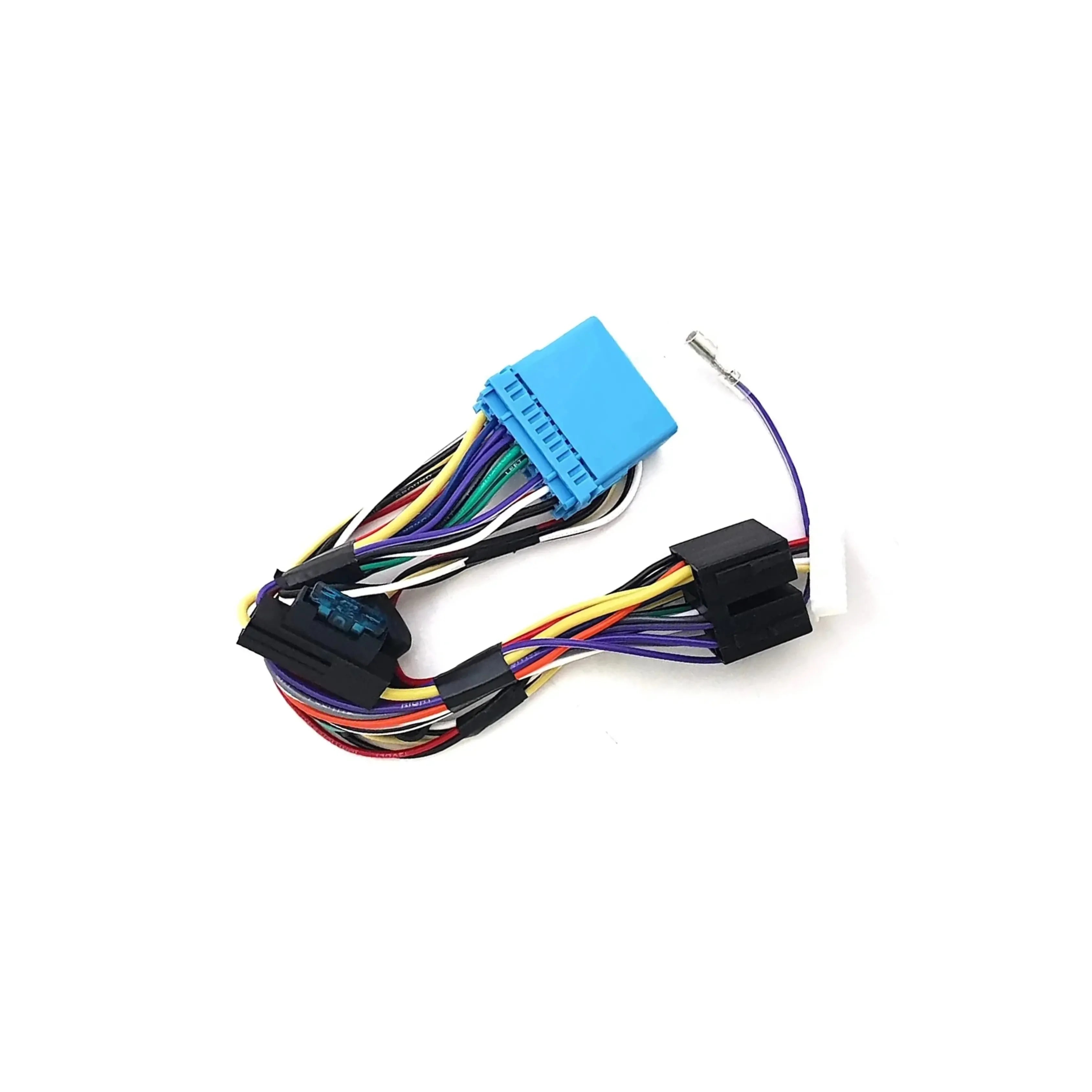

Plug & Play Yes — Factory Connector to Standard ISO Connector
Steering Wheel Control Retention Yes
Dual-Function SWC Mapping Yes — Short Press / Long Press per button
SWC Programming Options PC (Autoleads App), Dip Switch, Manual
CAN Bus Accessory Output Yes
Memory Retention (power loss) Yes
Field Updatable Yes — via Autoleads PC Application

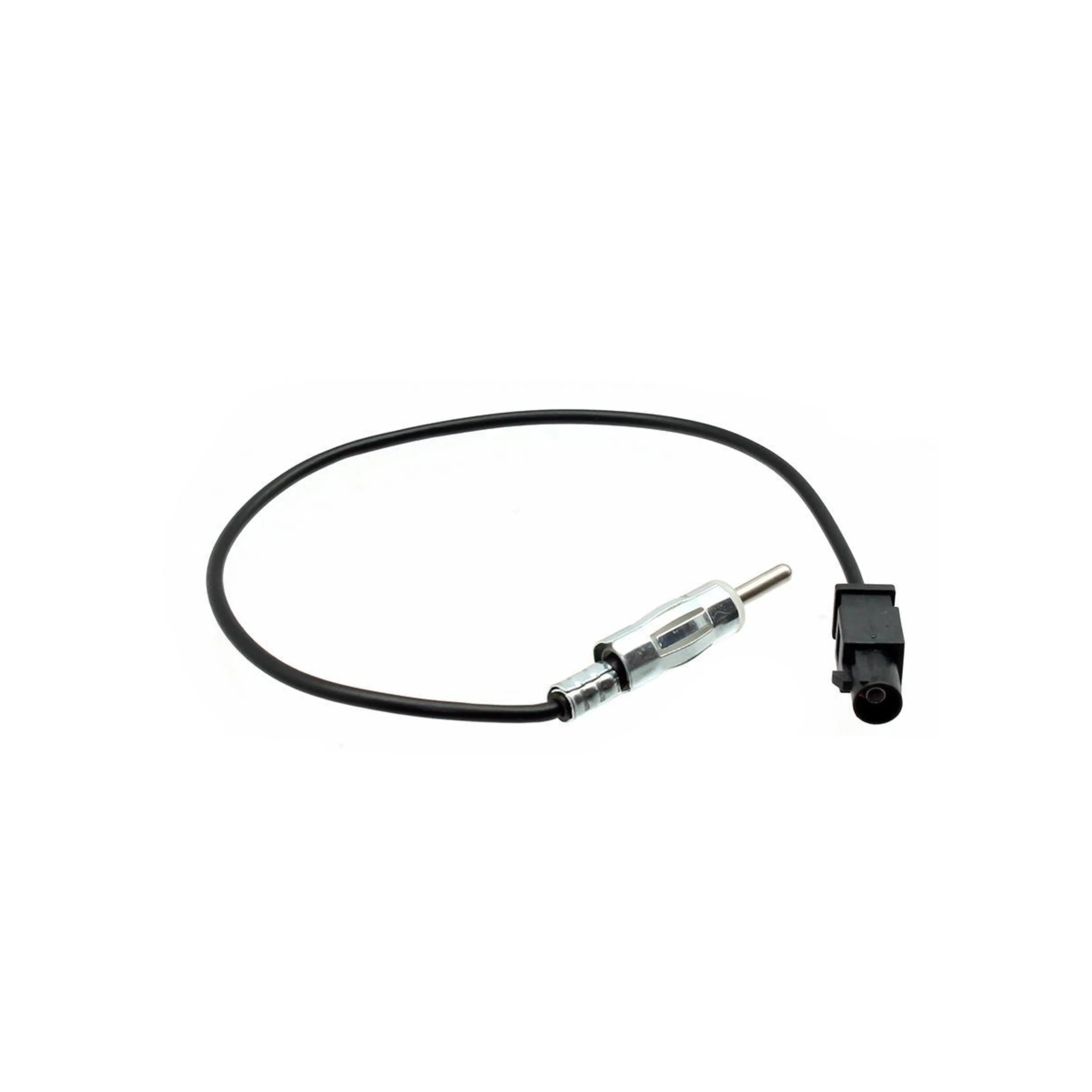

Antenna Adaptor Included Yes
Mounting Brackets Included Yes
Vehicle Notes Suits factory 7" navigation models only. Fascia installation requires fabrication of a blanking panel for top display.

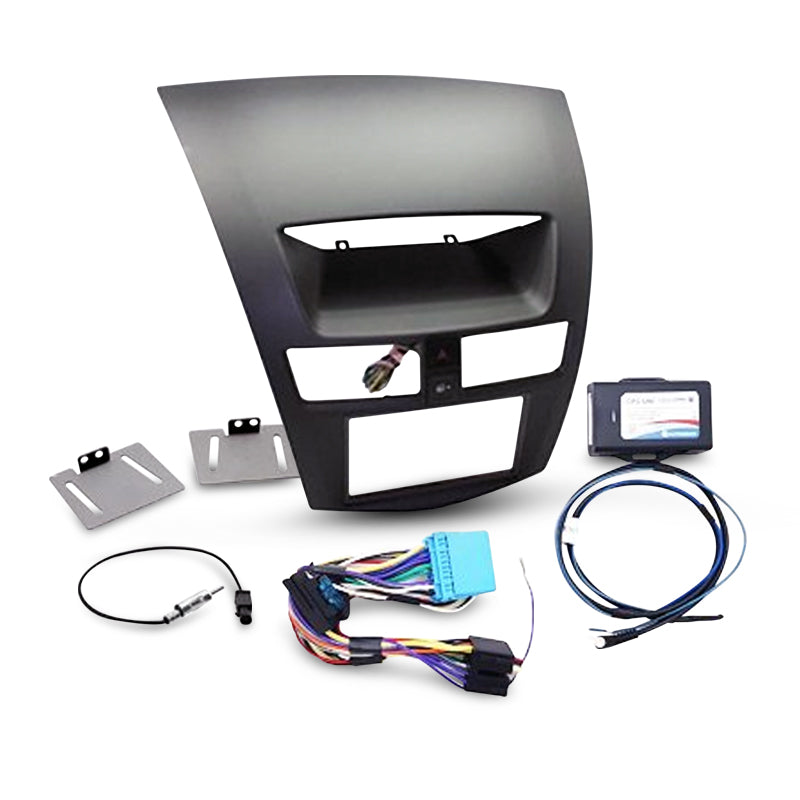

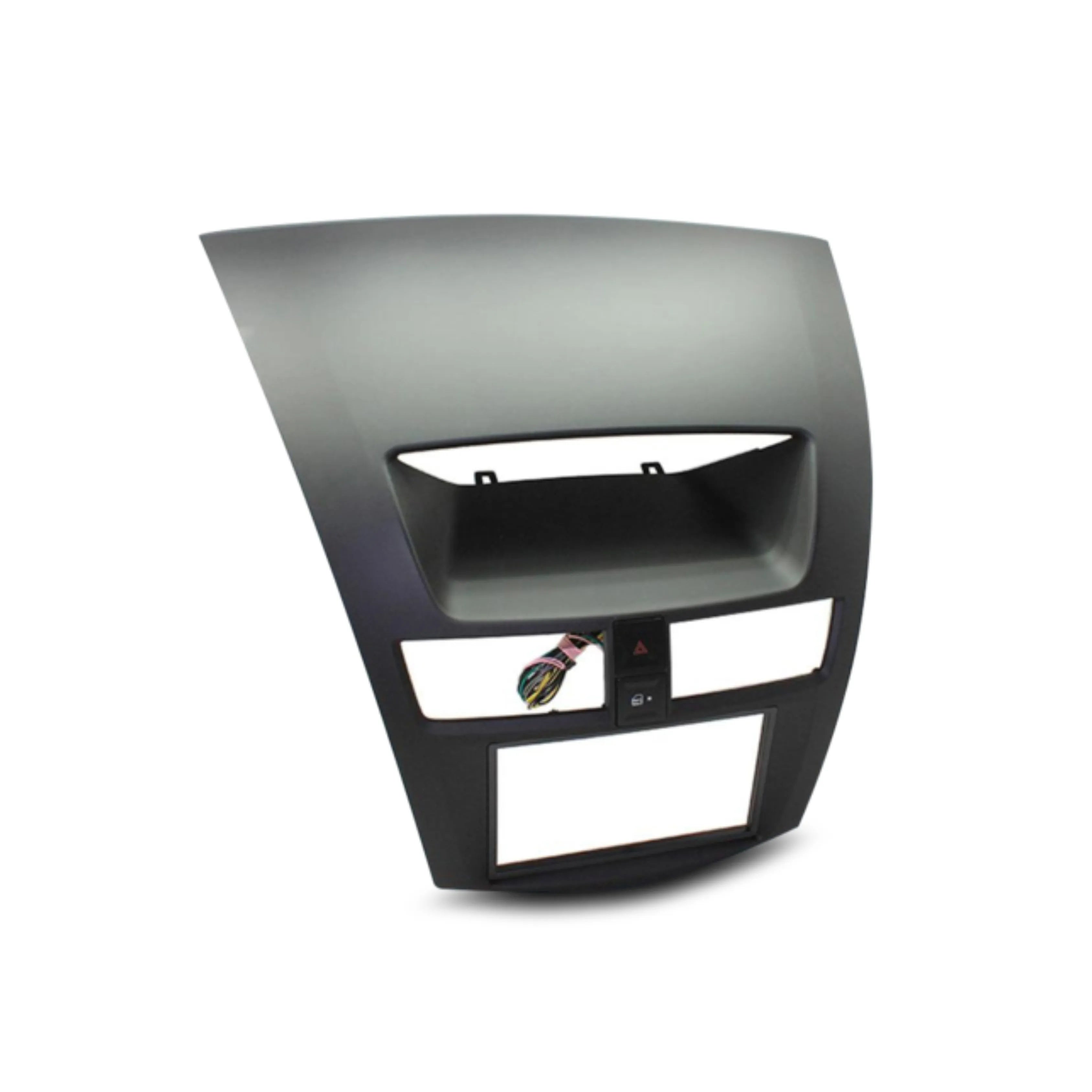

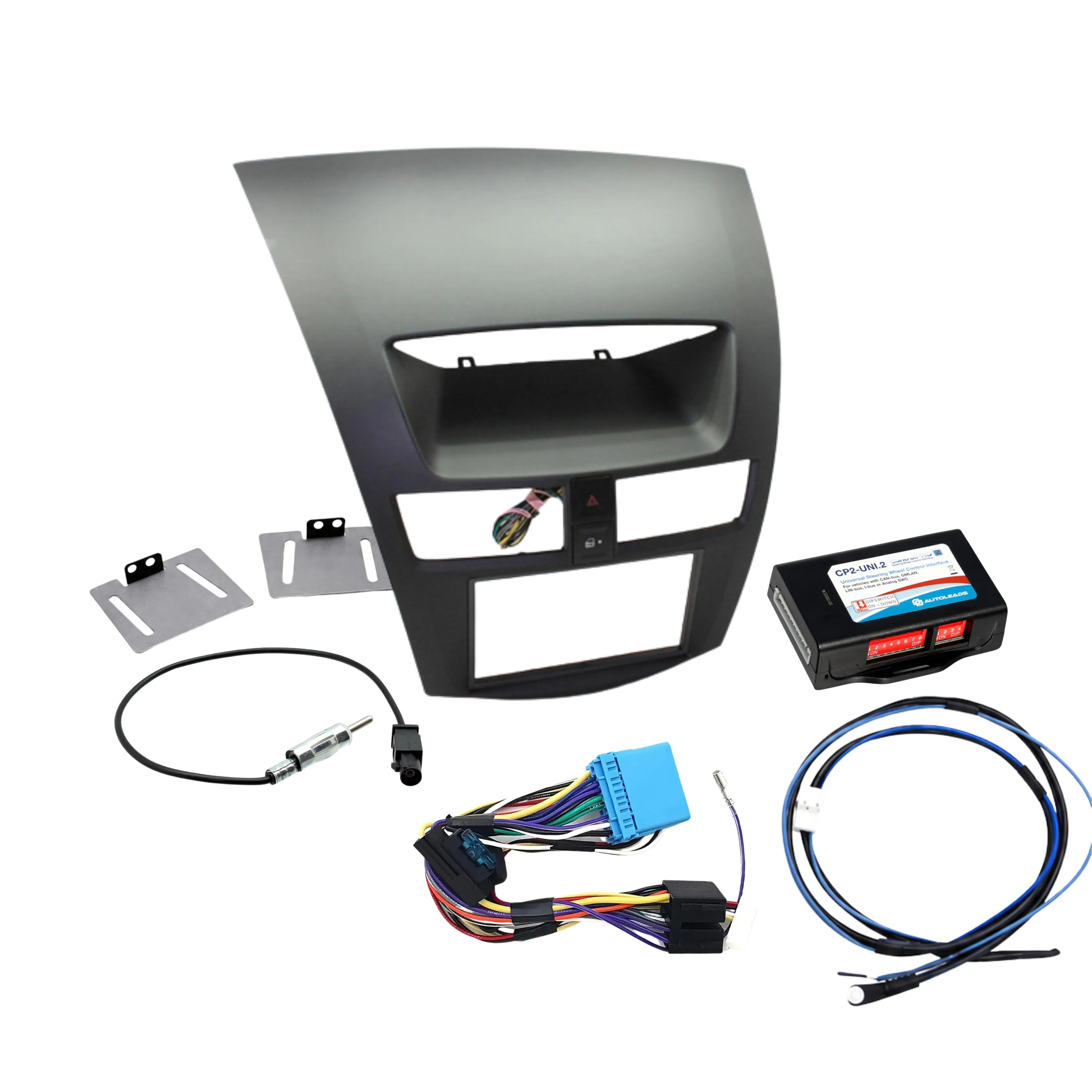

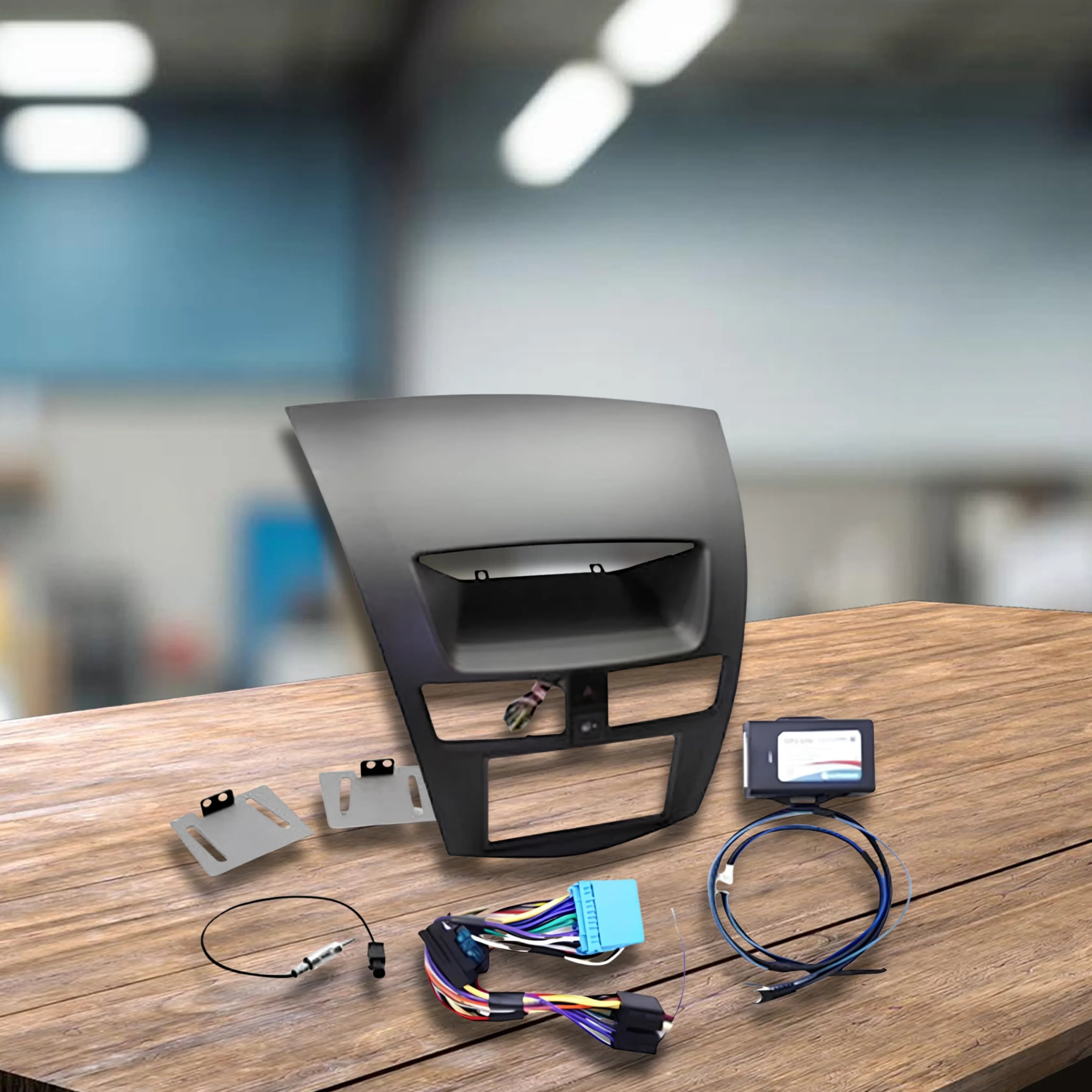

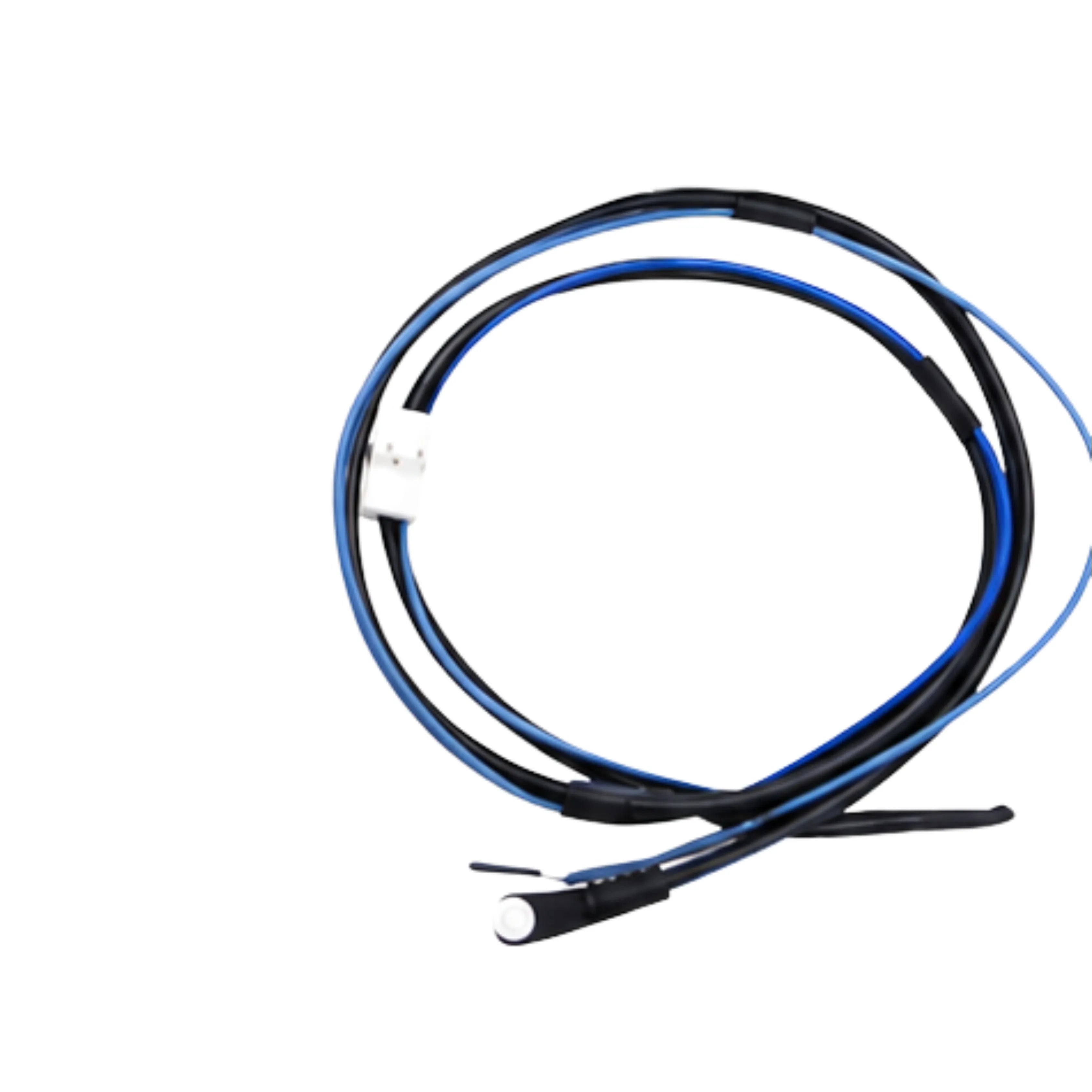

What's in the Box 2DIN Radio Panel, Steering Wheel Audio Buttons & Patch Lead, Antenna Adaptor, Hazard & Door Lock Replacement Button

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Mazda BT-50 2015–2019 (UR) — Factory 7-inch navigation models only

Goes Well With:

  • Aftermarket double DIN head units (Pioneer, Kenwood, Sony, JVC)
  • Autoleads PC Application (for advanced SWC programming and firmware updates)
  • Aftermarket reverse camera module (if reverse camera retention is required)

Frequently Asked Questions

Will this kit fit all Mazda BT-50 UR models?

No. The HRMA006 is designed specifically for Mazda BT-50 UR models (2015–2019) fitted with the factory 7-inch navigation system. It is not suitable for non-navigation variants. Confirm your factory head unit before purchasing.

What is the blanking panel mentioned in the vehicle notes?

The Mazda BT-50 UR with factory 7-inch navigation has a top display area above the head unit. When the 2DIN fascia panel is installed, this area will require a custom fabricated blanking panel to fill the gap. This is not included in the kit and will need to be sourced or fabricated separately.

Can I assign multiple functions to one steering wheel button?

Yes. The HRMA006 supports dual-function mapping, allowing two separate radio functions to be assigned to a single button using short press and long press inputs.

Does the kit include everything needed for a complete installation?

The HRMA006 includes the 2DIN radio panel, SWC adaptor with patch lead, antenna adaptor, mounting brackets, and a hazard and door lock replacement button. A blanking panel for the top display will need to be fabricated separately.

How do I program or update the steering wheel control interface?

The SWC interface can be configured via PC using the Autoleads application, via dip switch settings, or via manual programming on the module. Firmware updates are applied through the Autoleads PC Application.
