Stinger HRMA005 Mazda CX9 Radio Replacement Kit

Stinger HRMA005 Plug and Play Radio Replacement Kit for Mazda CX9 TB 2006-2015

The HRMA005 is a vehicle-specific plug and play radio replacement kit from Stinger, engineered for the Mazda CX9 TB series (2006-2015). Pre-programmed for immediate SWC retention, it supports non-amplified, Bose digital, and premium audio systems, retains the OE LCD display and rear seat entertainment, and is field updatable via PAC-UP. A/C compressor retention is confirmed for 2010 Mazda CX9 models. Reverse camera retention is not included. Antenna adaptor and mounting brackets are included.

Product overview

The Stinger HRMA005 connects an aftermarket head unit to the factory wiring of the Mazda CX9 TB (2006-2015) via a plug and play ISO harness, without cutting or splicing factory wiring. The kit communicates with the vehicle's OBD network to retain active features including A/C compressor function on 2010 CX9 models, and allows the OE LCD to continue displaying trip data including MPG, estimated range, and clock settings without requiring the factory radio to be connected.

The pre-programmed SWC interface is ready to use immediately after installation without requiring manual programming or PC configuration. The kit supports non-amplified, Bose digital, and premium audio system configurations, covering all standard CX9 TB factory audio setups. User-programmable Bose digital amplified gain, fader, and surround sound settings are available after installation. AUX and USB retention are not included. Reverse camera retention requires an additional product.

Features and benefits

Pre-programmed SWC retention: The steering wheel control interface is pre-programmed for the Mazda CX9 TB and is ready to use immediately after installation without requiring manual programming or PC configuration.

Compatible with non-amplified, Bose digital, and premium audio: Supports all standard Mazda CX9 TB factory audio system configurations, with user-programmable Bose digital amplified gain, fader, and surround sound settings available after installation.

A/C compressor function retained on 2010 CX9: The A/C compressor control signal is retained via OBD network communication for 2010 Mazda CX9 models. Contact us to confirm A/C retention for your specific CX9 model year before purchasing.

OE LCD display remains functional: The factory OE LCD display continues to show vehicle information including clock, MPG, and estimated range after the factory radio is replaced. User-programmable display text during normal operation is also available.

Rear seat entertainment retained: Rear seat entertainment output is retained through the aftermarket head unit installation.

Navigation-based output signals pre-loaded: VSS, Parking Brake, and Reverse output signals are pre-loaded, providing the correct trigger signals to the aftermarket head unit without additional configuration.

Provides 12V ACC, Illumination, VSS, Parking Brake, and Reverse outputs: All standard aftermarket head unit trigger outputs are available from the HRMA005 interface, covering accessory, illumination, speed pulse, parking brake, and reverse signals.

Field updatable via PAC-UP: Firmware updates are applied via the PAC-UP field update cable, keeping the interface current without replacing the module.

Antenna adaptor and mounting brackets included: A Mazda antenna adaptor and mounting brackets are included for a complete mechanical and RF installation without additional purchases.

Plug and play factory to ISO harness: Connects directly from the Mazda CX9 TB factory wiring to a standard ISO connector without cutting or splicing factory vehicle wiring.

Black finish: The black fascia panel is matched to factory CX9 TB interior trim for a clean, integrated appearance after installation.

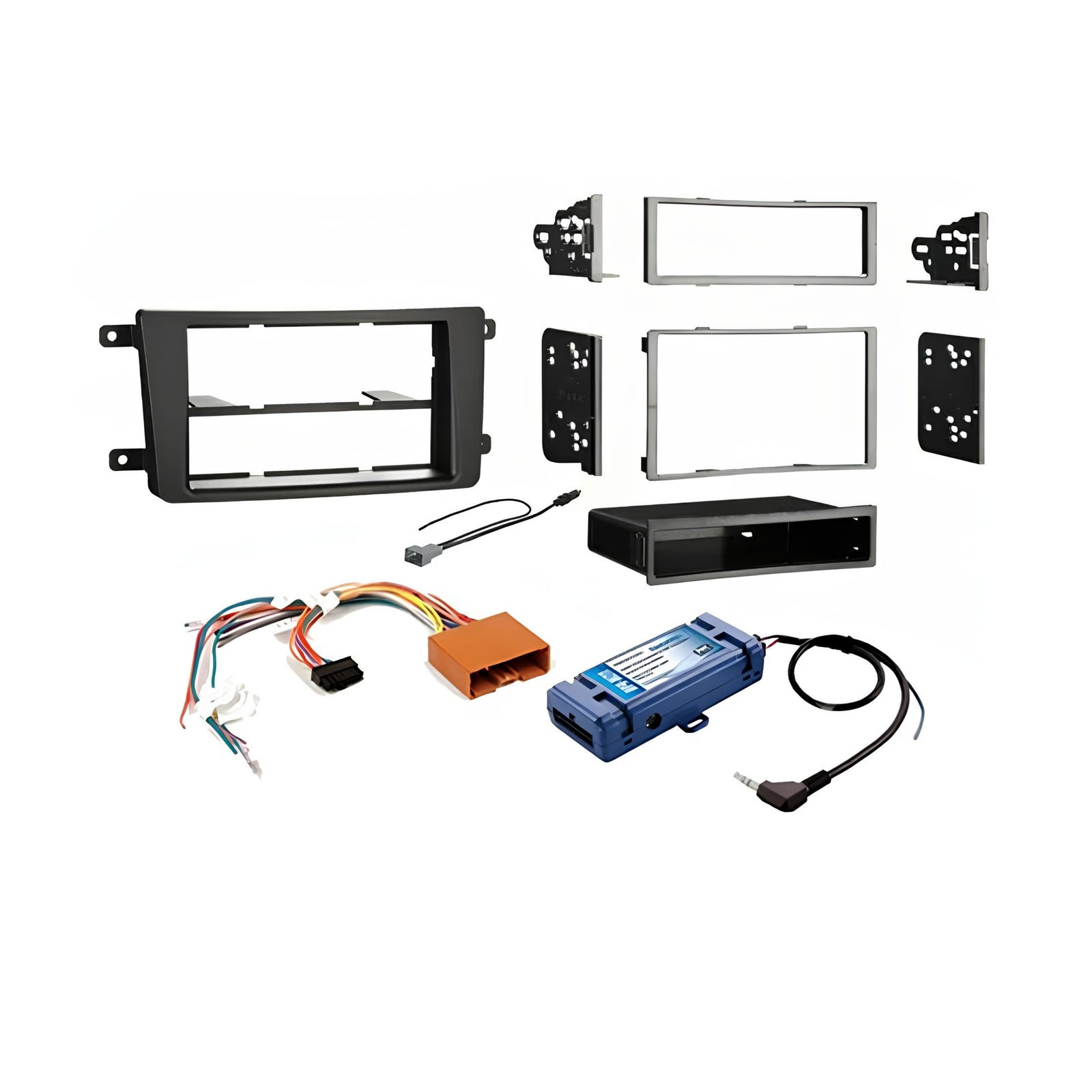

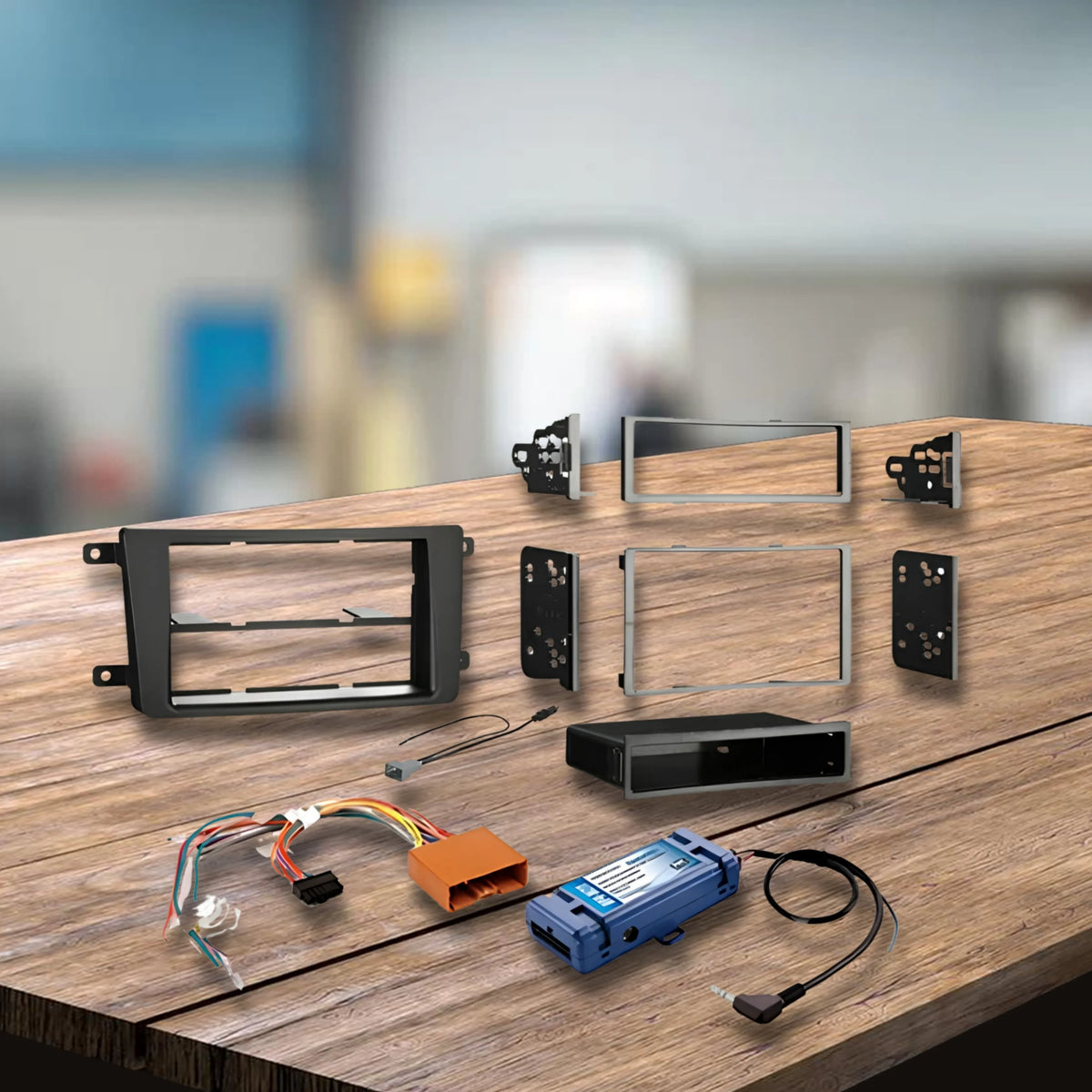

What's in the box

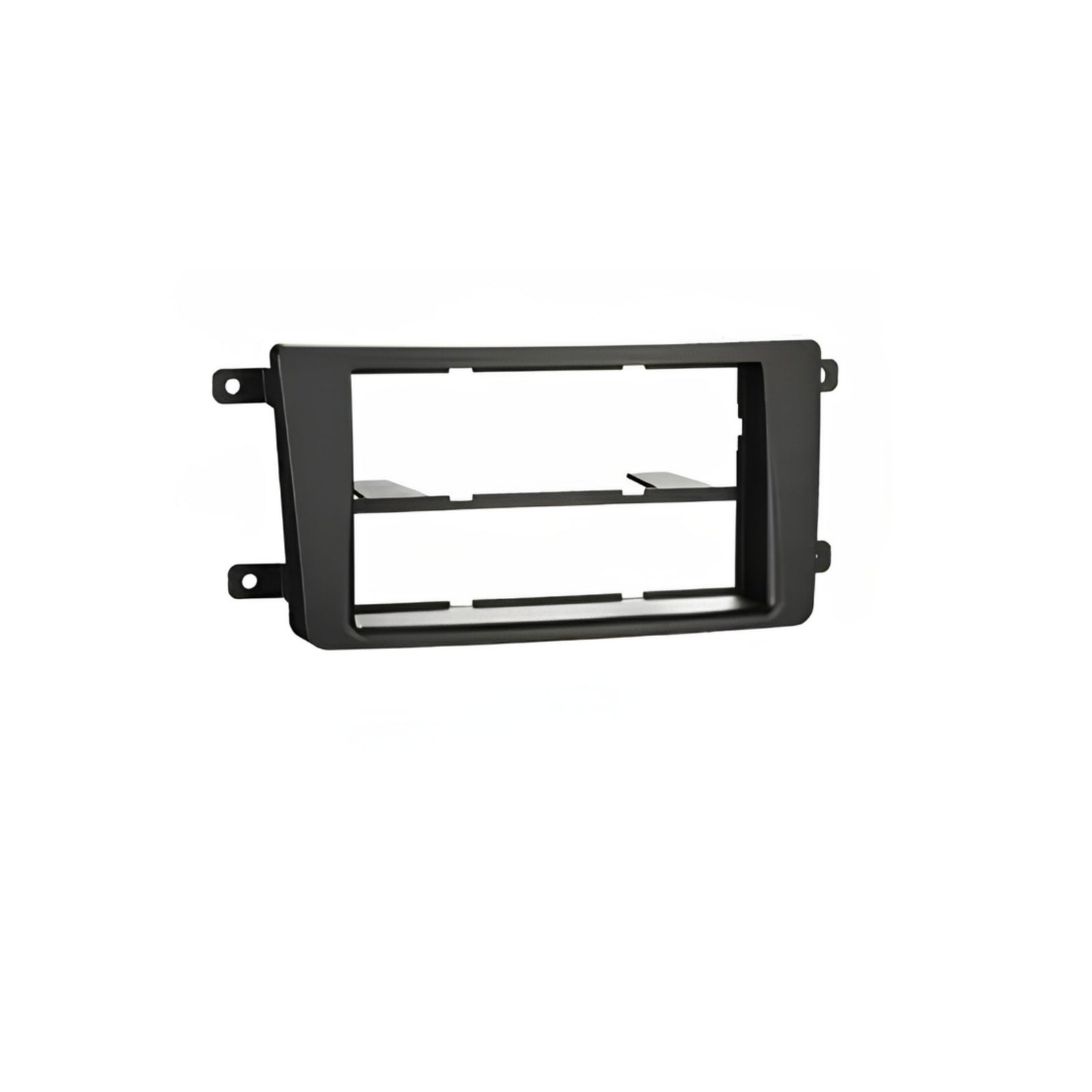

• 2DIN radio fascia panel (black)

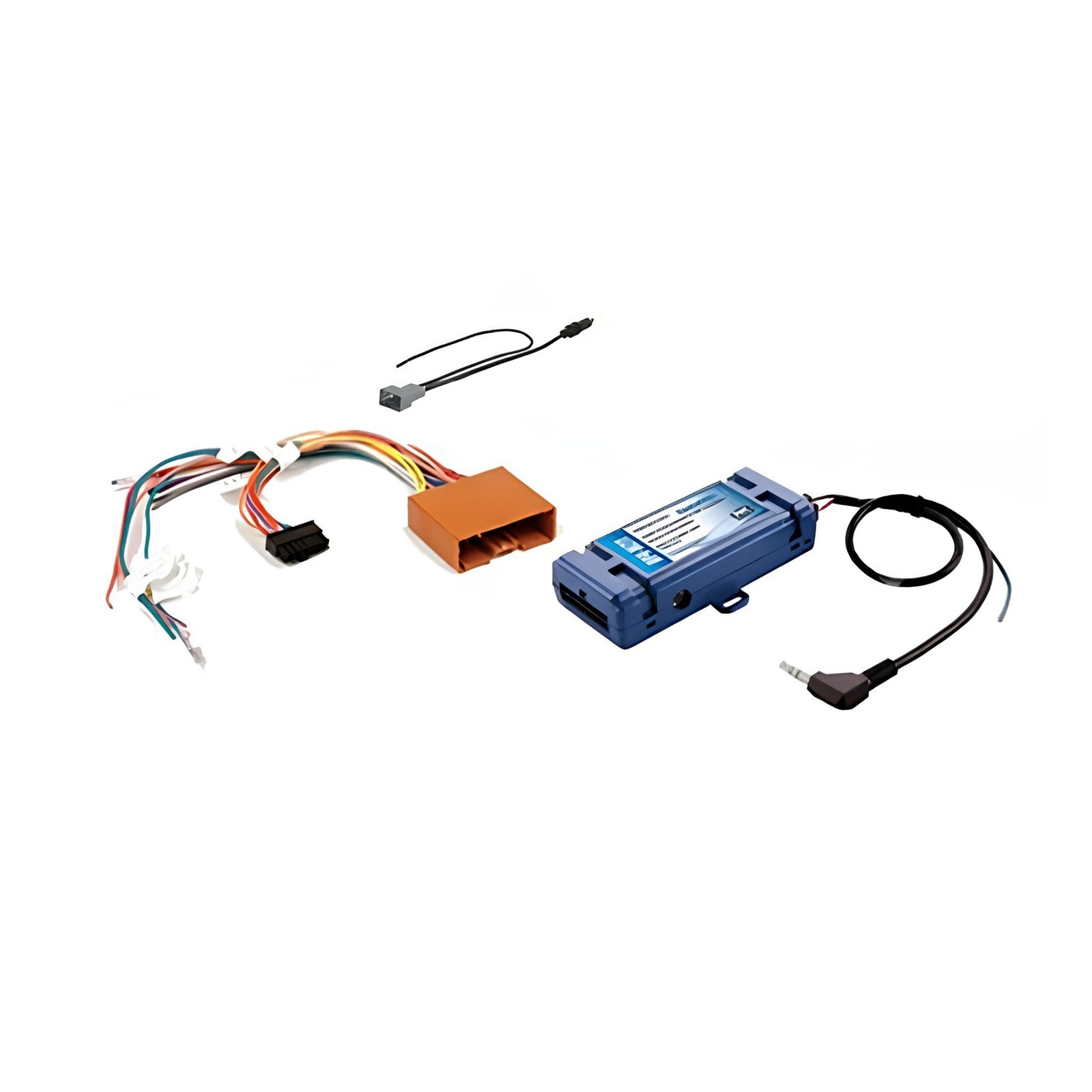

• Steering wheel control interface (pre-programmed)
• Antenna adaptor

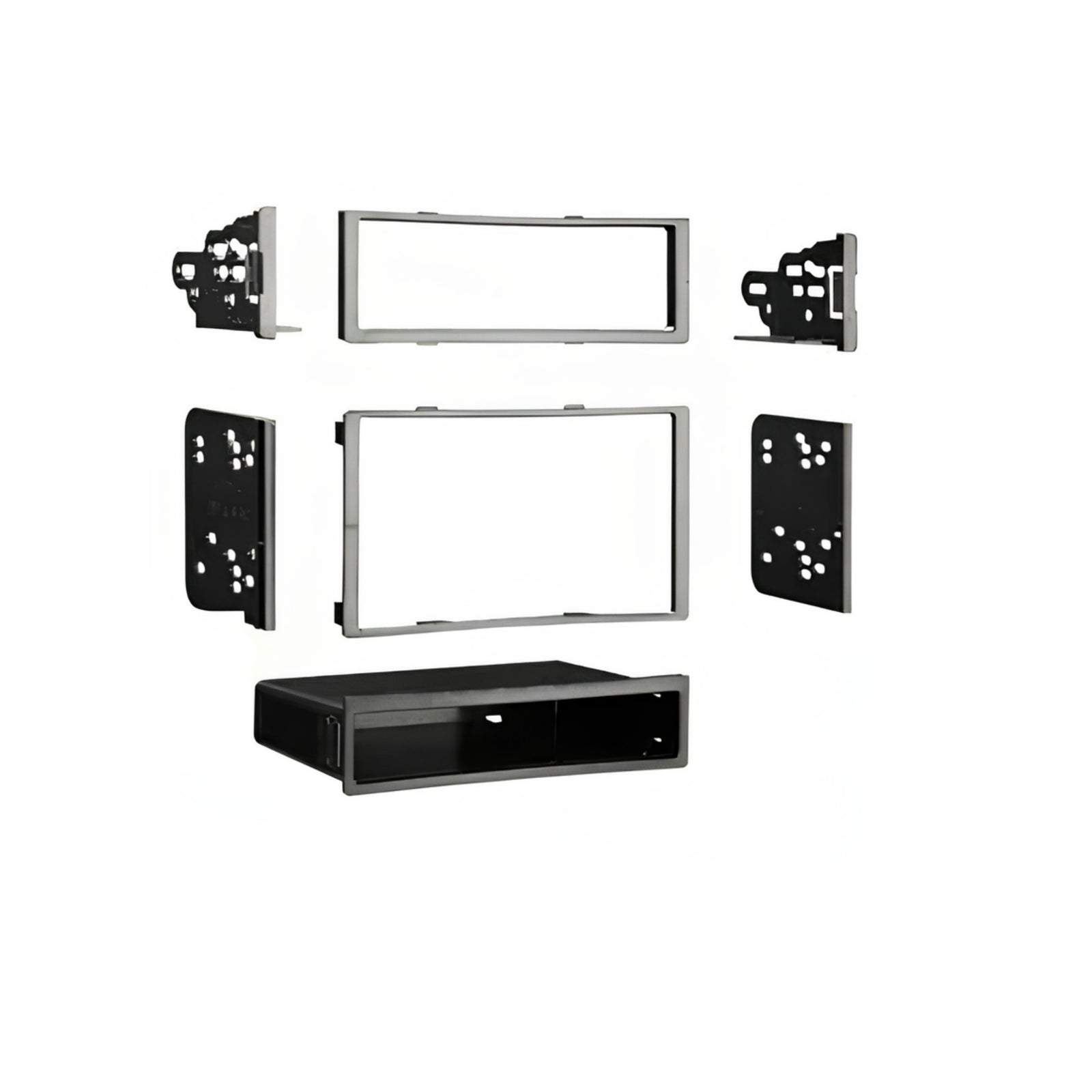

• Mounting brackets

Technical specs

Compatible with

Vehicle feature retention

Frequently asked questions

Do I need to program the steering wheel controls after installing the HRMA005?
No. The HRMA005 comes pre-programmed for Mazda CX9 steering wheel controls and is ready to use immediately after installation without requiring manual programming or PC configuration.

Will the HRMA005 work with my factory Bose sound system?
Yes. The HRMA005 supports non-amplified, Bose digital, and premium audio system configurations, covering all standard Mazda CX9 TB factory audio setups. User-programmable Bose digital amplified gain, fader, and surround sound settings are also available after installation.

Does the HRMA005 retain the factory reverse camera?
No. The HRMA005 does not include reverse camera retention. An additional product will be required to maintain reverse camera functionality with your new aftermarket head unit. Contact us for guidance on compatible reverse camera retention solutions for the Mazda CX9 TB.

Does the OE LCD display still work after fitting an aftermarket radio with the HRMA005?
Yes. The HRMA005 allows the OE LCD to continue displaying vehicle information including MPG, estimated range, and clock settings after the factory radio is replaced. User-programmable display text during normal operation is also available.

Is the A/C compressor retention confirmed for all Mazda CX9 TB models?
A/C compressor retention is confirmed for 2010 Mazda CX9 models only. Contact us to confirm A/C retention for your specific CX9 model year before purchasing.
