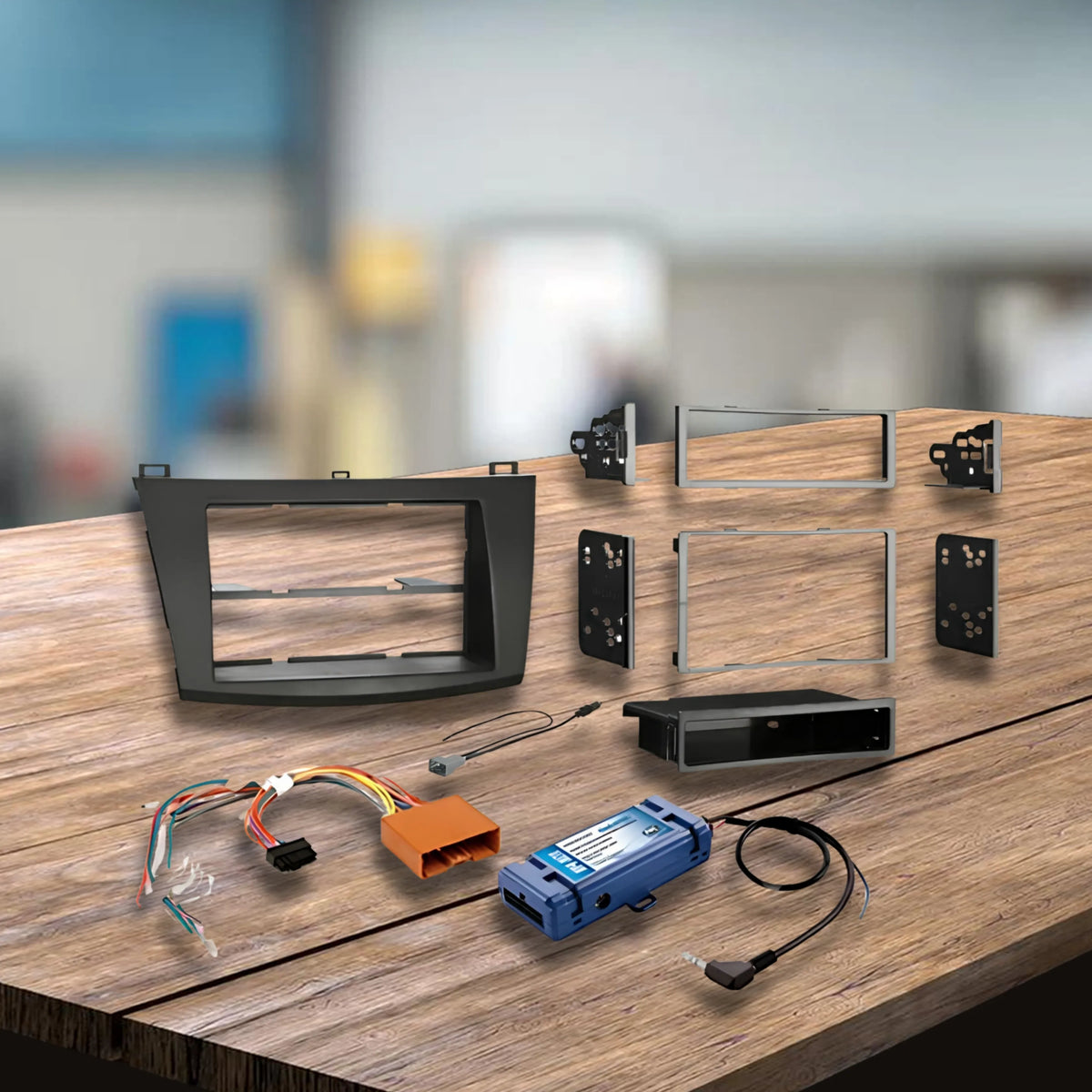

Stinger HRMA004 Mazda 3 Radio Replacement Kit

Stinger HRMA004 Plug and Play Radio Replacement Kit for Mazda 3 BL 2009-2013

The HRMA004 is a vehicle-specific plug and play radio replacement kit from Stinger, powered by PAC Audio RadioPRO4 technology and designed for the Mazda 3 BL series (2009-2013). Pre-programmed for immediate SWC retention, it supports non-amplified, Bose digital, and premium audio systems, retains A/C compressor function, OE LCD display, and rear seat entertainment, and is field updatable via PAC-UP. Antenna adaptor and mounting brackets are included.

Product overview

The Stinger HRMA004 connects an aftermarket head unit to the factory wiring of the Mazda 3 BL (2009-2013) via a plug and play ISO harness, without cutting or splicing factory wiring. Powered by PAC Audio RadioPRO4 technology, the kit arrives pre-loaded with amplifier retention software, steering wheel control mapping, and navigation-based output signals, reducing installation time and complexity compared to standard radio replacement kits.

The pre-programmed SWC interface is ready to use immediately after installation without requiring manual programming or PC configuration. The kit is compatible with non-amplified, Bose digital, and premium audio system configurations, covering all standard Mazda 3 BL factory audio setups. User-programmable settings for Bose digital amplified gain, fader, and surround sound are also available for customisation after installation.

The OE LCD display continues to function after installation, retaining clock, MPG, estimated miles to empty, and other vehicle information displays. A/C compressor function and rear seat entertainment are also retained. AUX and USB retention are not included. The kit provides 12V ACC, Illumination, VSS, Parking Brake, and Reverse output signals for the connected aftermarket head unit.

Features and benefits

PAC Audio RadioPRO4 technology: The HRMA004 is powered by PAC Audio RadioPRO4, arriving pre-loaded with amplifier retention software, SWC mapping, and navigation-based output signals for a faster, more complete installation compared to standard radio replacement kits.

Pre-programmed SWC retention: The steering wheel control interface is pre-programmed for Mazda 3 BL and is ready to use immediately after installation without requiring manual programming or PC configuration.

Compatible with non-amplified, Bose digital, and premium audio: Supports all standard Mazda 3 BL factory audio system configurations including non-amplified, Bose digital, and premium audio setups, with user-programmable Bose digital amplified gain, fader, and surround sound settings available after installation.

A/C compressor function retained: The A/C compressor control signal is retained through the installation, ensuring the factory climate control system continues to operate correctly after the head unit is replaced.

OE LCD display remains functional: The factory OE LCD display continues to show vehicle information including clock, MPG, estimated range, and other trip data after the factory radio is replaced. User-programmable display text during normal operation is also available.

Rear seat entertainment retained: Rear seat entertainment output is retained through the aftermarket head unit installation.

Navigation-based output signals pre-loaded: Navigation-based output signals including VSS, Parking Brake, and Reverse are pre-loaded in the interface, providing the correct trigger signals to the aftermarket head unit without additional configuration.

Provides 12V ACC, Illumination, VSS, Parking Brake, and Reverse outputs: All standard aftermarket head unit trigger outputs are available from the HRMA004 interface, covering accessory, illumination, speed pulse, parking brake, and reverse signals.

Field updatable via PAC-UP: Firmware updates are applied via the PAC-UP field update cable, keeping the interface current without replacing the module.

Antenna adaptor and mounting brackets included: A Mazda antenna adaptor and mounting brackets are included for a complete mechanical and RF installation without additional purchases.

Plug and play factory to ISO harness: Connects directly from the Mazda 3 BL factory wiring to a standard ISO connector without cutting or splicing factory vehicle wiring.

Black finish: The black fascia panel is matched to factory Mazda 3 BL interior trim for a clean, integrated appearance after installation.

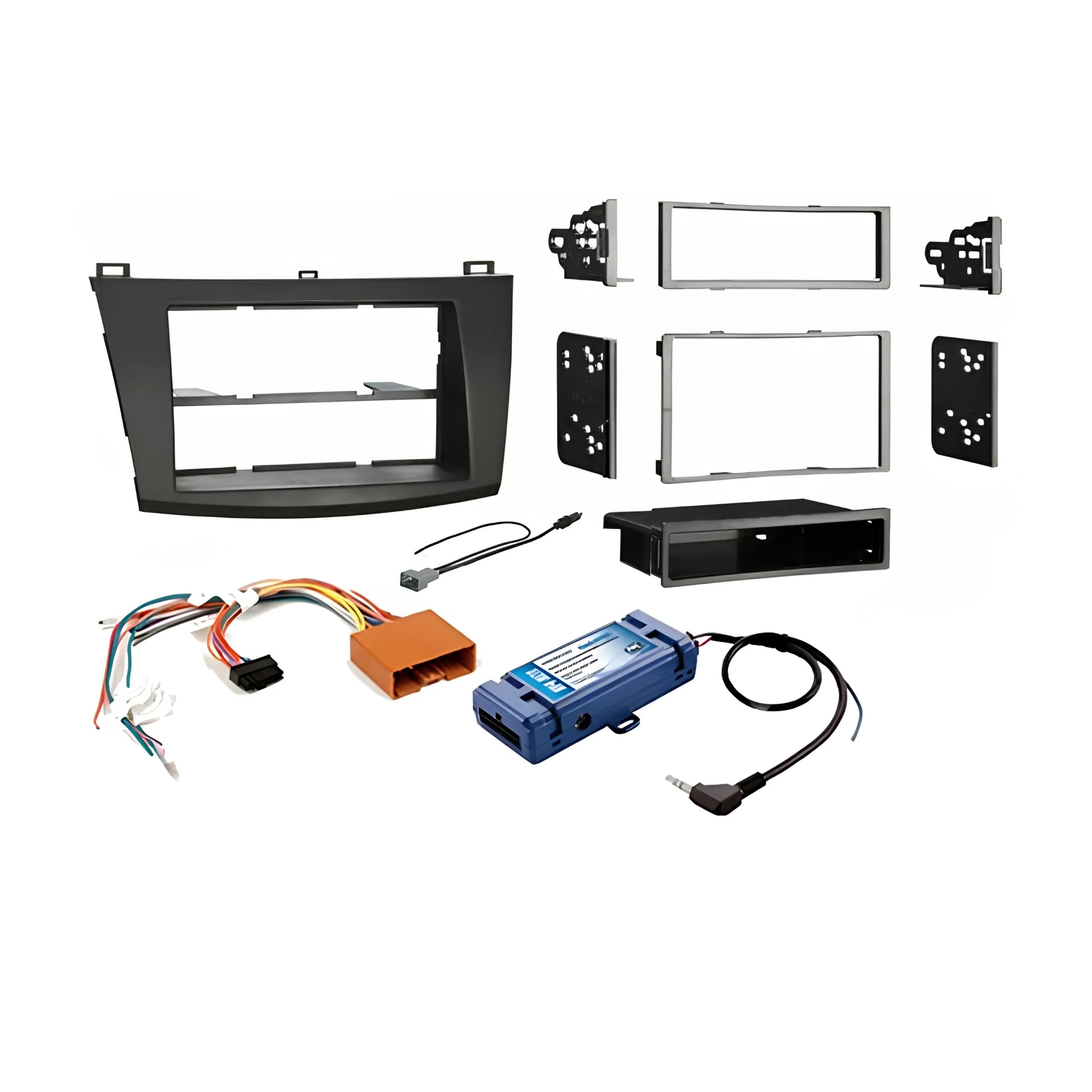

What's in the box

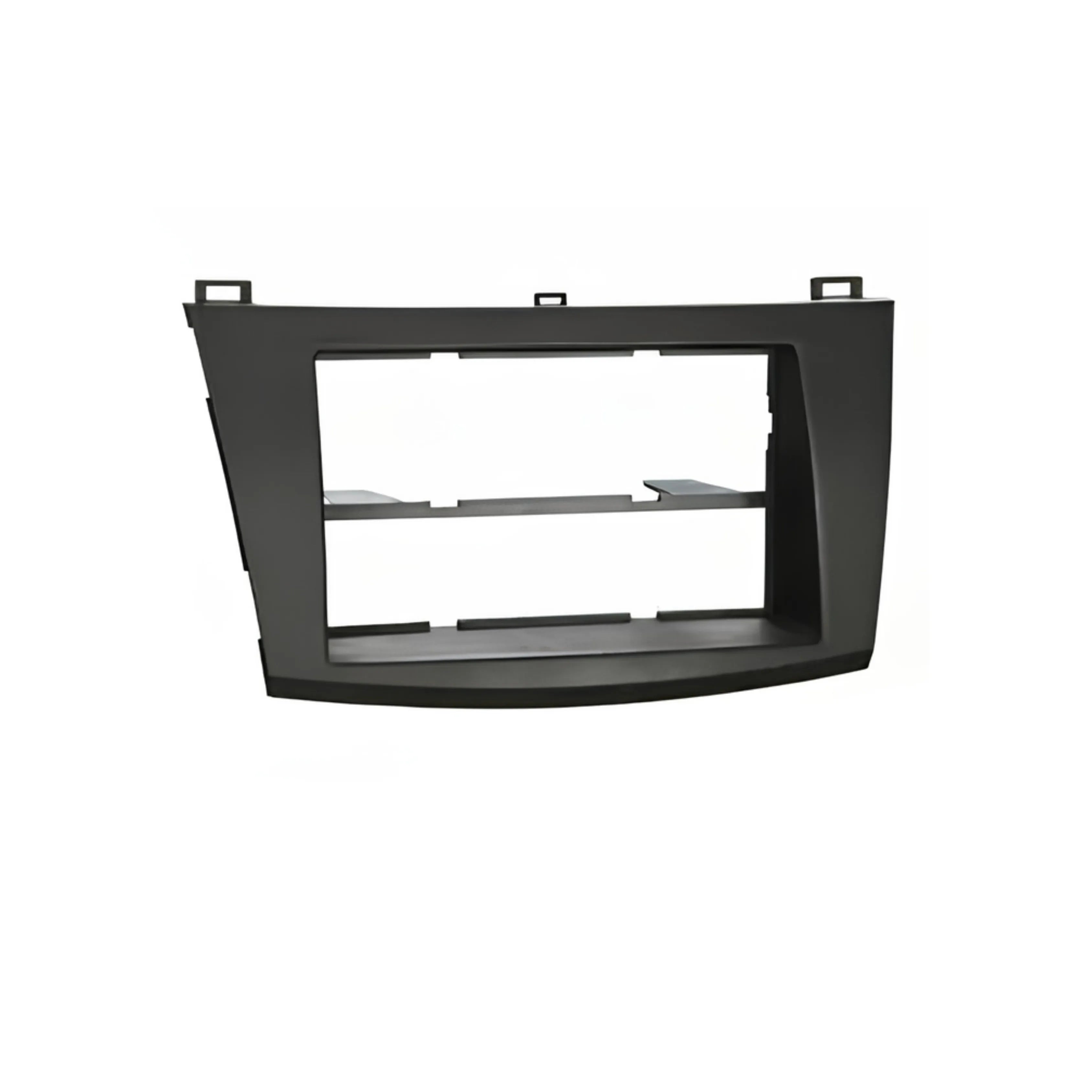

• 2DIN radio fascia panel (black)

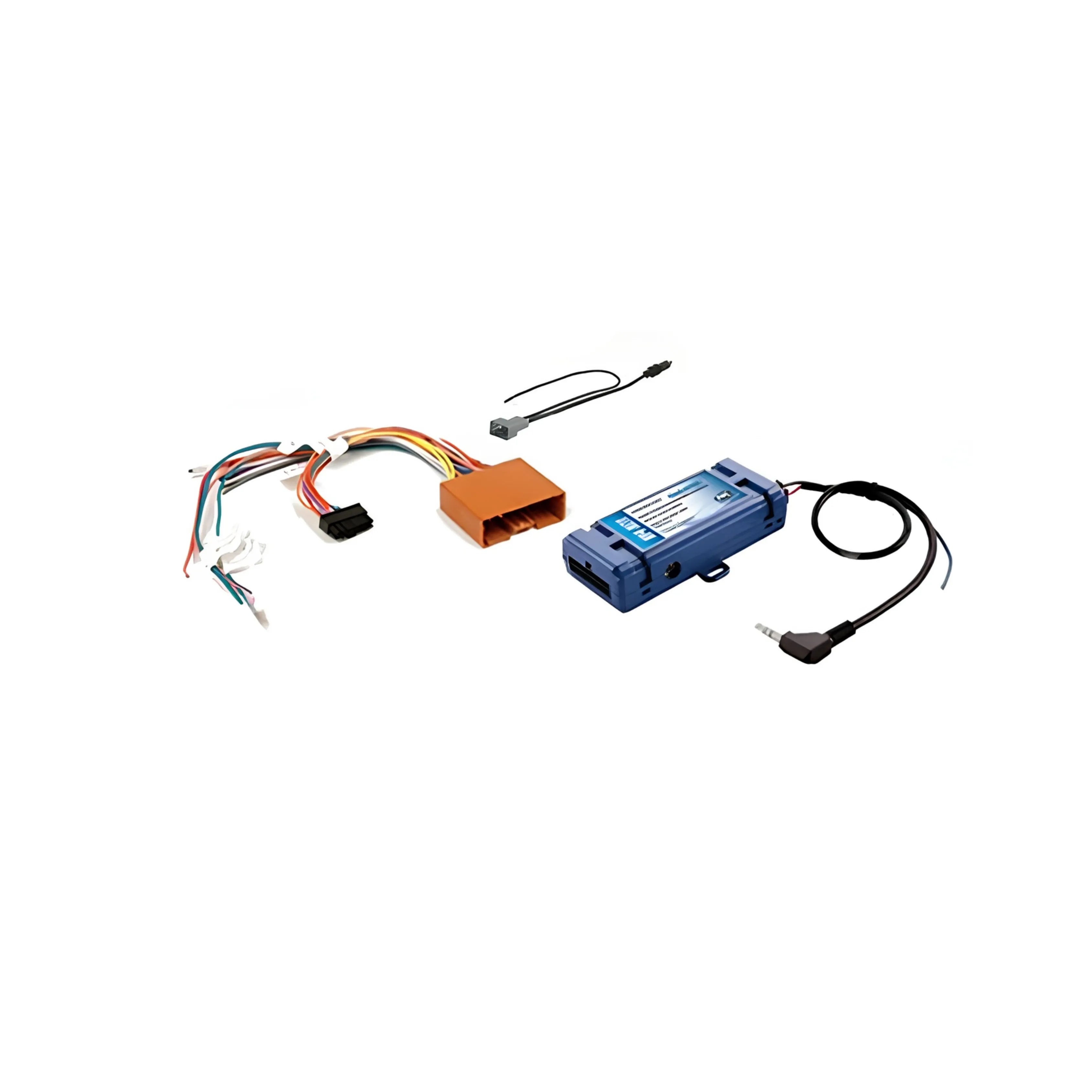

• Steering wheel audio control interface (pre-programmed, PAC RadioPRO4)
• Antenna adaptor

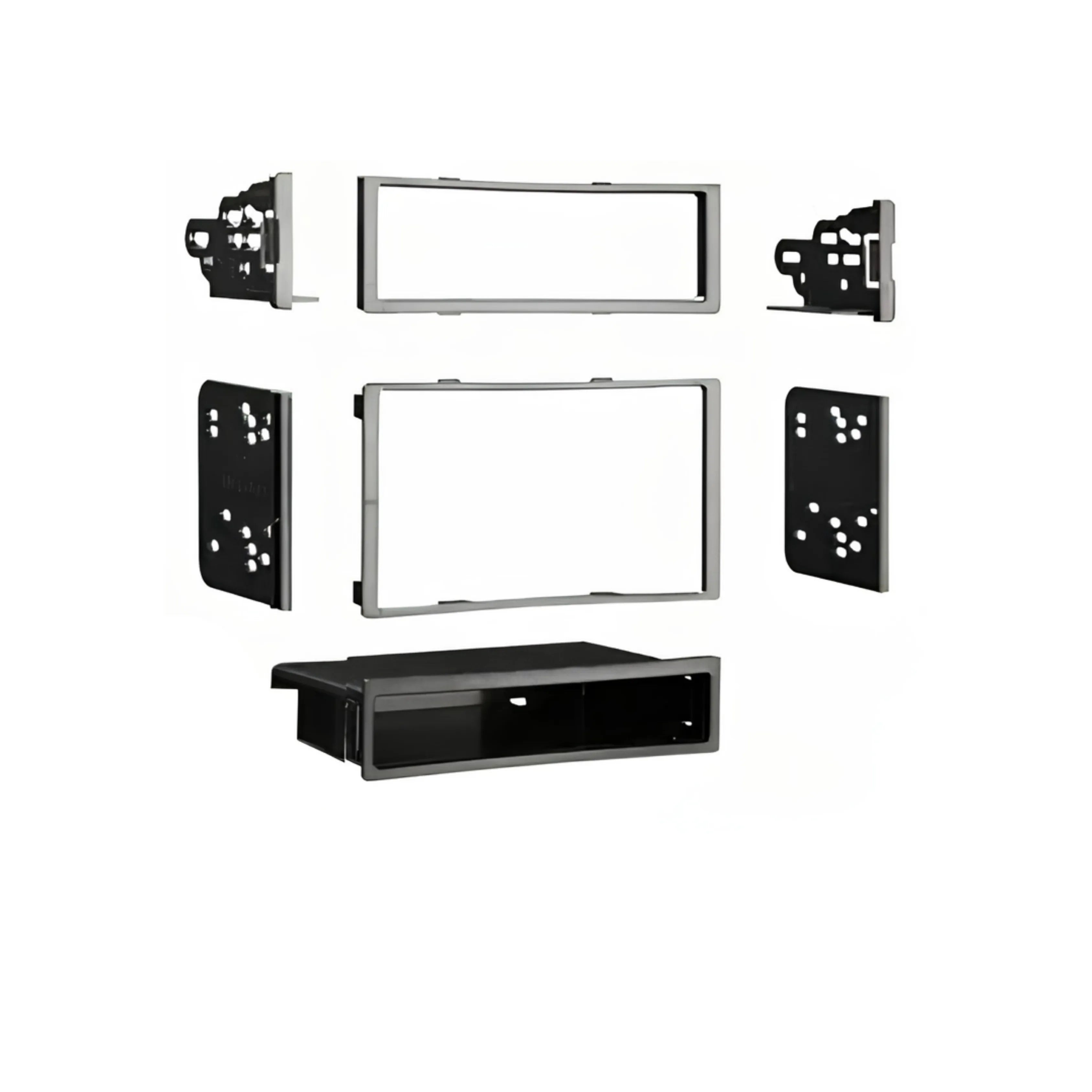

• Mounting brackets

Technical specs

Compatible with

Vehicle feature retention

Frequently asked questions

Do I need to program the steering wheel controls after installing the HRMA004?
No. The HRMA004 comes pre-programmed for the Mazda 3 BL steering wheel controls via PAC Audio RadioPRO4 technology and is ready to use immediately after installation without requiring manual programming or PC configuration.

Will the HRMA004 work with my factory Bose sound system?
Yes. The HRMA004 supports non-amplified, Bose digital, and premium audio system configurations, covering all standard Mazda 3 BL factory audio setups. User-programmable Bose digital amplified gain, fader, and surround sound settings are also available after installation.

Does the OE LCD display still work after fitting an aftermarket radio with the HRMA004?
Yes. The HRMA004 allows the OE LCD to continue displaying vehicle information including clock, MPG, and estimated range after the factory radio is replaced. User-programmable display text during normal operation is also available.

Is AUX or USB retention included with the HRMA004?
No. AUX and USB retention are not included with the HRMA004. An additional retention module or aftermarket solution will be required if factory AUX or USB connectivity needs to be carried over to the new head unit. Contact us for guidance on compatible solutions.

Is the HRMA004 compatible with all Mazda 3 BL variants?
The HRMA004 is specified for the Mazda 3 BL series (2009-2013). Contact us to confirm compatibility with your specific variant or trim level before purchasing.
