Stinger HRMA002 Double DIN Radio Panel Replacement Kit Suit Mazda 2 2007 - 2015

Complete Double DIN Upgrade for the Mazda 2 DE Fascia, Advanced SWC Interface and Antenna in One Kit

Product Overview

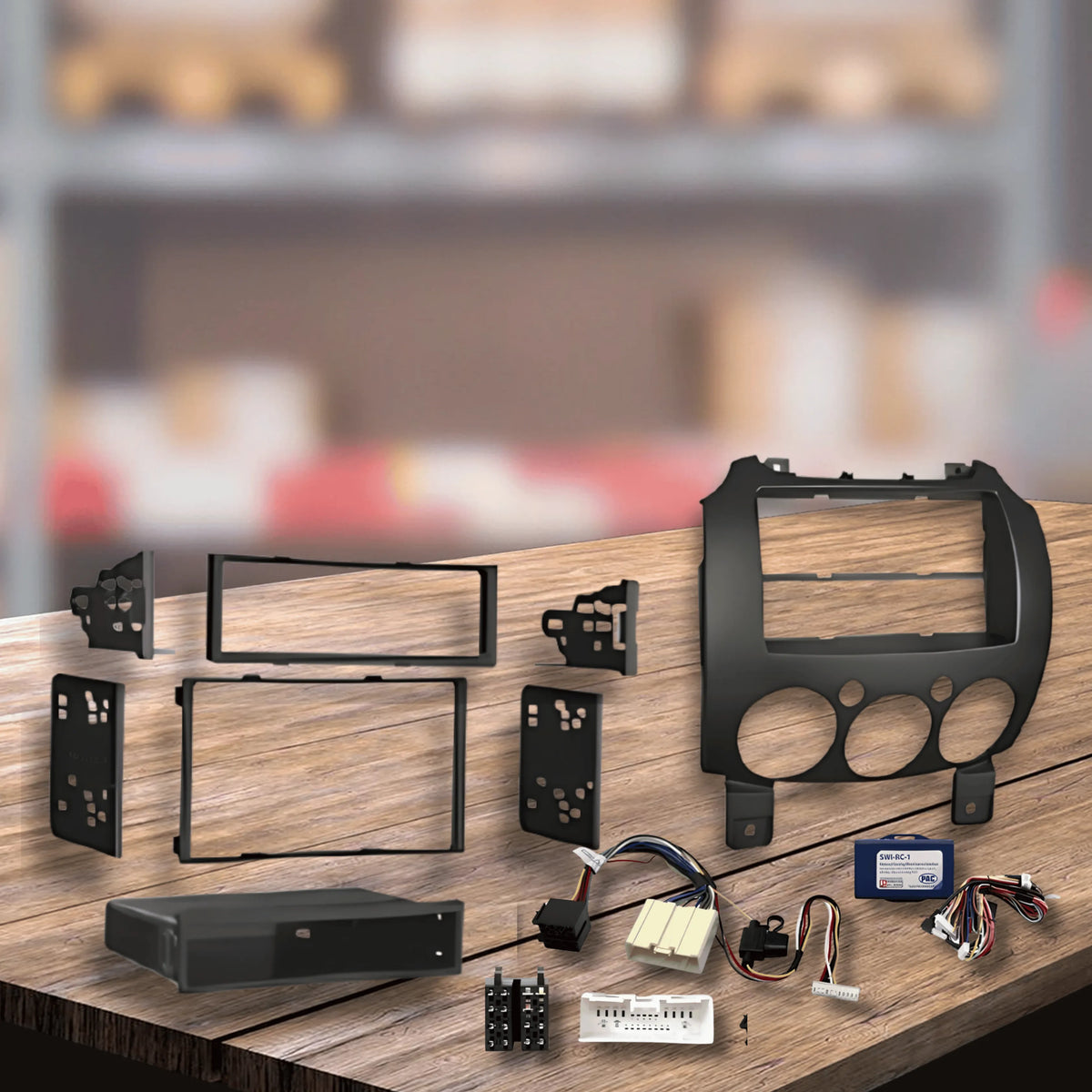

The Stinger HRMA002 is a complete radio replacement kit designed for installing an aftermarket double DIN head unit into the 2007–2015 Mazda 2 DE. This bundle goes well beyond a basic fascia kit the included SWC adaptor features a full-featured steering wheel control interface with CAN Bus accessory output, dual-function button assignment, tri-colour LED status indicator, PC and dip-switch configurability, and manual learning mode for unlisted vehicles with analogue SWC systems.

The kit connects via a plug-and-play harness from the Mazda's factory connector to a standard ISO plug, and includes both a dedicated antenna adaptor and mounting brackets. AUX and USB retention are not included. The head unit is not included.

Key Specifications

• Manufacturer Part Number: HRMA002
• Vehicle compatibility: Mazda 2 DE 2007–2015
• Head unit size: Double DIN
• Plug & Play: Yes — factory connector to standard ISO
• Antenna adaptor: Included
• Mounting brackets: Included
• AUX/USB retention: Not included
• Colour: Black
• SWC memory retention: Yes — retained on power loss
• CAN Bus accessory output: Yes
• Dual-function button assignment: Yes — short press / long press per button
• Configuration methods: PC (Autoleads application), dip switch, or manual programming
• LED status indicator: Yes — tri-colour
• Manual learning function: Yes — for unlisted vehicles with analogue SWC
• Firmware: Updatable via Autoleads PC application
• Head unit: Not included

Features & Benefits

• Complete Installation Bundle — The HRMA002 includes the 2DIN fascia panel, SWC adaptor, and antenna adaptor — all matched for the Mazda 2 DE and ready to install together.
• Advanced SWC Interface — The steering wheel control adaptor goes well beyond basic audio button retention. It supports dual-function assignment (short press and long press per button), CAN Bus accessory output, tri-colour LED status display, and is configurable via PC, dip switches, or manual programming.
• CAN Bus Accessory Output — Provides an accessory output on CAN Bus-equipped vehicles, enabling compatible head units to receive the accessory signal without additional wiring.
• Memory Retention on Power Loss — The SWC interface retains its programming through battery disconnection, so workshop visits and flat batteries won't reset the configuration.
• PC Updatable Firmware — The SWC module is updatable via the Autoleads PC application, allowing configuration updates and compatibility improvements without hardware replacement.
• Manual Learning Mode — Equipped with a manual learning function for compatibility with unlisted vehicles that use analogue steering wheel controls, extending usability beyond the confirmed Mazda 2 fitment.
• Plug & Play Harness — Connects directly to the Mazda 2 DE's factory connector and converts to standard ISO — no splicing, no soldering, fully reversible.
• Antenna Adaptor & Mounting Brackets Included — Both the antenna adaptor and mounting brackets are supplied, reducing the number of additional parts needed to complete the installation.

Technical Specs

Compatible With / Goes Well With

• Mazda 2 DE 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
• Standard double DIN aftermarket head units with ISO connector
• Vehicles with analogue steering wheel controls (via manual learning mode)

Caution: AUX and USB retention are not included with this kit. If retaining factory AUX or USB connectivity is required, an additional retention harness will be needed. Always verify compatibility with your specific Mazda 2 DE variant before purchase.

Frequently Asked Questions

Does the HRMA002 include the head unit?

No — the head unit is not included. The HRMA002 provides the 2DIN fascia panel, SWC adaptor, and antenna adaptor needed to install an aftermarket double DIN head unit into the Mazda 2 DE.

What makes the SWC interface in this kit different from a basic steering wheel adaptor?

The HRMA002's SWC module supports dual-function button assignment (short press and long press per button), CAN Bus accessory output, tri-colour LED status indication, and is configurable via PC, dip switches, or manual programming. It can also be updated via the Autoleads PC application and includes a manual learning mode for compatibility with unlisted analogue SWC vehicles.

Does the kit include an antenna adaptor and mounting brackets?

Yes — both an antenna adaptor and mounting brackets are included with the HRMA002, covering the most commonly needed installation hardware beyond the fascia and harness.

Is AUX or USB retention included?

No — AUX and USB retention are not included with the HRMA002. If retaining factory AUX or USB connectivity is a requirement, an additional retention harness compatible with the Mazda 2 DE will be needed.

Can the SWC interface be used with vehicles other than the Mazda 2?

The HRMA002 is designed for the Mazda 2 DE, but the SWC module includes a manual learning function that supports compatibility with unlisted vehicles equipped with analogue steering wheel controls. Compatibility with specific other vehicles is not confirmed by the supplier.
