Stinger HR9-NS001 9 Inch Complete Install Kit for Pioneer DMH-AP6650BT in Nissan Navara 2015 to 2019 SL ST STX with SWC Nav Outputs Reverse Camera and USB Retention

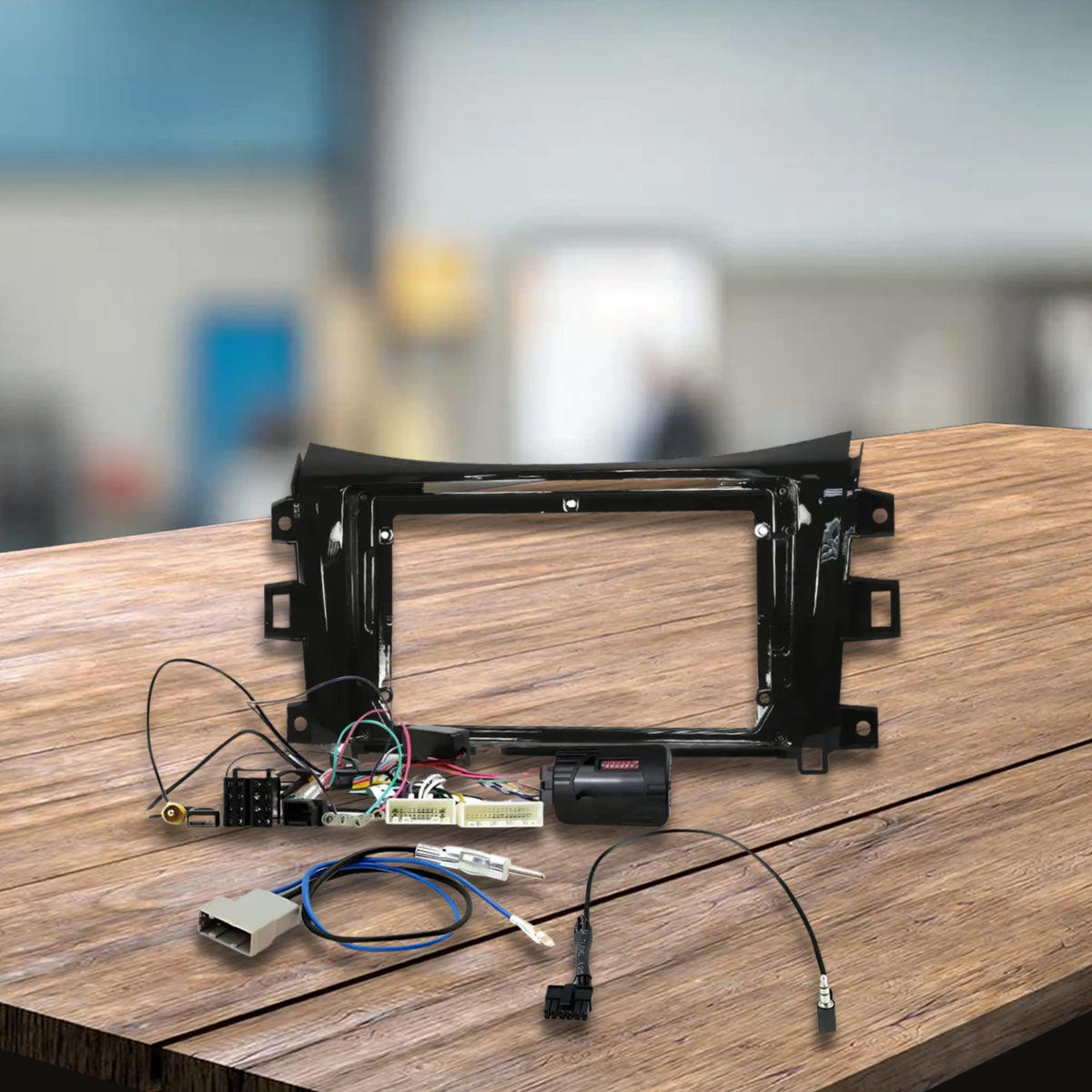

The Stinger HR9-NS001 is a complete radio installation kit for fitting the Pioneer DMH-AP6650BT 9-inch head unit into the 2015 to 2019 Nissan Navara SL, ST, and STX (non-amplified models only). Includes a 9-inch flush-fit gloss black fascia, plug-and-play 20-pin and 32-pin to ISO wiring harness, steering wheel control interface, antenna adaptor, USB retention, and reverse camera retention. Navigation outputs including reverse, park, ignition, illumination, and VSS are provided, and the MFD clock can be set via the interface. Not compatible with factory-amplified variants or the factory 360-degree camera system. AUX retention is not included. The Pioneer DMH-AP6650BT head unit is not included.
Product overview
The HR9-NS001 is engineered specifically for the Navara's dash and factory wiring, covering everything needed for a clean installation of the Pioneer DMH-AP6650BT. The plug-and-play harness connects to the Navara's 20-pin and 32-pin factory connector configuration and converts to standard ISO with no splicing, soldering, or permanent wiring changes.
The SWC interface retains factory steering wheel audio buttons on compatible aftermarket radios and holds its programming through power loss, so battery disconnection will not reset the setup. Navigation outputs covering reverse, park, ignition, illumination, and VSS signals allow proper navigation and safety feature integration with the Pioneer head unit. The interface also allows the Navara's multi-function display clock to be adjusted and set after installation.
Reverse camera retention passes the standard factory camera signal to the Pioneer head unit. The 360-degree camera system is not supported. Factory USB is retained via the included harness; AUX is not retained. Factory amplifier retention is not supported.
This kit suits non-amplified SL, ST, and STX grades only. Confirm your Navara's grade, audio configuration, and camera system before purchasing.
Features and benefits
9-inch flush-fit gloss black fascia: Purpose-moulded for the Navara's dash for a factory-finish result around the Pioneer DMH-AP6650BT.
Plug-and-play harness (20-pin and 32-pin to ISO): Connects to the Navara's factory connector configuration and converts to standard ISO with no splicing or permanent wiring changes.
Steering wheel audio control retention: Retains factory steering wheel audio buttons with compatible aftermarket radios. SWC programming is retained through power loss.
Full navigation outputs: Reverse, park, ignition, illumination, and VSS signal outputs for proper navigation and safety feature integration.
MFD clock adjustment: Allows the Navara's multi-function display clock to be set after installation.
Reverse camera retention: Passes the standard factory reverse camera signal to the Pioneer head unit. Not compatible with the 360-degree camera system.
USB retention: Factory USB port retained via the included harness. AUX retention is not included.
Antenna adaptor included: Factory FM/AM reception maintained without additional parts.
Non-amplified models only: Not compatible with factory-amplified Navara variants. Factory amplifier is not retained.
Head unit not included: The Pioneer DMH-AP6650BT is sold separately.
Technical specs
| Specification | Detail |
|---|---|
| SKU | HR9-NS001 |
| Brand | Stinger |
| Colour | Gloss black |
| Vehicle Plug Style | 20-pin and 32-pin Nissan connectors |
| Output | Standard ISO connector |
| Fascia Size | 9-inch flush fit |
| Plug and Play | Yes, factory to ISO, no splicing required |
| Steering Wheel Audio Controls | Retained (compatible aftermarket radios) |
| SWC Memory | Retained on power loss |
| Navigation Outputs | Reverse, park, ignition, illumination, VSS |
| MFD Clock Adjustment | Yes |
| Reverse Camera Retention | Yes, standard reverse camera only |
| 360-Degree Camera Compatibility | Not compatible |
| USB Retention | Yes, USB only |
| AUX Retention | Not included |
| Antenna Adaptor | Included |
| Factory Amplifier Retention | No |
| Head Unit Compatibility | Pioneer DMH-AP6650BT |
Compatible with
Nissan Navara 2015 to 2019, SL, ST, and STX grades, non-amplified factory audio only.
Not compatible with factory-amplified variants or vehicles fitted with the factory 360-degree camera system.
Frequently asked questions
Does the HR9-NS001 include the Pioneer DMH-AP6650BT head unit? No. The Pioneer DMH-AP6650BT is sold separately. The HR9-NS001 is the installation kit providing the fascia, harness, SWC interface, antenna adaptor, USB retention, and reverse camera retention needed to fit that head unit into compatible Navara models.
Which Navara grades is this kit compatible with? This kit suits 2015 to 2019 Nissan Navara SL, ST, and STX grades with non-amplified factory audio. It is not compatible with factory-amplified variants or vehicles fitted with the factory 360-degree camera system.
Will this kit retain my factory steering wheel controls and reverse camera? Yes to both. The SWC interface retains audio button functions with compatible aftermarket radios, and the reverse camera retention passes the standard factory camera signal to the Pioneer head unit. The 360-degree camera system is not supported. SWC programming is retained through power loss.
What navigation outputs does this kit provide? The interface provides reverse, park, ignition, illumination, and VSS signal outputs to the Pioneer head unit. It also allows the Navara's multi-function display clock to be adjusted and set after installation.
Is the factory USB port retained and what about AUX? Yes. USB is retained via the included harness, keeping the factory USB port functional with the Pioneer head unit. AUX retention is not included with this kit.
